VOLVO S60 2012 Owner´s Manual

04 Comfort and driving pleasure
Menus and messages
04

* Option/accessory, for more information, see Introduction.131 Main instrument panel
G022908
Information display and menu controls
READ – access to the list of messages and
message confirmation.
Thumbwheel – browse among menus and
options in the list of functions.
RESET – reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.
The menus shown on the information displays
in the instrument panel are controlled with the
left lever. The menus shown depend on ignition
mode. Press READ to erase a message and
return to the menus.
Menu overviewDriving distance on current fuel reserveAverage
Instantaneous
Average speed
Current speed in mph (Canadian models
only)
Engine oil level*
Calibrate tire pressure
Messages
G028940
When a warning, information or indicator sym-
bol comes on, a corresponding message
appears on the information display. An error
message is stored in a memory list until the
fault is rectified.Press READ to acknowledge and scroll among
the messages.
NOTE
If a warning message appears while you are
using the trip computer, the message must
be read and confirmed by pressing READ
before the previous activity can be
resumed.
MessageDescription
Stop safelyStop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.
Stopping the
engineStop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.
Service urgentHave the vehicle
checked by an
authorized Volvo
workshop immedi-
ately.

04 Comfort and driving pleasure
Menus and messages
04
132

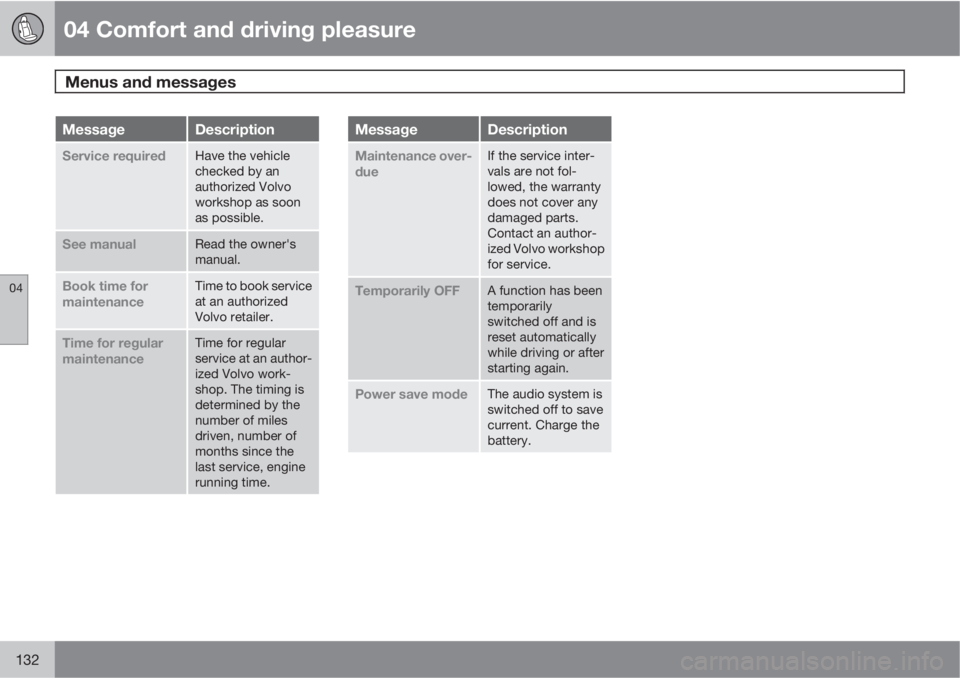

MessageDescription
Service requiredHave the vehicle
checked by an
authorized Volvo
workshop as soon
as possible.
See manualRead the owner's
manual.
Book time for
maintenanceTime to book service
at an authorized
Volvo retailer.
Time for regular
maintenanceTime for regular
service at an author-
ized Volvo work-
shop. The timing is
determined by the
number of miles
driven, number of
months since the
last service, engine
running time.
MessageDescription
Maintenance over-
dueIf the service inter-
vals are not fol-
lowed, the warranty
does not cover any
damaged parts.
Contact an author-
ized Volvo workshop
for service.
Temporarily OFFA function has been
temporarily
switched off and is
reset automatically
while driving or after
starting again.
Power save modeThe audio system is
switched off to save
current. Charge the
battery.

04 Comfort and driving pleasure
The MY CAR menus
04

133 Introduction
The menu system provides access to
menus for operating many of the vehi-
cle's functions, such as setting the
clock, door mirrors, locks, etc.
Navigating in the menus is done using the but-
tons on the center console control panel or with
the right-side steering wheel keypad.
Some of the features mentioned in this section
are optional.
Operation
Center console controls
Center console controls for menu navigation
Press MY CAR to access the My Car
menus.
Press OK/MENU to select a highlighted
selection or to store a certain function in
the system's memory.
Turn to navigate up/down among menu
selections.
EXIT
EXIT functionsEXIT can be used to go back in the menu
structure or to cancel the most recent selec-
tion. The results of pressing EXIT vary,
depending on where you are in the menu struc-
ture.
•Press EXIT briefly to go back one step at a
time in the current menu.
•Press and hold EXIT to go to the main MY
CAR menu.
•From the main MY CAR menu, press and
hold EXIT to go to the infotainment sys-
tem's main view. See page 208 for addi-
tional information.
Steering wheel keypad
The keypad varies according to the vehicle's
equipment
Turn the thumb wheel to go up/down
among menu selections. Press the thumb
wheel to make a selection or store a func-
tion in the system's memory.
EXIT.

04 Comfort and driving pleasure
The MY CAR menus
04
134
PathsThe current menu level is displayed at the
upper right of the center console display. Menu
paths are displayed as follows, for example:
Settings
Car settingsLock settings
Doors unlockDriver door, then all
The following is an example of how to set a
function in the menu system:
1.
Press the MY CAR button on the center
console control panel.
2. Navigate to a menu, for example
Settings using the thumb wheel (1) and
press it to open a submenu.
3. Navigate to the desired submenu such as
Car settings.
4.
Navigate to
Lock settings and press the
thumb wheel to open a new submenu.
5.
Navigate to
Doors unlock and press the
thumb wheel to open a submenu with alter-
natives that can be selected.
6. Use the thumb wheel to move to the
desired choice and press the thumb wheel
to put an X in the box.
7. Finish by exiting the menu system either
one step at a time with short presses onEXIT (2) or press and hold this button to
return to the main menu.
The OK/MENU (2), EXIT (4) and control (3) in
the center console can be used in the same
way.
MY CAR
When the MY CAR symbol has been selected,
the following menu alternatives are displayed.
•My S60
•Support systems
•Settings
My S60
MY CARMy S60
The display shows all of the vehicle's driver
support systems, which can be activated/
deactivated here.

04 Comfort and driving pleasure
The MY CAR menus
04

135
Driver support systems
MY CARSupport systems
(MY CAR > Support systems)
The screen shows the current status (settings)
for the vehicle's driver support systems.
Menu settings
The following pages list the main menus/sub-
menus and possible selections.
Car key memory
See pages 90 and 55 for more information.
Lock settings
Automatic door lockingDoors unlock
All doors
Driver door, then all
Keyless entry
All doors
Any door
Doors on same side
Both front doors
Audible confirmation
See page 55 and 63 for more information.
Reduced Guard
Activate once
Ask when exiting
See page 73 for more information.
Side mirror settings
Fold mirrors
Tilt left mirror
Tilt right mirror
See page 106 for more information.
Light settings
Door lock confirmation light
Unlock confirmation lightSee page 55 for more information.
Approach light duration
Off
30 sec
60 sec
90 sec
See page 57 for more information.
Home safe light duration
30 sec
60 sec
90 sec
See page 100 for more information.
Triple indicator
See page 99 for more information.
Daytime running lights
See page 96 for more information.
Active bending lights
See page 97 for more information.
Tire pressure system
Warns if tire pressure is too low

04 Comfort and driving pleasure
The MY CAR menus
04
136
Calibrate tire pressure
See page 293 for more information.
Steering wheel force
High
Medium
Low
See page 152 for more information.
Reset car settings
This feature returns the "Car settings" menu to
the original factory settings.
MY CARSettingsDriver support
systems
Collision Warning
Collision Warning
Warning distance
Long
Normal
Short
Warning sound
See page 175 for more information.Lane Departure Warning
Lane Departure Warning
On at start-up
Increased sensitivity
See page 184 for more information.
DSTC
See page 149 for more information.
City Safety
See page 168 for more information.
BLIS
See page 195 for more information.
Distance Alert
See page 165 for more information.
Driver Alert
See page 181 for more information.
MY CARSettingsSystem options
Set/change time
See page 84 for more information.
Time format
12 h
24 hScreensaver
The contents of the screen are replaced by
another image if this selection is marked. The
contents of the screen will be displayed again
if one of the buttons (1-4) is pressed, see
page 133.
Uncheck the selection to turn the screen saver
off.
Language
Select the language for menu texts.
Show help text
This displays help texts for the current menu.
Distance and fuel units
MPG (UK)
MPG (US)
km/l
l/100km
See page 147 for more information about the
trip computer.
Temperature unit
Celsius
Fahrenheit
Select the temperature scale to be displayed
by the climate control unit.

04 Comfort and driving pleasure
The MY CAR menus
04

137
Volume levels
Voice output volume
Front park assist volume
Rear park assist volume
Phone ringing volume
Reset system options
This feature returns the "System options"
menu to the original factory settings.
MY CARSettingsVoice settingsA.
AOnly on vehicles with the optional Volvo Navigation System
and/or a BluetoothŸ-connected cell phone
Voice tutorial
Select this menu alternative and press OK for
spoken information about how the system
works.
Voice command list
Phone commands
Phone
Phone call contact
Phone dial number
Navigation commands
NavigationNavigation repeat instruction
Navigation go to address
General commands
Help
Cancel
Voice tutorial
The menu alternatives under
Phone
commands show examples of the voice com-
mands available when a cell phone is con-
nected to the Bluetooth
Ÿ hands-free system.
See page 240 for more detailed information.
The menu alternatives under
Navigation
commands show examples of the voice com-
mands available for the optional Volvo
Navigation System. Refer to the navigation
system's manual for detailed information.
Voice user setting
Default setting
User 1
User 2
Two user profiles can be set, which is useful if
more than one person uses voice commands
regularly.
Default setting resets the factory
settings.Voice training
User 1
User 2
Voice training enables the system to become
familiar with the driver's voice and pronuncia-
tion. A list of phrases is presented on the
screen for the driver to read aloud. When the
system has registered the driver's pronuncia-
tion, no additional phrases will be displayed.
After completed voice training, select
User 1or User 2 in Voice user setting to set the sys-
tem to the current user.
Voice output volume
•A volume control will be displayed. To set
the volume level:
1. Adjust the volume using the thumb wheel
2.
Test the setting by pressing OK
3. Store the setting and leave the menu by
pressing EXIT.
Voice POI list
Edit list
The navigation system has a large number of
points of interest (POIs). A maximum of 30 POIs
can be stored in this list.
The menu alternative
Voice POI list is only
displayed if the vehicle is equipped with the

04 Comfort and driving pleasure
The MY CAR menus
04
138
optional Volvo Navigation System. Refer to the
navigation system's manual for detailed infor-
mation.
MY CARSettingsAudio settings
See page 204 for more information about the
infotainment system.
MY CARSettingsClimate settings
Automatic blower adjustment
Normal
High
Low
Recirculation timer
Automatic rear defroster
Interior air quality system
Reset climate settings
This feature returns the "Climate settings"
menu to the original factory settings.
For more information about the climate sys-
tem, see page 139.
MY CARSettingsFavorites (FAV)
See page 210 for more information about this
feature.
MY CARSettingsInformation
Number of keys
See page 54 for more information.
VIN number
See page 335 for more information.
DivX® VOD code
See page 225 for more information.
Bluetooth software version in car
See page 231 for more information.
Map and software version
Refer to the optional Volvo Navigation System
manual for more information.

04 Comfort and driving pleasure
Climate system
04

* Option/accessory, for more information, see Introduction.139 Introduction
Air conditioningThe vehicle is equipped with Electronic Climate
Control (ECC). The climate control system
cools, heats or dehumidifies the air in the pas-
senger compartment.
NOTE
•The air conditioning can be switched
off, but to ensure the best possible cli-
mate comfort in the passenger com-
partment and to prevent the windows
from misting, it should always be on.
•In warm weather, a small amount of
water may accumulate under the car
when it has been parked. This water is
condensation from the A/C system and
is normal.
Sensor location
•The sunlight sensor is located on the top
side of the dashboard.
NOTE
The sunlight sensor monitors which side of
the car that is most exposed to sunlight.
This can mean that the temperature may
differ between the right and left-side air
vents, even if the temperatures set for both
sides of the passenger compartment are the
same.
•The temperature sensor for the passenger
compartment is located below the climate
control panel.
•The outside (ambient) temperature sensor
is located on the door mirror.
•The humidity sensor* is located in the inte-
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and moonroofTo ensure that the air conditioning works opti-
mally, the side windows, and the optional
moonroof should be closed.
Fog on the inside of the windowsThe defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-mercially available window washing spray will
also help prevent fogging or misting.
Vents in the parcel shelf
NOTE
The air vents at the rear of the parcel shelf
should never be obstructed.
Temporary shut-off of the air
conditioning
The air conditioning is momentarily disen-
gaged during full-throttle acceleration or when
driving uphill with a trailer. This may result in a
temporary increase in cabin temperature.
Ice and snowAlways keep the air intake grille at the base of
the windshield free of snow.
Climate system maintenanceSpecial tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.
RefrigerantVolvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The air condi-

04 Comfort and driving pleasure
Climate system
04
140
tioning system contains 1.8 lbs (820 g) of
R134a. The systems uses PAG oil.
Passenger compartment filterReplace the cabin air filter with a new one at
the recommended intervals. Please refer to
your Warranty and Service Records Informa-
tion booklet, or consult a trained and qualified
Volvo service technician for these intervals.
The filter should be replaced more often when
driving under dirty and dusty conditions. The
filter cannot be cleaned and therefore should
always be replaced with a new one.
NOTE
There are different types of cabin air filters.
Ensure that the correct type is installed.
Interior Air Quality System (IAQS)A multifilter helps reduce gases and particles
in the incoming air, thereby reducing the levels
of odors and contaminants entering the vehi-
cle. The air quality sensor detects increased
levels of contaminants in the outside air. When
the air quality sensor detects contaminated
outside air, the air intake closes and the air
inside the passenger compartment is recircu-
lated, i.e. no outside air enters the vehicle. The
filter also cleans recirculated passenger com-
partment air.
NOTE
Contact your Volvo retailer for IAQS air filter
replacement intervals.
Materials used in the cabinThe materials used in the cabin have been
developed to help minimize the amount of dust
and make the cabin easier to keep clean. All
floor mats can be easily removed for cleaning.
Use car cleaning products recommended by
Volvo. See also the information beginning on
page 328.
Menu settingsThe default settings for four of the climate sys-
tem's functions can be changed in the menu
system.
•Blower speed in automatic mode.
•Recirculation timer for passenger com-
partment air.
•Automatic rear window defrosting.
•The optional Interior Air Quality System
(IAQS).
The functions can also be returned to factory
settings in the menu system.
See page 133 for a description of the menu
system.
Air distribution
The incoming air is distributed from a number
of different vents in the passenger compart-
ment.
Air distribution is fully automatic in AUTO
mode.
If desired, air distribution can be controlled
manually, see page 146.
