VOLVO S60 2012 Owner´s Manual

08 Maintenance and specifications
Vehicle care
08
331
4. If there is a longer scratch, you may want
to protect surrounding paint by masking it
off
5. After a few days, polish the touched-up
areas. Use a soft rag and a small amount
of polish.

332
Label information.................................................................................. 334
Specifications........................................................................................ 336
Overview of information and warning symbols..................................... 343
Volvo programs..................................................................................... 346

SPECIFICATIONS

09 Specifications
Label information 09
334

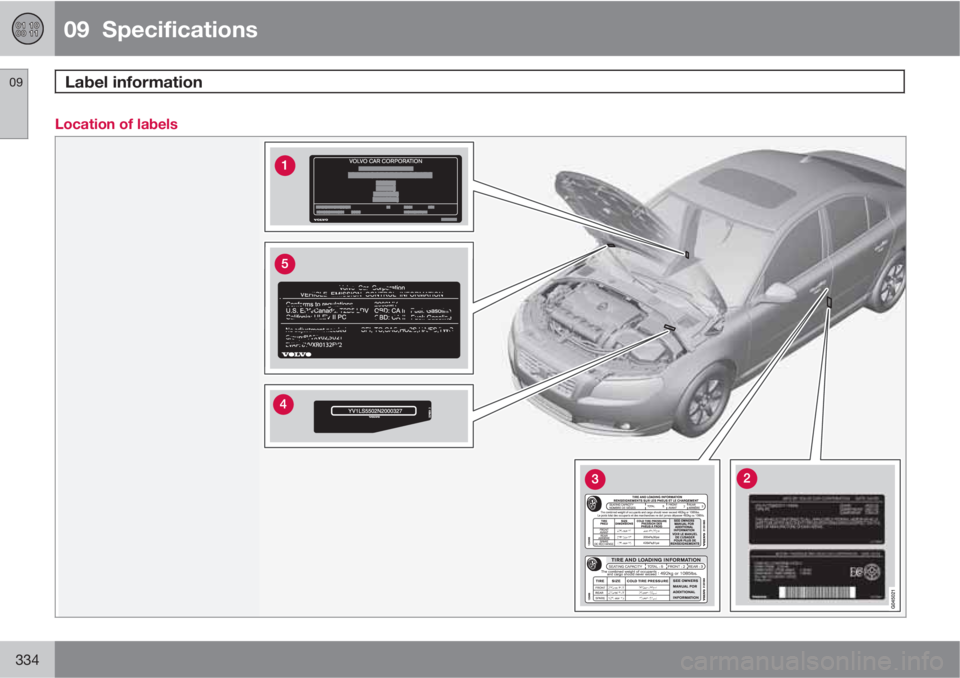

Location of labels

09 Specifications
Label information09
335 List of labels
Model
plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc. The
model plate is located on the rear side of
the B-pillar (the pillar between the front and
rear passenger doors) and the rear pas-
senger's door must be open in order to see
it.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Tire inflation
pressures. This label indicates the correct
inflation pressures for the tires that were on
the vehicle when it left the factory. Cana-
dian models have the upper decal; U.S.
models have the lower one.
Vehicle Identification Number
(VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle
Identification Number (VIN) should always
be quoted in all correspondence concern-
ing your vehicle with the retailer and when
ordering parts.
Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

09 Specifications
Specifications 09
336

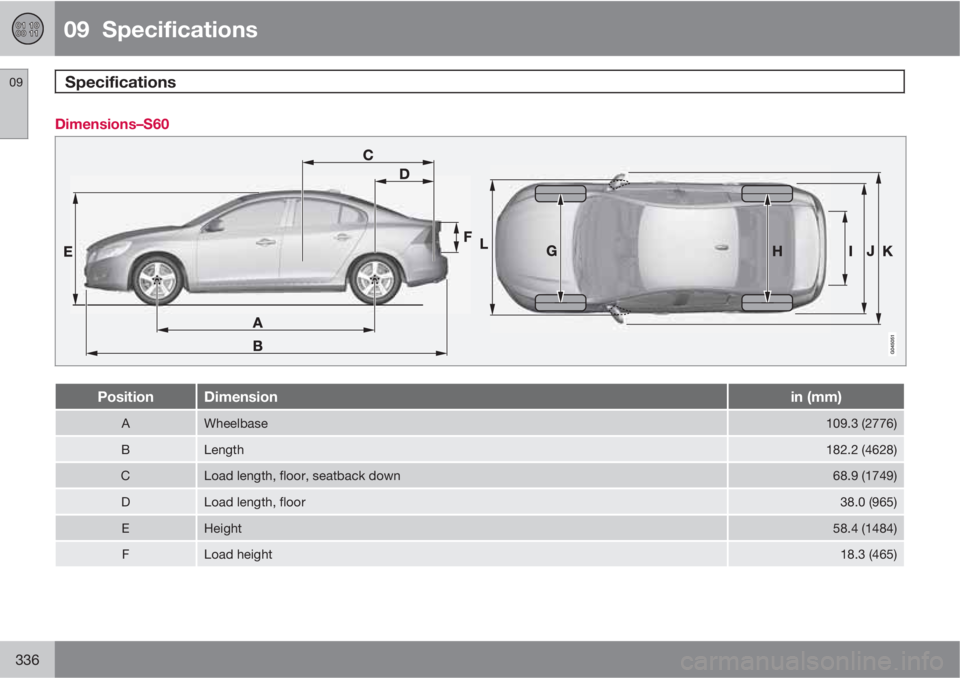

Dimensions–S60
PositionDimensionin (mm)
AWheelbase109.3 (2776)
BLength182.2 (4628)
CLoad length, floor, seatback down68.9 (1749)
DLoad length, floor38.0 (965)
EHeight58.4 (1484)
FLoad height18.3 (465)

09 Specifications
Specifications09

337
PositionDimensionin (mm)
GTrack, front62.5 (1588)A/
62.1 (1578)
B
HTrack, rear62.4 (1585)A/
62.0 (1575)
B
ILoad width, floor36.2 (919)
JWidth73.4 (1865)
KWidth incl. door mirrors (folded out)82.6 (2097)
LWidth incl. door mirrors (folded in)74.8 (1899)
Awith 16" wheelsBwith 17" wheels
Weights
CategoryUSACanada
Gross vehicle weight
5-cyl. FWD
A
6-cyl. AWDB
4610 lbs
5050 lbs2090 kg
2290 kg
Capacity weight
5-cyl. FWD
6-cyl. AWD1025 lbs
1200 lbs465 kg
545 kg

09 Specifications
Specifications 09
338

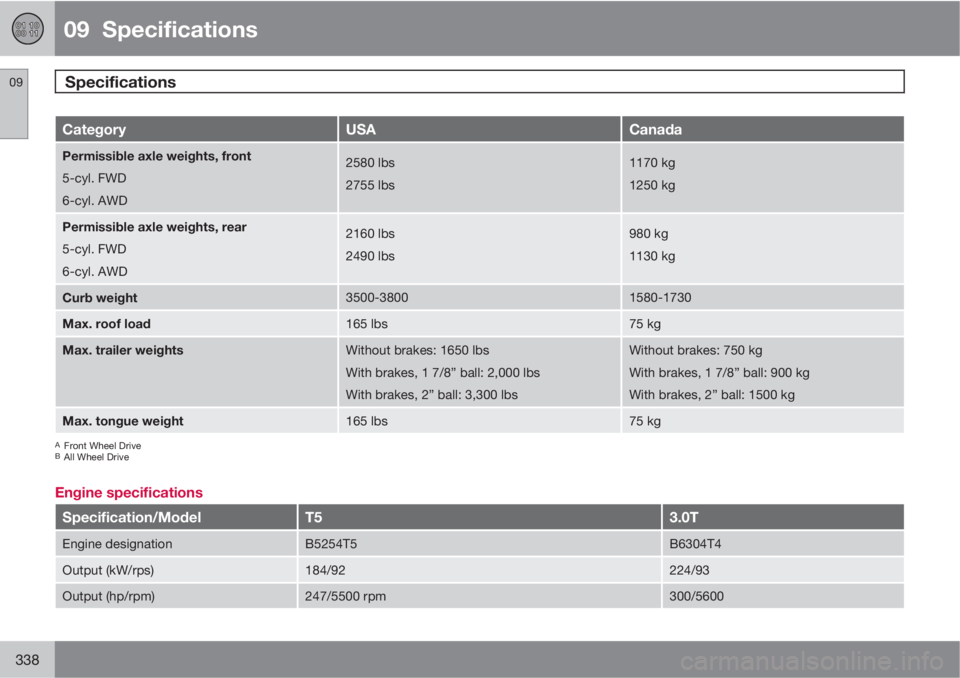

CategoryUSACanada
Permissible axle weights, front
5-cyl. FWD
6-cyl. AWD2580 lbs
2755 lbs1170 kg
1250 kg
Permissible axle weights, rear
5-cyl. FWD
6-cyl. AWD2160 lbs
2490 lbs980 kg
1130 kg
Curb weight3500-38001580-1730
Max. roof load165 lbs75 kg
Max. trailer weightsWithout brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFront Wheel DriveBAll Wheel Drive
Engine specifications
Specification/ModelT53.0T
Engine designationB5254T5B6304T4
Output (kW/rps)184/92224/93
Output (hp/rpm)247/5500 rpm300/5600

09 Specifications
Specifications09

339
Specification/ModelT53.0T
Torque (Nm/rps)360/30-67440/35 – 70
Torque (ft. lbs./rpm)266/1800-4000325/2100 – 4200
No. of cylinders56
Bore (in/mm)3.27/833.23/82
Stroke (in/mm)3.67/93.23.67/93.2
Displacement2.52 liters / (153.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio9.0:19.3:1
Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are

09 Specifications
Specifications 09
340
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.

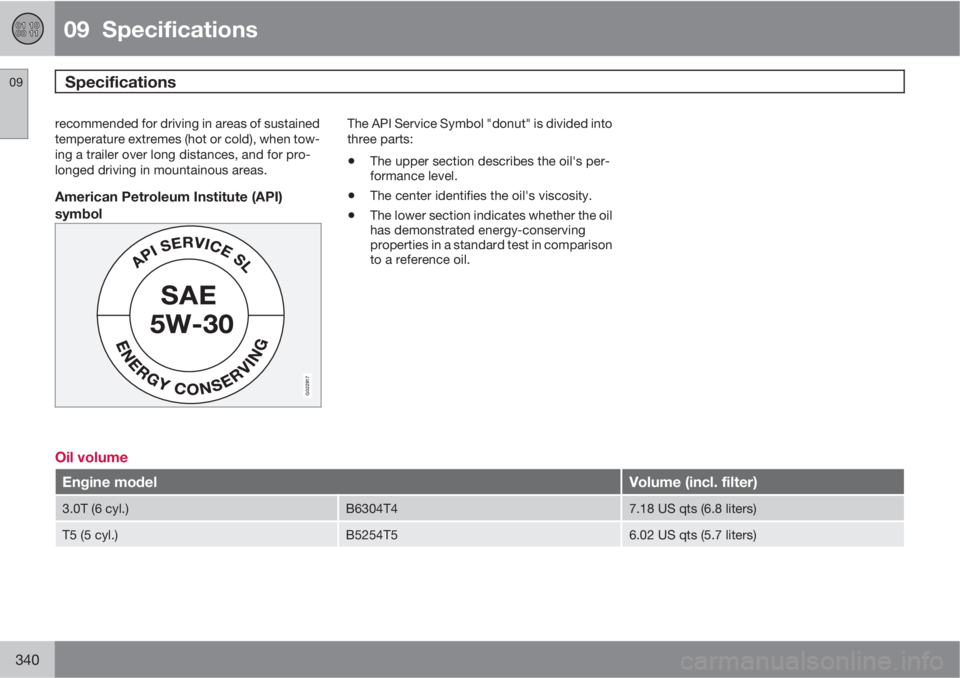

American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.
Oil volume
Engine modelVolume (incl. filter)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
T5 (5 cyl.)B5254T56.02 US qts (5.7 liters)
