compression ratio VOLVO S60 2012 Owner´s Manual

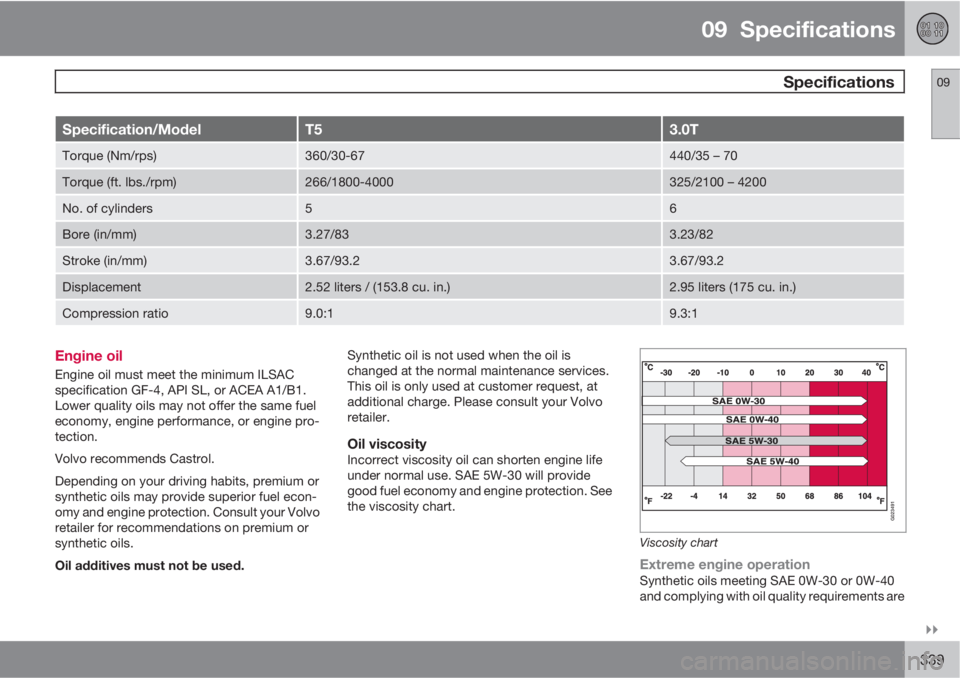

09 Specifications
Specifications09

339
Specification/ModelT53.0T
Torque (Nm/rps)360/30-67440/35 – 70
Torque (ft. lbs./rpm)266/1800-4000325/2100 – 4200
No. of cylinders56
Bore (in/mm)3.27/833.23/82
Stroke (in/mm)3.67/93.23.67/93.2
Displacement2.52 liters / (153.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio9.0:19.3:1
Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
