02 Locks and alarm
Keyless drive
02

65
When at least one PCC has been returned to
the car, the message will be erased in the dis-
play and the audible signal will stop when:
•A door has been opened and closed
•The PCC has been inserted in the ignition
slot
•The READ button (see page 131 for the
location of this button) has been pressed.
CAUTION
•Keyless drive remote keys should never
be left in the vehicle. In the event of a
break-in, a remote found in the vehicle
could make it possible to start the
engine.
•Electromagnetic fields or metal
obstructions can interfere with the key-
less drive system. Avoid placing the
remote key near cellular phones, metal-
lic objects or e.g., in a metal briefcase.
USA – FCC ID:KR55WK48952, KR55WK48964
NOTE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Siemens VDO
5WK48891
Tested To Comply With FCC Standards
For Automobile Use
Canada – IC:267T-5WK48952,
267T-5WK48964, 267T-5WK48891
NOTE
This device complies with RSS -210 of Industry
Canada. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Location of the keyless drive antennas
The keyless drive system has a number of
antennas located at various points in the vehi-
cle.
On the inside center of the rear bumper
Left rear door handle
Center of the parcel shelf, on the underside
Ceiling, above the center of the rear seat
Right rear door handle
Under the rear section of the center con-
sole
Under the front section of the center con-
sole.

02 Locks and alarm
Alarm
02

73 Disarming the alarm

Press the Unlock button on the remote key.
> Two short flashes from the car's direc-
tion indicators confirm that the alarm
has been deactivated and that all doors
are unlocked.
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by
pressing the Unlock button on the remote key
or by inserting the remote key in the ignition
slot. Two short flashes from the car's direction
indicators confirm that the alarm has been
turned off.
Other alarm-related functions
Automatic re-armingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
re-arm after 2 minutes unless a door or the
trunk has been opened.
Audible/visual alarm signal
•An audible alarm signal is given by a bat-
tery powered siren. The alarm cycle lasts
for 30 seconds.
•The visual alarm signal is given by flashing
all turn signals for approximately 5 minutes
or until the alarm is turned off.
Remote key not functioningIf the remote key is not functioning properly,
the alarm can be turned off and the vehicle can
be started as follows:
1. Open the driver's door with the key blade
(see page 59 for information on detaching
the key blade).
> This will trigger the alarm.
2. Insert the remote key into the ignition slot
(also on vehicles with the optional keyless
drive). This will turn off the alarm.
3. Start the engine.
Reduced alarm function
Turning off the accessory alarm sensorsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
The vehicle's menu system is used for turning
off these sensors (see page 133 for a descrip-
tion of the menu system).
1.
Go into the menu under
Car settings.
2.
Select
Reduced Guard (Press OK/
MENU to choose).
3. Two alternatives are now available:
•Activate once. If this alternative is
selected, Reduced guard See
manual will appear in the instrument
panel display and the accessory incli-
nation and movement alarm sensors will
be deactivated when the vehicle is
locked.
•Ask when exiting. If this alternative is
selected, a message will appear in the
center console display each time the
engine is turned off. Press OK/MENU to
accept and the accessory inclination
and movement alarm sensors will be

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.79
FunctionPage
Menus and mes-
sages, turn signals,
high/low beams,
trip computersee
page 133,
99, 96,
147
Cruise control153
Horn, airbag95, 25
Main instrument
panel79
Infotainment sys-
tem/Bluetooth
hands-free controls204, 232
START/STOP
ENGINE button86
Ignition slot86
Information display79
Door handle–
In-door control pan-
els (power win-
dows, mirrors, cen-
tral locking button)104, 106,
67
Hazard warning
flashers98
FunctionPage
Infotainment sys-
tem controls204
Climate system
controls142
Gear selector118
Controls for active
chassis (Four-C)*152
Wipers and washers102, 103
Steering wheel
adjustment94
Hood opening con-
trol301
Parking brake124
Power seat* adjust-
ment controls88
Lighting panel, con-
trols for opening
fuel filler door/trunk96, 256,
69
Information displays
Information displays in the instrument panel
The information displays show information on
some of the vehicle's functions, such as cruise
control, the trip computer and messages. The
information is shown with text and symbols.
More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.

03 Your driving environment
Instruments and controls
03
82
necessary information about one of the vehi-
cle's systems. The message can be erased and
the symbol can be turned off by pressing the
READ button (see page 131 for information) or
this will take place automatically after a short
time (the length of time varies, depending on
the function affected).
The information symbol may also illuminate
together with other symbols.
High beam indicator
This symbol illuminates when the high beam
headlights are on, or if the high beam flash
function is used.
Left turn signal indicator
Right turn signal indicator
NOTE
•Both turn signal indicators will flash
when the hazard warning flashers are
used.
•If either of these indicators flash faster
than normal, the direction indicators are
not functioning properly.
Sport mode
This symbol illuminates to indicate that the sta-
bility system's Sport mode has been activated
to help provide maximum tractive force, forexample when driving with snow chains, or
driving in deep snow or loose sand.
Indicator and warning symbols
SymbolDescription
Low oil pressure
Parking brake applied
SRS airbags
Seat belt reminder
Generator not charging
Fault in the brake system
Warning symbol
Low oil pressure
If the light comes on while driving, stop the
vehicle, stop the engine immediately, and
check the engine oil level. If the oil level is nor-
mal and the light stays on after restart, have the
vehicle towed to the nearest trained and quali-
fied Volvo service technician. This is normal,
provided it goes off when the engine speed is
increased.
Parking brake applied
This symbol illuminates when the parking
brake is applied. On models equipped with the
electric parking brake, this symbol flashes
while the brake is being applied and then glows
steadily.
A flashing symbol means that a fault has been
detected. See the message in the information
display.
Canadian models are equipped with this
symbol.
See page 124 for more information about
using the parking brake.
Airbags – SRS
If this light comes on while the vehicle is being
driven, or remains on for longer than approxi-
mately 10 seconds after the vehicle has been
started, the SRS system's diagnostic functions
have detected a fault in a seat belt lock or pre-
tensioner, a front airbag, side impact airbag,
and/or an inflatable curtain. Have the system(s)
inspected by a trained and qualified Volvo
service technician as soon as possible.
See page 24 for more information about the
airbag system.

03 Your driving environment
Instruments and controls
03

83
Seat belt reminder
This symbol comes on for approximately 6 sec-
onds if the driver has not fastened his or her
seat belt.
Generator not charging
This symbol comes on during driving if a fault
has occurred in the electrical system. Contact
an authorized Volvo workshop.
Engine temperatureEngine overheating can result from low oil or
coolant levels, towing or hard driving at high
heat and altitude, or mechanical malfunction.
Engine overheating will be signaled with text
and a red warning triangle in the middle of the
instrument display. The exact text will depend
on the degree of overheating. It may range from
High engine temp Reduce speed to High
engine temp Stop engine. If appropriate,
other messages, such as Coolant level low,
Stop safely will also be displayed. If your
engine does overheat so that you must stop the
engine, always allow the engine to cool before
attempting to check oil and coolant levels.
See page 304 for more information.
Fault in brake system
If this symbol lights, the brake fluid level may
be too low. Stop the vehicle in a safe place and
check the level in the brake fluid reservoir, see
page 304. If the level in the reservoir is belowMIN, the vehicle should be transported to an
authorized Volvo workshop to have the brake
system checked.
Canadian models are equipped with this
symbol.
If the
and symbols come on at the
same time, there may be a fault in the brake
force distribution system.
1. Stop the vehicle in a safe place and turn off
the engine.
2. Restart the engine.
•If both symbols extinguish, continue driv-
ing.
•If the symbols remain on, check the level in
the brake fluid reservoir, see page 304. If
the brake fluid level is normal but the sym-
bols are still lit, the vehicle can be driven,
with great care, to an authorized Volvo
workshop to have the brake system
checked.
•If the level in the reservoir is below MIN, the
vehicle should be transported to an author-
ized Volvo workshop to have the brake
system checked.
WARNING
•If the fluid level is below the MIN mark
in the reservoir or if a warning message
is displayed in the text window: DO
NOT DRIVE. Have the vehicle towed to
a trained and qualified Volvo service
technician and have the brake system
inspected.
•If the ABS and Brake system lights are
on at the same time, there is a risk of
reduced vehicle stability.
Warning symbol
The red warning symbol lights up to indicate a
problem related to safety and/or drivability. A
message will also appear in the main instru-
ments panel's display. The symbol remains
visible until the fault has been rectified but the
text message can be cleared with the READ
button, see page 131. The warning symbol can
also come on in conjunction with other sym-
bols.
Action:
1. Stop in a safe place. Do not drive the vehi-
cle further.
2. Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using READ.

03 Your driving environment
Ignition modes
03
86* Option/accessory, for more information, see Introduction.

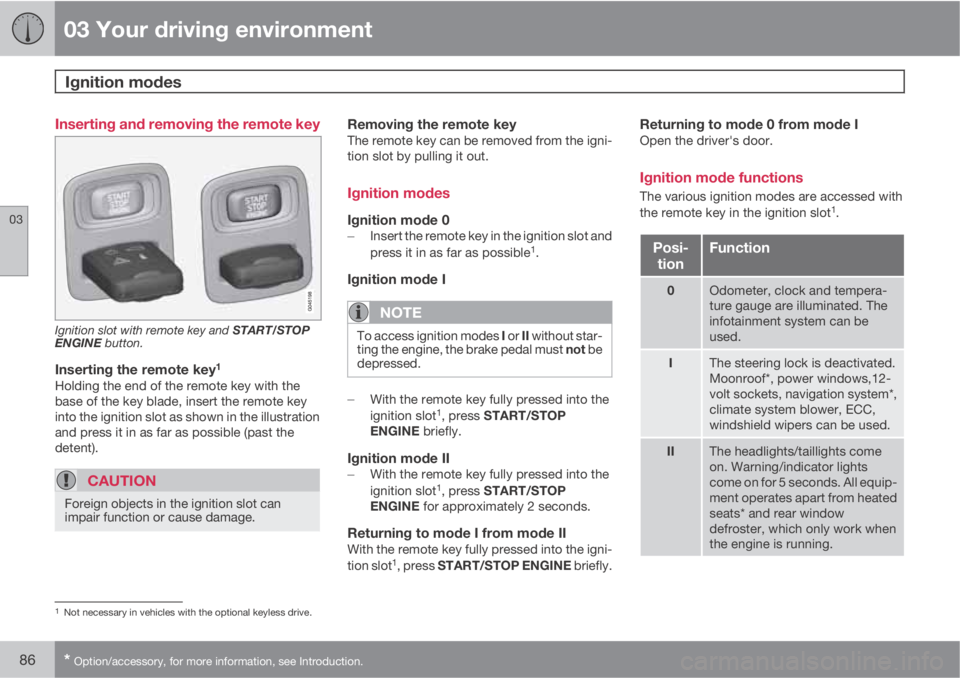

Inserting and removing the remote key
Ignition slot with remote key and START/STOP
ENGINE button.
Inserting the remote key1
Holding the end of the remote key with the
base of the key blade, insert the remote key
into the ignition slot as shown in the illustration
and press it in as far as possible (past the
detent).
CAUTION
Foreign objects in the ignition slot can
impair function or cause damage.
Removing the remote keyThe remote key can be removed from the igni-
tion slot by pulling it out.
Ignition modes
Ignition mode 0
Insert the remote key in the ignition slot and
press it in as far as possible1.
Ignition mode I
NOTE
To access ignition modes I or II without star-
ting the engine, the brake pedal must not be
depressed.

With the remote key fully pressed into the
ignition slot1, press START/STOP
ENGINE briefly.
Ignition mode II
With the remote key fully pressed into the
ignition slot1, press START/STOP
ENGINE for approximately 2 seconds.
Returning to mode I from mode IIWith the remote key fully pressed into the igni-
tion slot1, press START/STOP ENGINE briefly.
Returning to mode 0 from mode IOpen the driver's door.
Ignition mode functions
The various ignition modes are accessed with
the remote key in the ignition slot1.
Posi-
tionFunction
0Odometer, clock and tempera-
ture gauge are illuminated. The
infotainment system can be
used.
IThe steering lock is deactivated.
Moonroof*, power windows,12-
volt sockets, navigation system*,
climate system blower, ECC,
windshield wipers can be used.
IIThe headlights/taillights come
on. Warning/indicator lights
come on for 5 seconds. All equip-
ment operates apart from heated
seats* and rear window
defroster, which only work when
the engine is running.
1Not necessary in vehicles with the optional keyless drive.

03 Your driving environment
Steering wheel
03
94* Option/accessory, for more information, see Introduction.
Adjusting
G021138
Adjusting the steering wheel
Lever for releasing/locking the steering
wheel
Possible positions
The steering wheel can be adjusted for both
height and reach:
1. Pull the lever toward you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you.
3. Push back the lever to lock the steering
wheel in place. If the lever is difficult to
push into place, press the steering wheel
lightly at the same time as you push the
lever.
WARNING
Never adjust the steering wheel while driv-
ing.
With the optional speed-dependent power
steering the level of steering force can be
adjusted, see page 152.
Unlocking/locking
Unlocking1. Insert the remote key into the ignition slot
as far as possible.
2.
Press the START/STOP ENGINE button.
> A sound will be audible when the lock
releases.
Vehicles with keyless drive*A remote key must be in the passenger com-
partment or trunk (but not inserted into the igni-
tion slot)

Press the START/STOP ENGINE button.
> A sound will be audible when the steer-
ing wheel lock releases.
Locking1. Switch off the engine (see page 116 for
details).2. Remove the remote key from the ignition
slot.
3. Open the driver's door.
> A sound will be audible when the steer-
ing wheel lock engages.
Vehicles with keyless drive*1. Switch off the engine (see page 116 for
details).
2. Open the driver's door.
> A sound will be audible when the steer-
ing wheel lock engages.
Keypads
Keypads in the steering wheel
Cruise control, see page 153. Adaptive
cruise control*, see page 155.
Infotainment controls, see page 207.

03 Your driving environment
Compass*
03
108* Option/accessory, for more information, see Introduction.
Operation
Rearview mirror with compass.
The rearview mirror has an integrated display
that shows the compass direction in which the
vehicle is pointing. Eight different directions are
shown with the abbreviations:
N (north), NE(north east), E (east), SE (southeast), S (south),SW (southwest), W (west) and NW (northwest).
The compass is displayed automatically when
the vehicle is started or in ignition mode II. To
switch the compass on/off use a pen or similar
object and press in the button on the underside
of the mirror.
CalibrationThe compass may need to be calibrated if, for
example, the vehicle is driven into a new mag-netic zone. The character
C is shown in the
mirror's display if calibration is necessary.
1. Stop the vehicle in a large open area, safely
out of traffic and away from steel structures
and high-tension electrical wires.
2. Start the vehicle.
NOTE
For best results from calibration, switch off
all electrical equipment in the vehicle (cli-
mate system, windshield wipers, audio sys-
tem, etc.) and make sure that all doors are
closed.
3. Using a pen or similar object, press and
hold the button on the underside of mirror
until
C is shown again in the mirror(after
approx. 6 seconds).
4.
Drive as usual.
C disappears from the dis-
play when calibration is complete.
Alternative calibration method:
Drive slowly in a circle at a speed of no
more than 5 mph (8 km/h) until
C disap-
pears from the display when calibration is
complete.
Selecting a magnetic zone
15
14
13
12
11
9 8
7 6 5 4 32 1
10
G018632
Magnetic zones.
The earth is divided into 15 magnetic zones.
The correct zone must be selected for the com-
pass to work correctly.
1.
Put the ignition in mode II.
2. Using a pen or similar object, press and
hold the button on the rear side of mirror
for at least 3 seconds. The number for the
current area will be shown.
3. Press the button repeatedly until the num-
ber for the required geographic area
(1 – 15) is shown.
4. The display will revert to showing the com-
pass direction after several seconds.

03 Your driving environment
Starting the engine
03
114* Option/accessory, for more information, see Introduction.
Start
Ignition switch with remote key inserted ( see
page 86 for more information on ignition modes)
WARNING
Before starting the engine:
•Fasten the seat belt.
•Check that the seat, steering wheel and
mirrors are adjusted properly.
•Make sure the brake pedal can be
depressed completely. Adjust the seat
if necessary.
WARNING
•Never use more than one floor mat at a
time on the driver's floor. An extra mat
on the driver's floor can cause the
accelerator and/or brake pedal to
catch. Check that the movement of
these pedals is not impeded.
•Volvo's floor mats are specially manu-
factured for your car. They must be
firmly secured in the clips on the floor so
that they cannot slide and become trap-
ped under the pedals on the driver's
side.
1. Press the remote key into the ignition slot
as far as possible, with the metallic key
blade pointing outward (not inserted into
the slot)
1.
2.
Depress the brake pedal
2.
3.
Press and release the START/STOP
ENGINE button. The autostart function will
operate the starter motor until the engine
starts or until its overheating function stops
it.The starter motor operates for a maximum
of 10 seconds. If the engine has not
started, repeat the procedure.
NOTE
Keyless drive*
To start a vehicle equipped with the keyless
drive feature, one of the remote keys must
be in the passenger compartment. Follow
the instructions in step 3 to start the vehicle.
1On vehicles with the optional keyless drive, it is only necessary to have a remote key in the passenger’s compartment.2If the vehicle is moving, it is only necessary to press the START/STOP ENGINE button to start the vehicle.

03 Your driving environment
Starting the engine
03
116
Switching off the engine
With the engine running, press the START/
STOP ENGINE button.
If the gear selector is not in the P position or if
the vehicle is moving, press the button twice or
press and hold it in until the engine switches
off.
Jump starting
G021347
Connecting the jumper cables
Follow these instructions to jump start your
vehicle's dead battery or to jump start another
vehicle's dead battery using your vehicle. If the
12-volt auxiliary battery to be used is in another
vehicle, check that the vehicles are not touch-
ing to prevent premature completion of a cir-
cuit. Be sure to follow jump starting instruc-
tions provided for the other vehicle.To jump start your vehicle:
1. Switch off the ignition (set the ignition to
mode 0, see page 86).
2. First connect the red jumper cable to the
auxiliary battery's positive (+) terminal (1).
3. Fold back the cover over the positive (+)
terminal on your vehicle's battery (2),
marked with a "+" sign, located under a
folding cover.
4. Connect the black jumper cable to the aux-
iliary battery's negative (–) terminal (3) and
to the ground point in your vehicle's engine
compartment (right engine mount at the
top, on the outer screw) (4).
5. Start the engine in the assisting vehicle,
then start the engine in the vehicle with
dead battery.
6. After the engine has started, first remove
the negative (–) terminal jumper cable
(black). Then remove the positive (+) termi-
nal jumper cable (red).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
Connect the jumper cables carefully to
avoid short circuits with other components
in the engine compartment.
