Engine oil09
309
3. Add oil if necessary. If the level is close to
the MIN mark, add approximately
0.5 US quarts (0.5 liters) of oil.
4. Recheck the level and add more oil if nec-
essary until the level is near the MAX mark.
WARNING
Do not allow oil to spill onto or come into
contact with hot exhaust pipe surfaces.

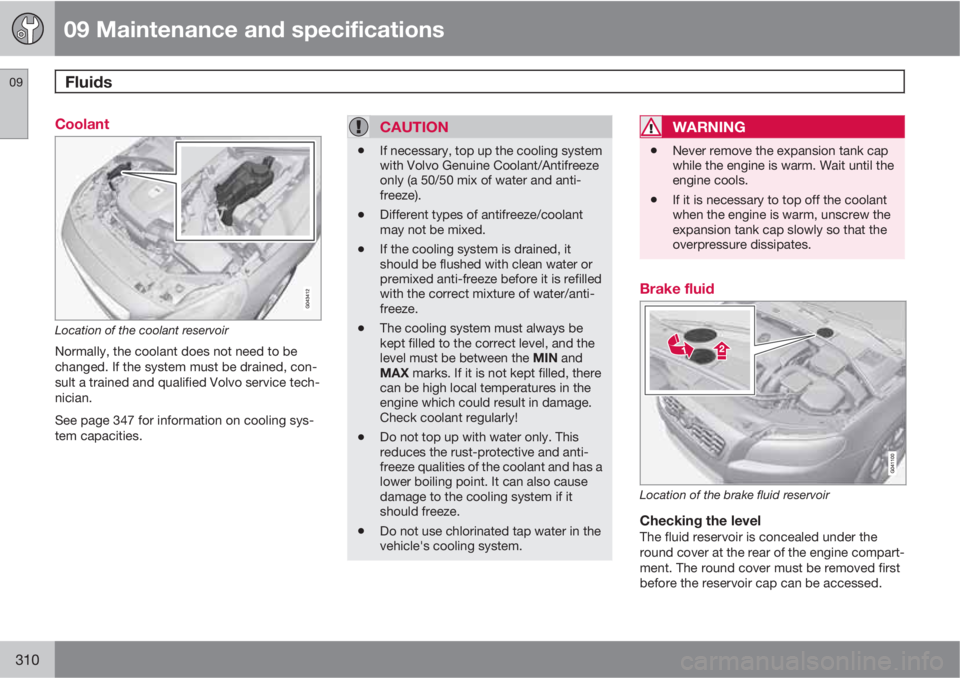

09 Maintenance and specifications
Fluids 09
310
Coolant
Location of the coolant reservoir
Normally, the coolant does not need to be
changed. If the system must be drained, con-
sult a trained and qualified Volvo service tech-
nician.
See page 347 for information on cooling sys-
tem capacities.
CAUTION
•If necessary, top up the cooling system
with Volvo Genuine Coolant/Antifreeze
only (a 50/50 mix of water and anti-
freeze).
•Different types of antifreeze/coolant
may not be mixed.
•If the cooling system is drained, it
should be flushed with clean water or
premixed anti-freeze before it is refilled
with the correct mixture of water/anti-
freeze.
•The cooling system must always be
kept filled to the correct level, and the
level must be between the MIN and
MAX marks. If it is not kept filled, there
can be high local temperatures in the
engine which could result in damage.
Check coolant regularly!
•Do not top up with water only. This
reduces the rust-protective and anti-
freeze qualities of the coolant and has a
lower boiling point. It can also cause
damage to the cooling system if it
should freeze.
•Do not use chlorinated tap water in the
vehicle's cooling system.
WARNING
•Never remove the expansion tank cap
while the engine is warm. Wait until the
engine cools.
•If it is necessary to top off the coolant
when the engine is warm, unscrew the
expansion tank cap slowly so that the
overpressure dissipates.
Brake fluid
Location of the brake fluid reservoir
Checking the levelThe fluid reservoir is concealed under the
round cover at the rear of the engine compart-
ment. The round cover must be removed first
before the reservoir cap can be accessed.

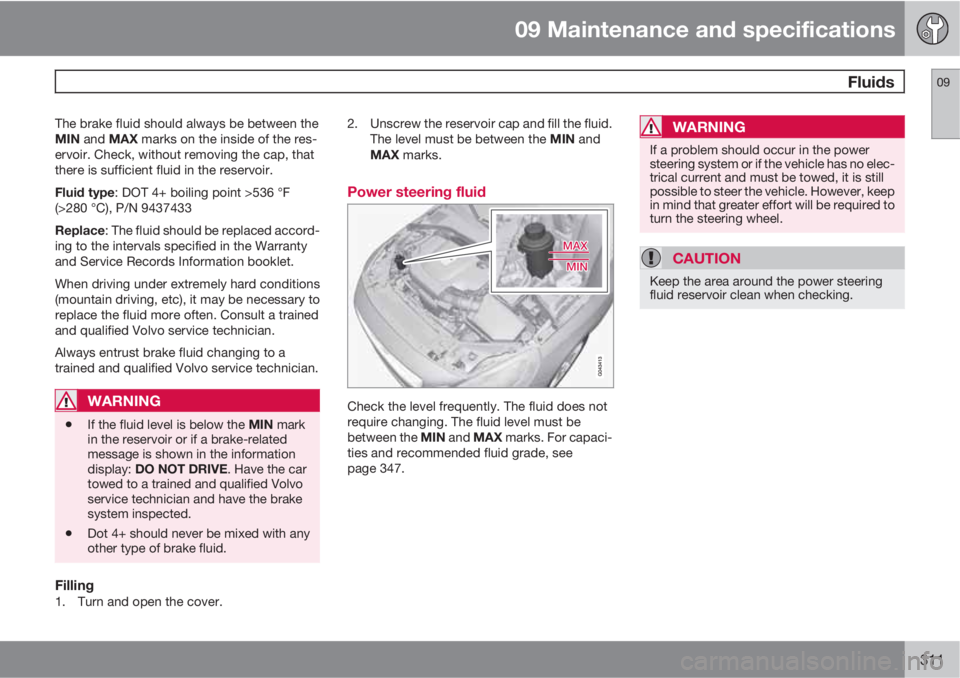

09 Maintenance and specifications
Fluids09
311
The brake fluid should always be between the
MIN and MAX marks on the inside of the res-
ervoir. Check, without removing the cap, that
there is sufficient fluid in the reservoir.
Fluid type: DOT 4+ boiling point >536 °F
(>280 °C), P/N 9437433
Replace: The fluid should be replaced accord-
ing to the intervals specified in the Warranty
and Service Records Information booklet.
When driving under extremely hard conditions
(mountain driving, etc), it may be necessary to
replace the fluid more often. Consult a trained
and qualified Volvo service technician.
Always entrust brake fluid changing to a
trained and qualified Volvo service technician.
WARNING
•If the fluid level is below the MIN mark
in the reservoir or if a brake-related
message is shown in the information
display: DO NOT DRIVE. Have the car
towed to a trained and qualified Volvo
service technician and have the brake
system inspected.
•Dot 4+ should never be mixed with any
other type of brake fluid.
Filling1. Turn and open the cover.2. Unscrew the reservoir cap and fill the fluid.
The level must be between the MIN and
MAX marks.
Power steering fluid
Check the level frequently. The fluid does not
require changing. The fluid level must be
between the MIN and MAX marks. For capaci-
ties and recommended fluid grade, see
page 347.
WARNING
If a problem should occur in the power
steering system or if the vehicle has no elec-
trical current and must be towed, it is still
possible to steer the vehicle. However, keep
in mind that greater effort will be required to
turn the steering wheel.
CAUTION
Keep the area around the power steering
fluid reservoir clean when checking.

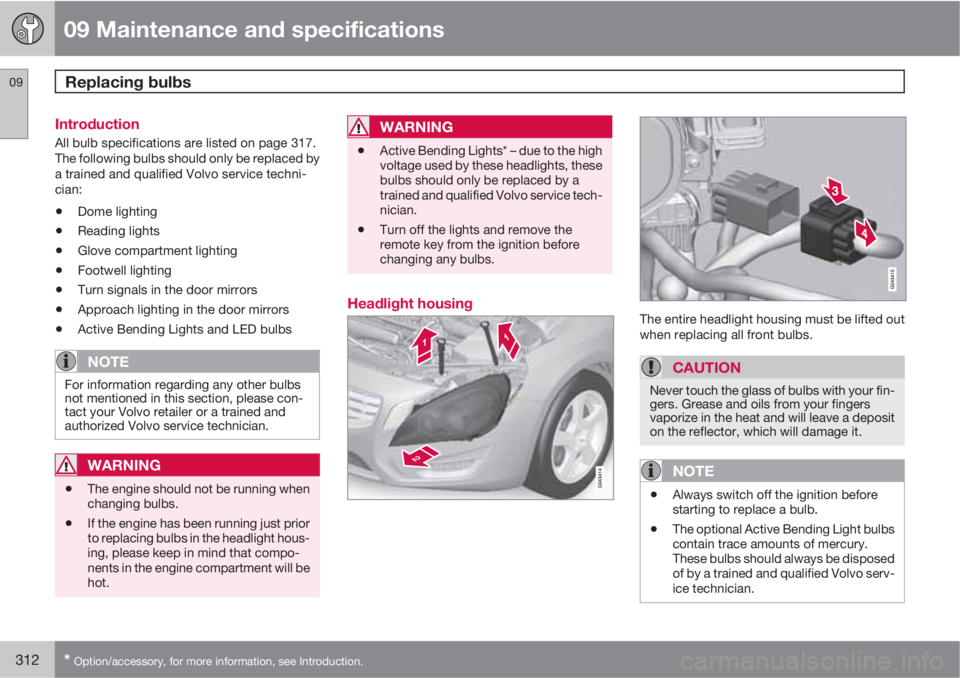

09 Maintenance and specifications
Replacing bulbs 09
312* Option/accessory, for more information, see Introduction.
Introduction
All bulb specifications are listed on page 317.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:
•Dome lighting
•Reading lights
•Glove compartment lighting
•Footwell lighting
•Turn signals in the door mirrors
•Approach lighting in the door mirrors
•Active Bending Lights and LED bulbs
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
WARNING
•The engine should not be running when
changing bulbs.
•If the engine has been running just prior
to replacing bulbs in the headlight hous-
ing, please keep in mind that compo-
nents in the engine compartment will be
hot.
WARNING
•Active Bending Lights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a
trained and qualified Volvo service tech-
nician.
•Turn off the lights and remove the
remote key from the ignition before
changing any bulbs.
Headlight housingThe entire headlight housing must be lifted out
when replacing all front bulbs.
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.

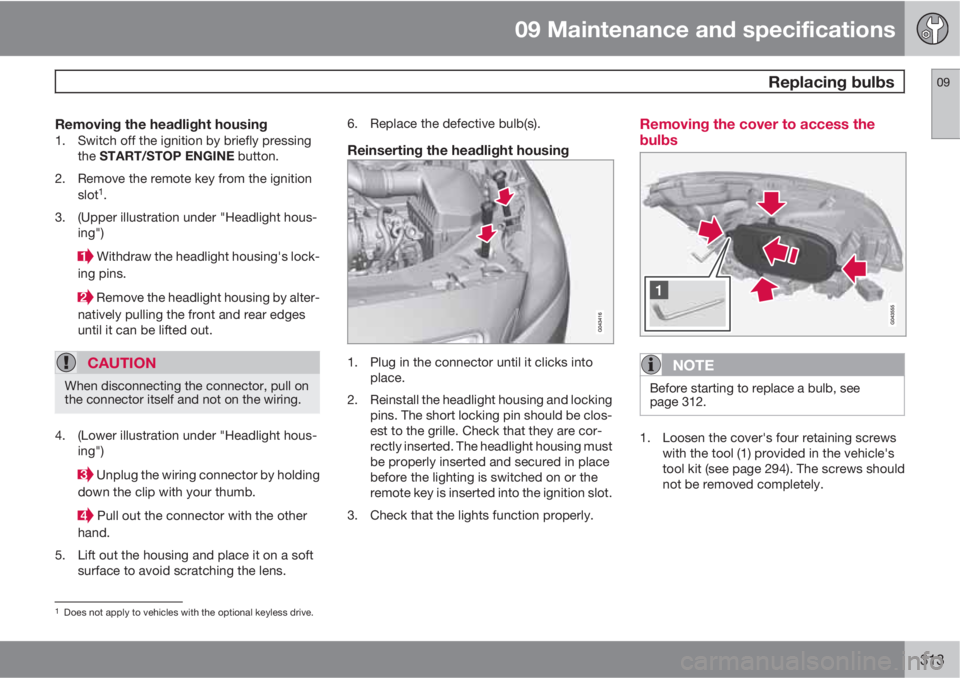

09 Maintenance and specifications
Replacing bulbs09
313
Removing the headlight housing1. Switch off the ignition by briefly pressing
the START/STOP ENGINE button.
2. Remove the remote key from the ignition
slot
1.
3. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Remove the headlight housing by alter-
natively pulling the front and rear edges
until it can be lifted out.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
4. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
5. Lift out the housing and place it on a soft
surface to avoid scratching the lens.6. Replace the defective bulb(s).
Reinserting the headlight housing
1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. The short locking pin should be clos-
est to the grille. Check that they are cor-
rectly inserted. The headlight housing must
be properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
bulbs
NOTE
Before starting to replace a bulb, see
page 312.
1. Loosen the cover's four retaining screws
with the tool (1) provided in the vehicle's
tool kit (see page 294). The screws should
not be removed completely.
1Does not apply to vehicles with the optional keyless drive.

09 Maintenance and specifications
Replacing bulbs 09
314
CAUTION
Use the tool from the vehicle's tool kit to
loosen the screws. A screwdriver or other
sharp object could scratch the headlight.
2. Push the cover to the side.
Reinstall the cover in the reverse order.
Low beam, Halogen
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover over the bulbs (see
page 313).
3. Unplug the connector from the bulb.4. Remove the bulb by pulling it straight out.
5. The guide lug on the new bulb should be
straight up when the bulb is inserted into
the holder and the bulb should snap into
place.
6. Put the cover back into position and rein-
stall the headlight housing.
High beam, Halogen
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover over the bulbs (see
page 313).
3. Remove the bulb by turning it counter-
clockwise and pulling it straight out.4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn
it clockwise to put it in place. It can only be
secured in one position.
6. Reinsert the bulb holder into the headlight
housing.
7. Put the cover back into position and rein-
stall the headlight housing.
Extra high beam2
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover over the bulbs (see
page 313).
2Models with optional Active Bending Lights only.

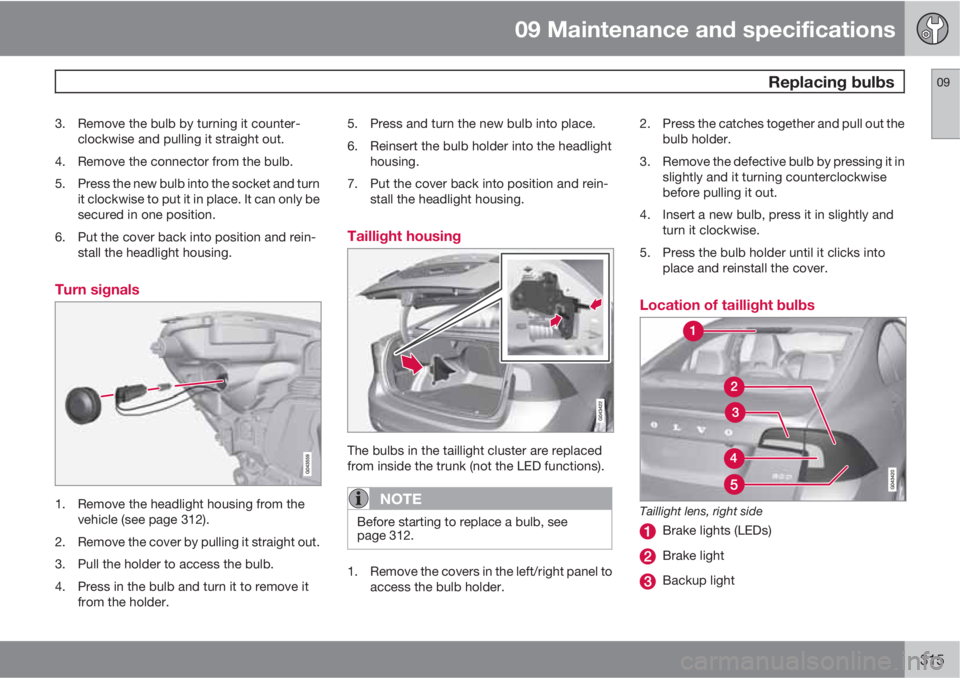

09 Maintenance and specifications
Replacing bulbs09
315
3. Remove the bulb by turning it counter-
clockwise and pulling it straight out.
4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn
it clockwise to put it in place. It can only be
secured in one position.
6. Put the cover back into position and rein-
stall the headlight housing.
Turn signals
1. Remove the headlight housing from the
vehicle (see page 312).
2. Remove the cover by pulling it straight out.
3. Pull the holder to access the bulb.
4. Press in the bulb and turn it to remove it
from the holder.5. Press and turn the new bulb into place.
6. Reinsert the bulb holder into the headlight
housing.
7. Put the cover back into position and rein-
stall the headlight housing.
Taillight housing
The bulbs in the taillight cluster are replaced
from inside the trunk (not the LED functions).
NOTE
Before starting to replace a bulb, see
page 312.
1. Remove the covers in the left/right panel to
access the bulb holder.2. Press the catches together and pull out the
bulb holder.
3. Remove the defective bulb by pressing it in
slightly and it turning counterclockwise
before pulling it out.
4. Insert a new bulb, press it in slightly and
turn it clockwise.
5. Press the bulb holder until it clicks into
place and reinstall the cover.
Location of taillight bulbs
Taillight lens, right side
Brake lights (LEDs)
Brake light
Backup light

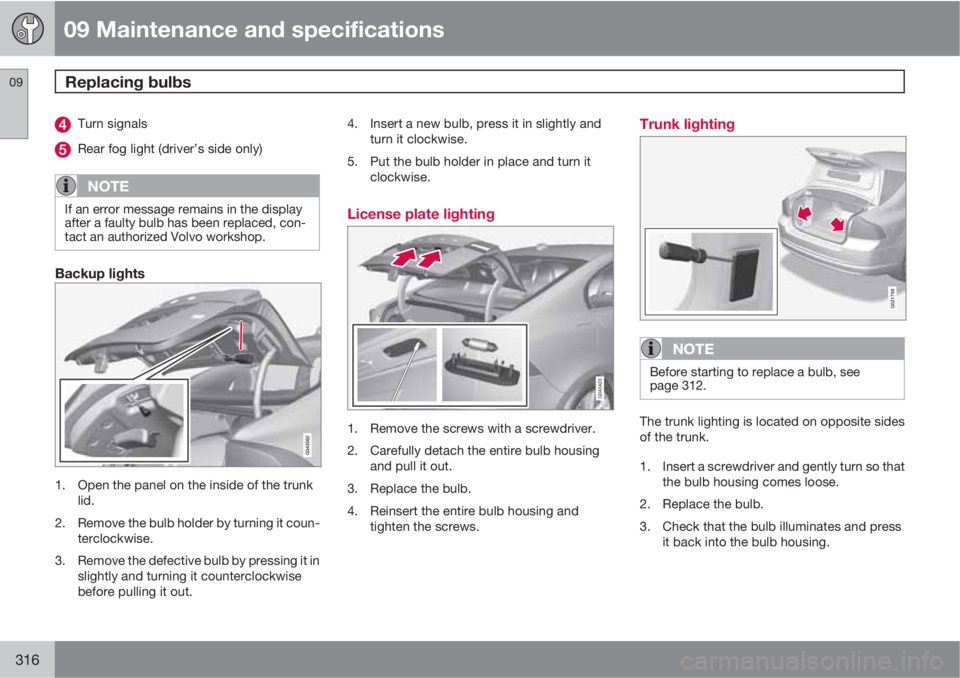

09 Maintenance and specifications
Replacing bulbs 09
316
Turn signals
Rear fog light (driver’s side only)
NOTE
If an error message remains in the display
after a faulty bulb has been replaced, con-
tact an authorized Volvo workshop.
Backup lights
1. Open the panel on the inside of the trunk
lid.
2. Remove the bulb holder by turning it coun-
terclockwise.
3. Remove the defective bulb by pressing it in
slightly and turning it counterclockwise
before pulling it out.4. Insert a new bulb, press it in slightly and
turn it clockwise.
5. Put the bulb holder in place and turn it
clockwise.
License plate lighting
1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing
and pull it out.
3. Replace the bulb.
4. Reinsert the entire bulb housing and
tighten the screws.
Trunk lighting
G021758
NOTE
Before starting to replace a bulb, see
page 312.
The trunk lighting is located on opposite sides
of the trunk.
1. Insert a screwdriver and gently turn so that
the bulb housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press
it back into the bulb housing.

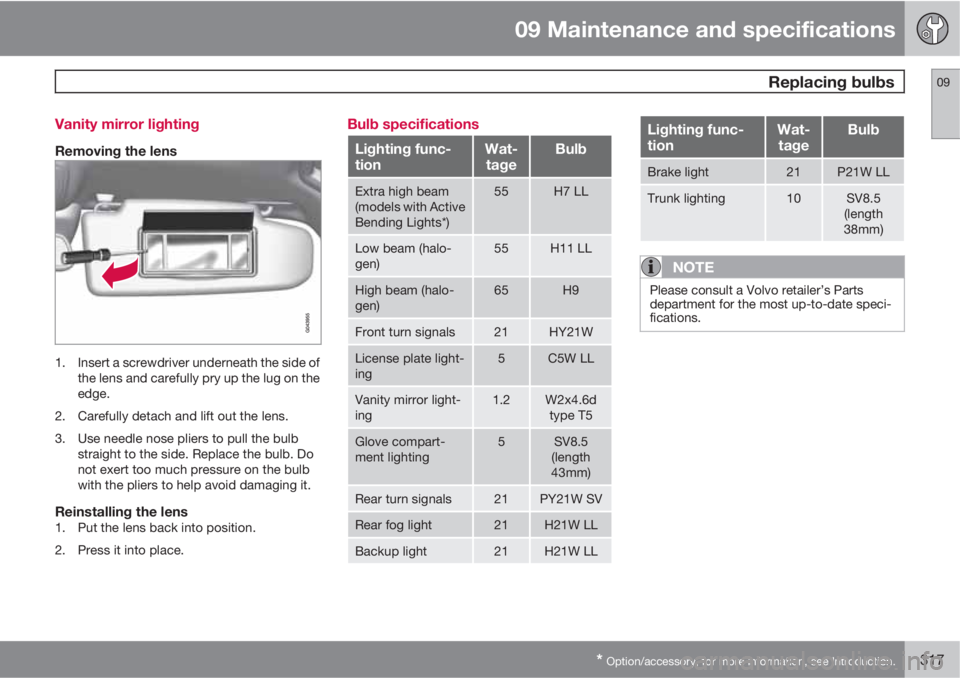

09 Maintenance and specifications
Replacing bulbs09
* Option/accessory, for more information, see Introduction.317 Vanity mirror lighting
Removing the lens
1. Insert a screwdriver underneath the side of
the lens and carefully pry up the lug on the
edge.
2. Carefully detach and lift out the lens.
3. Use needle nose pliers to pull the bulb
straight to the side. Replace the bulb. Do
not exert too much pressure on the bulb
with the pliers to help avoid damaging it.
Reinstalling the lens1. Put the lens back into position.
2. Press it into place.
Bulb specifications
Lighting func-
tionWat-
tageBulb
Extra high beam
(models with Active
Bending Lights*)55H7 LL
Low beam (halo-
gen)55H11 LL
High beam (halo-
gen)65H9
Front turn signals21HY21W
License plate light-
ing5C5W LL
Vanity mirror light-
ing1.2W2x4.6d
type T5
Glove compart-
ment lighting5SV8.5
(length
43mm)
Rear turn signals21PY21W SV
Rear fog light21H21W LL
Backup light21H21W LL
Lighting func-
tionWat-
tageBulb
Brake light21P21W LL
Trunk lighting10SV8.5
(length
38mm)
NOTE
Please consult a Volvo retailer’s Parts
department for the most up-to-date speci-
fications.

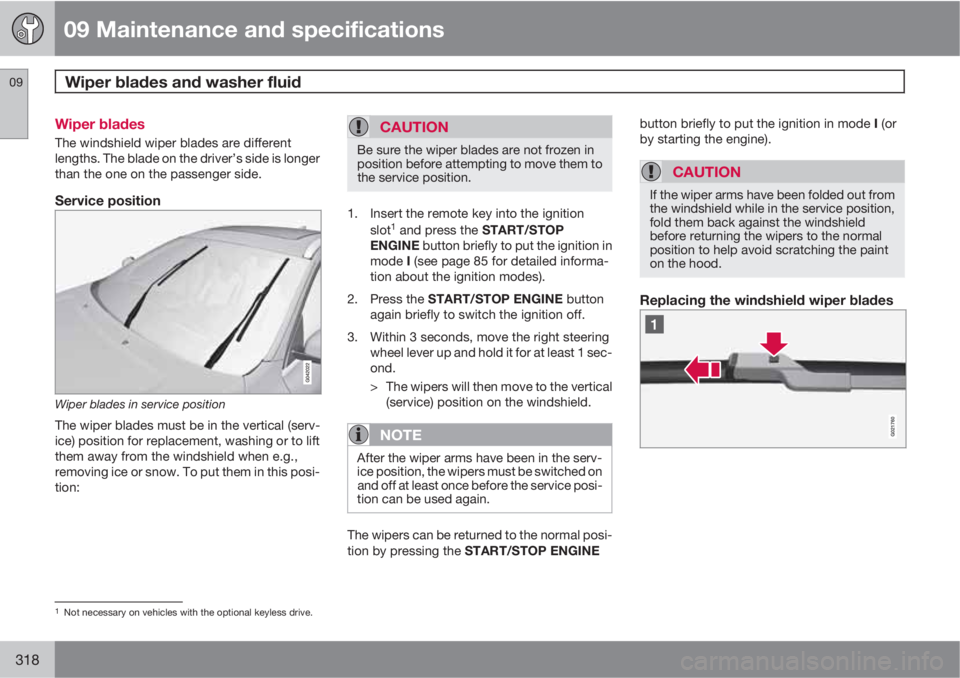

09 Maintenance and specifications
Wiper blades and washer fluid 09
318
Wiper blades
The windshield wiper blades are different
lengths. The blade on the driver’s side is longer
than the one on the passenger side.
Service position
Wiper blades in service position
The wiper blades must be in the vertical (serv-
ice) position for replacement, washing or to lift
them away from the windshield when e.g.,
removing ice or snow. To put them in this posi-
tion:
CAUTION
Be sure the wiper blades are not frozen in
position before attempting to move them to
the service position.
1. Insert the remote key into the ignition
slot1 and press the START/STOP
ENGINE button briefly to put the ignition in
mode I (see page 85 for detailed informa-
tion about the ignition modes).
2.
Press the START/STOP ENGINE button
again briefly to switch the ignition off.
3. Within 3 seconds, move the right steering
wheel lever up and hold it for at least 1 sec-
ond.
> The wipers will then move to the vertical
(service) position on the windshield.
NOTE
After the wiper arms have been in the serv-
ice position, the wipers must be switched on
and off at least once before the service posi-
tion can be used again.
The wipers can be returned to the normal posi-
tion by pressing the START/STOP ENGINEbutton briefly to put the ignition in mode I (or
by starting the engine).
CAUTION
If the wiper arms have been folded out from
the windshield while in the service position,
fold them back against the windshield
before returning the wipers to the normal
position to help avoid scratching the paint
on the hood.
Replacing the windshield wiper blades
1Not necessary on vehicles with the optional keyless drive.
