Overview of information and warning symbols
10
* Option/accessory, for more information, see Introduction.369

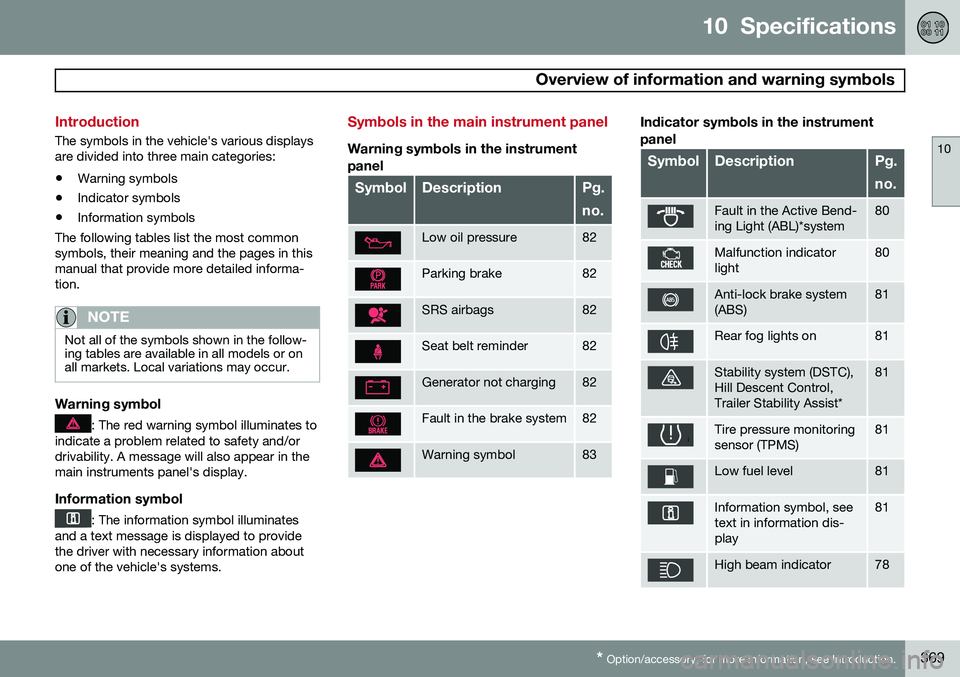

Introduction
The symbols in the vehicle's various displays are divided into three main categories:
• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the follow- ing tables are available in all models or onall markets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates
and a text message is displayed to provide the driver with necessary information aboutone of the vehicle's systems.
Symbols in the main instrument panel
Warning symbols in the instrument
panel
SymbolDescriptionPg. no.
Low oil pressure82
Parking brake82
SRS airbags82
Seat belt reminder82
Generator not charging82
Fault in the brake system82
Warning symbol83
Indicator symbols in the instrument panel
SymbolDescriptionPg. no.
Fault in the Active Bend- ing Light (ABL)*system80
Malfunction indicator light80
Anti-lock brake system (ABS)81
Rear fog lights on81
Stability system (DSTC), Hill Descent Control,Trailer Stability Assist*81
Tire pressure monitoring sensor (TPMS)81
Low fuel level81
Information symbol, see text in information dis-play81
High beam indicator78

10 Specifications
Overview of information and warning symbols
10
370* Option/accessory, for more information, see Introduction.
SymbolDescriptionPg. no.
Left turn signal indicator78
Right turn signal indica- tor78
Stability system , Sport mode138
Information symbols in the instrument panel
SymbolDescriptionPg. no.
Adaptive Cruise Control *144
Adaptive Cruise Control *144
Adaptive Cruise Control *144
Adaptive Cruise Control * (Distancealert)144
Radar sensor*151
SymbolDescriptionPg. no.
Camera sensor, laser sensor168161
Collision Warning with Full Auto-brakeand PedestrianDetection*170
Active Bending Lights (ABL)*99
Driver Alert System*172
Driver Alert System*172
Parking brake132
Rain sensor*104
Active High Beams (AHB)*97
Windshield sensor*97
SymbolDescriptionPg. no.
Driver Alert System* (Lane DepartureWarning)175
Driver Alert System* (Lane DepartureWarning)175
Driver Alert System* (Lane DepartureWarning)175
Fuel tank on pas- senger's side of thevehicle276

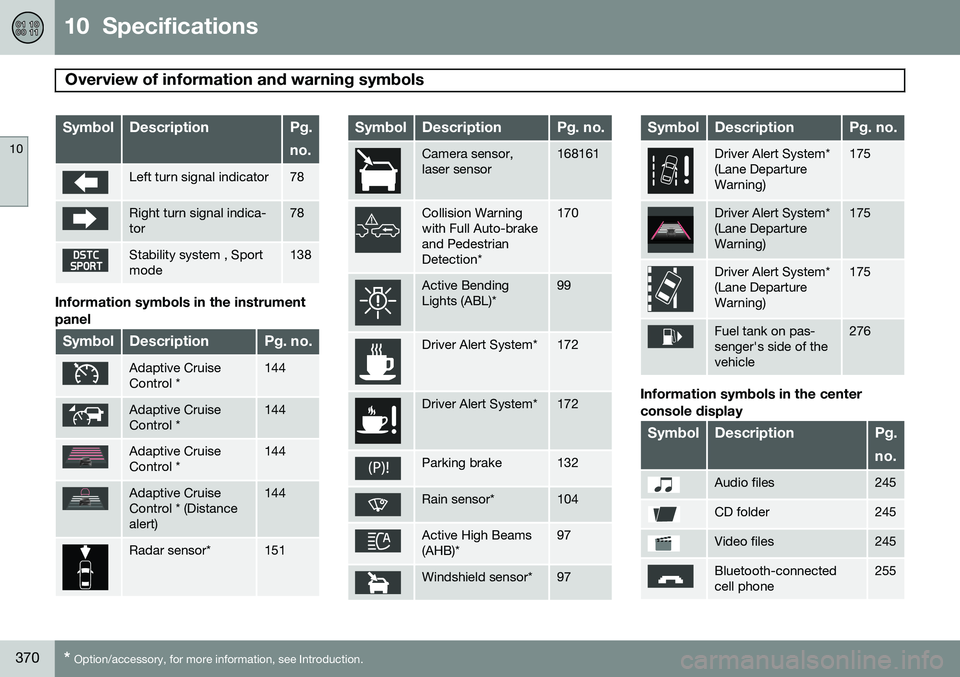

Information symbols in the center console display
SymbolDescriptionPg. no.
Audio files245
CD folder245
Video files245
Bluetooth-connected cell phone255

10 Specifications
Overview of information and warning symbols
10
* Option/accessory, for more information, see Introduction.371

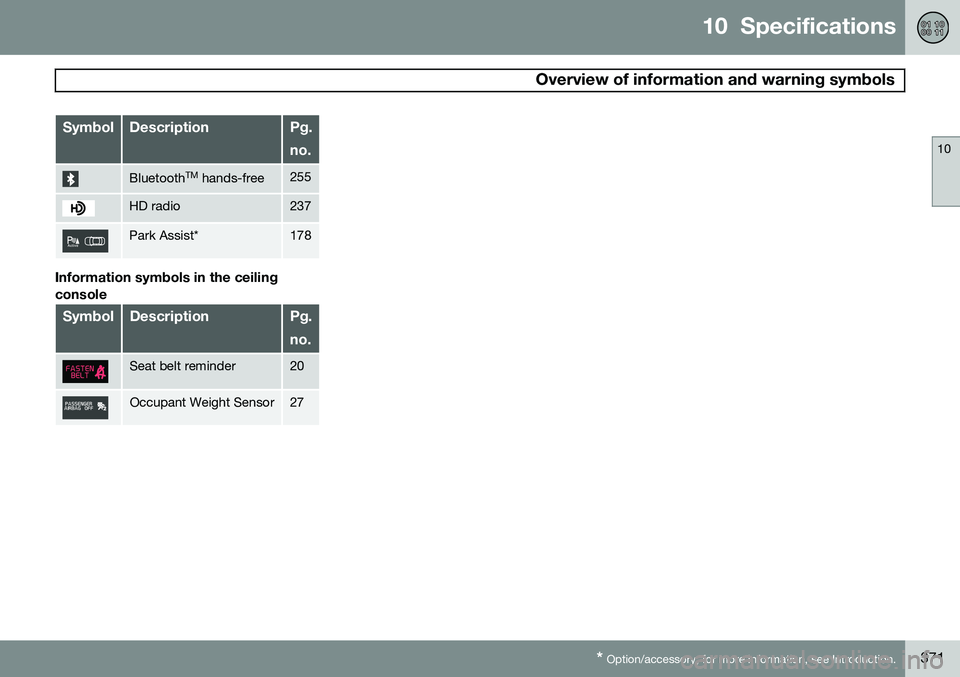

SymbolDescriptionPg. no.
Bluetooth TM
hands-free255
HD radio237
Park Assist*178
Information symbols in the ceiling console
SymbolDescriptionPg. no.
Seat belt reminder20
Occupant Weight Sensor27

10 Specifications
Volvo programs
10
372

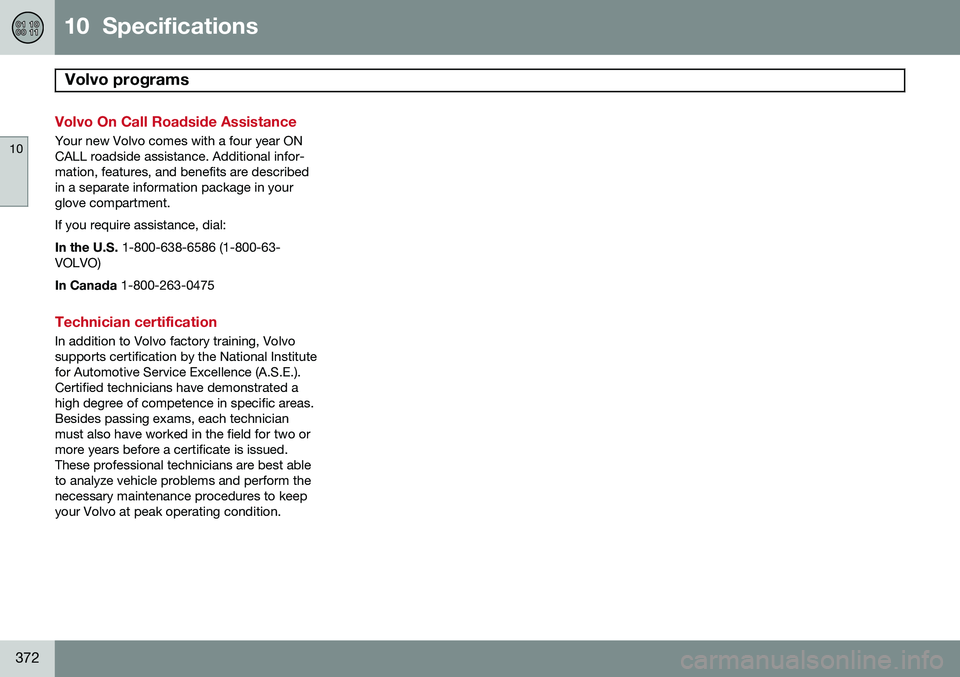

Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional infor-mation, features, and benefits are describedin a separate information package in yourglove compartment. If you require assistance, dial:In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institutefor Automotive Service Excellence (A.S.E.).Certified technicians have demonstrated ahigh degree of competence in specific areas.Besides passing exams, each technicianmust also have worked in the field for two ormore years before a certificate is issued.These professional technicians are best ableto analyze vehicle problems and perform thenecessary maintenance procedures to keepyour Volvo at peak operating condition.

10 Specifications

10
373
