VOLVO S60 2015 Owner´s Manual

S P E C I F I C A T I O N S

10 Specifications
Label information
10
380

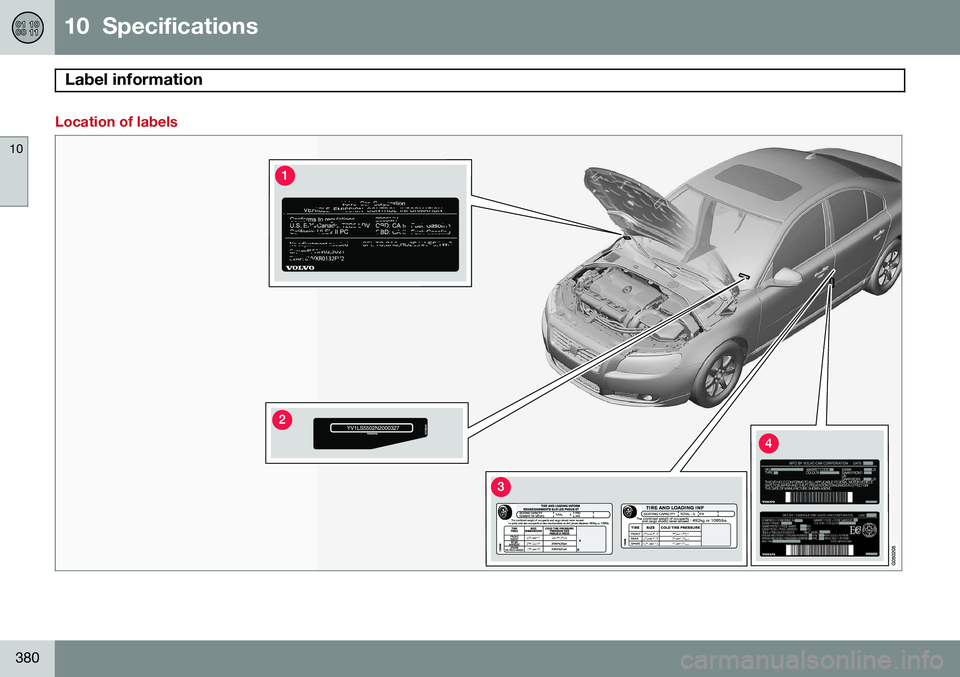

Location of labels

10 Specifications
Label information
10
381

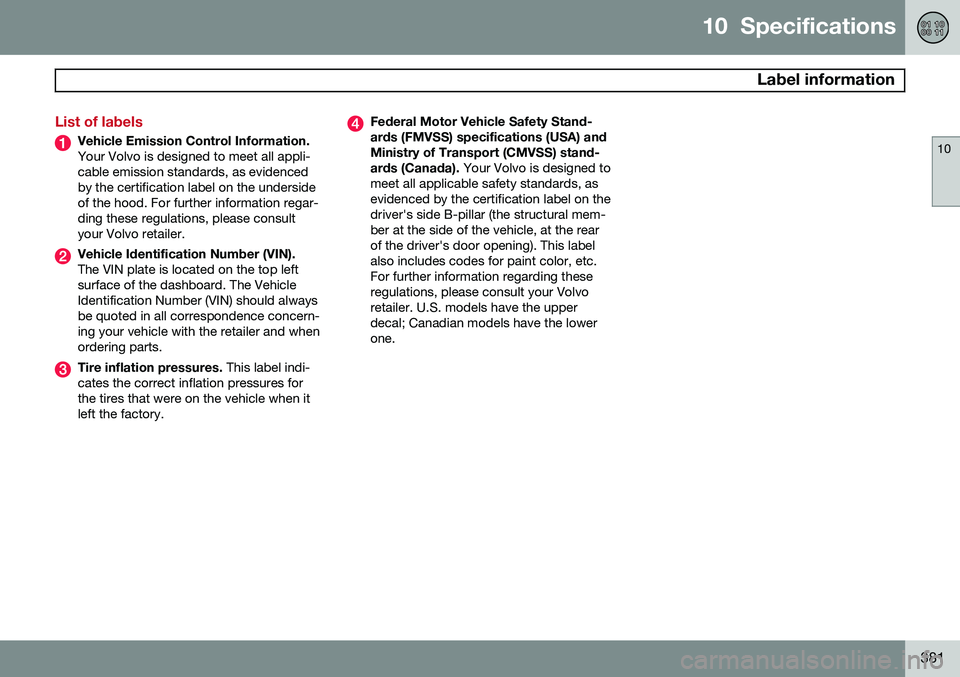

List of labels
Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.

10 Specifications
Specifications
10
382
Dimensions–S60
PositionDimensionin (mm)
AWheelbase109.3 (2776)
BLength182.5 (4635)
CLoad length, floor, seatback down68.9 (1749)
DLoad length, floor38.0 (965)
EHeight58.4 (1484)
FLoad height18.3 (465)

10 Specifications
Specifications
10
}}
383

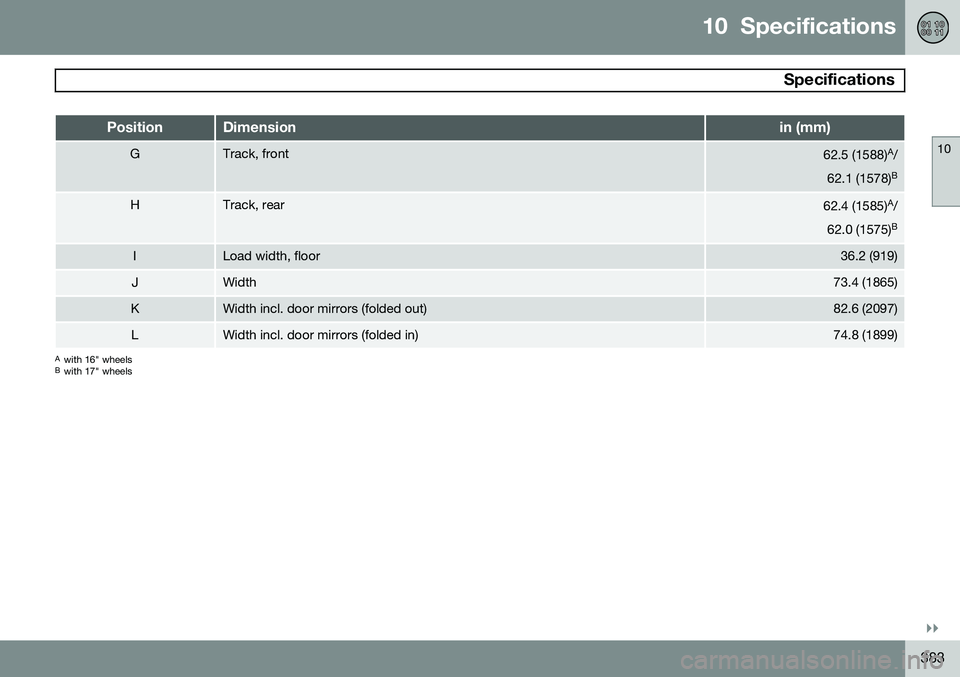

PositionDimensionin (mm)
GTrack, front62.5 (1588)A
/
62.1 (1578) B
HTrack, rear62.4 (1585)A
/
62.0 (1575) B
ILoad width, floor36.2 (919)
JWidth73.4 (1865)
KWidth incl. door mirrors (folded out)82.6 (2097)
LWidth incl. door mirrors (folded in)74.8 (1899)
A
with 16" wheels
B with 17" wheels

10 Specifications
Specifications
10
384

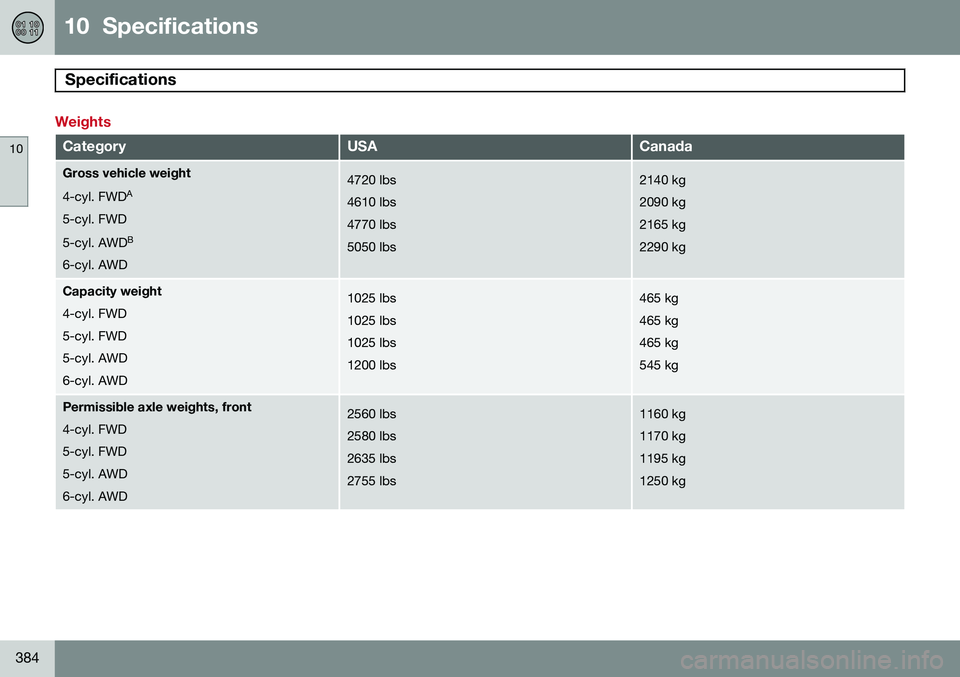

Weights
CategoryUSACanada
Gross vehicle weight 4-cyl. FWDA
5-cyl. FWD 5-cyl. AWD B
6-cyl. AWD4720 lbs 4610 lbs4770 lbs5050 lbs2140 kg 2090 kg2165 kg2290 kg
Capacity weight 4-cyl. FWD 5-cyl. FWD5-cyl. AWD6-cyl. AWD1025 lbs 1025 lbs1025 lbs1200 lbs465 kg 465 kg465 kg545 kg
Permissible axle weights, front 4-cyl. FWD 5-cyl. FWD5-cyl. AWD6-cyl. AWD2560 lbs 2580 lbs2635 lbs2755 lbs1160 kg 1170 kg1195 kg1250 kg

10 Specifications
Specifications
10
}}
385

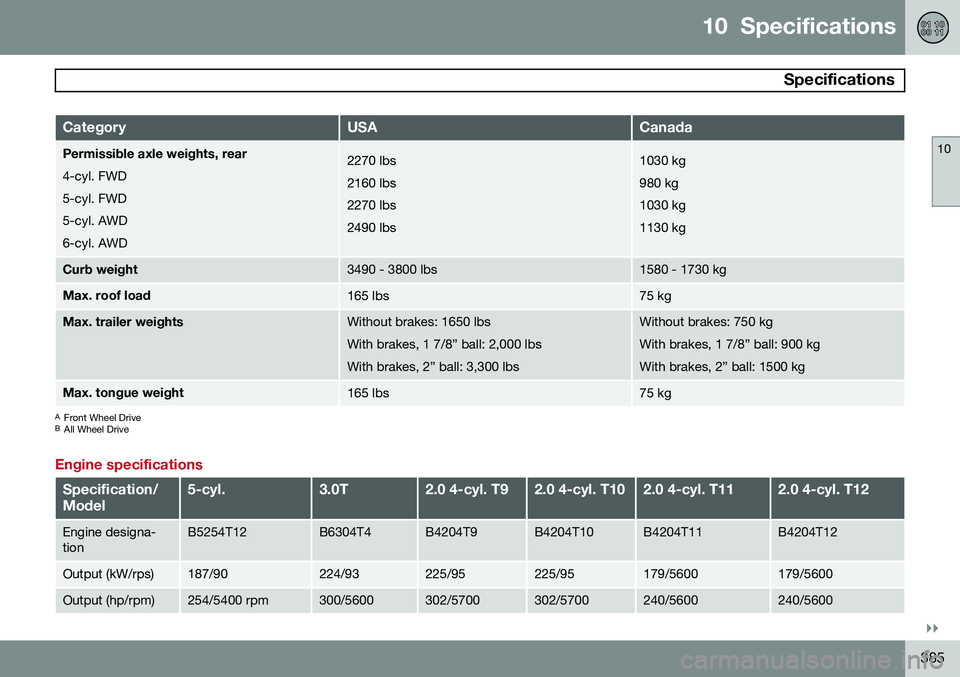

CategoryUSACanada
Permissible axle weights, rear 4-cyl. FWD 5-cyl. FWD5-cyl. AWD6-cyl. AWD2270 lbs 2160 lbs2270 lbs2490 lbs1030 kg 980 kg1030 kg1130 kg
Curb weight3490 - 3800 lbs1580 - 1730 kg
Max. roof load165 lbs75 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFront Wheel Drive
B All Wheel Drive
Engine specifications
Specification/ Model5-cyl.3.0T2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Engine designa- tionB5254T12B6304T4B4204T9B4204T10B4204T11B4204T12
Output (kW/rps)187/90224/93225/95225/95179/5600179/5600
Output (hp/rpm)254/5400 rpm300/5600302/5700302/5700240/5600240/5600

10 Specifications
Specifications
10
386
Specification/ Model5-cyl.3.0T2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Torque (Nm/rps)360/30-70440/35 – 70400/35–75400/35–75350/1500-4500350/1500-4500
Torque (ft. lbs./ rpm)266/1800-4200325/2100 – 4200295/2100–4500295/2100–4500258/1500–4500258/1500–4500
No. of cylinders564444
Bore (in/mm)3.27/833.23/823.27/823.27/823.27/823.27/82
Stroke (in/mm)3.63/92.33.67/93.23.63/93.23.63/93.23.63/93.23.63/93.2
Displacement2.497 liters / (152.4 cu. in.)2.95 liters (175 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio9.5:19.3:110.3:110.3:110.8:110.8:1
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide

10 Specifications
Specifications
10
}}
387
good fuel economy and engine protection. See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
CAUTION
4-cylinder engines only:
Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cyl-
inder engines.
Oil volume
Engine modelVolume (incl. filter)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
T12 (5 cyl.)B5254T125.8 US qts (5.5 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)

10 Specifications
Specifications
10
388
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Automatic (TG-81SC)7 US qts ( 6.6 liters)
Coolant3.0T/T59.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging.
All 4-cyl. engines8.8 US qts. (8.3 liters)
Air conditioningAll models1.6 lbs (720 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)
Power steering-Power steering fluid WSS M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 liters B
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume17.8 US gallons (67.5 liters)See page 293 for fuel recommendations
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers
Electrical system
General information
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.
