technical data VOLVO S60 CROSS COUNTRY 2016 Owner´s Manual

11 Specifications
11
370

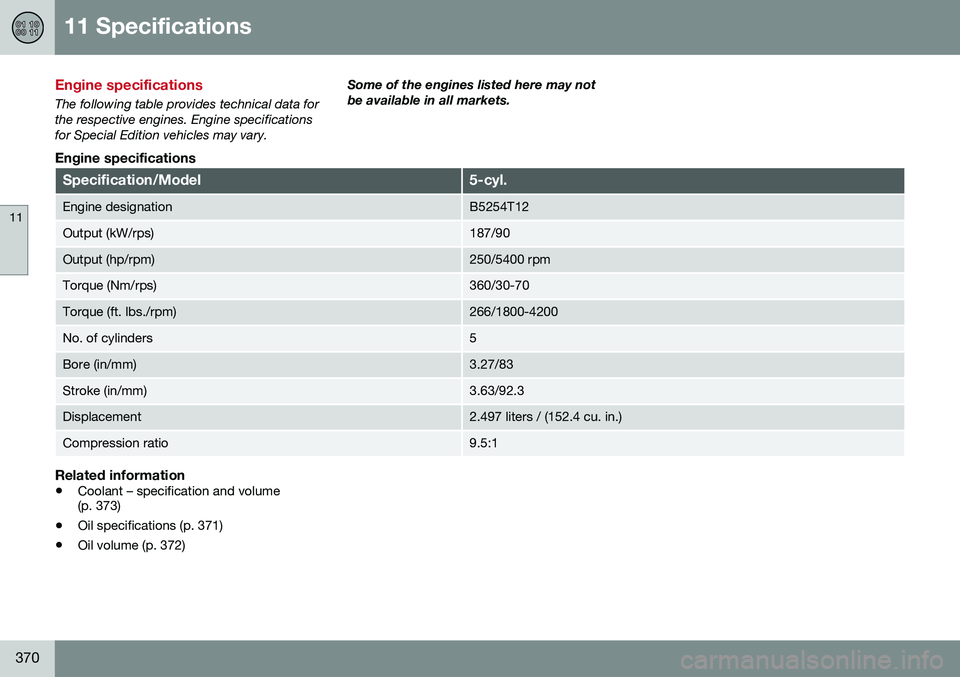

Engine specifications
The following table provides technical data for the respective engines. Engine specificationsfor Special Edition vehicles may vary.Some of the engines listed here may notbe available in all markets.
Engine specifications
Specification/Model5-cyl.
Engine designationB5254T12
Output (kW/rps)187/90
Output (hp/rpm)250/5400 rpm
Torque (Nm/rps)360/30-70
Torque (ft. lbs./rpm)266/1800-4200
No. of cylinders5
Bore (in/mm)3.27/83
Stroke (in/mm)3.63/92.3
Displacement2.497 liters / (152.4 cu. in.)
Compression ratio9.5:1
Related information
•
Coolant – specification and volume (p. 373)
• Oil specifications (p. 371)
• Oil volume (p. 372)

11 Specifications
11
372

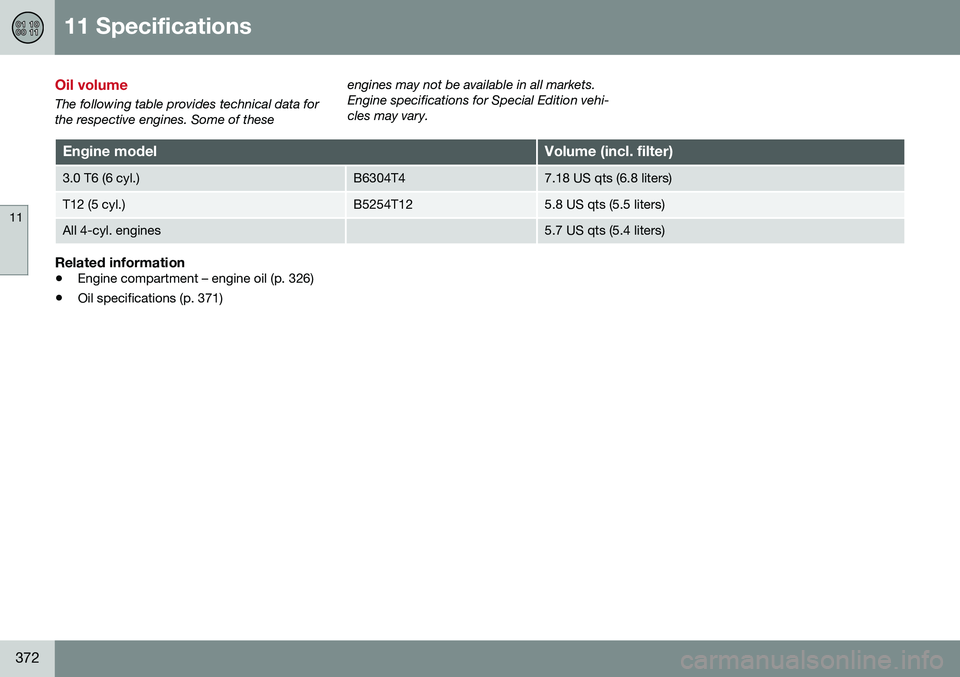

Oil volume
The following table provides technical data for the respective engines. Some of theseengines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
Engine modelVolume (incl. filter)
3.0 T6 (6 cyl.)B6304T47.18 US qts (6.8 liters)
T12 (5 cyl.)B5254T125.8 US qts (5.5 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)
Related information
•
Engine compartment – engine oil (p. 326)
• Oil specifications (p. 371)
