VOLVO S60 CROSS COUNTRY 2017 Owner´s Manual

SPECIFICATIONS
}}
369

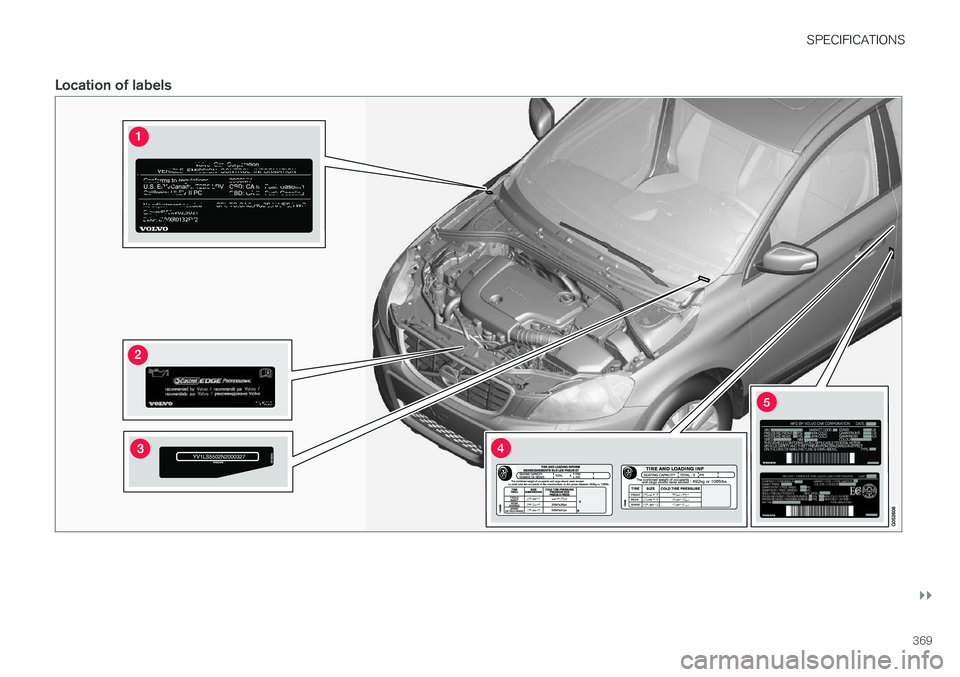

Location of labels

||
SPECIFICATIONS
370

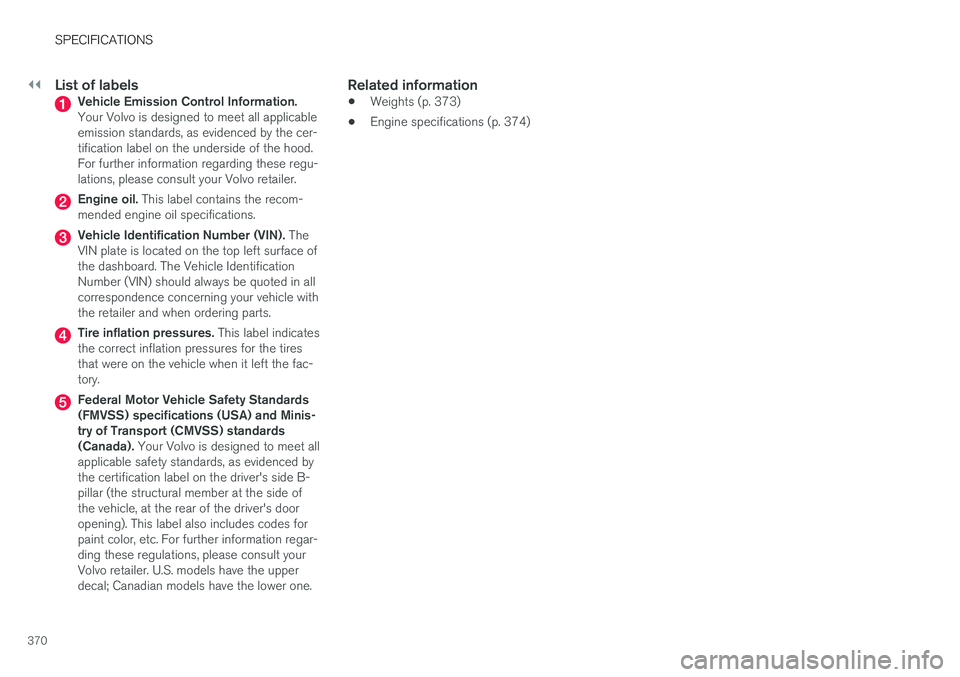

List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all applicable emission standards, as evidenced by the cer-tification label on the underside of the hood.For further information regarding these regu-lations, please consult your Volvo retailer.
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult yourVolvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.
Related information
• Weights (p. 373)
• Engine specifications (p. 374)

SPECIFICATIONS
}}
371
DimensionsThis section lists your vehicle's most important dimensions.
Dimensions–S60 Cross Country
PositionDimensionin. (mm)
AGround clearance (curb weight + 2 people) A7.5 (191 )
BWheelbase109.2 (2774)
CLength185.6 (4715)
DLoad length, floor, seatback down68.9 (1749)
ELoad length, floor38.0 (965)
FHeight60.6 (1539)

||
SPECIFICATIONS
372
PositionDimensionin. (mm)
GLoad height19.4 (492)
HTrack, front63.7 (1619)B
/
63.3 (1609) C
ITrack, rear62.1 (1577)D
/
61.7 (1567) E
JLoad width, floor36.2 (919)
KWidth73.5 (1866)
LWidth incl. door mirrors (folded out)82.6 (2097)
MWidth incl. door mirrors (folded in)74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B with 17" wheels
C with 18" wheels
D with 16" wheels
E with 17" wheels

SPECIFICATIONS
373

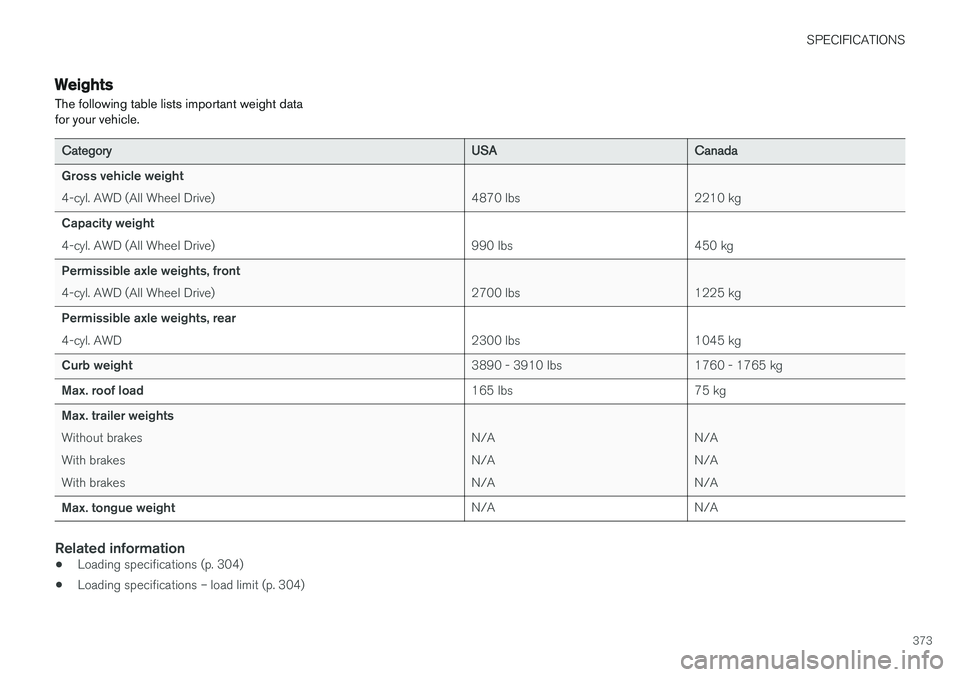

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. AWD (All Wheel Drive)
4870 lbs2210 kg
Capacity weight 4-cyl. AWD (All Wheel Drive)
990 lbs450 kg
Permissible axle weights, front 4-cyl. AWD (All Wheel Drive)
2700 lbs1225 kg
Permissible axle weights, rear 4-cyl. AWD
2300 lbs1045 kg
Curb weight3890 - 3910 lbs1760 - 1765 kg
Max. roof load165 lbs75 kg
Max. trailer weights Without brakes With brakesWith brakes
N/A N/AN/AN/A N/AN/A
Max. tongue weightN/AN/A
Related information
•Loading specifications (p. 304)
• Loading specifications – load limit (p. 304)

SPECIFICATIONS
374
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
EngineT5 AWD
Engine designationB4204T11
Output (kW/rps)179/93
Output (hp/rpm)240/5600 rpm
Torque (Nm/rps)350/25-75
Torque (ft. lbs./rpm)258/1500-4500
No. of cylinders4
Bore (in/mm)3.23/82
Stroke (in/mm)3.67/93.2
Displacement1.97 liters / (120.2 cu. in.)
Compression ratio10.8:1
Related information
•
Coolant – specification and volume (p. 377)
• Oil specifications (p. 375)
• Oil volume (p. 376)

SPECIFICATIONS
375

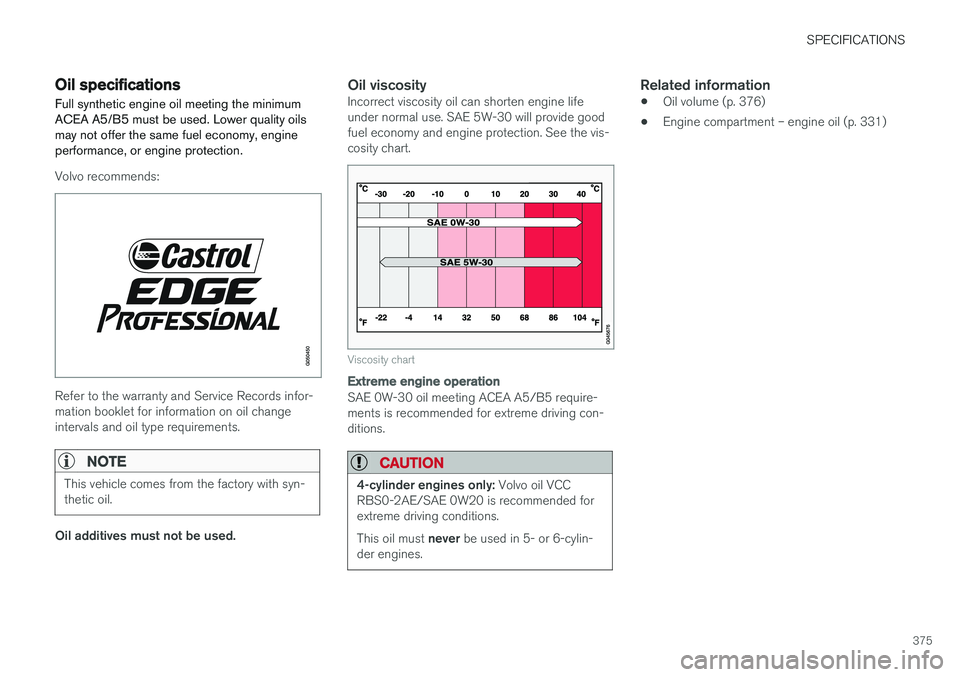

Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cylin-
der engines.
Related information
• Oil volume (p. 376)
• Engine compartment – engine oil (p. 331)

SPECIFICATIONS
376

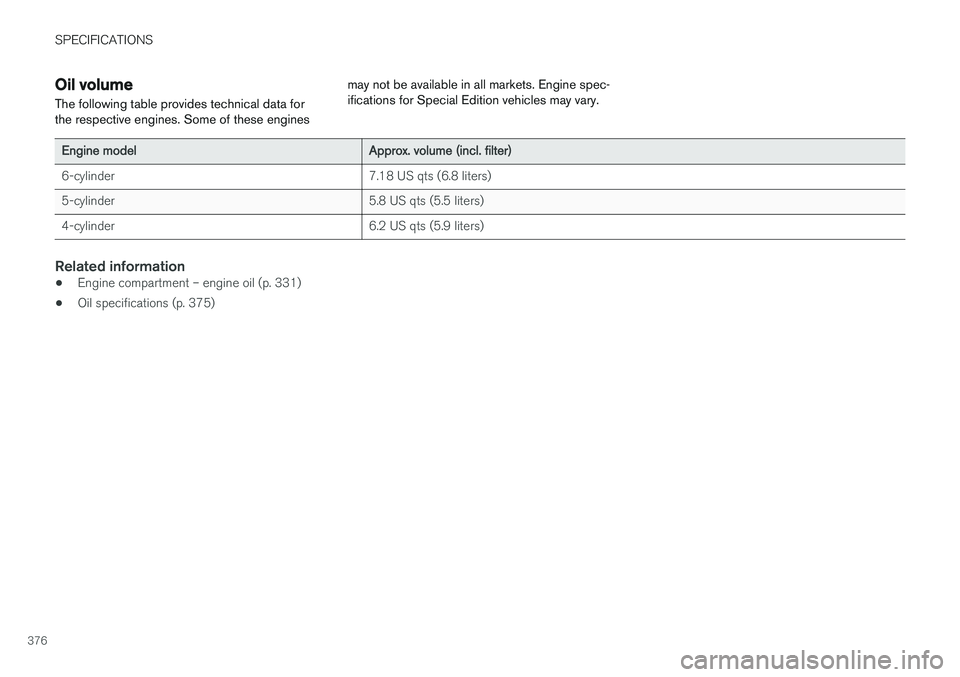

Oil volume
The following table provides technical data for the respective engines. Some of these engines may not be available in all markets. Engine spec-ifications for Special Edition vehicles may vary.
Engine modelApprox. volume (incl. filter)
6-cylinder7.18 US qts (6.8 liters)
5-cylinder5.8 US qts (5.5 liters)
4-cylinder6.2 US qts (5.9 liters)
Related information
•
Engine compartment – engine oil (p. 331)
• Oil specifications (p. 375)

SPECIFICATIONS
377

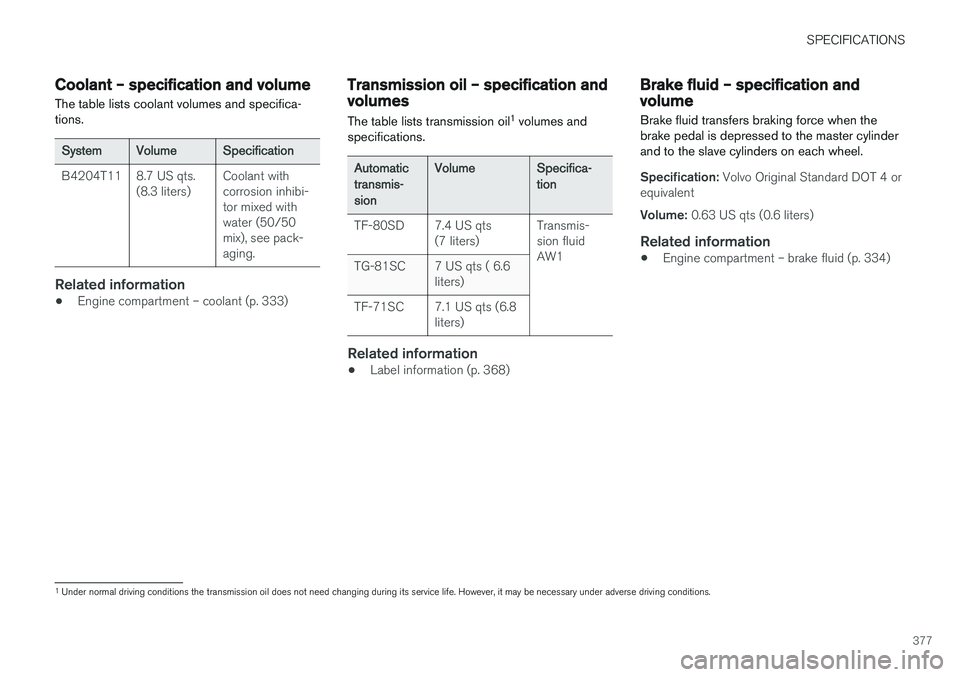

Coolant – specification and volume The table lists coolant volumes and specifica- tions.
SystemVolumeSpecification
B4204T118.7 US qts. (8.3 liters)Coolant with corrosion inhibi-tor mixed withwater (50/50mix), see pack-aging.
Related information
•Engine compartment – coolant (p. 333)
Transmission oil – specification and volumes The table lists transmission oil 1
volumes and
specifications.
Automatic transmis-sionVolumeSpecifica- tion
TF-80SD7.4 US qts (7 liters)Transmis- sion fluidAW1
TG-81SC7 US qts ( 6.6 liters)
TF-71SC7.1 US qts (6.8 liters)
Related information
• Label information (p. 368)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel.
Specification: Volvo Original Standard DOT 4 or
equivalent Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 334)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS
378

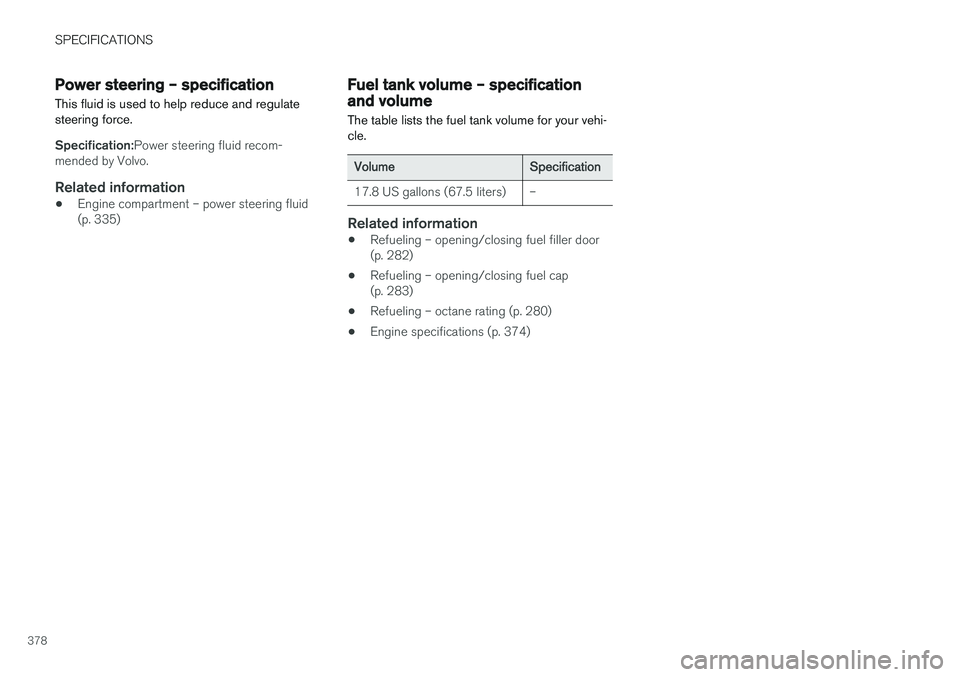

Power steering – specification
This fluid is used to help reduce and regulate steering force.
Specification: Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 335)
Fuel tank volume – specification and volume The table lists the fuel tank volume for your vehi- cle.
VolumeSpecification
17.8 US gallons (67.5 liters)–
Related information
•Refueling – opening/closing fuel filler door (p. 282)
• Refueling – opening/closing fuel cap(p. 283)
• Refueling – octane rating (p. 280)
• Engine specifications (p. 374)
