VOLVO S60 CROSS COUNTRY 2017 Owner´s Manual

SPECIFICATIONS
379

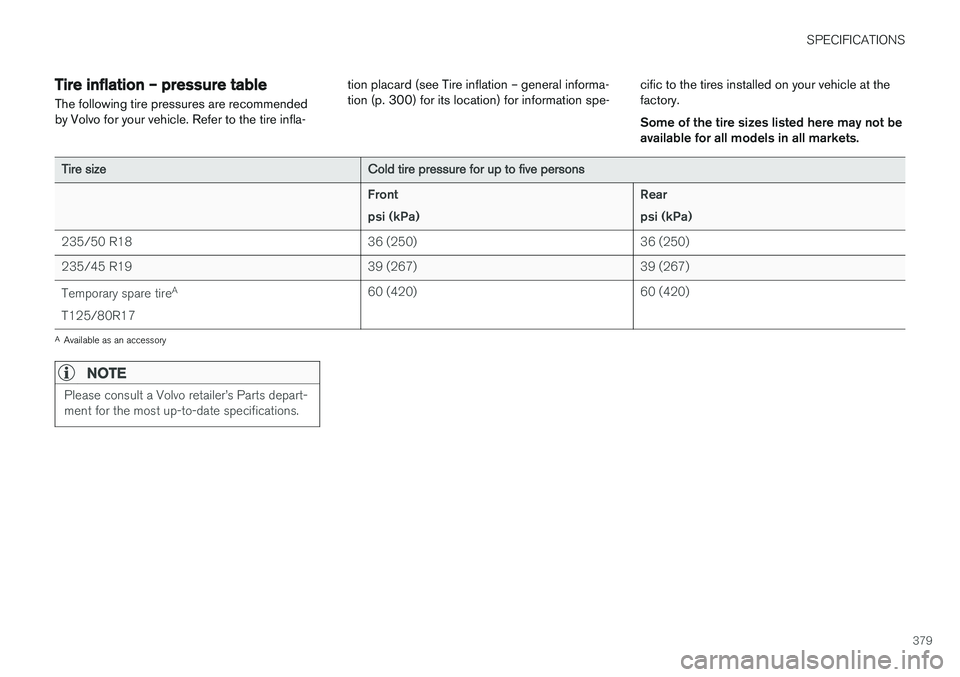

Tire inflation – pressure table
The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard (see Tire inflation – general informa-tion (p. 300) for its location) for information spe-
cific to the tires installed on your vehicle at thefactory. Some of the tire sizes listed here may not be available for all models in all markets.
Tire sizeCold tire pressure for up to five persons
Front psi (kPa)Rear psi (kPa)
235/50 R1836 (250)36 (250)
235/45 R1939 (267)39 (267)
Temporary spare tire
A
T125/80R1760 (420)60 (420)
A Available as an accessory
NOTE
Please consult a Volvo retailer

SPECIFICATIONS
380

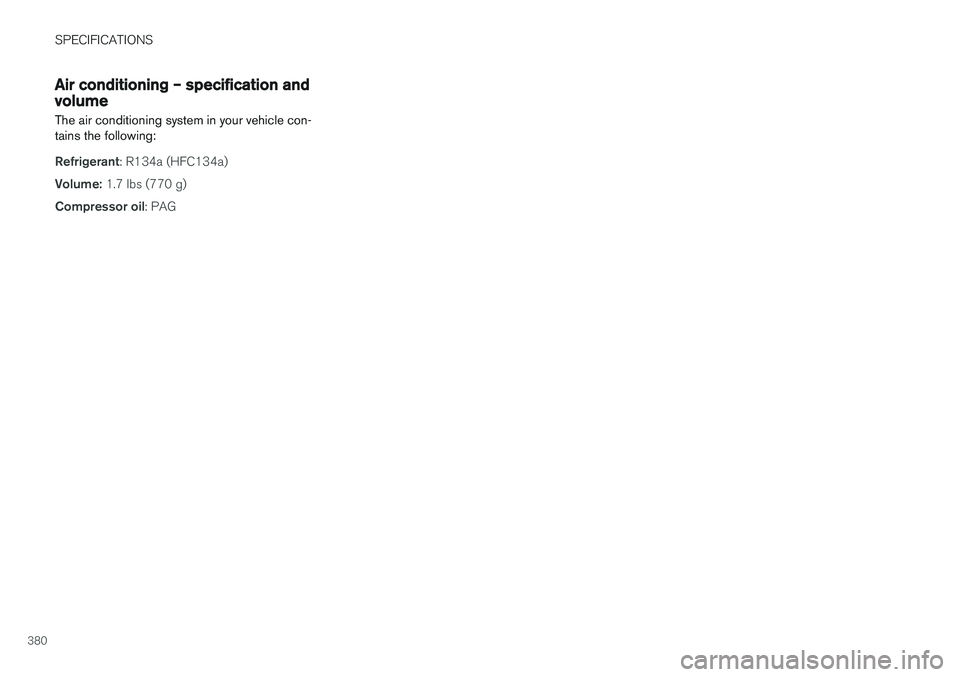

Air conditioning – specification and volume
The air conditioning system in your vehicle con- tains the following:
Refrigerant : R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.381

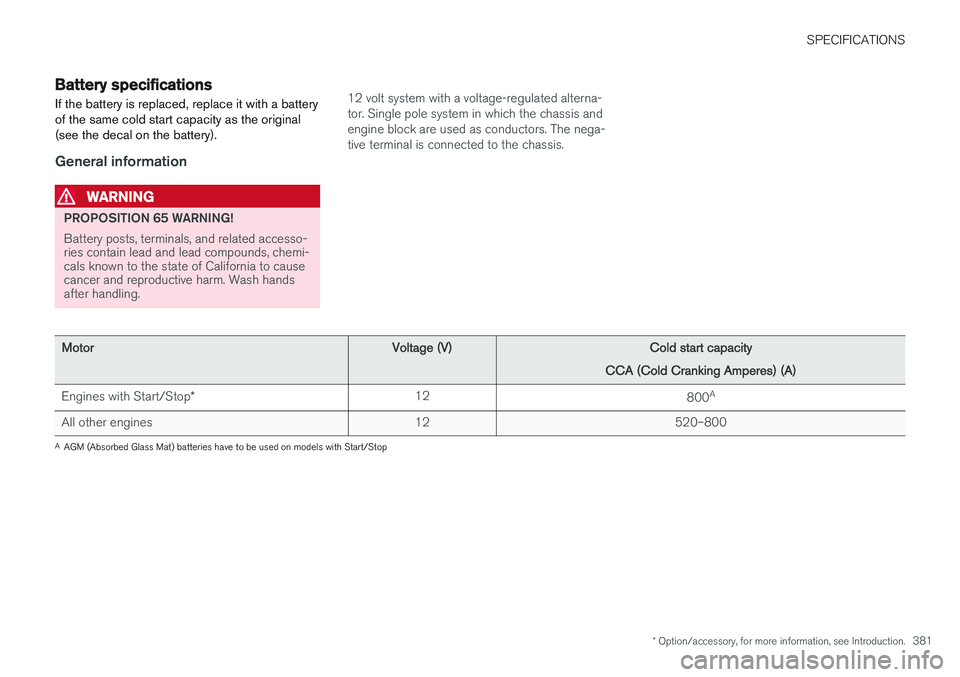

Battery specifications If the battery is replaced, replace it with a battery of the same cold start capacity as the original(see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accesso- ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling. 12 volt system with a voltage-regulated alterna- tor. Single pole system in which the chassis andengine block are used as conductors. The nega-tive terminal is connected to the chassis.
MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)
Engines with Start/Stop *12800A
All other engines12520–800
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop

SPECIFICATIONS
382

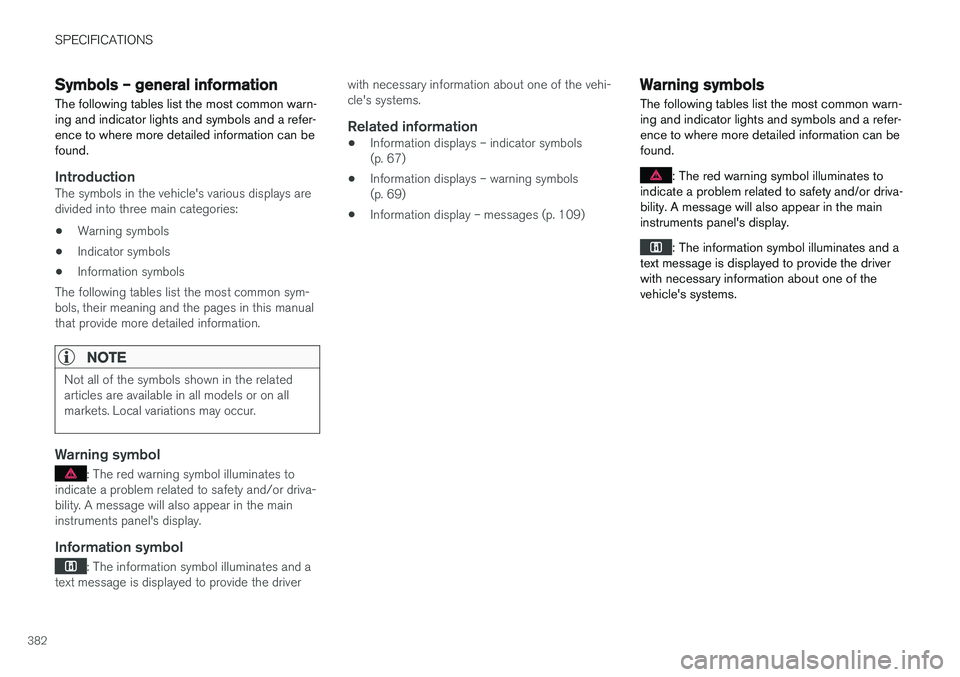

Symbols – general information The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
IntroductionThe symbols in the vehicle's various displays are divided into three main categories: •Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most common sym- bols, their meaning and the pages in this manualthat provide more detailed information.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
Information symbol
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of the vehi- cle's systems.
Related information
•
Information displays – indicator symbols(p. 67)
• Information displays – warning symbols(p. 69)
• Information display – messages (p. 109)
Warning symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.383

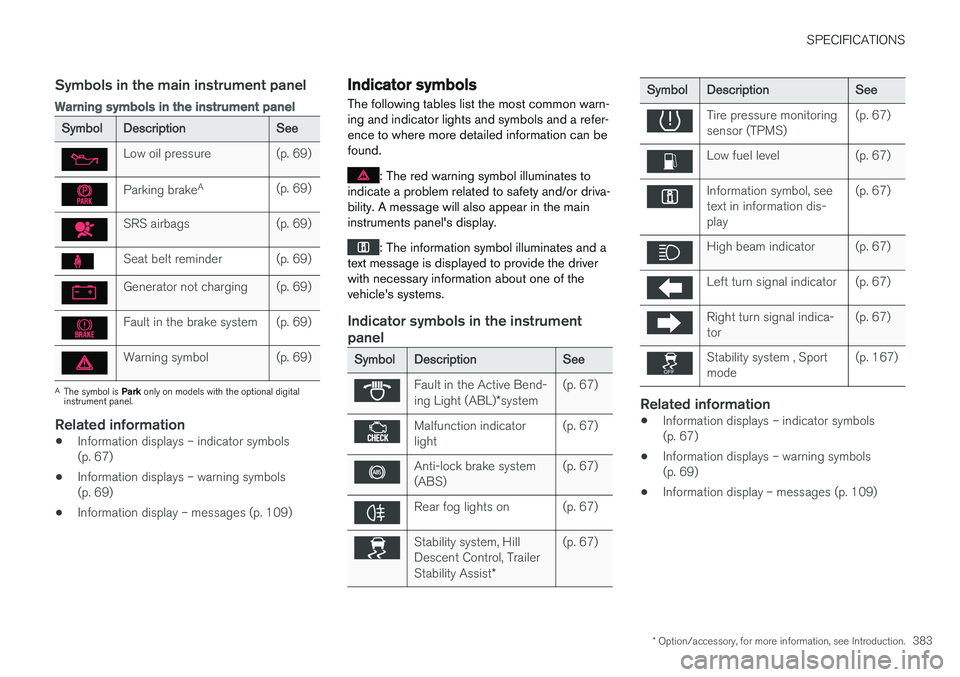

Symbols in the main instrument panel
Warning symbols in the instrument panel
SymbolDescriptionSee
Low oil pressure(p. 69)
Parking brakeA(p. 69)
SRS airbags(p. 69)
Seat belt reminder(p. 69)
Generator not charging(p. 69)
Fault in the brake system(p. 69)
Warning symbol(p. 69)
A
The symbol is Park only on models with the optional digital
instrument panel.
Related information
• Information displays – indicator symbols (p. 67)
• Information displays – warning symbols(p. 69)
• Information display – messages (p. 109)
Indicator symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
Indicator symbols in the instrument panel
SymbolDescriptionSee
Fault in the Active Bend- ing Light (ABL) *system(p. 67)
Malfunction indicator light(p. 67)
Anti-lock brake system (ABS)(p. 67)
Rear fog lights on(p. 67)
Stability system, Hill Descent Control, Trailer Stability Assist *(p. 67)
SymbolDescriptionSee
Tire pressure monitoring sensor (TPMS)(p. 67)
Low fuel level(p. 67)
Information symbol, see text in information dis-play(p. 67)
High beam indicator(p. 67)
Left turn signal indicator(p. 67)
Right turn signal indica- tor(p. 67)
Stability system , Sport mode(p. 167)
Related information
•Information displays – indicator symbols (p. 67)
• Information displays – warning symbols(p. 69)
• Information display – messages (p. 109)

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.
384

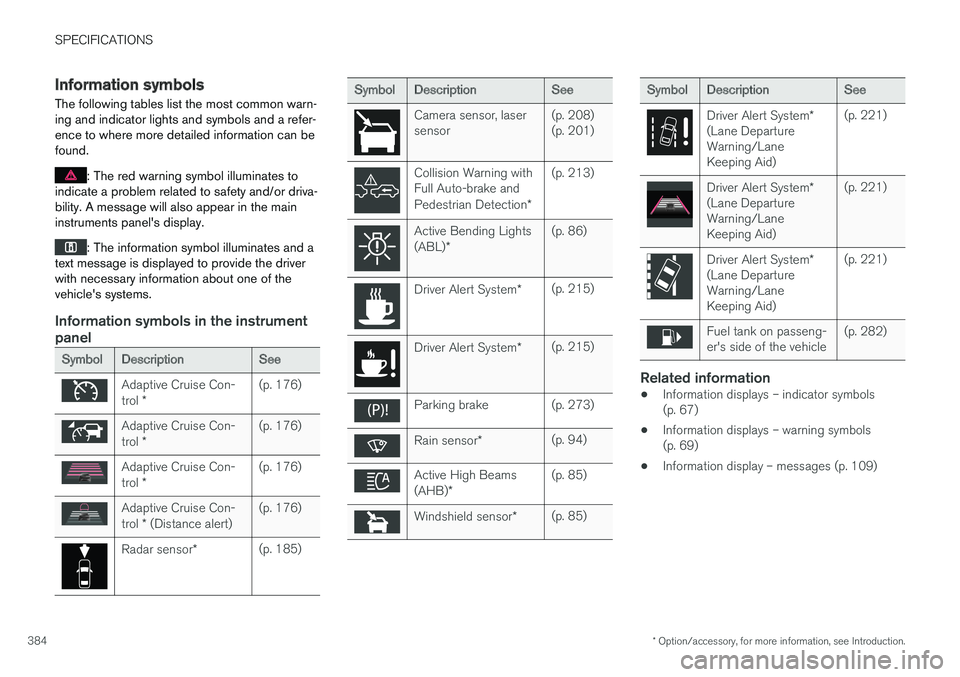

Information symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
Information symbols in the instrument panel
SymbolDescriptionSee
Adaptive Cruise Con- trol *(p. 176)
Adaptive Cruise Con- trol *(p. 176)
Adaptive Cruise Con- trol *(p. 176)
Adaptive Cruise Con- trol * (Distance alert)(p. 176)
Radar sensor *(p. 185)
SymbolDescriptionSee
Camera sensor, laser sensor(p. 208) (p. 201)
Collision Warning with Full Auto-brake and Pedestrian Detection *(p. 213)
Active Bending Lights (ABL)*(p. 86)
Driver Alert System *(p. 215)
Driver Alert System*(p. 215)
Parking brake(p. 273)
Rain sensor*(p. 94)
Active High Beams (AHB)*(p. 85)
Windshield sensor *(p. 85)
SymbolDescriptionSee
Driver Alert System *
(Lane Departure Warning/LaneKeeping Aid)(p. 221)
Driver Alert System *
(Lane Departure Warning/LaneKeeping Aid)(p. 221)
Driver Alert System *
(Lane Departure Warning/LaneKeeping Aid)(p. 221)
Fuel tank on passeng- er's side of the vehicle(p. 282)
Related information
• Information displays – indicator symbols (p. 67)
• Information displays – warning symbols(p. 69)
• Information display – messages (p. 109)

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.385

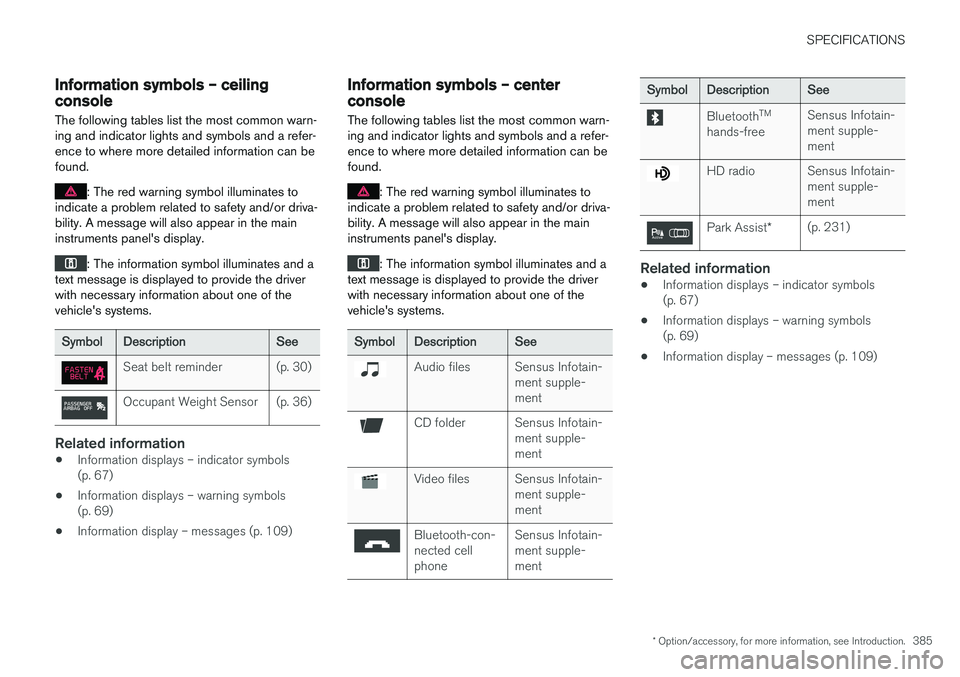

Information symbols – ceiling console
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
SymbolDescriptionSee
Seat belt reminder(p. 30)
Occupant Weight Sensor(p. 36)
Related information
• Information displays – indicator symbols (p. 67)
• Information displays – warning symbols(p. 69)
• Information display – messages (p. 109)
Information symbols – center console
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
SymbolDescriptionSee
Audio filesSensus Infotain- ment supple-ment
CD folderSensus Infotain- ment supple-ment
Video filesSensus Infotain- ment supple-ment
Bluetooth-con- nected cellphoneSensus Infotain- ment supple-ment
SymbolDescriptionSee
Bluetooth TM
hands-freeSensus Infotain- ment supple-ment
HD radioSensus Infotain- ment supple-ment
Park Assist *(p. 231)
Related information
•Information displays – indicator symbols (p. 67)
• Information displays – warning symbols(p. 69)
• Information display – messages (p. 109)

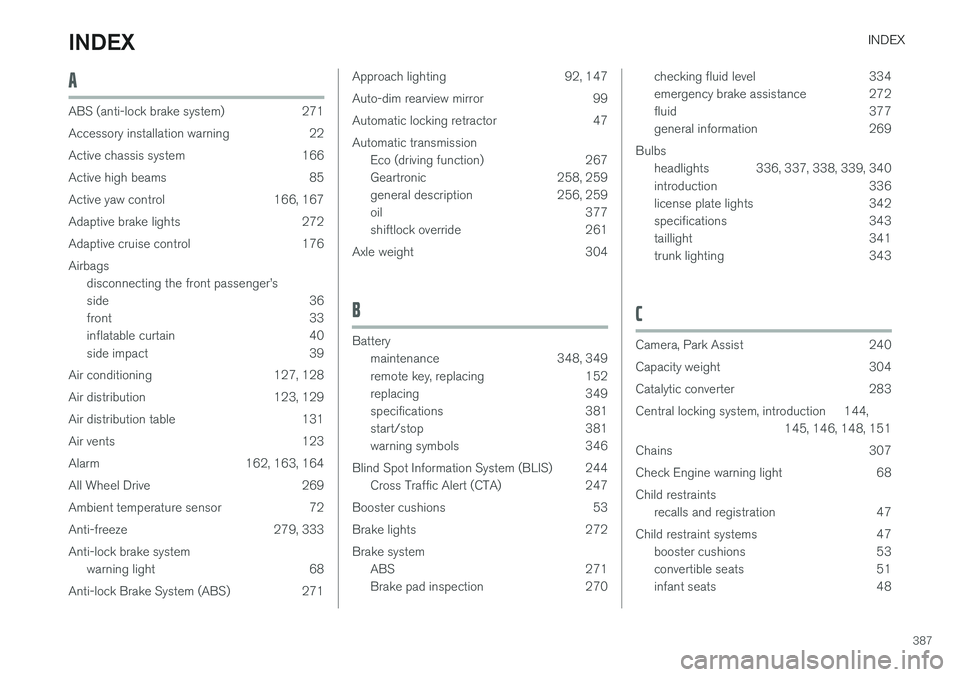

INDEX
387
A
ABS (anti-lock brake system) 271
Accessory installation warning 22
Active chassis system 166
Active high beams 85
Active yaw control 166, 167
Adaptive brake lights 272
Adaptive cruise control 176Airbagsdisconnecting the front passenger

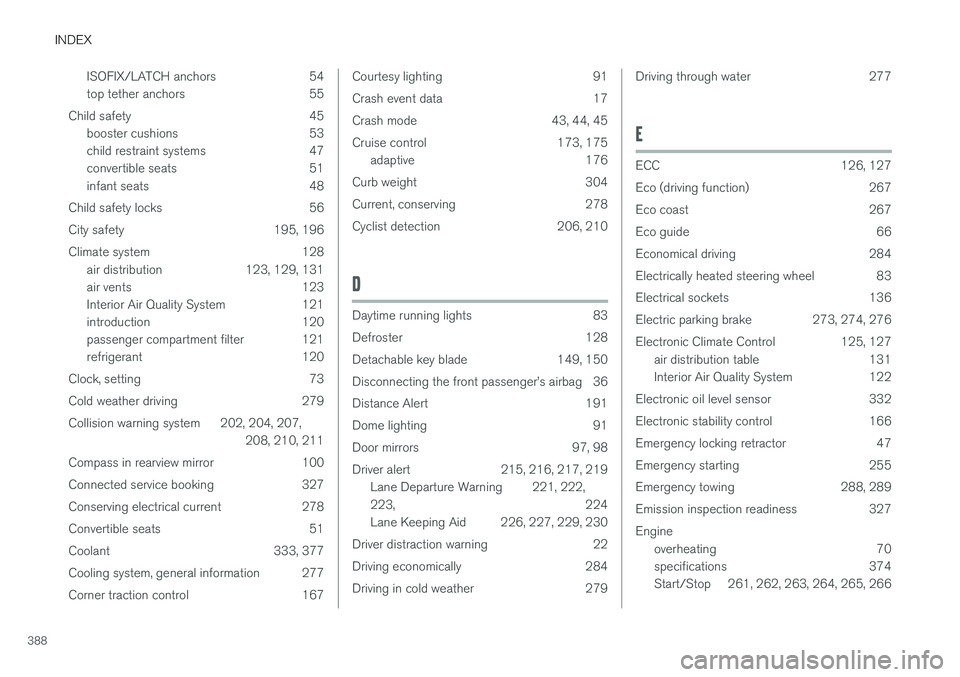

INDEX
388ISOFIX/LATCH anchors 54
top tether anchors 55
Child safety 45 booster cushions 53
child restraint systems 47
convertible seats 51
infant seats 48
Child safety locks 56
City safety 195, 196
Climate system 128 air distribution 123, 129, 131
air vents 123
Interior Air Quality System 121
introduction 120
passenger compartment filter 121
refrigerant 120
Clock, setting 73
Cold weather driving 279
Collision warning system 202, 204, 207, 208, 210, 211
Compass in rearview mirror 100
Connected service booking 327
Conserving electrical current 278
Convertible seats 51
Coolant 333, 377
Cooling system, general information 277
Corner traction control 167
Courtesy lighting 91
Crash event data 17
Crash mode 43, 44, 45
Cruise control 173, 175 adaptive 176
Curb weight 304
Current, conserving 278
Cyclist detection 206, 210
D
Daytime running lights 83
Defroster 128
Detachable key blade 149, 150
Disconnecting the front passenger
