fuse VOLVO S60 TWIN ENGINE 2019 User Guide
[x] Cancel search | Manufacturer: VOLVO, Model Year: 2019, Model line: S60 TWIN ENGINE, Model: VOLVO S60 TWIN ENGINE 2019Pages: 645, PDF Size: 13.96 MB
Page 583 of 645

MAINTENANCE AND SERVICE
581
Fuses in the engine compartment (p. 582)
Fuses under the glove compartment(p. 586)
Page 584 of 645

MAINTENANCE AND SERVICE
582
Fuses in the engine compartment
The fuses in the engine compartment help pro-tect electrical components such as engine andbrake functions.
Page 585 of 645

MAINTENANCE AND SERVICE
}}
* Option/accessory.583
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe fusebox.
Positions
There is a decal with a diagram of the locationsof the fuses on the inside of the cover.
Fuses 1–13, 18–30, 35–37 and 46–70 are"Micro" fuses.
Fuses 14–17, 31–34, 38–45 and 71–78 are"MCase" fuses and should only be replaced
by a workshop18.
FunctionAmpere
––
––
––
Control module for actuatorfor engaging/changing gears,automatic transmission
5
High-voltage coolant heatercontrol module5
FunctionAmpere
Control module for A/C; heatexchanger cut-off valve; cut-off valve for coolant throughthe climate system
5
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
5
––
Converter for controlling feedto rear axle electric motor10
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
10
Charge module5
Cut-off valve for hybrid batterycoolant; coolant pump 1 forhybrid battery
10
Coolant pump for electric drivesystem10
FunctionAmpere
Hybrid component cooling fan 25
––
––
––
––
––
––
––
––
––
12 V outlet in tunnel console,front15
12 V outlet in tunnel consolebetween second-row seats15
12 V outlet in trunk/cargocompartment*
USB ports for iPad holders
15
––
18An authorized Volvo workshop is recommended.
Page 587 of 645

MAINTENANCE AND SERVICE
585
FunctionAmpere
––
Engine control module20
Ignition coils; spark plugs 15
––
––
Transmission oil pump controlmodule30
Vacuum pump control module 40
Transmission actuator25
––
––
––
ALED (Light Emitting Diode)
Related information
Fuses and fuseboxes (p. 580)
Replacing fuses (p. 580)
Page 588 of 645

MAINTENANCE AND SERVICE
586

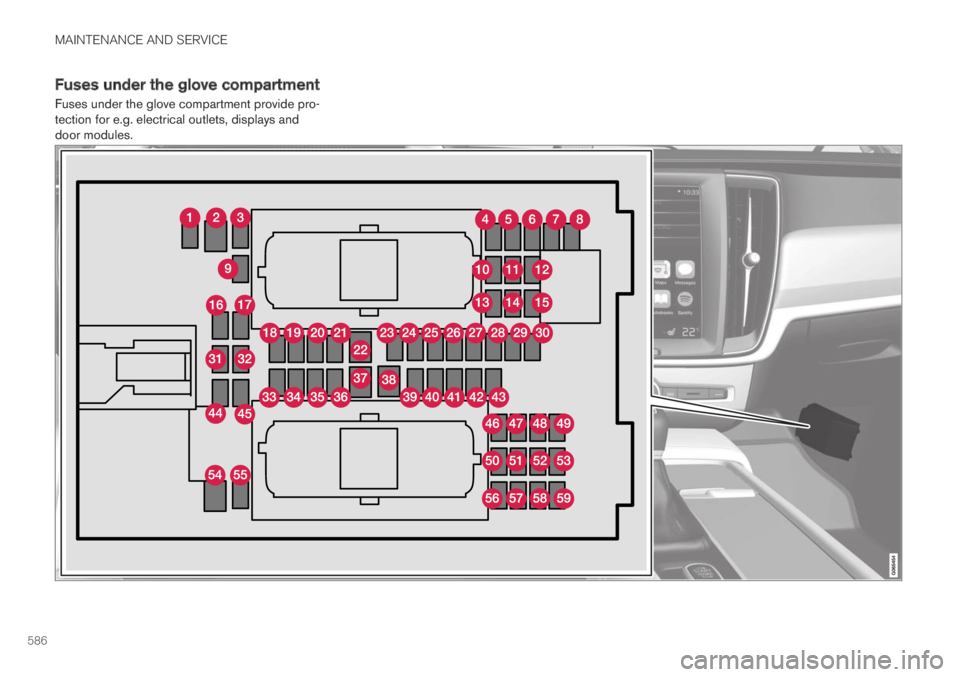

Fuses under the glove compartment
Fuses under the glove compartment provide pro-tection for e.g. electrical outlets, displays anddoor modules.
Page 589 of 645

MAINTENANCE AND SERVICE
}}
* Option/accessory.587
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe distribution box in the engine compart-ment.
Positions
Fuses 1, 3-21, 23-36, 39-53 and 55-59 are"Micro" fuses.
Fuses 2-22, 37-38 and 54 are "MCase"fuses and should only be replaced by a work-
shop19.
FunctionAmpere
––
––
––
Movement sensor*5
Media player5
Instrument panel5
Center console buttons5
Sun sensor5
FunctionAmpere
––
––
Steering wheel module5
Module for start knob andparking brake controls5
Heated steering wheel* mod-ule15
––
––
––
––
Climate system control mod-ule10
––
Data link connector OBD-II 10
Center display5
Climate system blower module(front)40
FunctionAmpere
USB HUB5
Instrument lighting; Interiorlighting; Rearview mirror auto-dim function*; Rain and lightsensors*; Rear tunnel consolekeypad, rear seat*; Power frontseats*; Rear door control pan-els; Climate system blowermodule left/right
7.5
Control module for driver sup-port functions5
Panoramic roof with sun cur-tain*20
Head-up display*5
Passenger compartment light-ing5
––
Ceiling console display (seatbelt reminder/front passengerside airbag indicator)
5
––
19An authorized Volvo workshop is recommended.
Page 590 of 645

||
MAINTENANCE AND SERVICE
* Option/accessory.588
FunctionAmpere
––
Fuses in the trunk/cargo com-partment10
Control module for Internet-connected vehicle; Controlmodule for Volvo On Call
5
–20
–
Infotainment control module(amplifier)40
––
Multi-band antenna module 5
Front seat massage function*5
––
––
Fuel pump control module 15
Relay windings for distributionbox in engine compartment;Relay windings for transmis-sion oil pump
5
––
FunctionAmpere
Driver's seat heating15
Front passenger's seat heat-ing15
Coolant pump7.5
––
Power driver's seat*20
Active chassis control module*20
––
Sensus control module10
––
––
Power front passenger seat*20
––
TV* (certain markets only)5
Primary fuse for fuses 52, 53,57 and 5815
Related information
Fuses and fuseboxes (p. 580)
Replacing fuses (p. 580)
Page 591 of 645

MAINTENANCE AND SERVICE
}}
* Option/accessory.589
Fuses in the trunk
The fuses in the trunk protect electrical compo-nents such as the power seats*, airbags andseat belt tensioners.
Page 592 of 645

||
MAINTENANCE AND SERVICE
590
The fuse box is located on the right-hand side.
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe distribution box in the engine compart-ment.
Page 593 of 645

MAINTENANCE AND SERVICE
}}
* Option/accessory.591
Positions
Fuses 13-17 and 21-36 are "Micro" fuses.
Fuses 1-12, 18-20 and 37 are "MCase"fuses and should only be replaced by a work-
shop20.
FunctionAmpere
––
––
Pneumatic suspension* com-pressor40
Lock motor for rear seat back-rest, right side15
––
Lock motor for rear seat back-rest, left side15
Power front passenger seat*
Door module right side, rear
20
Power trunk release*25
Power front passenger seat*
Door module right side, front
20
FunctionAmpere
Towbar* control module40
Seat belt tensioner module(right side)40
Internal relay windings5
––
Foot movement detectionmodule for opening the powertrunk release*
5
USB hub/accessory port –
––
Towbar* control module25
Accessory module40
Power driver seat*20
Seat belt tensioner module(left side)40
Park Assist Camera*5
––
––
FunctionAmpere
––
Control module for airbagsand seat belt tensioners5
––
Heated rear seat (left side)*15
––
Blind Spot Information(BLIS)*; Exterior reverse signalcontrol module
5
––
Modules for seat belt tension-ers5
Emissions system actuator(gasoline, certain engine vari-ants)
5
––
All Wheel Drive (AWD) controlmodule*15
20An authorized Volvo workshop is recommended.
