Page 240 of 645
KEY, LOCKS AND ALARM
* Option/accessory.238

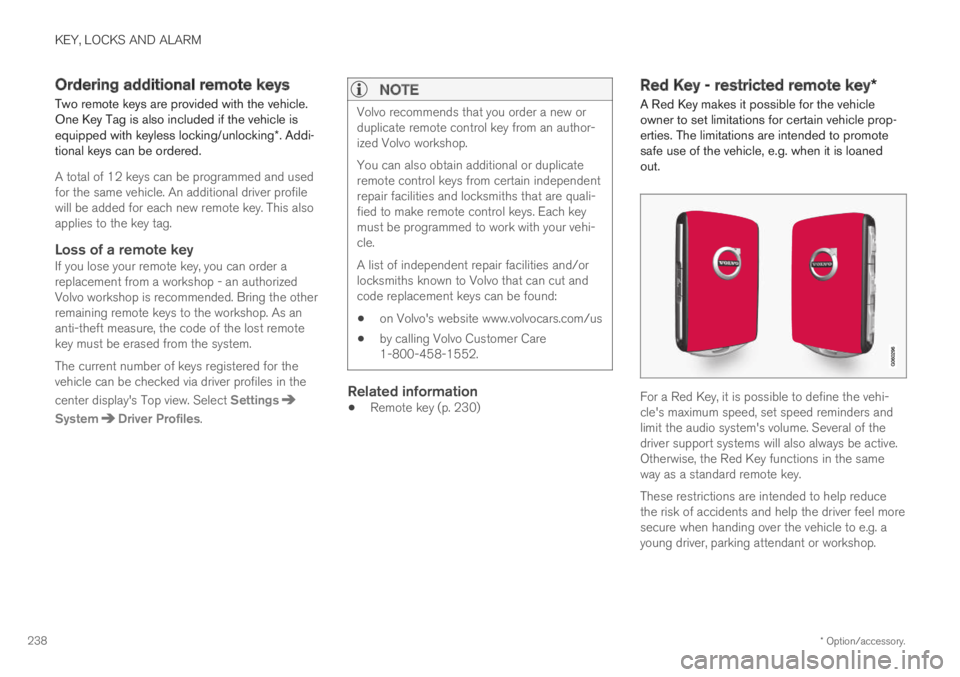

Ordering additional remote keys
Two remote keys are provided with the vehicle.One Key Tag is also included if the vehicle isequipped with keyless locking/unlocking*. Addi-tional keys can be ordered.
A total of 12 keys can be programmed and usedfor the same vehicle. An additional driver profilewill be added for each new remote key. This alsoapplies to the key tag.
Loss of a remote key
If you lose your remote key, you can order areplacement from a workshop - an authorizedVolvo workshop is recommended. Bring the otherremaining remote keys to the workshop. As ananti-theft measure, the code of the lost remotekey must be erased from the system.
The current number of keys registered for thevehicle can be checked via driver profiles in the
center display's Top view. Select Settings
SystemDriver Profiles.
NOTE
Volvo recommends that you order a new orduplicate remote control key from an author-ized Volvo workshop.
You can also obtain additional or duplicateremote control keys from certain independentrepair facilities and locksmiths that are quali-fied to make remote control keys. Each keymust be programmed to work with your vehi-cle.
A list of independent repair facilities and/orlocksmiths known to Volvo that can cut andcode replacement keys can be found:
on Volvo's website www.volvocars.com/us
by calling Volvo Customer Care1-800-458-1552.
Related information
Remote key (p. 230)
Red Key - restricted remote key*
A Red Key makes it possible for the vehicleowner to set limitations for certain vehicle prop-erties. The limitations are intended to promotesafe use of the vehicle, e.g. when it is loanedout.
For a Red Key, it is possible to define the vehi-cle's maximum speed, set speed reminders andlimit the audio system's volume. Several of thedriver support systems will also always be active.Otherwise, the Red Key functions in the sameway as a standard remote key.
These restrictions are intended to help reducethe risk of accidents and help the driver feel moresecure when handing over the vehicle to e.g. ayoung driver, parking attendant or workshop.
Page 241 of 645
KEY, LOCKS AND ALARM
}}
* Option/accessory.239

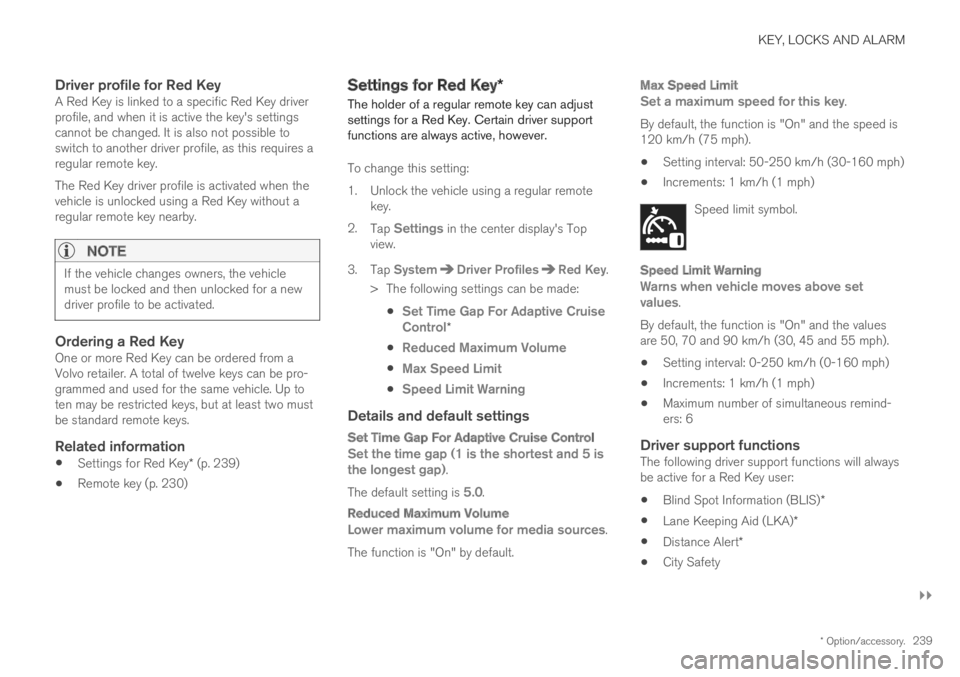

Driver profile for Red Key
A Red Key is linked to a specific Red Key driverprofile, and when it is active the key's settingscannot be changed. It is also not possible toswitch to another driver profile, as this requires aregular remote key.
The Red Key driver profile is activated when thevehicle is unlocked using a Red Key without aregular remote key nearby.
NOTE
If the vehicle changes owners, the vehiclemust be locked and then unlocked for a newdriver profile to be activated.
Ordering a Red Key
One or more Red Key can be ordered from aVolvo retailer. A total of twelve keys can be pro-grammed and used for the same vehicle. Up toten may be restricted keys, but at least two mustbe standard remote keys.
Related information
Settings for Red Key* (p. 239)
Remote key (p. 230)
Settings for Red Key*
The holder of a regular remote key can adjustsettings for a Red Key. Certain driver supportfunctions are always active, however.
To change this setting:
1.Unlock the vehicle using a regular remotekey.
2.Tap Settings in the center display's Topview.
3.Tap SystemDriver ProfilesRed Key.
> The following settings can be made:
Set Time Gap For Adaptive CruiseControl*
Reduced Maximum Volume
Max Speed Limit
Speed Limit Warning
Details and default settings
Set Time Gap For Adaptive Cruise Control
Set the time gap (1 is the shortest and 5 isthe longest gap).
The default setting is 5.0.
Reduced Maximum Volume
Lower maximum volume for media sources.
The function is "On" by default.
Max Speed Limit
Set a maximum speed for this key.
By default, the function is "On" and the speed is120 km/h (75 mph).
Setting interval: 50-250 km/h (30-160 mph)
Increments: 1 km/h (1 mph)
Speed limit symbol.
Speed Limit Warning
Warns when vehicle moves above setvalues.
By default, the function is "On" and the valuesare 50, 70 and 90 km/h (30, 45 and 55 mph).
Setting interval: 0-250 km/h (0-160 mph)
Increments: 1 km/h (1 mph)
Maximum number of simultaneous remind-ers: 6
Driver support functions
The following driver support functions will alwaysbe active for a Red Key user:
Blind Spot Information (BLIS)*
Lane Keeping Aid (LKA)*
Distance Alert*
City Safety
Page 242 of 645
||
KEY, LOCKS AND ALARM
* Option/accessory.240
Driver Alert Control (DAC)*
Road Sign Information*
Related information
Red Key - restricted remote key* (p. 238)

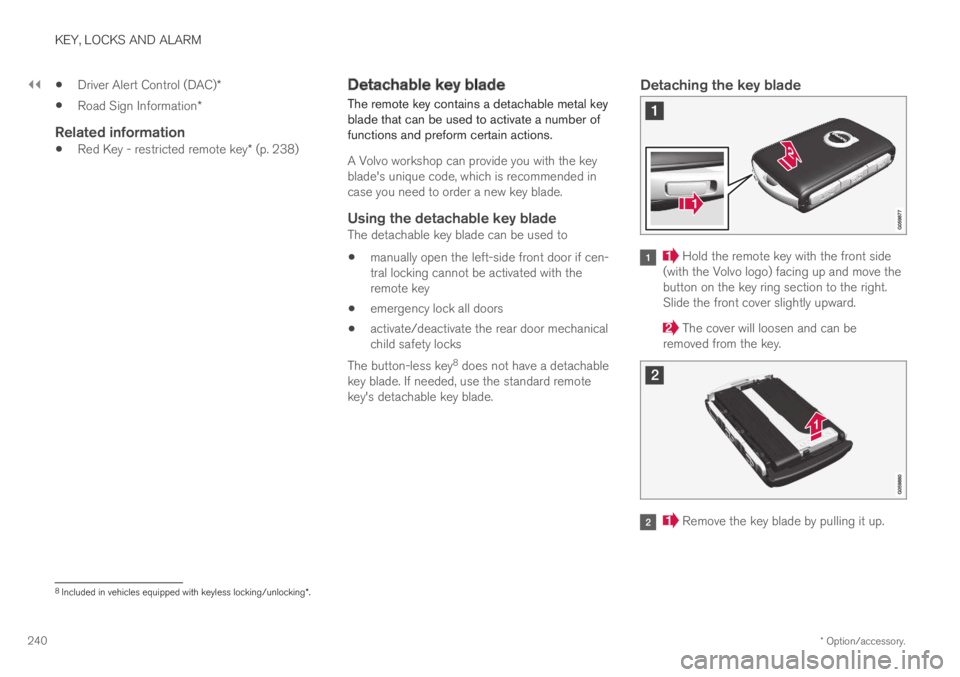

Detachable key blade
The remote key contains a detachable metal keyblade that can be used to activate a number offunctions and preform certain actions.
A Volvo workshop can provide you with the keyblade's unique code, which is recommended incase you need to order a new key blade.
Using the detachable key blade
The detachable key blade can be used to
manually open the left-side front door if cen-tral locking cannot be activated with theremote key
emergency lock all doors
activate/deactivate the rear door mechanicalchild safety locks
The button-less key8 does not have a detachablekey blade. If needed, use the standard remotekey's detachable key blade.
Detaching the key blade
Hold the remote key with the front side(with the Volvo logo) facing up and move thebutton on the key ring section to the right.Slide the front cover slightly upward.
The cover will loosen and can beremoved from the key.
Remove the key blade by pulling it up.
8Included in vehicles equipped with keyless locking/unlocking*.
Page 243 of 645
KEY, LOCKS AND ALARM
}}
241
Put the key blade back into its designatedspot in the remote key after use.
Replace the cover by pressing it downuntil it clicks into place.
Slide the cover back.
>An additional click indicates that the coveris correctly in place.
Related information
Locking and unlocking with detachable keyblade (p. 241)
Remote key (p. 230)
Locking and unlocking withdetachable key blade
The detachable key blade can be used to unlockthe vehicle from the outside, e.g. if the battery inthe remote key is discharged.
Unlocking
Pull the front left-hand door handle to its endposition to access the lock cylinder.
Put the key in the lock cylinder.
Turn the key clockwise 45 degrees so thatthe key blade is pointing straight rearward.
Turn the key blade back 45 degrees to itsoriginal position. Remove the key from thelock cylinder and release the handle so that itreturns to its original position against thevehicle.
5.Pull the door handle.
> The door will open.
Lock the door in the same way, but turn the key45 degrees counterclockwise in step (3).
Turning off the alarm
NOTE
When the door is unlocked using the detach-able key blade and then opened, the alarmwill be triggered.
Location of the backup key reader in the cup holder.
Turn off the alarm by:
1.Place the remote control key on the key sym-bol in the backup reader in the bottom of thecup holder in the tunnel console.
2. Turn the start knob clockwise and release it.
> The alarm signal will stop and the alarmwill switch off.
Page 244 of 645
||
KEY, LOCKS AND ALARM
242

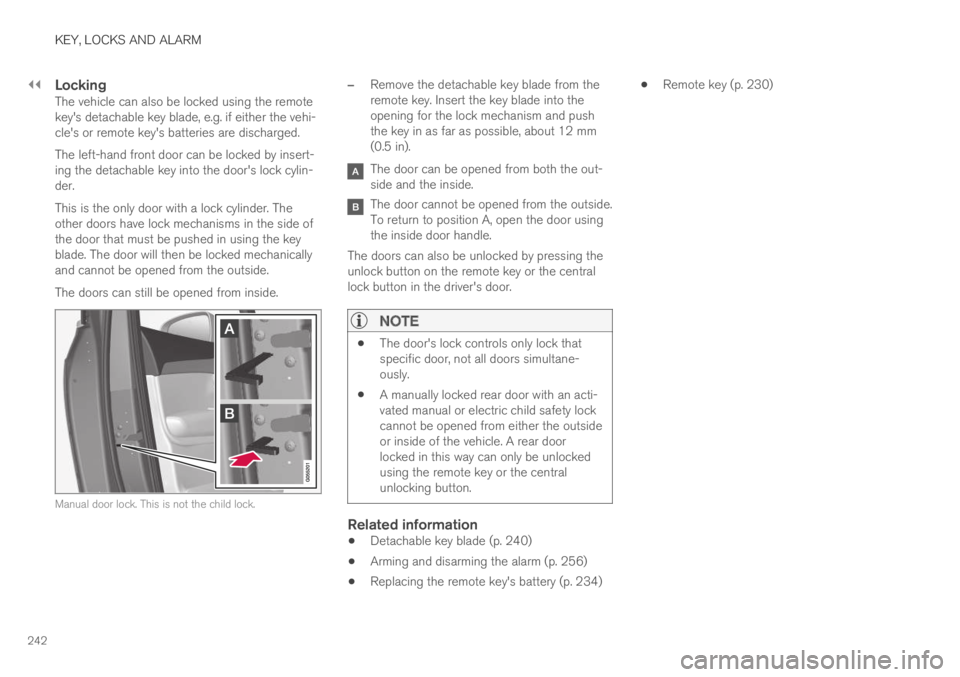

Locking
The vehicle can also be locked using the remotekey's detachable key blade, e.g. if either the vehi-cle's or remote key's batteries are discharged.
The left-hand front door can be locked by insert-ing the detachable key into the door's lock cylin-der.
This is the only door with a lock cylinder. Theother doors have lock mechanisms in the side ofthe door that must be pushed in using the keyblade. The door will then be locked mechanicallyand cannot be opened from the outside.
The doors can still be opened from inside.
Manual door lock. This is not the child lock.
–Remove the detachable key blade from theremote key. Insert the key blade into theopening for the lock mechanism and pushthe key in as far as possible, about 12 mm(0.5 in).
The door can be opened from both the out-side and the inside.
The door cannot be opened from the outside.To return to position A, open the door usingthe inside door handle.
The doors can also be unlocked by pressing theunlock button on the remote key or the centrallock button in the driver's door.
NOTE
The door's lock controls only lock thatspecific door, not all doors simultane-ously.
A manually locked rear door with an acti-vated manual or electric child safety lockcannot be opened from either the outsideor inside of the vehicle. A rear doorlocked in this way can only be unlockedusing the remote key or the centralunlocking button.
Related information
Detachable key blade (p. 240)
Arming and disarming the alarm (p. 256)
Replacing the remote key's battery (p. 234)
Remote key (p. 230)
Page 245 of 645
KEY, LOCKS AND ALARM
}}
* Option/accessory.243
Electronic immobilizer
The electronic immobilizer is a start inhibitor thathelps prevent the vehicle from being started byan unauthorized person.
The vehicle can only be started with the rightremote key.
The following instrument panel error messagesare related to the electronic immobilizer:
SymbolMessageMeaning
Vehicle keynot found
SeeOwner'smanual
Remote key notrecognized duringstart. Place theremote key on thekey symbol in thecup holder and tryto start the vehicleagain.
Remote immobilizer with tracking
system 9
The vehicle is equipped with a system that makesit possible to track and locate the vehicle and toremotely activate the immobilizer to prevent thevehicle from being started. Contact your nearestVolvo retailer for more information and assistanceactivating the system.
The following instrument panel error messagesare related to the remote immobilizer with track-ing system:
SymbolMessageMeaning
Remotelyimmobilised
Vehicle notpossible tostart
The remoteimmobilizer withtracking system isactivated. Thevehicle cannot bestarted. ContactVolvo On CallService Center.
Related information
Remote key (p. 230)
Ordering additional remote keys (p. 238)
Start and lock system typedesignations
The following information contains type designa-tions for the start and lock system.
Alarm system
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCCrules. Operation is subject to the following condi-tions: (1) This device may not cause harmfulinterference, and (2) this device must accept anyinterference received, including interference thatmay cause undesired operation.
Canada IC: 4405A-DA 5823(3)
This device is subject to the following conditions:(1) this device may not cause interference, and(2) this device must accept any interference,including interference that may cause undesiredoperation of the device.
Remote keys (Passive Entry * /Passive
Start)
USA
Volvo Standard Key FCC ID: YGOHUF8423
Volvo Tag ID FCC ID: YGOHUF8432
This device complies with part 15 of the FCCrules. Operation is subject to the following twoconditions:
9
Only certain markets and in combination with Volvo On Call.
Page 246 of 645
||
KEY, LOCKS AND ALARM
* Option/accessory.244
(1) This device may not cause harmful interfer-ence, and
(2) this device must accept any interferencereceived, including interference that may causeundesired operation.
Any changes or modification not expresslyapproved by the party responsible for compliancecould void the user's authority to operate thisequipment.
Canada
Volvo Standard Key IC: 4008C-HUF8423
Volvo Tag ID IC: 4008C-HUF8432
This device complies with Industry Canadalicense-exempt RSS standards. Operation is sub-ject to the following two conditions:
(1) This device may not cause harmful interfer-ence, and (2) this device must accept any inter-ference received, including interference that maycause undesired operation.
Immobilizer and Passive Entry * /Passive
Start systems
USA-FCC ID: LTQVO3134
This device complies with part 15 of the FCCrules. Operation is subject to the following twoconditions:
(1) This device may not cause harmful interfer-ence, and
(2) this device must accept any interferencereceived, including interference that may causeundesired operation.
Any changes or modification not expresslyapproved by the party responsible for compliancecould void the user's authority to operate thisequipment.
Canada-IC:3659A-VO3134
This device complies with Industry Canadalicense-exempt RSS standards. Operation is sub-ject to the following two conditions:
(1) This device may not cause harmful interfer-ence, and (2) this device must accept any inter-ference received, including interference that maycause undesired operation.
Related information
Remote key (p. 230)
Keyless and touch-sensitive
surfaces*
With the keyless locking and unlocking function,the remote key only needs to be within range,e.g. in a pocket or bag. The vehicle can then belocked or unlocked by touching the pressure-sensitive surface on the door handle.
Page 247 of 645
KEY, LOCKS AND ALARM
}}
* Option/accessory.245

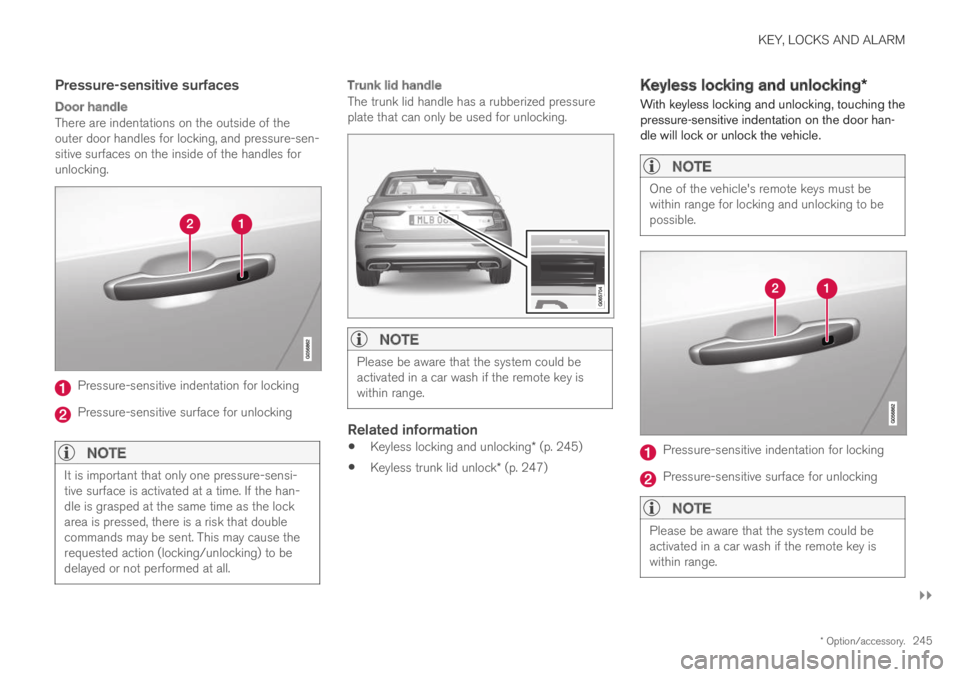

Pressure-sensitive surfaces
Door handle
There are indentations on the outside of theouter door handles for locking, and pressure-sen-sitive surfaces on the inside of the handles forunlocking.
Pressure-sensitive indentation for locking
Pressure-sensitive surface for unlocking
NOTE
It is important that only one pressure-sensi-tive surface is activated at a time. If the han-dle is grasped at the same time as the lockarea is pressed, there is a risk that doublecommands may be sent. This may cause therequested action (locking/unlocking) to bedelayed or not performed at all.
Trunk lid handle
The trunk lid handle has a rubberized pressureplate that can only be used for unlocking.
NOTE
Please be aware that the system could beactivated in a car wash if the remote key iswithin range.
Related information
Keyless locking and unlocking* (p. 245)
Keyless trunk lid unlock* (p. 247)
Keyless locking and unlocking*
With keyless locking and unlocking, touching thepressure-sensitive indentation on the door han-dle will lock or unlock the vehicle.
NOTE
One of the vehicle's remote keys must bewithin range for locking and unlocking to bepossible.
Pressure-sensitive indentation for locking
Pressure-sensitive surface for unlocking
NOTE
Please be aware that the system could beactivated in a car wash if the remote key iswithin range.
Page 248 of 645
||
KEY, LOCKS AND ALARM
* Option/accessory.246
Keyless locking
All of the doors have to be closed before thevehicle can be locked. However, the trunk lid canbe open when a door handle is used for locking.
–Touch the marked area on the outside of oneof the door handles after the door is closed.
>The lock indicator light on the dashboardwill flash to confirm that the vehicle islocked.
To close all door windows at the same time -place your finger on the pressure-sensitiveindentation on the outside of the door handle andhold it there until the side windows have closed.
Locking when the trunk lid is open
NOTE
If the vehicle is locked and the trunk lid is stillopen, make sure that the remote key is notleft in the trunk when the trunk lid is closed.
If the key is detected in the vehicle, the trunklid will not lock when it is closed.
Keyless unlocking
–To unlock, grasp a door handle or lightlypress the rubberized button on the undersideof the trunk lid handle.
>The lock indicator light on the dashboardwill stop flashing to confirm that the vehi-cle is unlocked.
The rubberized button on the trunk lid can only be usedfor unlocking.
Automatic relocking
If none of the doors or trunk lid are opened withintwo minutes after being unlocked, they will auto-matically relock. This function reduces the risk ofinadvertently leaving the vehicle unlocked.
Related information
Keyless unlock settings* (p. 246)
Keyless trunk lid unlock* (p. 247)
Keyless and touch-sensitive surfaces*(p. 244)
Keyless unlock settings*
Several different sequences are available forkeyless unlocking.
To change this setting:
1.Tap Settings in the center display's Topview.
2.Tap My CarLockingKeyless Unlock
3. Select alternative:
All Doors – unlocks all doors at the sametime.
Single Door – unlocks the selected door.
Related information
Keyless locking and unlocking* (p. 245)
Keyless and touch-sensitive surfaces*(p. 244)
Page 249 of 645
KEY, LOCKS AND ALARM
}}
* Option/accessory.247
Keyless trunk lid unlock*
With keyless locking/unlocking, touching thepressure-sensitive indentation on the trunk lidhandle will unlock the trunk lid.
NOTE
One of the vehicle's remote keys must bewithin range behind the vehicle for unlockingto be possible.
The trunk lid is held closed by an electronic lock-ing mechanism.
To open:
1.Lightly press the rubberized pressure plateon the underside of the trunk lid handle.
> The lock will disengage.
2. Lift the outer handle to open the trunk lid.
CAUTION
Only light pressure on the rubberized pres-sure plate is necessary to release thetrunk lid's locking mechanism.
Use the handle to lift the trunk lid and donot apply force to the rubberized pressureplate. Too much force can damage thepressure plate's electrical connections.
Hands-free opening of the trunk lid is also possi-ble using a foot movement under the rearbumper.
Kicking motion within the sensor's activation area.
–Make one slow forward kicking motion withyour foot under the left section of the rearbumper. Take a step back. Do not touch thebumper.
>A brief audible signal will sound whenopening is activated – the trunk lid willopen/close.
If several opening attempts have been madewithout the remote key in range behind the vehi-cle, foot movement operation will not be availablefor a short period of time.
Do not keep your foot under the vehicle in a kick-ing motion. This may prevent activation.
