VOLVO S60 TWIN ENGINE 2019 Owners Manual

MAINTENANCE AND SERVICE
* Option/accessory.609
Filling washer fluid
Washer fluid is used to help keep the headlightsand windshield clean. Washer fluid containinganti-freeze should be used in very cold weather(below-freezing temperatures).
Fill washer fluid into the reservoir with the bluecover. The reservoir is used for both the wind-shield washer and the headlight washer*

NOTE
When there is approximately 1 liter (1 qt) ofwasher fluid remaining, the message Washer
fluid Level low, refill and the symbolwill be displayed in the instrument panel.
Recommended grade: Washer fluid recom-mended by Volvo, with frost protection during
cold weather and temperatures below the freez-ing point.
CAUTION
Use Volvo's original washer fluid or an equiva-lent fluid with the recommended pH valuebetween 6 and 8, diluted as recommended,e.g. in a 1:1 solution with pH-neutral water.

CAUTION
Use washer fluid with anti-freeze when tem-peratures are below the freezing point to helpkeep the pump, reservoir and hoses fromfreezing.
Volume:
Vehicles with headlight washing: 5.5 liters(5.8 qts).
Vehicles without headlight washing: 3.5 lit-ers (3.7 qts).

Related information
Using the rain sensor (p. 175)
Using the windshield and headlight washers(p. 177)
Using the rain sensor's memory function(p. 176)
Windshield wipers in the service position(p. 608)
Replacing windshield wiper blades (p. 607)
Using the windshield wipers (p. 175)
Wiper blades and washer fluid (p. 174)

S P E C I F I C A T I O N S

SPECIFICATIONS
612

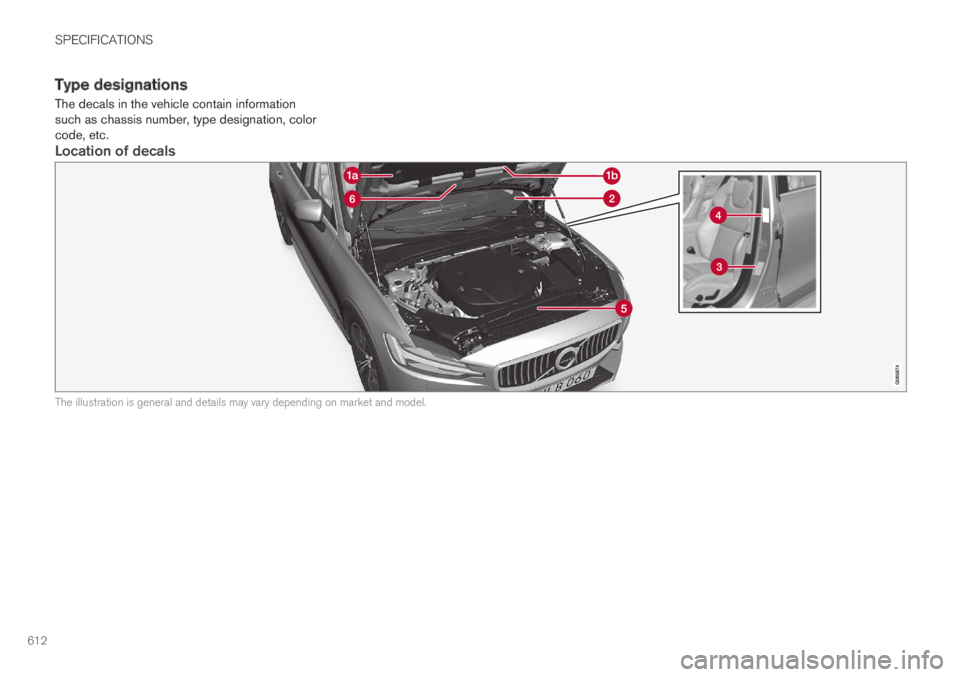

Type designations
The decals in the vehicle contain informationsuch as chassis number, type designation, colorcode, etc.

Location of decals
The illustration is general and details may vary depending on market and model.

SPECIFICATIONS
}}
613
Vehicle Emission Control Information. USmodels. Your Volvo is designed to meet all appli-cable emission standards, as evidenced by thecertification label on the underside of the hood.For further information regarding these regula-tions, please consult your Volvo retailer.
Vehicle Emission Control Information.Canadian models. Your Volvo is designed tomeet all applicable emission standards, as evi-denced by the certification label on the undersideof the hood. For further information regardingthese regulations, please consult your Volvoretailer.
Vehicle Identification Number (VIN). TheVIN plate is located on the top left surface of thedashboard. The Vehicle Identification Number(VIN) should always be quoted in all correspond-ence concerning your vehicle with the retailer andwhen ordering parts.
Tire inflation pressures. This label indicatesthe correct inflation pressures for the tires thatwere on the vehicle when it left the factory.
Federal Motor Vehicle Safety Standards(FMVSS) specifications (USA) and Ministry ofTransport (CMVSS) standards (Canada). YourVolvo is designed to meet all applicable safetystandards, as evidenced by the certification labelon the driver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rear of thedriver's door opening). This label also includescodes for paint color, etc. For further informationregarding these regulations, please consult yourVolvo retailer. U.S. models have the upper decal;Canadian models have the lower one.

||
SPECIFICATIONS
614
Engine oil. This label contains the recom-mended engine oil specifications.
Decal A/C. Refrigerant R134a.

NOTE
The decals shown in the Owner's Manual donot claim to be exact reproductions of thosefound in the vehicle. The purpose is to showapproximately how they look and about wherethey are located on the vehicle. The informa-tion that applies for your vehicle in particularis found on the decal on the vehicle.
Related information
Air conditioning specifications (p. 622)

SPECIFICATIONS
}}
615
Dimensions
The vehicle's length, height, etc. are shown inthe table.
Dimensionsmminches
AGround clearanceA1365.4
B Wheelbase2872 113,1
C Length4761 187.4
D Load length, floor,folded backrest1797 70.7
E Load length, floor 1005 39.6
FHeightB1437 56.6
Dimensionsmminches
GLoad height485 19,1
H Wheel track, front1603C
1600D
1593E
63.1C
63,0D
62,7E
I Wheel track, rear1603C
1600D
1593E
63.1C
63,0D
62,7E
Dimensionsmminches
JLoad width, floor 867 34,1
K Width1850 72.8

||
SPECIFICATIONS
616
Dimensionsmminches
LWidth incl. rearviewmirrors2040 80.3
M Width incl. folded rear-view mirrors1916 75.4
AAt curb weight + 2 people. (Varies slightly depending on tiredimensions, chassis, etc.)BIncluding roof antenna, at curb weight.CVehicles with 17-inch wheels.DVehicles with 18/19-inch wheels.EVehicles with 20-inch wheels.

Related information
Weights (p. 617)

SPECIFICATIONS
617
Weights
The following table lists important weight datafor your vehicle.
CategoryUSA
(lbs)
Canada
(kg)
Gross vehicle weight54902490
Capacity weight890405
Permissible axle weights, front27751260
Permissible axle weights, rear27751260
Curb weight3670–44801660–2020
Max. roof load16575

CAUTION
When loading the vehicle, the maximumgross vehicle weight and permissible axleweights may not be exceeded.

Related information
Type designations (p. 612)
Towing capacity and tongue weight(p. 618)

SPECIFICATIONS
* Option/accessory.618
Towing capacity and tongue weightTowing capacity and tongue weight are shownin the tables below.
CategoryUSA
(lbs)
Canada
(kg)
Max. trailer weightsWithout brakes:1650750
With brakes:2000900
Max. tongue weight20090

CAUTION
The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).

Related information
Type designations (p. 612)
Weights (p. 617)
Driving with a trailer (p. 434)
Trailer Stability Assist* (p. 436)
