MAINTENANCE AND SERVICE
}}
* Option/accessory.609
Cleaning the leather steering wheel
Only use cleaning agents and car care prod- ucts recommended by Volvo. Clean regularlyand treat stains immediately. It is importantto vacuum before using a cleaning agent.
Leather needs to breathe. Never cover the leather steering wheel with a plastic protector.Volvo Leather Care Kit 951 0251 and LeatherSoftener 943 7429 are recommended forcleaning the leather steering wheel. First,remove dirt, dust, etc. with a damp sponge orcloth.
CAUTION
Sharp objects such as rings could damage the leather on the steering wheel.
Treating stains on the steering wheel:Type 1 (ink, wine, coffee, milk, sweat or blood)
–Use a soft cloth or sponge. Wipe the steering wheel using a solution of 5%ammonia. For blood stains, mix approxi-mately 2 dl (1 cup) of water with 25 g(one ounce) of salt and wipe the stain.
Type 2 (grease, oil, sauces or chocolate)
1. Same procedure as for Type 1 stains.
2. Finish by wiping the wheel with an absorbent paper or towel. Type 3
(dry dirt or dust)
1. Remove the dirt/dust using a soft brush.
2. Same procedure as for Type 1 stains.
Related information
Cleaning the interior (p. 605)
Cleaning the center display (p. 605)
Cleaning fabric upholstery and ceiling liner (p. 607)
Cleaning the seat belt (p. 607)
Cleaning floor mats and inlay mats(p. 607)
Cleaning leather upholstery
* (p. 608)
Cleaning interior plastic, metal and woodsurfaces (p. 609)
Cleaning interior plastic, metal and wood surfaces
Only use cleaning agents and car care prod- ucts recommended by Volvo. Clean regularlyand treat stains immediately.
A lightly dampened microfiber cloth is recom- mended for cleaning interior details and surfa-ces. These cloths are available for purchase atVolvo retailers. Never scrape or rub a stain. Never use strong stain removers.
CAUTION
Do not use solvent containing alcohol to clean the instrument panel glass.
CAUTION
Keep in mind that glossy surfaces can be easily scratched. Wipe these surfaces witha clean and dry microfiber cloth usingsmall, circular motions. If necessary, mois-ten the cloth lightly with clean water.
Related information
Cleaning the interior (p. 605)
Cleaning the center display (p. 605)
Cleaning fabric upholstery and ceiling liner (p. 607)
Cleaning the seat belt (p. 607)

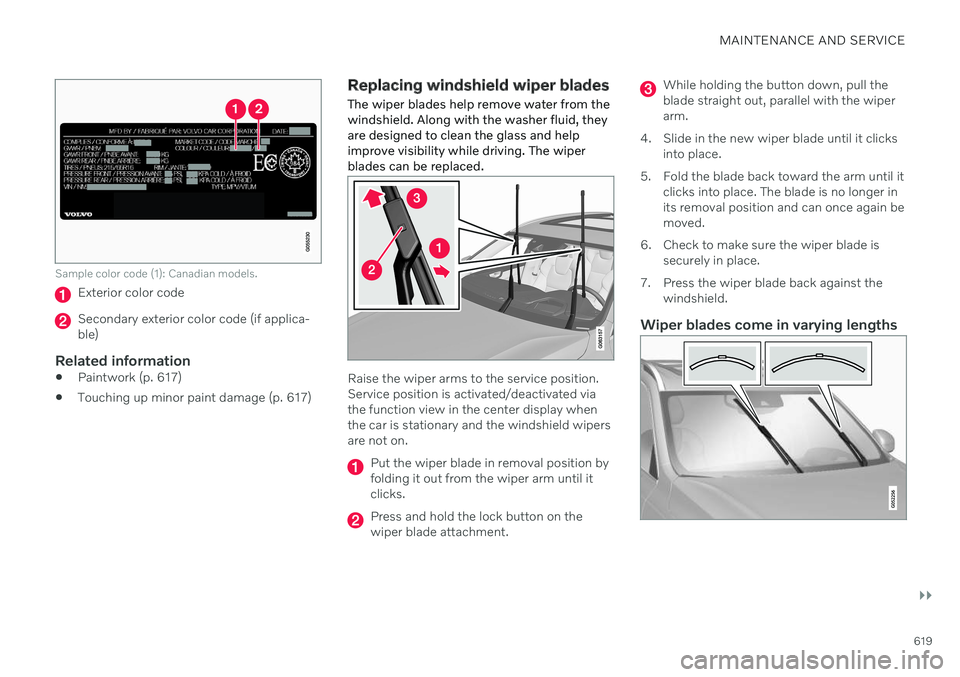

MAINTENANCE AND SERVICE
}}
619
Sample color code (1): Canadian models.
Exterior color code
Secondary exterior color code (if applica- ble)
Related information
Paintwork (p. 617)
Touching up minor paint damage (p. 617)
Replacing windshield wiper blades
The wiper blades help remove water from the windshield. Along with the washer fluid, theyare designed to clean the glass and helpimprove visibility while driving. The wiperblades can be replaced.
Raise the wiper arms to the service position. Service position is activated/deactivated viathe function view in the center display whenthe car is stationary and the windshield wipersare not on.
Put the wiper blade in removal position by folding it out from the wiper arm until itclicks.
Press and hold the lock button on the wiper blade attachment.
While holding the button down, pull the blade straight out, parallel with the wiperarm.
4. Slide in the new wiper blade until it clicks into place.
5. Fold the blade back toward the arm until it clicks into place. The blade is no longer inits removal position and can once again bemoved.
6. Check to make sure the wiper blade is securely in place.
7. Press the wiper blade back against the windshield.
Wiper blades come in varying lengths

||
MAINTENANCE AND SERVICE
620
NOTE
When changing wiper blades, make sure that the blades are of different lengths. Theblade on the driver's side is longer than theone on the passenger side.
Related information
Using the rain sensor (p. 178)
Using the windshield and headlight wash- ers (p. 179)
Using the rain sensor's memory function(p. 179)
Filling washer fluid (p. 621)
Putting the wiper blades in service posi-tion (p. 620)
Using the windshield wipers (p. 177)
Wiper blades and washer fluid (p. 177)
Putting the wiper blades in service position The windshield wiper blades must be in the service (vertical) position for certain opera-tions, e.g. replacing the blades.
Windshield wipers in the service position.
The windshield wipers must be in the service position when replacing, washing or lifting theblades (e.g. to scrape ice or snow from thewindshield).
CAUTION
Before placing the wipers in service posi- tion, ensure that they have not frozen tothe windshield.
Activating/deactivating service position
The service position can be activated/deacti- vated when the vehicle is stationary and thewindshield wipers are switched off. Serviceposition is activated/deactivated via Functionview in the center display:
Tap the
Wiper Service
Position button. The indica-
tor light in the button will illu- minate when service positionis activated. The wipers willmove to the service positionwhen activated. To deactivate
the service position, tap
Wiper Service
Position once. The indicator light in the but-
ton will go out when service position is deacti- vated.

MAINTENANCE AND SERVICE
}}
* Option/accessory.621
The wiper blades will also move out of the service position if:
The windshield wipers are turned on.
The windshield washers are turned on.
The rain sensor is activated.
The vehicle begins moving.
CAUTION
If the wiper arms in service position are raised from the windshield, they must befolded back against the windscreen beforeactivating wiping, washing or rain sensoras well as before departure. This is to pre-vent scratching the paint on the hood.
Related information
Using the rain sensor (p. 178)
Using the windshield and headlight wash- ers (p. 179)
Using the rain sensor's memory function(p. 179)
Filling washer fluid (p. 621)
Replacing windshield wiper blades(p. 619)
Using the windshield wipers (p. 177)
Wiper blades and washer fluid (p. 177)
Filling washer fluid Washer fluid is used to help keep the head- lights and windshield clean. Washer fluidcontaining anti-freeze should be used in verycold weather (below-freezing temperatures).
Fill washer fluid into the reservoir with the blue cover. The reservoir is used for both the windshield washer and the headlight washer
*
NOTE
When there is approximately 1 liter (1 qt) of washer fluid remaining, the message
Washer fluid Level low, refill and the
symbol will be displayed in the
instrument panel.
Recommended grade: Washer fluid recom-
mended by Volvo, with frost protection during cold weather and temperatures below the freezing point.
CAUTION
Use Volvo's original washer fluid or an equivalent fluid with the recommended pHvalue between 6 and 8, diluted as recom-mended, e.g. in a 1:1 solution with pH-neu-tral water.
CAUTION
Use washer fluid with anti-freeze when temperatures are below the freezing pointto help keep the pump, reservoir and hosesfrom freezing.
Volume:
Vehicles
with headlight washing: 5.5 liters
(5.8 qts).
Vehicles
without headlight washing: 3.5
liters (3.7 qts).
Related information
Using the rain sensor (p. 178)
Using the windshield and headlight wash- ers (p. 179)
Using the rain sensor's memory function(p. 179)

INDEX
638Automatic locking 254
Automatic relocking 234, 247
Automatic transmission 406, 407
kickdown 411
oil 633
Trailer 436
Auxiliary heater 227
B
Backrest front seat, adjusting 182, 183, 186, 187 , 188, 189
rear seat, folding 192
Battery Hybrid 583
jump-start 434
Maintenance 579
recycling 584
start 579
symbols on the battery 584
BLIS 321 activating/deactivating 322
limitations 323
Symbols and messages 324
Blower
adjusting 216
air distribution 204
air vents 204
Bluetooth connect 477
connecting vehicle to Internet 497
phone 487
settings 495
Book service and repair 567
Booster cushions 72 Brake assist after collision 406
Brake energy 397, 412Brake fluid grade 633
Brake functions 397
Brake position 407
Brakes 397 anti-lock brakes, ABS 397
automatic when stationary 404
Brake Assist System, BAS 399
brake lights 159
brake system 397
emergency brake lights 159
Maintenance 400
on salted roads 400on wet roads 399
parking brake 400
brake system fluid 633
C
Camera sensor
see Camera 300
Camera unit 300 limitations 301
maintenance and cleaning 305
Capacity weight 546, 629
Cargo compartment 557 attachment points 560
Car wash 610, 611, 613, 614, 615, 616
Catalytic converter 432 recovery 440
CD player 475
Cell phone, see Phone 488
Center console 551 Center display change appearance 128
cleaning 605
climate controls 209
Function view 119
keyboard 123

INDEX
639
messages 137, 138
operation 109, 112, 116, 121
overview 107
settings 129, 130
switch off and change volume 128
symbols in status bar 121
views 112
Central locking 250
Change of owner 131
Changing a wheel 532Charge vehicle function 424
Charge level vehicle function 424
Charging hybrid battery 375 opening and closing the charging
door 380
start charging 380
Status 382, 383, 384
stop charging 386
Charging cable 377
Charging current 377
Checking engine oil level 575
Child restraints 63, 65 booster cushions 72
convertible seats 69
infant seats 67
ISOFIX/LATCH anchors 75
lower attachment points 74
recalls and registration 65
top tether anchors 73
Child safety 63
Child safety locks 252
Circuit breaker 379
City Safety 306 braking for oncoming vehicles 315
crossing traffic 312
delayed evasive maneuver 315
detecting obstacles 310
evasive maneuver 314
limitations 316
limitations for evasive maneuvers 314
limitations in crossing traffic 313
setting warning distance 309
sub-functions 307
Symbols and messages 319
Cleaning 607, 609 automatic car wash 613
car wash 610, 611, 613, 614, 615, 616
center display 605
Seat belts 607
textile upholstery 605, 607, 608
upholstery 605, 607, 608, 609
wheels 616
Cleaning wheels 616
Cleaning wiper blades 614Clean Zone 201
Clean Zone Interior Package 201
Climate 198 auto-regulation 213
blower control 216
parking 219
perceived temperature 199
Sensors 198
temperature control 217, 218
voice control 199
zones 198
Climate controls 209 center display 209
rear seat 209
Climate system 198, 209 Refrigerant 634
repairs 571
Clock, setting 90
Collision 42, 47, 52, 61Collision warner crossing traffic rear 325
see City Safety 306
Collision warning from the rear 320
Color code, paintwork 618
Color codes 618

INDEX
640Compass 446, 447
calibration 447
Condensation in headlights 611, 613, 614, 615
Connecting vehicle to Internet No connection or poor connection 501
via a mobile device (WiFi) 497
via cellular phone (Bluetooth) 497
via vehicle's modem 498
Connect phone 488
Contact information 26
Convertible seats 69
coolant 633 filling 576
Cooling system overheating 433
Cornering assistance 294 activating/deactivating 295
limitations 295
Cornering illumination 158
Corner Traction Control 261
Corrosion protection 616
Crash, see Collision 42
Crash event data 33
Cross Traffic Alert 325 activating/deactivating 326
limitations 326
messages 328
Cruise control 267 activating 268
manage speed 290
standby mode 269
turn off 269
Curb weight 629
Customer Privacy Policy 35
CZIP (Clean Zone Interior Package) 201
D
Data recording 33 transferring between vehicle and
workshop 565
Data sharing 502, 503
Daytime running lights 153 Decals location 624
Defrosting 214 Detecting obstacles City Safety 310
Dimensions 627
Dipstick, electronic 575
Direction of rotation 520 Display driver information 80
Display lighting 162
Distance Alert 265 activating/deactivating 266
limitations 266
Set time interval 291
DivX ®
476
Door mirrors 170 compass 446, 447
dimming 170
outer 170
power folding 171
resetting 171
store position 184, 185
Download Center 565 use 566
Driveline transmission 406
Drive mode 413 changing 417
driver support 293
Driver Alert Control 334 activating/deactivating 335
limitations 336
rest stop guidance 335

INDEX
642Front seats, power 183
adjusting passenger seat from driv-
er's seat 191
adjusting seat 183
Lumbar support 189
massage 186, 187, 188
multifunction control 186, 187, 188, 189
Side bolsters 189
store position 184, 185
FSC, environmental labeling 23
Fuel 429 Travel Link service 469
Fuel filling 428
Fuel gauge 83
Fuel requirements 429, 430 Fuel tank volume 634
Fuse box 585
Fuses 585 below the glove compartment 594
in engine compartment 587
in trunk 600
replacing 585
G
Gasoline grade 429 Gaugefuel gauge 83
hybrid battery 84
Gear selector positions automatic transmission 407
Glass, laminated/reinforced 166
Glove compartment 555Gracenote ® 475
Grocery bag holders 559
Gross vehicle weight 629
H
Handbrake 400
Hand wash 611 Hard disk space 504
Hazard warning flashers 160
HD radio 459 Headlamp beam adjustment 152
Headlight pattern, adjustment 152
Head restraint 193
Head-up display 139 activating/deactivating 141
cleaning 606
Distance Alert 265
replacing windshield 571
settings 141
store position 141, 184, 185
Heated wiper blades 177
Heater 227 auxiliary heater 227
parking heater 227
Heating Seats 210, 211
steering wheel 212
windows 215
high beams 154, 155
High engine temperature 433
Hill Start Assist 405 Hill Start Assist (HSA) 405
Hoisting the vehicle 569Hold vehicle function 424
HomeLink ® 442
programming 443
type approval 446
use 445
HomeLink ® remote control
programmable 442

INDEX
643
Home safe lighting, Homesafe Lighting, Follow me home lighting, follow-me-
home lighting 160
Honk 194
Hood, opening 571
Horn 194
Hybrid battery 583
Charging 375
Hybrid battery gauge 84
Hybrid gauge 83
Hybrid mode 413, 418
I
IAQS (Interior Air Quality System) 202
IC (Inflatable Curtain) 60
ID, Volvo 26
Identification number 38
Ignition mode 395, 396
Immobilizer 244 Electronic immobilizer 244
Indicator symbols 91
Individual drive mode 413
Infant seats 67
Inflatable curtain 60
Inflatable Curtain 60
Inflating tires 545Inflation pressure adjusting 526
Checking 525
decal with recommended pressure 527
Inflation pressure monitoring 527 action 531
save new inflation pressure 529
Status 530
Inflation pressure table 635
Information display 80, 82
Infotainment (Audio and media) 450
Instrument cluster 80 settings 82
Instrument illumination 162
Instrument lighting 162
Instrument panel 80 App menu 101, 102 hybrid-related symbols and mes-
sages 388
messages 103
settings 82
Instruments and controls 78 Instruments overview left-hand drive vehicle 78IntelliSafe
driver support 29
Interior Air Quality System 202
Intermittent wiping 177Internet, see Internet-connected vehi- cle 496
Internet-connected vehicle 496 book service and repair 567
No connection or poor connection 501
send car data 568
system updates 566
iPod ®
, connecting 478
ISOFIX/LATCH anchors 75
J
Jack 533
Jump-start 434
K
Key 232
Keyboard 123, 126 change language 126

INDEX
644Keyless
locking/unlocking 247
settings 248
touch-sensitive surfaces 246
Key tag 232
L
Labels location 624
Laminated glass 166 Lamps changing 578
Trailer 439
Lane Keeping Aid 336 activating/deactivating 338
display 342
limitations 339
see Lane Keeping Aid 336
select assistance option 338
Symbols and messages 340
Language 129
Large Animal Detection (LAD) 310Leather upholstery, cleaning instruc-
tions 608 Leveling control suspension 419
License agreement 95, 505
Lifting tools 533Light bulbschanging 578
Light control 150, 162Lighting Active Bending Lights 157
approach lighting 160
automatic high beam 155
brake lights 159
control, instrument, display 162
controls 150, 161
cornering illumination 158
daytime running lights 153
emergency brake lights 159
front fog lights 157
Hazard warning flashers 160
high beams 154, 155
home safe lighting 160
in passenger compartment 161
low beams 154
position lights 152
rear fog light 158
settings 151
Turn signals 156
Lighting, replacing bulbs 578
Limp home 406Load anchoring eyelets cargo compartment 560Load anchoring hooks 559
Load carriers 558
Load index 522Loadinggeneral 557
load anchoring eyelets 560
long load 558
Lock indication 230 setting 231
Locking/unlocking trunk lid 249
Locking wheel bolts 533 Locks locking/unlocking 234
Long-term storage 390 Low battery charge level start battery 434
Low beams 154
Low oil level 575
M
Maintained climate comfort 224 start/stop 224
Maintenance 562 corrosion protection 616
