VOLVO S70 1999 Workshop Manual

Turn the button clockwise to increase the volume. The volume control is electronic and has no end stop.
C - Waveband selector
The desired waveband is set by pressing one of the waveband selector buttons. The frequency and waveband is shown
on the display.
NOTE: There are two FM wavebands and one AM waveband. This makes it possible to store 2 x 6 FM stations and 6
AM stations in memory.
D - Setting frequency selection
The radio can be used in most parts of the world by changing the frequency selection intervals as follows:
Depress and hold preset button 5 and turn the radio ON. "USA" will flash on the display. Each time button 5 is
pressed, the frequency selection will change from "USA" to "AUS", etc. When the correct country name is displayed,
wait 5 seconds andthe radio will be ready for use.
E - Manual tuning
Press the left side button to tune to lower frequencies and the right side to tune to higher frequencies. The tuned
frequency is displayed.
ST will be displayed to indicate stereo FM reception.pg. 145 Radio SC-813 (cont.)
ProCarManuals.com

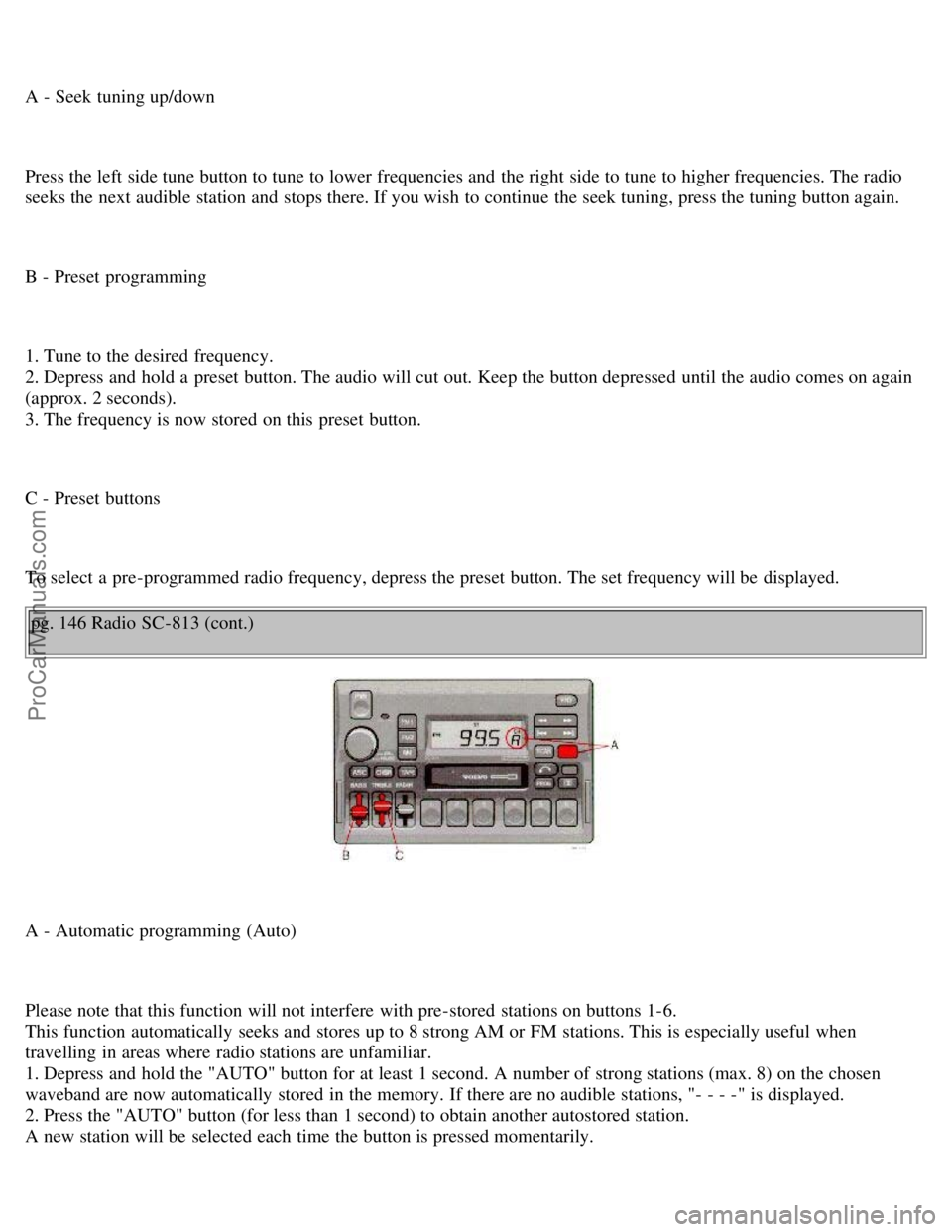

A - Seek tuning up/down
Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The radio
seeks the next audible station and stops there. If you wish to continue the seek tuning, press the tuning button again.
B - Preset programming
1. Tune to the desired frequency.
2. Depress and hold a preset button. The audio will cut out. Keep the button depressed until the audio comes on again
(approx. 2 seconds).
3. The frequency is now stored on this preset button.
C - Preset buttons
To select a pre-programmed radio frequency, depress the preset button. The set frequency will be displayed.pg. 146 Radio SC-813 (cont.)
A - Automatic programming (Auto)
Please note that this function will not interfere with pre-stored stations on buttons 1-6.
This function automatically seeks and stores up to 8 strong AM or FM stations. This is especially useful when
travelling in areas where radio stations are unfamiliar.
1. Depress and hold the "AUTO" button for at least 1 second. A number of strong stations (max. 8) on the chosen
waveband are now automatically stored in the memory. If there are no audible stations, "- - - -" is displayed.
2. Press the "AUTO" button (for less than 1 second) to obtain another autostored station.
A new station will be selected each time the button is pressed momentarily.
ProCarManuals.com

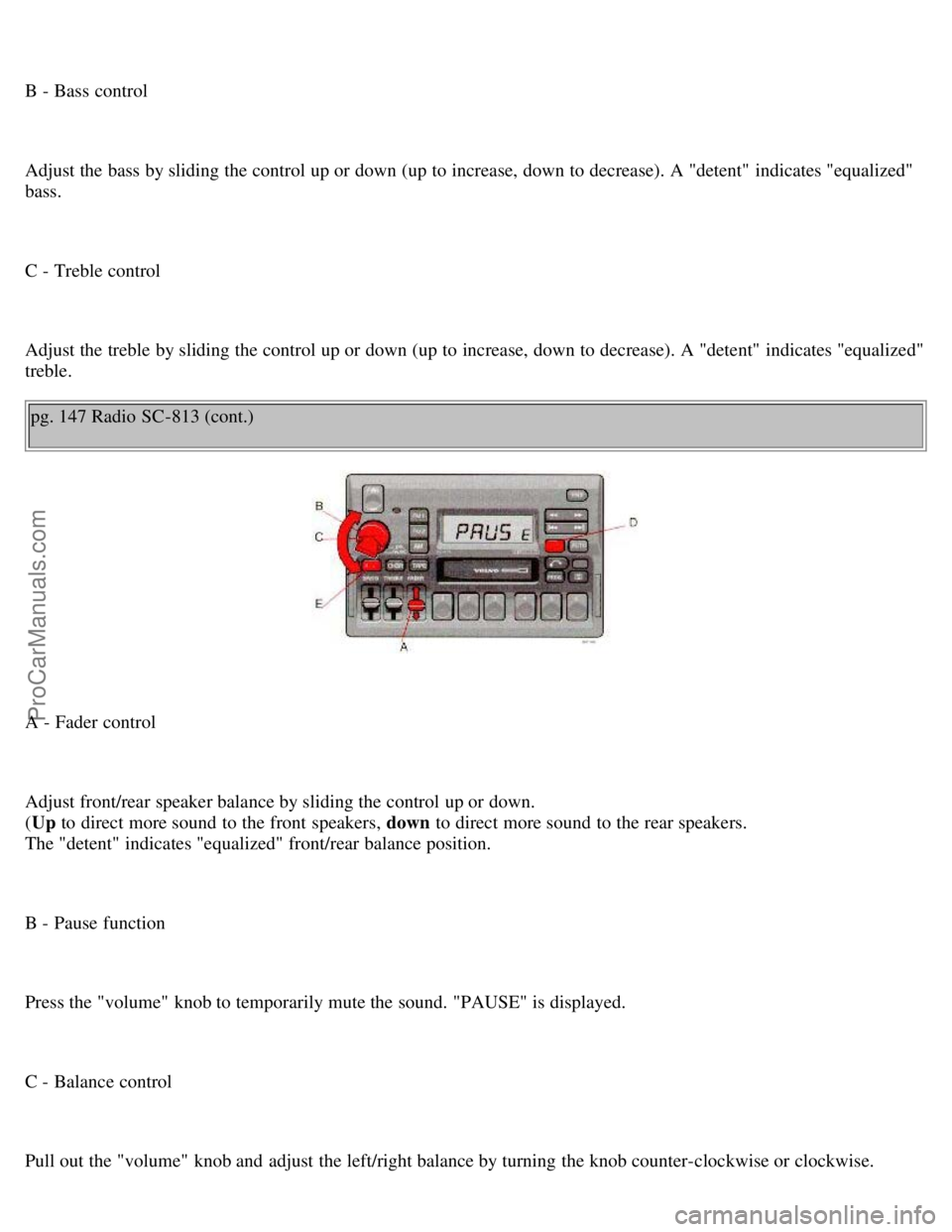

B - Bass control
Adjust the bass by sliding the control up or down (up to increase, down to decrease). A "detent" indicates "equalized"
bass.
C - Treble control
Adjust the treble by sliding the control up or down (up to increase, down to decrease). A "detent" indicates "equalized"
treble.pg. 147 Radio SC-813 (cont.)
A - Fader control
Adjust front/rear speaker balance by sliding the control up or down.
( Up to direct more sound to the front speakers, down to direct more sound to the rear speakers.
The "detent" indicates "equalized" front/rear balance position.
B - Pause function
Press the "volume" knob to temporarily mute the sound. "PAUSE" is displayed.
C - Balance control
Pull out the "volume" knob and adjust the left/right balance by turning the knob counter-clockwise or clockwise.
ProCarManuals.com

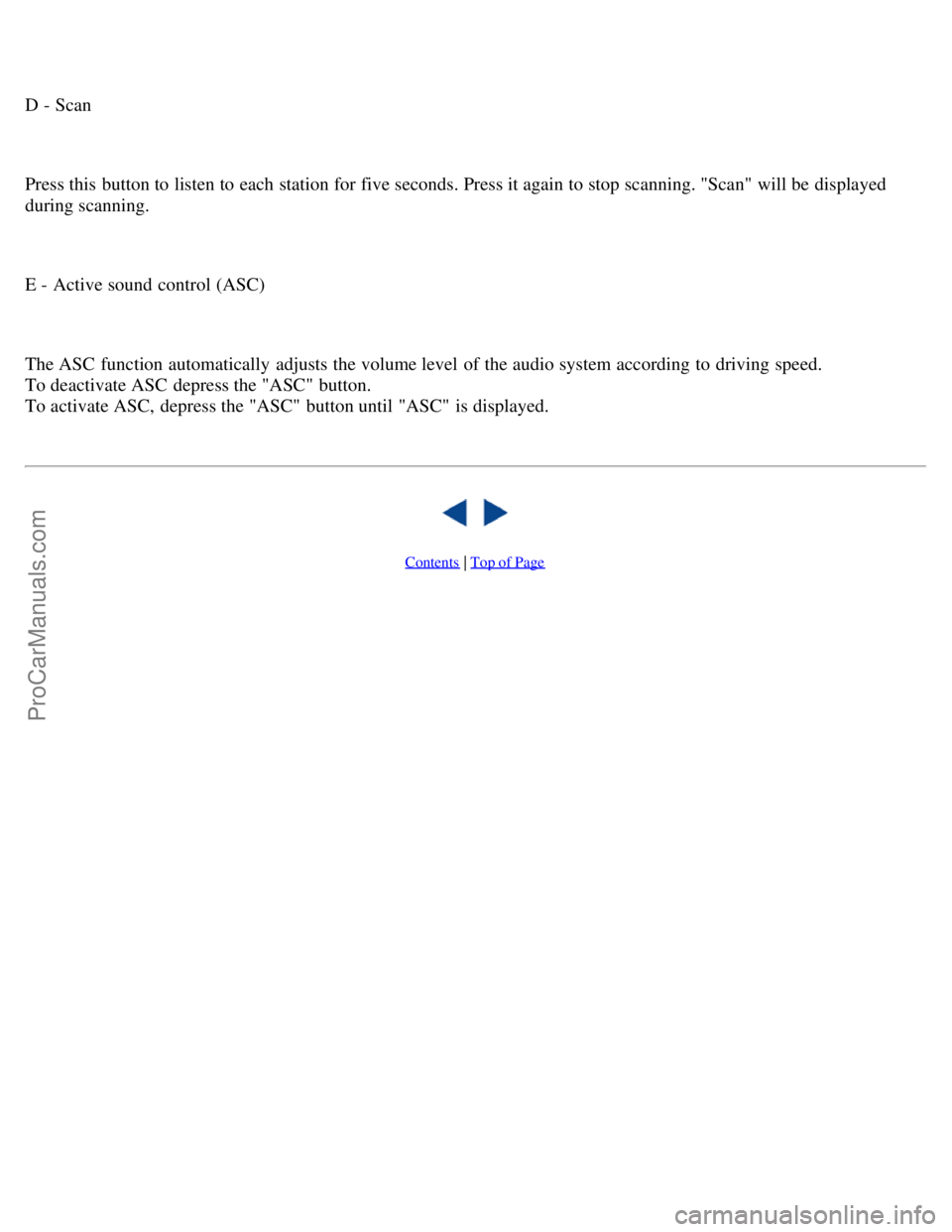

D - Scan
Press this button to listen to each station for five seconds. Press it again to stop scanning. "Scan" will be displayed
during scanning.
E - Active sound control (ASC)
The ASC function automatically adjusts the volume level of the audio system according to driving speed.
To deactivate ASC depress the "ASC" button.
To activate ASC, depress the "ASC" button until "ASC" is displayed.

Contents | Top of Page
ProCarManuals.com

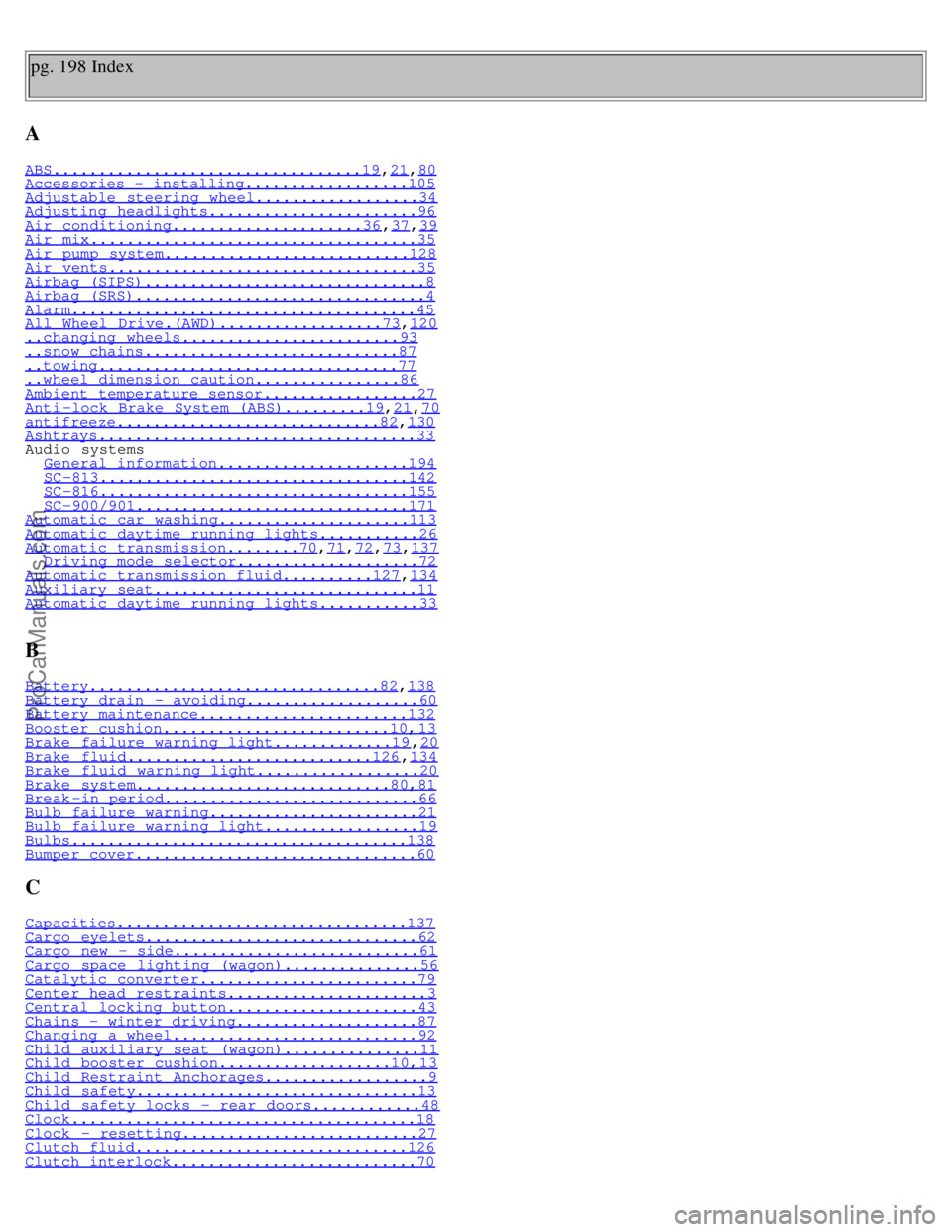

pg. 198 Index
A
ABS..................................19,21,80Accessories - installing..................105Adjustable steering wheel..................34Adjusting headlights.......................96Air conditioning.....................36,37,39Air mix....................................35Air pump system...........................128Air vents..................................35Airbag (SIPS)...............................8Airbag (SRS)................................4Alarm......................................45All Wheel Drive.(AWD)..................73,120..changing wheels........................93..snow chains............................87..towing.................................77..wheel dimension caution................86Ambient temperature sensor.................27Anti -lock Brake System (ABS).........19,21,70antifreeze.............................82,130Ashtrays...................................33Audio systems
General information.....................194
SC-813..................................142 SC-816..................................155 SC-900/901..............................171Automatic car washing.....................113Automatic daytime running lights...........26Automatic transmission........70,71,72,73,137 Driving mode selector....................72Automatic transmission fluid..........127,134Auxiliary seat.............................11Automatic daytime running lights...........33
B
Battery................................82,138Battery drain - avoiding...................60Battery maintenance.......................132Booster cushion.........................10,13Brake failure warning light.............19,20Brake fluid...........................126,134Brake fluid warning light..................20Brake system............................80,81Break -in period............................66Bulb failure warning.......................21Bulb failure warning light.................19Bulbs.....................................138Bumper cover...............................60
C
Capacities................................137Cargo eyelets..............................62Cargo new - side...........................61Cargo space lighting (wagon)...............56Catalytic converter........................79Center head restraints......................3Central locking button.....................43Chains - winter driving....................87Changing a wheel...........................92Child auxiliary seat (wagon)...............11Child booster cushion...................10,13Child Restraint Anchorages..................9Child safety...............................13Child safety locks - rear doors............48Clock......................................18Clock - resetting..........................27Clutch fluid..............................126Clutch interlock...........................70
ProCarManuals.com

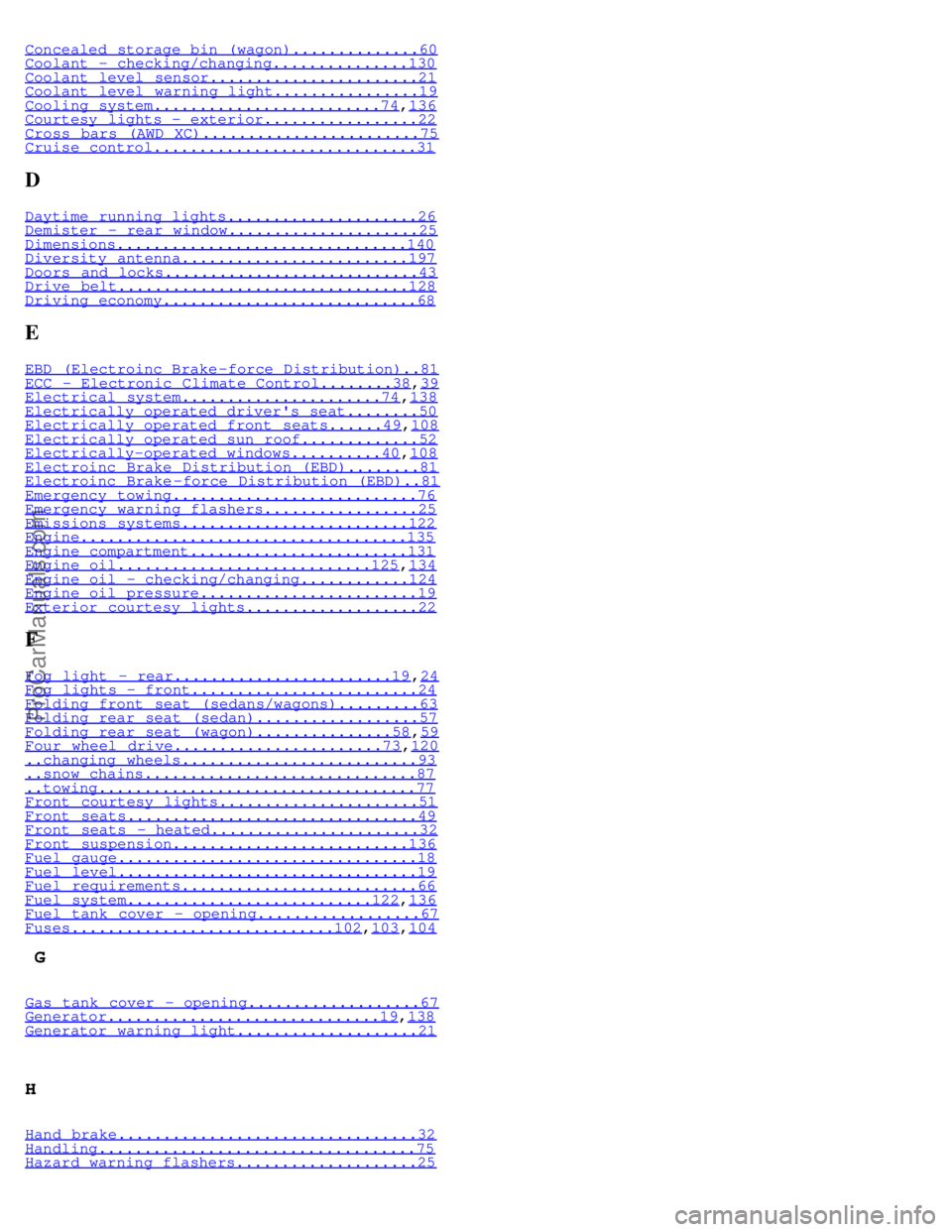

Concealed storage bin (wagon)..............60Coolant - checking/changing...............130Coolant level sensor.......................21Coolant level warning light................19Cooling system.........................74,136Courtesy lights - exterior.................22Cross bars (AWD XC)........................75Cruise control.............................31
D
Daytime running lights.....................26Demister - rear window.....................25Dimensions................................140Diversity antenna.........................197Doors and locks............................43Drive belt................................128Driving economy............................68
E
EBD (Electroinc Brake -force Distribution)..81ECC - Electronic Climate Control........38,39Electrical system......................74,138Electrically operated driver's seat........50Electrically operated front seats......49,108Electrically operated sun roof.............52Electrically-operated windows..........40,108Electroinc Brake Distribution (EBD)........81Electroinc Brake -force Distribution (EBD)..81Emergency towing...........................76Emergency warning flashers.................25Emissions systems.........................122Engine....................................135Engine compartment........................131Engine oil............................125,134Engine oil - checking/changing............124Engine oil pressure........................19Exterior courtesy lights...................22
F
Fog light - rear........................19,24Fog lights - front.........................24Folding front seat (sedans/wagons).........63Folding rear seat (sedan)..................57Folding rear seat (wagon)...............58,59Four wheel drive.......................73,120..changing wheels..........................93..snow chains..............................87..towing...................................77Front courtesy lights......................51Front seats................................49Front seats - heated.......................32Front suspension..........................136Fuel gauge.................................18Fuel level.................................19Fuel requirements..........................66Fuel system...........................122,136Fuel tank cover - opening..................67Fuses.............................102,103,104
G
Gas tank cover - opening...................67Generator..............................19,138Generator warning light....................21
H
Hand brake.................................32Handling...................................75Hazard warning flashers....................25
ProCarManuals.com

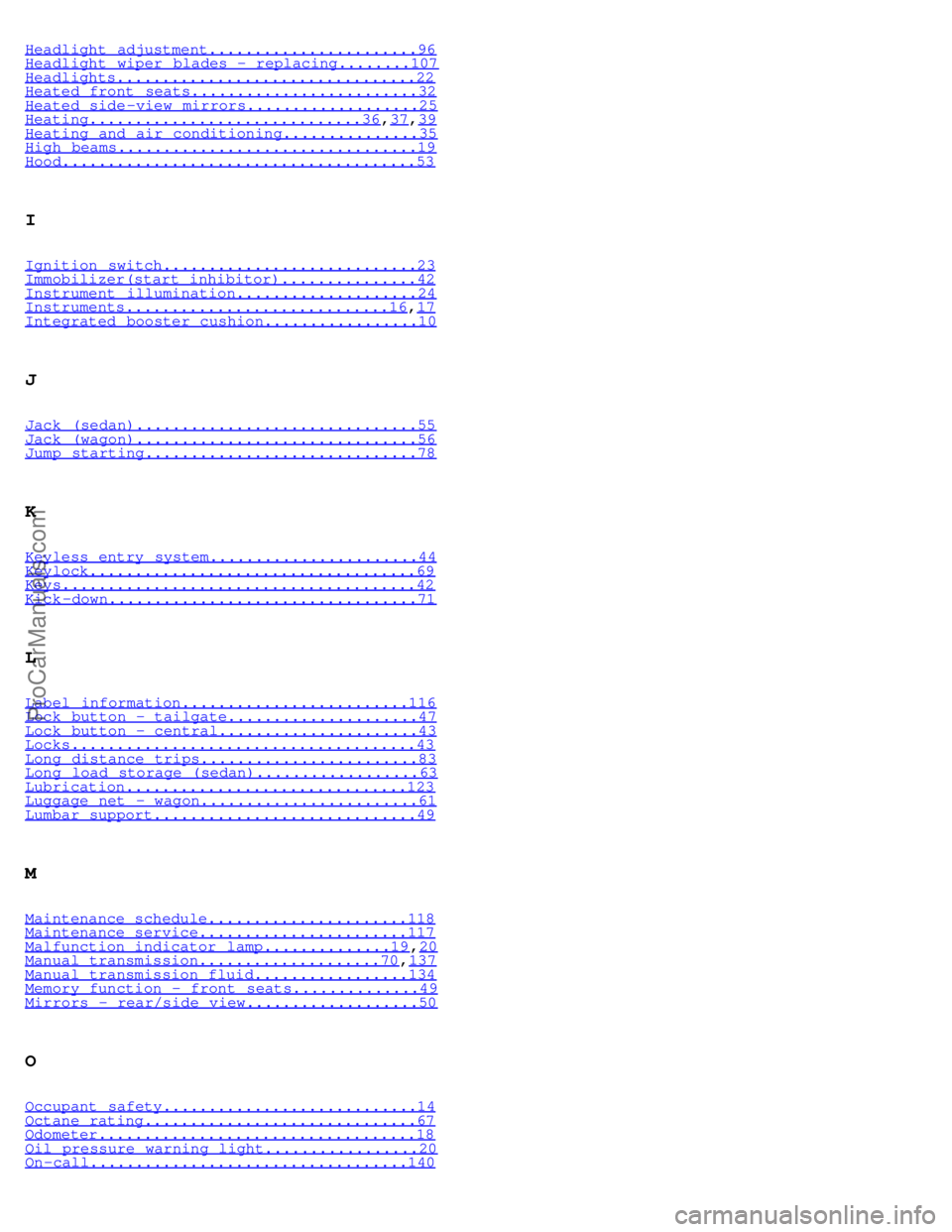

Headlight adjustment.......................96Headlight wiper blades - replacing........107Headlights.................................22Heated front seats.........................32Heated side -view mirrors...................25Heating..............................36,37,39Heating and air conditioning...............35High beams.................................19Hood.......................................53
I
Ignition switch............................23Immobilizer(start inhibitor)...............42Instrument illumination....................24Instruments.............................16,17Integrated booster cushion.................10
J
Jack (sedan)...............................55Jack (wagon)...............................56Jump starting..............................78
K
Keyless entry system.......................44Keylock....................................69Keys.......................................42Kick -down..................................71
L
Label information.........................116Lock button - tailgate.....................47Lock button - central......................43Locks......................................43Long distance trips........................83Long load storage (sedan)..................63Lubrication...............................123Luggage net - wagon........................61Lumbar support.............................49
M
Maintenance schedule......................118Maintenance service.......................117Malfunction indicator lamp..............19,20Manual transmission....................70,137Manual transmission fluid.................134Memory function - front seats..............49Mirrors - rear/side view...................50
O
Occupant safety............................14Octane rating..............................67Odometer...................................18Oil pressure warning light.................20On-call...................................140
ProCarManuals.com

P
Paint touch -up............................110Parking brake...........................19,32Parking brake reminder light...............20Parking lights.............................22Polishing.................................113Power seats............................49,108Power steering fluid..................126,134Power windows..........................40,108
R
Radio
SC-813..................................142
SC-816..................................155 SC-900/901..............................171Radio Data System - RDS...................176Rails (roof)...............................75Reading lights.............................51Rear fog light..........................19,24Rear suspension...........................136Rear window demister.......................25Rear/side -view mirrors.....................50Refueling..................................67Remote control (central locking system)....44Remote keyless entry system................44Replacing bulbs........................96-101Replacing fuses...........................102Reporting Safety Defects...................14Road Assistance...........................140Roadholding................................75Roof rails/racks...........................75
S
Safety defects (reporting).................14Safety locks...............................48Seat belt maintenance......................14Seat belts.............................2,3,12Seat belts - cleaning.....................114Seats......................................49Securing cargo.............................62Service reminder indicator..............19,21Servicing.............................120,121Shift lock..............................69,71Shiftlock release (override)..............108Side cargo net.............................61Side Impact Protection System (SIPS)........8Side -view mirrors - heated.................25SIPS........................................8Snow chains................................87Snow tires.................................87Spare tire.................................94Spare tire (sedan).........................55Spare tire (wagon).........................56Spark plugs...............................136Specifications............................133Spool -out (seat belt)......................12SRS.....................................5,6,7SRS diagnostic system......................20SRS warning light.....................5,19,20Stability and Traction Control(STC).19,21,25,81Start Inhibitor (Immobilizer)..............42Starting the engine........................69Steering wheel adjustment..................34Steering wheel lock........................23Storage compartments.......................54Studded tires..............................87Sun roof............................25,52,108
ProCarManuals.com

T
Tachometer.................................18Tailgate (opening/locking).................47..lock button..............................47Tailgate wiper/washer......................26Temperature gauge..........................18Temporary spare tire.......................94Three -way catalytic converter..............79Tire pressure..............................88Tires .....................................86Tires - changing...........................92Towing..................................76,77Towing a trailer...........................84Traction Control System(TRACS)....19,21,25,81Trailer towing.............................84Trip computer.....................25,28,29,30Trip odometer..............................18Trunk - opening/locking....................47Trunk light................................55Turn signals............................19,22
U
Uniform tire quality grading...............89Upholstery - cleaning.....................114
V
Vanity mirrors.............................51Vehicle Identification Number (VIN).......116Vehicle loading...........................137Volvo On Call.............................140
W
Warning flashers...........................25Warning lights..........................20,21Warranty..................................117Washer fluid level.........................19Washer fluid reservoir....................129Washing...................................112Waxing....................................113Weights...................................139Wheel changing..........................92,93Wheels and tires...........................86Windows - electrically-operated............40Windshield washer nozzles.................129Windshield wiper blades - replacing.......106Winter driving.............................82
Inside Back Cover
WARNING!
Detergents and solvents
Do not use gasoline containing lead or benzene as a detergent or solvent. Both lead and benzene
are toxic and may be hazardous to your health.
Installation of optional equipment/use of mobile telephones
Incorrectly installed optional equipment, alarm systems or the use of mobile telephones which
ProCarManuals.com

are not connected to a suitable antenna can cause faults in the car's electronic controlsystems. Your car is equipped with an accessory connector located under the dashboard on the
driver's side. Please consult your Volvo retailer if you have any questions before connecting
accessory or optional equipment to the vehicle's electrical systems.
Carbon monoxide
Carbon monoxide is a poisonous, colorless and odorless gas which is present in all exhaust
gases. If you ever smell exhaust fumes from inside the vehicle, make sure the passenger
compartment is ventilated and immediately return the vehicle to you th retailer for correction.
Never sit in a parked or stopped car for any extended amount of time, nor have it unattended
while the engine is running.
Never operate the engine in confined, unventilated areas.

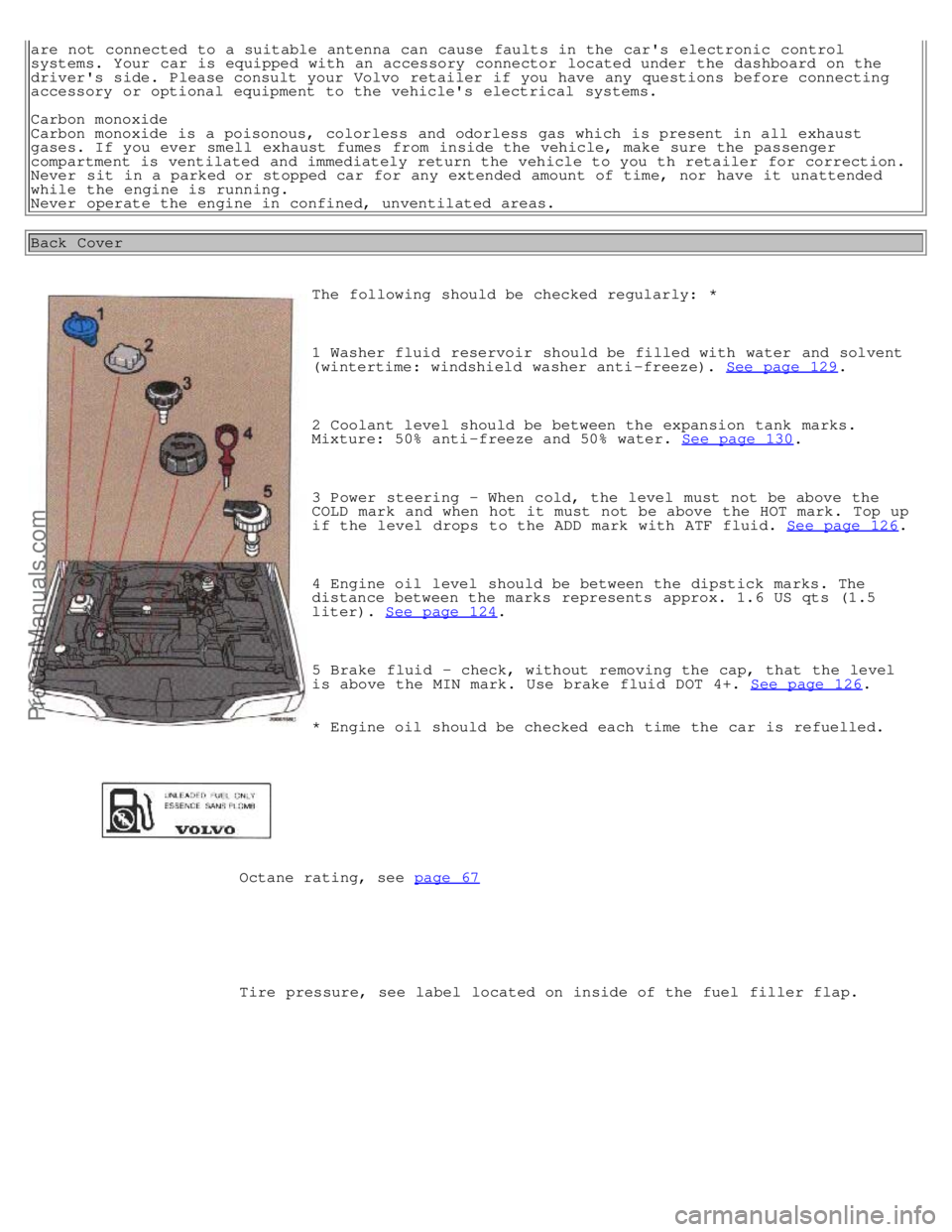

Back Cover
The following should be checked regularly: *
1 Washer fluid reservoir should be filled with water and solvent
(wintertime: windshield washer anti -freeze). See page 129
.
2 Coolant level should be between the expansion tank marks.
Mixture: 50% anti -freeze and 50% water. See page 130
.
3 Power steering - When cold, the level must not be above the
COLD mark and when hot it must not be above the HOT mark. Top up
if the level drops to the ADD mark with ATF fluid. See page 126
.
4 Engine oil level should be between the dipstick marks. The
distance between the marks represents approx. 1.6 US qts (1.5
liter). See page 124
.
5 Brake fluid - check, without removing the cap, that the level
is above the MIN mark. Use brake fluid DOT 4+. See page 126
.
* Engine oil should be checked each time the car is refuelled.


Octane rating, see page 67

Tire pressure, see label located on inside of the fuel filler flap.
