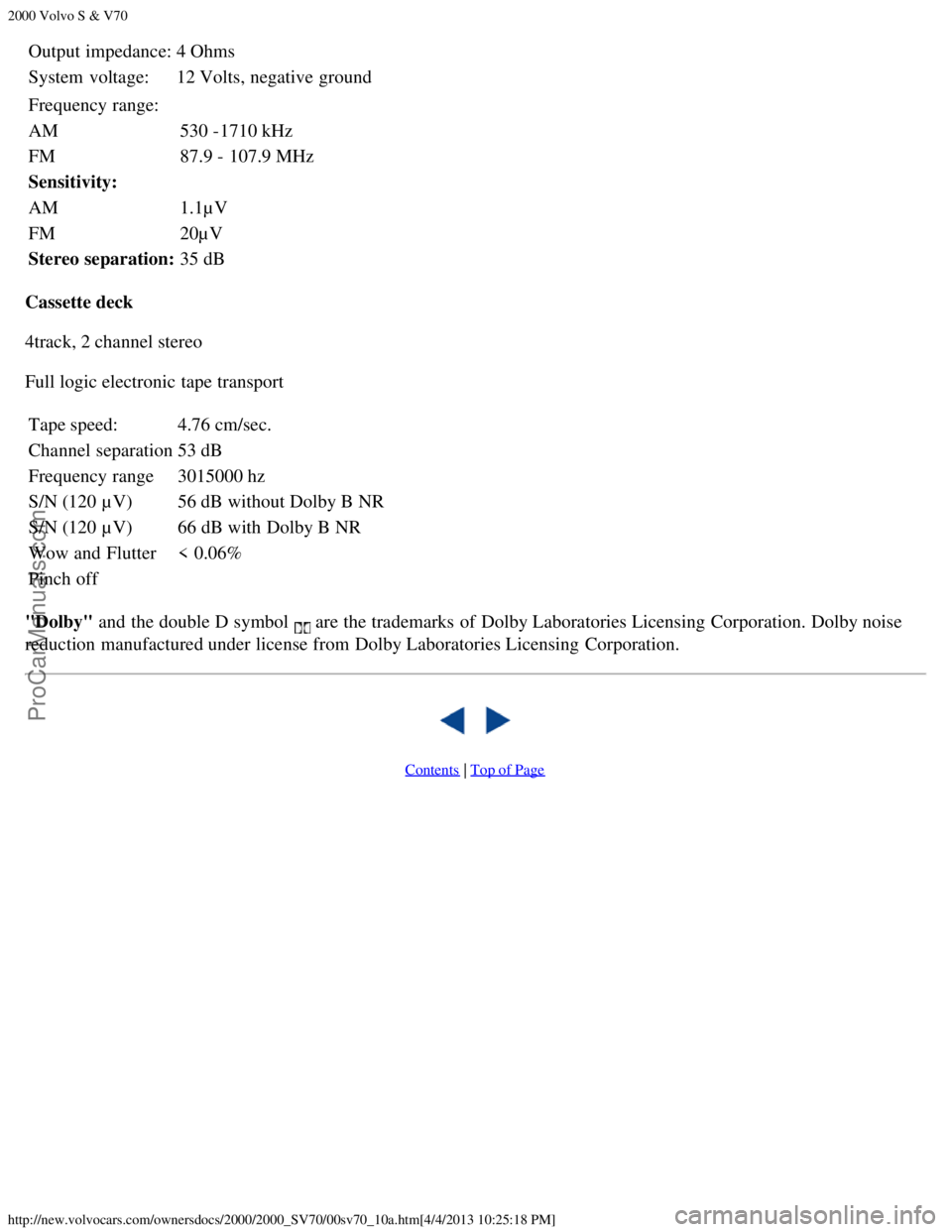

Output impedance:4 Ohms
System voltage:12 Volts, negative ground
Frequency range:
AM 530 -1710 kHz
FM 87.9 - 107.9 MHz
Sensitivity:
AM 1.1µV
FM 20µV
Stereo separation: 35 dB
Cassette deck
4track, 2 channel stereo
Full logic electronic tape transport Tape speed: 4.76 cm/sec.
Channel separation 53 dB
Frequency range 3015000 hz
S/N (120 µV) 56 dB without Dolby B NR
S/N (120 µV) 66 dB with Dolby B NR
Wow and Flutter < 0.06%
Pinch off
"Dolby" and the double D symbol
are the trademarks of Dolby Laboratories Licensing Corporation. Dolby noise
reduction manufactured under license from Dolby Laboratories Licensing Corporation.

Contents | Top of Page
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_11.htm[4/4/2013 10:25:25 PM]
2 0 0 0
VOLVO
S & V70

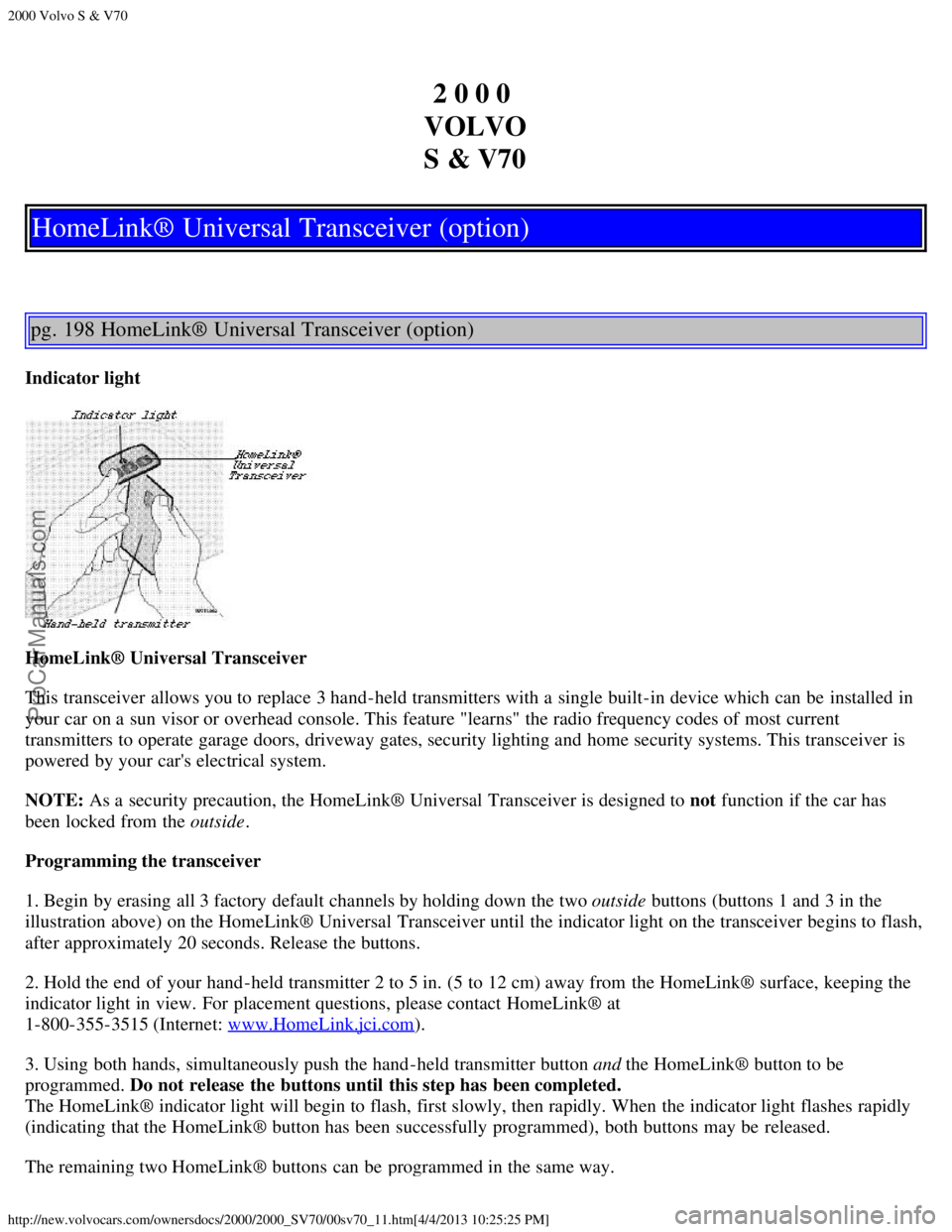

HomeLink® Universal Transceiver (option)
pg. 198 HomeLink® Universal Transceiver (option)
Indicator light
HomeLink® Universal Transceiver
This transceiver allows you to replace 3 hand -held transmitters with a single built-in device which can be installed in
your car on a sun visor or overhead console. This feature "learns" the radio frequency codes of most current
transmitters to operate garage doors, driveway gates, security lighting and home security systems. This transceiver is
powered by your car's electrical system.
NOTE: As a security precaution, the HomeLink® Universal Transceiver is designed to not function if the car has
been locked from the outside .
Programming the transceiver
1. Begin by erasing all 3 factory default channels by holding down the two outside buttons (buttons 1 and 3 in the
illustration above) on the HomeLink® Universal Transceiver until the indicator light on the transceiver begins to flash,
after approximately 20 seconds. Release the buttons.
2. Hold the end of your hand -held transmitter 2 to 5 in. (5 to 12 cm) away from the HomeLink® surface, keeping the
indicator light in view. For placement questions, please contact HomeLink® at
1-800-355-3515 (Internet: www.HomeLink.jci.com
).
3. Using both hands, simultaneously push the hand -held transmitter button and the HomeLink® button to be
programmed. Do not release the buttons until this step has been completed.
The HomeLink® indicator light will begin to flash, first slowly, then rapidly. When the indicator light flashes rapidly
(indicating that the HomeLink® button has been successfully programmed), both buttons may be released.
The remaining two HomeLink® buttons can be programmed in the same way.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_11.htm[4/4/2013 10:25:25 PM]

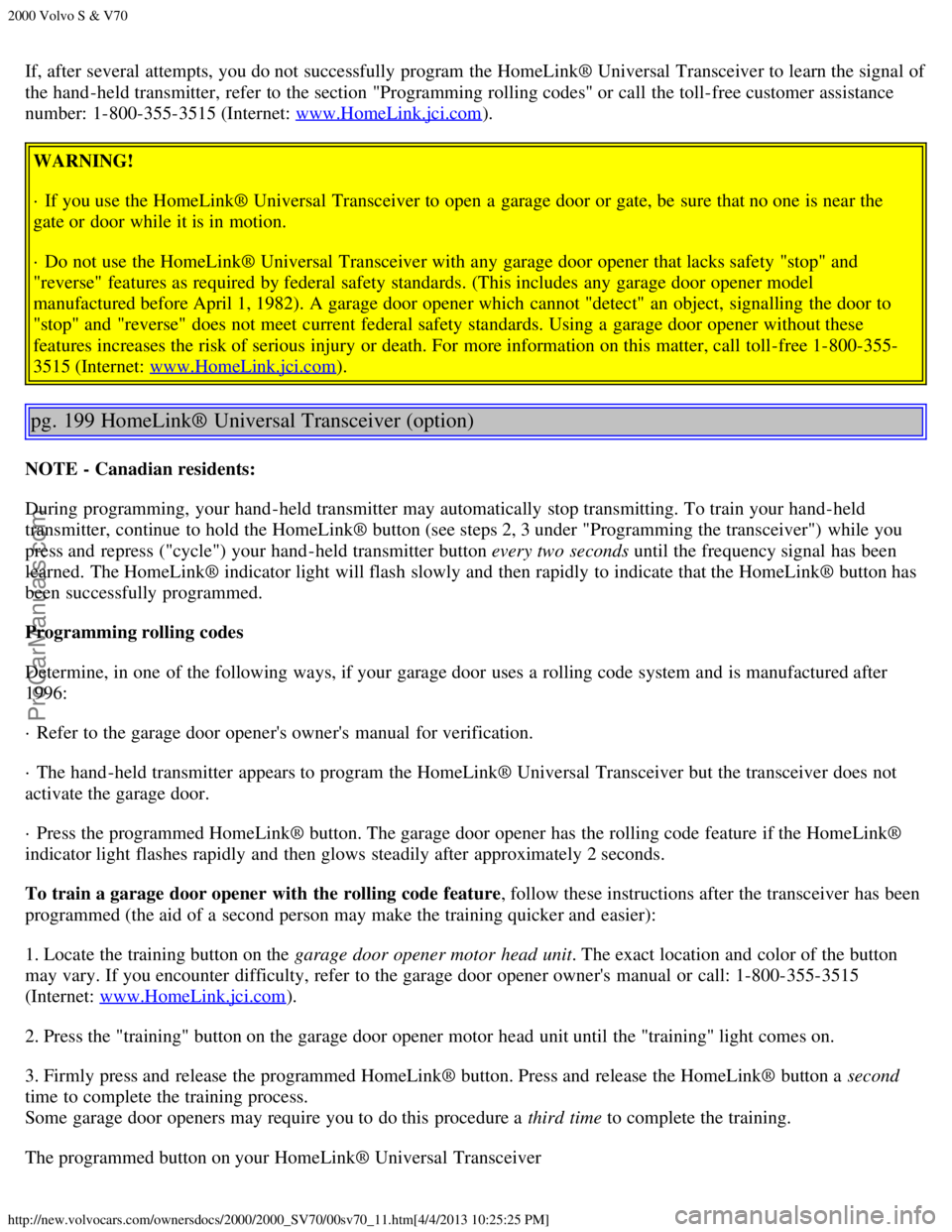

If, after several attempts, you do not successfully program the HomeLink® Universal Transceiver to learn the signal of
the hand -held transmitter, refer to the section "Programming rolling codes" or call the toll-free customer assistance
number: 1-800-355-3515 (Internet: www.HomeLink.jci.com
).
WARNING!
· If you use the HomeLink® Universal Transceiver to open a garage door or gate, be sure that no one is near the
gate or door while it is in motion.
· Do not use the HomeLink® Universal Transceiver with any garage door opener that lacks safety "stop" and
"reverse" features as required by federal safety standards. (This includes any garage door opener model
manufactured before April 1, 1982). A garage door opener which cannot "detect" an object, signalling the door to
"stop" and "reverse" does not meet current federal safety standards. Using a garage door opener without these
features increases the risk of serious injury or death. For more information on this matter, call toll-free 1-800-355-
3515 (Internet: www.HomeLink.jci.com
).
pg. 199 HomeLink® Universal Transceiver (option)
NOTE - Canadian residents:
During programming, your hand -held transmitter may automatically stop transmitting. To train your hand -held
transmitter, continue to hold the HomeLink® button (see steps 2, 3 under "Programming the transceiver") while you
press and repress ("cycle") your hand -held transmitter button every two seconds until the frequency signal has been
learned. The HomeLink® indicator light will flash slowly and then rapidly to indicate that the HomeLink® button has
been successfully programmed.
Programming rolling codes
Determine, in one of the following ways, if your garage door uses a rolling code system and is manufactured after
1996:
· Refer to the garage door opener's owner's manual for verification.
· The hand -held transmitter appears to program the HomeLink® Universal Transceiver but the transceiver does not
activate the garage door.
· Press the programmed HomeLink® button. The garage door opener has the rolling code feature if the HomeLink®
indicator light flashes rapidly and then glows steadily after approximately 2 seconds.
To train a garage door opener with the rolling code feature , follow these instructions after the transceiver has been
programmed (the aid of a second person may make the training quicker and easier):
1. Locate the training button on the garage door opener motor head unit . The exact location and color of the button
may vary. If you encounter difficulty, refer to the garage door opener owner's manual or call: 1-800-355-3515
(Internet: www.HomeLink.jci.com
).
2. Press the "training" button on the garage door opener motor head unit until the "training" light comes on.
3. Firmly press and release the programmed HomeLink® button. Press and release the HomeLink® button a second
time to complete the training process.
Some garage door openers may require you to do this procedure a third time to complete the training.
The programmed button on your HomeLink® Universal Transceiver
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_11.htm[4/4/2013 10:25:25 PM]

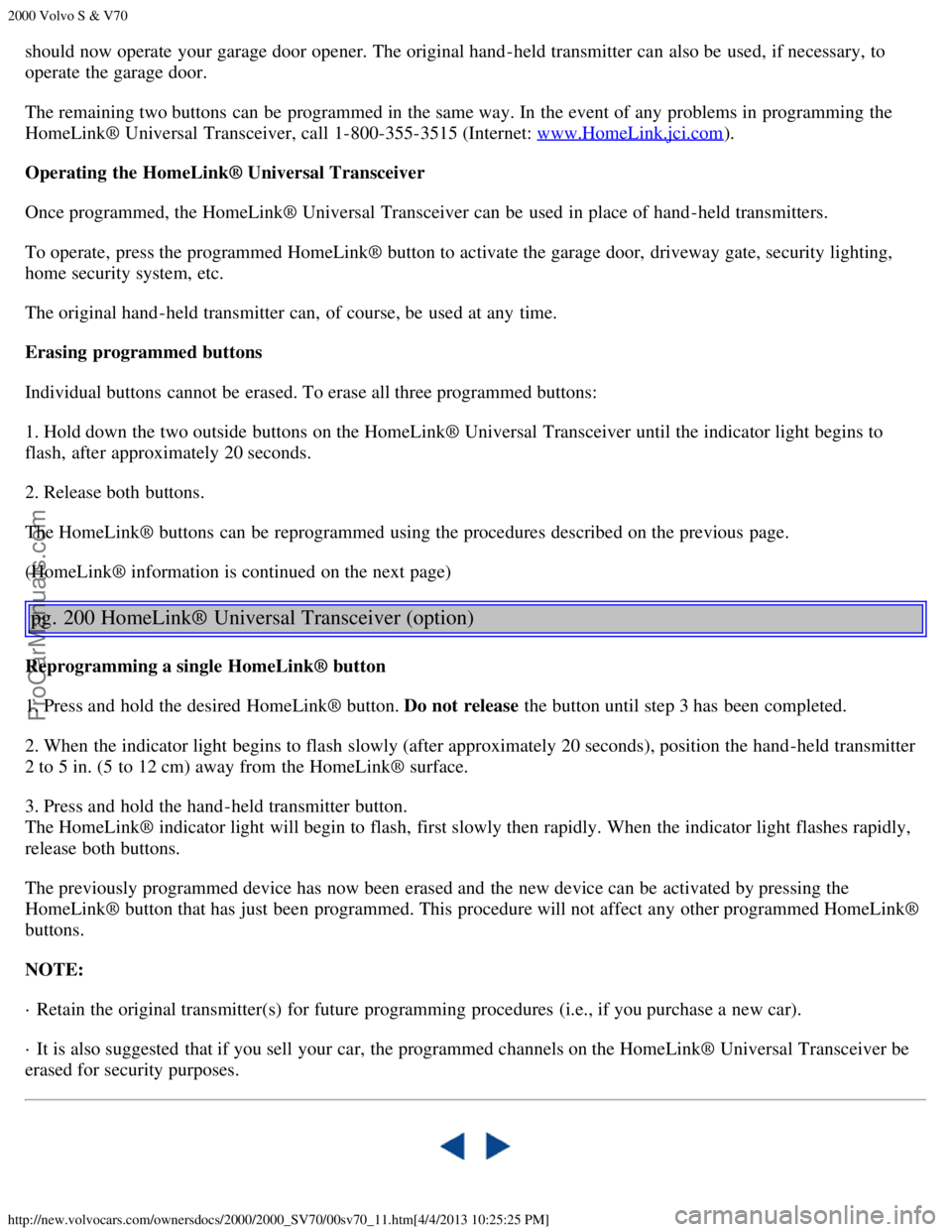

should now operate your garage door opener. The original hand -held transmitter can also be used, if necessary, to
operate the garage door.
The remaining two buttons can be programmed in the same way. In the event of any problems in programming the
HomeLink® Universal Transceiver, call 1-800-355-3515 (Internet: www.HomeLink.jci.com
).
Operating the HomeLink® Universal Transceiver
Once programmed, the HomeLink® Universal Transceiver can be used in place of hand -held transmitters.
To operate, press the programmed HomeLink® button to activate the garage door, driveway gate, security lighting,
home security system, etc.
The original hand -held transmitter can, of course, be used at any time.
Erasing programmed buttons
Individual buttons cannot be erased. To erase all three programmed buttons:
1. Hold down the two outside buttons on the HomeLink® Universal Transceiver until the indicator light begins to
flash, after approximately 20 seconds.
2. Release both buttons.
The HomeLink® buttons can be reprogrammed using the procedures described on the previous page.
(HomeLink® information is continued on the next page)
pg. 200 HomeLink® Universal Transceiver (option)
Reprogramming a single HomeLink® button
1. Press and hold the desired HomeLink® button. Do not release the button until step 3 has been completed.
2. When the indicator light begins to flash slowly (after approximately 20 seconds), position the hand -held transmitter
2 to 5 in. (5 to 12 cm) away from the HomeLink® surface.
3. Press and hold the hand -held transmitter button.
The HomeLink® indicator light will begin to flash, first slowly then rapidly. When the indicator light flashes rapidly,
release both buttons.
The previously programmed device has now been erased and the new device can be activated by pressing the
HomeLink® button that has just been programmed. This procedure will not affect any other programmed HomeLink®
buttons.
NOTE:
· Retain the original transmitter(s) for future programming procedures (i.e., if you purchase a new car).
· It is also suggested that if you sell your car, the programmed channels on the HomeLink® Universal Transceiver be
erased for security purposes.

ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_11.htm[4/4/2013 10:25:25 PM]
Contents | Top of Page
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]
2 0 0 0
VOLVO
S & V70

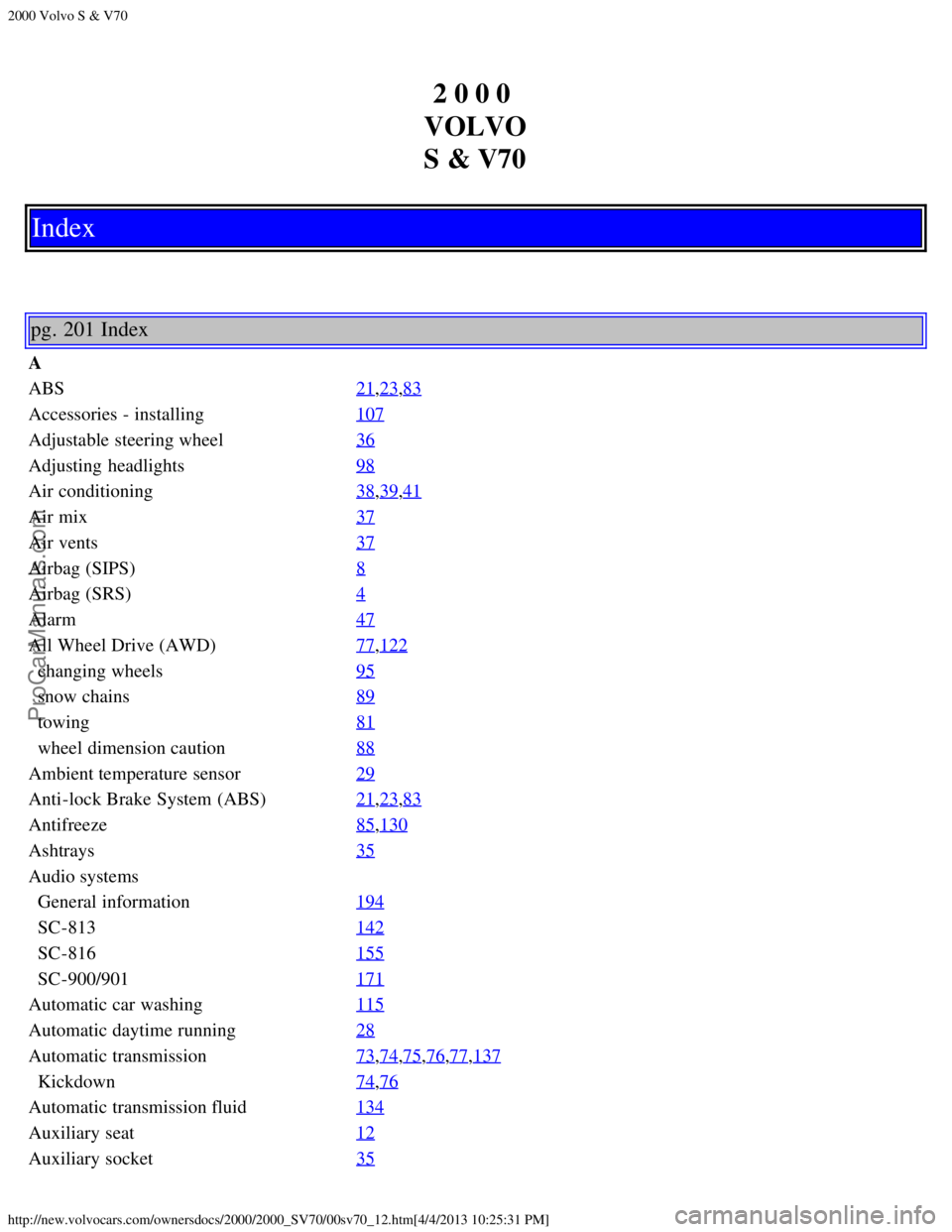

Index
pg. 201 Index
A
ABS 21
,23,83
Accessories - installing107
Adjustable steering wheel36
Adjusting headlights98
Air conditioning38,39,41
Air mix37
Air vents37
Airbag (SIPS)8
Airbag (SRS)4
Alarm47
All Wheel Drive (AWD)77,122
changing wheels95
snow chains89
towing81
wheel dimension caution88
Ambient temperature sensor29
Anti-lock Brake System (ABS)21,23,83
Antifreeze85,130
Ashtrays35
Audio systems
General information194
SC-813142
SC-816155
SC-900/901171
Automatic car washing115
Automatic daytime running28
Automatic transmission73,74,75,76,77,137
Kickdown74,76
Automatic transmission fluid134
Auxiliary seat12
Auxiliary socket35
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]
B
Battery85,138
Battery drain - avoiding62
Battery maintenance132
Booster cushion10,
Brake failure warning light 21
,22
Brake fluid128,134
Brake fluid warning light22
Brake system83,84
Bulb failure warning23
Bulb failure warning light21
Bulbs138
Bumper cover62
C
Capacities137
Cargo eyelets64
Cargo net - side63
Cargo space lighting (wagon)58
Center head restraint3
Central locking button45
Chains - winter driving89
Changing a wheel94
Child auxiliary seat (wagon)12
Child booster cushion10,15
Child Restraint Anchorages14
Child safety15
Child safety locks - rear doors50
Clock20
Clock - resetting29
Clutch fluid128
Clutch interlock72
Concealed storage bin (wagon)62
Coolant - checking/changing130
Coolant level sensor23
Coolant level warning light21
Cooling system78,136
Courtesy lights - exterior24
Cross bars (AWD XC)79
Cruise control33
D
Daytime running lights28
Demister - rear window27
Dimensions140
Diversity antenna197
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]

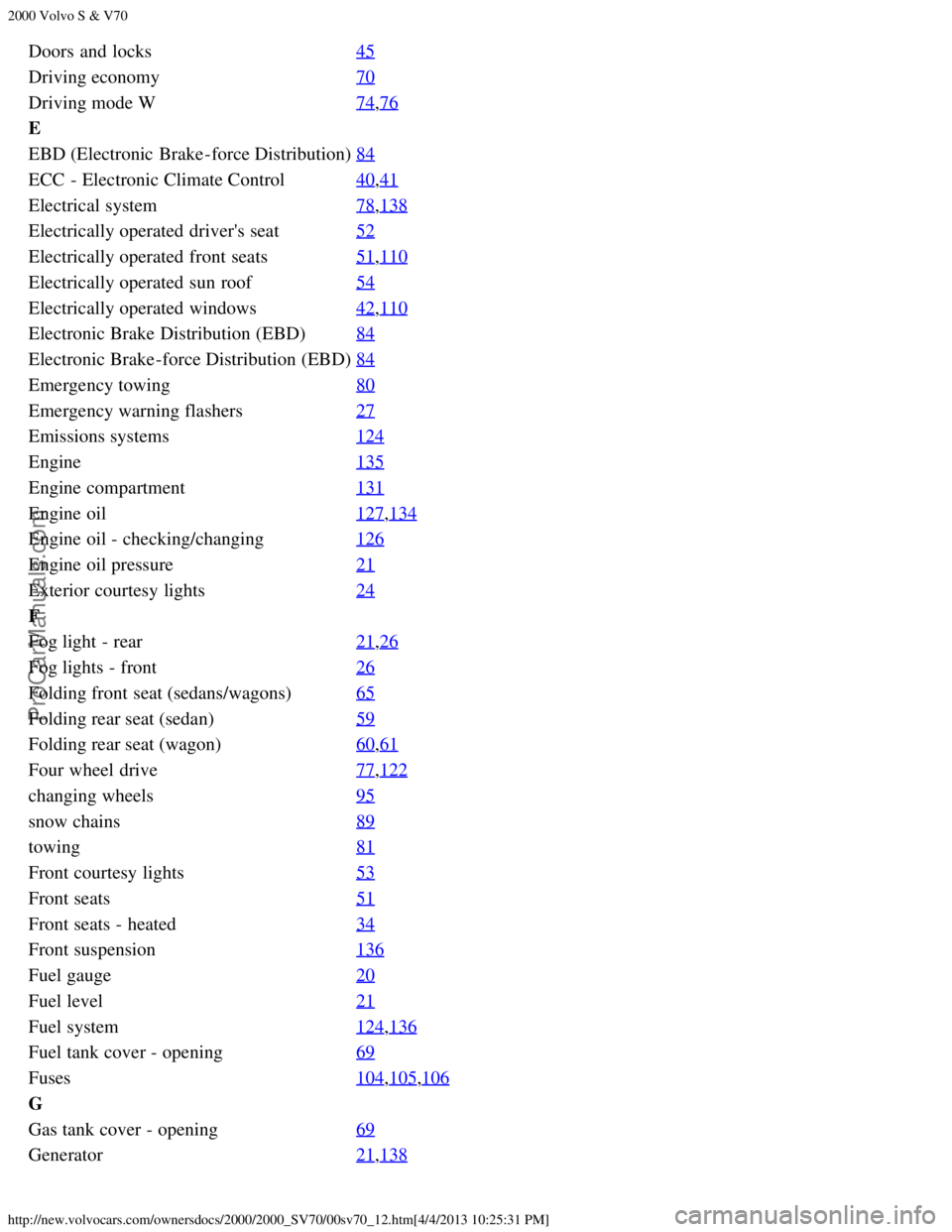

Doors and locks45
Driving economy70
Driving mode W74,76
E
EBD (Electronic Brake-force Distribution)84
ECC - Electronic Climate Control40,41
Electrical system78,138
Electrically operated driver's seat52
Electrically operated front seats51,110
Electrically operated sun roof54
Electrically operated windows42,110
Electronic Brake Distribution (EBD)84
Electronic Brake-force Distribution (EBD)84
Emergency towing80
Emergency warning flashers27
Emissions systems124
Engine135
Engine compartment131
Engine oil127,134
Engine oil - checking/changing126
Engine oil pressure21
Exterior courtesy lights24
F
Fog light - rear21
,26
Fog lights - front26
Folding front seat (sedans/wagons)65
Folding rear seat (sedan)59
Folding rear seat (wagon)60,61
Four wheel drive77,122
changing wheels95
snow chains89
towing81
Front courtesy lights53
Front seats51
Front seats - heated34
Front suspension136
Fuel gauge20
Fuel level21
Fuel system124,136
Fuel tank cover - opening69
Fuses104,105,106
G
Gas tank cover - opening69
Generator21,138
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]

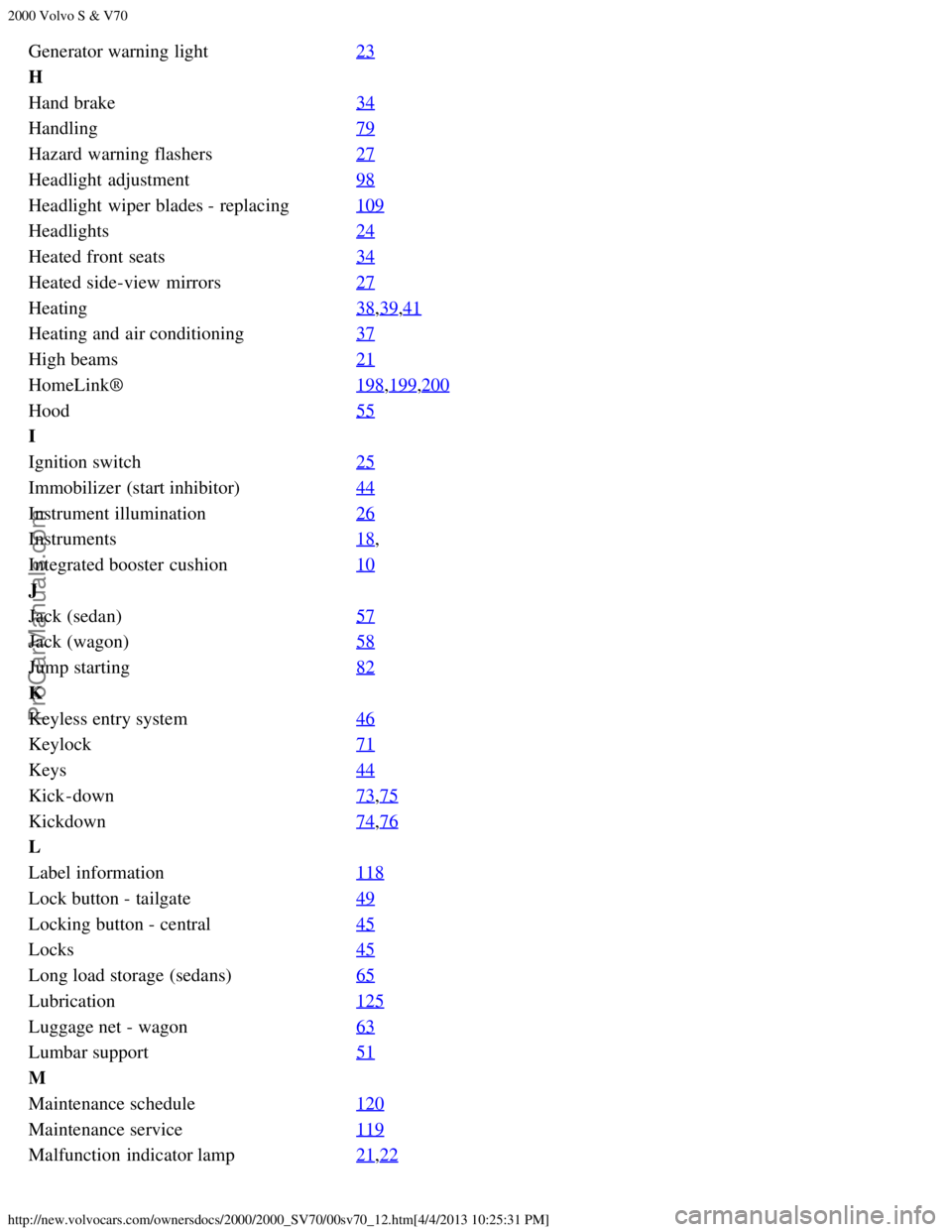

Generator warning light23
H
Hand brake34
Handling79
Hazard warning flashers27
Headlight adjustment98
Headlight wiper blades - replacing109
Headlights24
Heated front seats34
Heated side-view mirrors27
Heating38,39,41
Heating and air conditioning37
High beams21
HomeLink®198,199,200
Hood55
I
Ignition switch25
Immobilizer (start inhibitor)44
Instrument illumination26
Instruments18,
Integrated booster cushion 10
J
Jack (sedan)57
Jack (wagon)58
Jump starting82
K
Keyless entry system46
Keylock71
Keys44
Kick -down73,75
Kickdown74,76
L
Label information118
Lock button - tailgate49
Locking button - central45
Locks45
Long load storage (sedans)65
Lubrication125
Luggage net - wagon63
Lumbar support51
M
Maintenance schedule120
Maintenance service119
Malfunction indicator lamp21,22
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]

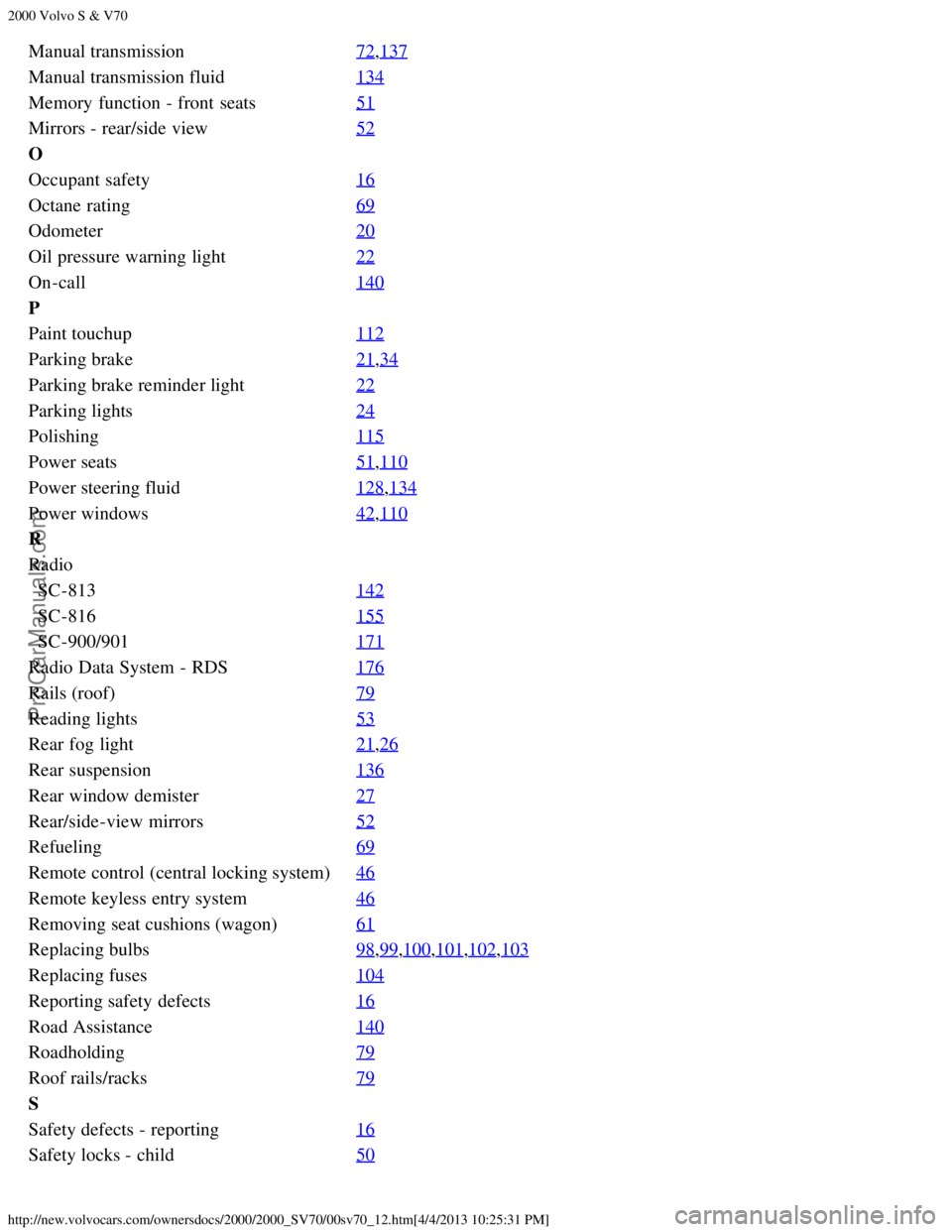

Manual transmission72,137
Manual transmission fluid134
Memory function - front seats51
Mirrors - rear/side view52
O
Occupant safety16
Octane rating69
Odometer20
Oil pressure warning light22
On-call140
P
Paint touchup112
Parking brake21,34
Parking brake reminder light22
Parking lights24
Polishing115
Power seats51,110
Power steering fluid128,134
Power windows42,110
R
Radio
SC-813142
SC-816155
SC-900/901171
Radio Data System - RDS176
Rails (roof)79
Reading lights53
Rear fog light21,26
Rear suspension136
Rear window demister27
Rear/side-view mirrors52
Refueling69
Remote control (central locking system)46
Remote keyless entry system46
Removing seat cushions (wagon)61
Replacing bulbs98,99,100,101,102,103
Replacing fuses104
Reporting safety defects16
Road Assistance140
Roadholding79
Roof rails/racks79
S
Safety defects - reporting16
Safety locks - child50
ProCarManuals.com
