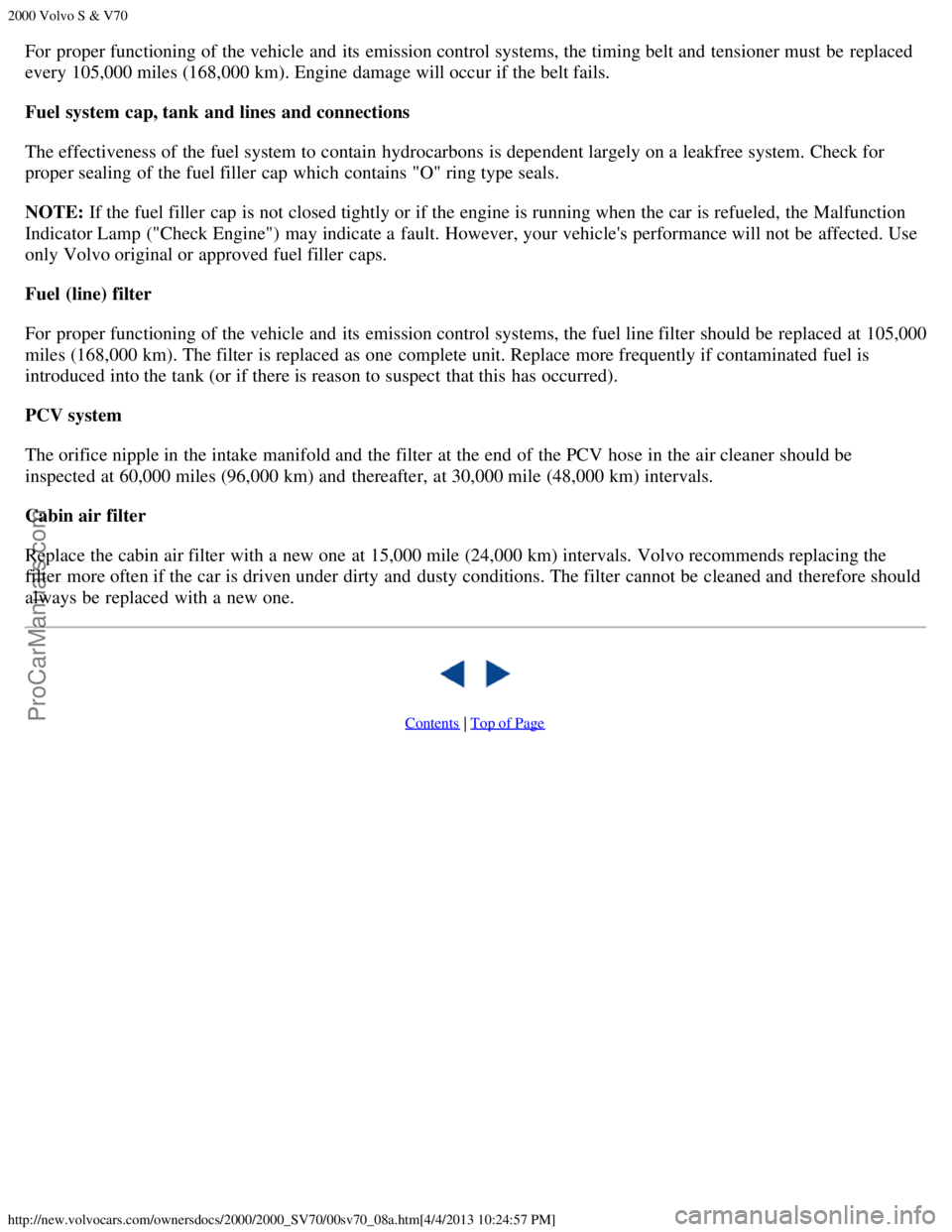

For proper functioning of the vehicle and its emission control systems, the timing belt and tensioner must be replaced
every 105,000 miles (168,000 km). Engine damage will occur if the belt fails.
Fuel system cap, tank and lines and connections
The effectiveness of the fuel system to contain hydrocarbons is dependent largely on a leakfree system. Check for
proper sealing of the fuel filler cap which contains "O" ring type seals.
NOTE: If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction
Indicator Lamp ("Check Engine") may indicate a fault. However, your vehicle's performance will not be affected. Use
only Volvo original or approved fuel filler caps.
Fuel (line) filter
For proper functioning of the vehicle and its emission control systems, the fuel line filter should be replaced at 105,000
miles (168,000 km). The filter is replaced as one complete unit. Replace more frequently if contaminated fuel is
introduced into the tank (or if there is reason to suspect that this has occurred).
PCV system
The orifice nipple in the intake manifold and the filter at the end of the PCV hose in the air cleaner should be
inspected at 60,000 miles (96,000 km) and thereafter, at 30,000 mile (48,000 km) intervals.
Cabin air filter
Replace the cabin air filter with a new one at 15,000 mile (24,000 km) intervals. Volvo recommends replacing the
filter more often if the car is driven under dirty and dusty conditions. The filter cannot be cleaned and therefore should
always be replaced with a new one.

Contents | Top of Page
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]
2 0 0 0
VOLVO
S & V70

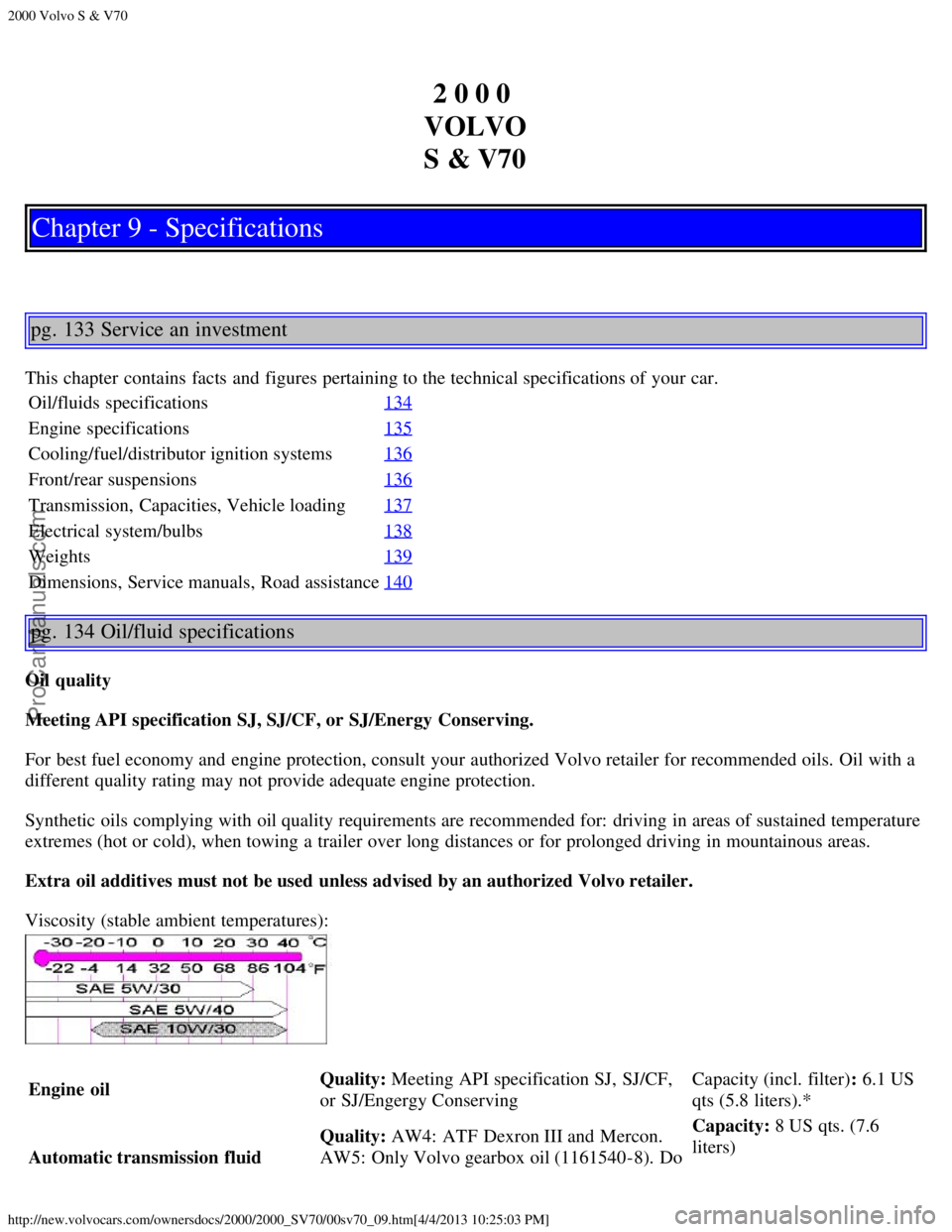

Chapter 9 - Specifications
pg. 133 Service an investment
This chapter contains facts and figures pertaining to the technical specifications of your car. Oil/fluids specifications 134
Engine specifications135
Cooling/fuel/distributor ignition systems136
Front/rear suspensions136
Transmission, Capacities, Vehicle loading137
Electrical system/bulbs138
Weights139
Dimensions, Service manuals, Road assistance140
pg. 134 Oil/fluid specifications
Oil quality
Meeting API specification SJ, SJ/CF, or SJ/Energy Conserving.
For best fuel economy and engine protection, consult your authorized Volvo retailer for recommended oils. Oil with a
different quality rating may not provide adequate engine protection.
Synthetic oils complying with oil quality requirements are recommended for: driving in areas of sustained temperature
extremes (hot or cold), when towing a trailer over long distances or for prolonged driving in mountainous areas.
Extra oil additives must not be used unless advised by an authorized Volvo retailer.
Viscosity (stable ambient temperatures):
Engine oilQuality:
Meeting API specification SJ, SJ/CF,
or SJ/Engergy Conserving Capacity (incl. filter)
: 6.1 US
qts (5.8 liters).*
Automatic transmission fluid Quality:
AW4: ATF Dexron III and Mercon.
AW5: Only Volvo gearbox oil (1161540-8). Do Capacity:
8 US qts. (7.6
liters)
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]

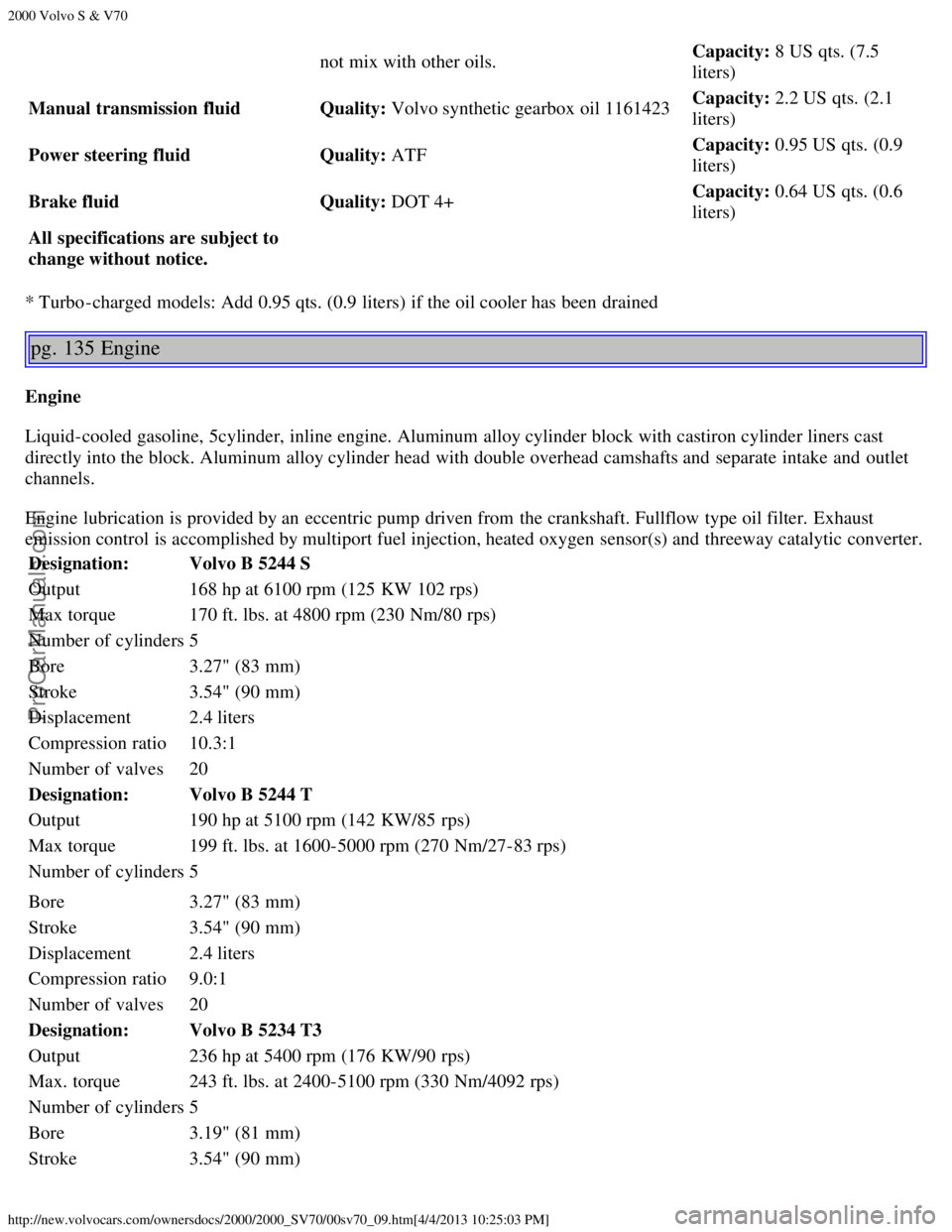

not mix with other oils.Capacity: 8 US qts. (7.5
liters)
Manual transmission fluid Quality: Volvo synthetic gearbox oil 1161423 Capacity:
2.2 US qts. (2.1
liters)
Power steering fluid Quality: ATF Capacity:
0.95 US qts. (0.9
liters)
Brake fluid Quality: DOT 4+ Capacity:
0.64 US qts. (0.6
liters)
All specifications are subject to
change without notice.
* Turbo -charged models: Add 0.95 qts. (0.9 liters) if the oil cooler has been drained
pg. 135 Engine
Engine
Liquid-cooled gasoline, 5cylinder, inline engine. Aluminum alloy cylinder block with castiron cylinder liners cast
directly into the block. Aluminum alloy cylinder head with double overhead camshafts and separate intake and outlet
channels.
Engine lubrication is provided by an eccentric pump driven from the crankshaft. Fullflow type oil filter. Exhaust
emission control is accomplished by multiport fuel injection, heated oxygen sensor(s) and threeway catalytic converter. Designation: Volvo B 5244 S
Output 168 hp at 6100 rpm (125 KW 102 rps)
Max torque 170 ft. lbs. at 4800 rpm (230 Nm/80 rps)
Number of cylinders 5
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 2.4 liters
Compression ratio 10.3:1
Number of valves 20
Designation: Volvo B 5244 T
Output 190 hp at 5100 rpm (142 KW/85 rps)
Max torque 199 ft. lbs. at 1600-5000 rpm (270 Nm/27-83 rps)
Number of cylinders 5
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 2.4 liters
Compression ratio 9.0:1
Number of valves 20
Designation: Volvo B 5234 T3
Output 236 hp at 5400 rpm (176 KW/90 rps)
Max. torque 243 ft. lbs. at 2400-5100 rpm (330 Nm/4092 rps)
Number of cylinders 5
Bore 3.19" (81 mm)
Stroke 3.54" (90 mm)
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]

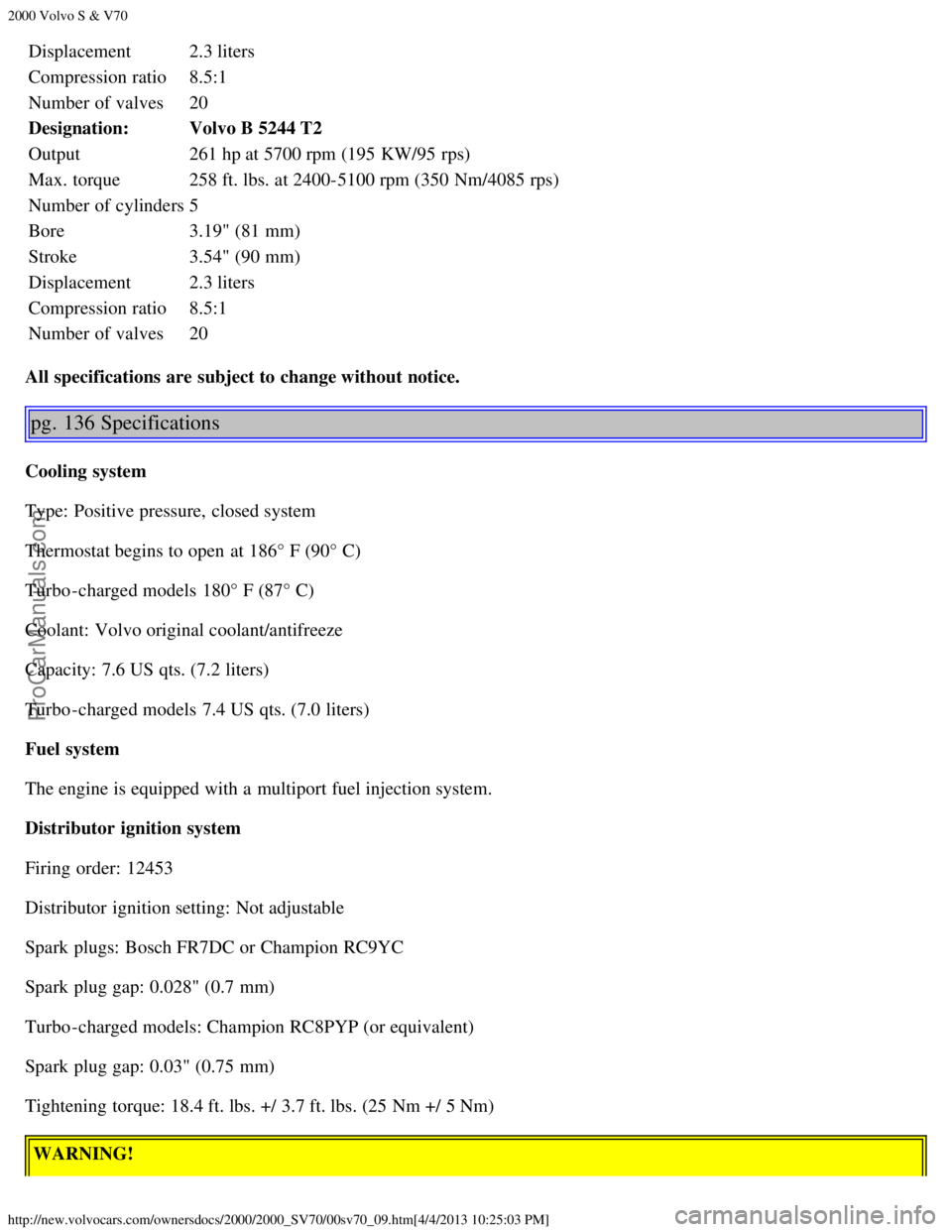

Displacement2.3 liters
Compression ratio8.5:1
Number of valves 20
Designation: Volvo B 5244 T2
Output 261 hp at 5700 rpm (195 KW/95 rps)
Max. torque 258 ft. lbs. at 2400-5100 rpm (350 Nm/4085 rps)
Number of cylinders 5
Bore 3.19" (81 mm)
Stroke 3.54" (90 mm)
Displacement 2.3 liters
Compression ratio 8.5:1
Number of valves 20
All specifications are subject to change without notice.
pg. 136 Specifications
Cooling system
Type: Positive pressure, closed system
Thermostat begins to open at 186° F (90° C)
Turbo -charged models 180° F (87° C)
Coolant: Volvo original coolant/antifreeze
Capacity: 7.6 US qts. (7.2 liters)
Turbo -charged models 7.4 US qts. (7.0 liters)
Fuel system
The engine is equipped with a multiport fuel injection system.
Distributor ignition system
Firing order: 12453
Distributor ignition setting: Not adjustable
Spark plugs: Bosch FR7DC or Champion RC9YC
Spark plug gap: 0.028" (0.7 mm)
Turbo -charged models: Champion RC8PYP (or equivalent)
Spark plug gap: 0.03" (0.75 mm)
Tightening torque: 18.4 ft. lbs. +/ 3.7 ft. lbs. (25 Nm +/ 5 Nm)
WARNING!
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]

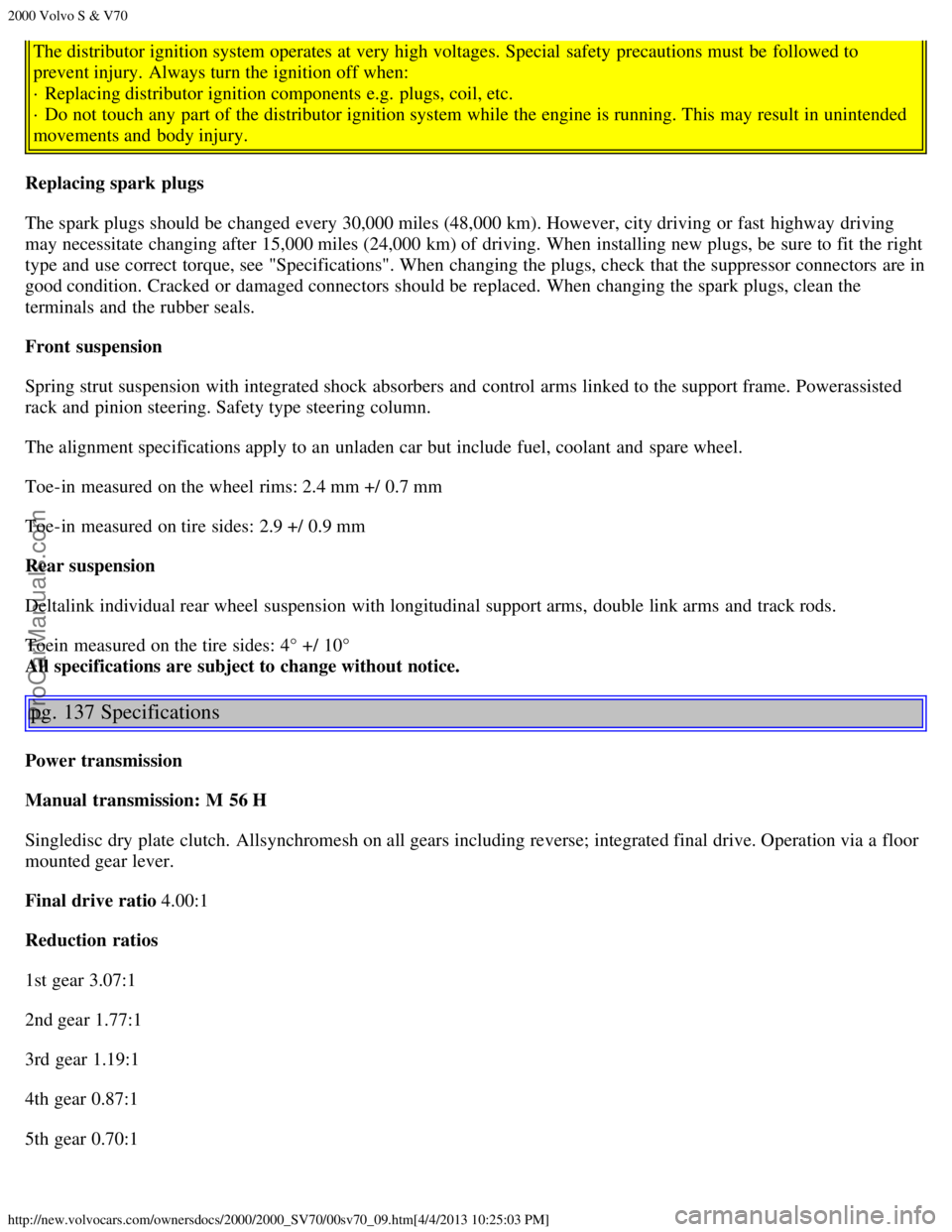

The distributor ignition system operates at very high voltages. Special safety precautions must be followed to
prevent injury. Always turn the ignition off when:
· Replacing distributor ignition components e.g. plugs, coil, etc.
· Do not touch any part of the distributor ignition system while the engine is running. This may result in unintended
movements and body injury.
Replacing spark plugs
The spark plugs should be changed every 30,000 miles (48,000 km). However, city driving or fast highway driving
may necessitate changing after 15,000 miles (24,000 km) of driving. When installing new plugs, be sure to fit the right
type and use correct torque, see "Specifications". When changing the plugs, check that the suppressor connectors are in
good condition. Cracked or damaged connectors should be replaced. When changing the spark plugs, clean the
terminals and the rubber seals.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Powerassisted
rack and pinion steering. Safety type steering column.
The alignment specifications apply to an unladen car but include fuel, coolant and spare wheel.
Toe-in measured on the wheel rims: 2.4 mm +/ 0.7 mm
Toe-in measured on tire sides: 2.9 +/ 0.9 mm
Rear suspension
Deltalink individual rear wheel suspension with longitudinal support arms, double link arms and track rods.
Toein measured on the tire sides: 4° +/ 10°
All specifications are subject to change without notice.
pg. 137 Specifications
Power transmission
Manual transmission: M 56 H
Singledisc dry plate clutch. Allsynchromesh on all gears including reverse; integrated final drive. Operation via a floor
mounted gear lever.
Final drive ratio 4.00:1
Reduction ratios
1st gear 3.07:1
2nd gear 1.77:1
3rd gear 1.19:1
4th gear 0.87:1
5th gear 0.70:1
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]

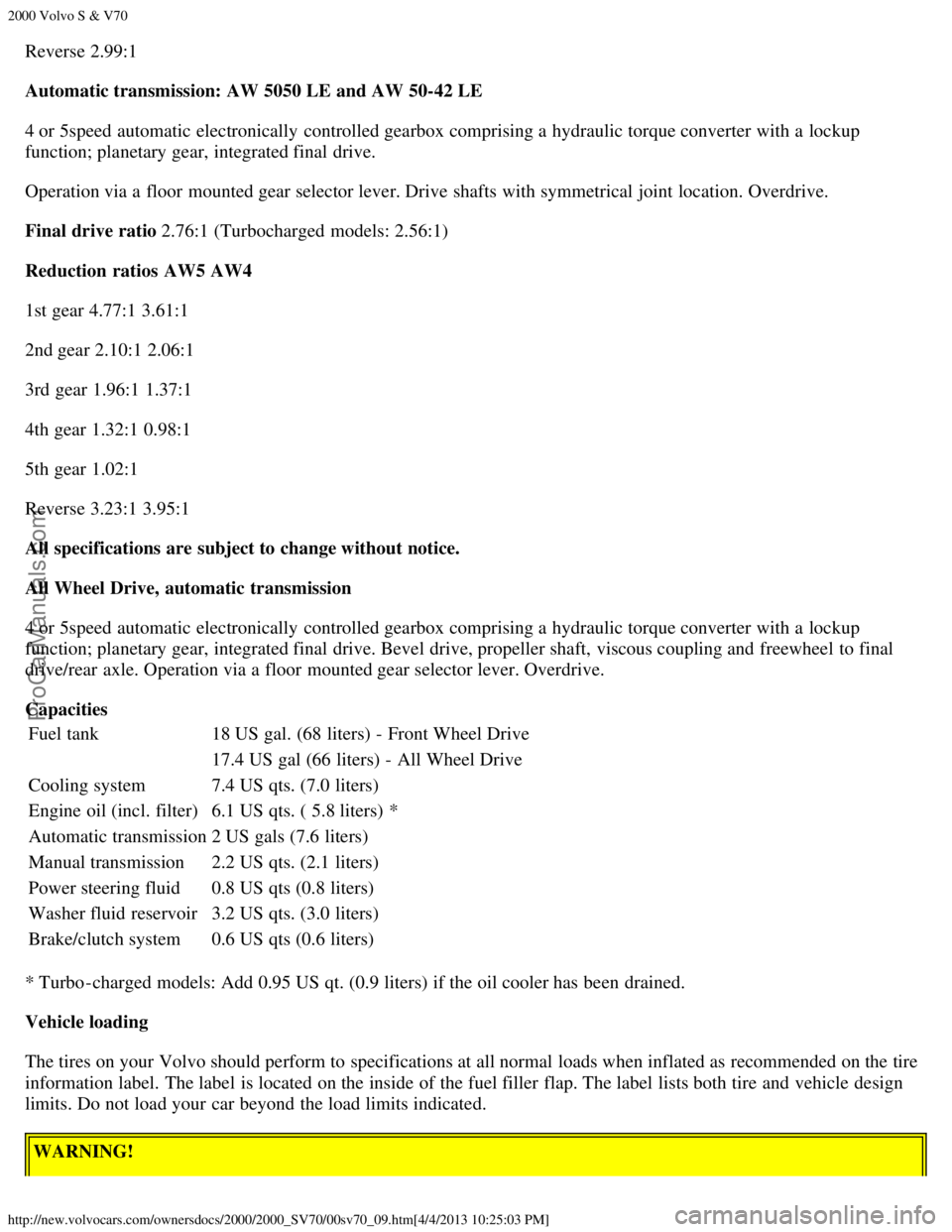

Reverse 2.99:1
Automatic transmission: AW 5050 LE and AW 50-42 LE
4 or 5speed automatic electronically controlled gearbox comprising a hydraulic torque converter with a lockup
function; planetary gear, integrated final drive.
Operation via a floor mounted gear selector lever. Drive shafts with symmetrical joint location. Overdrive.
Final drive ratio 2.76:1 (Turbocharged models: 2.56:1)
Reduction ratios AW5 AW4
1st gear 4.77:1 3.61:1
2nd gear 2.10:1 2.06:1
3rd gear 1.96:1 1.37:1
4th gear 1.32:1 0.98:1
5th gear 1.02:1
Reverse 3.23:1 3.95:1
All specifications are subject to change without notice.
All Wheel Drive, automatic transmission
4 or 5speed automatic electronically controlled gearbox comprising a hydraulic torque converter with a lockup
function; planetary gear, integrated final drive. Bevel drive, propeller shaft, viscous coupling and freewheel to final
drive/rear axle. Operation via a floor mounted gear selector lever. Overdrive.
Capacities Fuel tank 18 US gal. (68 liters) - Front Wheel Drive
17.4 US gal (66 liters) - All Wheel Drive
Cooling system 7.4 US qts. (7.0 liters)
Engine oil (incl. filter) 6.1 US qts. ( 5.8 liters) *
Automatic transmission 2 US gals (7.6 liters)
Manual transmission 2.2 US qts. (2.1 liters)
Power steering fluid 0.8 US qts (0.8 liters)
Washer fluid reservoir 3.2 US qts. (3.0 liters)
Brake/clutch system 0.6 US qts (0.6 liters)
* Turbo -charged models: Add 0.95 US qt. (0.9 liters) if the oil cooler has been drained.
Vehicle loading
The tires on your Volvo should perform to specifications at all normal loads when inflated as recommended on the tire
information label. The label is located on the inside of the fuel filler flap. The label lists both tire and vehicle design
limits. Do not load your car beyond the load limits indicated.
WARNING!
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]
Improperly inflated tires will reduce tire life, adversely affect vehicle handling and can possibly lead to failure
resulting in loss of vehicle control without prior warning.

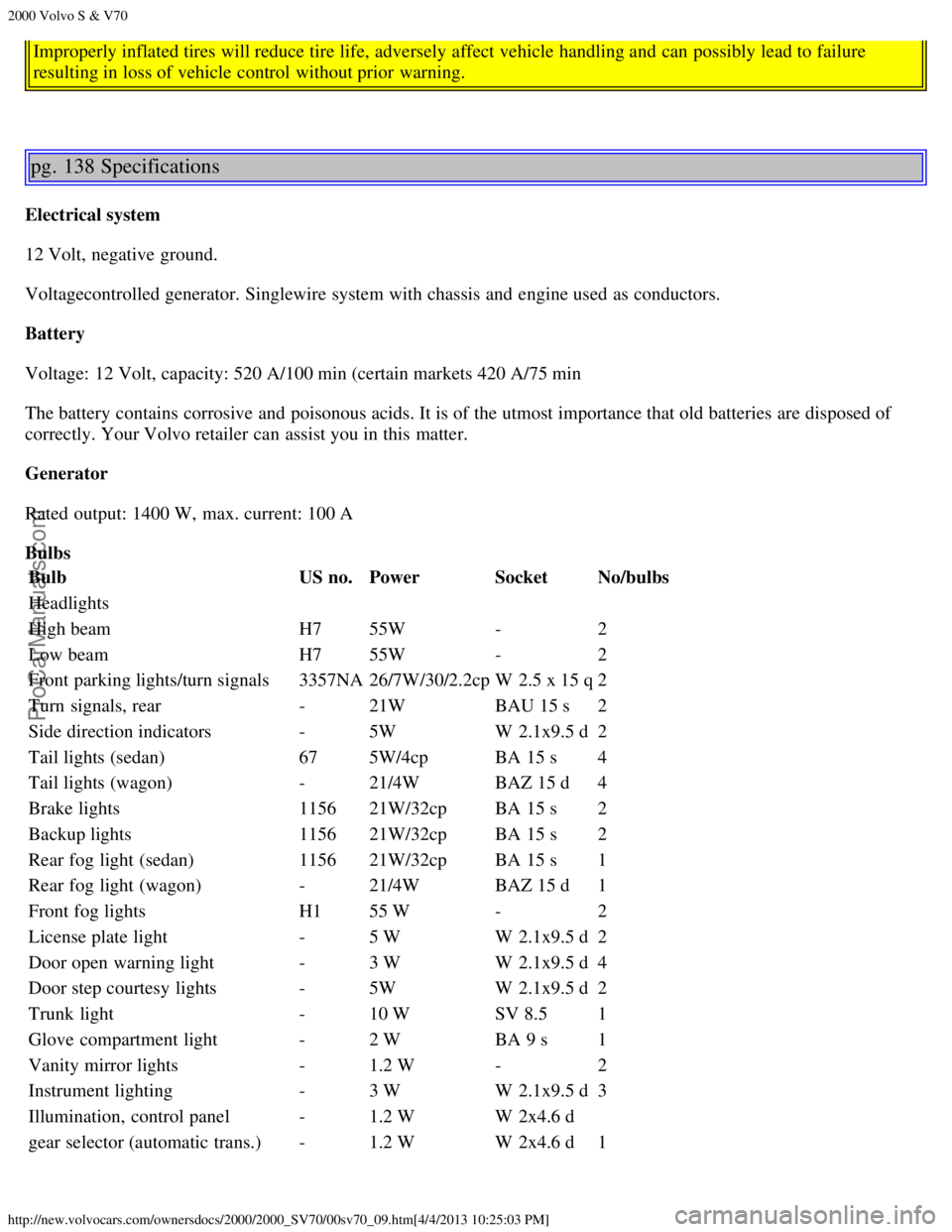

pg. 138 Specifications
Electrical system
12 Volt, negative ground.
Voltagecontrolled generator. Singlewire system with chassis and engine used as conductors.
Battery
Voltage: 12 Volt, capacity: 520 A/100 min (certain markets 420 A/75 min
The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of
correctly. Your Volvo retailer can assist you in this matter.
Generator
Rated output: 1400 W, max. current: 100 A
Bulbs
Bulb US no.Power SocketNo/bulbs
Headlights
High beam H755W -2
Low beam H755W -2
Front parking lights/turn signals 3357NA26/7W/30/2.2cp W 2.5 x 15 q2
Turn signals, rear -21W BAU 15 s2
Side direction indicators -5W W 2.1x9.5 d2
Tail lights (sedan) 675W/4cp BA 15 s4
Tail lights (wagon) -21/4W BAZ 15 d4
Brake lights 115621W/32cp BA 15 s2
Backup lights 115621W/32cp BA 15 s2
Rear fog light (sedan) 115621W/32cp BA 15 s1
Rear fog light (wagon) -21/4W BAZ 15 d1
Front fog lights H155 W -2
License plate light -5 W W 2.1x9.5 d2
Door open warning light -3 W W 2.1x9.5 d4
Door step courtesy lights -5W W 2.1x9.5 d2
Trunk light -10 W SV 8.51
Glove compartment light -2 W BA 9 s1
Vanity mirror lights -1.2 W -2
Instrument lighting -3 W W 2.1x9.5 d3
Illumination, control panel -1.2 W W 2x4.6 d
gear selector (automatic trans.) -1.2 W W 2x4.6 d1
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]
rear ashtray-1.2 W W 2x4.6 d1
Instrument warning/indicator lights -1.2 W W 2x4.6 d
Front courtesy lights -5 W BA 9 s2
Rear reading lights -5 W BA 9 s2
All specifications are subject to change without notice.

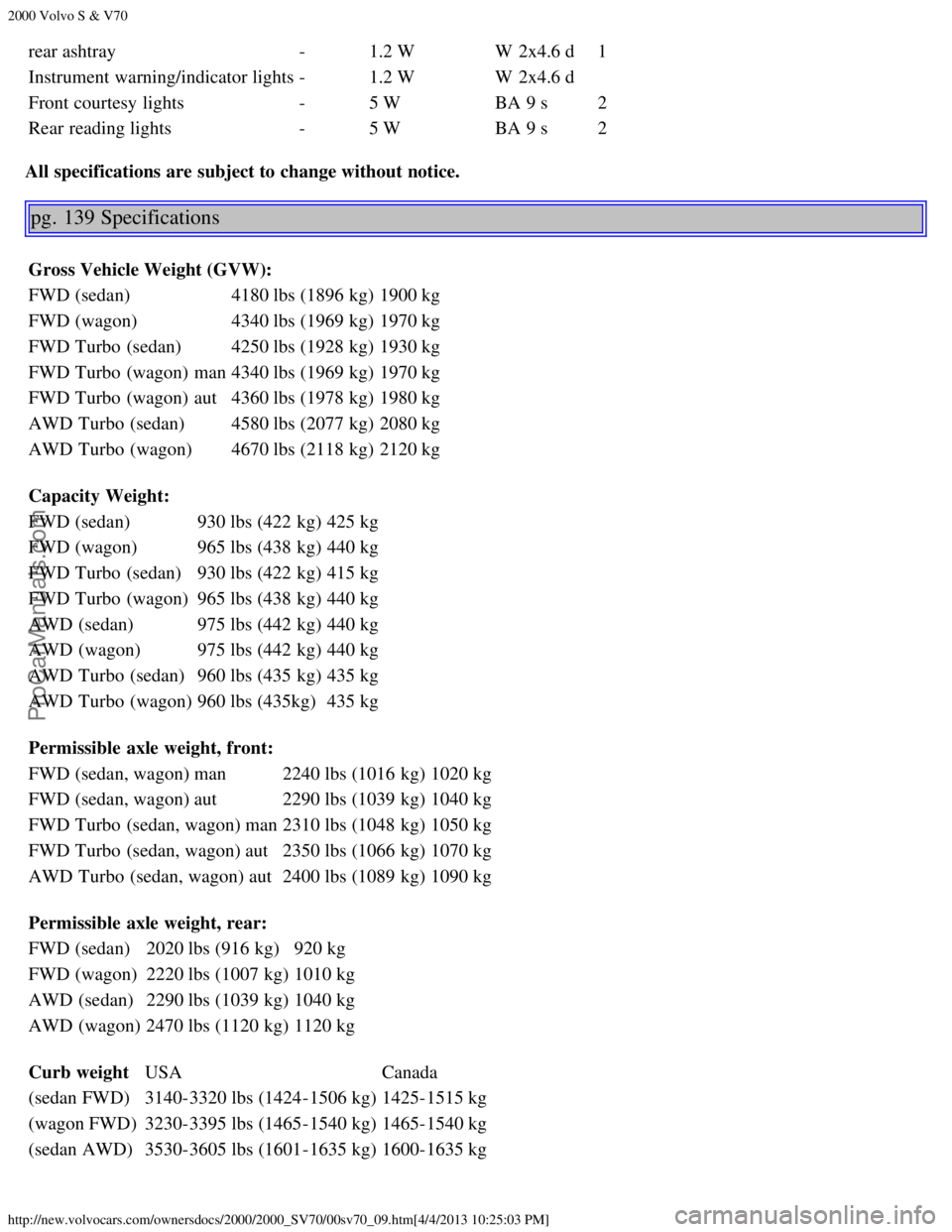

pg. 139 Specifications
Gross Vehicle Weight (GVW):
FWD (sedan) 4180 lbs (1896 kg)1900 kg
FWD (wagon) 4340 lbs (1969 kg)1970 kg
FWD Turbo (sedan) 4250 lbs (1928 kg)1930 kg
FWD Turbo (wagon) man 4340 lbs (1969 kg)1970 kg
FWD Turbo (wagon) aut 4360 lbs (1978 kg)1980 kg
AWD Turbo (sedan) 4580 lbs (2077 kg)2080 kg
AWD Turbo (wagon) 4670 lbs (2118 kg)2120 kg
Capacity Weight:
FWD (sedan) 930 lbs (422 kg)425 kg
FWD (wagon) 965 lbs (438 kg)440 kg
FWD Turbo (sedan) 930 lbs (422 kg)415 kg
FWD Turbo (wagon) 965 lbs (438 kg)440 kg
AWD (sedan) 975 lbs (442 kg)440 kg
AWD (wagon) 975 lbs (442 kg)440 kg
AWD Turbo (sedan) 960 lbs (435 kg)435 kg
AWD Turbo (wagon) 960 lbs (435kg)435 kg
Permissible axle weight, front:
FWD (sedan, wagon) man 2240 lbs (1016 kg)1020 kg
FWD (sedan, wagon) aut 2290 lbs (1039 kg)1040 kg
FWD Turbo (sedan, wagon) man 2310 lbs (1048 kg)1050 kg
FWD Turbo (sedan, wagon) aut 2350 lbs (1066 kg)1070 kg
AWD Turbo (sedan, wagon) aut 2400 lbs (1089 kg)1090 kg
Permissible axle weight, rear:
FWD (sedan) 2020 lbs (916 kg) 920 kg
FWD (wagon) 2220 lbs (1007 kg) 1010 kg
AWD (sedan) 2290 lbs (1039 kg) 1040 kg
AWD (wagon) 2470 lbs (1120 kg) 1120 kg
Curb weight USA Canada
(sedan FWD) 3140-3320 lbs (1424-1506 kg) 1425-1515 kg
(wagon FWD) 3230-3395 lbs (1465-1540 kg) 1465-1540 kg
(sedan AWD) 3530-3605 lbs (1601-1635 kg) 1600-1635 kg
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]

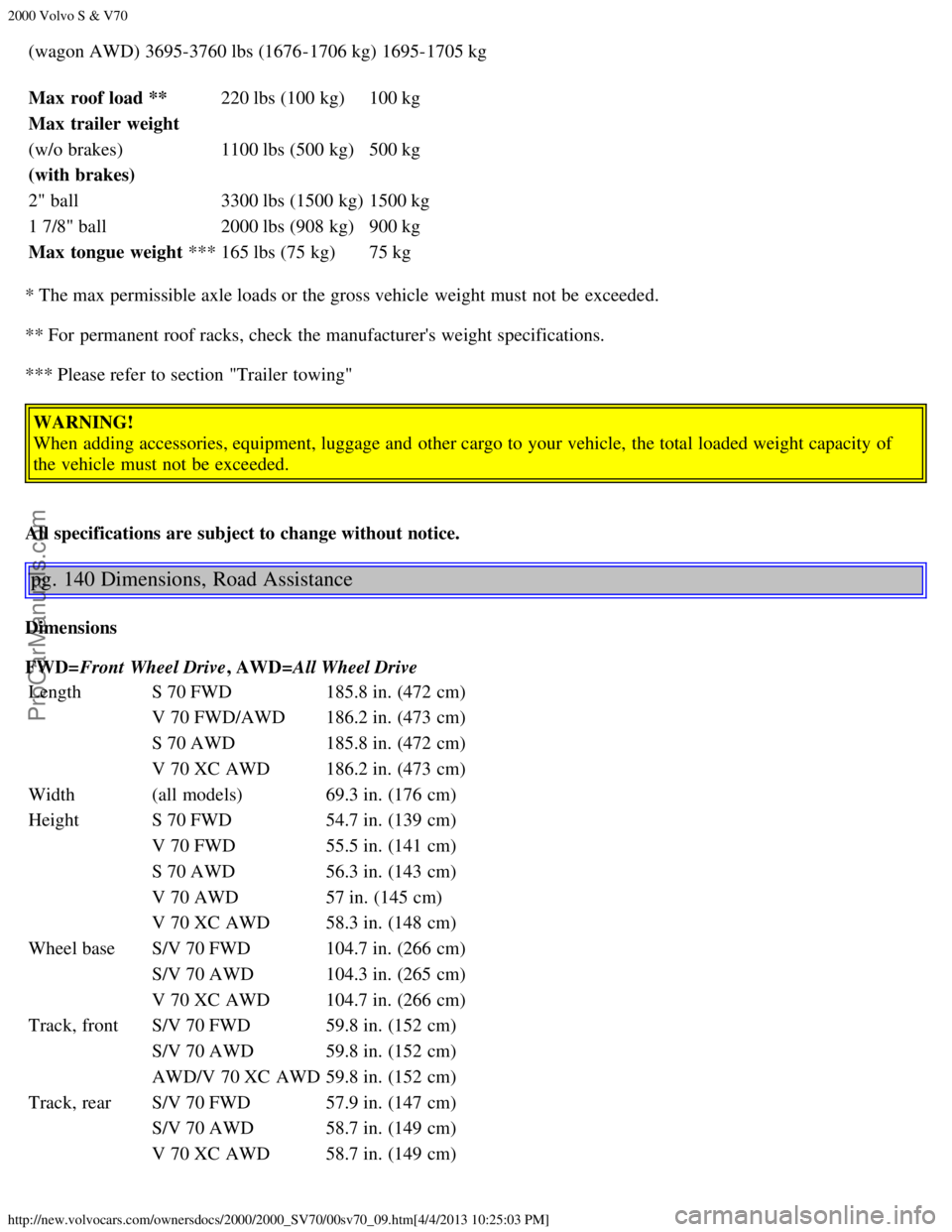

(wagon AWD)3695-3760 lbs (1676-1706 kg) 1695-1705 kg
Max roof load **220 lbs (100 kg)100 kg
Max trailer weight
(w/o brakes) 1100 lbs (500 kg)500 kg
(with brakes)
2" ball 3300 lbs (1500 kg)1500 kg
1 7/8" ball 2000 lbs (908 kg)900 kg
Max tongue weight ***165 lbs (75 kg) 75 kg
* The max permissible axle loads or the gross vehicle weight must not be exceeded.
** For permanent roof racks, check the manufacturer's weight specifications.
*** Please refer to section "Trailer towing"
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total loaded weight capacity of
the vehicle must not be exceeded.
All specifications are subject to change without notice.
pg. 140 Dimensions, Road Assistance
Dimensions
FWD= Front Wheel Drive , AWD=All Wheel Drive
Length S 70 FWD 185.8 in. (472 cm)
V 70 FWD/AWD 186.2 in. (473 cm)
S 70 AWD 185.8 in. (472 cm)
V 70 XC AWD 186.2 in. (473 cm)
Width (all models) 69.3 in. (176 cm)
Height S 70 FWD 54.7 in. (139 cm)
V 70 FWD 55.5 in. (141 cm)
S 70 AWD 56.3 in. (143 cm)
V 70 AWD 57 in. (145 cm)
V 70 XC AWD 58.3 in. (148 cm)
Wheel base S/V 70 FWD 104.7 in. (266 cm)
S/V 70 AWD 104.3 in. (265 cm)
V 70 XC AWD 104.7 in. (266 cm)
Track, front S/V 70 FWD 59.8 in. (152 cm)
S/V 70 AWD 59.8 in. (152 cm)
AWD/V 70 XC AWD 59.8 in. (152 cm)
Track, rear S/V 70 FWD 57.9 in. (147 cm)
S/V 70 AWD 58.7 in. (149 cm)
V 70 XC AWD 58.7 in. (149 cm)
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]

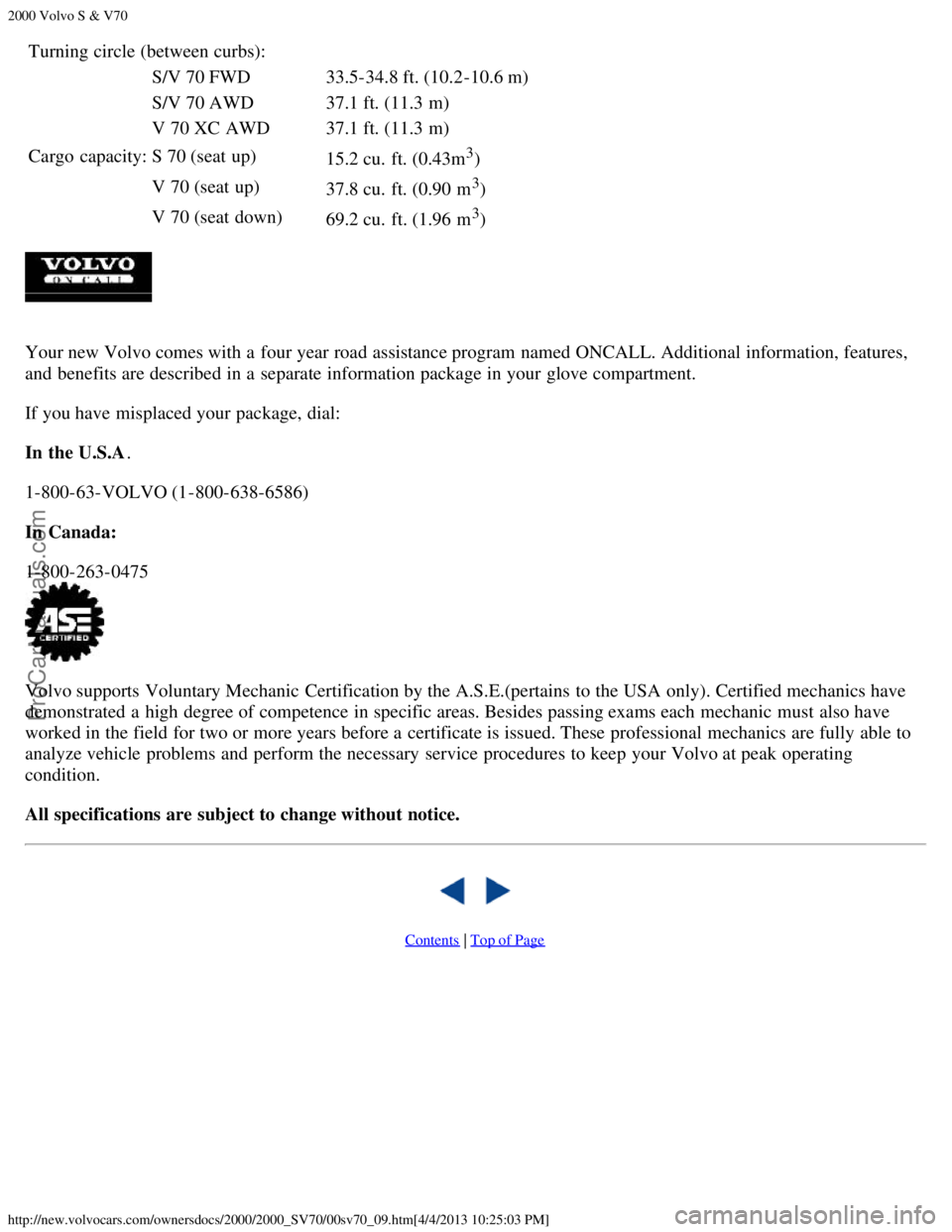

Turning circle (between curbs):
S/V 70 FWD33.5-34.8 ft. (10.2-10.6 m)
S/V 70 AWD 37.1 ft. (11.3 m)
V 70 XC AWD 37.1 ft. (11.3 m)
Cargo capacity: S 70 (seat up)
15.2 cu. ft. (0.43m
3)
V 70 (seat up) 37.8 cu. ft. (0.90 m
3)
V 70 (seat down) 69.2 cu. ft. (1.96 m
3)
Your new Volvo comes with a four year road assistance program named ONCALL. Additional information, features,
and benefits are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475
Volvo supports Voluntary Mechanic Certification by the A.S.E.(pertains to the USA only). Certified mechanics have
demonstrated a high degree of competence in specific areas. Besides passing exams each mechanic must also have
worked in the field for two or more years before a certificate is issued. These professional mechanics are fully able to
analyze vehicle problems and perform the necessary service procedures to keep your Volvo at peak operating
condition.
All specifications are subject to change without notice.

Contents | Top of Page
ProCarManuals.com
