Page 66 of 96

Ordinary fuses
LocationAmperage
1 Rear electrical module, trunk lights 10A
2 Rear fog light 10A
3 Brake lights 15A
4 Backup lights 10A
5 -
6 Trunk release 10A
7 Folding rear outboard head restraints 10A
8 Central locking system - rear doors/fuel tank cover 15A
9 Connector for trailer 20A
10 CD changer 10A
pg.92 Replacing bulbs
Replacing high/low beam headlight bulbs
The headlight bulbs must be replaced from the engine compartment.
CAUTION:
· Do not touch the glass on halogen bulbs with your fingers. Grease, oil or any other impurities can be carbonized onto
the bulb and cause damage to the reflector.
· Be sure to use bulbs of the correct type and voltage.
Removing a defective bulb
To remove a defective bulb:
ProCarManuals.com

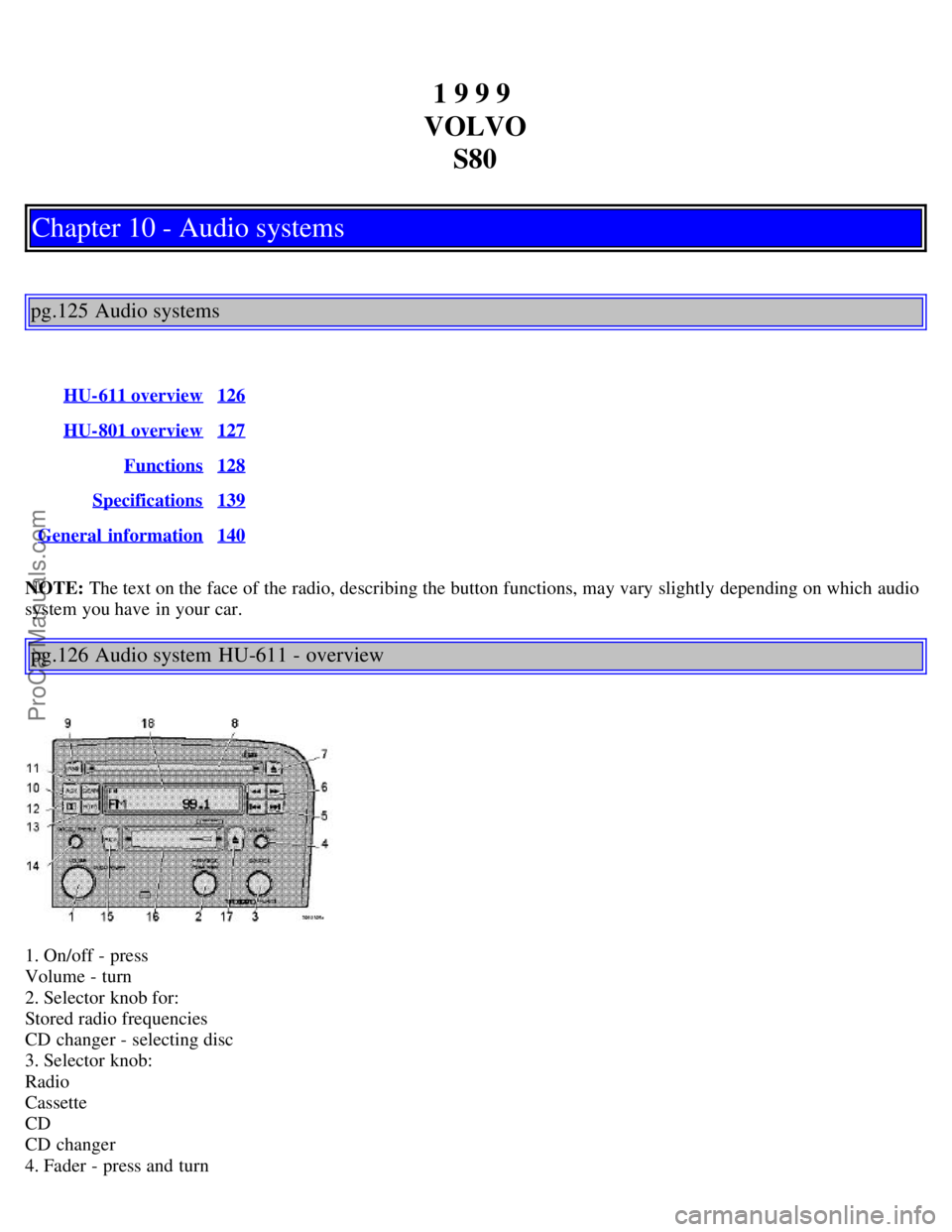

Page 81 of 96

1 9 9 9
VOLVO S80
Chapter 10 - Audio systems
pg.125 Audio systems
HU-611 overview126
HU-801 overview127
Functions128
Specifications139
General information140
NOTE: The text on the face of the radio, describing the button functions, may vary slightly depending on which audio
system you have in your car.
pg.126 Audio system HU-611 - overview
1. On/off - press
Volume - turn
2. Selector knob for:
Stored radio frequencies
CD changer - selecting disc
3. Selector knob:
Radio
Cassette
CD
CD changer
4. Fader - press and turn
ProCarManuals.com

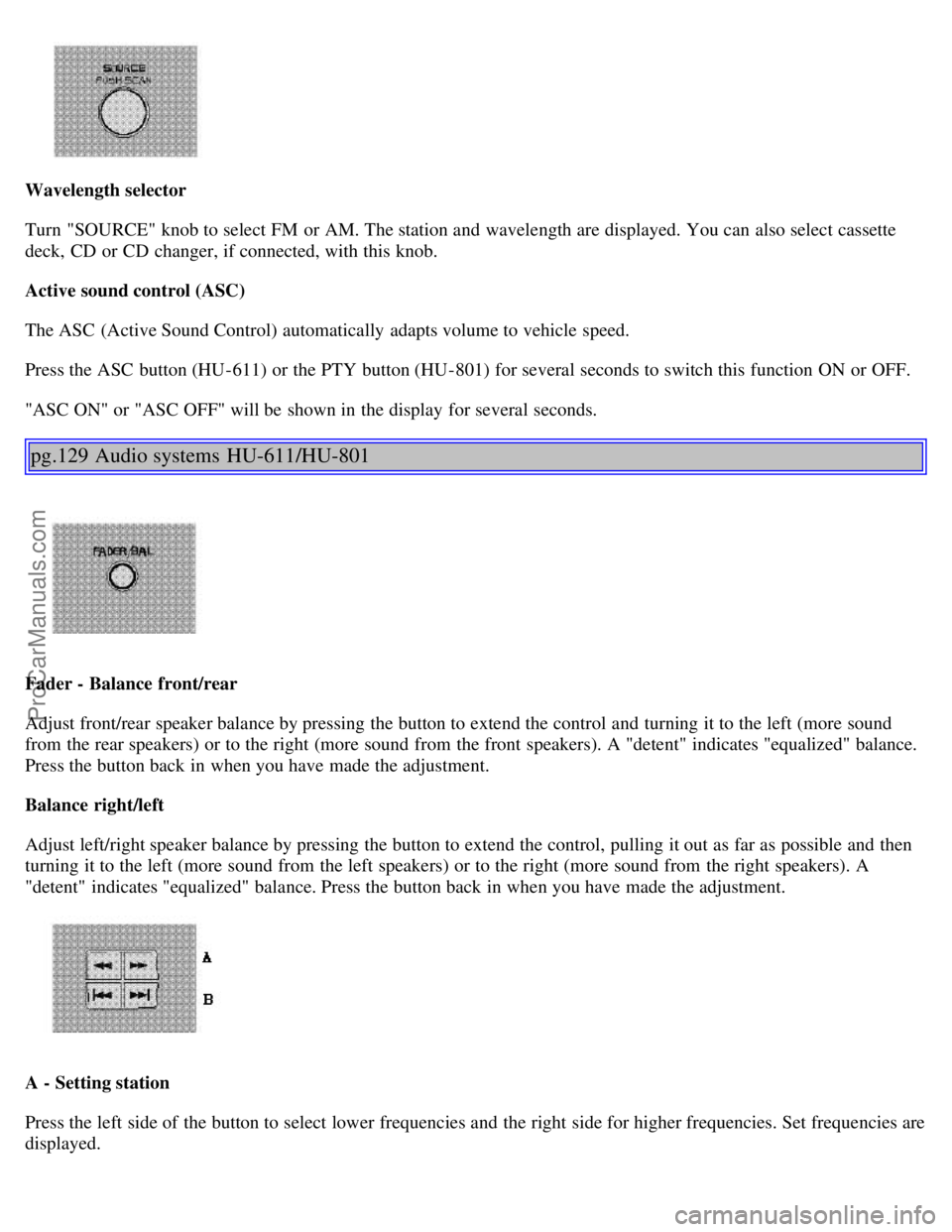

Page 84 of 96

Wavelength selector
Turn "SOURCE" knob to select FM or AM. The station and wavelength are displayed. You can also select cassette
deck, CD or CD changer, if connected, with this knob.
Active sound control (ASC)
The ASC (Active Sound Control) automatically adapts volume to vehicle speed.
Press the ASC button (HU-611) or the PTY button (HU-801) for several seconds to switch this function ON or OFF.
"ASC ON" or "ASC OFF" will be shown in the display for several seconds.
pg.129 Audio systems HU-611/HU-801
Fader - Balance front/rear
Adjust front/rear speaker balance by pressing the button to extend the control and turning it to the left (more sound
from the rear speakers) or to the right (more sound from the front speakers). A "detent" indicates "equalized" balance.
Press the button back in when you have made the adjustment.
Balance right/left
Adjust left/right speaker balance by pressing the button to extend the control, pulling it out as far as possible and then
turning it to the left (more sound from the left speakers) or to the right (more sound from the right speakers). A
"detent" indicates "equalized" balance. Press the button back in when you have made the adjustment.
A - Setting station
Press the left side of the button to select lower frequencies and the right side for higher frequencies. Set frequencies are
displayed.
ProCarManuals.com

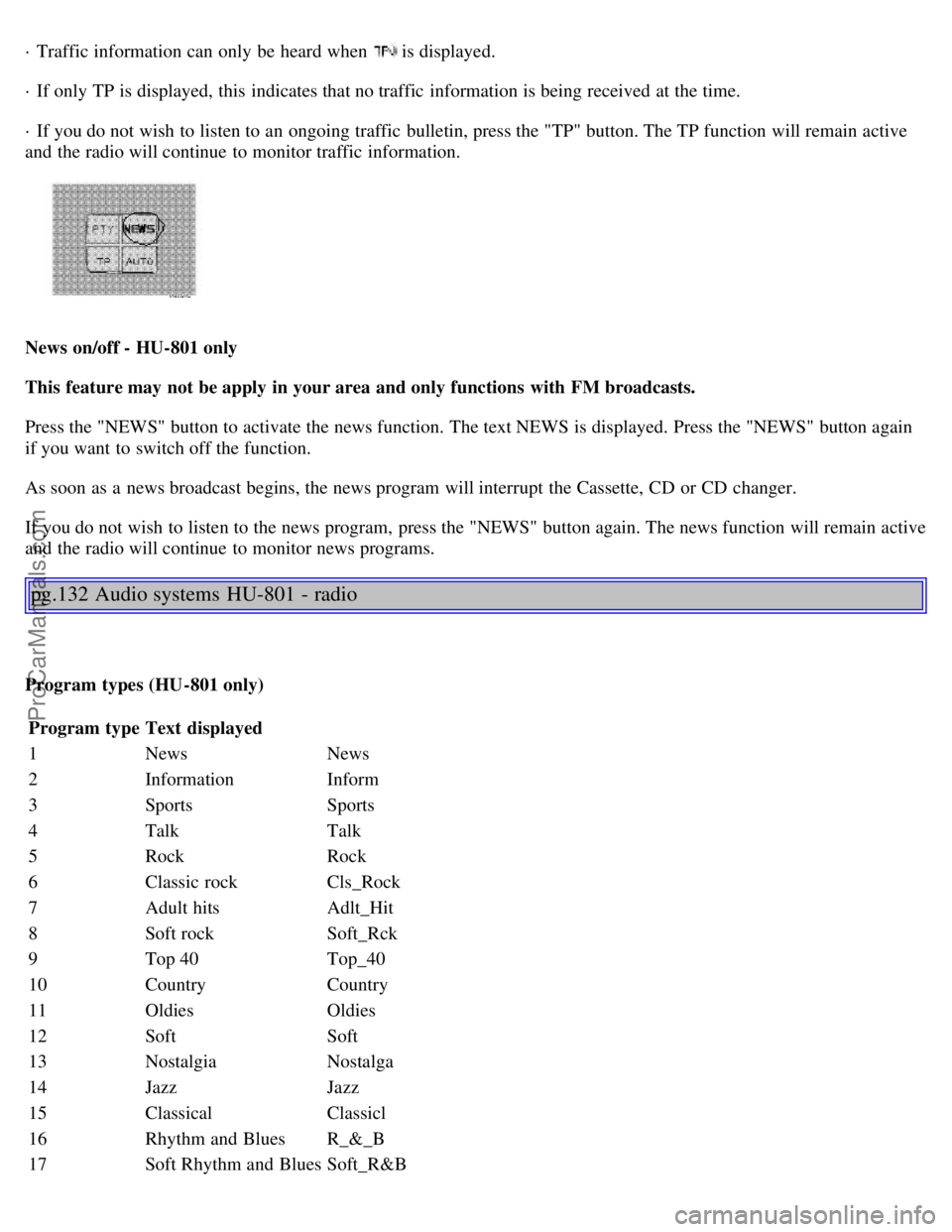

Page 87 of 96

· Traffic information can only be heard when is displayed.
· If only TP is displayed, this indicates that no traffic information is being received at the time.
· If you do not wish to listen to an ongoing traffic bulletin, press the "TP" button. The TP function will remain active
and the radio will continue to monitor traffic information.
News on/off - HU-801 only
This feature may not be apply in your area and only functions with FM broadcasts.
Press the "NEWS" button to activate the news function. The text NEWS is displayed. Press the "NEWS" button again
if you want to switch off the function.
As soon as a news broadcast begins, the news program will interrupt the Cassette, CD or CD changer.
If you do not wish to listen to the news program, press the "NEWS" button again. The news function will remain active
and the radio will continue to monitor news programs.
pg.132 Audio systems HU-801 - radio
Program types (HU-801 only)Program type Text displayed
1 News News
2 Information Inform
3 Sports Sports
4 Talk Talk
5 Rock Rock
6 Classic rock Cls_Rock
7 Adult hits Adlt_Hit
8 Soft rock Soft_Rck
9 Top 40 Top_40
10 Country Country
11 Oldies Oldies
12 Soft Soft
13 Nostalgia Nostalga
14 Jazz Jazz
15 Classical Classicl
16 Rhythm and Blues R_&_B
17Soft Rhythm and Blues Soft_R&B
