clock VOLVO S80 2002 User Guide

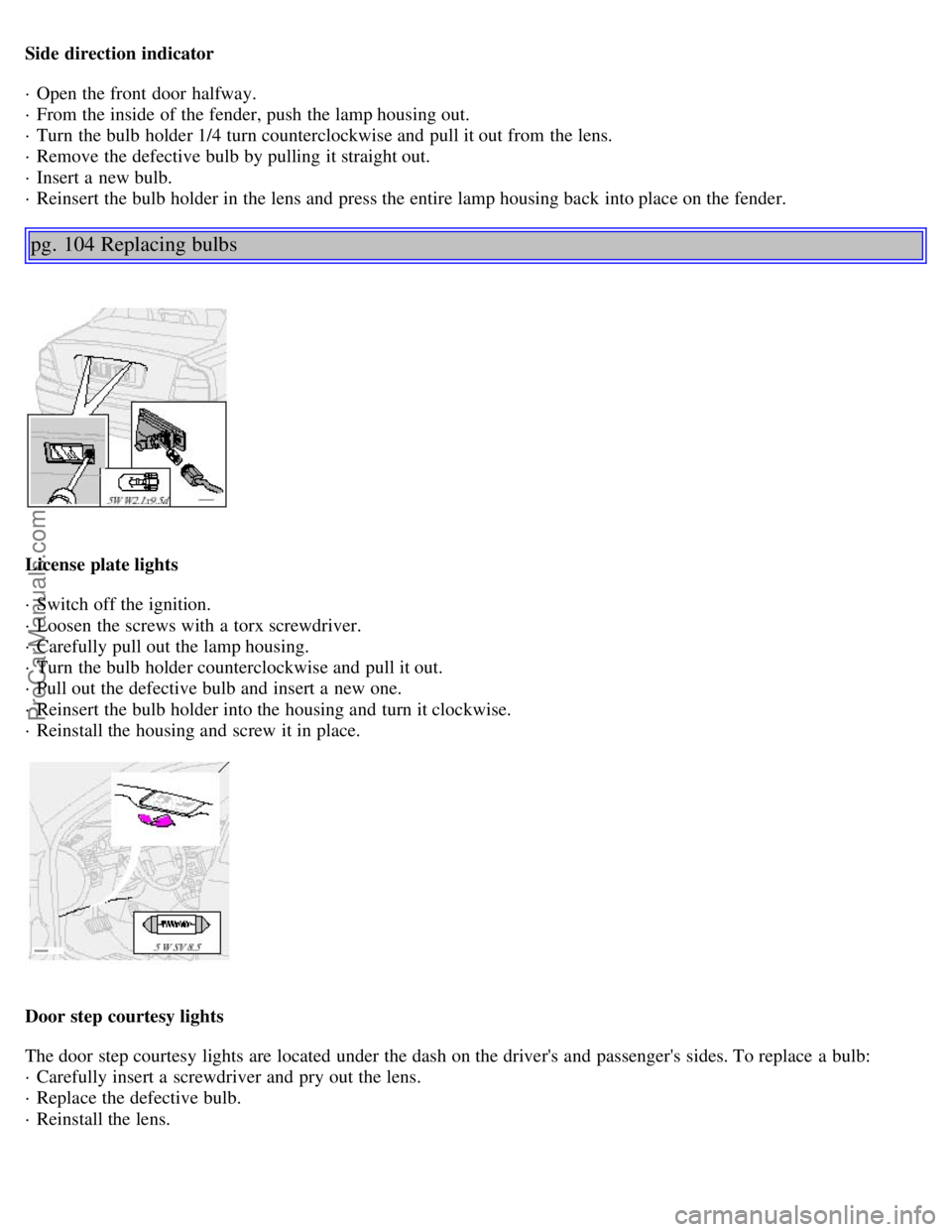

Side direction indicator
· Open the front door halfway.
· From the inside of the fender, push the lamp housing out.
· Turn the bulb holder 1/4 turn counterclockwise and pull it out from the lens.
· Remove the defective bulb by pulling it straight out.
· Insert a new bulb.
· Reinsert the bulb holder in the lens and press the entire lamp housing back into place on the fender.
pg. 104 Replacing bulbs
License plate lights
· Switch off the ignition.
· Loosen the screws with a torx screwdriver.
· Carefully pull out the lamp housing.
· Turn the bulb holder counterclockwise and pull it out.
· Pull out the defective bulb and insert a new one.
· Reinsert the bulb holder into the housing and turn it clockwise.
· Reinstall the housing and screw it in place.
Door step courtesy lights
The door step courtesy lights are located under the dash on the driver's and passenger's sides. To replace a bulb:
· Carefully insert a screwdriver and pry out the lens.
· Replace the defective bulb.
· Reinstall the lens.
ProCarManuals.com

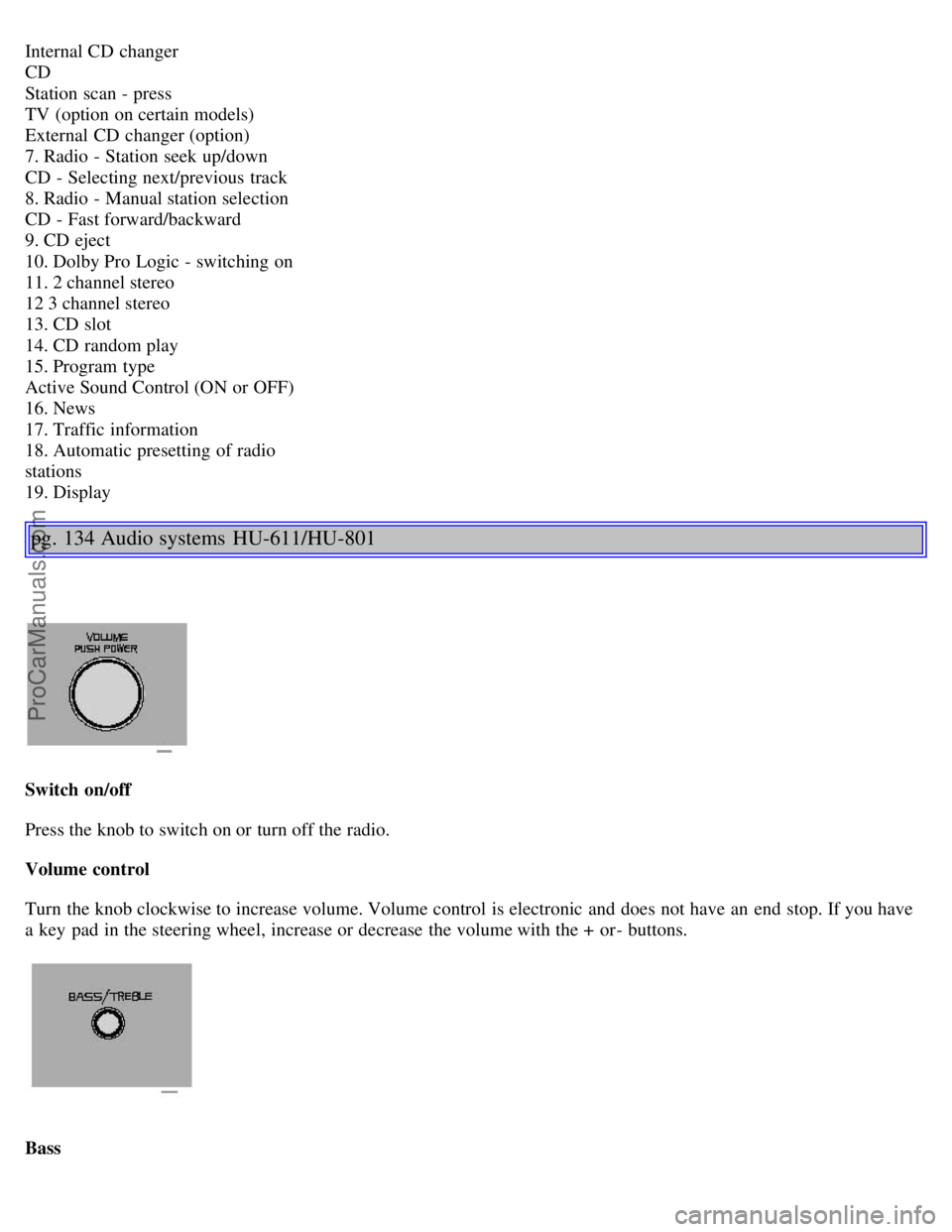

Internal CD changer
CD
Station scan - press
TV (option on certain models)
External CD changer (option)
7. Radio - Station seek up/down
CD - Selecting next/previous track
8. Radio - Manual station selection
CD - Fast forward/backward
9. CD eject
10. Dolby Pro Logic - switching on
11. 2 channel stereo
12 3 channel stereo
13. CD slot
14. CD random play
15. Program type
Active Sound Control (ON or OFF)
16. News
17. Traffic information
18. Automatic presetting of radio
stations
19. Display
pg. 134 Audio systems HU-611/HU-801
Switch on/off
Press the knob to switch on or turn off the radio.
Volume control
Turn the knob clockwise to increase volume. Volume control is electronic and does not have an end stop. If you have
a key pad in the steering wheel, increase or decrease the volume with the + or- buttons.
Bass
ProCarManuals.com

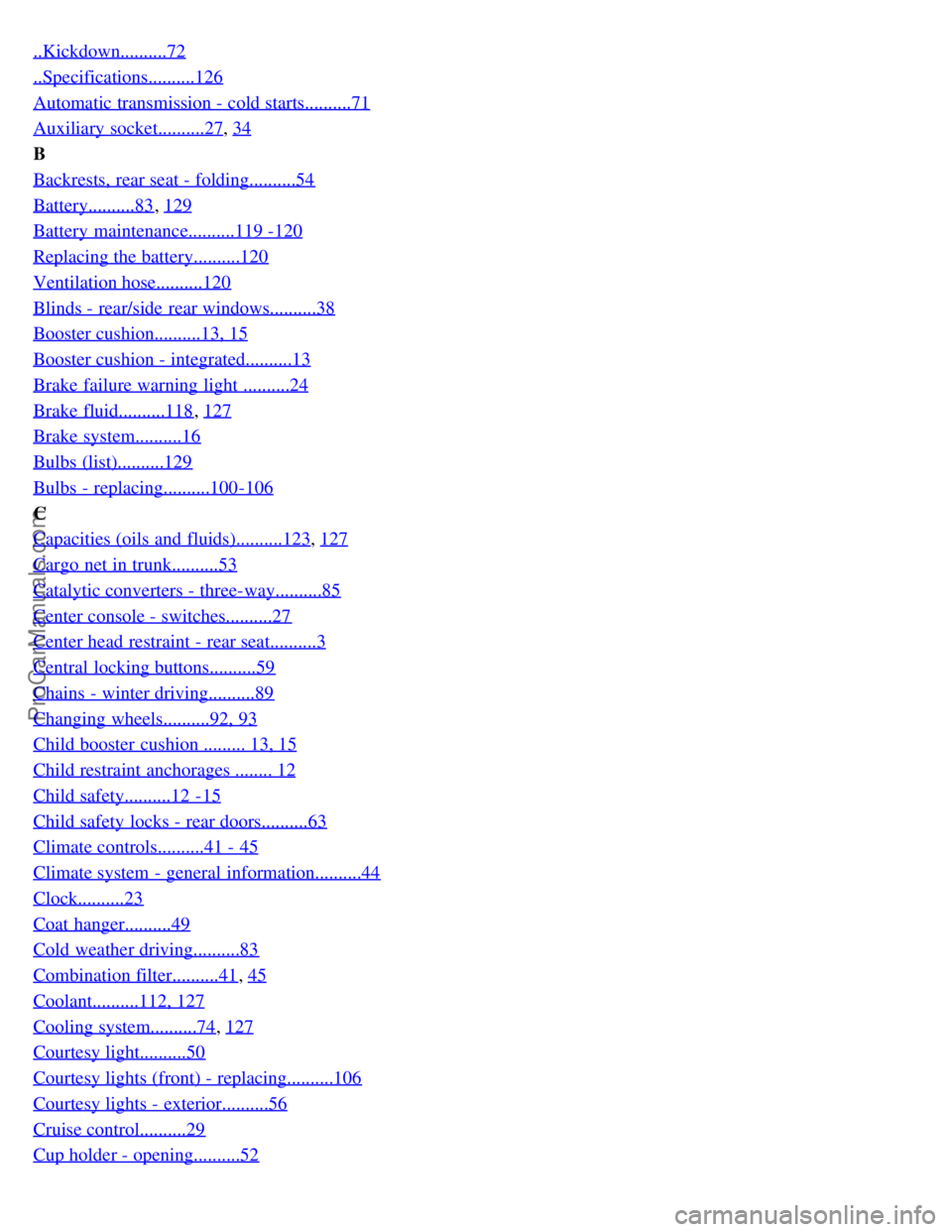

..Kickdown..........72
..Specifications..........126
Automatic transmission - cold starts..........71
Auxiliary socket..........27, 34
B
Backrests, rear seat - folding..........54
Battery..........83, 129
Battery maintenance..........119 -120
Replacing the battery..........120
Ventilation hose..........120
Blinds - rear/side rear windows..........38
Booster cushion..........13, 15
Booster cushion - integrated..........13
Brake failure warning light ..........24
Brake fluid..........118, 127
Brake system..........16
Bulbs (list)..........129
Bulbs - replacing..........100-106
C
Capacities (oils and fluids)..........123
, 127
Cargo net in trunk..........53
Catalytic converters - three-way..........85
Center console - switches..........27
Center head restraint - rear seat..........3
Central locking buttons..........59
Chains - winter driving..........89
Changing wheels..........92, 93
Child booster cushion ......... 13, 15
Child restraint anchorages ........ 12
Child safety..........12 -15
Child safety locks - rear doors..........63
Climate controls..........41 - 45
Climate system - general information..........44
Clock..........23
Coat hanger..........49
Cold weather driving..........83
Combination filter..........41, 45
Coolant..........112, 127
Cooling system..........74, 127
Courtesy light..........50
Courtesy lights (front) - replacing..........106
Courtesy lights - exterior..........56
Cruise control..........29
Cup holder - opening..........52
