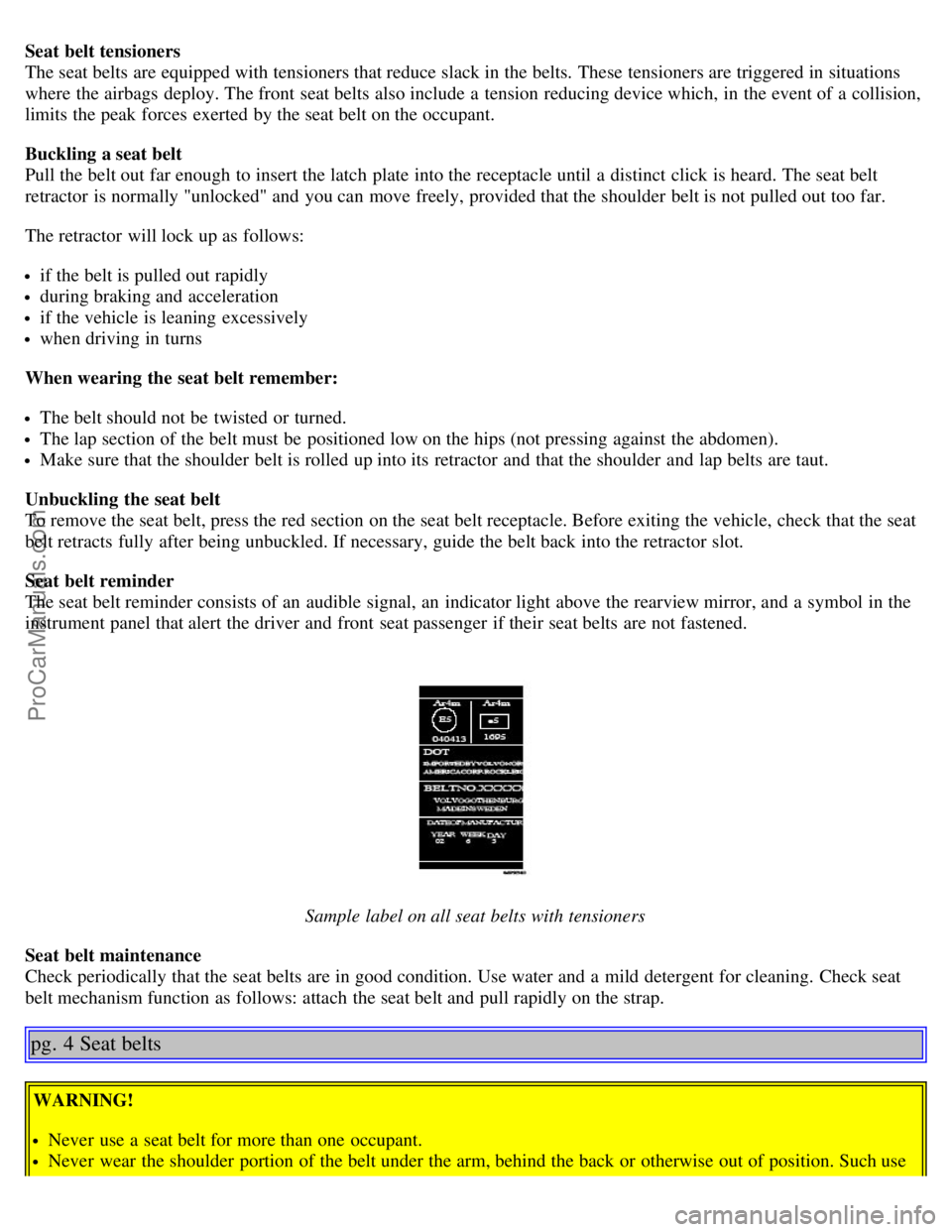

Seat belt tensioners
The seat belts are equipped with tensioners that reduce slack in the belts. These tensioners are triggered in situations
where the airbags deploy. The front seat belts also include a tension reducing device which, in the event of a collision,
limits the peak forces exerted by the seat belt on the occupant.
Buckling a seat belt
Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt
retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far.
The retractor will lock up as follows:
if the belt is pulled out rapidly
during braking and acceleration
if the vehicle is leaning excessively
when driving in turns
When wearing the seat belt remember:
The belt should not be twisted or turned.
The lap section of the belt must be positioned low on the hips (not pressing against the abdomen).
Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut.
Unbuckling the seat belt
To remove the seat belt, press the red section on the seat belt receptacle. Before exiting the vehicle, check that the seat
belt retracts fully after being unbuckled. If necessary, guide the belt back into the retractor slot.
Seat belt reminder
The seat belt reminder consists of an audible signal, an indicator light above the rearview mirror, and a symbol in the
instrument panel that alert the driver and front seat passenger if their seat belts are not fastened.
Sample label on all seat belts with tensioners
Seat belt maintenance
Check periodically that the seat belts are in good condition. Use water and a mild detergent for cleaning. Check seat
belt mechanism function as follows: attach the seat belt and pull rapidly on the strap.
pg. 4 Seat belts
WARNING!
Never use a seat belt for more than one occupant.
Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of position. Such use
ProCarManuals.com

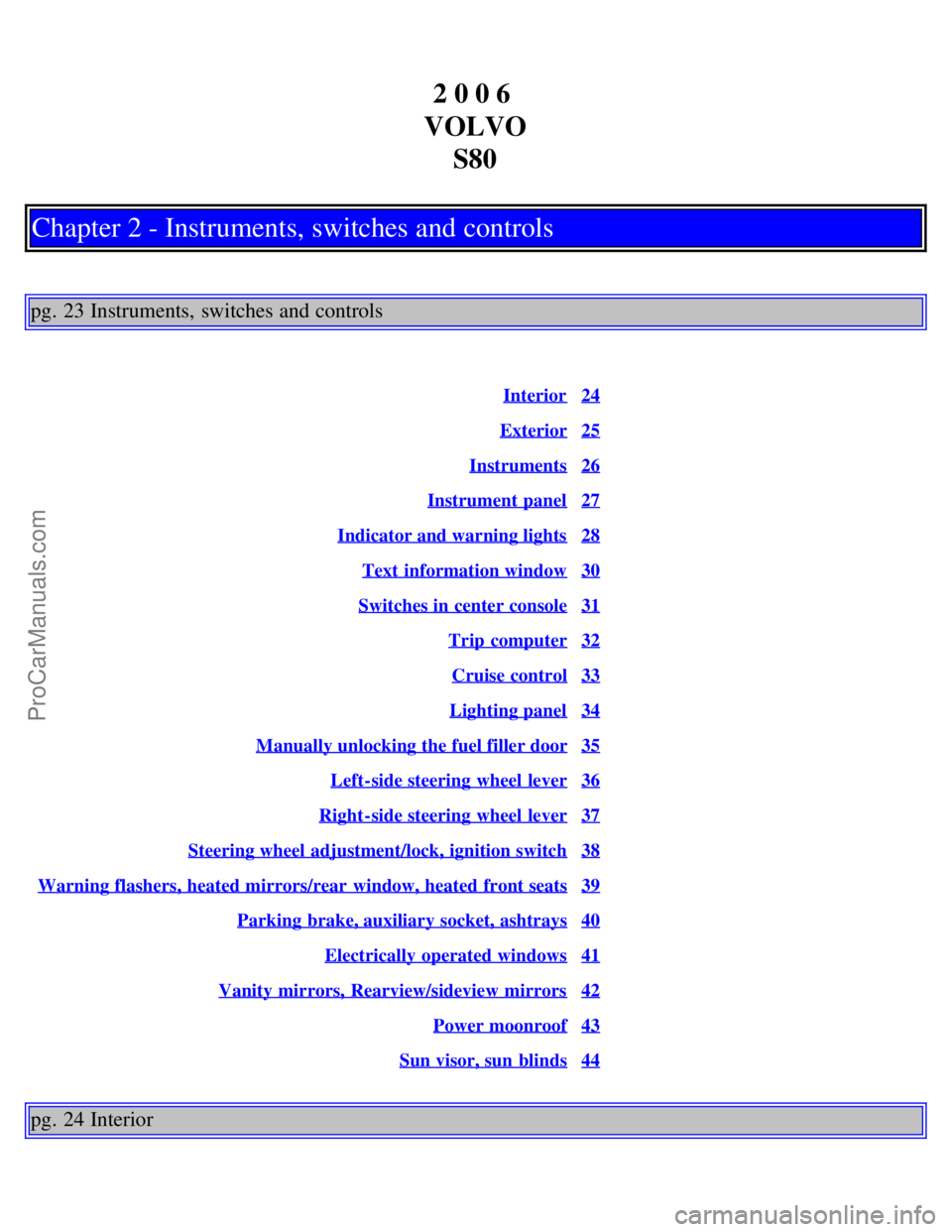

2 0 0 6
VOLVO S80
Chapter 2 - Instruments, switches and controls
pg. 23 Instruments, switches and controls
Interior24
Exterior25
Instruments26
Instrument panel27
Indicator and warning lights28
Text information window30
Switches in center console31
Trip computer32
Cruise control33
Lighting panel34
Manually unlocking the fuel filler door35
Left-side steering wheel lever36
Right-side steering wheel lever37
Steering wheel adjustment/lock, ignition switch38
Warning flashers, heated mirrors/rear window, heated front seats39
Parking brake, auxiliary socket, ashtrays40
Electrically operated windows41
Vanity mirrors, Rearview/sideview mirrors42
Power moonroof43
Sun visor, sun blinds44
pg. 24 Interior
ProCarManuals.com

A
Locking and unlocking the car67
Alarm69
Electrically operated windows41
Sideview mirror controls42
B
Glove compartment57
C
Automatic transmission78
Geartronic80
Parking brake40
Center console switches31
D
Power seat adjustment54
Heated seats (option)39
Cleaning upholstery135
E
Folding rear seat60
Panel for long loads58
Folding down head restraint31
Adjusting center head restraint61
Child safety locks71
Integrated booster cushion20
pg. 25 Exterior
ProCarManuals.com

A
Temperature gauge27
Speedometer27
Odometer27
Trip odometer27
Warning lights27
Text window30
Tachometer27
Clock27
Ambient temperature sensor27
Fuel gauge27
B
Hazard warning flashers39
C
Audio system157
D
Electronic climate control47
Heated seats (option)39
Heated rear window/rearview mirrors39
E
Steering wheel adjustment38
Airbag4
Cruise control33
Windshield wipers/washer37
Turn signal lever36
Trip computer32
Audio system controls158-159
F
High/low beam headlights34
Parking lights34
Fog lights34
ProCarManuals.com

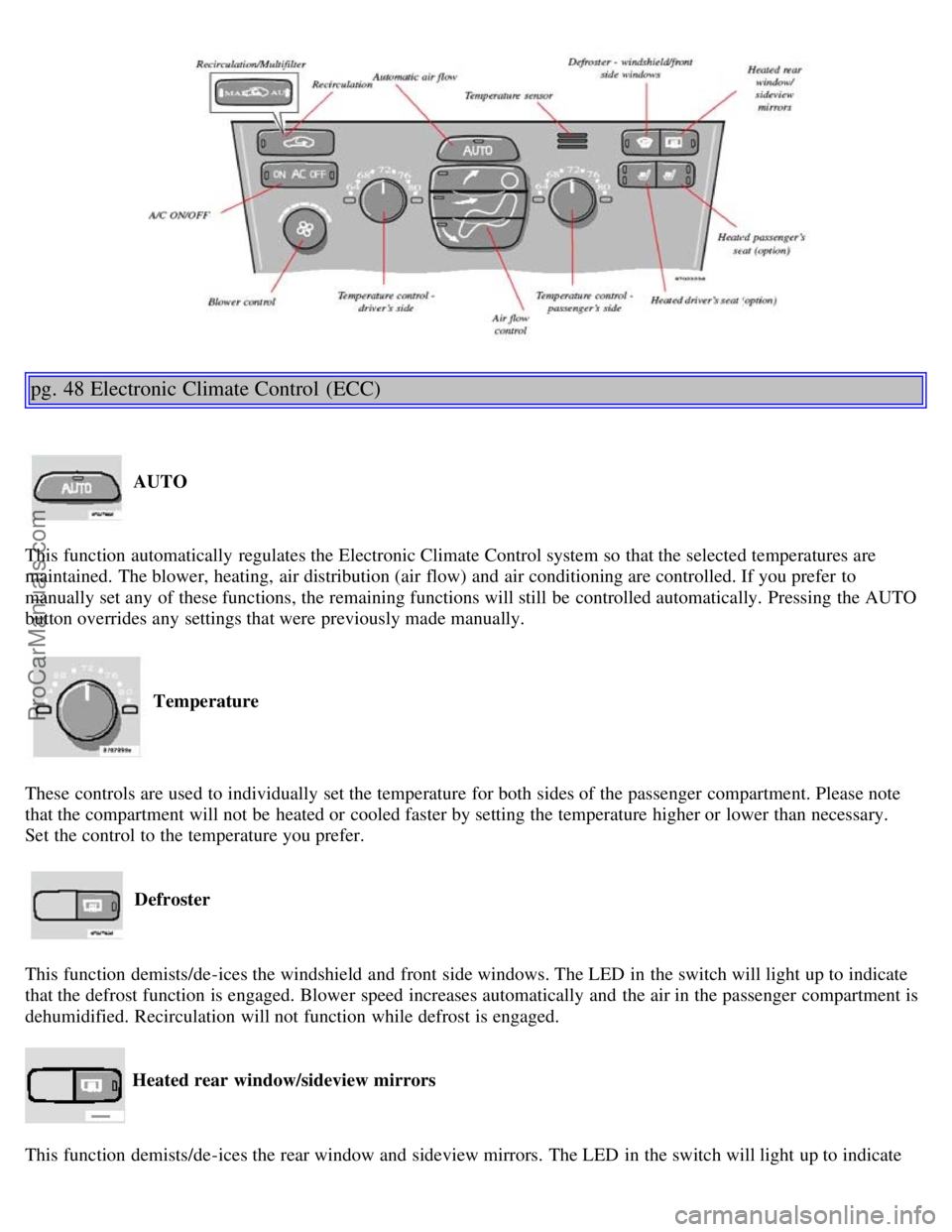

pg. 48 Electronic Climate Control (ECC)
AUTO
This function automatically regulates the Electronic Climate Control system so that the selected temperatures are
maintained. The blower, heating, air distribution (air flow) and air conditioning are controlled. If you prefer to
manually set any of these functions, the remaining functions will still be controlled automatically. Pressing the AUTO
button overrides any settings that were previously made manually.
Temperature
These controls are used to individually set the temperature for both sides of the passenger compartment. Please note
that the compartment will not be heated or cooled faster by setting the temperature higher or lower than necessary.
Set the control to the temperature you prefer.
Defroster
This function demists/de-ices the windshield and front side windows. The LED in the switch will light up to indicate
that the defrost function is engaged. Blower speed increases automatically and the air in the passenger compartment is
dehumidified. Recirculation will not function while defrost is engaged.
Heated rear window/sideview mirrors
This function demists/de-ices the rear window and sideview mirrors. The LED in the switch will light up to indicate
ProCarManuals.com

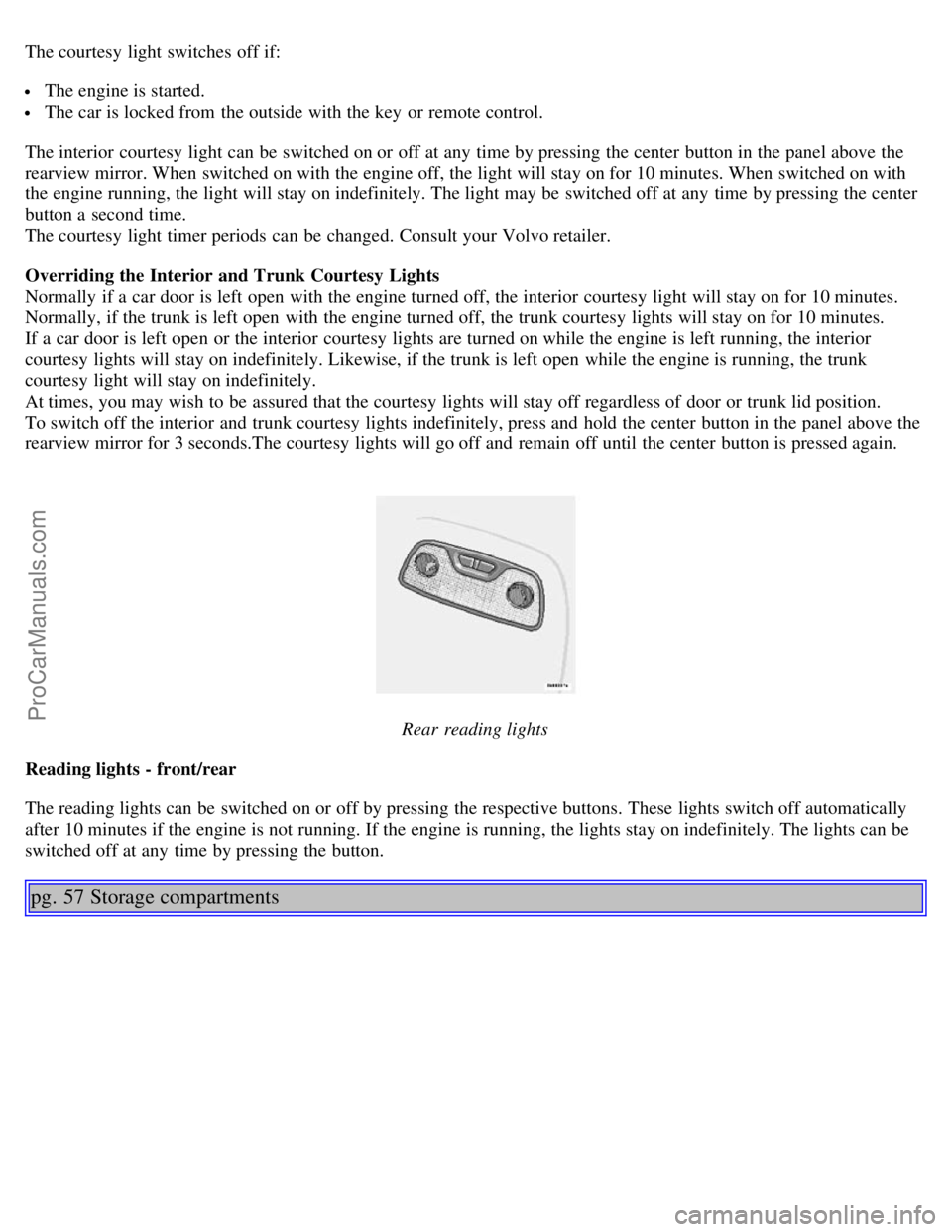

The courtesy light switches off if:
The engine is started.
The car is locked from the outside with the key or remote control.
The interior courtesy light can be switched on or off at any time by pressing the center button in the panel above the
rearview mirror. When switched on with the engine off, the light will stay on for 10 minutes. When switched on with
the engine running, the light will stay on indefinitely. The light may be switched off at any time by pressing the center
button a second time.
The courtesy light timer periods can be changed. Consult your Volvo retailer.
Overriding the Interior and Trunk Courtesy Lights
Normally if a car door is left open with the engine turned off, the interior courtesy light will stay on for 10 minutes.
Normally, if the trunk is left open with the engine turned off, the trunk courtesy lights will stay on for 10 minutes.
If a car door is left open or the interior courtesy lights are turned on while the engine is left running, the interior
courtesy lights will stay on indefinitely. Likewise, if the trunk is left open while the engine is running, the trunk
courtesy light will stay on indefinitely.
At times, you may wish to be assured that the courtesy lights will stay off regardless of door or trunk lid position.
To switch off the interior and trunk courtesy lights indefinitely, press and hold the center button in the panel above the
rearview mirror for 3 seconds.The courtesy lights will go off and remain off until the center button is pressed again.
Rear reading lights
Reading lights - front/rear
The reading lights can be switched on or off by pressing the respective buttons. These lights switch off automatically
after 10 minutes if the engine is not running. If the engine is running, the lights stay on indefinitely. The lights can be
switched off at any time by pressing the button.
pg. 57 Storage compartments
ProCarManuals.com

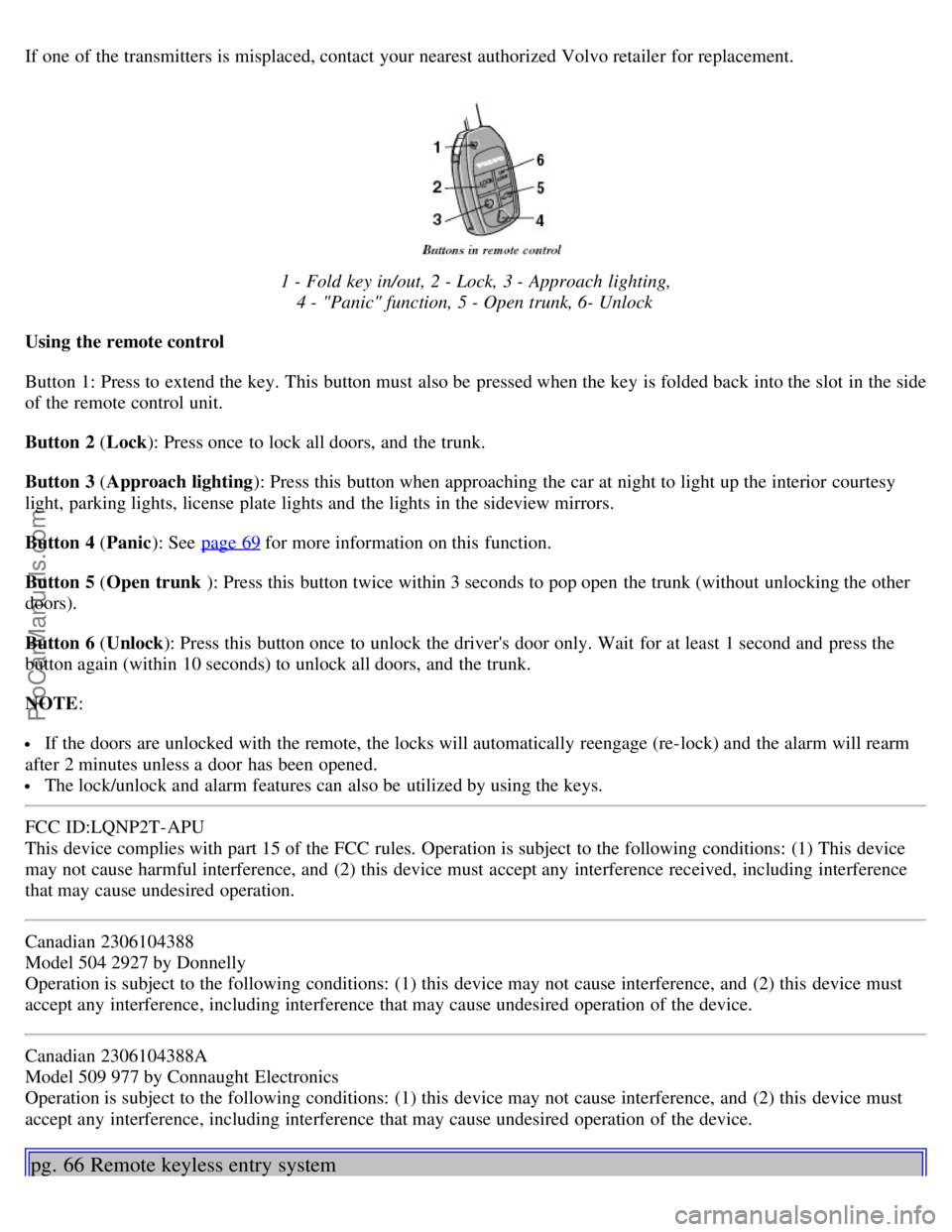

If one of the transmitters is misplaced, contact your nearest authorized Volvo retailer for replacement.
1 - Fold key in/out, 2 - Lock, 3 - Approach lighting,4 - "Panic" function, 5 - Open trunk, 6- Unlock
Using the remote control
Button 1: Press to extend the key. This button must also be pressed when the key is folded back into the slot in the side
of the remote control unit.
Button 2 ( Lock): Press once to lock all doors, and the trunk.
Button 3 ( Approach lighting ): Press this button when approaching the car at night to light up the interior courtesy
light, parking lights, license plate lights and the lights in the sideview mirrors.
Button 4 ( Panic): See page 69
for more information on this function.
Button 5 ( Open trunk ): Press this button twice within 3 seconds to pop open the trunk (without unlocking the other
doors).
Button 6 ( Unlock): Press this button once to unlock the driver's door only. Wait for at least 1 second and press the
button again (within 10 seconds) to unlock all doors, and the trunk.
NOTE :
If the doors are unlocked with the remote, the locks will automatically reengage (re-lock) and the alarm will rearm
after 2 minutes unless a door has been opened.
The lock/unlock and alarm features can also be utilized by using the keys.
FCC ID:LQNP2T-APU
This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Canadian 2306104388
Model 504 2927 by Donnelly
Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Canadian 2306104388A
Model 509 977 by Connaught Electronics
Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
pg. 66 Remote keyless entry system
ProCarManuals.com

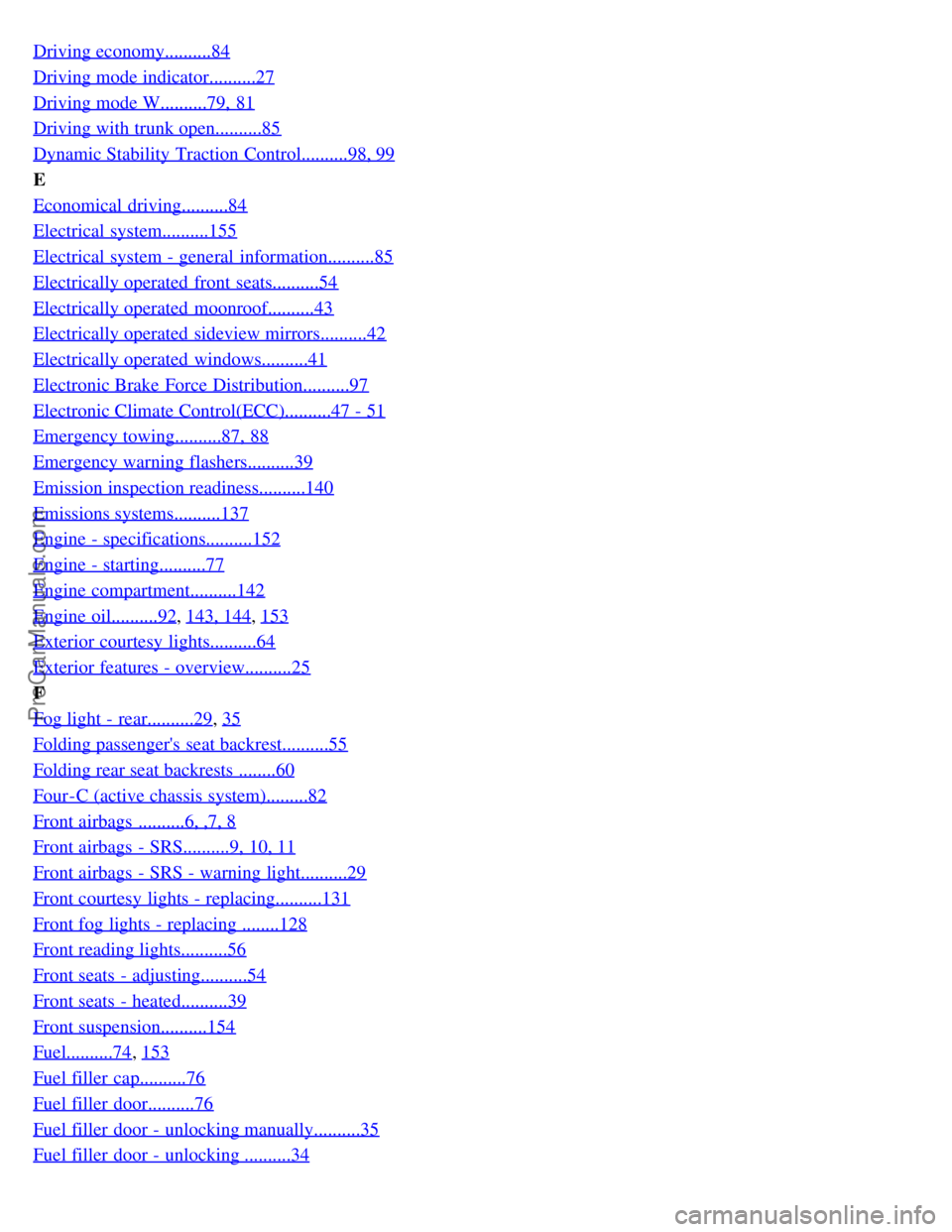

Driving economy..........84
Driving mode indicator..........27
Driving mode W..........79, 81
Driving with trunk open..........85
Dynamic Stability Traction Control..........98, 99
E
Economical driving..........84
Electrical system..........155
Electrical system - general information..........85
Electrically operated front seats..........54
Electrically operated moonroof..........43
Electrically operated sideview mirrors..........42
Electrically operated windows..........41
Electronic Brake Force Distribution..........97
Electronic Climate Control(ECC)..........47 - 51
Emergency towing..........87, 88
Emergency warning flashers..........39
Emission inspection readiness..........140
Emissions systems..........137
Engine - specifications..........152
Engine - starting..........77
Engine compartment..........142
Engine oil..........92, 143, 144, 153
Exterior courtesy lights..........64
Exterior features - overview..........25
F
Fog light - rear..........29
, 35
Folding passenger's seat backrest..........55
Folding rear seat backrests ........60
Four-C (active chassis system).........82
Front airbags ..........6, ,7, 8
Front airbags - SRS..........9, 10, 11
Front airbags - SRS - warning light..........29
Front courtesy lights - replacing..........131
Front fog lights - replacing ........128
Front reading lights..........56
Front seats - adjusting..........54
Front seats - heated..........39
Front suspension..........154
Fuel..........74, 153
Fuel filler cap..........76
Fuel filler door..........76
Fuel filler door - unlocking manually..........35
Fuel filler door - unlocking ..........34
ProCarManuals.com

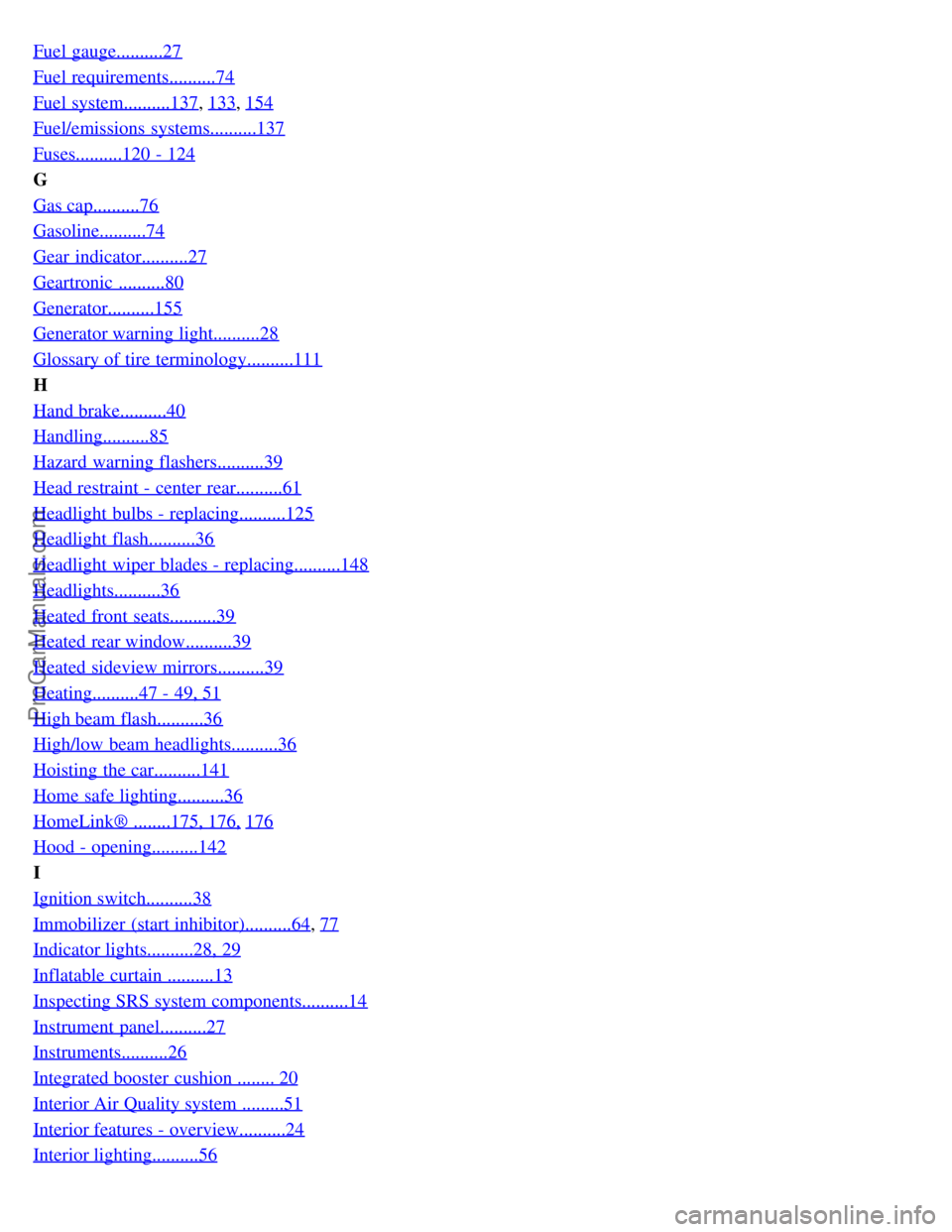

Fuel gauge..........27
Fuel requirements..........74
Fuel system..........137, 133, 154
Fuel/emissions systems..........137
Fuses..........120 - 124
G
Gas cap..........76
Gasoline..........74
Gear indicator..........27
Geartronic ..........80
Generator..........155
Generator warning light..........28
Glossary of tire terminology..........111
H
Hand brake..........40
Handling..........85
Hazard warning flashers..........39
Head restraint - center rear..........61
Headlight bulbs - replacing..........125
Headlight flash..........36
Headlight wiper blades - replacing..........148
Headlights..........36
Heated front seats..........39
Heated rear window..........39
Heated sideview mirrors..........39
Heating..........47 - 49, 51
High beam flash..........36
High/low beam headlights..........36
Hoisting the car..........141
Home safe lighting..........36
HomeLink® ........175, 176, 176
Hood - opening..........142
I
Ignition switch..........38
Immobilizer (start inhibitor)..........64, 77
Indicator lights..........28, 29
Inflatable curtain ..........13
Inspecting SRS system components..........14
Instrument panel..........27
Instruments..........26
Integrated booster cushion ........ 20
Interior Air Quality system .........51
Interior features - overview..........24
Interior lighting..........56
ProCarManuals.com

Passenger's seat backrest - folding..........55
PI (Program Information) Seek..........165
Polishing..........134
Power moonroof..........43
Power seats..........54
Power steering - speed-sensitive..........85
Power steering fluid ........ 145, 153
Power windows..........41
R
Radio..........159, 160
Radio Broadcast Data System - RBDS..........165
Rain sensor - windshield wipers..........37
Reading lights - front/rear ........ 56
Rear door step lights - replacing..........129
Rear fog light..........29
Rear reading lights..........56
Rear seat backrests - folding..........60
Rear suspension..........154
Rear window - heated..........39
Rearview mirror..........42
Refrigerant..........50, 153
Refueling..........76
Remote keyless entry system..........65
Remote keyless entry system - replacing batteries..........66
Remote keyless entry system and sideview mirrors..........42
Remote keyless entry system and the driver's seat..........55
Replacing bulbs..........125-131
Replacing fuses..........120
Replacing the battery..........146
Replacing wiper blades..........148
Road assistance..........156
Roadholding..........85
Roof load - maximum..........151
Roof racks..........86
Run flat tires..........109
S
Safety locks - child..........71
Seat belt reminder..........3
Seat belts..........3, 4, 21
use during pregnancy..........4
Seat belts - cleaning..........135
Seats - front..........54
Self supporting run flat tires..........109
Servicing..........141
ProCarManuals.com
