VOLVO S80 2010 Owner´s Manual

06 Maintenance and specifications
Fluids
06
221

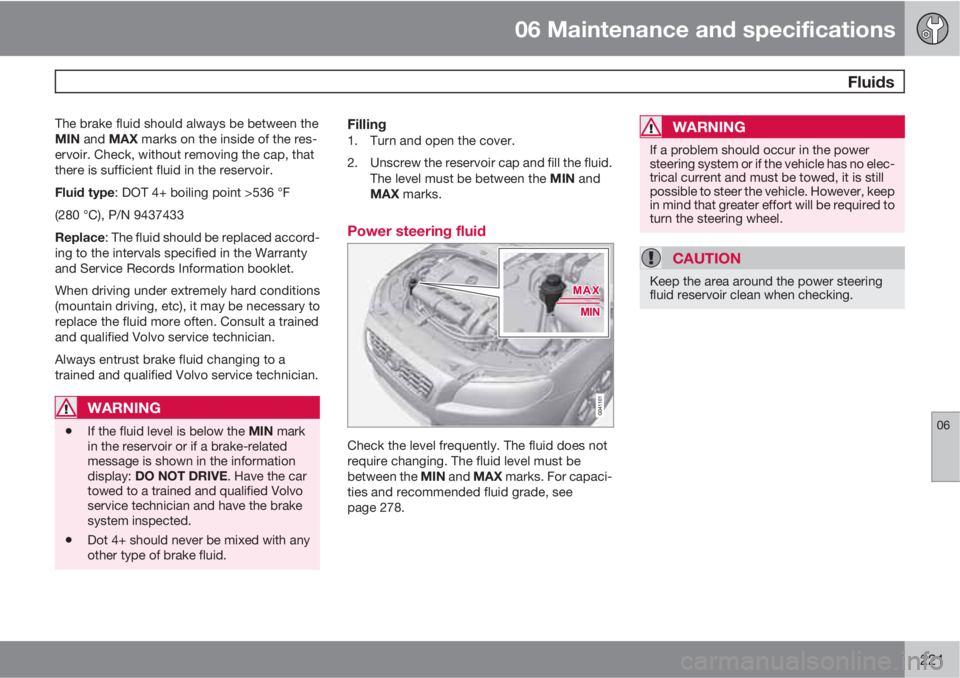

The brake fluid should always be between the
MIN and MAX marks on the inside of the res-
ervoir. Check, without removing the cap, that
there is sufficient fluid in the reservoir.
Fluid type: DOT 4+ boiling point >536 °F
(280 °C), P/N 9437433
Replace: The fluid should be replaced accord-
ing to the intervals specified in the Warranty
and Service Records Information booklet.
When driving under extremely hard conditions
(mountain driving, etc), it may be necessary to
replace the fluid more often. Consult a trained
and qualified Volvo service technician.
Always entrust brake fluid changing to a
trained and qualified Volvo service technician.
WARNING
•If the fluid level is below the MIN mark
in the reservoir or if a brake-related
message is shown in the information
display: DO NOT DRIVE. Have the car
towed to a trained and qualified Volvo
service technician and have the brake
system inspected.
•Dot 4+ should never be mixed with any
other type of brake fluid.
Filling1. Turn and open the cover.
2. Unscrew the reservoir cap and fill the fluid.
The level must be between the MIN and
MAX marks.
Power steering fluid
Check the level frequently. The fluid does not
require changing. The fluid level must be
between the MIN and MAX marks. For capaci-
ties and recommended fluid grade, see
page 278.
WARNING
If a problem should occur in the power
steering system or if the vehicle has no elec-
trical current and must be towed, it is still
possible to steer the vehicle. However, keep
in mind that greater effort will be required to
turn the steering wheel.
CAUTION
Keep the area around the power steering
fluid reservoir clean when checking.

06 Maintenance and specifications

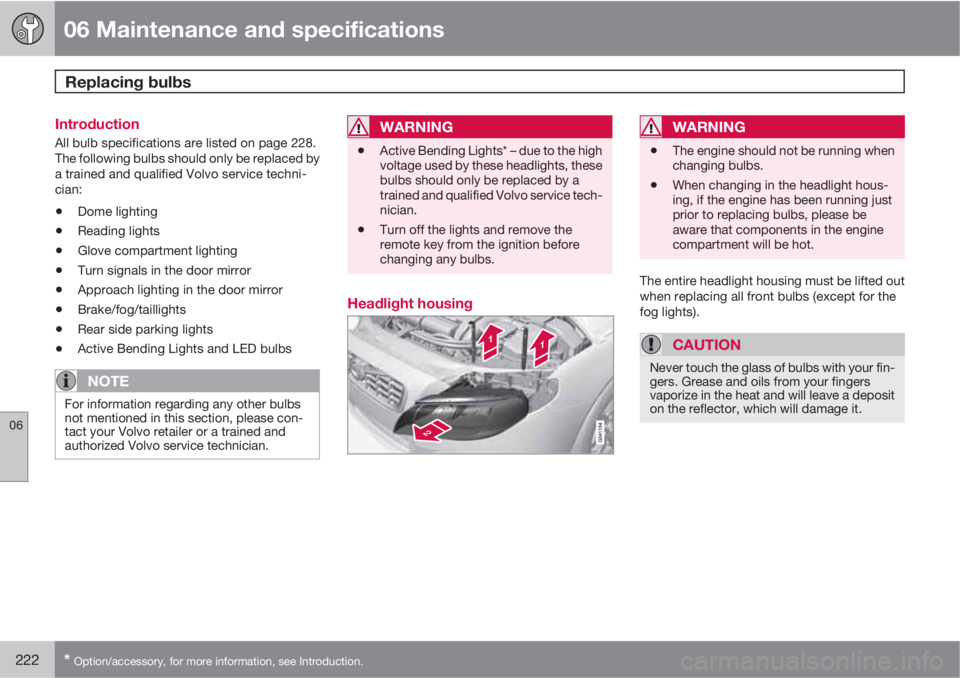

Replacing bulbs
06
222* Option/accessory, for more information, see Introduction.
Introduction
All bulb specifications are listed on page 228.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:
•Dome lighting
•Reading lights
•Glove compartment lighting
•Turn signals in the door mirror
•Approach lighting in the door mirror
•Brake/fog/taillights
•Rear side parking lights
•Active Bending Lights and LED bulbs
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
WARNING
•Active Bending Lights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a
trained and qualified Volvo service tech-
nician.
•Turn off the lights and remove the
remote key from the ignition before
changing any bulbs.
Headlight housing
WARNING
•The engine should not be running when
changing bulbs.
•When changing in the headlight hous-
ing, if the engine has been running just
prior to replacing bulbs, please be
aware that components in the engine
compartment will be hot.
The entire headlight housing must be lifted out
when replacing all front bulbs (except for the
fog lights).
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.

06 Maintenance and specifications
Replacing bulbs
06

223
NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.

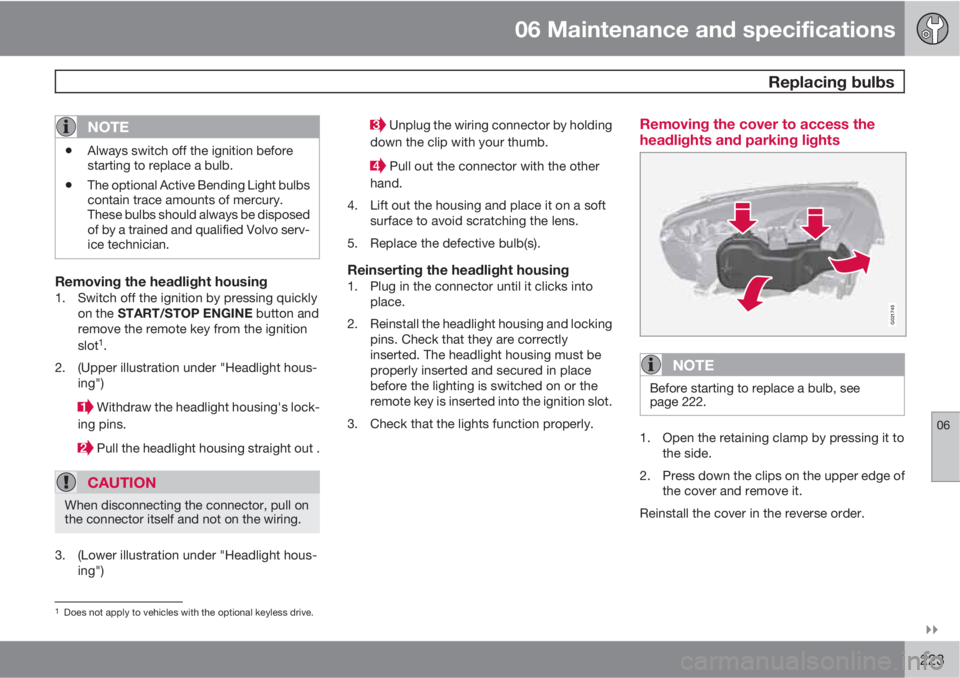

Removing the headlight housing1. Switch off the ignition by pressing quickly
on the START/STOP ENGINE button and
remove the remote key from the ignition
slot
1.
2. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Pull the headlight housing straight out .
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
3. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
4. Lift out the housing and place it on a soft
surface to avoid scratching the lens.
5. Replace the defective bulb(s).
Reinserting the headlight housing1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. Check that they are correctly
inserted. The headlight housing must be
properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
headlights and parking lights
G021745
NOTE
Before starting to replace a bulb, see
page 222.
1. Open the retaining clamp by pressing it to
the side.
2. Press down the clips on the upper edge of
the cover and remove it.
Reinstall the cover in the reverse order.
1Does not apply to vehicles with the optional keyless drive.

06 Maintenance and specifications
Replacing bulbs
06
224
Low beam, Halogen
G021746
1. Remove the headlight housing from the
vehicle (see page 222).
2. Remove the cover over the bulbs.
3. Detach the bulb by pressing the upper sec-
tion of the retaining spring downward and
to the side.
4. Unplug the connector from the bulb.
5. Replace the bulb and reinsert it into the
headlight housing.
6. Put the cover back into position and rein-
stall the headlight housing.
High beam, Halogen
G021747
1. Remove the headlight housing from the
vehicle (see page 222).
2. Remove the cover over the bulbs (see
page 223).
3. Pull the bulb holder out of the headlight
housing.
4. Turn the defective bulb counterclockwise
and pull it out of the socket.
5. Press the new bulb into the socket until it
snaps into place. It can only be secured in
one position.
6. Return the bulb holder into position in the
headlight housing.7. Put the cover back into position and rein-
stall the headlight housing.
Extra high beam2
G021748
1. Remove the headlight housing from the
vehicle (see page 222).
2. Remove the cover over the bulbs (see
page 223).
3. Remove the bulb by pressing the holder
downward.
4. Remove the connector from the bulb.
5. Insert a new bulb in the connector until it
snaps in place. It can only be inserted in
one way.
2Models with optional Active Bending Lights only.

06 Maintenance and specifications
Replacing bulbs
06

225
6. Return the bulb holder into position in the
headlight housing.
7. Put the cover back into position and rein-
stall the headlight housing.

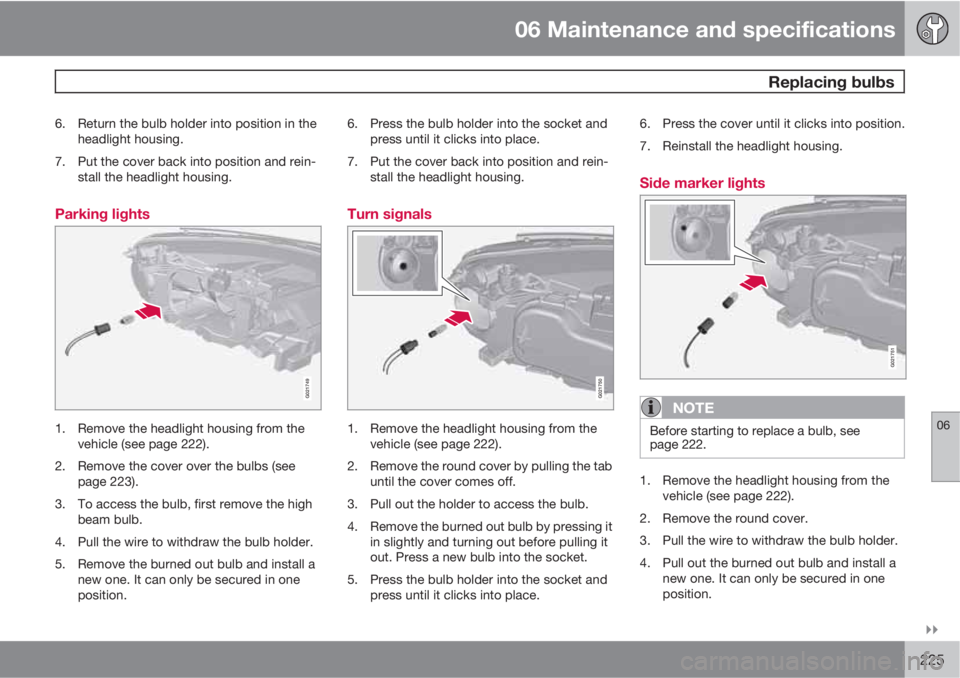

Parking lights
G021749
1. Remove the headlight housing from the
vehicle (see page 222).
2. Remove the cover over the bulbs (see
page 223).
3. To access the bulb, first remove the high
beam bulb.
4. Pull the wire to withdraw the bulb holder.
5. Remove the burned out bulb and install a
new one. It can only be secured in one
position.6. Press the bulb holder into the socket and
press until it clicks into place.
7. Put the cover back into position and rein-
stall the headlight housing.
Turn signals
G021750
1. Remove the headlight housing from the
vehicle (see page 222).
2. Remove the round cover by pulling the tab
until the cover comes off.
3. Pull out the holder to access the bulb.
4. Remove the burned out bulb by pressing it
in slightly and turning out before pulling it
out. Press a new bulb into the socket.
5. Press the bulb holder into the socket and
press until it clicks into place.6. Press the cover until it clicks into position.
7. Reinstall the headlight housing.
Side marker lights
G021751
NOTE
Before starting to replace a bulb, see
page 222.
1. Remove the headlight housing from the
vehicle (see page 222).
2. Remove the round cover.
3. Pull the wire to withdraw the bulb holder.
4. Pull out the burned out bulb and install a
new one. It can only be secured in one
position.

06 Maintenance and specifications
Replacing bulbs
06
226
5. Press the bulb holder into the socket and
press until it clicks into place.
6. Press the cover until it clicks into position.

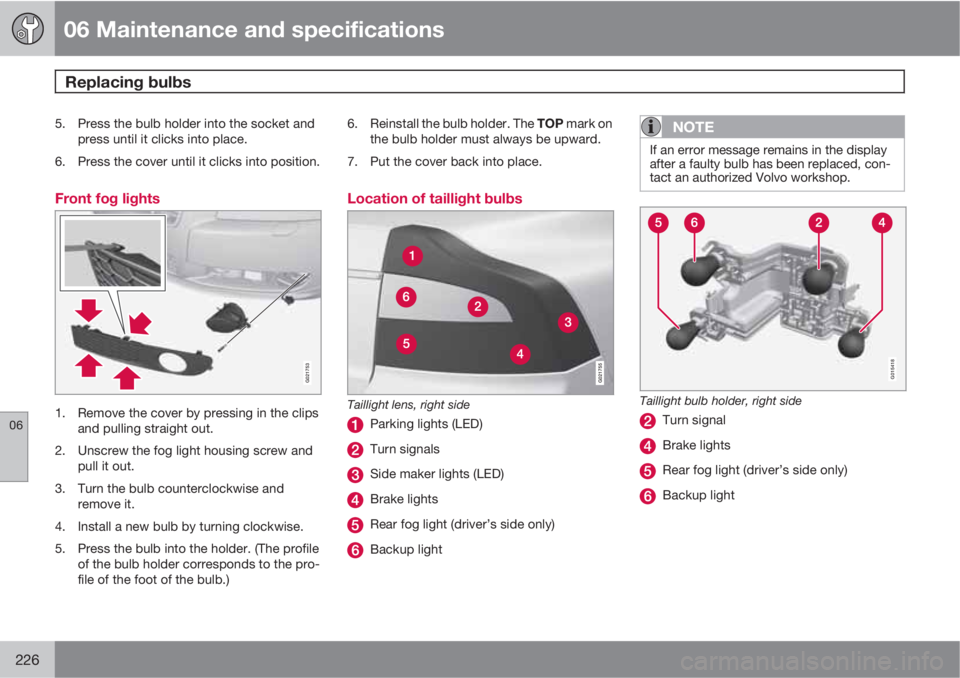

Front fog lights
G021753
1. Remove the cover by pressing in the clips
and pulling straight out.
2. Unscrew the fog light housing screw and
pull it out.
3. Turn the bulb counterclockwise and
remove it.
4. Install a new bulb by turning clockwise.
5. Press the bulb into the holder. (The profile
of the bulb holder corresponds to the pro-
file of the foot of the bulb.)6.
Reinstall the bulb holder. The TOP mark on
the bulb holder must always be upward.
7. Put the cover back into place.
Location of taillight bulbs
G021755
Taillight lens, right side
Parking lights (LED)
Turn signals
Side maker lights (LED)
Brake lights
Rear fog light (driver’s side only)
Backup light
NOTE
If an error message remains in the display
after a faulty bulb has been replaced, con-
tact an authorized Volvo workshop.
G015418
Taillight bulb holder, right side
Turn signal
Brake lights
Rear fog light (driver’s side only)
Backup light

06 Maintenance and specifications
Replacing bulbs
06

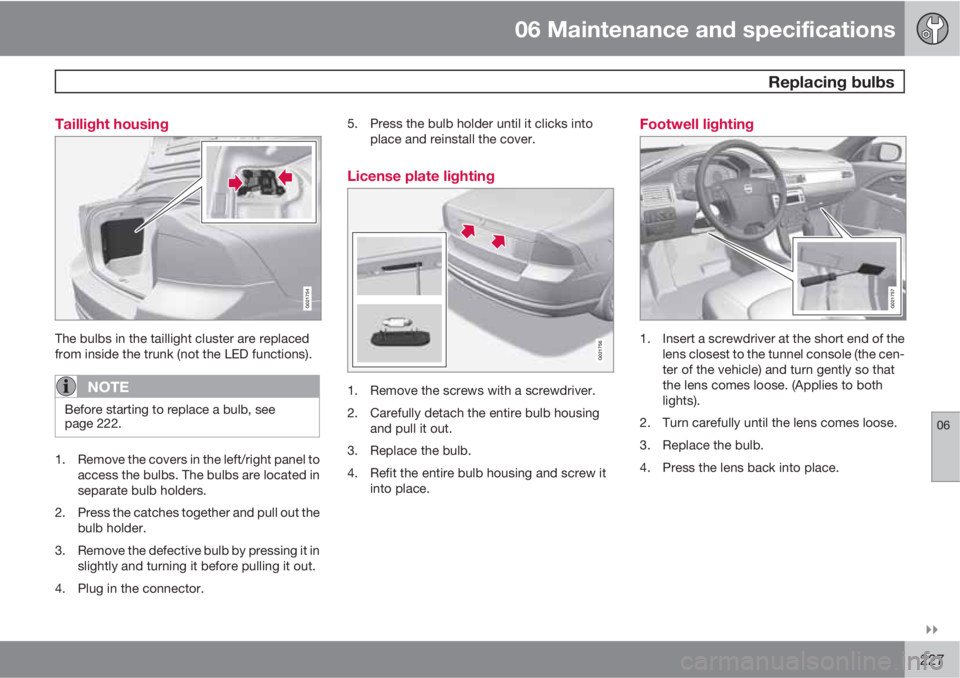

227 Taillight housing
G021754
The bulbs in the taillight cluster are replaced
from inside the trunk (not the LED functions).
NOTE
Before starting to replace a bulb, see
page 222.
1. Remove the covers in the left/right panel to
access the bulbs. The bulbs are located in
separate bulb holders.
2. Press the catches together and pull out the
bulb holder.
3. Remove the defective bulb by pressing it in
slightly and turning it before pulling it out.
4. Plug in the connector.5. Press the bulb holder until it clicks into
place and reinstall the cover.
License plate lighting
G021756
1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing
and pull it out.
3. Replace the bulb.
4. Refit the entire bulb housing and screw it
into place.
Footwell lighting
G021757
1. Insert a screwdriver at the short end of the
lens closest to the tunnel console (the cen-
ter of the vehicle) and turn gently so that
the lens comes loose. (Applies to both
lights).
2. Turn carefully until the lens comes loose.
3. Replace the bulb.
4. Press the lens back into place.

06 Maintenance and specifications
Replacing bulbs
06
228
Trunk lighting
G021758
NOTE
Before starting to replace a bulb, see
page 222.
The trunk lighting is located on opposite sides
of the trunk.
1. Insert a screwdriver and gently turn so that
the bulb housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press
it back into the bulb housing.
Vanity mirror lighting
Removing the mirror glass
G021759
1. Insert a screwdriver underneath the lower
edge, in the center, turn and carefully pry
up the lug on the edge.
2. Insert the screwdriver underneath the edge
on the left and right sides (by the black
rubber sections), and pry carefully so that
the glass comes loose in the lower edge.
3. Carefully detach and lift aside the entire
mirror glass and cover.
4. Replace the bulb.
Reinstalling the mirror glass1. Press the three lugs at top edge of the mir-
ror glass back into position.2. Press the three lower lugs back into posi-
tion.
Specification, bulbs
Lighting
functionOutput/volt-
age (W)Bulb
Active Bend-
ing Lights
(extra high
beam)55H7
Low beam
(halogen)55H7
High beam
(halogen)65H9
Rear fog light21P21W
Brake lights21P21W
Backup lights21P21W
Rear turn sig-
nals21PY21W
Front turn sig-
nals21H21W
Front fog
lights35H8

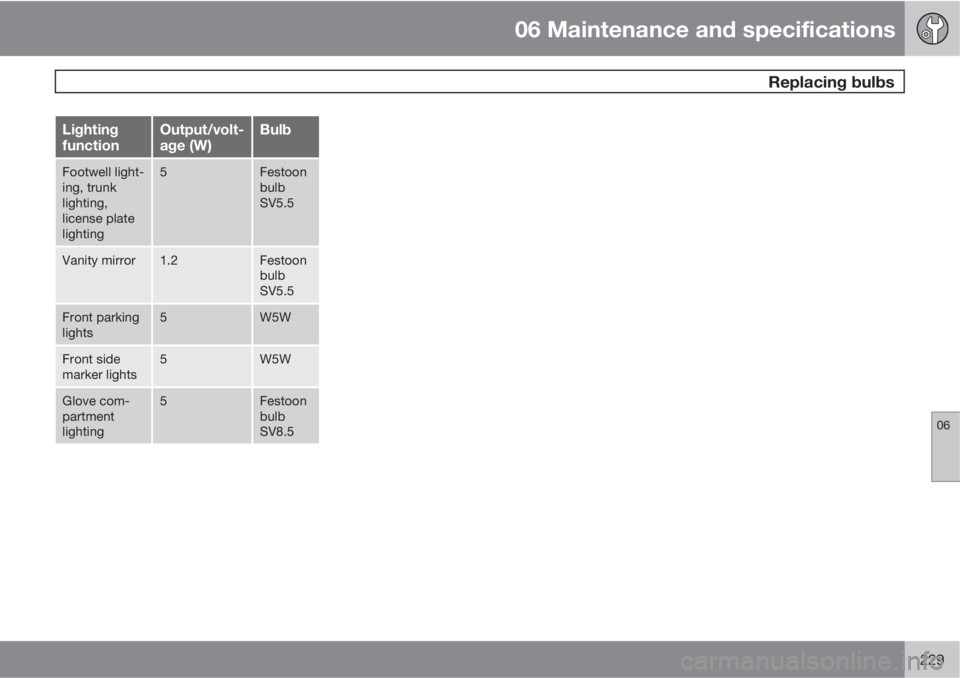

06 Maintenance and specifications
Replacing bulbs
06
229
Lighting
functionOutput/volt-
age (W)Bulb
Footwell light-
ing, trunk
lighting,
license plate
lighting5Festoon
bulb
SV5.5
Vanity mirror1.2Festoon
bulb
SV5.5
Front parking
lights5W5W
Front side
marker lights5W5W
Glove com-
partment
lighting5Festoon
bulb
SV8.5

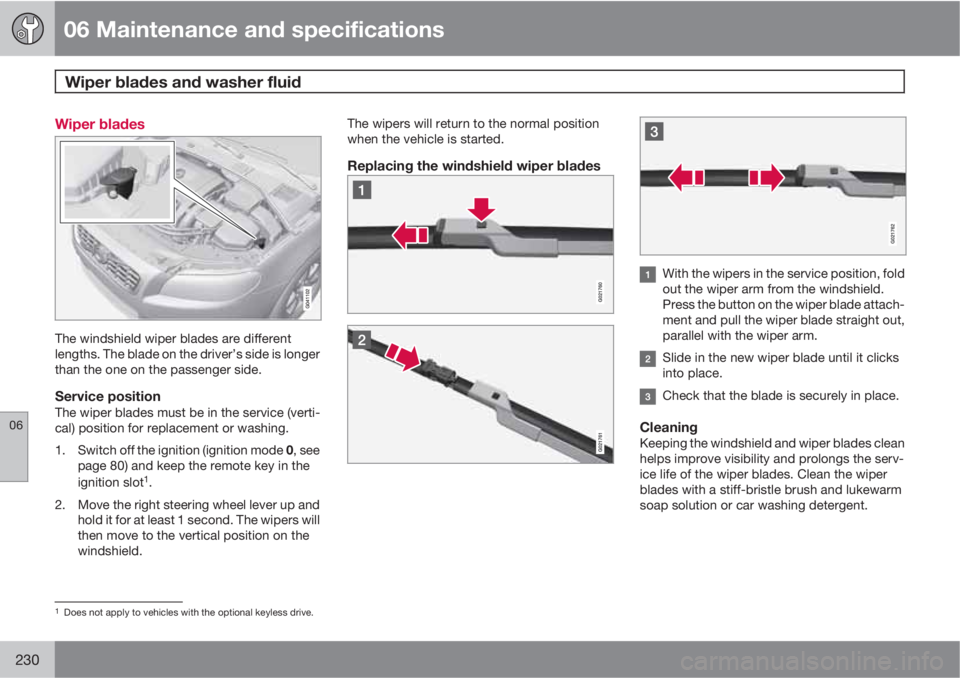

06 Maintenance and specifications
Wiper blades and washer fluid
06
230
Wiper blades
The windshield wiper blades are different
lengths. The blade on the driver’s side is longer
than the one on the passenger side.
Service positionThe wiper blades must be in the service (verti-
cal) position for replacement or washing.
1.
Switch off the ignition (ignition mode 0, see
page 80) and keep the remote key in the
ignition slot
1.
2. Move the right steering wheel lever up and
hold it for at least 1 second. The wipers will
then move to the vertical position on the
windshield.The wipers will return to the normal position
when the vehicle is started.
Replacing the windshield wiper blades
With the wipers in the service position, fold
out the wiper arm from the windshield.
Press the button on the wiper blade attach-
ment and pull the wiper blade straight out,
parallel with the wiper arm.
Slide in the new wiper blade until it clicks
into place.
Check that the blade is securely in place.
CleaningKeeping the windshield and wiper blades clean
helps improve visibility and prolongs the serv-
ice life of the wiper blades. Clean the wiper
blades with a stiff-bristle brush and lukewarm
soap solution or car washing detergent.
1Does not apply to vehicles with the optional keyless drive.
