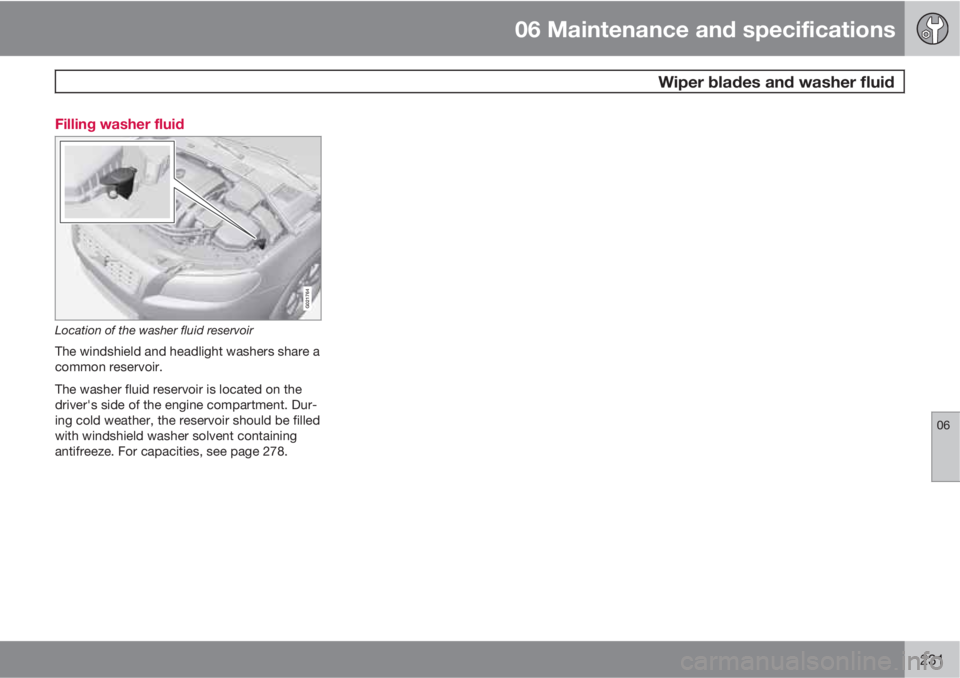

Wiper blades and washer fluid
06
231 Filling washer fluid
G021764
Location of the washer fluid reservoir
The windshield and headlight washers share a
common reservoir.
The washer fluid reservoir is located on the
driver's side of the engine compartment. Dur-
ing cold weather, the reservoir should be filled
with windshield washer solvent containing
antifreeze. For capacities, see page 278.

06 Maintenance and specifications
Battery
06
232
Warning symbols on the battery
Wear protective goggles.
Keep away from children.
Avoid smoking, open flames,
and/or sparks.
See the owner's manual.
Contains corrosive acid.
Risk of explosion
NOTE
A used battery should be disposed of in an
environmentally responsible manner. Con-
sult your Volvo retailer or take the battery to
a recycling station.
Handling
•Check that the battery cables are correctly
connected and tightened.
•Never disconnect the battery when the
engine is running (for example, when
replacing the battery).
•If the battery is fully discharged a number
of times, this may shorten its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
Never use a quick charger to charge the bat-
tery.
WARNING
•Never expose the battery to open flame
or electric spark.
•Do not smoke near the battery.
•Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.
NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.
Maintenance
•Use a screw driver to open the caps or
cover and a flashlight to inspect the level.
•If necessary, add distilled water. The level
should never be above the indicator.
•The fluid level should be checked if the
battery has been recharged.
•After inspection, be sure the cap over each
battery cell or the cover is securely in
place.
•Check that the battery cables are correctly
connected and properly tightened.

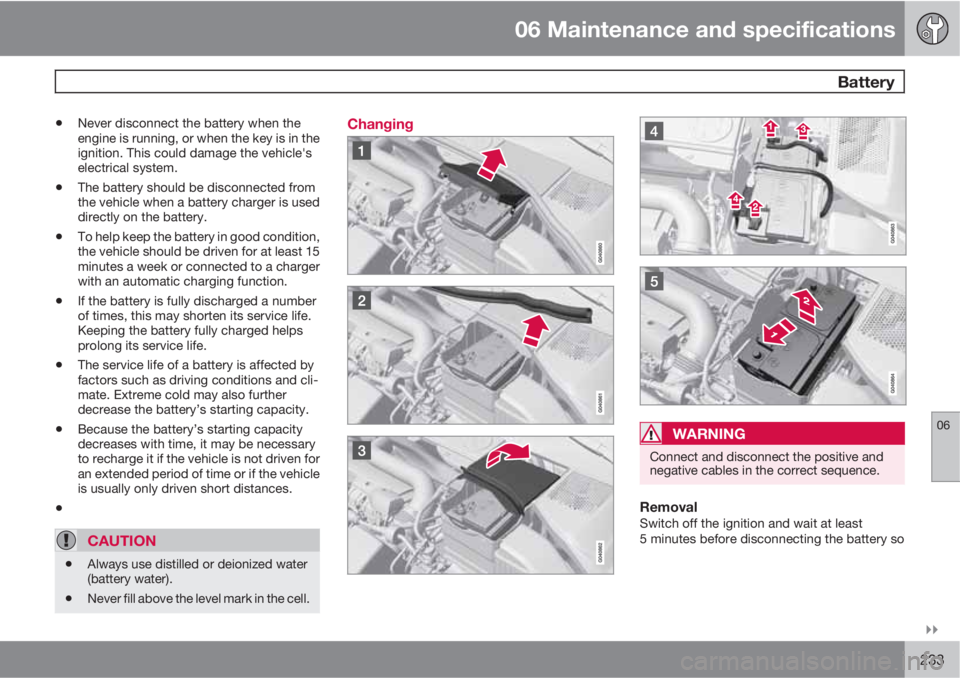

06 Maintenance and specifications
Battery
06

233
•Never disconnect the battery when the
engine is running, or when the key is in the
ignition. This could damage the vehicle's
electrical system.
•The battery should be disconnected from
the vehicle when a battery charger is used
directly on the battery.
•To help keep the battery in good condition,
the vehicle should be driven for at least 15
minutes a week or connected to a charger
with an automatic charging function.
•If the battery is fully discharged a number
of times, this may shorten its service life.
Keeping the battery fully charged helps
prolong its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
•
CAUTION
•Always use distilled or deionized water
(battery water).
•Never fill above the level mark in the cell.
Changing
WARNING
Connect and disconnect the positive and
negative cables in the correct sequence.
RemovalSwitch off the ignition and wait at least
5 minutes before disconnecting the battery so

06 Maintenance and specifications
Battery
06
234
that all information in the vehicle's electrical
system can be stored in the control modules.
Open the clips on the front cover and
remove the cover.
Release the rubber moulding so that the
rear cover is free.
Remove the rear cover by pulling it away.
Detach the black negative cable.
Detach the red positive cable
Detach the ventilation hose from the
battery
Loosen the screw holding the battery
clamp.
Move the battery to the side and lift it up.
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Installation1. Lower the battery into the battery box.
G021771
2. Move the battery inward and to the side
until it reaches the rear edge of the box.
3. Screw in the battery with the screw in the
clamp.
4. Connect the ventilation hose.
5. Connect the red positive cable.
6. Connect the black negative cable.
7. Press in the rear cover. (See Removal).
8. Reinstall the cold section moulding. (See
Removal).
9. Reinstall the front cover and secure it with
the clips. (See Removal).

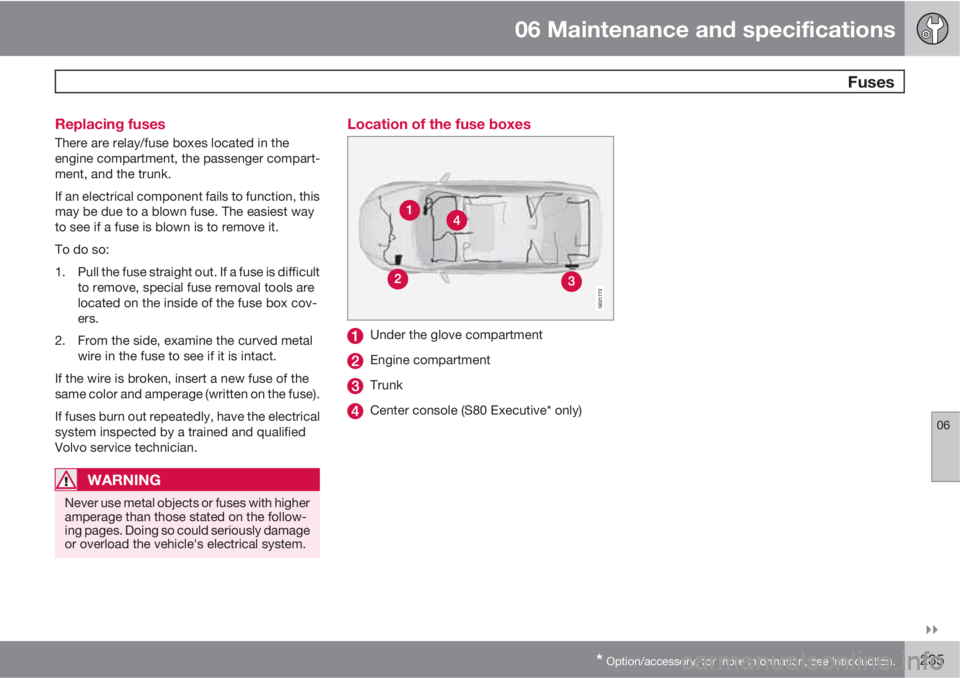

06 Maintenance and specifications
Fuses
06

* Option/accessory, for more information, see Introduction.235 Replacing fuses
There are relay/fuse boxes located in the
engine compartment, the passenger compart-
ment, and the trunk.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.
Location of the fuse boxes
G021772
Under the glove compartment
Engine compartment
Trunk
Center console (S80 Executive* only)

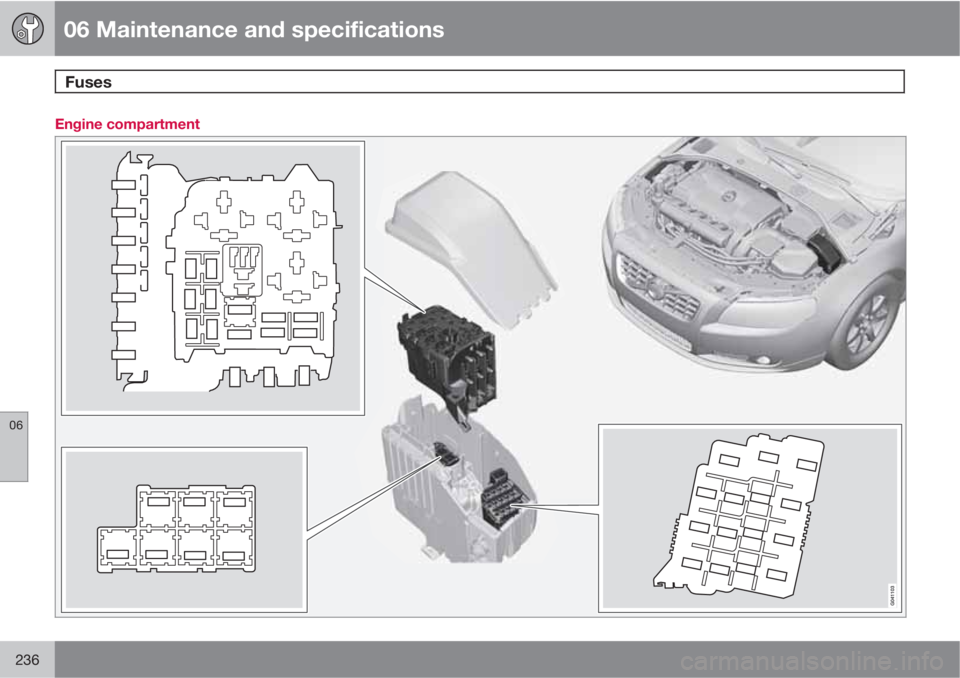

06 Maintenance and specifications
Fuses
06
236
Engine compartment

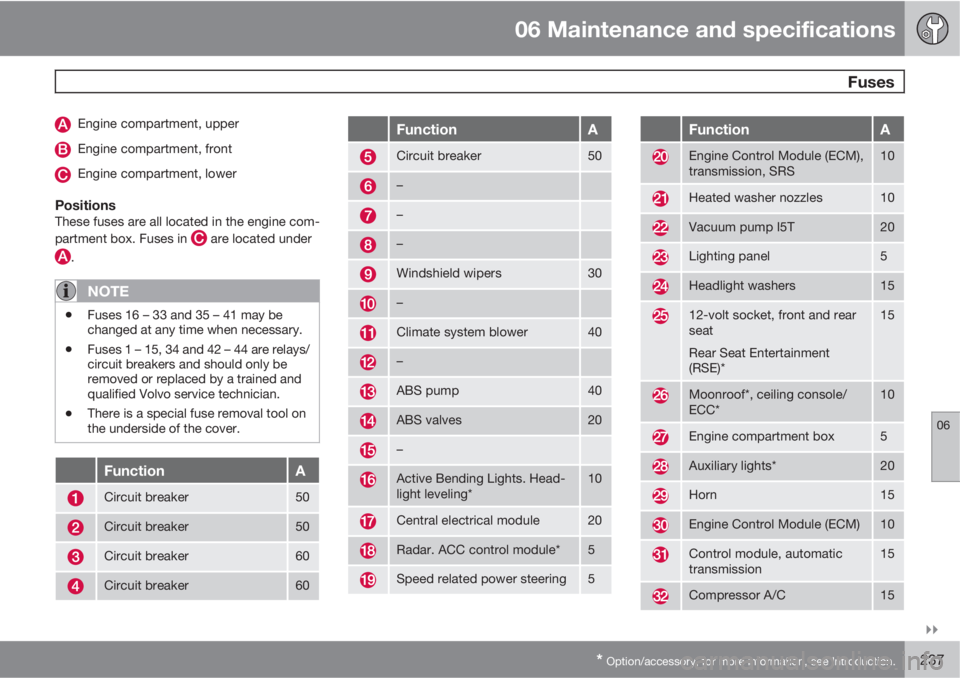

06 Maintenance and specifications
Fuses
06

* Option/accessory, for more information, see Introduction.237
Engine compartment, upper
Engine compartment, front
Engine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•There is a special fuse removal tool on
the underside of the cover.
FunctionA
Circuit breaker50
Circuit breaker50
Circuit breaker60
Circuit breaker60
FunctionA
Circuit breaker50
–
–
–
Windshield wipers30
–
Climate system blower40
–
ABS pump40
ABS valves20
–
Active Bending Lights. Head-
light leveling*10
Central electrical module20
Radar. ACC control module*5
Speed related power steering5
FunctionA
Engine Control Module (ECM),
transmission, SRS10
Heated washer nozzles10
Vacuum pump I5T20
Lighting panel5
Headlight washers15
12-volt socket, front and rear
seat
Rear Seat Entertainment
(RSE)*15
Moonroof*, ceiling console/
ECC*10
Engine compartment box5
Auxiliary lights*20
Horn15
Engine Control Module (ECM)10
Control module, automatic
transmission15
Compressor A/C15

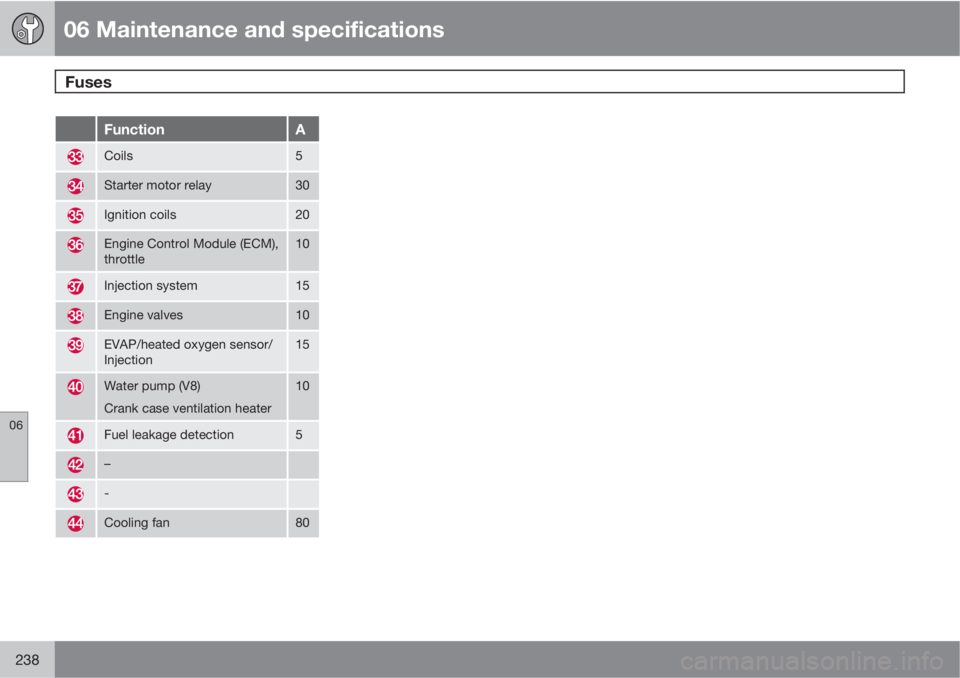

06 Maintenance and specifications
Fuses
06
238
FunctionA
Coils5
Starter motor relay30
Ignition coils20
Engine Control Module (ECM),
throttle10
Injection system15
Engine valves10
EVAP/heated oxygen sensor/
Injection15
Water pump (V8)
Crank case ventilation heater10
Fuel leakage detection5
–
-
Cooling fan80

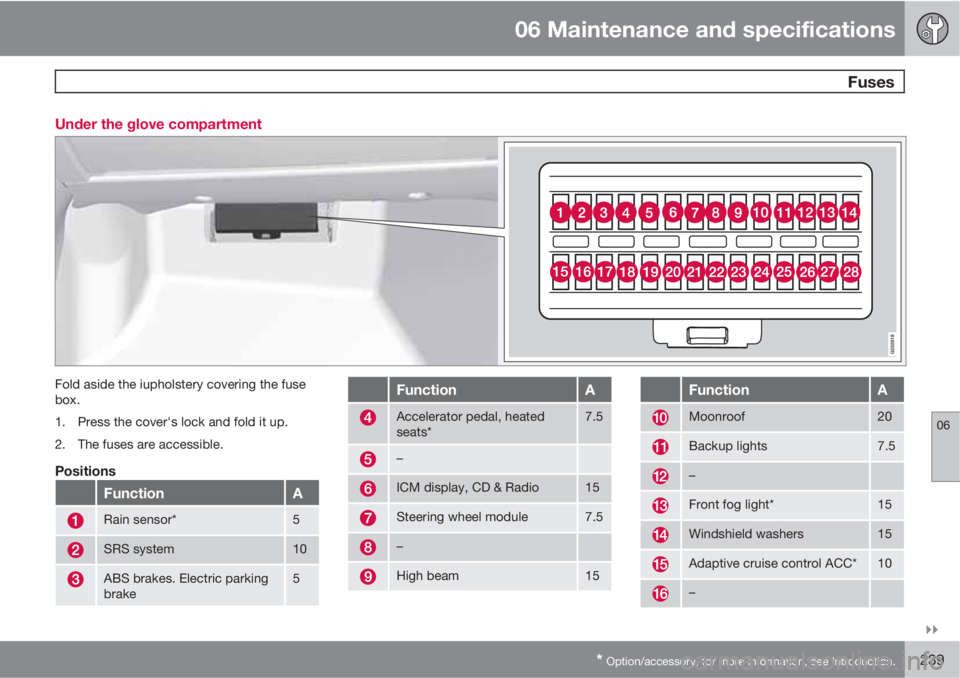

06 Maintenance and specifications
Fuses
06

* Option/accessory, for more information, see Introduction.239 Under the glove compartment
Fold aside the iupholstery covering the fuse
box.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions
FunctionA
Rain sensor*5
SRS system10
ABS brakes. Electric parking
brake5
FunctionA
Accelerator pedal, heated
seats*7.5
–
ICM display, CD & Radio15
Steering wheel module7.5
–
High beam15
FunctionA
Moonroof20
Backup lights7.5
–
Front fog light*15
Windshield washers15
Adaptive cruise control ACC*10
–

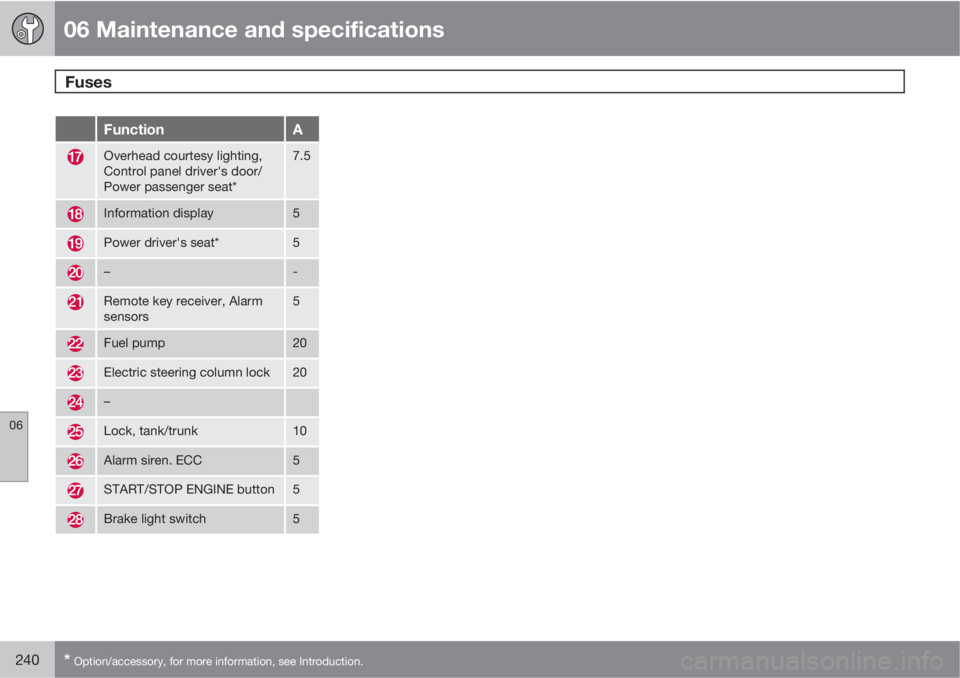

06 Maintenance and specifications
Fuses
06
240* Option/accessory, for more information, see Introduction.
FunctionA
Overhead courtesy lighting,
Control panel driver's door/
Power passenger seat*7.5
Information display5
Power driver's seat*5
–-
Remote key receiver, Alarm
sensors5
Fuel pump20
Electric steering column lock20
–
Lock, tank/trunk10
Alarm siren. ECC5
START/STOP ENGINE button5
Brake light switch5
