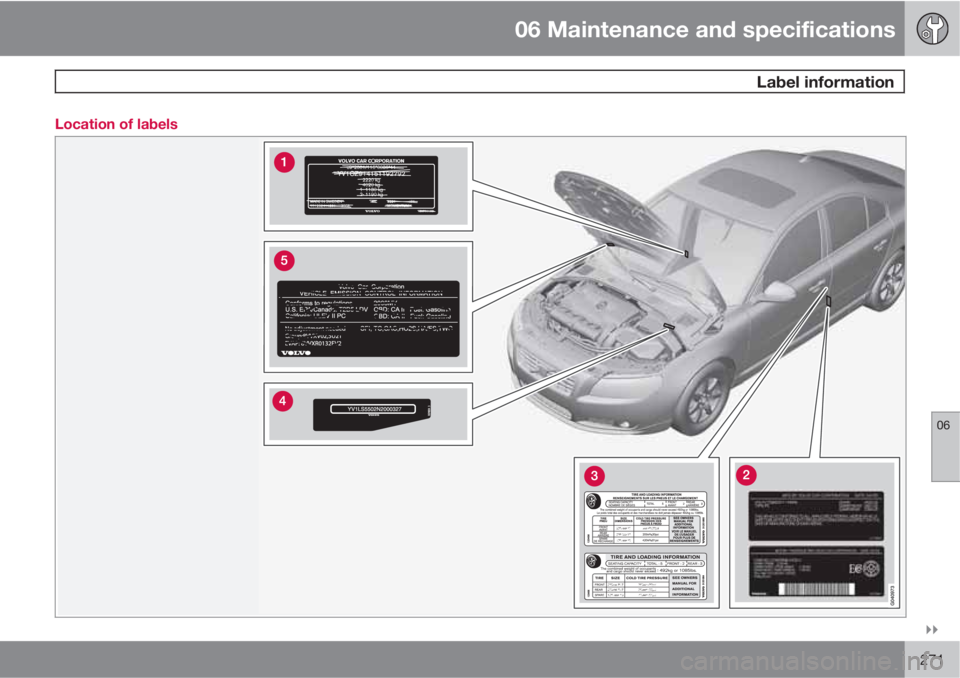

VOLVO S80 2010 Owner´s Manual

06 Maintenance and specifications
Label information
06

271 Location of labels

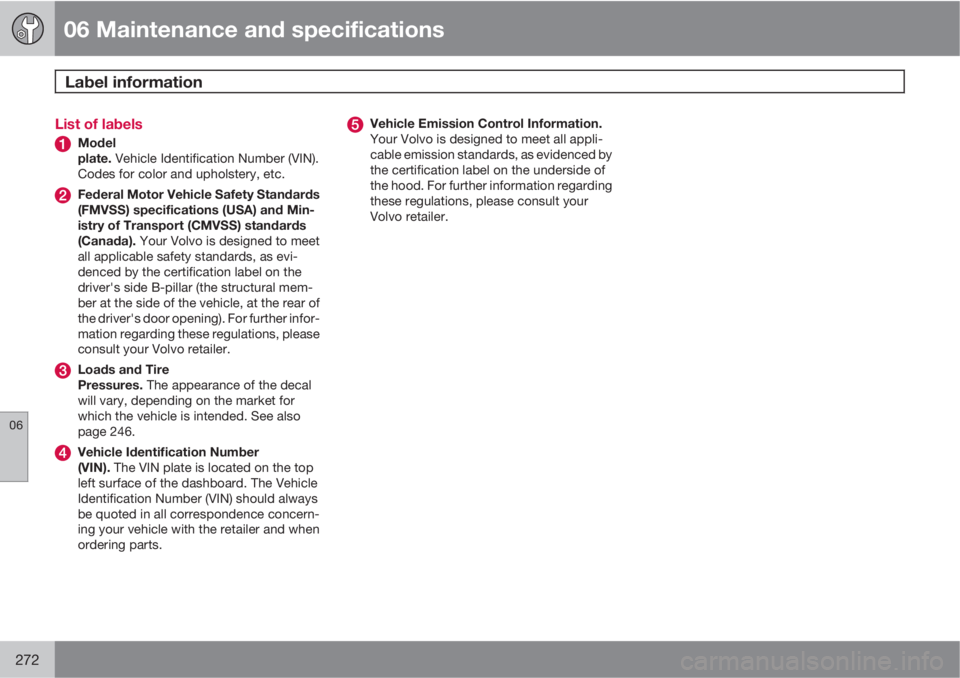

06 Maintenance and specifications
Label information
06
272
List of labels
Model
plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Loads and Tire
Pressures. The appearance of the decal
will vary, depending on the market for
which the vehicle is intended. See also
page 246.
Vehicle Identification Number
(VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle
Identification Number (VIN) should always
be quoted in all correspondence concern-
ing your vehicle with the retailer and when
ordering parts.
Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

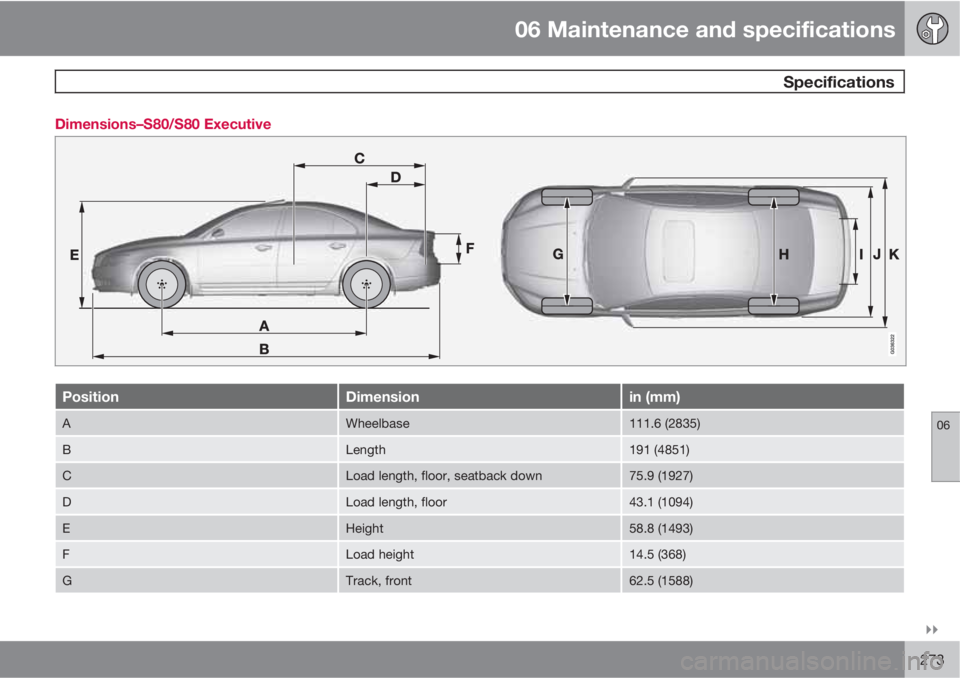

06 Maintenance and specifications
Specifications
06

273 Dimensions–S80/S80 Executive
PositionDimensionin (mm)
AWheelbase111.6 (2835)
BLength191 (4851)
CLoad length, floor, seatback down75.9 (1927)
DLoad length, floor43.1 (1094)
EHeight58.8 (1493)
FLoad height14.5 (368)
GTrack, front62.5 (1588)

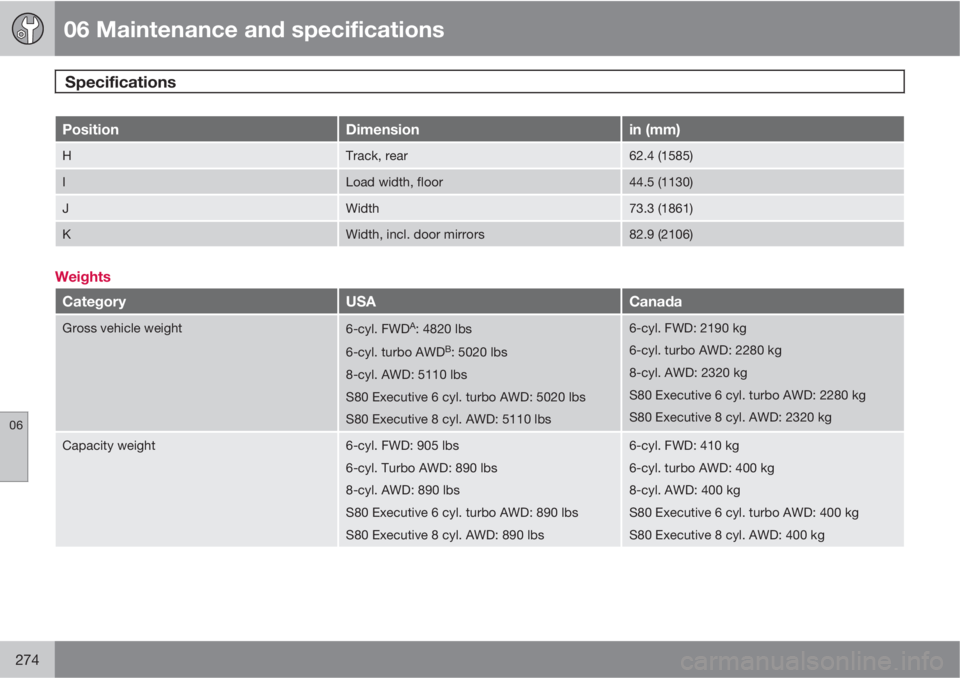

06 Maintenance and specifications
Specifications
06
274
PositionDimensionin (mm)
HTrack, rear62.4 (1585)
ILoad width, floor44.5 (1130)
JWidth73.3 (1861)
KWidth, incl. door mirrors82.9 (2106)
Weights
CategoryUSACanada
Gross vehicle weight6-cyl. FWDA: 4820 lbs
6-cyl. turbo AWD
B: 5020 lbs
8-cyl. AWD: 5110 lbs
S80 Executive 6 cyl. turbo AWD: 5020 lbs
S80 Executive 8 cyl. AWD: 5110 lbs
6-cyl. FWD: 2190 kg
6-cyl. turbo AWD: 2280 kg
8-cyl. AWD: 2320 kg
S80 Executive 6 cyl. turbo AWD: 2280 kg
S80 Executive 8 cyl. AWD: 2320 kg
Capacity weight6-cyl. FWD: 905 lbs
6-cyl. Turbo AWD: 890 lbs
8-cyl. AWD: 890 lbs
S80 Executive 6 cyl. turbo AWD: 890 lbs
S80 Executive 8 cyl. AWD: 890 lbs6-cyl. FWD: 410 kg
6-cyl. turbo AWD: 400 kg
8-cyl. AWD: 400 kg
S80 Executive 6 cyl. turbo AWD: 400 kg
S80 Executive 8 cyl. AWD: 400 kg

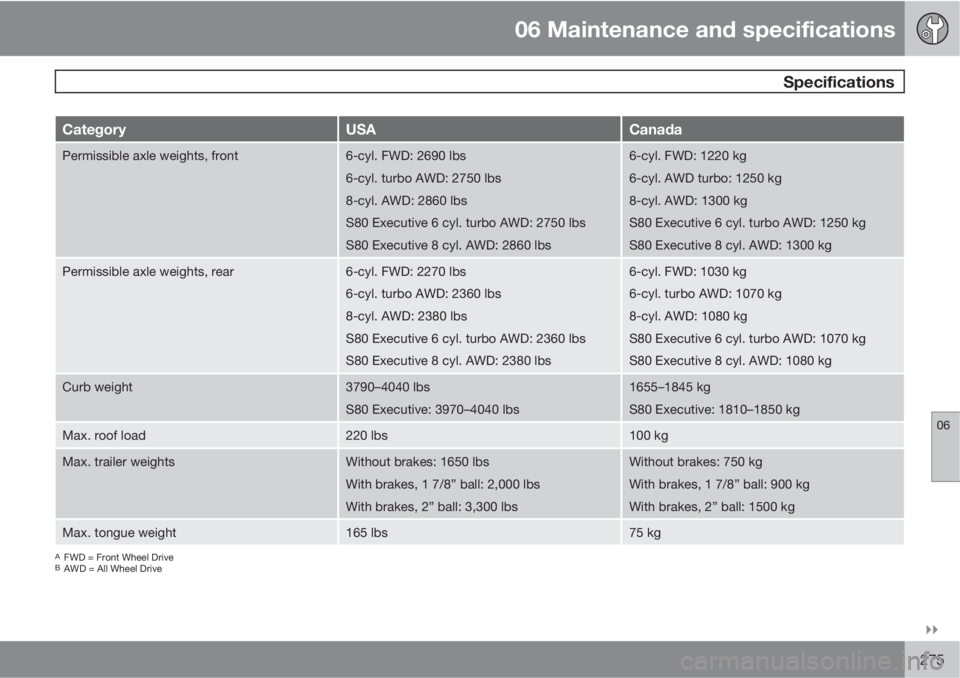

06 Maintenance and specifications
Specifications
06

275
CategoryUSACanada
Permissible axle weights, front6-cyl. FWD: 2690 lbs
6-cyl. turbo AWD: 2750 lbs
8-cyl. AWD: 2860 lbs
S80 Executive 6 cyl. turbo AWD: 2750 lbs
S80 Executive 8 cyl. AWD: 2860 lbs6-cyl. FWD: 1220 kg
6-cyl. AWD turbo: 1250 kg
8-cyl. AWD: 1300 kg
S80 Executive 6 cyl. turbo AWD: 1250 kg
S80 Executive 8 cyl. AWD: 1300 kg
Permissible axle weights, rear6-cyl. FWD: 2270 lbs
6-cyl. turbo AWD: 2360 lbs
8-cyl. AWD: 2380 lbs
S80 Executive 6 cyl. turbo AWD: 2360 lbs
S80 Executive 8 cyl. AWD: 2380 lbs6-cyl. FWD: 1030 kg
6-cyl. turbo AWD: 1070 kg
8-cyl. AWD: 1080 kg
S80 Executive 6 cyl. turbo AWD: 1070 kg
S80 Executive 8 cyl. AWD: 1080 kg
Curb weight3790–4040 lbs
S80 Executive: 3970–4040 lbs1655–1845 kg
S80 Executive: 1810–1850 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel DriveBAWD = All Wheel Drive

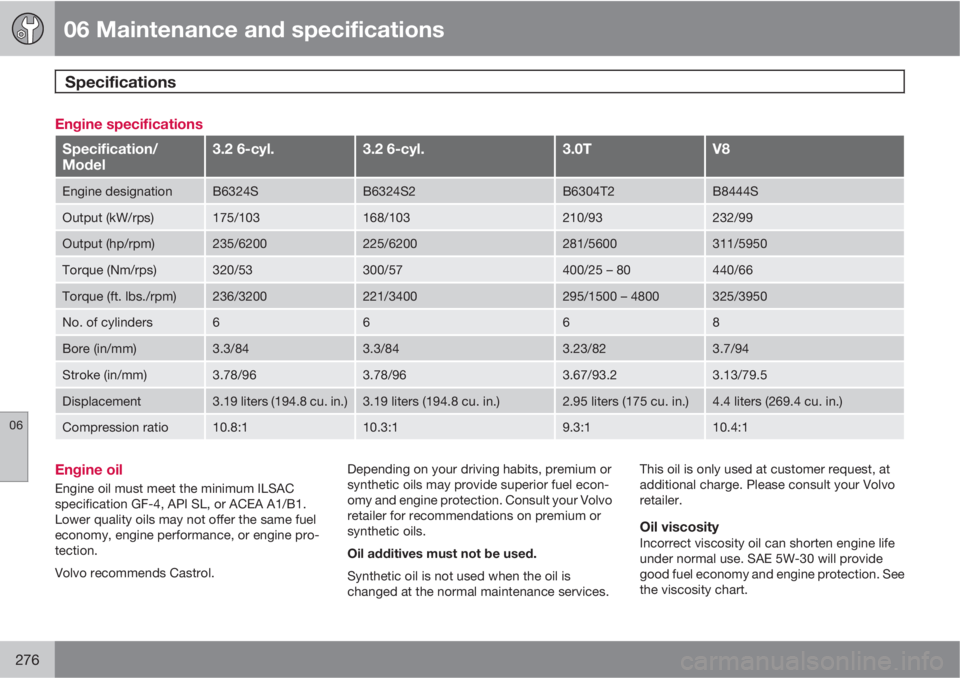

06 Maintenance and specifications
Specifications
06
276
Engine specifications
Specification/
Model3.2 6-cyl.3.2 6-cyl.3.0TV8
Engine designationB6324SB6324S2B6304T2B8444S
Output (kW/rps)175/103168/103210/93232/99
Output (hp/rpm)235/6200225/6200281/5600311/5950
Torque (Nm/rps)320/53300/57400/25 – 80440/66
Torque (ft. lbs./rpm)236/3200221/3400295/1500 – 4800325/3950
No. of cylinders6668
Bore (in/mm)3.3/843.3/843.23/823.7/94
Stroke (in/mm)3.78/963.78/963.67/93.23.13/79.5
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)4.4 liters (269.4 cu. in.)
Compression ratio10.8:110.3:19.3:110.4:1
Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.
Synthetic oil is not used when the oil is
changed at the normal maintenance services.This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.

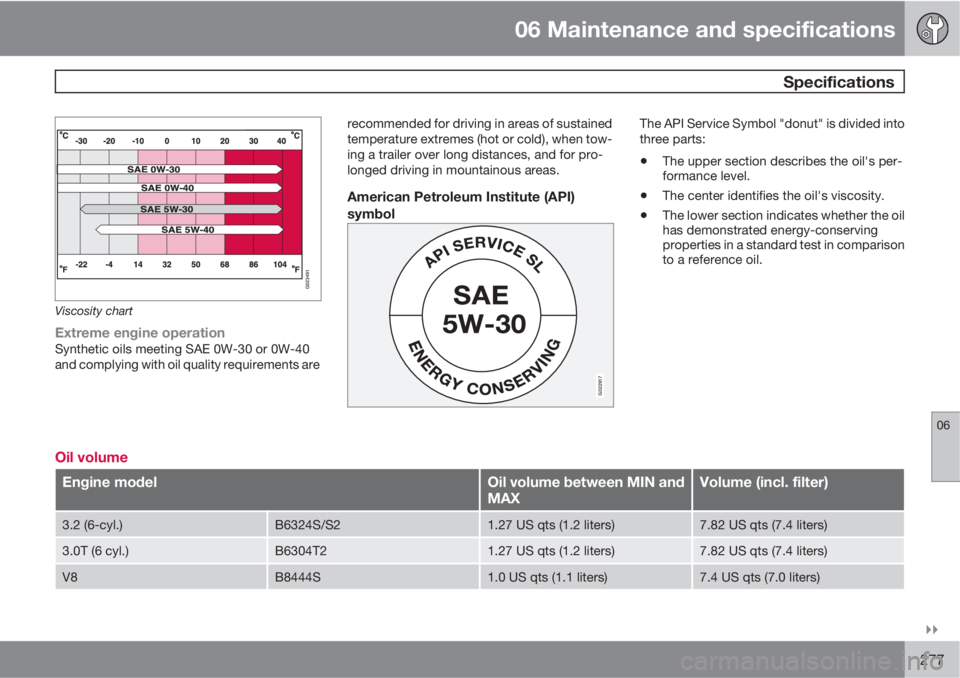

06 Maintenance and specifications
Specifications
06

277
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements arerecommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.
Oil volume
Engine modelOil volume between MIN and
MAXVolume (incl. filter)
3.2 (6-cyl.)B6324S/S21.27 US qts (1.2 liters)7.82 US qts (7.4 liters)
3.0T (6 cyl.)B6304T21.27 US qts (1.2 liters)7.82 US qts (7.4 liters)
V8B8444S1.0 US qts (1.1 liters)7.4 US qts (7.0 liters)

06 Maintenance and specifications
Specifications
06
278

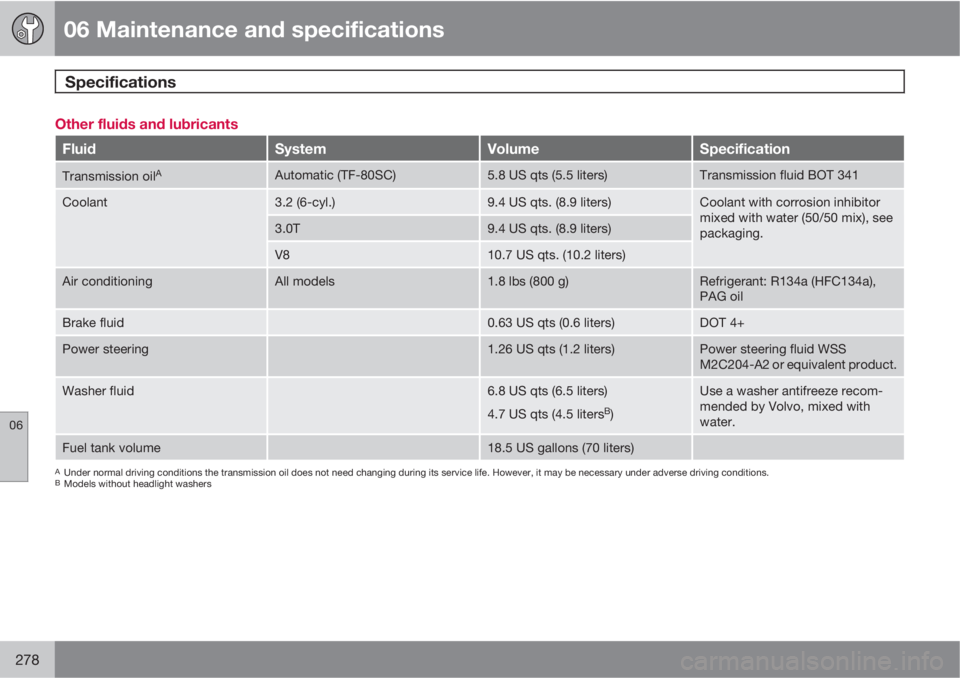

Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)5.8 US qts (5.5 liters)Transmission fluid BOT 341
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T9.4 US qts. (8.9 liters)
V810.7 US qts. (10.2 liters)
Air conditioningAll models1.8 lbs (800 g)Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4+
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS
M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters)
4.7 US qts (4.5 liters
B)
Use a washer antifreeze recom-
mended by Volvo, mixed with
water.
Fuel tank volume18.5 US gallons (70 liters)
AUnder normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.BModels without headlight washers

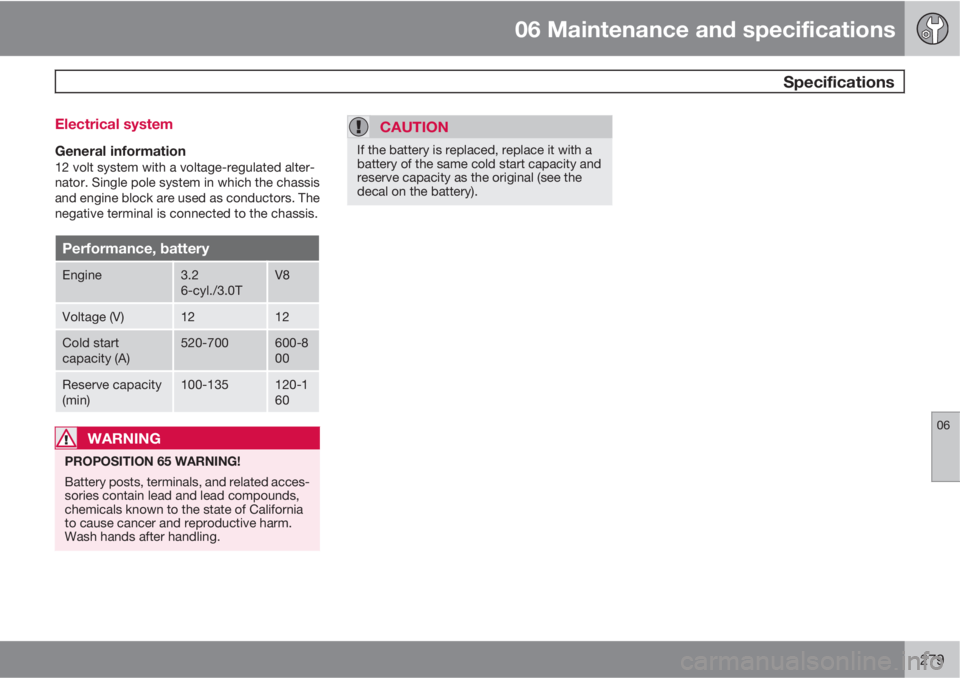

06 Maintenance and specifications
Specifications
06
279 Electrical system
General information12 volt system with a voltage-regulated alter-
nator. Single pole system in which the chassis
and engine block are used as conductors. The
negative terminal is connected to the chassis.
Performance, battery
Engine3.2
6-cyl./3.0TV8
Voltage (V)1212
Cold start
capacity (A)520-700600-8
00
Reserve capacity
(min)100-135120-1
60
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a
battery of the same cold start capacity and
reserve capacity as the original (see the
decal on the battery).

06 Maintenance and specifications
Volvo programs
06
280
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance. Additional informa-
tion, features, and benefits are described in a
separate information package in your glove
compartment.
If you require assistance, dial:
In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)
In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.). Certi-
fied technicians have demonstrated a high
degree of competence in specific areas.
Besides passing exams, each technician must
also have worked in the field for two or more
years before a certificate is issued. These pro-
fessional technicians are best able to analyze
vehicle problems and perform the necessary
maintenance procedures to keep your Volvo at
peak operating condition.
