VOLVO S80 2011 Owner´s Manual

COMFORT AND DRIVING PLEASURE

04 Comfort and driving pleasure
Menus and messages
04
122* Option/accessory, for more information, see Introduction.

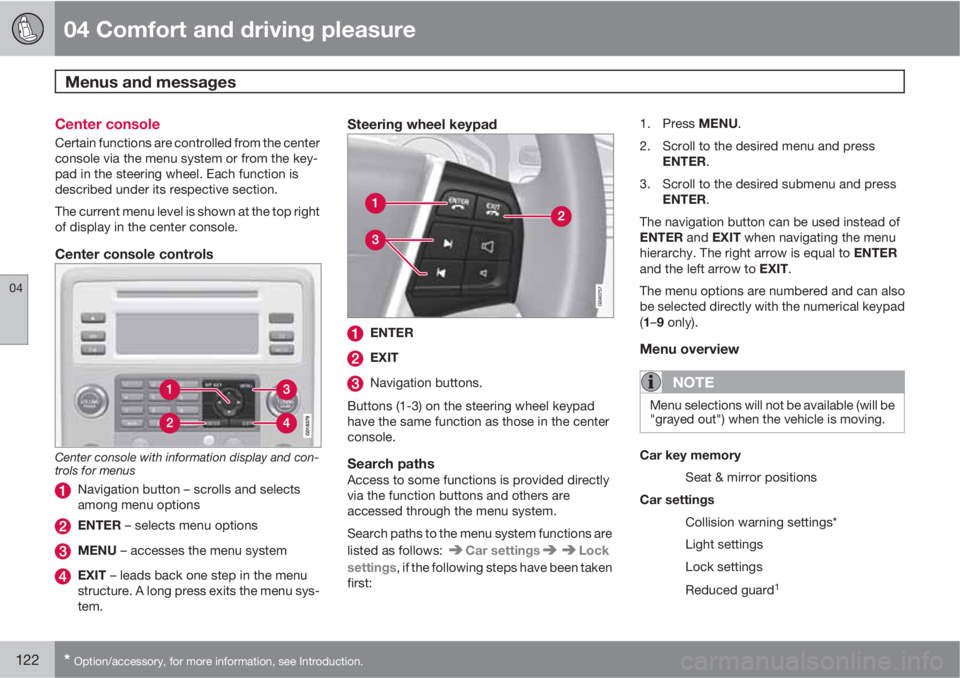

Center console
Certain functions are controlled from the center
console via the menu system or from the key-
pad in the steering wheel. Each function is
described under its respective section.
The current menu level is shown at the top right
of display in the center console.
Center console controls
Center console with information display and con-
trols for menus
Navigation button – scrolls and selects
among menu options
ENTER – selects menu options
MENU – accesses the menu system
EXIT – leads back one step in the menu
structure. A long press exits the menu sys-
tem.
Steering wheel keypad
ENTER
EXIT
Navigation buttons.
Buttons (1-3) on the steering wheel keypad
have the same function as those in the center
console.
Search pathsAccess to some functions is provided directly
via the function buttons and others are
accessed through the menu system.
Search paths to the menu system functions are
listed as follows:
Car settingsLock
settings, if the following steps have been taken
first:1.
Press MENU.
2. Scroll to the desired menu and press
ENTER.
3. Scroll to the desired submenu and press
ENTER.
The navigation button can be used instead of
ENTER and EXIT when navigating the menu
hierarchy. The right arrow is equal to ENTER
and the left arrow to EXIT.
The menu options are numbered and can also
be selected directly with the numerical keypad
(1–9 only).
Menu overview
NOTE
Menu selections will not be available (will be
"grayed out") when the vehicle is moving.
Car key memory
Seat & mirror positions
Car settings
Collision warning settings*
Light settings
Lock settings
Reduced guard
1

04 Comfort and driving pleasure
Menus and messages
04

* Option/accessory, for more information, see Introduction.123

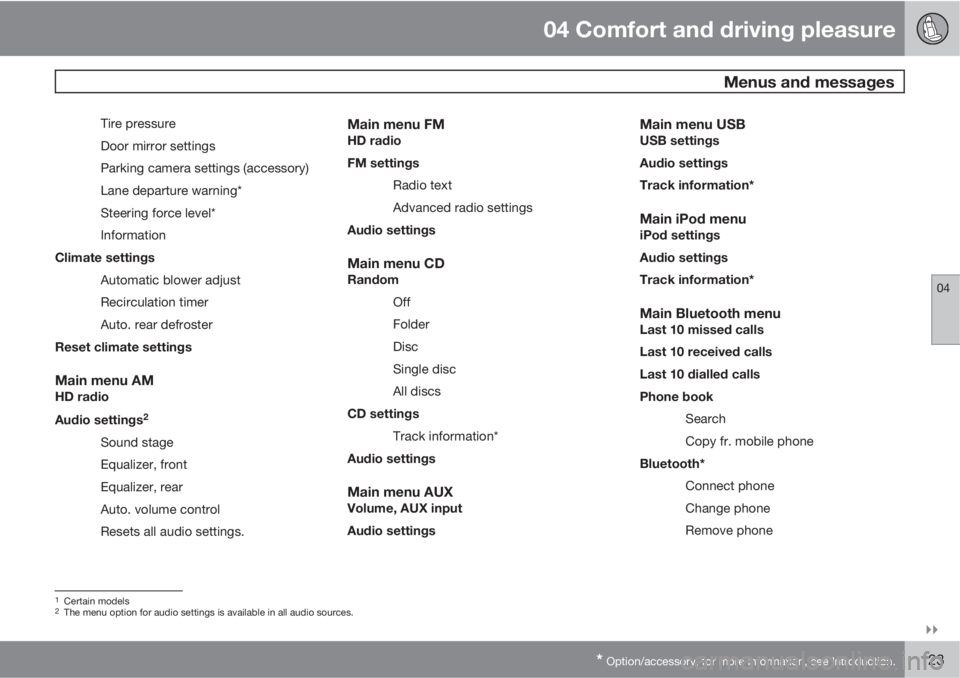

Tire pressure
Door mirror settings
Parking camera settings (accessory)
Lane departure warning*
Steering force level*
Information
Climate settings
Automatic blower adjust
Recirculation timer
Auto. rear defroster
Reset climate settings
Main menu AMHD radio
Audio settings
2
Sound stage
Equalizer, front
Equalizer, rear
Auto. volume control
Resets all audio settings.
Main menu FMHD radio
FM settings
Radio text
Advanced radio settings
Audio settings
Main menu CDRandom
Off
Folder
Disc
Single disc
All discs
CD settings
Track information*
Audio settings
Main menu AUXVolume, AUX input
Audio settings
Main menu USBUSB settings
Audio settings
Track information*
Main iPod menuiPod settings
Audio settings
Track information*
Main Bluetooth menuLast 10 missed calls
Last 10 received calls
Last 10 dialled calls
Phone book
Search
Copy fr. mobile phone
Bluetooth*
Connect phone
Change phone
Remove phone
1Certain models2The menu option for audio settings is available in all audio sources.

04 Comfort and driving pleasure
Menus and messages
04
124

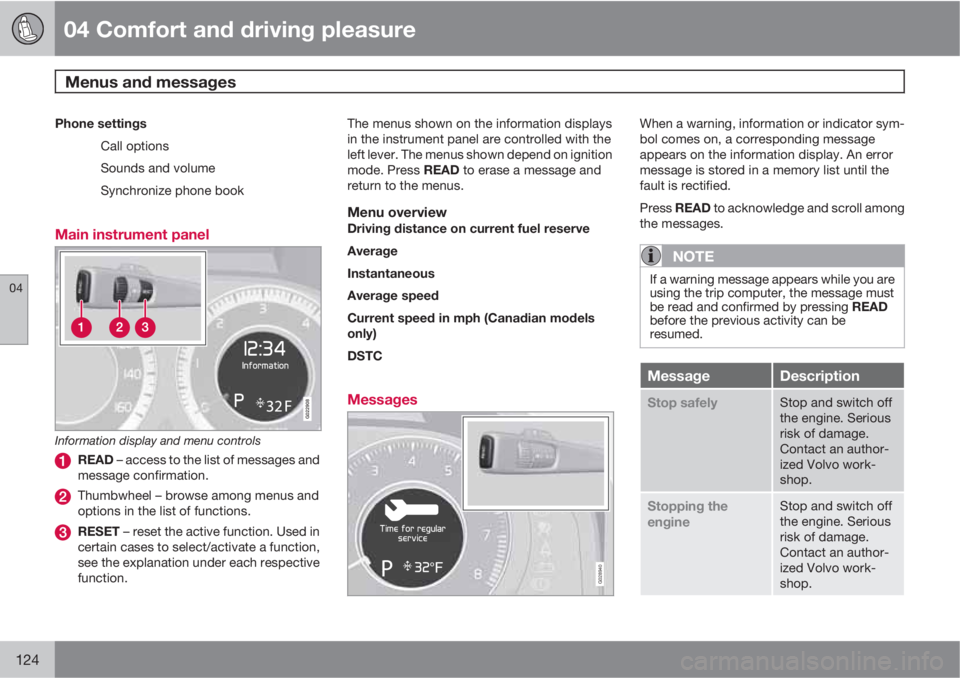

Phone settings
Call options
Sounds and volume
Synchronize phone book
Main instrument panel
G022908
Information display and menu controls
READ – access to the list of messages and
message confirmation.
Thumbwheel – browse among menus and
options in the list of functions.
RESET – reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.The menus shown on the information displays
in the instrument panel are controlled with the
left lever. The menus shown depend on ignition
mode. Press READ to erase a message and
return to the menus.
Menu overviewDriving distance on current fuel reserve
Average
Instantaneous
Average speed
Current speed in mph (Canadian models
only)
DSTC
Messages
G028940
When a warning, information or indicator sym-
bol comes on, a corresponding message
appears on the information display. An error
message is stored in a memory list until the
fault is rectified.
Press READ to acknowledge and scroll among
the messages.
NOTE
If a warning message appears while you are
using the trip computer, the message must
be read and confirmed by pressing READ
before the previous activity can be
resumed.
MessageDescription
Stop safelyStop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.
Stopping the
engineStop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.

04 Comfort and driving pleasure
Menus and messages
04
125

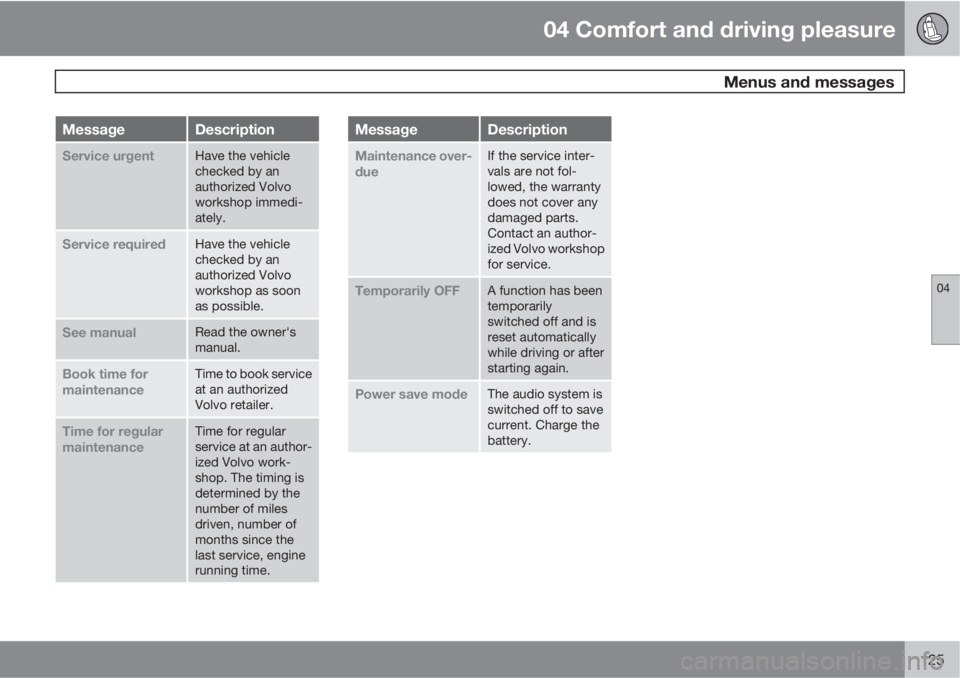

MessageDescription
Service urgentHave the vehicle
checked by an
authorized Volvo
workshop immedi-
ately.
Service requiredHave the vehicle
checked by an
authorized Volvo
workshop as soon
as possible.
See manualRead the owner's
manual.
Book time for
maintenanceTime to book service
at an authorized
Volvo retailer.
Time for regular
maintenanceTime for regular
service at an author-
ized Volvo work-
shop. The timing is
determined by the
number of miles
driven, number of
months since the
last service, engine
running time.
MessageDescription
Maintenance over-
dueIf the service inter-
vals are not fol-
lowed, the warranty
does not cover any
damaged parts.
Contact an author-
ized Volvo workshop
for service.
Temporarily OFFA function has been
temporarily
switched off and is
reset automatically
while driving or after
starting again.
Power save modeThe audio system is
switched off to save
current. Charge the
battery.

04 Comfort and driving pleasure
Climate system
04
126* Option/accessory, for more information, see Introduction.

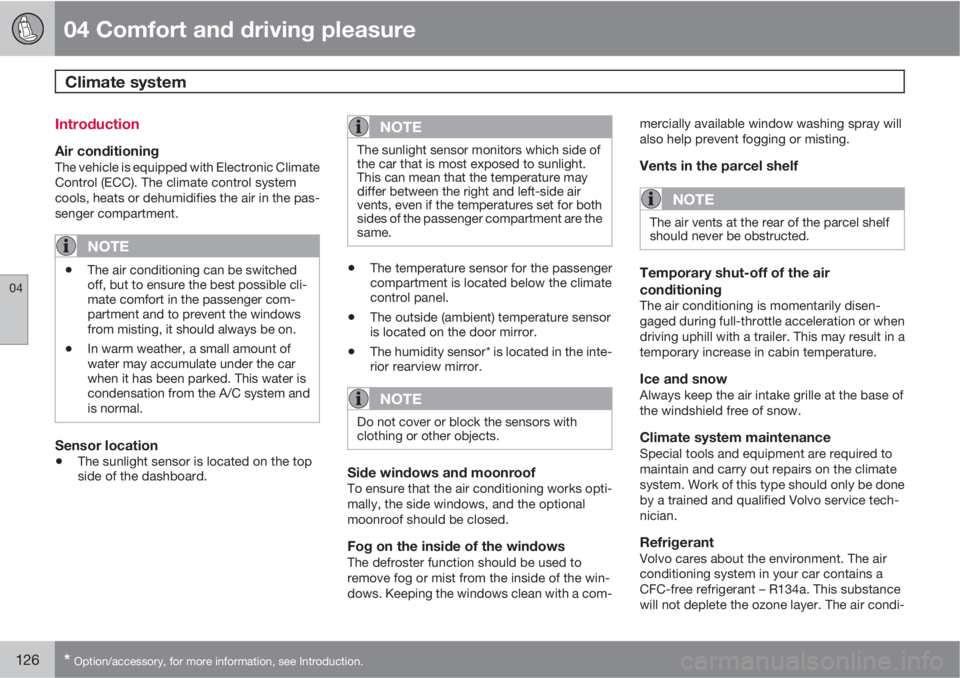

Introduction
Air conditioningThe vehicle is equipped with Electronic Climate
Control (ECC). The climate control system
cools, heats or dehumidifies the air in the pas-
senger compartment.
NOTE
•The air conditioning can be switched
off, but to ensure the best possible cli-
mate comfort in the passenger com-
partment and to prevent the windows
from misting, it should always be on.
•In warm weather, a small amount of
water may accumulate under the car
when it has been parked. This water is
condensation from the A/C system and
is normal.
Sensor location
•The sunlight sensor is located on the top
side of the dashboard.
NOTE
The sunlight sensor monitors which side of
the car that is most exposed to sunlight.
This can mean that the temperature may
differ between the right and left-side air
vents, even if the temperatures set for both
sides of the passenger compartment are the
same.
•The temperature sensor for the passenger
compartment is located below the climate
control panel.
•The outside (ambient) temperature sensor
is located on the door mirror.
•The humidity sensor* is located in the inte-
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and moonroofTo ensure that the air conditioning works opti-
mally, the side windows, and the optional
moonroof should be closed.
Fog on the inside of the windowsThe defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-mercially available window washing spray will
also help prevent fogging or misting.
Vents in the parcel shelf
NOTE
The air vents at the rear of the parcel shelf
should never be obstructed.
Temporary shut-off of the air
conditioning
The air conditioning is momentarily disen-
gaged during full-throttle acceleration or when
driving uphill with a trailer. This may result in a
temporary increase in cabin temperature.
Ice and snowAlways keep the air intake grille at the base of
the windshield free of snow.
Climate system maintenanceSpecial tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.
RefrigerantVolvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The air condi-

04 Comfort and driving pleasure
Climate system
04

127

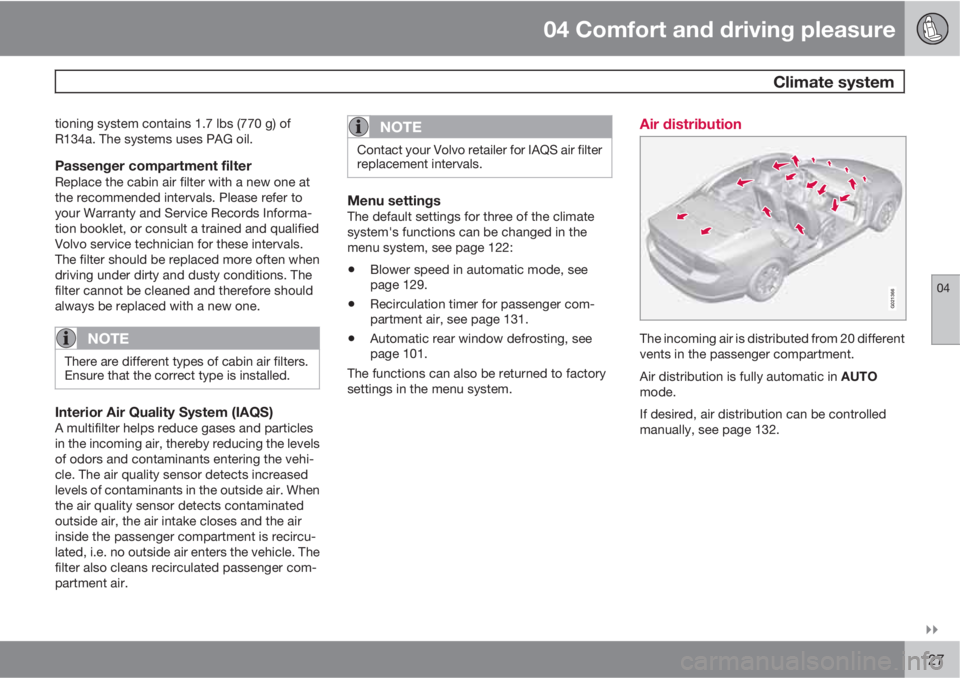

tioning system contains 1.7 lbs (770 g) of
R134a. The systems uses PAG oil.
Passenger compartment filterReplace the cabin air filter with a new one at
the recommended intervals. Please refer to
your Warranty and Service Records Informa-
tion booklet, or consult a trained and qualified
Volvo service technician for these intervals.
The filter should be replaced more often when
driving under dirty and dusty conditions. The
filter cannot be cleaned and therefore should
always be replaced with a new one.
NOTE
There are different types of cabin air filters.
Ensure that the correct type is installed.
Interior Air Quality System (IAQS)A multifilter helps reduce gases and particles
in the incoming air, thereby reducing the levels
of odors and contaminants entering the vehi-
cle. The air quality sensor detects increased
levels of contaminants in the outside air. When
the air quality sensor detects contaminated
outside air, the air intake closes and the air
inside the passenger compartment is recircu-
lated, i.e. no outside air enters the vehicle. The
filter also cleans recirculated passenger com-
partment air.
NOTE
Contact your Volvo retailer for IAQS air filter
replacement intervals.
Menu settingsThe default settings for three of the climate
system's functions can be changed in the
menu system, see page 122:
•Blower speed in automatic mode, see
page 129.
•Recirculation timer for passenger com-
partment air, see page 131.
•Automatic rear window defrosting, see
page 101.
The functions can also be returned to factory
settings in the menu system.
Air distribution
G021366
The incoming air is distributed from 20 different
vents in the passenger compartment.
Air distribution is fully automatic in AUTO
mode.
If desired, air distribution can be controlled
manually, see page 132.

04 Comfort and driving pleasure
Climate system
04
128* Option/accessory, for more information, see Introduction.

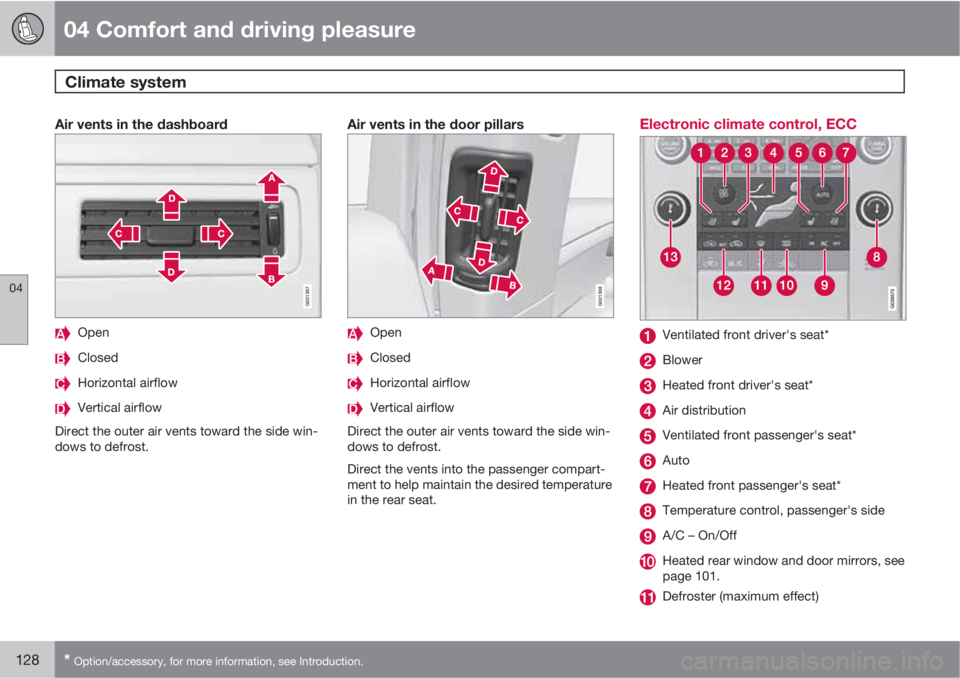

Air vents in the dashboard
G021367
Open
Closed
Horizontal airflow
Vertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
Air vents in the door pillars
G021368
Open
Closed
Horizontal airflow
Vertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
Direct the vents into the passenger compart-
ment to help maintain the desired temperature
in the rear seat.
Electronic climate control, ECC
Ventilated front driver's seat*
Blower
Heated front driver's seat*
Air distribution
Ventilated front passenger's seat*
Auto
Heated front passenger's seat*
Temperature control, passenger's side
A/C – On/Off
Heated rear window and door mirrors, see
page 101.
Defroster (maximum effect)

04 Comfort and driving pleasure
Climate system
04

* Option/accessory, for more information, see Introduction.129
Recirculation/Air quality system
Temperature control, driver's side

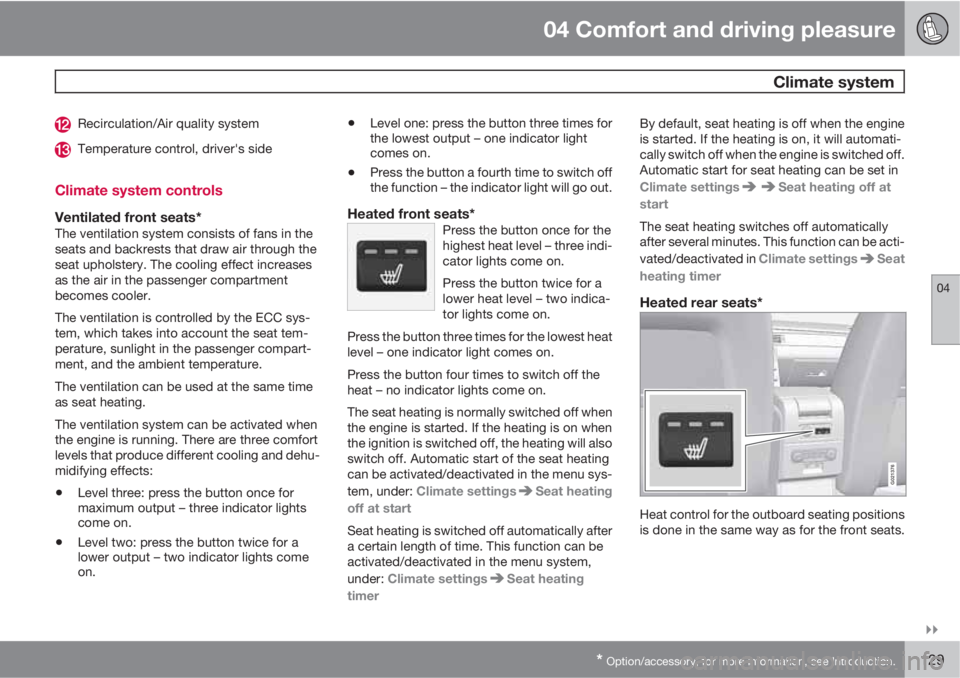

Climate system controls
Ventilated front seats*The ventilation system consists of fans in the
seats and backrests that draw air through the
seat upholstery. The cooling effect increases
as the air in the passenger compartment
becomes cooler.
The ventilation is controlled by the ECC sys-
tem, which takes into account the seat tem-
perature, sunlight in the passenger compart-
ment, and the ambient temperature.
The ventilation can be used at the same time
as seat heating.
The ventilation system can be activated when
the engine is running. There are three comfort
levels that produce different cooling and dehu-
midifying effects:
•Level three: press the button once for
maximum output – three indicator lights
come on.
•Level two: press the button twice for a
lower output – two indicator lights come
on.
•Level one: press the button three times for
the lowest output – one indicator light
comes on.
•Press the button a fourth time to switch off
the function – the indicator light will go out.
Heated front seats*Press the button once for the
highest heat level – three indi-
cator lights come on.
Press the button twice for a
lower heat level – two indica-
tor lights come on.
Press the button three times for the lowest heat
level – one indicator light comes on.
Press the button four times to switch off the
heat – no indicator lights come on.
The seat heating is normally switched off when
the engine is started. If the heating is on when
the ignition is switched off, the heating will also
switch off. Automatic start of the seat heating
can be activated/deactivated in the menu sys-
tem, under: Climate settings
Seat heating
off at start
Seat heating is switched off automatically after
a certain length of time. This function can be
activated/deactivated in the menu system,
under: Climate settings
Seat heating
timer
By default, seat heating is off when the engine
is started. If the heating is on, it will automati-
cally switch off when the engine is switched off.
Automatic start for seat heating can be set in
Climate settings
Seat heating off at
start
The seat heating switches off automatically
after several minutes. This function can be acti-
vated/deactivated in Climate settings
Seat
heating timer
Heated rear seats*
G021376
Heat control for the outboard seating positions
is done in the same way as for the front seats.

04 Comfort and driving pleasure
Climate system
04
130

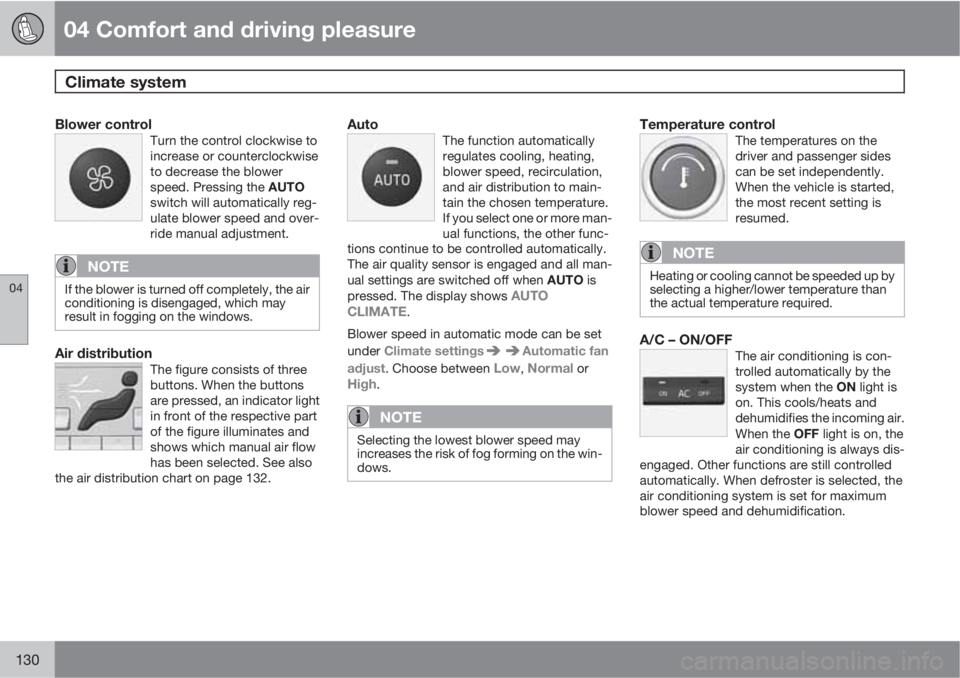

Blower controlTurn the control clockwise to
increase or counterclockwise
to decrease the blower
speed. Pressing the AUTO
switch will automatically reg-
ulate blower speed and over-
ride manual adjustment.
NOTE
If the blower is turned off completely, the air
conditioning is disengaged, which may
result in fogging on the windows.
Air distributionThe figure consists of three
buttons. When the buttons
are pressed, an indicator light
in front of the respective part
of the figure illuminates and
shows which manual air flow
has been selected. See also
the air distribution chart on page 132.
AutoThe function automatically
regulates cooling, heating,
blower speed, recirculation,
and air distribution to main-
tain the chosen temperature.
If you select one or more man-
ual functions, the other func-
tions continue to be controlled automatically.
The air quality sensor is engaged and all man-
ual settings are switched off when AUTO is
pressed. The display shows
AUTO
CLIMATE.
Blower speed in automatic mode can be set
under Climate settings
Automatic fan
adjust. Choose between
Low, Normal orHigh.
NOTE
Selecting the lowest blower speed may
increases the risk of fog forming on the win-
dows.
Temperature controlThe temperatures on the
driver and passenger sides
can be set independently.
When the vehicle is started,
the most recent setting is
resumed.
NOTE
Heating or cooling cannot be speeded up by
selecting a higher/lower temperature than
the actual temperature required.
A/C – ON/OFFThe air conditioning is con-
trolled automatically by the
system when the ON light is
on. This cools/heats and
dehumidifies the incoming air.
When the OFF light is on, the
air conditioning is always dis-
engaged. Other functions are still controlled
automatically. When defroster is selected, the
air conditioning system is set for maximum
blower speed and dehumidification.
