VOLVO S80 2011 Quick Guide

WElCOME TO THE gl Obal fa MIlY Of v Olv O
OW nER s!
Getting to know your new vehicle is an exciting experience.
This Quick Guide provides a brief overview of the most common features and
functions in your Volvo.
However, for the most up-to-date and detailed descriptions and instructions,
as well as important warnings and other information not included in this
folder, please refer to your Owner’s Manual.
An asterisk (*) indicates optional equipment.
For additional information, contact Customer Service:
U.S.A.: 1-800-458-1552 www.volvocars.us
Canada: 1-800-663-8255 www.volvocanada.com
VOLVO S80
Quick Guide

PCC*
1 Green light: vehicle is locked.
2 Yellow light: vehicle is unlocked.
3 Red light: alarm has been triggered.
4 Alternatively flashing red lights: the alarm was triggered less than 5 minutes ago.
Locks the doors and trunk and arms the alarmA.
Unlocks the doors and trunk, and dis-arms the alarmB
Trunk (press once to unlock; press twice to open trunk slightly).
Approach lighting illuminates lights in door mirrors, cabin, footwells, license plates. Turn signals and parking lights illuminate.
“Panic” alarm. – Press and hold to sound the alarm. Turn off alarm with unlock button.
Information about the vehicle can be gathered within a range of 65 ft. (20 m).
– Press the button and wait for 7 sec-onds.
If the vehicle is out of range when the button is pressed, the most recently stored status information will be shown.A The accessory inclination and movement alarm sensors can be turned off. See the “Alarm” section of your owner’s manual for information.
B Automatic relock occurs if no door/trunk is opened within 2 minutes after unlock.
REMOTE KEY WITH PCC* – PERsOnal CaR COMMunICaTOR
IgnITIOn MOdEs (MOdEs 0 and I)
To access the following ignition modes: The brake pedal must not be depressed.Mode active functions
Remote key inser ted but not drawn into ignition slot – audio system and cour tesy lighting.
Remote key drawn into ignition slot – audio system and cour tesy lighting. Instrument /clock lighting, steering wheel lock /unlocked.
Remote key drawn into ignition slot and sTa RT pressed briefly – power moonroof/windows, blower, ECC, wipers, 12-volt sockets in center console, Volvo Navigation System*.To exit ignition modes 0/I and turn off the vehicle’s electrical system: Press in the remote key. It will be partially ejected from the igntion slot.

The vehicle may be equipped with a number of other optional systems to help the driver brake in time, keep a safe distance to the vehicle ahead or stay in a traffic lane. These include:
Adaptive Cruise Control
Distance Alert
Collision Warning with Auto-brake
Driver Alert System
•
•
•
•
sT
aRTIng THE EngInE
– Insert the remote key as shown in the illus-tration and push lightly on it – the key will be drawn into the lock.
COLD START
n
OTE
After cold starts, your engine will idle at a higher speed for a short time.
– Press the sTaRT/sTOP/EngInE button briefly to start the engine.
sWITCHIng Off THE EngInE and

REMOvIng THE REMOTE KEY
1. Park the vehicle and press the sTaRT/sTOP
EngInE
button to switch off the engine.
2. Press lightly on the remote key.
It will be par-tially ejected from the ignition slot. The gear selector must be in the P position.
– Press the brake pedal.
dRIvER suPPORT sYsTEMs

2
6
34157
2
fOldIng THE REaR sEaT baCKREsT
Pull the respective handles to fold down the left and/or right sections of the backrest. 1.The rear head restraints must be in the upright position.
Fold down the backrest.
2.
3.
audIO sYsTEM
1 Press for on/off. Turn to adjust volume.
2
select aM, f M1, f M2, C d, or MOdE. Use MOdE to activate Sirius satellite radio* or the AUX/USB socketsA
3 Sound settings Press to select e.g., bass, TREblE, etc. – turn to adjust.
BLUETOOTH®
Make the cell phone searchable/visible.
Press the PHOnE button on the audio sys-tem control panel briefly.
Select “Add phone” in the audio system display.
Select the cell phone to be connected.
Enter the numbers shown in the audio sys-tem display using the cell phone’s keypad.
A. auX/usb sockets for e.g., mp3 player. Set the device’s vol-ume to medium for best sound quality. An iPod® connected to the USB socket will also be charged.
1.
2.
3.
4.
5.
RADIO
3 Turn to select a radio station.
4 Search for stations with the left/right ar-rows. Store up to 20 stations by holding in buttons 0–9 in fM1 och 0–9 in fM2, until the stored station is confirmed in the display.
5 Autostore stations by pressing for 2 sec-onds. auTOsTORE is displayed during the search. The 10 strongest stations are stored. Press 0–9 to select a station.
CD PLAYER
3 Turn to change tracks.
4 Change tracks with left/right arrows. Select CDB with up/down arrows.
6 Press to eject current Cd.
A long press jects all CDsB
7 CD selectB. Press 1–6.
B Optional CD changer only.
HD RADIO
HD radio reception is subject to coverage limi-tations. See your Owner’s Manual for details.

ElECTROnIC ClIMaTE COnTROl—ECC
MANUAL CONTROL
2 Driver/front passenger seat ventilation*.
3 Blower speed.
4 Heated driver/front passenger seat*.
5 Air distribution.
7 Recirculation
8 Defroster to defog the windshield and side windows.
9 Heated rear window and door mirrors.
10 Air conditioning Off/On to cool the cabin and defog the windows.
AUTOMATIC CONTROL
In auTO mode, ECC controls all functions automatically and makes driving more pleasant with optimal air quality.
1 Turn the control to the desired temperatu-re on the left/right sides of the cabin. The set temperature is shown in the display.
6 Press to automatically control the tem-perature and other functions.
sTORagE sP aCEs, 12-vOl T sOCKETs & auX/usb* COnnECTOR
C
au TIO n
Using the optional 12-volt socket in the trunk with the engine switched off will drain the battery.
The 12-volt sockets in the cabin function in ignition modes I or II. The 12-volt socket* in the trunk always func-tions.
auX/usb*
can be used to connect e.g., an mp3 player to the vehicle’s audio system.

89
7

1
Low fuel level indicator When the symbol illuminates, refuel as soon as possible.
2 The trip odometer display shows two separate trip odometers, T1 & T2.
3 Fuel gauge The fuel filler door is on the right, as indi-cated by the arrow.
4 Trip computer display. Select function with (8).
5 Clock Adjust with (6).
6 Multi-function control Turn the control clockwise or counter-clockwise to set the clock. A short press toggles between T1 & T2. A long press resets the displayed odome-ter.
TRIP COMPuTER and OdOMETER
7 Press to display or erase a message.
8 Turn to show trip computer information alternatives.
9 A short press resets current function. A long press resets all functions.
sTEERIng WHEEl adjusTMEnT REfuElIng
W
aR n Ing
Never adjust the steering wheel while driving.
– Press the button to open the fuel filler door.
nOTE
The display text Miles to empty tank is an approximation, based on recent average fuel consumption.

lIgHTIng PanEl
ASingle wiper sweep.
0Off
BIntermittent wipers. Turn (2) to adjust interval.
CNormal wiper speed.
DHigh wiper speed.
EWindshield/headlight washers.
Displayed when the rain sensor is active.
WIPERs and RaIn sEnsOR*
1 Rain sensor On/Off with the lever in the 0 position.
2 Turn to adjust intermittent wiper speed or rain sensor sensitivity where applicable.
EMERgEnCY bRaKE assIsT (Eba)
CaR CaRE
EBA is designed to provide full brake effect immediately in the event of sudden, hard braking. When EBA is activated, the brake pedal will go down more than usual.
– Press and hold the brake pedal for as long as necessar y – there will be no braking ef-fect if the pedal is released.
Hand washing is gentler on the paint than an automatic car wash. Since the paint on a new vehicle may take several months to harden completely, we recommend washing the vehicle by hand during this period. Use clean water, a suitable car washing detergent and a sponge. Keep in mind that dirt or grit on the sponge can scratch the paint.
AHigh beam flash
BToggle between high/low beams. Home safe lighting.
Display & instrument panel lighting.
Front fog lights.
Rear fog light (driver’s side only).
Automatic headlights. High beam flash only.
Parking lights.
Headlights: turn off when ignition is switched off, high/low beams.
Open the fuel filler door.
Press once to unlock the trunk, press twice to pop open the trunk slightly.

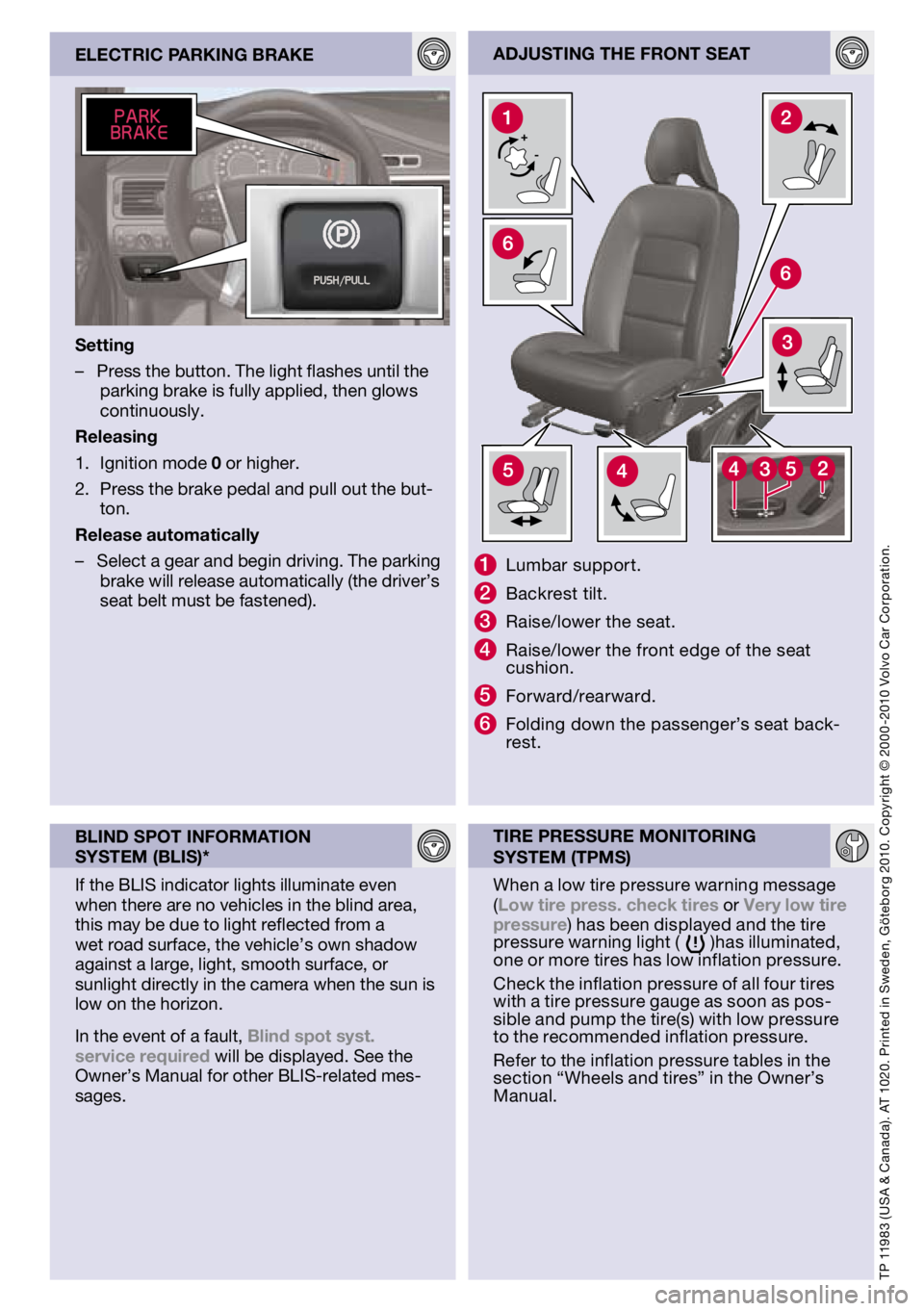

adjusTIng THE fROnT sEaT
1 Lumbar support.
2 Backrest tilt.
3 Raise/lower the seat.
4 Raise/lower the front edge of the seat cushion.
5 Forward/rearward.
6 Folding down the passenger’s seat back-rest.
TP 11983 (
USA & Canada
). AT 1020. Printed in Sweden, Göteborg 2010. Copyright © 2000 -2010 Volvo Car Corporation.
When a low tire pressure warning message (low tire press. check tires or very low tire pressure) has been displayed and the tire pressure warning light ( )has illuminated, one or more tires has low inflation pressure.
Check the inflation pressure of all four tires with a tire pressure gauge as soon as pos-sible and pump the tire(s) with low pressure to the recommended inflation pressure.
Refer to the inflation pressure tables in the section “Wheels and tires” in the Owner’s Manual.
If the BLIS indicator lights illuminate even when there are no vehicles in the blind area, this may be due to light reflected from a wet road surface, the vehicle’s own shadow against a large, light, smooth surface, or sunlight directly in the camera when the sun is low on the horizon.
In the event of a fault, blind spot syst.
service required will be displayed. See the Owner’s Manual for other BLIS-related mes-sages. ElECTRIC P aRKIng bRaKE
setting
–
Press the button. The light flashes until the parking brake is fully applied, then glows continuously.
Releasing
Ignition mode 0 or higher.
Press the brake pedal and pull out the but-ton.
Release automatically
– Select a gear and begin driving. The parking
brake will release automatically (the driver’s seat belt must be fastened).
1.
2.
TIRE PREssuRE MOnITORIng
sYsTEM (TPMs)

blInd sPOT InfORMa
TIOn
sYsTEM (blIs)*
