VOLVO S80 2011 Owner´s Manual

07 Maintenance and specifications
Replacing bulbs
07

261

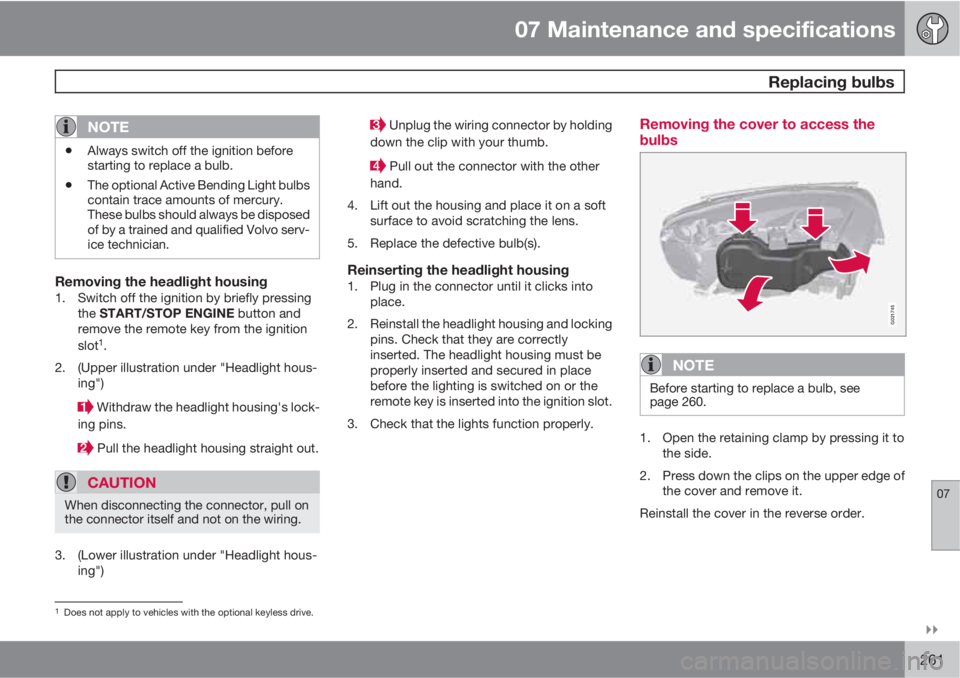

NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.
Removing the headlight housing1. Switch off the ignition by briefly pressing
the START/STOP ENGINE button and
remove the remote key from the ignition
slot
1.
2. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Pull the headlight housing straight out.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
3. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
4. Lift out the housing and place it on a soft
surface to avoid scratching the lens.
5. Replace the defective bulb(s).
Reinserting the headlight housing1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. Check that they are correctly
inserted. The headlight housing must be
properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
bulbs
G021745
NOTE
Before starting to replace a bulb, see
page 260.
1. Open the retaining clamp by pressing it to
the side.
2. Press down the clips on the upper edge of
the cover and remove it.
Reinstall the cover in the reverse order.
1Does not apply to vehicles with the optional keyless drive.

07 Maintenance and specifications
Replacing bulbs
07
262

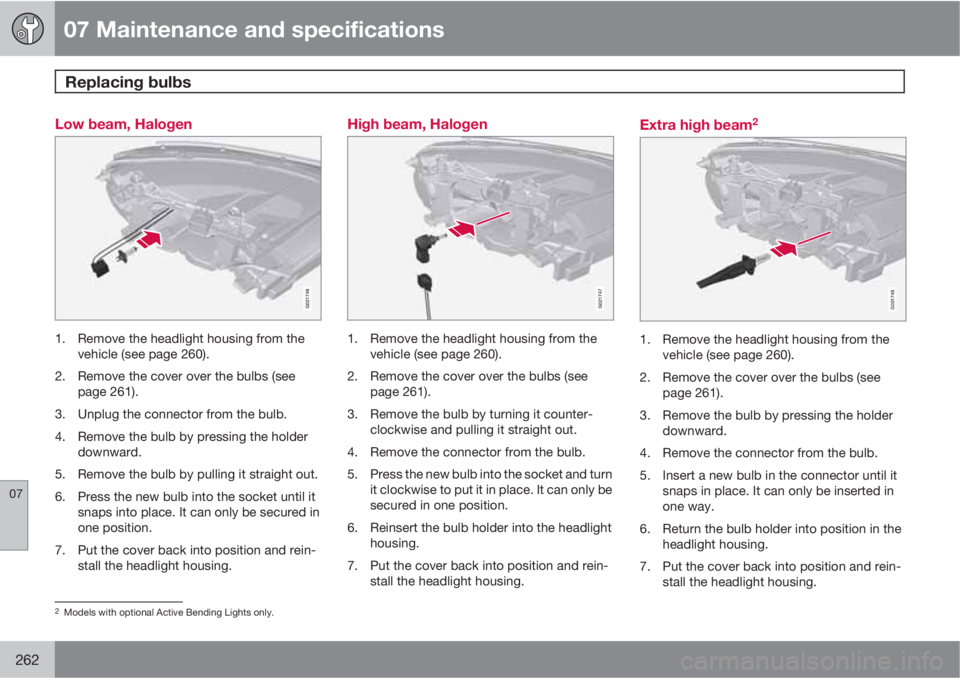

Low beam, Halogen
G021746
1. Remove the headlight housing from the
vehicle (see page 260).
2. Remove the cover over the bulbs (see
page 261).
3. Unplug the connector from the bulb.
4. Remove the bulb by pressing the holder
downward.
5. Remove the bulb by pulling it straight out.
6. Press the new bulb into the socket until it
snaps into place. It can only be secured in
one position.
7. Put the cover back into position and rein-
stall the headlight housing.
High beam, Halogen
G021747
1. Remove the headlight housing from the
vehicle (see page 260).
2. Remove the cover over the bulbs (see
page 261).
3. Remove the bulb by turning it counter-
clockwise and pulling it straight out.
4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn
it clockwise to put it in place. It can only be
secured in one position.
6. Reinsert the bulb holder into the headlight
housing.
7. Put the cover back into position and rein-
stall the headlight housing.
Extra high beam2
G021748
1. Remove the headlight housing from the
vehicle (see page 260).
2. Remove the cover over the bulbs (see
page 261).
3. Remove the bulb by pressing the holder
downward.
4. Remove the connector from the bulb.
5. Insert a new bulb in the connector until it
snaps in place. It can only be inserted in
one way.
6. Return the bulb holder into position in the
headlight housing.
7. Put the cover back into position and rein-
stall the headlight housing.
2Models with optional Active Bending Lights only.

07 Maintenance and specifications
Replacing bulbs
07

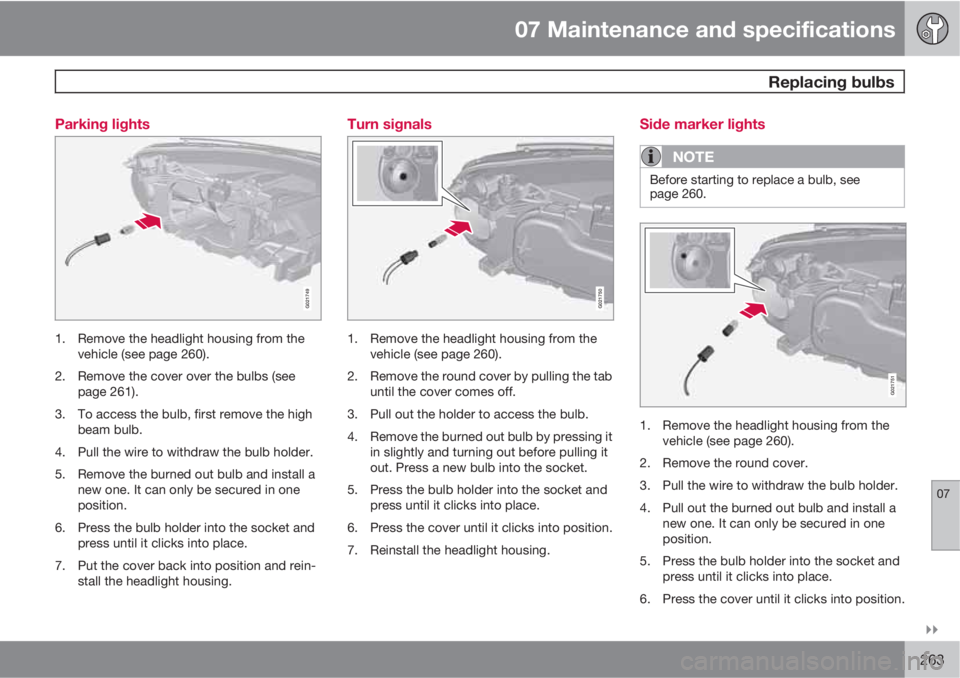

263 Parking lights
G021749
1. Remove the headlight housing from the
vehicle (see page 260).
2. Remove the cover over the bulbs (see
page 261).
3. To access the bulb, first remove the high
beam bulb.
4. Pull the wire to withdraw the bulb holder.
5. Remove the burned out bulb and install a
new one. It can only be secured in one
position.
6. Press the bulb holder into the socket and
press until it clicks into place.
7. Put the cover back into position and rein-
stall the headlight housing.
Turn signals
G021750
1. Remove the headlight housing from the
vehicle (see page 260).
2. Remove the round cover by pulling the tab
until the cover comes off.
3. Pull out the holder to access the bulb.
4. Remove the burned out bulb by pressing it
in slightly and turning out before pulling it
out. Press a new bulb into the socket.
5. Press the bulb holder into the socket and
press until it clicks into place.
6. Press the cover until it clicks into position.
7. Reinstall the headlight housing.
Side marker lights
NOTE
Before starting to replace a bulb, see
page 260.
G021751
1. Remove the headlight housing from the
vehicle (see page 260).
2. Remove the round cover.
3. Pull the wire to withdraw the bulb holder.
4. Pull out the burned out bulb and install a
new one. It can only be secured in one
position.
5. Press the bulb holder into the socket and
press until it clicks into place.
6. Press the cover until it clicks into position.

07 Maintenance and specifications
Replacing bulbs
07
264

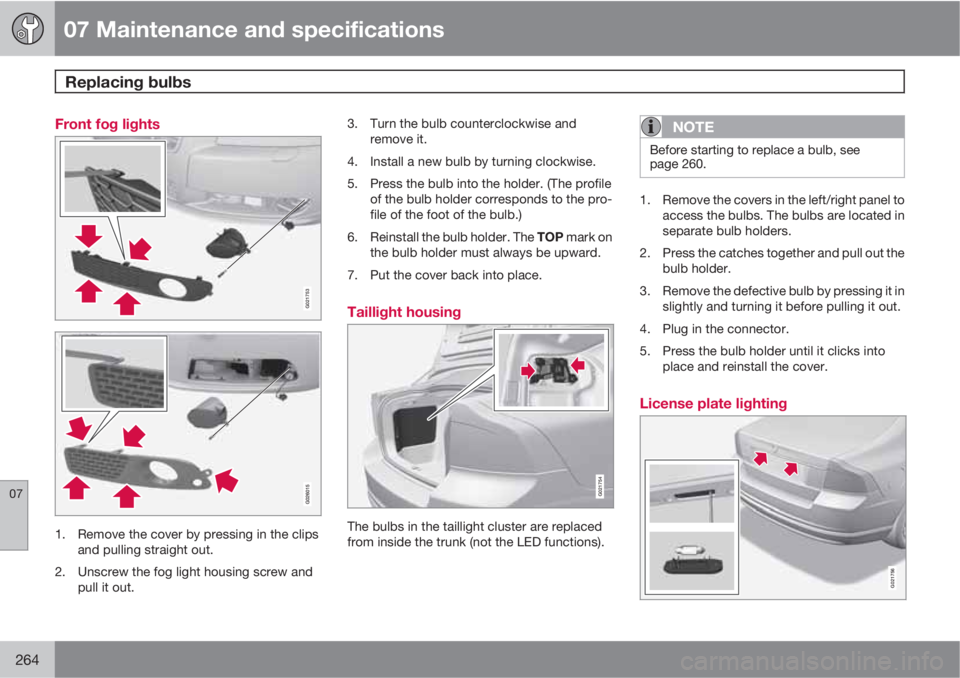

Front fog lights
G021753
1. Remove the cover by pressing in the clips
and pulling straight out.
2. Unscrew the fog light housing screw and
pull it out.3. Turn the bulb counterclockwise and
remove it.
4. Install a new bulb by turning clockwise.
5. Press the bulb into the holder. (The profile
of the bulb holder corresponds to the pro-
file of the foot of the bulb.)
6.
Reinstall the bulb holder. The TOP mark on
the bulb holder must always be upward.
7. Put the cover back into place.
Taillight housing
G021754
The bulbs in the taillight cluster are replaced
from inside the trunk (not the LED functions).
NOTE
Before starting to replace a bulb, see
page 260.
1. Remove the covers in the left/right panel to
access the bulbs. The bulbs are located in
separate bulb holders.
2. Press the catches together and pull out the
bulb holder.
3. Remove the defective bulb by pressing it in
slightly and turning it before pulling it out.
4. Plug in the connector.
5. Press the bulb holder until it clicks into
place and reinstall the cover.
License plate lighting
G021756

07 Maintenance and specifications
Replacing bulbs
07

265

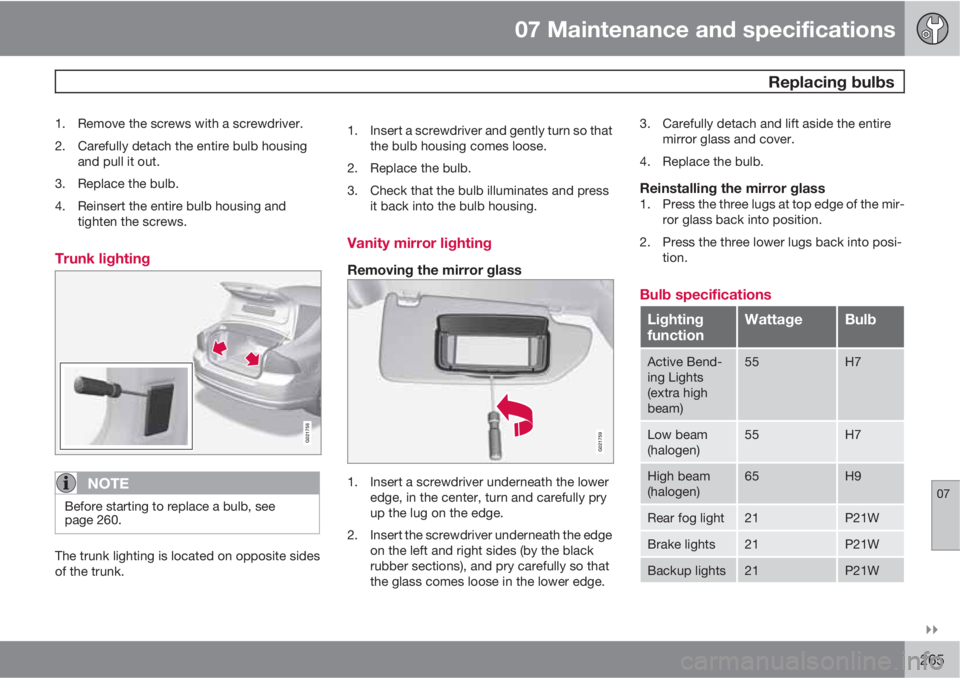

1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing
and pull it out.
3. Replace the bulb.
4. Reinsert the entire bulb housing and
tighten the screws.
Trunk lighting
G021758
NOTE
Before starting to replace a bulb, see
page 260.
The trunk lighting is located on opposite sides
of the trunk.1. Insert a screwdriver and gently turn so that
the bulb housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press
it back into the bulb housing.
Vanity mirror lighting
Removing the mirror glass
G021759
1. Insert a screwdriver underneath the lower
edge, in the center, turn and carefully pry
up the lug on the edge.
2. Insert the screwdriver underneath the edge
on the left and right sides (by the black
rubber sections), and pry carefully so that
the glass comes loose in the lower edge.3. Carefully detach and lift aside the entire
mirror glass and cover.
4. Replace the bulb.
Reinstalling the mirror glass1. Press the three lugs at top edge of the mir-
ror glass back into position.
2. Press the three lower lugs back into posi-
tion.
Bulb specifications
Lighting
functionWattageBulb
Active Bend-
ing Lights
(extra high
beam)55H7
Low beam
(halogen)55H7
High beam
(halogen)65H9
Rear fog light21P21W
Brake lights21P21W
Backup lights21P21W

07 Maintenance and specifications
Replacing bulbs
07
266

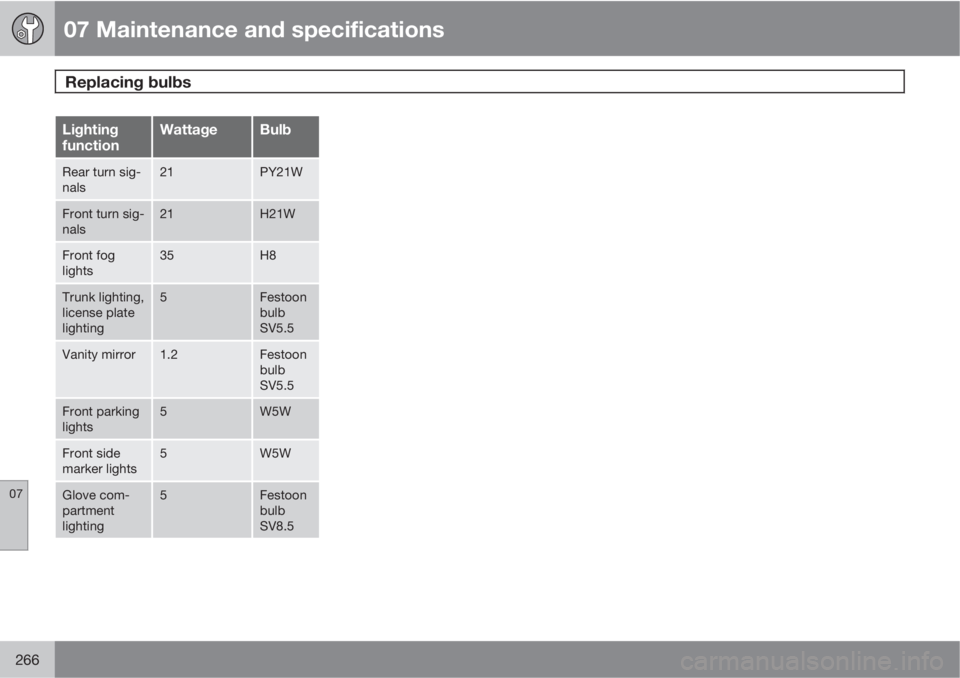

Lighting
functionWattageBulb
Rear turn sig-
nals21PY21W
Front turn sig-
nals21H21W
Front fog
lights35H8
Trunk lighting,
license plate
lighting5Festoon
bulb
SV5.5
Vanity mirror1.2Festoon
bulb
SV5.5
Front parking
lights5W5W
Front side
marker lights5W5W
Glove com-
partment
lighting5Festoon
bulb
SV8.5

07 Maintenance and specifications
Wiper blades and washer fluid
07

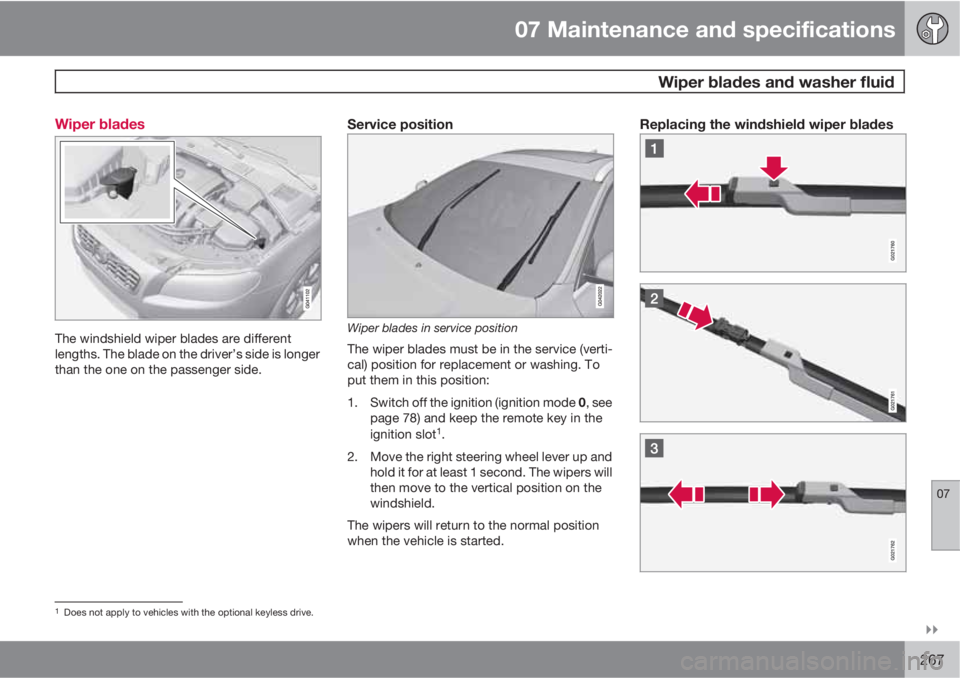

267 Wiper blades
The windshield wiper blades are different
lengths. The blade on the driver’s side is longer
than the one on the passenger side.
Service position
Wiper blades in service position
The wiper blades must be in the service (verti-
cal) position for replacement or washing. To
put them in this position:
1.
Switch off the ignition (ignition mode 0, see
page 78) and keep the remote key in the
ignition slot
1.
2. Move the right steering wheel lever up and
hold it for at least 1 second. The wipers will
then move to the vertical position on the
windshield.
The wipers will return to the normal position
when the vehicle is started.
Replacing the windshield wiper blades
1Does not apply to vehicles with the optional keyless drive.

07 Maintenance and specifications
Wiper blades and washer fluid
07
268
With the wipers in the service position, fold
out the wiper arm from the windshield.
Press the button on the wiper blade attach-
ment and pull the wiper blade straight out,
parallel with the wiper arm.
Slide in the new wiper blade until it clicks
into place.
Check that the blade is securely in place.
CleaningKeeping the windshield and wiper blades clean
helps improve visibility and prolongs the serv-
ice life of the wiper blades. Clean the wiper
blades with a stiff-bristle brush and lukewarm
soap solution or car washing detergent.
Filling washer fluid
G021764
Location of the washer fluid reservoir
The windshield and headlight washers share a
common reservoir.
The washer fluid reservoir is located on the
driver's side of the engine compartment. Dur-
ing cold weather, the reservoir should be filled
with windshield washer solvent containing
antifreeze. For capacities, see page 296.

07 Maintenance and specifications
Battery
07

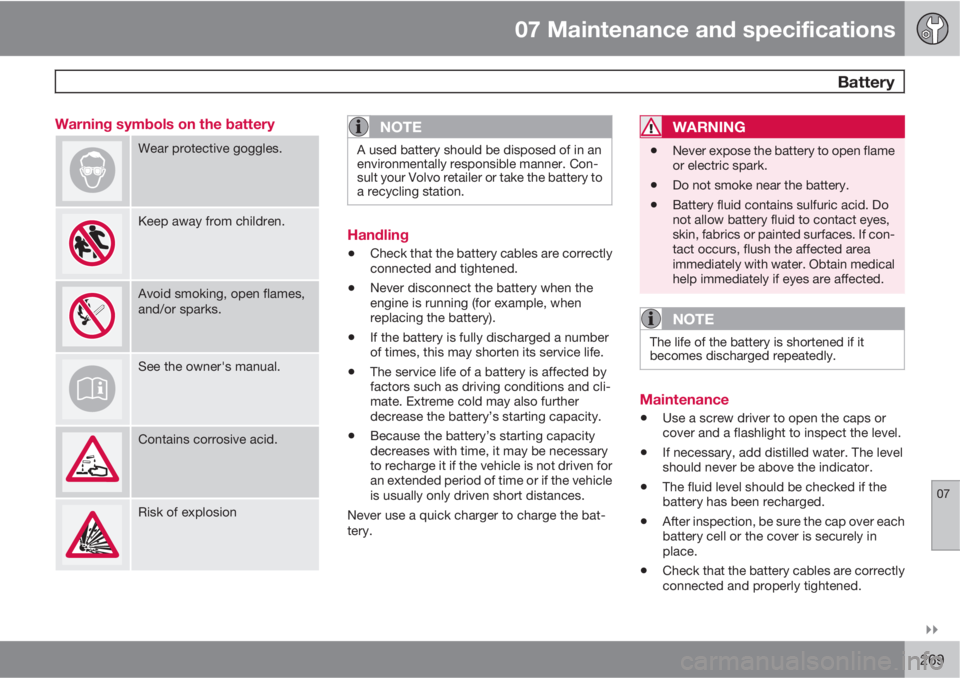

269 Warning symbols on the battery
Wear protective goggles.
Keep away from children.
Avoid smoking, open flames,
and/or sparks.
See the owner's manual.
Contains corrosive acid.
Risk of explosion
NOTE
A used battery should be disposed of in an
environmentally responsible manner. Con-
sult your Volvo retailer or take the battery to
a recycling station.
Handling
•Check that the battery cables are correctly
connected and tightened.
•Never disconnect the battery when the
engine is running (for example, when
replacing the battery).
•If the battery is fully discharged a number
of times, this may shorten its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
Never use a quick charger to charge the bat-
tery.
WARNING
•Never expose the battery to open flame
or electric spark.
•Do not smoke near the battery.
•Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.
NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.
Maintenance
•Use a screw driver to open the caps or
cover and a flashlight to inspect the level.
•If necessary, add distilled water. The level
should never be above the indicator.
•The fluid level should be checked if the
battery has been recharged.
•After inspection, be sure the cap over each
battery cell or the cover is securely in
place.
•Check that the battery cables are correctly
connected and properly tightened.

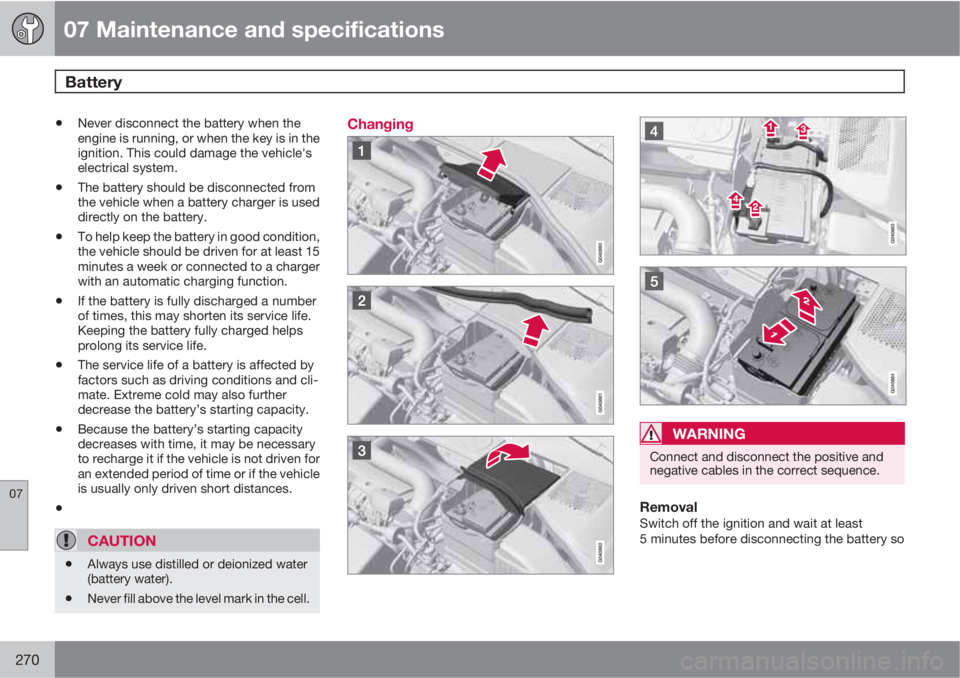

07 Maintenance and specifications
Battery
07
270
•Never disconnect the battery when the
engine is running, or when the key is in the
ignition. This could damage the vehicle's
electrical system.
•The battery should be disconnected from
the vehicle when a battery charger is used
directly on the battery.
•To help keep the battery in good condition,
the vehicle should be driven for at least 15
minutes a week or connected to a charger
with an automatic charging function.
•If the battery is fully discharged a number
of times, this may shorten its service life.
Keeping the battery fully charged helps
prolong its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
•
CAUTION
•Always use distilled or deionized water
(battery water).
•Never fill above the level mark in the cell.
Changing
WARNING
Connect and disconnect the positive and
negative cables in the correct sequence.
RemovalSwitch off the ignition and wait at least
5 minutes before disconnecting the battery so
