VOLVO S80 2012 Owner´s Manual

05 Infotainment
Radio
05

211
press on the number key pad on the cen-
ter console to switch to manual tuning, which
enables you to select a frequency from the
complete list of all radio frequencies available
on the currently selected waveband. In other
words, in manual tuning mode, turning TUNE
one step will change from e.g., 93.3 to 93.5,
etc.).
To manually tune a station:
1.
Press RADIO. Continue pressing this but-
ton to toggle to the desired waveband
(
AM, FM1, etc.) and wait for several sec-
onds or press OK/MENU to confirm.
2.
Turn TUNE to select a frequency
NOTE
The radio is initially set to automatically
search for stations in the area in which you
are driving (see the preceding section, "List
of stations").
However, if you have switched to manual
tuning (by pressing
on the number key
pad on the center console while the list of
stations is displayed), the radio will remain
in manual tuning mode the next time it is
switched on. To switch back to "list of sta-
tions" mode, turn TUNE one step (to display
the full list of stations) and press
.
Please note that if you press
when the
list of stations is not displayed, this will acti-
vate the INFO function (see page 207 for
more information about this function).
Storing preset stationsTen preset stations can be stored for each
waveband (AM, FM1, etc.).
Stored preset stations are selected using the
number key buttons on the center console.
Manually storing preset stations1. Tune to a station (see "Selecting a sta-
tion").
2. Hold in one of the number key buttons.
> The sound will be muted for several sec-
onds and when it returns, the station hasbeen stored on the number key button
used.
A list of preset stations can be displayed. This
function can be activated/deactivated in AM/
FM mode in FM menu
Show presets or in
AM menu
Show presets
ScanThe function automatically searches the cur-
rent waveband for radio stations. When a sta-
tion is found, it is played for several seconds
before scanning is resumed. While the station
is playing it can be stored as a preset in the
usual way (see "Manually storing preset sta-
tions").

To start scanning in AM/FM mode, go to
FM menu
Scan or in AM menu
Scan.
Stop station scanning by pressing EXIT.
NOTE
Storing a station interrupts the SCAN func-
tion.
Radio textSome stations transmit information on pro-
gram content, artists, etc. This information can
be shown on the display.

05 Infotainment
Radio
05
212
Activate/deactivate in FM mode under Show
radio text.
HD Radio
E
Ereception (U.S. models
only)
Introduction
Display when the radio is receiving an HD Radio
broadcast
NOTE
HD radio volume may fade in and out at
times due to coverage limitations.
HD radio is a brand name registered by the
Ibiquity digital corporation1. They are thedeveloper of a broadcasting technology called
IBOC or In Band On Channel, which refers to
the method of transmitting a digital radio
broadcast signal centered on the same fre-
quency as the AM or FM station's present fre-
quency.
The IBOC system is referred to as a "hybrid"
since it is both analogue and digital. During
hybrid operation, receivers still continue to
receive the analogue (non-digital) signal. HD
radio receivers incorporate both modes of
reception, where the receiver will automatically
switch to the analogue signal if the digital signal
cannot be decoded or is lost by the receiver.
When you have tuned to an HD Radio station,
the
symbol will appear in the audio sys-
tem display. The symbol is "grayed-out" when
HD Radio is in standby mode and white when
the radio is actively receiving an HD broadcast.
More information about HD radio and IBOC
can be found on Ibiquity's website,
www.hdradio.com and www.ibiquity.com.
Benefits of digital broadcasting
•Better sound (FM sounds near CD quality
and AM as analogue FM).
•Some FM frequencies offer a greater num-
ber of listening choices through “multicast-
ing” (consisting of a frequency's mainchannel and any sub-channels that may
also be available on that particular fre-
quency. See also the section "Sub-chan-
nels" below).
•When receiving a digital signal there is no
multipath disturbance or hisses/pops/
crackling due to outside influences.
How HD broadcasting worksHD Radio works similarly to conventional radio
and broadcasts of this type are available in
many areas of the United States. However,
there are a few key differences:
•Instead of transmitting one analogue sig-
nal, stations send out a bundled signal –
both analogue and digital.
•An HD radio receiver can receive both dig-
ital and analogue broadcasts. Depending
on the terrain and location of the vehicle
(which will influence the signal strength),
the receiver will determine which signal to
receive.
Limitations
•Main channel vs. sub-channels (FM
only): The main channel is the only channel
that can receive in hybrid mode (both dig-
ital and analogue). If a frequency has sub-
channels, they are broadcast in digital
mode only. The main FM channel will be
1HD Radio (TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity
Digital Corp.

05 Infotainment
Radio
05

213
displayed as, for example, 93.9 WNYC
(Volvo uses the symbol ">" to indicate
there are sub-channels available) The sub-
FM channels will be displayed as 93.9 – 2
WNYC, 93.9 - 3 WNYC, etc.
•Reception coverage area: Due to current
IBOC transmitter power limitations, the
reception coverage area in digital mode is
somewhat more limited than the station's
analogue coverage area. Please be aware
that as with any radio broadcast technol-
ogy, terrain, time of day, foliage level and
building location can have positive or neg-
ative effects on radio reception.
•Analogue to digital/digital to analogue
blending: Analogue to digital blending will
occur as the signal strength reaches a pre-
set threshold in the receiver. This will be
noticeable in fringe areas (areas with weak
reception) and is normal.
NOTE
There may be a noticeable difference in
sound quality when a change from analogue
to digital or digital to analogue occurs, such
as:
•Volume increase or decrease
•Equalizer settings, i.e., Bass/ Midrange/
Treble cut or boost
•Time alignment (Digital program mate-
rial in extreme cases can be as much as
8 seconds behind the analogue). This
will noticeable as a "stuttering" effect.
The above items are dependant on the
broadcaster's equipment settings and do
not indicate a fault in the vehicle's radio
receiver or antenna systems.
Switching HD on or offThe factory setting for HD radio is off. How-
ever, when driving through areas with weak HD
signals (fringe areas), you may experience that
the radio repeatedly switches between ana-
logue/digital and digital/analogue reception. If
this happens, it may be desirable to switch HD
off. To do so:
1. Be sure the audio system is switched on
and in one of the AM or FM modes.
2.
Press OK/MENU in the center console
control panel.3.
Turn TUNE and move the marker to
HD
Radio.
4.
Press OK/MENU to turn HD off (the X will
disappear from the box on the display
screen).
This will disable the radio's capability to receive
digital broadcasts but it will continue to func-
tion as a conventional (analogue) AM/FM
receiver. Please note that when HD is switched
off, it will not be possible to tune to sub-chan-
nels (see the following section for a more
detailed explanation of sub-channels).
Repeat steps 2-4 above to reactivate HD (an X
will appear in the box on the display screen).
Please note that this will only switch HD on or
off for the selected waveband (AM, FM1, etc.).
Sub-channels
Example of an HD Radio station with sub-channels

05 Infotainment
Radio
05
214* Option/accessory, for more information, see Introduction.
In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.
In such cases, the “-” symbol will be displayed
to the left of the frequency number and a num-
ber will be displayed to the right of the fre-
quency number indicating that the currently
tuned frequency has at least one sub-channel.
The "2" in the illustration indicates that you are
currently listening to the first sub-channel on
frequency 93.9.
Selecting sub-channelsTo listen to a station's sub-channel(s), press
and hold the right arrow key on the center con-
sole or on the steering wheel keypad for
approximately 1 second. To go back to the
main channel, press and hold the left arrow key
on the center console or on the steering wheel
keypad for approximately 1 second. To go to
subchannel 2 (if available), press and hold the
right arrow key on the center console or on the
steering wheel keypad for approximately
1 second.
If you are currently tuned to a frequency's main
channel, pressing and holding the left arrow
key for approximately 1 second will tune to the
next lower radio frequency.
NOTE
•When the radio has gone into HD mode,
it may take several seconds before the
">" symbol (if the current frequency has
any sub-channels) is displayed to the
left of the frequency. Pressing and hold-
ing the arrow keys for approximately
1 second before the main-/sub-channel
icon is displayed will cause the radio to
tune to the next available radio station,
not to the current station's sub-chan-
nels.
•When you are no longer in broadcasting
range of the currently tuned sub-chan-
nel,
No reception will be displayed.
The radio will then be muted and it will
be necessary to tune to or search for a
new radio station.
Sub-channels can also be stored as presets,
see page 211 for information on storing sta-
tions.
If you press a sub-channel's preset button, it
may take up to 6 seconds before the channel
becomes audible. If you press this button while
you are out of digital range of the transmitter,
No HD reception will be displayed.
Sirius satellite radio*
Listening to satellite radioThe Sirius satellite system consists of a number
of high elevation satellites in geosynchronous
orbit.
NOTE
•The digital signals from the Sirius satel-
lites are line-of-sight, which means that
physical obstructions such as bridges,
tunnels, etc, may temporarily interfere
with signal reception.
•Avoid any obstructions, such as metal-
lic objects transported on roof racks or
in a ski box, or other antennas that may
impede signals from the SIRIUS satel-
lites.
Selecting Sirius radio mode1. With the infotainment system switched on,
press RADIO.
2.
Continue pressing RADIO (or turn TUNE to
scroll) to select SAT 1 or SAT 2 and press
OK/MENU (or wait for several seconds).
Activating Sirius radio1. Tune to a satellite channel that has no
audio, which means that the channel is
unsubscribed and the text
Subscription

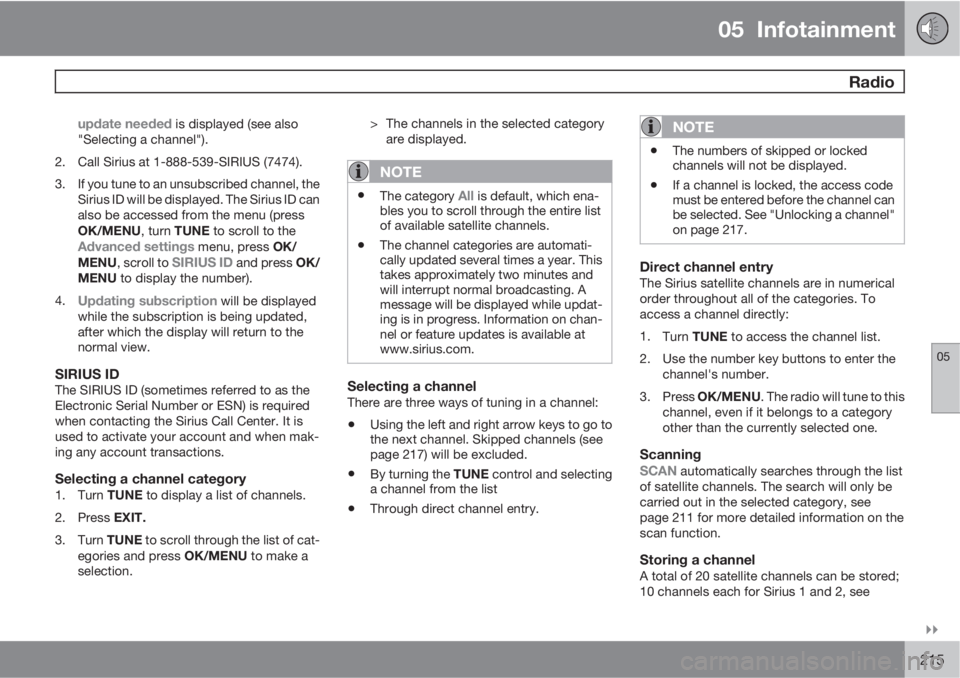

05 Infotainment
Radio
05

215
update needed is displayed (see also
"Selecting a channel").
2. Call Sirius at 1-888-539-SIRIUS (7474).
3. If you tune to an unsubscribed channel, the
Sirius ID will be displayed. The Sirius ID can
also be accessed from the menu (press
OK/MENU, turn TUNE to scroll to the
Advanced settings menu, press OK/
MENU, scroll to SIRIUS ID and press OK/
MENU to display the number).
4.
Updating subscription will be displayed
while the subscription is being updated,
after which the display will return to the
normal view.
SIRIUS IDThe SIRIUS ID (sometimes referred to as the
Electronic Serial Number or ESN) is required
when contacting the Sirius Call Center. It is
used to activate your account and when mak-
ing any account transactions.
Selecting a channel category1.
Turn TUNE to display a list of channels.
2.
Press EXIT.
3.
Turn TUNE to scroll through the list of cat-
egories and press OK/MENU to make a
selection.> The channels in the selected category
are displayed.
NOTE
•The category All is default, which ena-
bles you to scroll through the entire list
of available satellite channels.
•The channel categories are automati-
cally updated several times a year. This
takes approximately two minutes and
will interrupt normal broadcasting. A
message will be displayed while updat-
ing is in progress. Information on chan-
nel or feature updates is available at
www.sirius.com.
Selecting a channelThere are three ways of tuning in a channel:
•Using the left and right arrow keys to go to
the next channel. Skipped channels (see
page 217) will be excluded.
•By turning the TUNE control and selecting
a channel from the list
•Through direct channel entry.
NOTE
•The numbers of skipped or locked
channels will not be displayed.
•If a channel is locked, the access code
must be entered before the channel can
be selected. See "Unlocking a channel"
on page 217.
Direct channel entryThe Sirius satellite channels are in numerical
order throughout all of the categories. To
access a channel directly:
1.
Turn TUNE to access the channel list.
2. Use the number key buttons to enter the
channel's number.
3.
Press OK/MENU. The radio will tune to this
channel, even if it belongs to a category
other than the currently selected one.
Scanning
SCAN automatically searches through the list
of satellite channels. The search will only be
carried out in the selected category, see
page 211 for more detailed information on the
scan function.
Storing a channelA total of 20 satellite channels can be stored;
10 channels each for Sirius 1 and 2, see

05 Infotainment
Radio
05
216
page 211 for detailed information on storing
channels.
•A long press on one of the number keys
stores the currently tuned channel on that
key.
•A short press on a number key while the
radio is in SAT 1 or SAT 2 mode will tune
to the preset satellite channel stored on
that button, regardless of the currently
selected channel category.
Searching for and storing songs
The Song Seek function provides notification
when Sirius is broadcasting the songs selected
in song memory.
Song memory enables you
to store the name of the song for future
advance notification when that song is being
played.
Song seekWhen a satellite radio channel plays one of the
songs stored in the song memory while the
Song seek feature is activated, the listener will
be alerted by a text message and an audible
signal.
Press OK/MENU to listen to the song or EXIT
to cancel.
To activate/deactivate the song seek function:
1.
Press OK/MENU.2.
Turn TUNE to scroll to
Song memory and
press OK/MENU.
3.
Turn TUNE to scroll to
Song Seek and
press OK/MENU to activate or deactivate
the function.
NOTE
When the song has ended, the radio will
remain tuned to the channel on which the
song was played.
Song memoryUp to ten songs can be saved in the system's
memory.
To add the currently playing song to the list:
1.
Press OK/MENU.
2.
Scroll to
Song memory and press OK/
MENU.
3.
Scroll to
Add current song to song
memory and press OK/MENU.
If a new song is selected when the memory is
full, you will be prompted to delete a song from
the list. To do so:
1.
Press OK/MENU.
2.
Turn TUNE to scroll through the list of
songs. Select a song and press OK/
MENU to delete it from the list.
Radio textThis text provides information about the song
that is currently playing. To turn this feature on
or off, press OK/MENU and scroll to
Show
radio text and press OK/MENU to toggle
between on or off.
Advanced Sirius settings
This menu function enables you to make set-
tings on certain Sirius satellite radio functions.
To access this menu:
1.
Press OK/MENU.
2.
Scroll to the
Advanced settings menu
and press OK/MENU.
WARNING
Settings should be made when the vehicle
is at a standstill.
The following settings can be made in the Sir-
ius menu:
•Channel skip settings can be made
•Channel lock settings can be made
•The channel access code can be displayed
or changed (see also "Locking a channel"
on page 217)
•Your Sirius ID can be displayed
•Reset Sirius settings

05 Infotainment
Radio
05

217

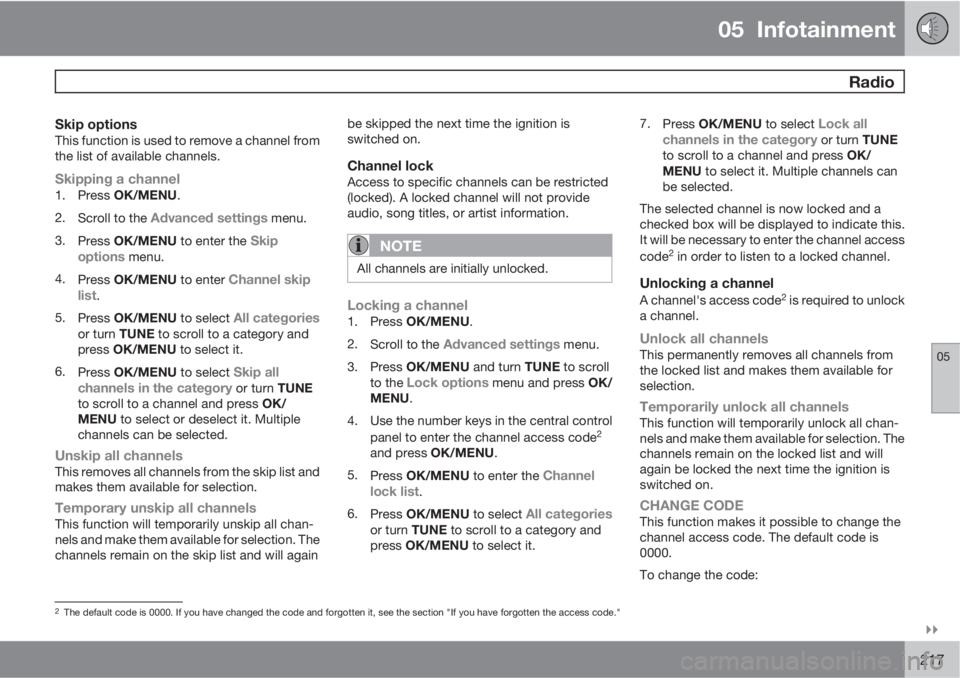

Skip optionsThis function is used to remove a channel from
the list of available channels.
Skipping a channel1.
Press OK/MENU.
2.
Scroll to the
Advanced settings menu.
3.
Press OK/MENU to enter the
Skip
options menu.
4.
Press OK/MENU to enter
Channel skip
list.
5.
Press OK/MENU to select
All categoriesor turn TUNE to scroll to a category and
press OK/MENU to select it.
6.
Press OK/MENU to select
Skip all
channels in the category or turn TUNE
to scroll to a channel and press OK/
MENU to select or deselect it. Multiple
channels can be selected.
Unskip all channelsThis removes all channels from the skip list and
makes them available for selection.
Temporary unskip all channelsThis function will temporarily unskip all chan-
nels and make them available for selection. The
channels remain on the skip list and will againbe skipped the next time the ignition is
switched on.
Channel lockAccess to specific channels can be restricted
(locked). A locked channel will not provide
audio, song titles, or artist information.
NOTE
All channels are initially unlocked.
Locking a channel1.
Press OK/MENU.
2.
Scroll to the
Advanced settings menu.
3.
Press OK/MENU and turn TUNE to scroll
to the
Lock options menu and press OK/
MENU.
4. Use the number keys in the central control
panel to enter the channel access code
2
and press OK/MENU.
5.
Press OK/MENU to enter the
Channel
lock list.
6.
Press OK/MENU to select
All categoriesor turn TUNE to scroll to a category and
press OK/MENU to select it.7.
Press OK/MENU to select
Lock all
channels in the category or turn TUNE
to scroll to a channel and press OK/
MENU to select it. Multiple channels can
be selected.
The selected channel is now locked and a
checked box will be displayed to indicate this.
It will be necessary to enter the channel access
code
2 in order to listen to a locked channel.
Unlocking a channel
A channel's access code2 is required to unlock
a channel.
Unlock all channelsThis permanently removes all channels from
the locked list and makes them available for
selection.
Temporarily unlock all channelsThis function will temporarily unlock all chan-
nels and make them available for selection. The
channels remain on the locked list and will
again be locked the next time the ignition is
switched on.
CHANGE CODEThis function makes it possible to change the
channel access code. The default code is
0000.
To change the code:
2The default code is 0000. If you have changed the code and forgotten it, see the section "If you have forgotten the access code."

05 Infotainment
Radio
05
218

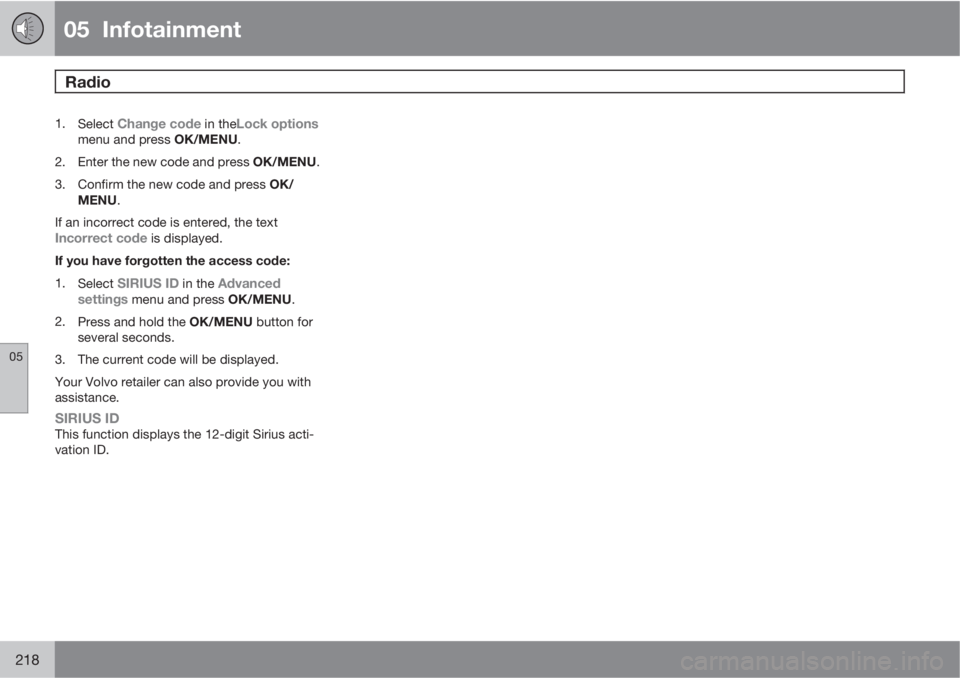

1.
Select Change code in theLock optionsmenu and press OK/MENU.
2.
Enter the new code and press OK/MENU.
3.
Confirm the new code and press OK/
MENU.
If an incorrect code is entered, the text
Incorrect code is displayed.
If you have forgotten the access code:
1.
Select
SIRIUS ID in the Advanced
settings menu and press OK/MENU.
2.
Press and hold the OK/MENU button for
several seconds.
3. The current code will be displayed.
Your Volvo retailer can also provide you with
assistance.
SIRIUS IDThis function displays the 12-digit Sirius acti-
vation ID.

05 Infotainment
Media player
05

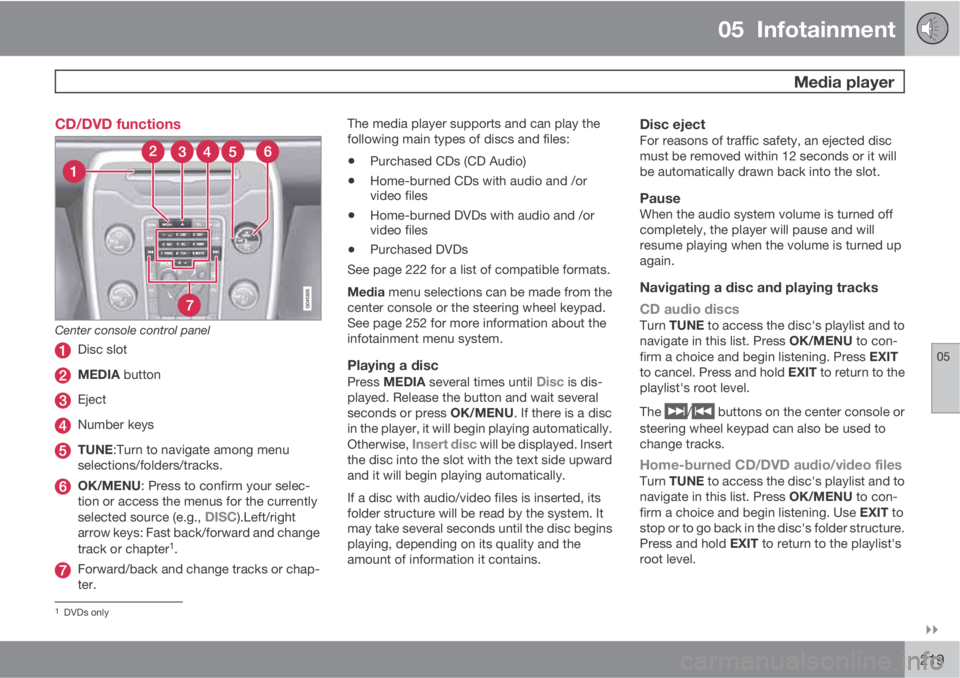

219 CD/DVD functions
Center console control panel
Disc slot
MEDIA button
Eject
Number keys
TUNE:Turn to navigate among menu
selections/folders/tracks.
OK/MENU: Press to confirm your selec-
tion or access the menus for the currently
selected source (e.g.,
DISC).Left/right
arrow keys: Fast back/forward and change
track or chapter
1.
Forward/back and change tracks or chap-
ter.The media player supports and can play the
following main types of discs and files:
•Purchased CDs (CD Audio)
•Home-burned CDs with audio and /or
video files
•Home-burned DVDs with audio and /or
video files
•Purchased DVDs
See page 222 for a list of compatible formats.
Media menu selections can be made from the
center console or the steering wheel keypad.
See page 252 for more information about the
infotainment menu system.
Playing a disc
Press MEDIA several times until Disc is dis-
played. Release the button and wait several
seconds or press OK/MENU. If there is a disc
in the player, it will begin playing automatically.
Otherwise,
Insert disc will be displayed. Insert
the disc into the slot with the text side upward
and it will begin playing automatically.
If a disc with audio/video files is inserted, its
folder structure will be read by the system. It
may take several seconds until the disc begins
playing, depending on its quality and the
amount of information it contains.
Disc ejectFor reasons of traffic safety, an ejected disc
must be removed within 12 seconds or it will
be automatically drawn back into the slot.
PauseWhen the audio system volume is turned off
completely, the player will pause and will
resume playing when the volume is turned up
again.
Navigating a disc and playing tracks
CD audio discs
Turn TUNE to access the disc's playlist and to
navigate in this list. Press OK/MENU to con-
firm a choice and begin listening. Press EXIT
to cancel. Press and hold EXIT to return to the
playlist's root level.
The
/ buttons on the center console or
steering wheel keypad can also be used to
change tracks.
Home-burned CD/DVD audio/video filesTurn TUNE to access the disc's playlist and to
navigate in this list. Press OK/MENU to con-
firm a choice and begin listening. Use EXIT to
stop or to go back in the disc's folder structure.
Press and hold EXIT to return to the playlist's
root level.
1DVDs only

05 Infotainment
Media player
05
220
The / buttons on the center console or
steering wheel keypad can also be used to
change audio/video files.
The following symbols are used in the display:
•- audio files
•- video files
•- folders
When a file has been played, the player will
continue to play the rest of the files (of the same
type) in the current folder. When all of the files
in the folder have been played, the player will
automatically go to the next folder and play the
files in it (unless
Repeat folder is activated).
The system automatically detects and changes
settings if a disc containing only audio or only
video files is inserted in the player and will play
these files. However, the system will not
change settings if a disc containing both audio
and video files is inserted and the player will
continue to play the current type of file.
NOTE
Video images will only be visible when the
vehicle is not moving. When the vehicle is
traveling faster than approximately 4 mph
(6 km/h),
No visual media available while
driving will be displayed. Sound from the
film will still be audible and video images will
be shown again when the vehicle stops.
NOTE
Some copy protected audio files or home-
burned audio files may not be read by the
player.
DVD videosSee page 221 for information.
Fast forward/reverse
Press and hold the / buttons to fast
forward/reverse. This is done at one speed for
audio files but several speeds can be chosen
for video files. Press the
/ buttons sev-
eral times to increase the speed. Release the
button to return to normal viewing speed.
GracenoteŸ track identificationIf the vehicle is equipped with the optional nav-
igation system, this system uses a hard drive
containing a database that recognizes musicon audio CDs. The database contains songs
that are currently popular. If the media player
finds a track in the database, the album title
and artist's name are displayed, and the title,
artist and album for each song is also dis-
played. If the current audio CD is not found in
the database, CD text from the disc is used. If
no CD text is available, only track 1, track 2,
etc., will be displayed.
Scan2
This function plays the first ten seconds of
each track/audio file. To start scanning:
1.
Press OK/MENU.
2.
Turn TUNE to
Scan.
> The first ten seconds of each track/
audio file will be played.
3.
Stop scanning by pressing EXIT. The cur-
rent track/audio file will continue playing.
Random2
This function plays the tracks in random order
(shuffle). The random tracks/sound files can be
scrolled through in the normal way. To listen to
tracks in random order:
1.
Press OK/MENU,
2.
Turn TUNE to
Random
2Not video DVDs
