VOLVO S80 2012 Owner´s Manual

05 Infotainment
Media player
05

221
3.
Press OK/MENU to activate/deactivate
the random play function.
Press the
/ buttons on the center con-
sole or steering wheel keypad to change
tracks/audio files.
Repeat folder3
This function makes it possible to play files in
a folder repeatedly. When the last file has been
played, the first file will begin again. To acti-
vate:
1.
Press OK/MENU.
2.
Turn TUNE to
Repeat folder.
3.
Press OK/MENU to activate/deactivate
the function.
Playing video DVDs
Play
When playing a video DVD, a disc menu may
appear on the display, giving you access to
extra functions and settings such as choice of
subtitle and language, scene selection, etc.
NOTE
Video images will only be visible when the
vehicle is not moving. When the vehicle is
traveling faster than approximately 4 mph
(6 km/h),
No visual media available while
driving will be displayed. Sound from the
film will still be audible and video images will
be shown again when the vehicle stops.
Navigating in a DVD's menus
Buttons in the center console control panel,
shown above, are used to navigate in a DVD's
menus.
Changing chapters or titlesTurn TUNE to access the list of chapters and
navigate among them (if a film is playing, it willbe paused). Press OK/MENU to select a chap-
ter and return to the normal view. If a film was
playing, it will resume). Press EXIT to access
the list of titles.
Turn TUNE to select a title and press OK/
MENU to confirm and return to the list of chap-
ters. Press EXIT to cancel and return to the
normal view (without having made a selection).
Changing chapters or titleTurnTUNE to access the list of chapters and
navigate in this list (the film will pause if it is
currently playing). Press OK/MENU to choose
a chapter and return to the normal view in the
display (if a film was playing, it will resume).
Press EXIT to access the list of titles.
In the list of titles, turn TUNE to make a selec-
tion and press OK/MENU to confirm. This also
returns you to the list of chapters. Press EXIT
to cancel and return to the normal view (without
having made a selection).
It is also possible to change chapters by press-
ing
/ on the center console control
panel or on the steering wheel keypad.
Advanced settings
Angle
If the DVD supports this function, it is possible
to select a camera angle for a certain scene.
3Applies to audio/video files on home-burned discs/USB only.

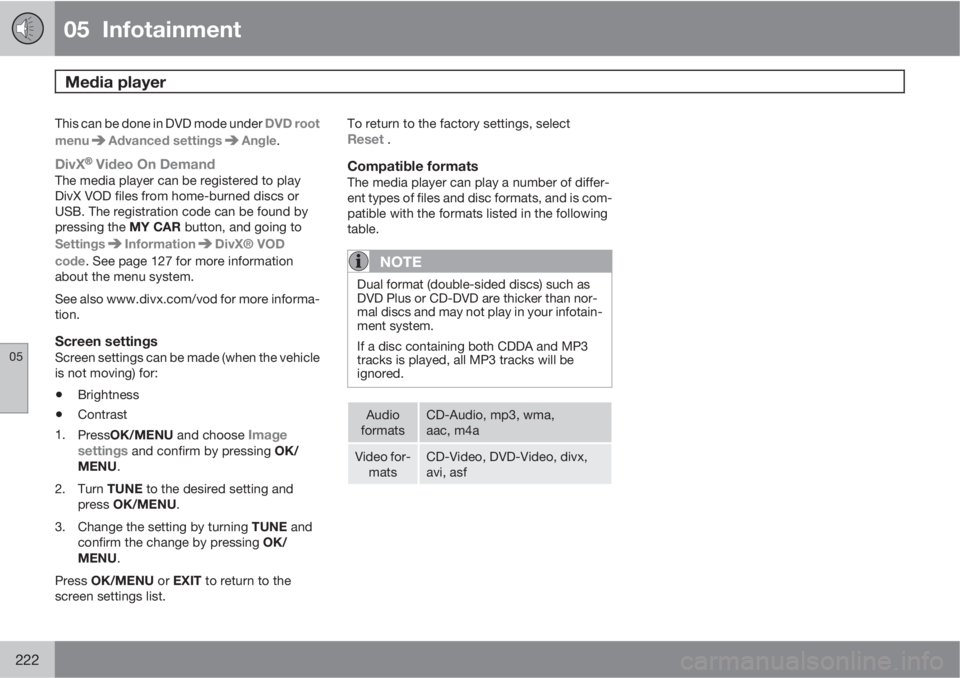

05 Infotainment
Media player
05
222
This can be done in DVD mode under DVD root
menu
Advanced settingsAngle.
DivXŸŸ Video On DemandThe media player can be registered to play
DivX VOD files from home-burned discs or
USB. The registration code can be found by
pressing the MY CAR button, and going to
Settings
InformationDivX® VOD
code. See page 127 for more information
about the menu system.
See also www.divx.com/vod for more informa-
tion.
Screen settingsScreen settings can be made (when the vehicle
is not moving) for:
•Brightness
•Contrast
1.
PressOK/MENU and choose
settings and confirm by pressing OK/
MENU.
2.
Turn TUNE to the desired setting and
press OK/MENU.
3.
Change the setting by turning TUNE and
confirm the change by pressing OK/
MENU.
Press OK/MENU or EXIT to return to the
screen settings list.To return to the factory settings, select
Reset .
Compatible formatsThe media player can play a number of differ-
ent types of files and disc formats, and is com-
patible with the formats listed in the following
table.
NOTE
Dual format (double-sided discs) such as
DVD Plus or CD-DVD are thicker than nor-
mal discs and may not play in your infotain-
ment system.
If a disc containing both CDDA and MP3
tracks is played, all MP3 tracks will be
ignored.
Audio
formatsCD-Audio, mp3, wma,
aac, m4a
Video for-
matsCD-Video, DVD-Video, divx,
avi, asf

05 Infotainment
AUX/USB sockets
05

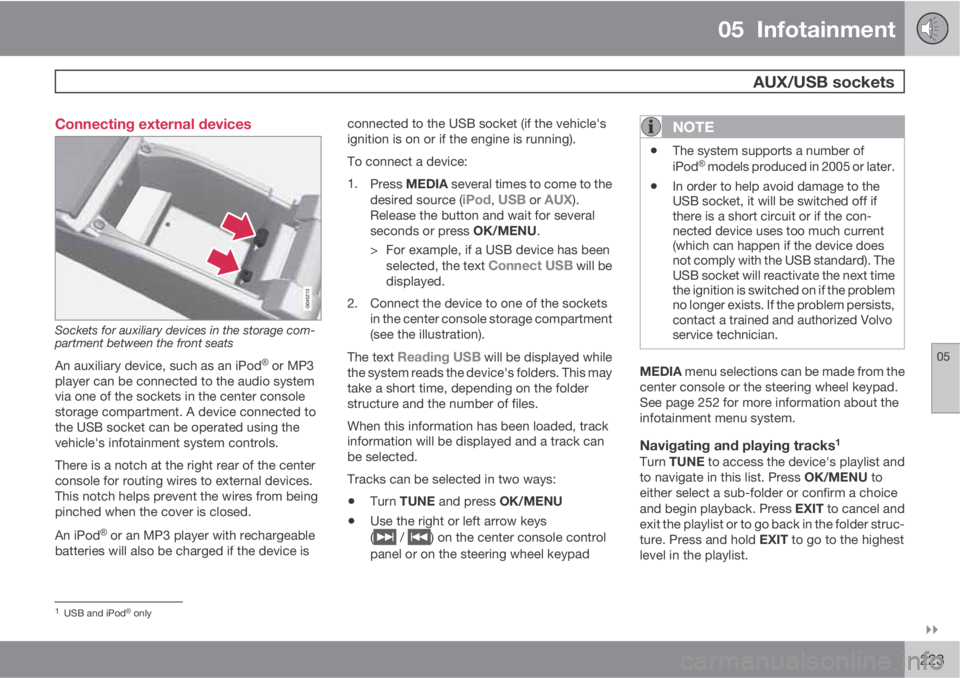

223 Connecting external devices
Sockets for auxiliary devices in the storage com-
partment between the front seats
An auxiliary device, such as an iPodŸ or MP3
player can be connected to the audio system
via one of the sockets in the center console
storage compartment. A device connected to
the USB socket can be operated using the
vehicle's infotainment system controls.
There is a notch at the right rear of the center
console for routing wires to external devices.
This notch helps prevent the wires from being
pinched when the cover is closed.
An iPod
Ÿ or an MP3 player with rechargeable
batteries will also be charged if the device isconnected to the USB socket (if the vehicle's
ignition is on or if the engine is running).
To connect a device:
1.
Press MEDIA several times to come to the
desired source (
iPod, USB or AUX).
Release the button and wait for several
seconds or press OK/MENU.
> For example, if a USB device has been
selected, the text
Connect USB will be
displayed.
2. Connect the device to one of the sockets
in the center console storage compartment
(see the illustration).
The text
Reading USB will be displayed while
the system reads the device's folders. This may
take a short time, depending on the folder
structure and the number of files.
When this information has been loaded, track
information will be displayed and a track can
be selected.
Tracks can be selected in two ways:
•Turn TUNE and press OK/MENU
•Use the right or left arrow keys
(
/ ) on the center console control
panel or on the steering wheel keypad
NOTE
•The system supports a number of
iPodŸ models produced in 2005 or later.
•In order to help avoid damage to the
USB socket, it will be switched off if
there is a short circuit or if the con-
nected device uses too much current
(which can happen if the device does
not comply with the USB standard). The
USB socket will reactivate the next time
the ignition is switched on if the problem
no longer exists. If the problem persists,
contact a trained and authorized Volvo
service technician.
MEDIA menu selections can be made from the
center console or the steering wheel keypad.
See page 252 for more information about the
infotainment menu system.
Navigating and playing tracks1
Turn TUNE to access the device's playlist and
to navigate in this list. Press OK/MENU to
either select a sub-folder or confirm a choice
and begin playback. Press EXIT to cancel and
exit the playlist or to go back in the folder struc-
ture. Press and hold EXIT to go to the highest
level in the playlist.
1USB and iPodŸ only

05 Infotainment
AUX/USB sockets
05
224

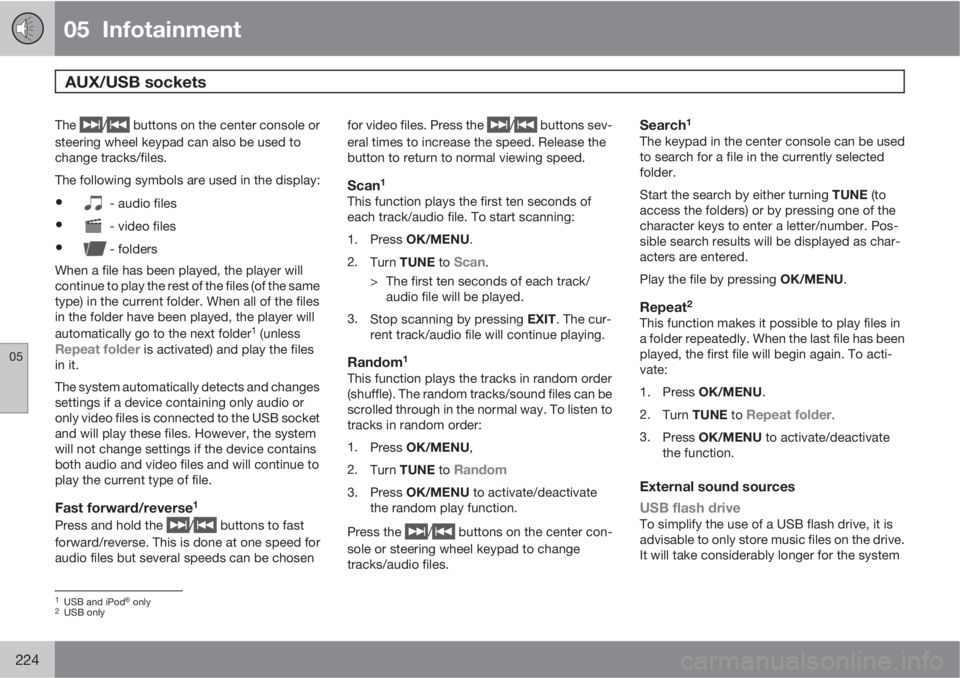

The / buttons on the center console or
steering wheel keypad can also be used to
change tracks/files.
The following symbols are used in the display:
•- audio files
•- video files
•- folders
When a file has been played, the player will
continue to play the rest of the files (of the same
type) in the current folder. When all of the files
in the folder have been played, the player will
automatically go to the next folder
1 (unlessRepeat folder is activated) and play the files
in it.
The system automatically detects and changes
settings if a device containing only audio or
only video files is connected to the USB socket
and will play these files. However, the system
will not change settings if the device contains
both audio and video files and will continue to
play the current type of file.
Fast forward/reverse1
Press and hold the / buttons to fast
forward/reverse. This is done at one speed for
audio files but several speeds can be chosenfor video files. Press the
/ buttons sev-
eral times to increase the speed. Release the
button to return to normal viewing speed.
Scan1
This function plays the first ten seconds of
each track/audio file. To start scanning:
1.
Press OK/MENU.
2.
Turn TUNE to
Scan.
> The first ten seconds of each track/
audio file will be played.
3.
Stop scanning by pressing EXIT. The cur-
rent track/audio file will continue playing.
Random1
This function plays the tracks in random order
(shuffle). The random tracks/sound files can be
scrolled through in the normal way. To listen to
tracks in random order:
1.
Press OK/MENU,
2.
Turn TUNE to
Random
3.
Press OK/MENU to activate/deactivate
the random play function.
Press the
/ buttons on the center con-
sole or steering wheel keypad to change
tracks/audio files.
Search1
The keypad in the center console can be used
to search for a file in the currently selected
folder.
Start the search by either turning TUNE (to
access the folders) or by pressing one of the
character keys to enter a letter/number. Pos-
sible search results will be displayed as char-
acters are entered.
Play the file by pressing OK/MENU.
Repeat2
This function makes it possible to play files in
a folder repeatedly. When the last file has been
played, the first file will begin again. To acti-
vate:
1.
Press OK/MENU.
2.
Turn TUNE to
Repeat folder.
3.
Press OK/MENU to activate/deactivate
the function.
External sound sources
USB flash drive
To simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
1USB and iPodŸ only2USB only

05 Infotainment
AUX/USB sockets
05
225

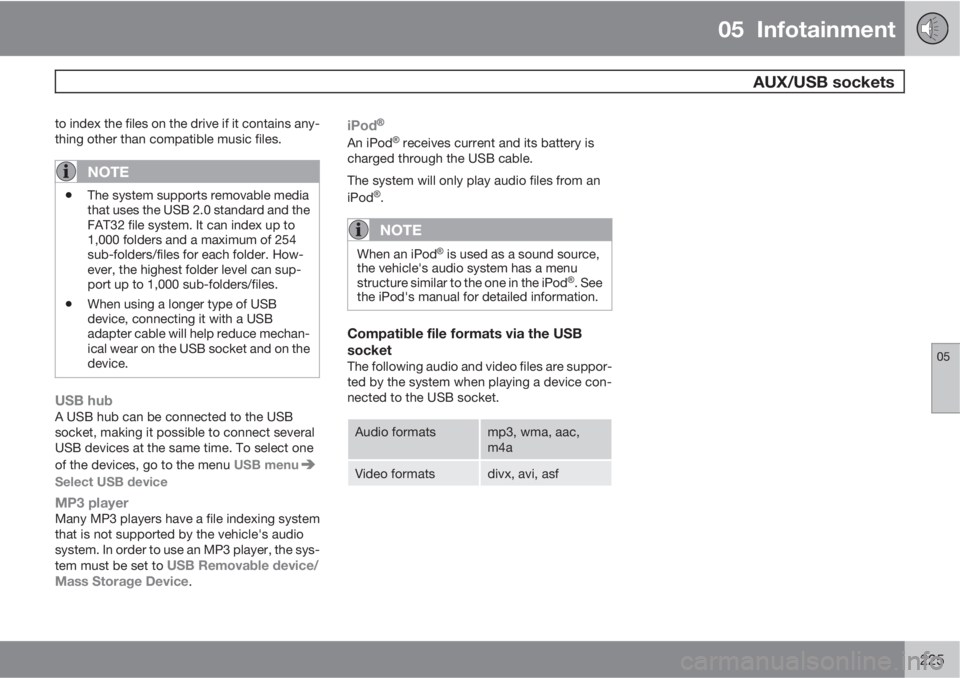

to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
•The system supports removable media
that uses the USB 2.0 standard and the
FAT32 file system. It can index up to
1,000 folders and a maximum of 254
sub-folders/files for each folder. How-
ever, the highest folder level can sup-
port up to 1,000 sub-folders/files.
•When using a longer type of USB
device, connecting it with a USB
adapter cable will help reduce mechan-
ical wear on the USB socket and on the
device.
USB hubA USB hub can be connected to the USB
socket, making it possible to connect several
USB devices at the same time. To select one
of the devices, go to the menu USB menu
Select USB device
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to
USB Removable device/
Mass Storage Device.
iPodŸ
An iPodŸ receives current and its battery is
charged through the USB cable.
The system will only play audio files from an
iPod
Ÿ.
NOTE
When an iPodŸ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPod
Ÿ. See
the iPod's manual for detailed information.
Compatible file formats via the USB
socket
The following audio and video files are suppor-
ted by the system when playing a device con-
nected to the USB socket.
Audio formatsmp3, wma, aac,
m4a
Video formatsdivx, avi, asf

05 Infotainment
BluetoothŸŸ media
05
226

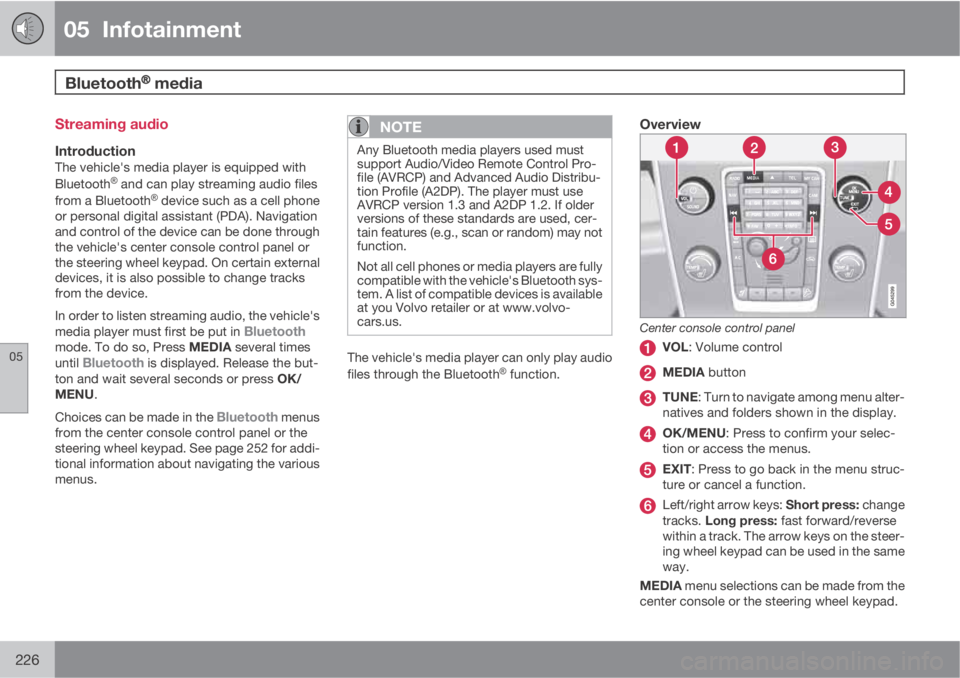

Streaming audio
IntroductionThe vehicle's media player is equipped with
BluetoothŸ and can play streaming audio files
from a BluetoothŸ device such as a cell phone
or personal digital assistant (PDA). Navigation
and control of the device can be done through
the vehicle's center console control panel or
the steering wheel keypad. On certain external
devices, it is also possible to change tracks
from the device.
In order to listen streaming audio, the vehicle's
media player must first be put in
Bluetoothmode. To do so, Press MEDIA several times
until Bluetooth is displayed. Release the but-
ton and wait several seconds or press OK/
MENU.
Choices can be made in the
Bluetooth menus
from the center console control panel or the
steering wheel keypad. See page 252 for addi-
tional information about navigating the various
menus.
NOTE
Any Bluetooth media players used must
support Audio/Video Remote Control Pro-
file (AVRCP) and Advanced Audio Distribu-
tion Profile (A2DP). The player must use
AVRCP version 1.3 and A2DP 1.2. If older
versions of these standards are used, cer-
tain features (e.g., scan or random) may not
function.
Not all cell phones or media players are fully
compatible with the vehicle's Bluetooth sys-
tem. A list of compatible devices is available
at you Volvo retailer or at www.volvo-
cars.us.
The vehicle's media player can only play audio
files through the BluetoothŸ function.
Overview
Center console control panel
VOL: Volume control
MEDIA button
TUNE: Turn to navigate among menu alter-
natives and folders shown in the display.
OK/MENU: Press to confirm your selec-
tion or access the menus.
EXIT: Press to go back in the menu struc-
ture or cancel a function.
Left/right arrow keys: Short press: change
tracks. Long press: fast forward/reverse
within a track. The arrow keys on the steer-
ing wheel keypad can be used in the same
way.
MEDIA menu selections can be made from the
center console or the steering wheel keypad.

05 Infotainment
BluetoothŸŸ media
05

227

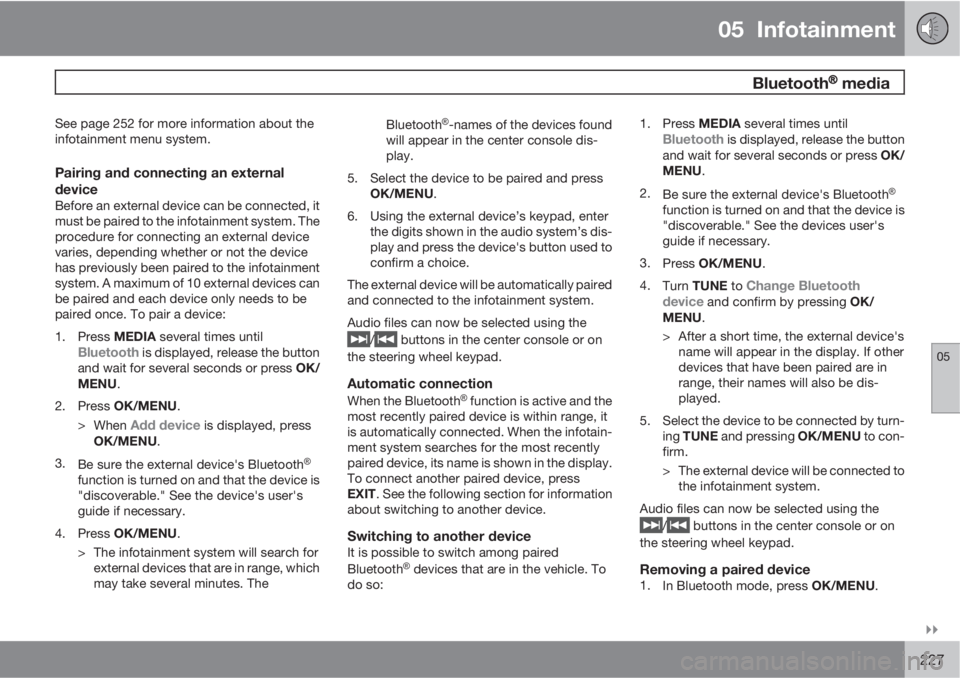

See page 252 for more information about the
infotainment menu system.
Pairing and connecting an external
device
Before an external device can be connected, it
must be paired to the infotainment system. The
procedure for connecting an external device
varies, depending whether or not the device
has previously been paired to the infotainment
system. A maximum of 10 external devices can
be paired and each device only needs to be
paired once. To pair a device:
1.
Press MEDIA several times until
Bluetooth is displayed, release the button
and wait for several seconds or press OK/
MENU.
2.
Press OK/MENU.
>
When
Add device is displayed, press
OK/MENU.
3.
Be sure the external device's Bluetooth
Ÿ
function is turned on and that the device is
"discoverable." See the device's user's
guide if necessary.
4.
Press OK/MENU.
> The infotainment system will search for
external devices that are in range, which
may take several minutes. TheBluetooth
Ÿ-names of the devices found
will appear in the center console dis-
play.
5. Select the device to be paired and press
OK/MENU.
6. Using the external device’s keypad, enter
the digits shown in the audio system’s dis-
play and press the device's button used to
confirm a choice.
The external device will be automatically paired
and connected to the infotainment system.
Audio files can now be selected using the
/ buttons in the center console or on
the steering wheel keypad.
Automatic connection
When the BluetoothŸ function is active and the
most recently paired device is within range, it
is automatically connected. When the infotain-
ment system searches for the most recently
paired device, its name is shown in the display.
To connect another paired device, press
EXIT. See the following section for information
about switching to another device.
Switching to another deviceIt is possible to switch among paired
BluetoothŸ devices that are in the vehicle. To
do so:1.
Press MEDIA several times until
Bluetooth is displayed, release the button
and wait for several seconds or press OK/
MENU.
2.
Be sure the external device's Bluetooth
Ÿ
function is turned on and that the device is
"discoverable." See the devices user's
guide if necessary.
3.
Press OK/MENU.
4.
Turn TUNE to
Change Bluetooth
device and confirm by pressing OK/
MENU.
> After a short time, the external device's
name will appear in the display. If other
devices that have been paired are in
range, their names will also be dis-
played.
5. Select the device to be connected by turn-
ing TUNE and pressing OK/MENU to con-
firm.
> The external device will be connected to
the infotainment system.
Audio files can now be selected using the
/ buttons in the center console or on
the steering wheel keypad.
Removing a paired device1.
In Bluetooth mode, press OK/MENU.

05 Infotainment
BluetoothŸŸ media
05
228

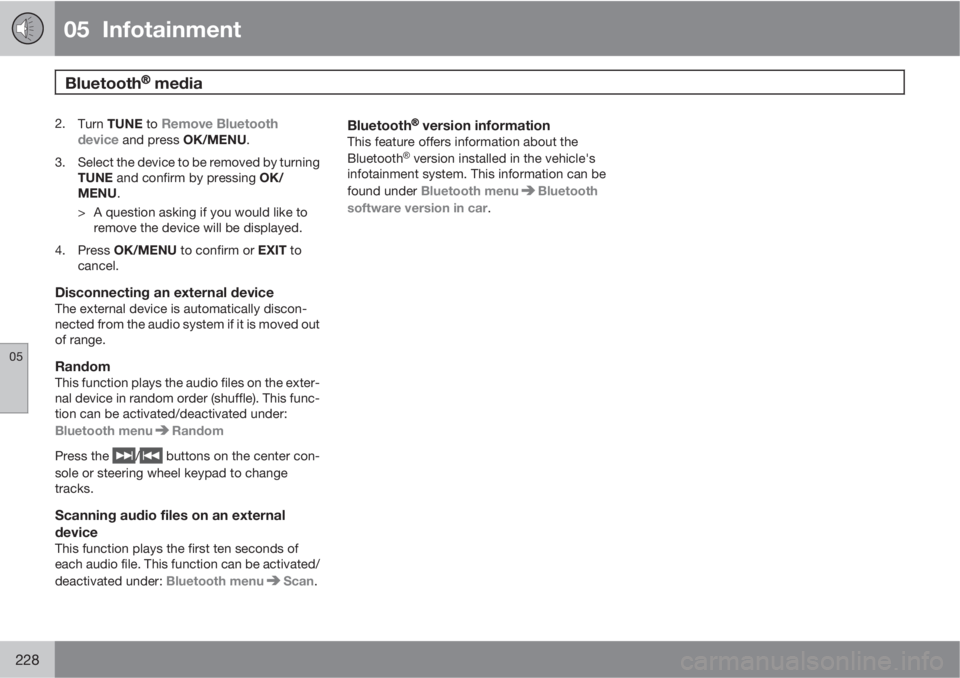

2.
Turn TUNE to Remove Bluetooth
device and press OK/MENU.
3. Select the device to be removed by turning
TUNE and confirm by pressing OK/
MENU.
> A question asking if you would like to
remove the device will be displayed.
4.
Press OK/MENU to confirm or EXIT to
cancel.
Disconnecting an external deviceThe external device is automatically discon-
nected from the audio system if it is moved out
of range.
RandomThis function plays the audio files on the exter-
nal device in random order (shuffle). This func-
tion can be activated/deactivated under:
Bluetooth menu
Random
Press the
/ buttons on the center con-
sole or steering wheel keypad to change
tracks.
Scanning audio files on an external
device
This function plays the first ten seconds of
each audio file. This function can be activated/
deactivated under: Bluetooth menu
Scan.
BluetoothŸ version informationThis feature offers information about the
BluetoothŸ version installed in the vehicle's
infotainment system. This information can be
found under Bluetooth menu
Bluetooth
software version in car.

05 Infotainment
Bluetooth® hands-free connection
05

229 Introduction
System overview
Cell phone
Location of the microphone
Steering wheel keypad
Center console control panel and display
Bluetooth® hands-freeThis feature makes it possible to set up a wire-
less connection between a BluetoothŸ-ena-
bled cell phone and the vehicle’s infotainment
system. This enables the infotainment system
to function as a hands-free connection and
allows you to remote-control a number of the
phone’s functions. The microphone used by
this system is located near the driver's side sun
visor (2). The buttons and other controls on thecell phone can always be used regardless of
whether or not the phone is connected to the
hands-free system.
TEL menu selections can be made from the
center console or the steering wheel keypad.
See page 252 for more information about the
infotainment menu system.
NOTE
Not all cell phones are fully compatible with
the hands-free system. A list of compatible
phones is available at your Volvo retailer or
at www.volvocars.us
WARNING
Never use the hands-free feature or any
other device in your vehicle in a way that
distracts you from the task of driving safely.
Distraction can lead to a serious accident.
Compliance
FCC/IC common sentence
This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject
to the following two conditions: (1) this device
may not cause interference, and (2) this device
must accept any interference, including inter-
ference that may cause undesired operation of
this device.USA: FCC ID A269ZUA130
FCC WARNING
Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
IC RSS-GenThis equipment complies with FCC/IC radia-
tion exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency
(RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency
(RF) Exposure rules. This equipment has very
low levels of RF energy that it deemed to com-
ply without maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated with at least
8 in. (20 cm) and more between the radiator
and person’s body (excluding extremities:
hands, wrists, feet and ankles).
Canada: IC 700BIAM2101

05 Infotainment
Bluetooth® hands-free connection
05
230

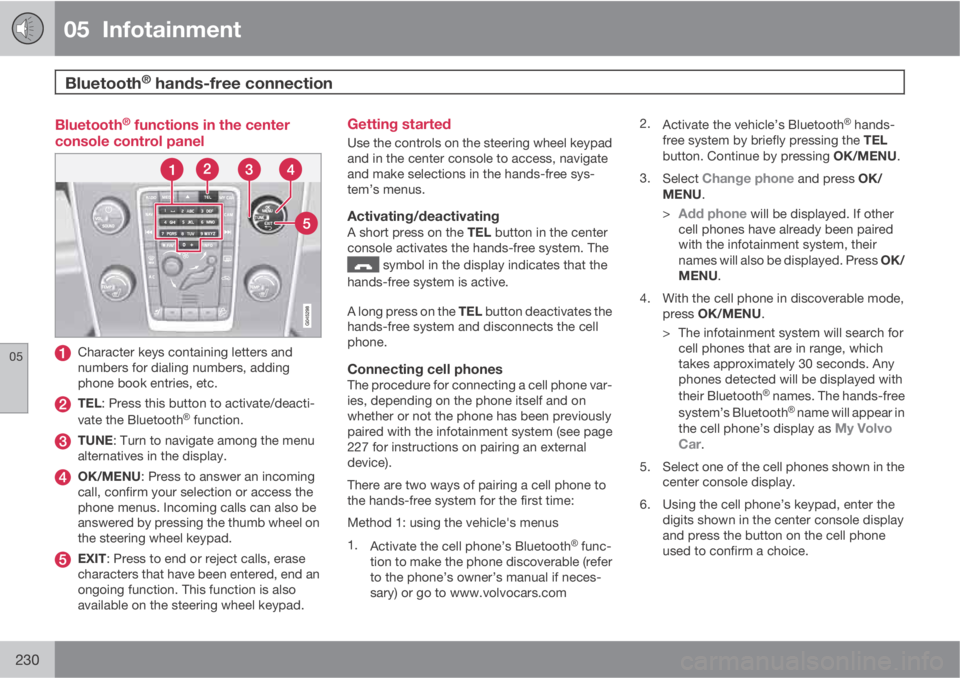

Bluetooth® functions in the center
console control panel
Character keys containing letters and
numbers for dialing numbers, adding
phone book entries, etc.
TEL: Press this button to activate/deacti-
vate the BluetoothŸ function.
TUNE: Turn to navigate among the menu
alternatives in the display.
OK/MENU: Press to answer an incoming
call, confirm your selection or access the
phone menus. Incoming calls can also be
answered by pressing the thumb wheel on
the steering wheel keypad.
EXIT: Press to end or reject calls, erase
characters that have been entered, end an
ongoing function. This function is also
available on the steering wheel keypad.
Getting started
Use the controls on the steering wheel keypad
and in the center console to access, navigate
and make selections in the hands-free sys-
tem’s menus.
Activating/deactivatingA short press on the TEL button in the center
console activates the hands-free system. The
symbol in the display indicates that the
hands-free system is active.
A long press on the TEL button deactivates the
hands-free system and disconnects the cell
phone.
Connecting cell phonesThe procedure for connecting a cell phone var-
ies, depending on the phone itself and on
whether or not the phone has been previously
paired with the infotainment system (see page
227 for instructions on pairing an external
device).
There are two ways of pairing a cell phone to
the hands-free system for the first time:
Method 1: using the vehicle's menus
1.
Activate the cell phone’s Bluetooth
Ÿ func-
tion to make the phone discoverable (refer
to the phone’s owner’s manual if neces-
sary) or go to www.volvocars.com2.
Activate the vehicle’s Bluetooth
Ÿ hands-
free system by briefly pressing the TEL
button. Continue by pressing OK/MENU.
3.
Select
Change phone and press OK/
MENU.
>
Add phone will be displayed. If other
cell phones have already been paired
with the infotainment system, their
names will also be displayed. Press OK/
MENU.
4. With the cell phone in discoverable mode,
press OK/MENU.
> The infotainment system will search for
cell phones that are in range, which
takes approximately 30 seconds. Any
phones detected will be displayed with
their Bluetooth
Ÿ names. The hands-free
system’s BluetoothŸ name will appear in
the cell phone’s display as My Volvo
Car.
5. Select one of the cell phones shown in the
center console display.
6. Using the cell phone’s keypad, enter the
digits shown in the center console display
and press the button on the cell phone
used to confirm a choice.
