VOLVO S80 2015 Owner´s Manual

10 Specifications
Specifications
10
}}
369

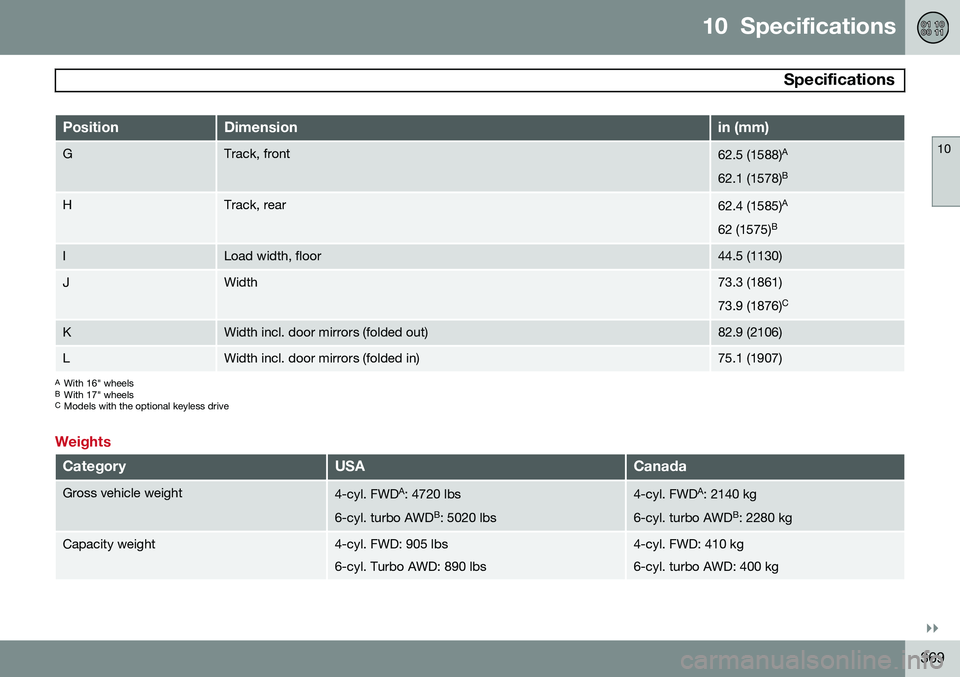

PositionDimensionin (mm)
GTrack, front62.5 (1588)A
62.1 (1578) B
HTrack, rear62.4 (1585)A
62 (1575) B
ILoad width, floor44.5 (1130)
JWidth73.3 (1861) 73.9 (1876) C
KWidth incl. door mirrors (folded out)82.9 (2106)
LWidth incl. door mirrors (folded in)75.1 (1907)
A
With 16" wheels
B With 17" wheels
C Models with the optional keyless drive
Weights
CategoryUSACanada
Gross vehicle weight4-cyl. FWD A
: 4720 lbs
6-cyl. turbo AWD B
: 5020 lbs4-cyl. FWD A
: 2140 kg
6-cyl. turbo AWD B
: 2280 kg
Capacity weight4-cyl. FWD: 905 lbs 6-cyl. Turbo AWD: 890 lbs4-cyl. FWD: 410 kg 6-cyl. turbo AWD: 400 kg

10 Specifications
Specifications
10
370

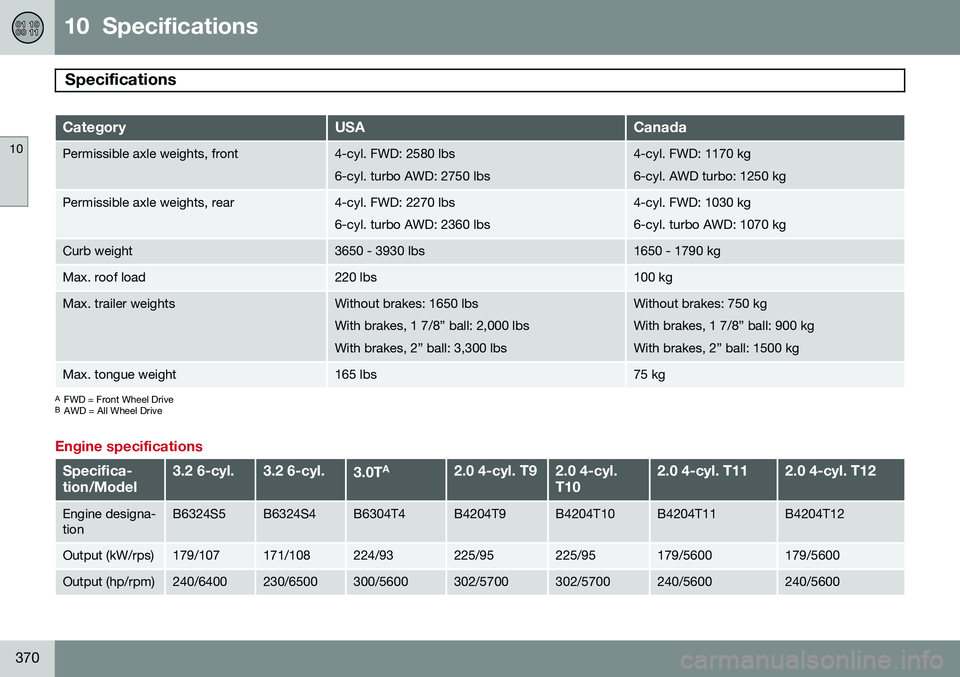

CategoryUSACanada
Permissible axle weights, front4-cyl. FWD: 2580 lbs 6-cyl. turbo AWD: 2750 lbs4-cyl. FWD: 1170 kg 6-cyl. AWD turbo: 1250 kg
Permissible axle weights, rear4-cyl. FWD: 2270 lbs 6-cyl. turbo AWD: 2360 lbs4-cyl. FWD: 1030 kg 6-cyl. turbo AWD: 1070 kg
Curb weight3650 - 3930 lbs1650 - 1790 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel Drive
B AWD = All Wheel Drive
Engine specifications
Specifica- tion/Model3.2 6-cyl.3.2 6-cyl.3.0T A2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Engine designa- tionB6324S5B6324S4B6304T4B4204T9B4204T10B4204T11B4204T12
Output (kW/rps)179/107171/108224/93225/95225/95179/5600179/5600
Output (hp/rpm)240/6400230/6500300/5600302/5700302/5700240/5600240/5600

10 Specifications
Specifications
10
}}
371

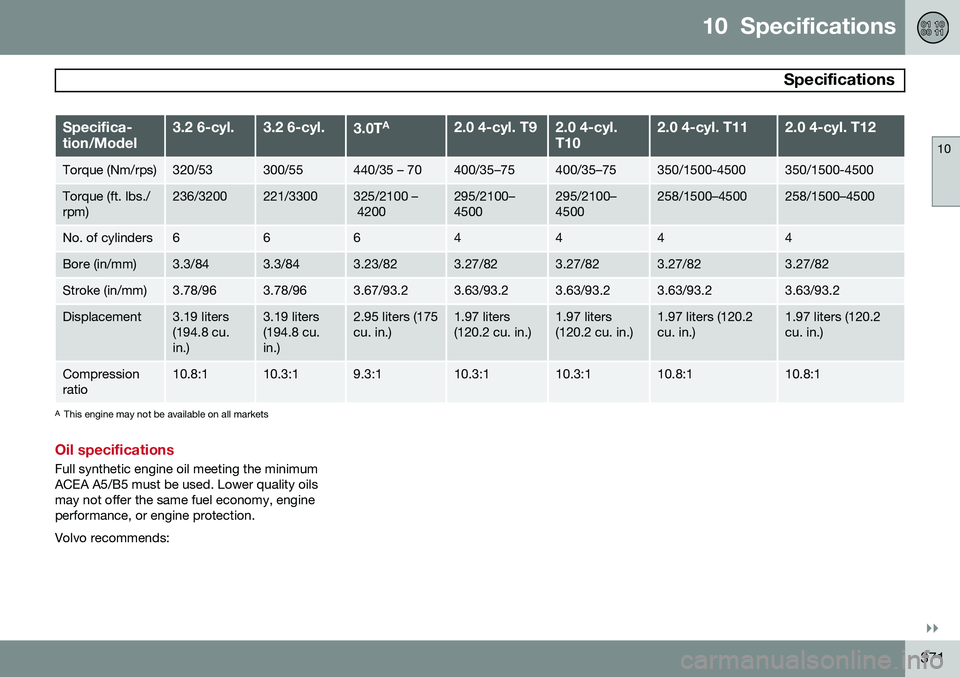

Specifica- tion/Model3.2 6-cyl.3.2 6-cyl.3.0TA2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Torque (Nm/rps)320/53300/55440/35 – 70400/35–75400/35–75350/1500-4500350/1500-4500
Torque (ft. lbs./ rpm)236/3200221/3300325/2100 – 4200295/2100– 4500295/2100– 4500258/1500–4500258/1500–4500
No. of cylinders6664444
Bore (in/mm)3.3/843.3/843.23/823.27/823.27/823.27/823.27/82
Stroke (in/mm)3.78/963.78/963.67/93.23.63/93.23.63/93.23.63/93.23.63/93.2
Displacement3.19 liters (194.8 cu.in.)3.19 liters (194.8 cu.in.)2.95 liters (175 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio10.8:110.3:19.3:110.3:110.3:110.8:110.8:1
A
This engine may not be available on all markets
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:

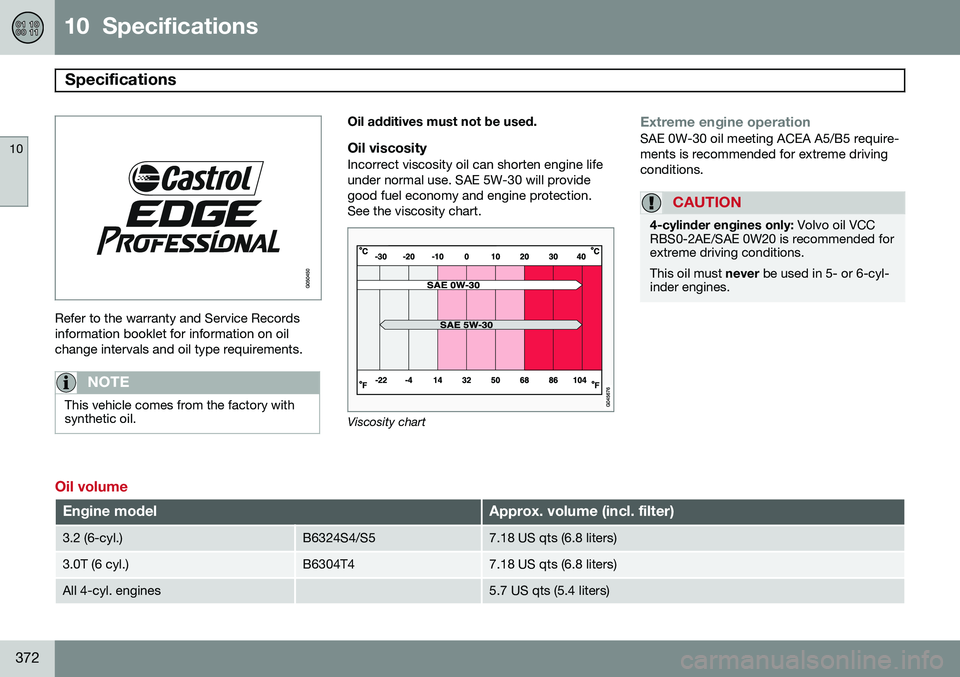

10 Specifications
Specifications
10
372
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cyl-
inder engines.
Oil volume
Engine modelApprox. volume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)

10 Specifications
Specifications
10
}}
373

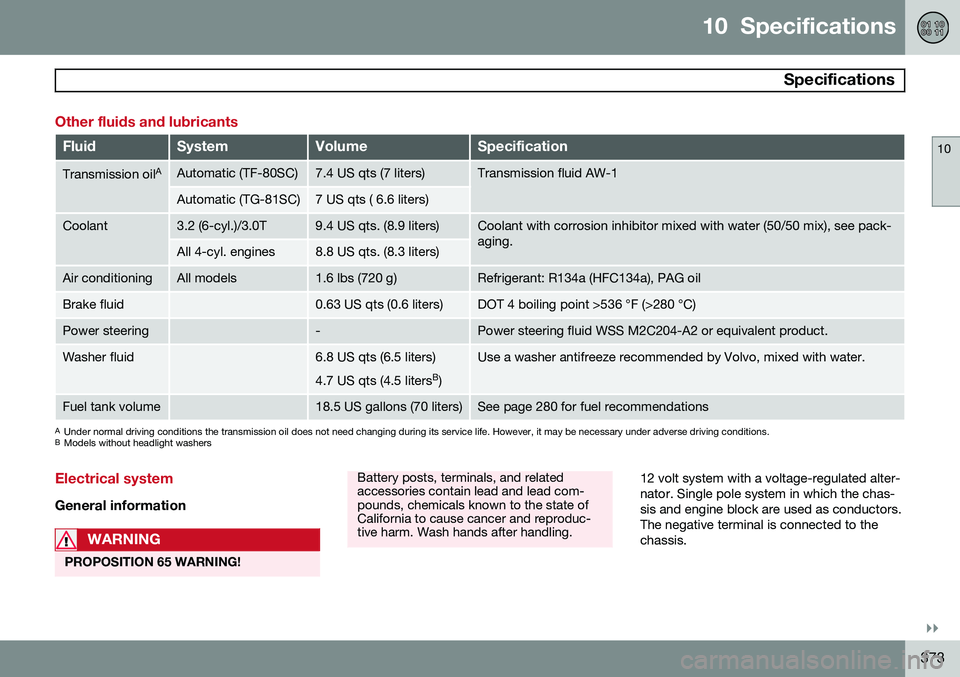

Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Automatic (TG-81SC)7 US qts ( 6.6 liters)
Coolant3.2 (6-cyl.)/3.0T9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see pack- aging.
All 4-cyl. engines8.8 US qts. (8.3 liters)
Air conditioningAll models1.6 lbs (720 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)
Power steering-Power steering fluid WSS M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 liters B
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume18.5 US gallons (70 liters)See page 280 for fuel recommendations
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers
Electrical system
General information
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.

10 Specifications
Specifications
10
374* Option/accessory, for more information, see Introduction.

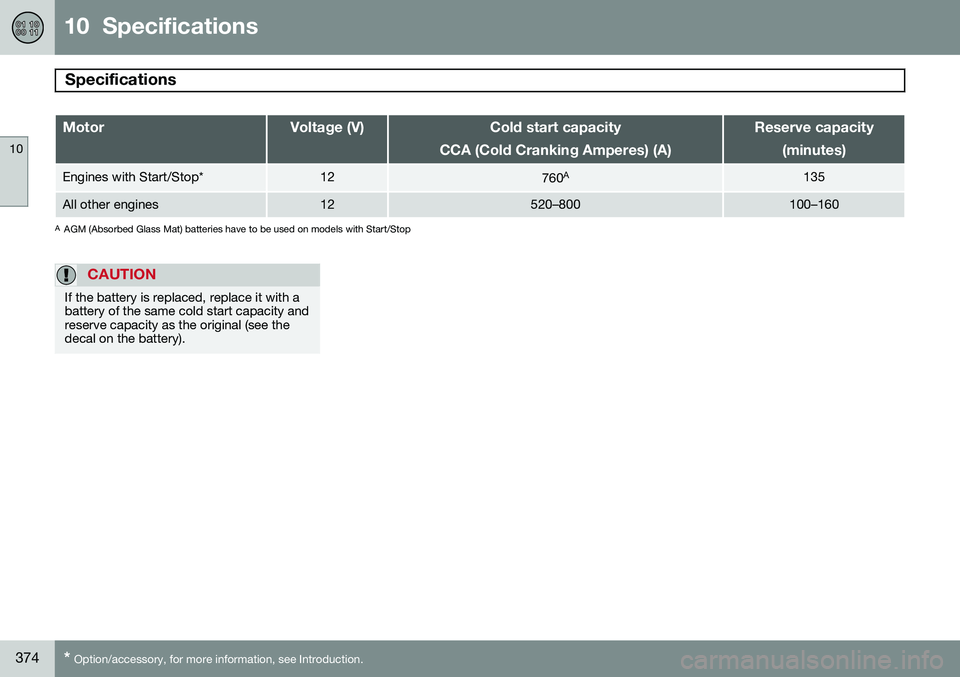

MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)Reserve capacity (minutes)
Engines with Start/Stop*12760A135
All other engines12520–800100–160
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop
CAUTION
If the battery is replaced, replace it with a battery of the same cold start capacity andreserve capacity as the original (see thedecal on the battery).

10 Specifications
Overview of information and warning symbols
10
}}
* Option/accessory, for more information, see Introduction.375

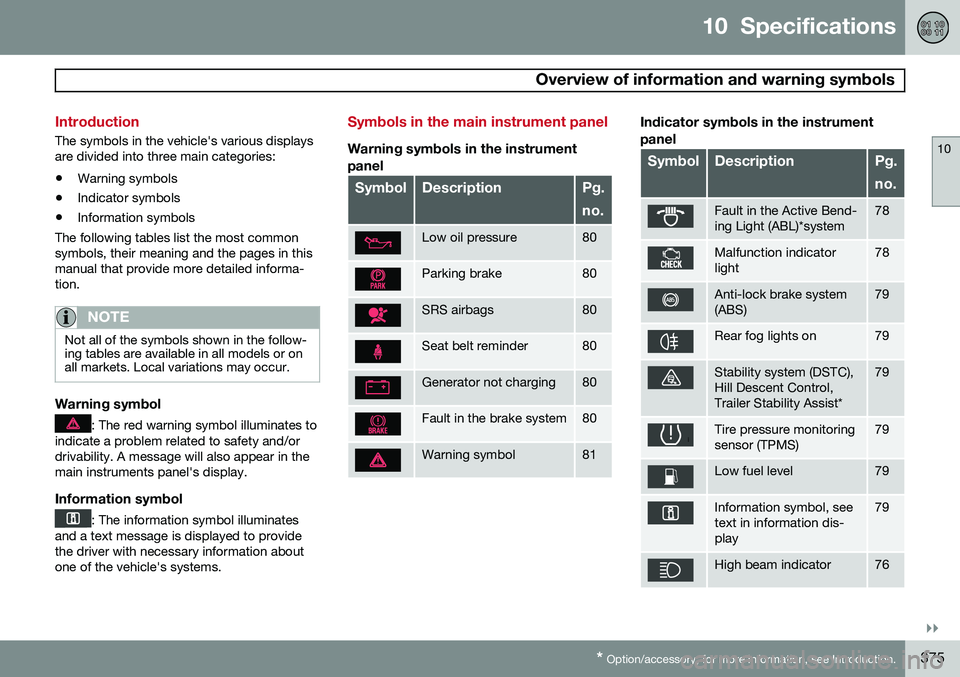

Introduction
The symbols in the vehicle's various displays are divided into three main categories:
• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the follow- ing tables are available in all models or onall markets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates
and a text message is displayed to provide the driver with necessary information aboutone of the vehicle's systems.
Symbols in the main instrument panel
Warning symbols in the instrument
panel
SymbolDescriptionPg. no.
Low oil pressure80
Parking brake80
SRS airbags80
Seat belt reminder80
Generator not charging80
Fault in the brake system80
Warning symbol81
Indicator symbols in the instrument panel
SymbolDescriptionPg. no.
Fault in the Active Bend- ing Light (ABL)*system78
Malfunction indicator light78
Anti-lock brake system (ABS)79
Rear fog lights on79
Stability system (DSTC), Hill Descent Control,Trailer Stability Assist*79
Tire pressure monitoring sensor (TPMS)79
Low fuel level79
Information symbol, see text in information dis-play79
High beam indicator76

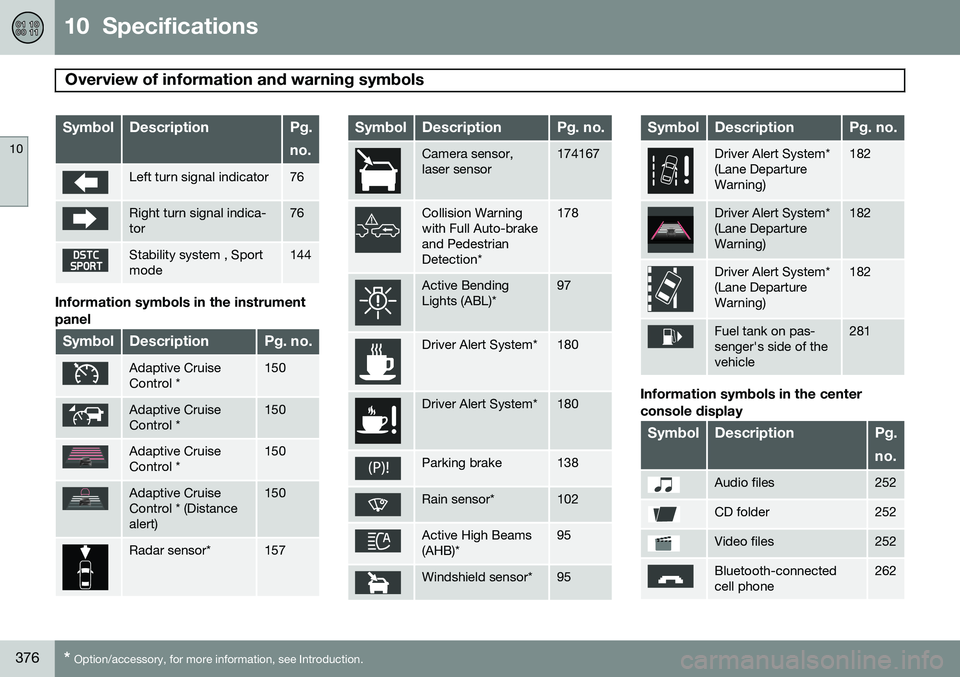

10 Specifications
Overview of information and warning symbols
10
376* Option/accessory, for more information, see Introduction.
SymbolDescriptionPg. no.
Left turn signal indicator76
Right turn signal indica- tor76
Stability system , Sport mode144
Information symbols in the instrument panel
SymbolDescriptionPg. no.
Adaptive Cruise Control *150
Adaptive Cruise Control *150
Adaptive Cruise Control *150
Adaptive Cruise Control * (Distancealert)150
Radar sensor*157
SymbolDescriptionPg. no.
Camera sensor, laser sensor174167
Collision Warning with Full Auto-brakeand PedestrianDetection*178
Active Bending Lights (ABL)*97
Driver Alert System*180
Driver Alert System*180
Parking brake138
Rain sensor*102
Active High Beams (AHB)*95
Windshield sensor*95
SymbolDescriptionPg. no.
Driver Alert System* (Lane DepartureWarning)182
Driver Alert System* (Lane DepartureWarning)182
Driver Alert System* (Lane DepartureWarning)182
Fuel tank on pas- senger's side of thevehicle281
Information symbols in the center console display
SymbolDescriptionPg. no.
Audio files252
CD folder252
Video files252
Bluetooth-connected cell phone262

10 Specifications
Overview of information and warning symbols
10
* Option/accessory, for more information, see Introduction.377

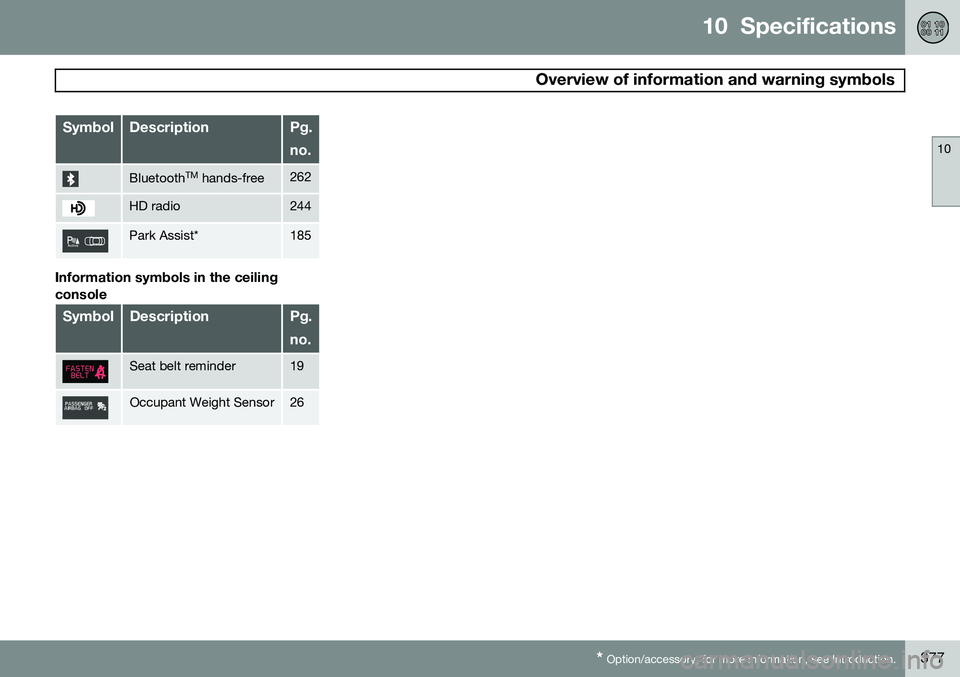

SymbolDescriptionPg. no.
Bluetooth TM
hands-free262
HD radio244
Park Assist*185
Information symbols in the ceiling console
SymbolDescriptionPg. no.
Seat belt reminder19
Occupant Weight Sensor26

10 Specifications
Volvo programs
10
378

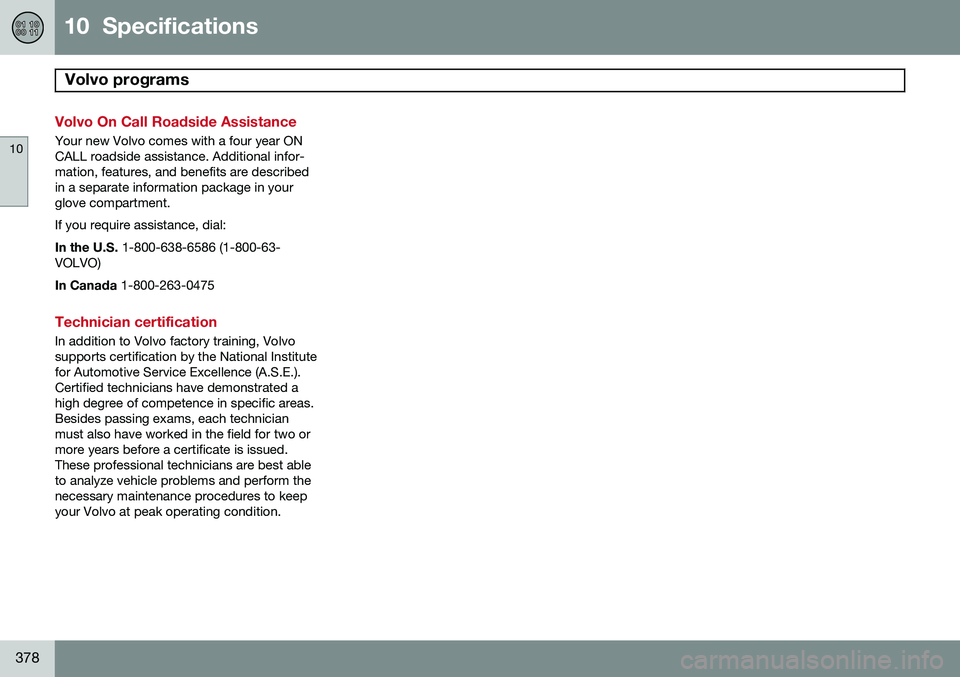

Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional infor-mation, features, and benefits are describedin a separate information package in yourglove compartment. If you require assistance, dial:In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institutefor Automotive Service Excellence (A.S.E.).Certified technicians have demonstrated ahigh degree of competence in specific areas.Besides passing exams, each technicianmust also have worked in the field for two ormore years before a certificate is issued.These professional technicians are best ableto analyze vehicle problems and perform thenecessary maintenance procedures to keepyour Volvo at peak operating condition.
