VOLVO S90 2018 Owner´s Manual

AUDIO, MEDIA AND INTERNET
}}
479
•
Connecting a phone to the car via Bluetooth automatically (p. 481)
• Connecting a phone to the car via Bluetoothmanually (p. 481)
• Disconnecting a Bluetooth-connected phone(p. 482)
• Switch between phones connected via Blue-tooth (p. 482)
• Removing a Bluetooth-connected phone(p. 483)
• Phone settings (p. 486)
• Voice control (p. 143)
• Handling the App menu in the instrumentpanel (p. 101)
• Sound settings (p. 444)
• Connecting the car to the Internet via amobile device (Bluetooth) (p. 489)
Connecting a phone to the car viaBluetooth for the first time
Pair a Bluetooth-enabled phone to the vehicle to make calls, send/receive text messages andwirelessly play media from the vehicle, or con-nect the vehicle to the Internet.
Two Bluetooth devices can be connected at the same time, but in that case, only one will be usedfor wireless playback. The most recently pairedphone will be automatically connected to makecalls, send/receive text messages, play media oruse as an Internet connection. To change whatthe phone is used for when it is paired, go to
Bluetooth Devices settings.
After the device has been connected/registered for the first time via Bluetooth, the device nolonger needs to be visible/searchable. It justneeds to have Bluetooth activated. To connectthe vehicle to the Internet using a phone, thephone's Wi-Fi sharing function (personal hot-spot/tethering) must be activated. A maximum of20 paired Bluetooth devices can be stored in thevehicle. There are two ways to pair a phone to the vehicle. Searching for the phone from the vehicle orsearching for the vehicle from the phone.
Option 1 - searching for the phone from the vehicle
1. Make the phone discoverable/visible using its Bluetooth function. 2. To connect the vehicle to the Internet via the
phone's Bluetooth function, activate Internetsharing (tethering/personal hotspot) viaBluetooth in the phone.
3. Open the phone tile.
•If no phone has been paired to the vehi- cle, tap
Add phone.
• If a phone has been paired to the vehicle, tap
Change. Tap Add phone in the
pop-up window.
> A list of available Bluetooth devices will be displayed. The list will be updated as new devices are discovered.
4. Tap the name of the phone you would like to connect.
5. Make sure that the code displayed in the vehicle matches the one in the phone. Con-firm the code in both cases.
6. In the phone, accept or cancel the options for selecting the phone's contacts and textmessages.
NOTE
• The message function must be activated in certain phones.
• Not all cell phones are fully compatibleand may not be able to display contactsand messages in the vehicle.

||
AUDIO, MEDIA AND INTERNET
480
Option 2 - searching for the vehicle from the phone
1. Open the phone tile.•If no phone has been paired to the vehi- cle, tap
Add phoneMake vehicle
discoverable.
• If a phone has been paired to the vehicle, tap
Change. Tap Add phoneMake vehicle discoverable in the pop-
up window.
2. Activate Bluetooth in the phone.
3. To connect the vehicle to the Internet via the phone's Bluetooth function, activate Internet sharing (tethering/personal hotspot) viaBluetooth in the phone.
4. Search in the phone for Bluetooth devices. > A list of available Bluetooth devices will bedisplayed.
5. Select the vehicle's name from the list of devices in the phone.
6. A pop-up window for the connection is shown in the car. Confirm the connection.
7. Make sure that the code displayed in the vehicle matches the one in the externaldevice. Confirm the code in both cases.
8. In the phone, accept or cancel the options for selecting the phone's contacts and textmessages.
NOTE
• The message function must be activated in certain phones.
• Not all cell phones are fully compatibleand may not be able to display contactsand messages in the vehicle.
NOTE
If the phone's operating system is being updated, it is possible that the connection willbe interrupted. Delete the phone from the carand reconnect.
Compatible phonesMany cellular phones on the market currently offer wireless Bluetooth technology, but not allphones are fully compatible with the vehicle. Foradditional information on compatibility, seesupport.volvocars.com.
Related information
•Phone (p. 478)
• Connecting a phone to the car via Bluetoothautomatically (p. 481)
• Connecting a phone to the car via Bluetoothmanually (p. 481)
• Disconnecting a Bluetooth-connected phone(p. 482) •
Switch between phones connected via Blue-tooth (p. 482)
• Removing a Bluetooth-connected phone(p. 483)
• Settings for Bluetooth devices (p. 487)
• Connecting the car to the Internet via amobile device (Bluetooth) (p. 489)

AUDIO, MEDIA AND INTERNET
}}
481
Connecting a phone to the car viaBluetooth automatically
A phone can be automatically connected to the vehicle via Bluetooth. The phone must have firstbeen paired with the vehicle.
Only the two most recently connected phones can be connected automatically.
1. Activate Bluetooth in the phone before turn- ing the vehicle's ignition to mode I.
To simultaneously connect the vehicle to the Internet, the phone's personal hotspot mustalso be activated.
2. Turn the ignition to I or higher.
> The phone will be connected.
Related information
• Phone (p. 478)
• Connecting a phone to the car via Bluetoothfor the first time (p. 479)
• Connecting a phone to the car via Bluetoothmanually (p. 481)
• Disconnecting a Bluetooth-connected phone(p. 482)
• Switch between phones connected via Blue-tooth (p. 482)
• Removing a Bluetooth-connected phone(p. 483)
• Settings for Bluetooth devices (p. 487) •
Connecting the car to the Internet via amobile device (Bluetooth) (p. 489)
• Ignition modes (p. 397)
Connecting a phone to the car viaBluetooth manually
A phone can be manually connected to the vehi- cle via Bluetooth. The phone must have firstbeen paired with the vehicle.
1. Activate Bluetooth in the phone.
To simultaneously connect the vehicle to the Internet, the phone's personal hotspot mustalso be activated.
2. Open the phone tile. > A list of available phones will be displayed.
3. Tap the name of the phone you would like to connect.
> The phone will be connected.
Related information
• Phone (p. 478)
• Connecting a phone to the car via Bluetooth for the first time (p. 479)
• Connecting a phone to the car via Bluetoothautomatically (p. 481)
• Disconnecting a Bluetooth-connected phone(p. 482)
• Switch between phones connected via Blue-tooth (p. 482)
• Removing a Bluetooth-connected phone(p. 483)

AUDIO, MEDIA AND INTERNET
482•
Settings for Bluetooth devices (p. 487)
• Connecting the car to the Internet via a
mobile device (Bluetooth) (p. 489)

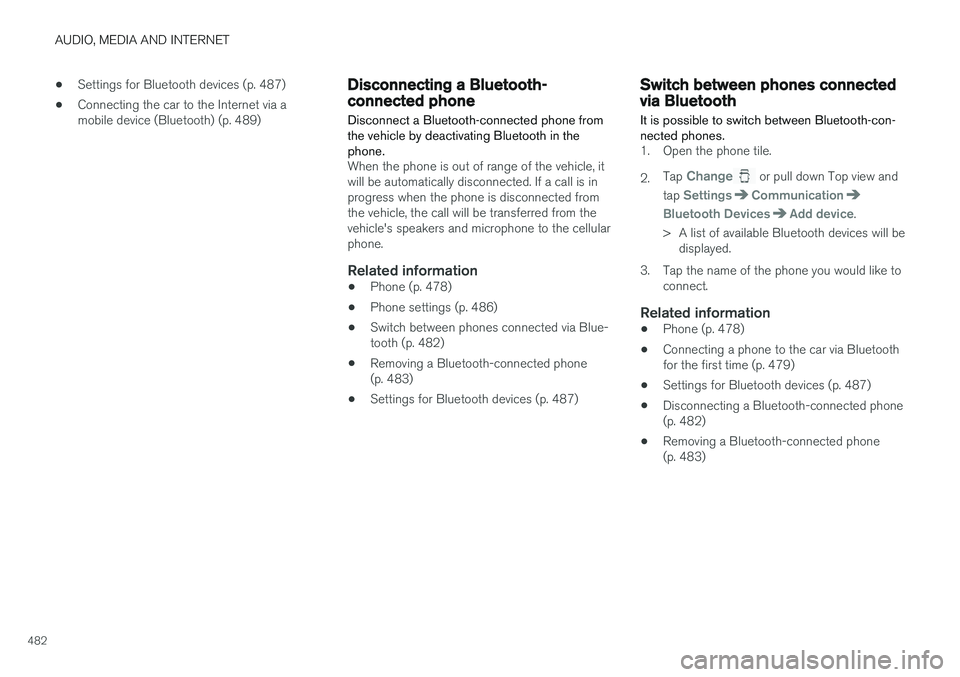

Disconnecting a Bluetooth-connected phone Disconnect a Bluetooth-connected phone from the vehicle by deactivating Bluetooth in thephone.
When the phone is out of range of the vehicle, it will be automatically disconnected. If a call is inprogress when the phone is disconnected fromthe vehicle, the call will be transferred from thevehicle's speakers and microphone to the cellularphone.
Related information
•Phone (p. 478)
• Phone settings (p. 486)
• Switch between phones connected via Blue-tooth (p. 482)
• Removing a Bluetooth-connected phone(p. 483)
• Settings for Bluetooth devices (p. 487)
Switch between phones connectedvia Bluetooth
It is possible to switch between Bluetooth-con- nected phones.
1. Open the phone tile. 2. Tap
Change or pull down Top view and
tap
SettingsCommunication
Bluetooth DevicesAdd device.
> A list of available Bluetooth devices will be displayed.
3. Tap the name of the phone you would like to connect.
Related information
• Phone (p. 478)
• Connecting a phone to the car via Bluetooth for the first time (p. 479)
• Settings for Bluetooth devices (p. 487)
• Disconnecting a Bluetooth-connected phone(p. 482)
• Removing a Bluetooth-connected phone(p. 483)

AUDIO, MEDIA AND INTERNET
}}
483
Removing a Bluetooth-connectedphone
Phones in the list of registered Bluetooth devi- ces can be removed.
1. Tap Settings in the Top view.
2. Tap
CommunicationBluetooth
Devices.
> A list of registered Bluetooth devices is displayed.
3. Tap the name of the phone you would like to remove.
4. Tap
Remove device and confirm.
> The phone is no longer registered in the vehicle.
Related information
• Phone (p. 478)
• Connecting a phone to the car via Bluetooth for the first time (p. 479)
• Disconnecting a Bluetooth-connected phone(p. 482)
• Switch between phones connected via Blue-tooth (p. 482)
• Settings for Bluetooth devices (p. 487)
Handling phone calls Handling phone calls in the vehicle for a Bluetooth-connected cellular phone.
Generic illustration.
Making calls1. Open the phone tile.
2. Initiate a call by selecting the phone number
from the recent calls list, entering the num- ber on the keypad or selecting a numberfrom the phone book (list of contacts). Youcan search or scroll to find a contact in the phone book. Tap
in the phone book to
add a contact to Favorites.
3. Tap
.
4. Tap
to end the call. Calls can also be made from the list of recent calls using the app menu, which can be opened using the
button on the right-side steering
wheel keypad.
Making multiple calls
While the call is in progress: 1. Tap
Add call.
2. Select from the list of recent calls, favorites or contacts.
3. Tap an item/row in the list of recent calls or
for the contact in the phone book.
4. Tap
Swap call to switch between calls.
5. Tap
to end the current call.
Group (conference) calls
While multiple calls are in progress: 1.
Tap
Join calls to merge ongoing calls.
2. Tap
to end the call.
Incoming callsIncoming phone calls will be shown on the instru- ment panel and in the center display. Manage thecalls using the right-side steering wheel keypador the center display. 1.
Tap
Answer/Reject.
2. Tap
to end the call.

||
AUDIO, MEDIA AND INTERNET
484
Incoming calls while another call is in
progress
1.Tap Answer/Reject.
2. Tap
to end the call.
Privacy
–While a call is in progress, tap Privacy and
select setting:
•
Switch to mobile phone - the hands-
free function will be disabled and the call will proceed on the cellular phone.
•
Driver focused - the microphone in the
ceiling liner on the passenger side will be muted and the call will proceed using thevehicle's hands-free function.
Related information
• Phone (p. 478)
• Connecting a phone to the car via Bluetoothfor the first time (p. 479)
• Voice control for cellular phones (p. 145)
• Handling the App menu in the instrumentpanel (p. 101)
• Entering characters, letters and words byhand in the center display (p. 127)
• Managing the phone book (p. 485)
• Handling text messages (p. 484)
• Sound settings (p. 444)
Handling text messages
A Bluetooth-connected cellular phone's text messages can be handled in the vehicle.
Text message functionality needs to be activated in certain phones. Not all phones are fully com-patible and therefore cannot display contacts andmessages in the vehicle. For additional informa-tion on compatibility, see support.volvocars.com.
Handling text messages in the center
display
Text messages are only shown in the center dis-play if the relevant setting is made.
Tap
Messages in App view to
handle text messages in the center display.
NOTE
When the vehicle is moving:
• Only one row of the message will be dis- played. Tap
Read out to have the entire
message read aloud.
• The center display's keyboard cannot be used.
Reading text messages in the center display
Tap the icon to have the message read aloud.
Sending text messages in the center
display11
1. It is possible to reply to text messages or
create a new message.
• To reply to a text message - tap the name of the contact who sent the message and then tap
Answer.
• To create a new message - tap
Create
new. Select a contact or enter a phone
number.
2. Write the message. 3. Tap
Send.
Handling test messages in the instrument panel
Text messages are only shown in the instrument panel if the relevant setting is made.
Reading new text messages in the
instrument panel
–To have the message read aloud, selectRead out using the steering wheel keypad.
11
Only certain phones can send messages via the vehicle. For additional information on compatibility, see support.volvocars.com.

AUDIO, MEDIA AND INTERNET
}}
* Option/accessory.485

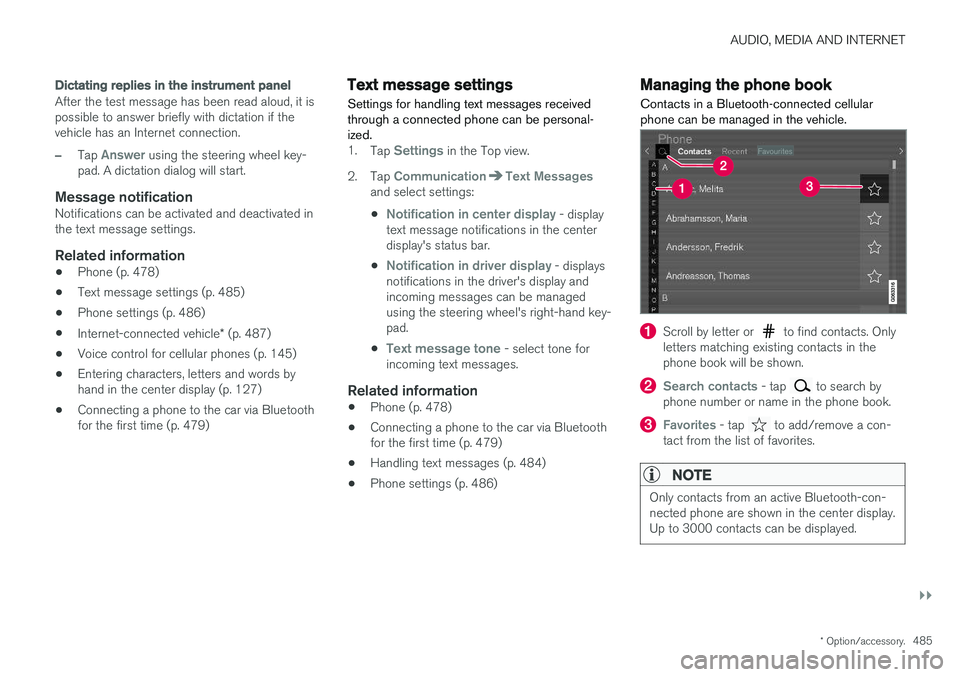

Dictating replies in the instrument panel
After the test message has been read aloud, it is possible to answer briefly with dictation if thevehicle has an Internet connection.
–Tap Answer using the steering wheel key-
pad. A dictation dialog will start.
Message notificationNotifications can be activated and deactivated in the text message settings.
Related information
• Phone (p. 478)
• Text message settings (p. 485)
• Phone settings (p. 486)
• Internet-connected vehicle
* (p. 487)
• Voice control for cellular phones (p. 145)
• Entering characters, letters and words byhand in the center display (p. 127)
• Connecting a phone to the car via Bluetoothfor the first time (p. 479)
Text message settings
Settings for handling text messages received through a connected phone can be personal-ized.
1. Tap Settings in the Top view.
2. Tap
CommunicationText Messagesand select settings: •
Notification in center display - display
text message notifications in the center display's status bar.
•
Notification in driver display - displays
notifications in the driver's display and incoming messages can be managedusing the steering wheel's right-hand key-pad.
•
Text message tone - select tone for
incoming text messages.
Related information
• Phone (p. 478)
• Connecting a phone to the car via Bluetooth for the first time (p. 479)
• Handling text messages (p. 484)
• Phone settings (p. 486)
Managing the phone book
Contacts in a Bluetooth-connected cellular phone can be managed in the vehicle.
Scroll by letter or to find contacts. Only
letters matching existing contacts in the phone book will be shown.
Search contacts - tap to search by
phone number or name in the phone book.
Favorites - tap to add/remove a con-
tact from the list of favorites.
NOTE
Only contacts from an active Bluetooth-con- nected phone are shown in the center display.Up to 3000 contacts can be displayed.

||
AUDIO, MEDIA AND INTERNET
* Option/accessory.
486

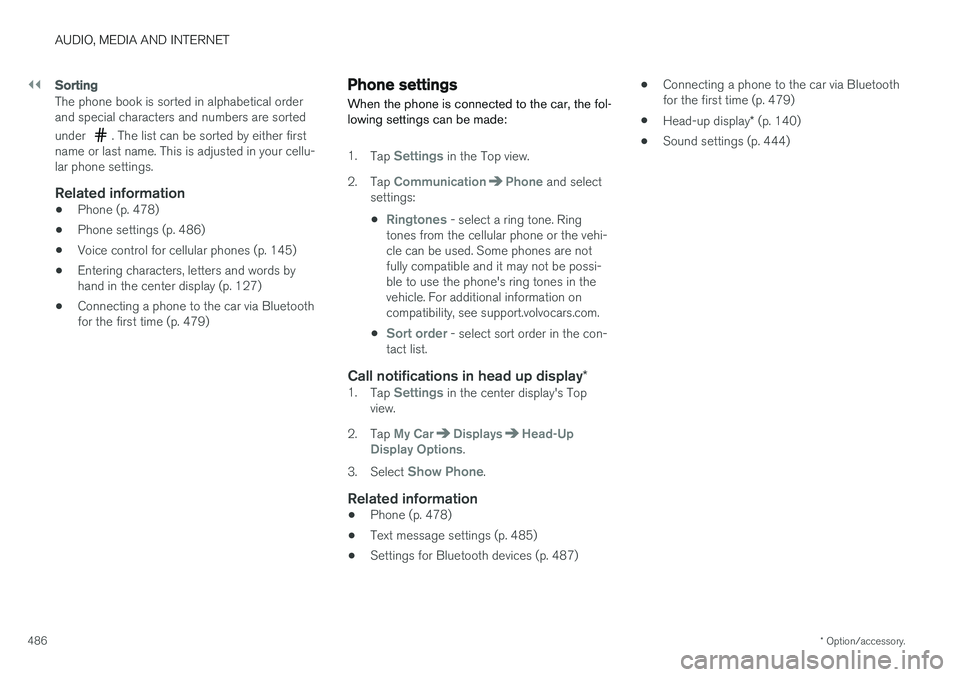

Sorting
The phone book is sorted in alphabetical order and special characters and numbers are sorted under
. The list can be sorted by either first
name or last name. This is adjusted in your cellu- lar phone settings.
Related information
• Phone (p. 478)
• Phone settings (p. 486)
• Voice control for cellular phones (p. 145)
• Entering characters, letters and words byhand in the center display (p. 127)
• Connecting a phone to the car via Bluetoothfor the first time (p. 479)
Phone settings
When the phone is connected to the car, the fol- lowing settings can be made:
1. Tap Settings in the Top view.
2. Tap
CommunicationPhone and select
settings:
•
Ringtones - select a ring tone. Ring
tones from the cellular phone or the vehi- cle can be used. Some phones are notfully compatible and it may not be possi-ble to use the phone's ring tones in thevehicle. For additional information oncompatibility, see support.volvocars.com.
•
Sort order - select sort order in the con-
tact list.
Call notifications in head up display *1.
Tap Settings in the center display's Top
view.
2. Tap
My CarDisplaysHead-Up
Display Options.
3. Select
Show Phone.
Related information
• Phone (p. 478)
• Text message settings (p. 485)
• Settings for Bluetooth devices (p. 487) •
Connecting a phone to the car via Bluetooth for the first time (p. 479)
• Head-up display
* (p. 140)
• Sound settings (p. 444)

AUDIO, MEDIA AND INTERNET
}}
* Option/accessory.487
Settings for Bluetooth devices
Settings for Bluetooth-connected devices.
1. Tap Settings in the Top view.
2. Tap
CommunicationBluetooth
Devices and select settings:
•
Add device - start the procedure for pairing
a new device.
•
Previously paired devices - list con-
nected/paired devices.
•
Remove device - remove a connected
device.
•
Allowed services for this device - select
what the device will be used for: making calls, sending/receiving messages, stream-ing media, Internet connection.
•
Internet connection connect the vehicle to
the Internet using the device's Bluetooth connection.
Bluetooth ®
declaration of conformityUSA FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equip-ment. This transmitter must not be co-located oroperated in conjunction with any other antennaor transmitter. Canada This device complies with Industry Canada license-exempt RSS standard(s). Operation issubject to the following two conditions: (1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesiredoperation of the device.
Related information
•
Phone (p. 478)
• Phone settings (p. 486)
• Internet-connected vehicle
* (p. 487)
• Connecting a phone to the car via Bluetoothfor the first time (p. 479)
Internet-connected vehicle
*
When the vehicle is connected to the Internet, it is possible to use web radio and music servicesvia apps, download software and contact retail-ers from the vehicle.
The vehicle can be connected to the Internet using Bluetooth, Wi-Fi or the vehicle's integratedmodem.

||
AUDIO, MEDIA AND INTERNET

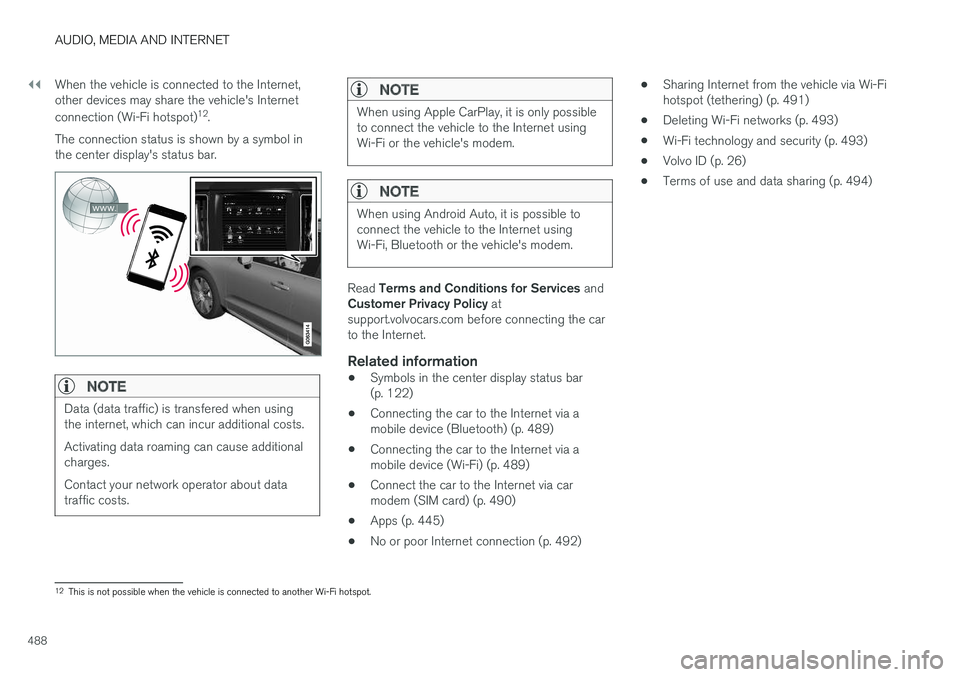

488When the vehicle is connected to the Internet, other devices may share the vehicle's Internet connection (Wi-Fi hotspot)
12
.
The connection status is shown by a symbol in the center display's status bar.
NOTE
Data (data traffic) is transfered when using the internet, which can incur additional costs. Activating data roaming can cause additional charges. Contact your network operator about data traffic costs.
NOTE
When using Apple CarPlay, it is only possible to connect the vehicle to the Internet usingWi-Fi or the vehicle's modem.
NOTE
When using Android Auto, it is possible to connect the vehicle to the Internet usingWi-Fi, Bluetooth or the vehicle's modem.
Read Terms and Conditions for Services and
Customer Privacy Policy at
support.volvocars.com before connecting the car to the Internet.
Related information
• Symbols in the center display status bar(p. 122)
• Connecting the car to the Internet via amobile device (Bluetooth) (p. 489)
• Connecting the car to the Internet via amobile device (Wi-Fi) (p. 489)
• Connect the car to the Internet via carmodem (SIM card) (p. 490)
• Apps (p. 445)
• No or poor Internet connection (p. 492) •
Sharing Internet from the vehicle via Wi-Fihotspot (tethering) (p. 491)
• Deleting Wi-Fi networks (p. 493)
• Wi-Fi technology and security (p. 493)
• Volvo ID (p. 26)
• Terms of use and data sharing (p. 494)
12
This is not possible when the vehicle is connected to another Wi-Fi hotspot.
