VOLVO S90 2018 Owner´s Manual

SPECIFICATIONS
619

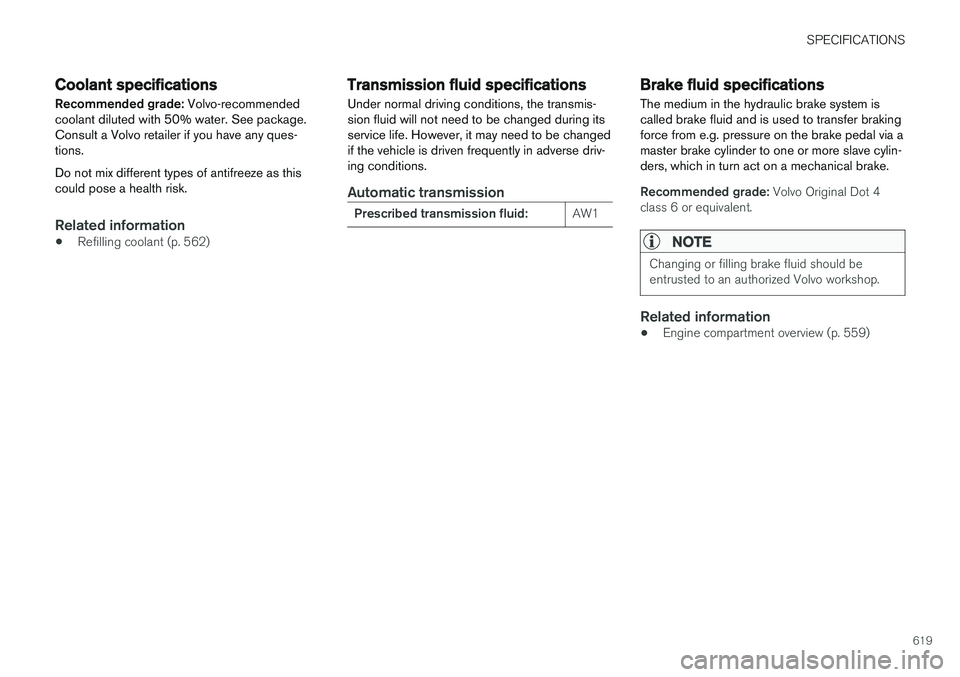

Coolant specifications
Recommended grade: Volvo-recommended
coolant diluted with 50% water. See package. Consult a Volvo retailer if you have any ques-tions. Do not mix different types of antifreeze as this could pose a health risk.
Related information
• Refilling coolant (p. 562)
Transmission fluid specifications
Under normal driving conditions, the transmis- sion fluid will not need to be changed during itsservice life. However, it may need to be changedif the vehicle is driven frequently in adverse driv-ing conditions.
Automatic transmission
Prescribed transmission fluid: AW1
Brake fluid specifications The medium in the hydraulic brake system is called brake fluid and is used to transfer brakingforce from e.g. pressure on the brake pedal via amaster brake cylinder to one or more slave cylin-ders, which in turn act on a mechanical brake.
Recommended grade:
Volvo Original Dot 4
class 6 or equivalent.
NOTE
Changing or filling brake fluid should be entrusted to an authorized Volvo workshop.
Related information
• Engine compartment overview (p. 559)

SPECIFICATIONS
620

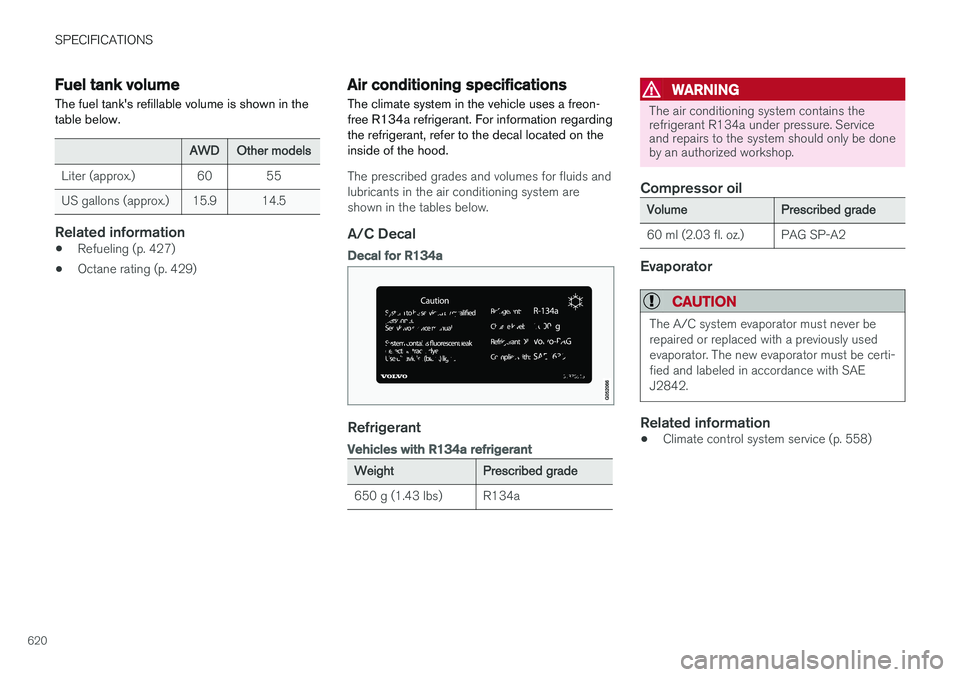

Fuel tank volumeThe fuel tank's refillable volume is shown in the table below.
AWDOther models
Liter (approx.) 60 55
US gallons (approx.) 15.9 14.5
Related information
• Refueling (p. 427)
• Octane rating (p. 429)
Air conditioning specifications
The climate system in the vehicle uses a freon- free R134a refrigerant. For information regardingthe refrigerant, refer to the decal located on theinside of the hood.
The prescribed grades and volumes for fluids and lubricants in the air conditioning system areshown in the tables below.
A/C Decal
Decal for R134a
Refrigerant
Vehicles with R134a refrigerant
WeightPrescribed grade
650 g (1.43 lbs) R134a
WARNING
The air conditioning system contains the refrigerant R134a under pressure. Serviceand repairs to the system should only be doneby an authorized workshop.
Compressor oil
VolumePrescribed grade
60 ml (2.03 fl. oz.) PAG SP-A2
Evaporator
CAUTION
The A/C system evaporator must never be repaired or replaced with a previously usedevaporator. The new evaporator must be certi-fied and labeled in accordance with SAEJ2842.
Related information
• Climate control system service (p. 558)

SPECIFICATIONS
621

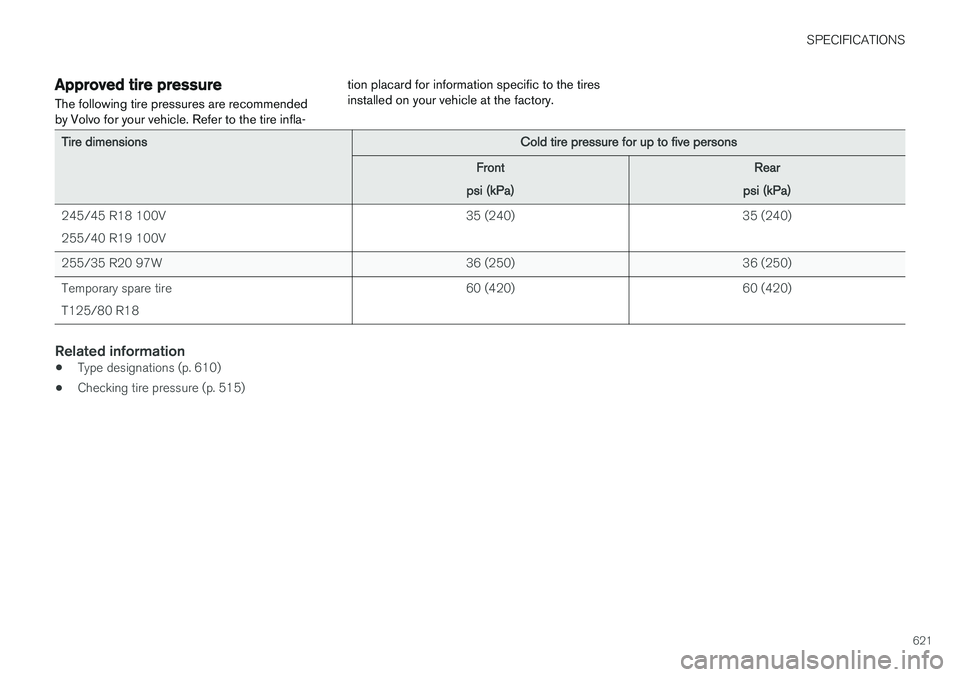

Approved tire pressureThe following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire dimensionsCold tire pressure for up to five persons
Front
psi (kPa)
Rear
psi (kPa)
245/45 R18 100V 255/40 R19 100V 35 (240)
35 (240)
255/35 R20 97W 36 (250)36 (250)
Temporary spare tireT125/80 R18 60 (420)
60 (420)
Related information
•Type designations (p. 610)
• Checking tire pressure (p. 515)

INDEX
623
1, 2, 3 ...
4WD 413
A
ABSanti-lock brakes 399
AC (Air conditioning) 224
ACC - Adaptive Cruise Control 284, 287, 288, 289, 290, 291, 293, 294, 295, 296, 298
Accessories and extra equipment 35 installation 36
Accessory installation warning 36
Active Bending Lights 157
Adapting driving characteristics 262, 413
Adaptive Cruise Control 284, 287, 288, 289, 290, 291, 293, 294, 295, 296, 298
change cruise control functionality 296
function 284
manage speed 288, 289
pass 293
radar sensor 315
set time interval 290, 291
troubleshooting 295
Adjusting the steering wheel 193
Airbag 52 activation/deactivation 56
driver's side 53
passenger side 53, 56
Air bag, see Airbag 52
Air conditioning 224Air conditioning, fluid volume and grade 620
Air distribution 201 air vents 201, 203
changing 202
defrosting 217
recirculation 216
table showing options 205
Air quality 199, 200 allergy and asthma 200
passenger compartment filter 201
Air recirculation 216
Alarm 257 deactivating 258
Allergy and asthma-inducing substances 200
All Wheel Drive, AWD 413
All Wheel Drive (AWD) 413
All Wheel Drive (four-wheel drive) 413
Android Auto 476, 478 Antenna location 247Apple CarPlay 473, 475
Approach lighting 160
Apps 445
Assistance at risk of collision 361, 362, 363, 364, 365, 366, 367, 369
Audio and media 444Audio system HD digital radio 455 SiriusXM ® Satellite radio 456, 457, 458
Auto-climate 215
Auto hold 405
Auto-hold brakes 405 activate and deactivate 406
after collision 407
Automatic car wash 598 Automatic engine stop auto-stop 418
Automatic high beam 155
Automatic locking 251
Automatic relocking 231, 244
Automatic Speed Limiter 271, 273, 274
Automatic transmission 408 kickdown 412
oil 619
INDEX

INDEX
624
B
Backrestfront seat, adjusting 184, 185, 188, 189 , 190
rear seat, adjusting 192
Battery jump-start 433
Maintenance 573
start 573
support 576
symbols on the battery 577
warning symbols 577
BLIS 337, 338, 339, 340 Blower adjusting 220, 221
air distribution 202
air vents 203
Bluetooth connect 471
connecting vehicle to Internet 489
phone 478
settings 487
Book service and repair 552
Booster cushions 71Brake assist after collision 407
Brake fluidgrade 619
Brake functions 398
Brake light 159
Brakes 399 anti-lock brakes, ABS 399
automatic when stationary 405
Brake Assist System, BAS 400
brake lights 159
brake system 398
emergency brake lights 159
handbrake 401
Maintenance 401
on salted roads 401
on wet roads 400
brake system fluid 619
C
Camera sensor 333
Camera unit 320
Capacity weight 536, 615
Cargo compartment 543
attachment points 545
Car wash 595, 596, 598, 599, 600, 601
Catalytic converter 431 recovery 434
CD player 469
Cell phone, see Phone 479
Center console 539Center display change appearance 129
cleaning 590
climate controls 208
Function view 120
keyboard 124
messages 138, 139, 140
operation 110, 113, 117, 122
overview 107
settings 130, 131, 132
switch off and change volume 129
symbols in status bar 122
views 113
Central locking 247
Change of owner 132
Changing a wheel 522
Checking engine oil level 561
Child restraints 63, 65 booster cushions 71
convertible seats 69
infant seats 67
ISOFIX/LATCH anchors 74
lower attachment points 73

INDEX
625
recalls and registration 65
top tether anchors 72
Child safety 63
Child safety locks 250
City Safety 324, 325, 327, 328, 333, 335
City Safety in crossing traffic 330, 331City Safety when evasive maneuver preven- ted 332
Cleaning 592, 594, 595 automatic car wash 598
car wash 595, 596, 598, 599, 600, 601
center display 590
Seat belts 592
textile upholstery 590, 592, 593
upholstery 590, 592, 593, 594, 595
wheels 601
Cleaning wheels 601
Cleaning wiper blades 599
Clean Zone 199
Clean Zone Interior Package 200
Climate 196 auto-regulation 215
blower control 220, 221
perceived temperature 197
Sensors 197
temperature control 222, 223, 224
voice control 198
zones 196
Climate controls 208 center display 208
rear seat 208
Climate system 196, 208 Refrigerant 620
repairs 558
Clock, setting 90
Collision 42, 47, 52, 61 Collision warner detection of pedestrians 328
radar sensor 315
Collision warning 324, 336
Color code, paintwork 603
Color codes 603
Compass 441 calibration 441
Condensation in headlights 596, 598, 599, 600
Connecting vehicle to Internet No connection or poor connection 492
via a mobile device (WiFi) 489
via mobile device (Bluetooth) 489
via vehicle's modem 490
Connect phone 479
Contact information 26Convertible seats 69
coolant 619
Coolant, filling 562Cooling system overheating 431
Cornering illumination 158
Corner Traction Control 264
Corrosion protection 601
Crash, see Collision 42
Crash event data 33
Cross Traffic Alert – CTA 342, 343, 344, 345
Cruise control 275, 276 manage speed 276, 277
temporary deactivation 278, 279
turn off 279
CTA – Cross Traffic Alert 342, 343, 344, 345
Curb weight 615
CZIP (Clean Zone Interior Package) 200
D
Data recording 33 transferring between vehicle and work-
shop 550
Data sharing 494

INDEX

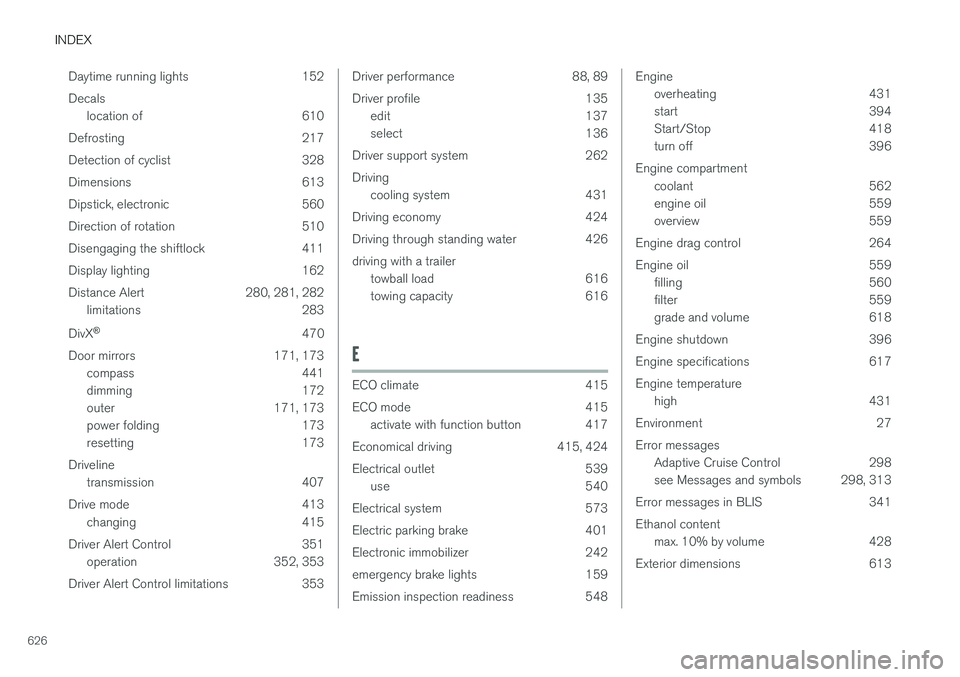

626Daytime running lights 152 Decals
location of 610
Defrosting 217
Detection of cyclist 328
Dimensions 613
Dipstick, electronic 560
Direction of rotation 510
Disengaging the shiftlock 411
Display lighting 162
Distance Alert 280, 281, 282 limitations 283
DivX ®
470
Door mirrors 171, 173 compass 441
dimming 172
outer 171, 173
power folding 173
resetting 173
Driveline transmission 407
Drive mode 413 changing 415
Driver Alert Control 351 operation 352, 353
Driver Alert Control limitations 353
Driver performance 88, 89
Driver profile 135 edit 137
select 136
Driver support system 262 Driving cooling system 431
Driving economy 424
Driving through standing water 426 driving with a trailer towball load 616
towing capacity 616
E
ECO climate 415
ECO mode 415activate with function button 417
Economical driving 415, 424
Electrical outlet 539 use 540
Electrical system 573
Electric parking brake 401
Electronic immobilizer 242
emergency brake lights 159
Emission inspection readiness 548
Engine overheating 431
start 394
Start/Stop 418
turn off 396
Engine compartment coolant 562
engine oil 559
overview 559
Engine drag control 264
Engine oil 559 filling 560
filter 559
grade and volume 618
Engine shutdown 396
Engine specifications 617 Engine temperature high 431
Environment 27Error messages Adaptive Cruise Control 298
see Messages and symbols 298, 313
Error messages in BLIS 341 Ethanol content max. 10% by volume 428
Exterior dimensions 613

INDEX
627

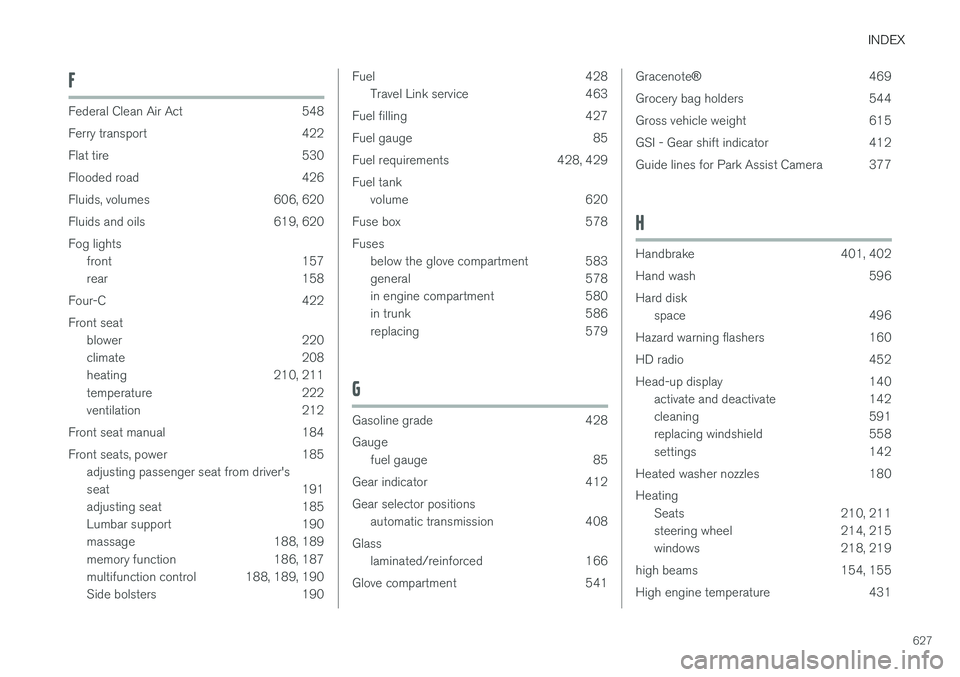

F
Federal Clean Air Act 548
Ferry transport 422
Flat tire 530
Flooded road 426
Fluids, volumes 606, 620
Fluids and oils 619, 620 Fog lightsfront 157
rear 158
Four-C 422 Front seat blower 220
climate 208
heating 210, 211
temperature 222
ventilation 212
Front seat manual 184
Front seats, power 185 adjusting passenger seat from driver's
seat 191
adjusting seat 185
Lumbar support 190
massage 188, 189
memory function 186, 187
multifunction control 188, 189, 190
Side bolsters 190
Fuel 428Travel Link service 463
Fuel filling 427
Fuel gauge 85
Fuel requirements 428, 429Fuel tank volume 620
Fuse box 578Fuses below the glove compartment 583
general 578
in engine compartment 580
in trunk 586
replacing 579
G
Gasoline grade 428 Gauge
fuel gauge 85
Gear indicator 412Gear selector positions automatic transmission 408
Glass laminated/reinforced 166
Glove compartment 541
Gracenote ® 469
Grocery bag holders 544
Gross vehicle weight 615
GSI - Gear shift indicator 412
Guide lines for Park Assist Camera 377
H
Handbrake 401, 402
Hand wash 596Hard disk space 496
Hazard warning flashers 160
HD radio 452
Head-up display 140 activate and deactivate 142
cleaning 591
replacing windshield 558
settings 142
Heated washer nozzles 180 Heating Seats 210, 211
steering wheel 214, 215
windows 218, 219
high beams 154, 155
High engine temperature 431

INDEX
628Hill Start Assist 406
Hill Start Assist (HSA) 406
Hoisting the vehicle 555 HomeLink ® 437
programming 438
use 439
HomeLink ® remote control
programmable 437
Home safe lighting 160
Honk 192
Hood, opening 557
Horn 192
I
IAQS (Interior Air Quality System) 200
IC (Inflatable Curtain) 60
ID, Volvo 26
Identification number 38
Ignition mode 397, 398
Immobilizer 242 Electronic immobilizer 242
Indicator symbols 91
Individual drive mode 413
Infant seats 67
Inflatable curtain 60
Inflatable Curtain 60
Inflating tires 535Inflation pressure adjusting 516
Checking 515
recommended 517
Inflation pressure monitoring 517 action 521
Status 520
Inflation pressure table 621
Information display 80, 84
Infotainment (Audio and media) 444
Instrument cluster 80 settings 84
Instrument illumination 162
Instrument lighting 162Instrument panel App menu 100, 101
messages 102
Instruments and controls 78 Instruments overview left-hand drive vehicle 78
IntelliSafe driver support 28
Interior Air Quality System 200Intermittent wiping 179
Internet, see Internet-connected vehicle 487
Internet-connected vehicle 487 book service and repair 552
No connection or poor connection 492
send car data 554
system updates 551
iPod ®, connecting 472
ISOFIX/LATCH anchors 74
J
Jack 523
Jump-start 433
K
Key 229
Keyboard 124, 127 change language 127
Keyless locking/unlocking 244
settings 246
touch-sensitive surfaces 243
Key tag 229
