VOLVO S90 2018 Owner´s Manual

S P E C I F I C A T I O N S

SPECIFICATIONS
610

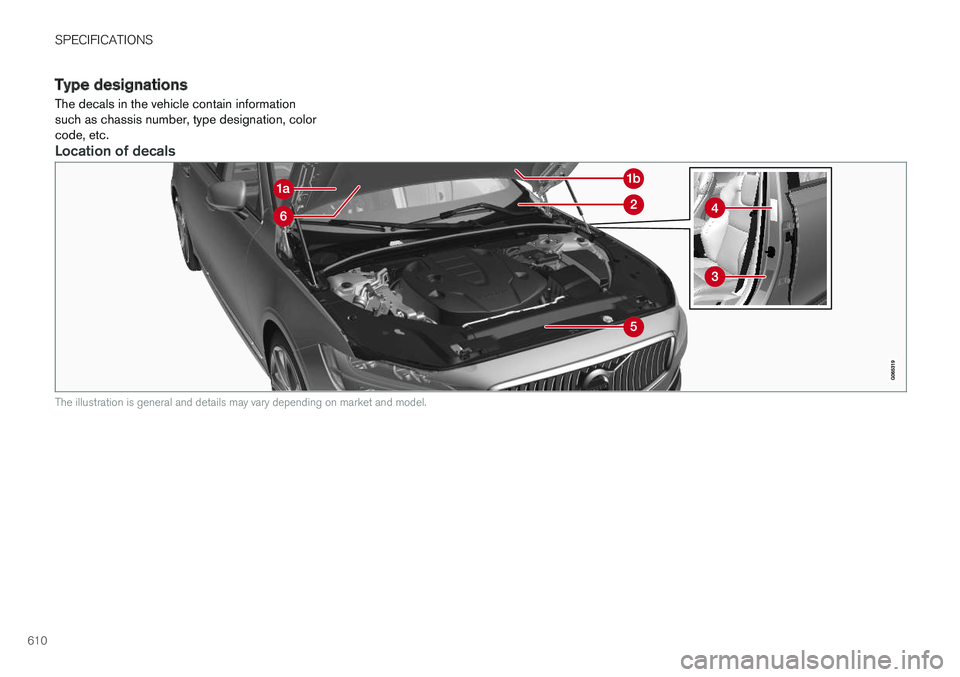

Type designations
The decals in the vehicle contain information such as chassis number, type designation, colorcode, etc.
Location of decals
The illustration is general and details may vary depending on market and model.

SPECIFICATIONS
}}
611

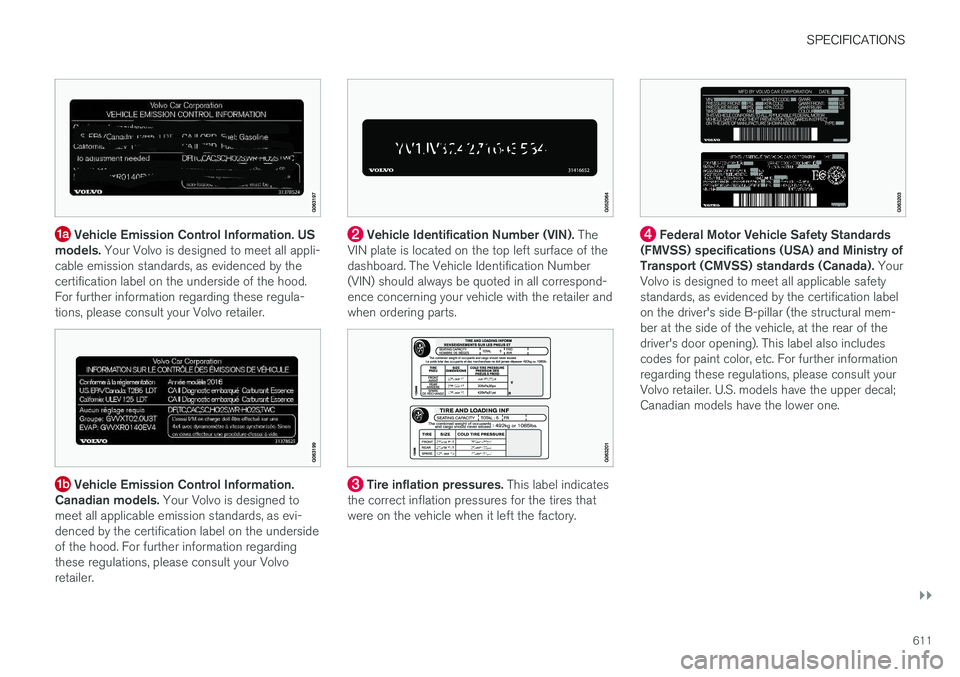

Vehicle Emission Control Information. US
models. Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by the certification label on the underside of the hood.For further information regarding these regula-tions, please consult your Volvo retailer.
Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi- denced by the certification label on the undersideof the hood. For further information regardingthese regulations, please consult your Volvoretailer.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle Identification Number(VIN) should always be quoted in all correspond-ence concerning your vehicle with the retailer andwhen ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the factory.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada). Your
Volvo is designed to meet all applicable safetystandards, as evidenced by the certification labelon the driver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rear of thedriver's door opening). This label also includescodes for paint color, etc. For further informationregarding these regulations, please consult yourVolvo retailer. U.S. models have the upper decal;Canadian models have the lower one.

||
SPECIFICATIONS
612

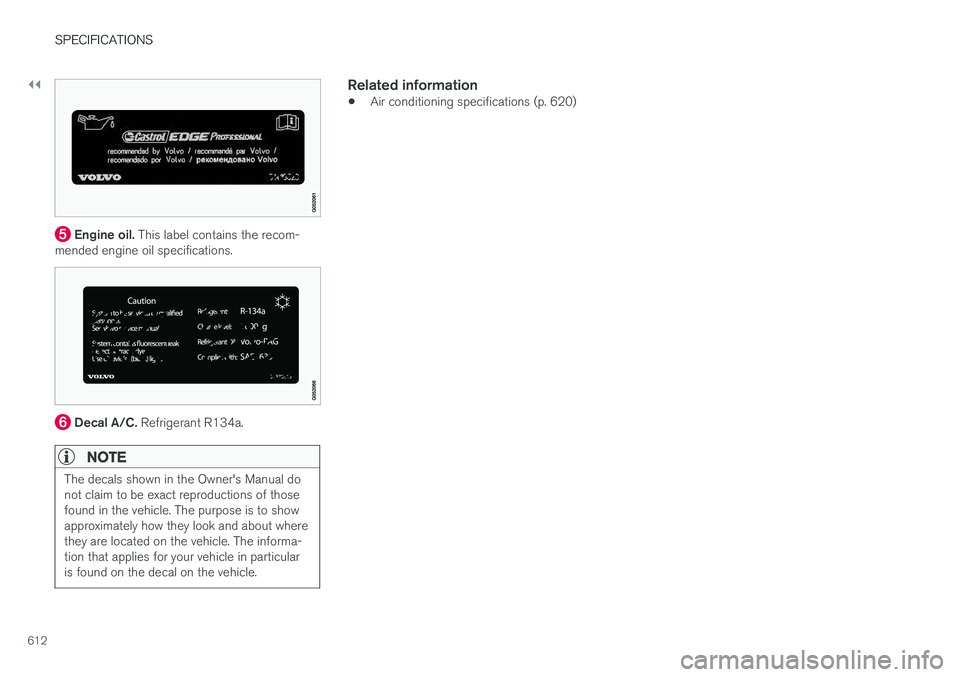

Engine oil. This label contains the recom-
mended engine oil specifications.
Decal A/C. Refrigerant R134a.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions of thosefound in the vehicle. The purpose is to showapproximately how they look and about wherethey are located on the vehicle. The informa-tion that applies for your vehicle in particularis found on the decal on the vehicle.
Related information
•Air conditioning specifications (p. 620)

SPECIFICATIONS
}}
613

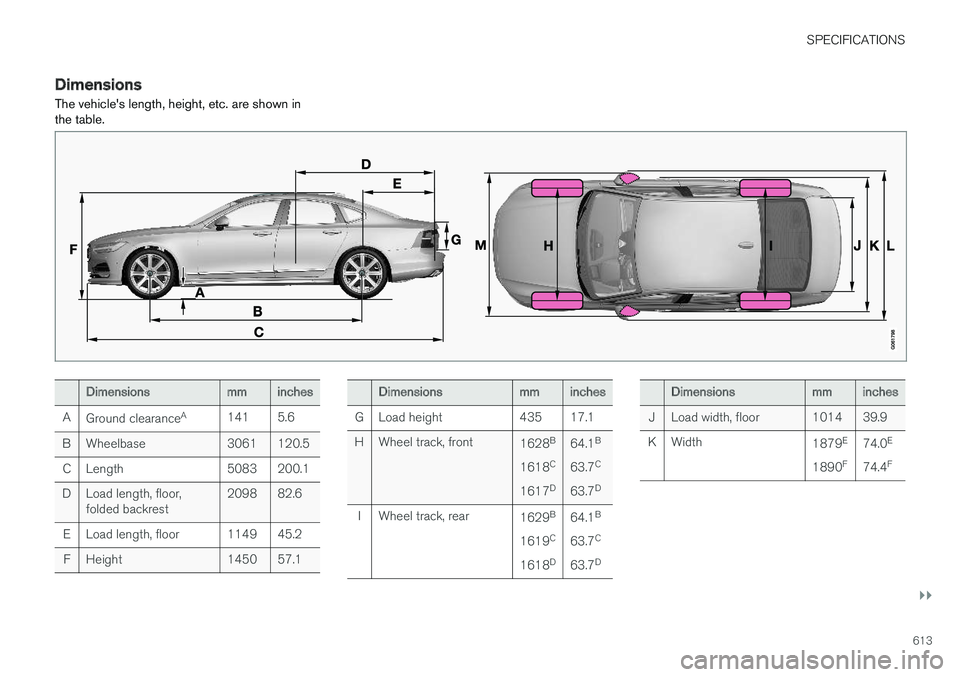

DimensionsThe vehicle's length, height, etc. are shown in the table.
Dimensionsmminches
A Ground clearance A
141 5.6
B Wheelbase 3061 120.5 C Length 5083 200.1
D Load length, floor, folded backrest 2098 82.6
E Load length, floor 1149 45.2 F Height 1450 57.1Dimensionsmminches
G Load height 435 17.1
H Wheel track, front 1628B
1618 C
1617 D64.1
B
63.7 C
63.7 D
I Wheel track, rear 1629B
1619 C
1618 D64.1
B
63.7 C
63.7 DDimensionsmminches
J Load width, floor 1014 39.9
K Width 1879E
1890 F74.0
E
74.4 F

||
SPECIFICATIONS
614

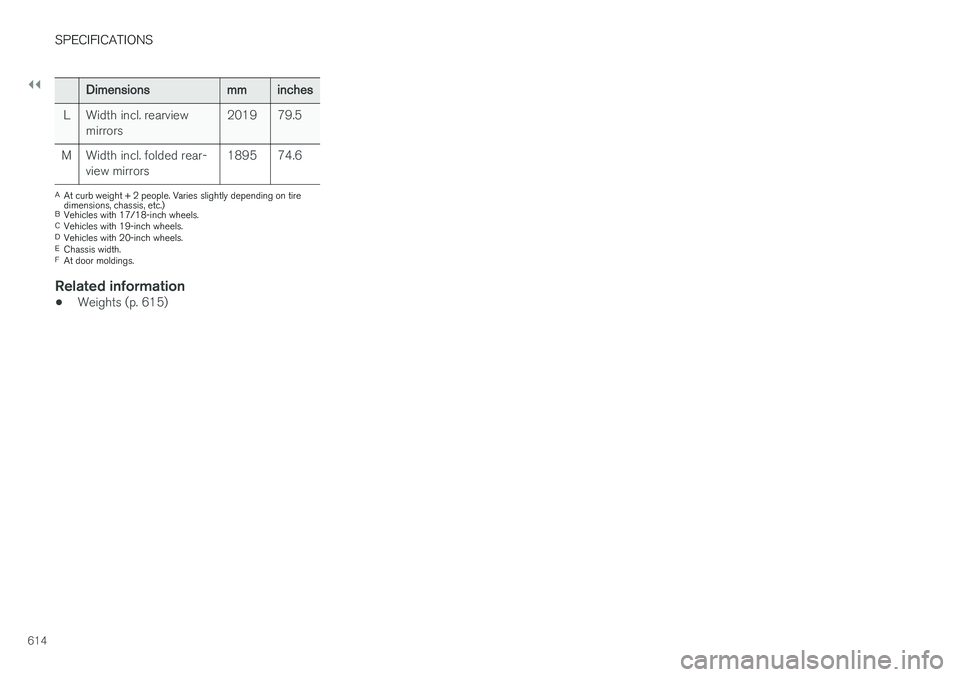

Dimensionsmminches
L Width incl. rearview mirrors 2019 79.5
M Width incl. folded rear- view mirrors 1895 74.6
A
At curb weight + 2 people. Varies slightly depending on tire dimensions, chassis, etc.)
B Vehicles with 17/18-inch wheels.
C Vehicles with 19-inch wheels.
D Vehicles with 20-inch wheels.
E Chassis width.
F At door moldings.
Related information
• Weights (p. 615)

SPECIFICATIONS
615

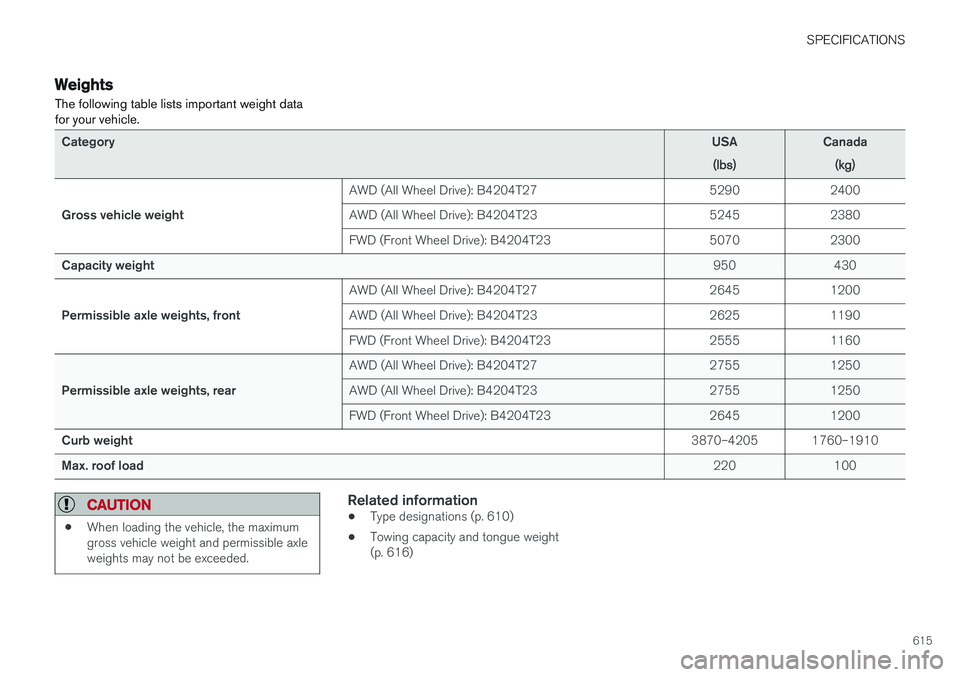

Weights The following table lists important weight data for your vehicle.
CategoryUSA
(lbs)Canada(kg)
Gross vehicle weight AWD (All Wheel Drive): B4204T27 5290 2400
AWD (All Wheel Drive): B4204T23 5245 2380
FWD (Front Wheel Drive): B4204T23 5070 2300
Capacity weight 950 430
Permissible axle weights, front AWD (All Wheel Drive): B4204T27 2645 1200
AWD (All Wheel Drive): B4204T23 2625 1190
FWD (Front Wheel Drive): B4204T23 2555 1160
Permissible axle weights, rear AWD (All Wheel Drive): B4204T27 2755 1250
AWD (All Wheel Drive): B4204T23 2755 1250
FWD (Front Wheel Drive): B4204T23 2645 1200
Curb weight 3870–4205 1760–1910
Max. roof load 220 100
CAUTION
•When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
Related information
•Type designations (p. 610)
• Towing capacity and tongue weight (p. 616)

SPECIFICATIONS
616

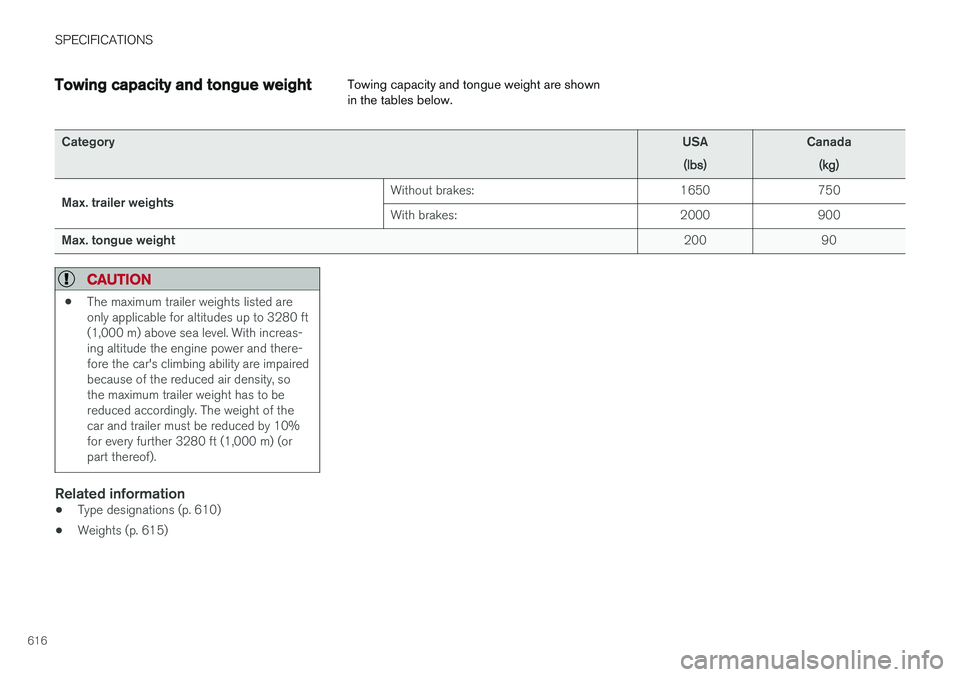

Towing capacity and tongue weightTowing capacity and tongue weight are shown in the tables below.
Category
USA
(lbs)Canada(kg)
Max. trailer weights Without brakes: 1650 750 With brakes:
2000 900
Max. tongue weight 200 90
CAUTION
•The maximum trailer weights listed are only applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).
Related information
•
Type designations (p. 610)
• Weights (p. 615)

SPECIFICATIONS
617

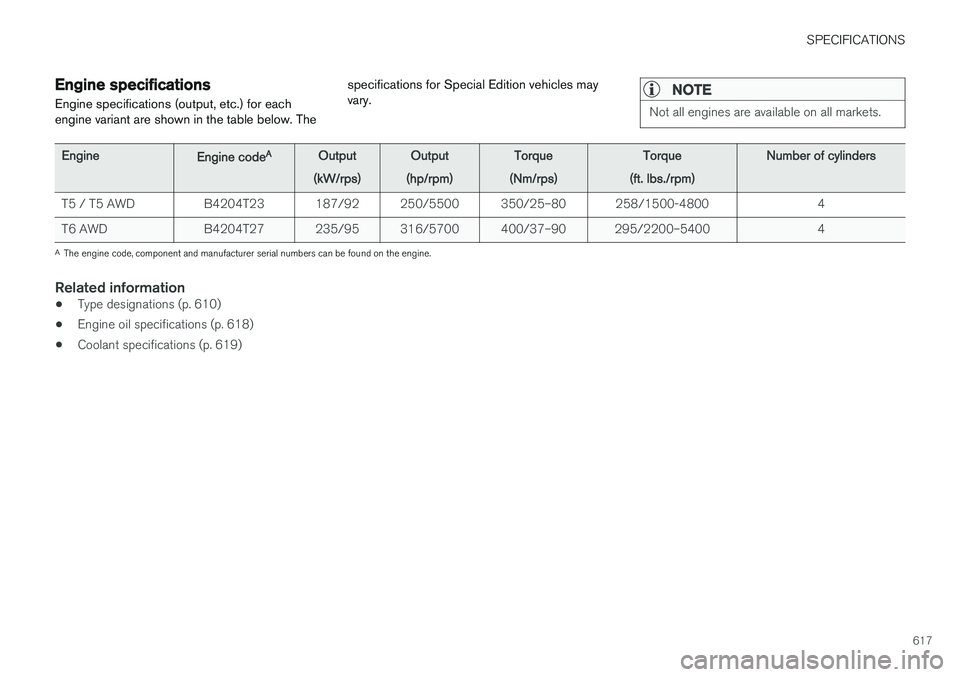

Engine specificationsEngine specifications (output, etc.) for each engine variant are shown in the table below. The specifications for Special Edition vehicles mayvary.NOTE
Not all engines are available on all markets.
EngineEngine codeAOutput
(kW/rps)
Output
(hp/rpm)
Torque
(Nm/rps)
Torque
(ft. lbs./rpm)
Number of cylinders
T5 / T5 AWD B4204T23 187/92 250/5500 350/25–80 258/1500-4800 4
T6 AWD B4204T27 235/95 316/5700 400/37–90 295/2200–5400 4
A The engine code, component and manufacturer serial numbers can be found on the engine.
Related information
• Type designations (p. 610)
• Engine oil specifications (p. 618)
• Coolant specifications (p. 619)

SPECIFICATIONS
618

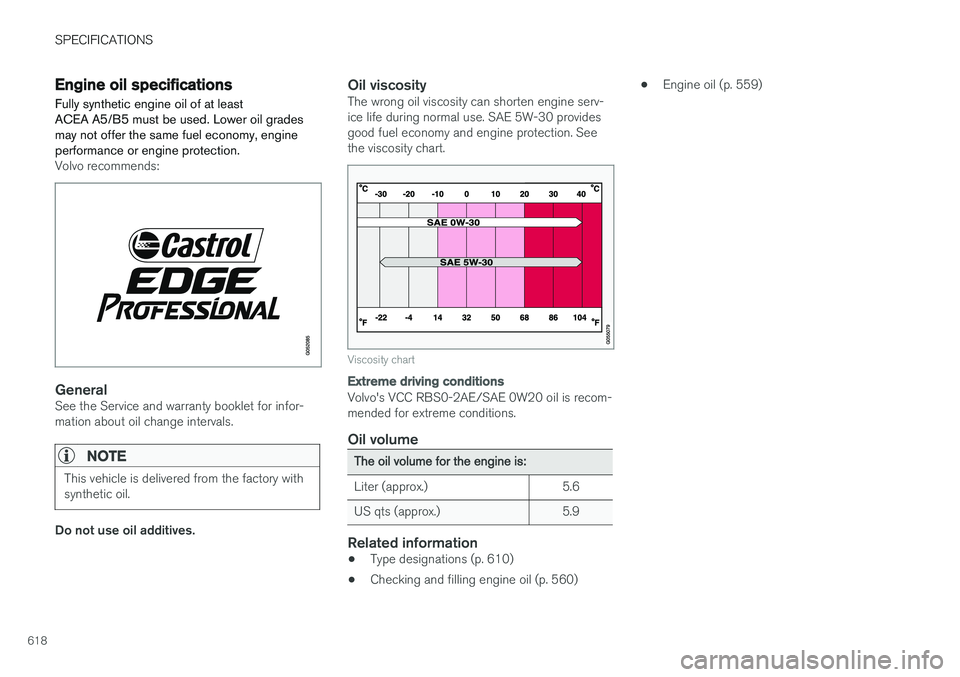

Engine oil specificationsFully synthetic engine oil of at least ACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:
GeneralSee the Service and warranty booklet for infor- mation about oil change intervals.
NOTE
This vehicle is delivered from the factory with synthetic oil.
Do not use oil additives.
Oil viscosityThe wrong oil viscosity can shorten engine serv- ice life during normal use. SAE 5W-30 providesgood fuel economy and engine protection. Seethe viscosity chart.
Viscosity chart
Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom- mended for extreme conditions.
Oil volume
The oil volume for the engine is:
Liter (approx.) 5.6
US qts (approx.) 5.9
Related information
• Type designations (p. 610)
• Checking and filling engine oil (p. 560) •
Engine oil (p. 559)
