VOLVO S90 T8 2018 Owner´s Manual
Manufacturer: VOLVO, Model Year: 2018, Model line: S90 T8, Model: VOLVO S90 T8 2018Pages: 166, PDF Size: 4.72 MB
Page 1 of 166
O W N E R
Page 2 of 166
Page 3 of 166

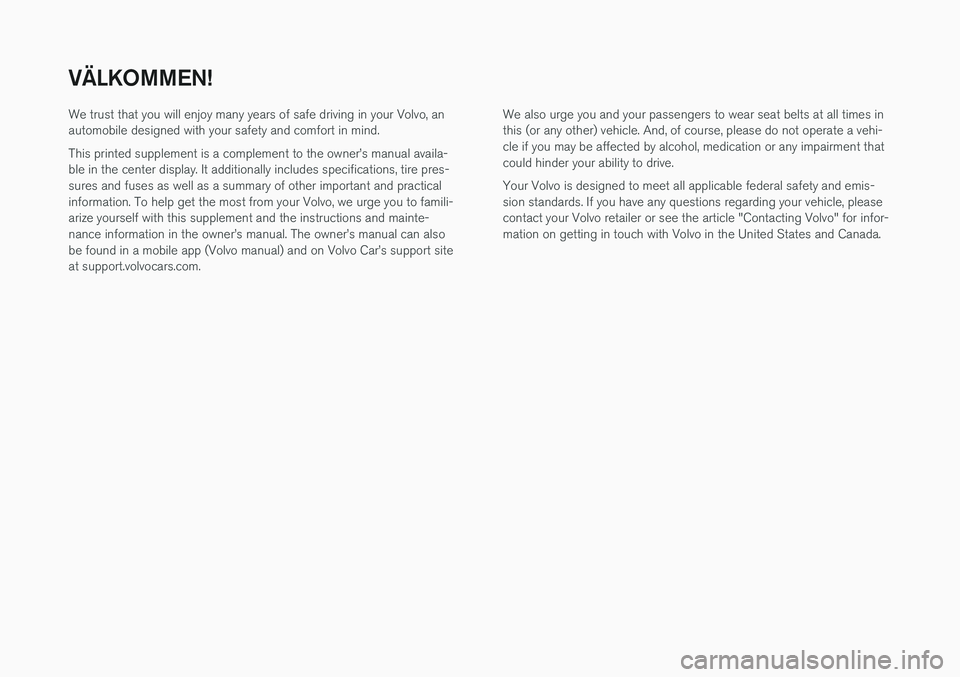

VÄLKOMMEN!
We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. This printed supplement is a complement to the owner
Page 4 of 166
2
INTRODUCTION
Contacting Volvo6
Volvo Roadside Assistance 6
Additional information about your vehicle 6
Volvo and the environment 7
IntelliSafe —driver support
8
Sensus 9
Owner's manual in mobile devices 12
Options, accessories and the On- board Diagnostic (OBDII) socket 12
Finding owner's information 14
Driver distraction 16
Volvo Structural Parts Statement 17
Crash event data 18
Volvo ID 19
Center display overview 20
Changing center display settings 22
Using the center display keyboard 23
Function view buttons 28
Navigating in the center display's views 30
Symbols in the center display status bar 35
Changing settings in different typesof apps 35
Using the center display 36
Using the owner's manual 40
On-board digital owner's manual 42
Navigating in the digital owner's manual43
Glass 45
Technician certification 45
IMPORTANT INFORMATION
General safety information48
Occupant safety 48
Reporting safety defects 49
Recall information 50
Safety during pregnancy 50
Whiplash protection system 51
Seat belts 52
Seat belt pretensioners 53
Buckling and unbuckling seat belts 54
Door and seat belt reminders 56
Airbag system 57
Driver/passenger side airbags 57
Occupant weight sensor 60
Side impact airbags 64
Inflatable curtains 65
Safety mode 65
Starting or moving a vehicle in safety mode 66
Child safety 67
Child restraints 69
Infant seats 70
Convertible seats 72
Booster cushions 75
ISOFIX/LATCH lower anchors 76
Lower child seat attachment points 77
TABLE OF CONTENTS
Page 5 of 166
3

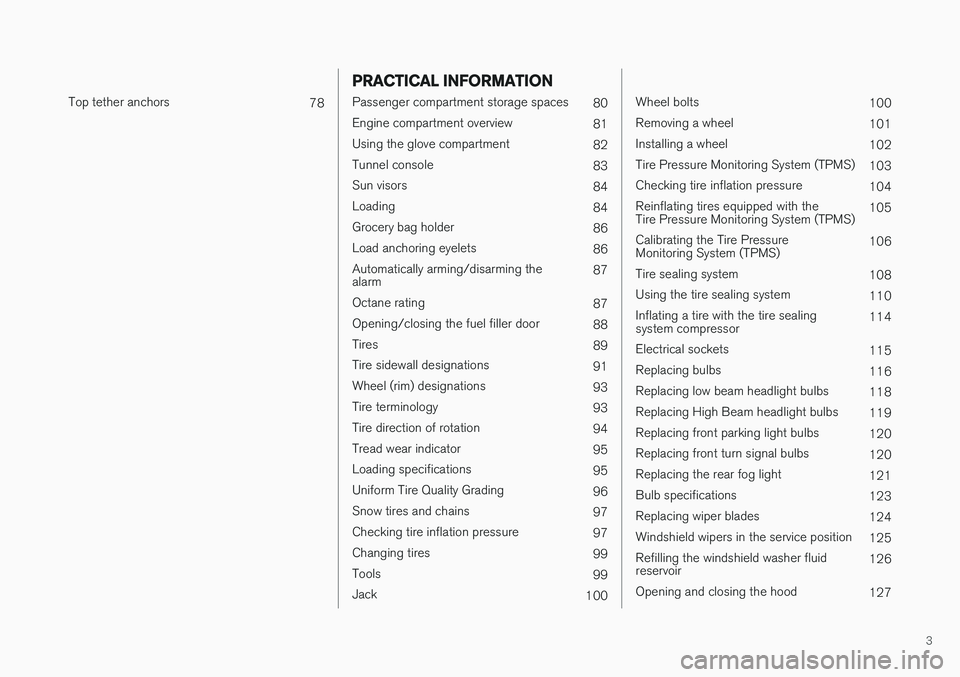

Top tether anchors78
PRACTICAL INFORMATION
Passenger compartment storage spaces80
Engine compartment overview 81
Using the glove compartment 82
Tunnel console 83
Sun visors 84
Loading 84
Grocery bag holder 86
Load anchoring eyelets 86
Automatically arming/disarming the alarm 87
Octane rating 87
Opening/closing the fuel filler door 88
Tires 89
Tire sidewall designations 91
Wheel (rim) designations 93
Tire terminology 93
Tire direction of rotation 94
Tread wear indicator 95
Loading specifications 95
Uniform Tire Quality Grading 96
Snow tires and chains 97
Checking tire inflation pressure 97
Changing tires 99
Tools 99
Jack 100
Wheel bolts100
Removing a wheel 101
Installing a wheel 102
Tire Pressure Monitoring System (TPMS) 103
Checking tire inflation pressure 104
Reinflating tires equipped with the Tire Pressure Monitoring System (TPMS) 105
Calibrating the Tire PressureMonitoring System (TPMS) 106
Tire sealing system 108
Using the tire sealing system 110
Inflating a tire with the tire sealingsystem compressor 114
Electrical sockets 115
Replacing bulbs 116
Replacing low beam headlight bulbs 118
Replacing High Beam headlight bulbs 119
Replacing front parking light bulbs 120
Replacing front turn signal bulbs 120
Replacing the rear fog light 121
Bulb specifications 123
Replacing wiper blades 124
Windshield wipers in the service position 125
Refilling the windshield washer fluidreservoir 126
Opening and closing the hood 127
Page 6 of 166
4

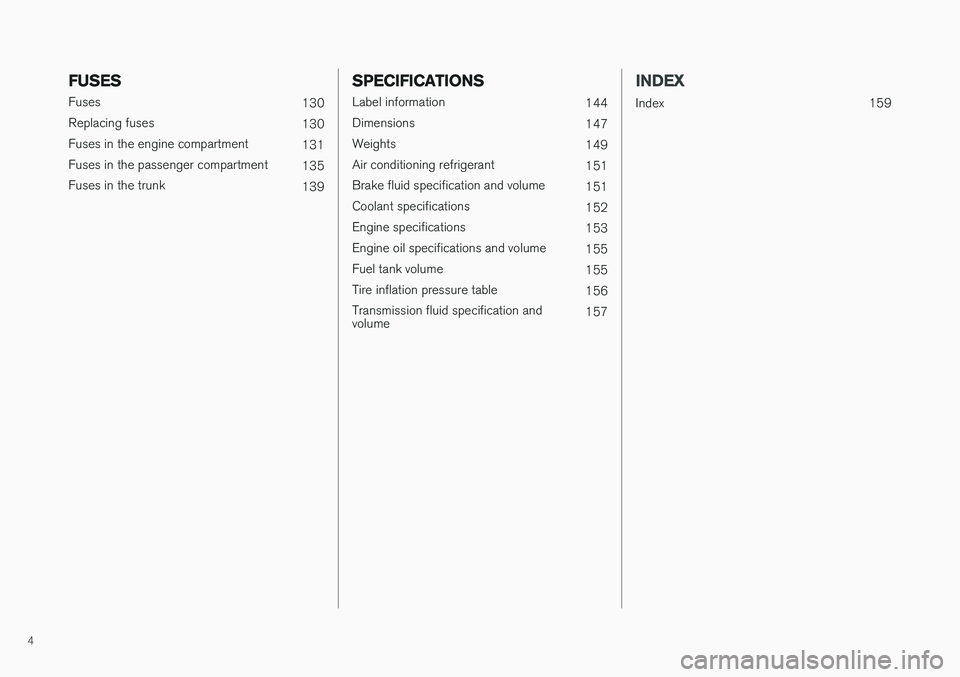

FUSES
Fuses130
Replacing fuses 130
Fuses in the engine compartment 131
Fuses in the passenger compartment 135
Fuses in the trunk 139
SPECIFICATIONS
Label information144
Dimensions 147
Weights 149
Air conditioning refrigerant 151
Brake fluid specification and volume 151
Coolant specifications 152
Engine specifications 153
Engine oil specifications and volume 155
Fuel tank volume 155
Tire inflation pressure table 156
Transmission fluid specification and volume 157
INDEX
Index 159
Page 7 of 166

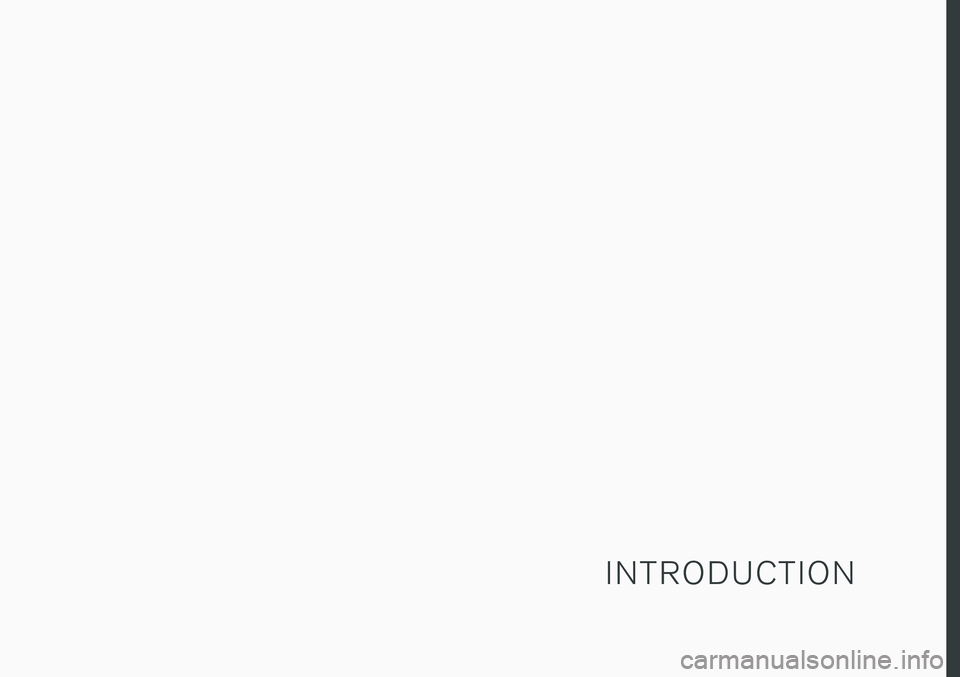

I N T R O D U C T I O N
Page 8 of 166
INTRODUCTION
6

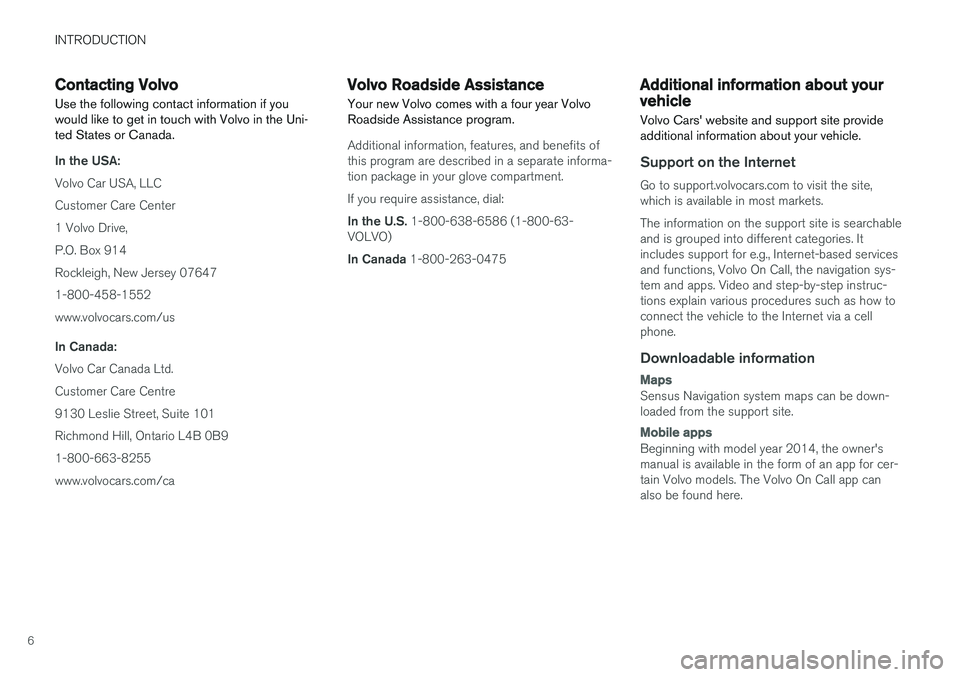

Contacting Volvo
Use the following contact information if you would like to get in touch with Volvo in the Uni-ted States or Canada.
In the USA: Volvo Car USA, LLC Customer Care Center1 Volvo Drive,P.O. Box 914Rockleigh, New Jersey 076471-800-458-1552www.volvocars.com/us In Canada: Volvo Car Canada Ltd. Customer Care Centre9130 Leslie Street, Suite 101Richmond Hill, Ontario L4B 0B91-800-663-8255www.volvocars.com/ca
Volvo Roadside Assistance
Your new Volvo comes with a four year Volvo Roadside Assistance program.
Additional information, features, and benefits of this program are described in a separate informa-tion package in your glove compartment. If you require assistance, dial: In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)In Canada 1-800-263-0475
Additional information about your vehicle Volvo Cars' website and support site provide additional information about your vehicle.
Support on the Internet
Go to support.volvocars.com to visit the site, which is available in most markets. The information on the support site is searchable and is grouped into different categories. Itincludes support for e.g., Internet-based servicesand functions, Volvo On Call, the navigation sys-tem and apps. Video and step-by-step instruc-tions explain various procedures such as how toconnect the vehicle to the Internet via a cellphone.
Downloadable information
Maps
Sensus Navigation system maps can be down- loaded from the support site.
Mobile apps
Beginning with model year 2014, the owner's manual is available in the form of an app for cer-tain Volvo models. The Volvo On Call app canalso be found here.
Page 9 of 166
INTRODUCTION
7

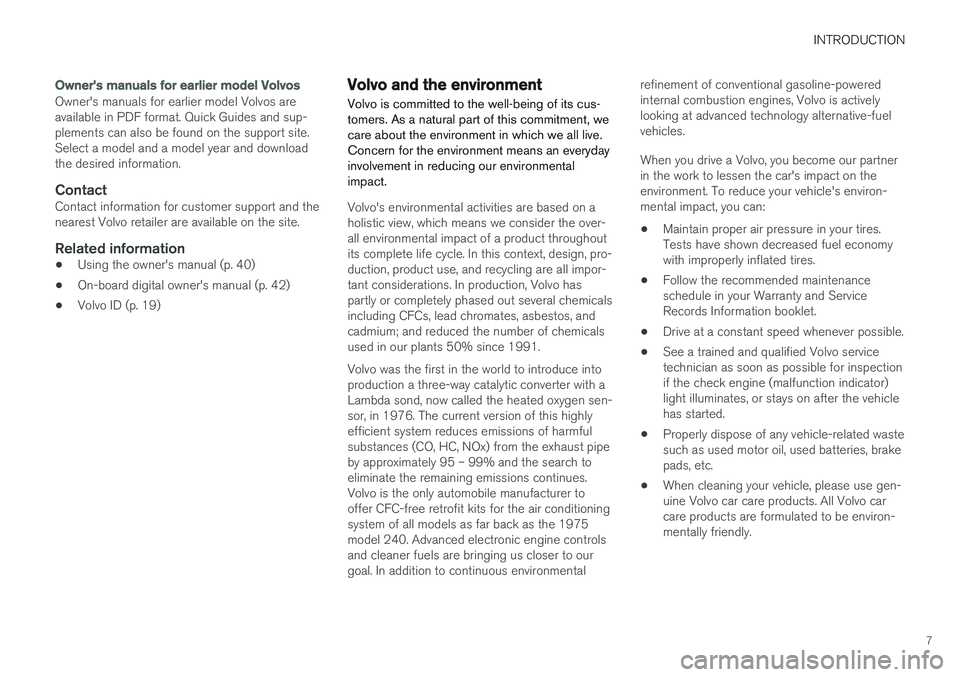

Owner's manuals for earlier model Volvos
Owner's manuals for earlier model Volvos are available in PDF format. Quick Guides and sup-plements can also be found on the support site.Select a model and a model year and downloadthe desired information.
ContactContact information for customer support and thenearest Volvo retailer are available on the site.
Related information
•Using the owner's manual (p. 40)
• On-board digital owner's manual (p. 42)
• Volvo ID (p. 19)
Volvo and the environment Volvo is committed to the well-being of its cus- tomers. As a natural part of this commitment, wecare about the environment in which we all live.Concern for the environment means an everydayinvolvement in reducing our environmentalimpact.
Volvo's environmental activities are based on a holistic view, which means we consider the over-all environmental impact of a product throughoutits complete life cycle. In this context, design, pro-duction, product use, and recycling are all impor-tant considerations. In production, Volvo haspartly or completely phased out several chemicalsincluding CFCs, lead chromates, asbestos, andcadmium; and reduced the number of chemicalsused in our plants 50% since 1991. Volvo was the first in the world to introduce into production a three-way catalytic converter with aLambda sond, now called the heated oxygen sen-sor, in 1976. The current version of this highlyefficient system reduces emissions of harmfulsubstances (CO, HC, NOx) from the exhaust pipeby approximately 95 – 99% and the search toeliminate the remaining emissions continues.Volvo is the only automobile manufacturer tooffer CFC-free retrofit kits for the air conditioningsystem of all models as far back as the 1975model 240. Advanced electronic engine controlsand cleaner fuels are bringing us closer to ourgoal. In addition to continuous environmental refinement of conventional gasoline-poweredinternal combustion engines, Volvo is activelylooking at advanced technology alternative-fuelvehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on theenvironment. To reduce your vehicle's environ-mental impact, you can:
• Maintain proper air pressure in your tires.Tests have shown decreased fuel economywith improperly inflated tires.
• Follow the recommended maintenanceschedule in your Warranty and ServiceRecords Information booklet.
• Drive at a constant speed whenever possible.
• See a trained and qualified Volvo servicetechnician as soon as possible for inspectionif the check engine (malfunction indicator)light illuminates, or stays on after the vehiclehas started.
• Properly dispose of any vehicle-related wastesuch as used motor oil, used batteries, brakepads, etc.
• When cleaning your vehicle, please use gen-uine Volvo car care products. All Volvo carcare products are formulated to be environ-mentally friendly.
Page 10 of 166
INTRODUCTION
* Option/accessory.
8

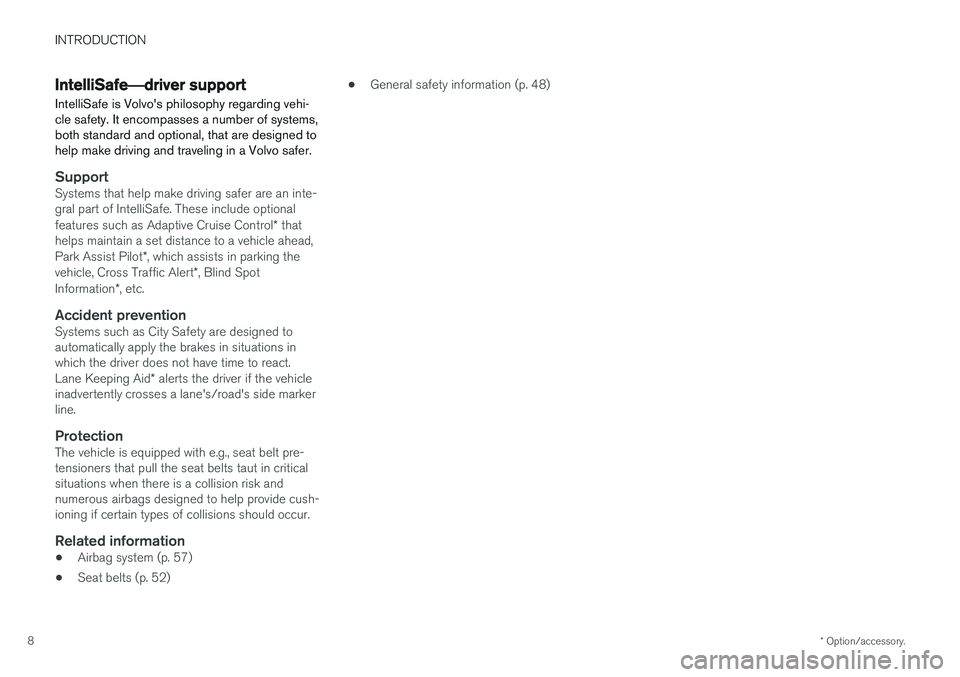

IntelliSafe —driver support
IntelliSafe is Volvo's philosophy regarding vehi- cle safety. It encompasses a number of systems,both standard and optional, that are designed tohelp make driving and traveling in a Volvo safer.
SupportSystems that help make driving safer are an inte- gral part of IntelliSafe. These include optional features such as Adaptive Cruise Control * that
helps maintain a set distance to a vehicle ahead,Park Assist Pilot *, which assists in parking the
vehicle, Cross Traffic Alert *, Blind Spot
Information *, etc.
Accident preventionSystems such as City Safety are designed to automatically apply the brakes in situations inwhich the driver does not have time to react. Lane Keeping Aid * alerts the driver if the vehicle
inadvertently crosses a lane's/road's side marker line.
ProtectionThe vehicle is equipped with e.g., seat belt pre-tensioners that pull the seat belts taut in criticalsituations when there is a collision risk andnumerous airbags designed to help provide cush-ioning if certain types of collisions should occur.
Related information
• Airbag system (p. 57)
• Seat belts (p. 52) •
General safety information (p. 48)
