AUDIO, MEDIA AND INTERNET
}}
* Option/accessory.509
Apple® CarPlay®*
With CarPlay, you can listen to music, makephone calls, get driving instructions, send/receive messages and use Siri, all while remain-ing focused on driving.
CarPlay works with selectApple devices. If the car doesnot already support CarPlay,this can be retrofitted. Contacta Volvo retailer to installCarPlay.
Information about supported apps and compati-ble phones is available on the Apple website:www.apple.com/ios/carplay/. Using apps that arenot compatible with CarPlay could cause the con-nection between iPhone and the vehicle to belost. Please note that Volvo is not responsible forthe content of CarPlay.
When using map navigation via CarPlay, guidancewill only be shown on the center display and notin the instrument panel or head-up display.
CarPlay apps can be controlled from the centerdisplay, a phone or with the right-side steeringwheel keypad (for certain functions). The appscan also be voice-controlled using Siri. Press and
hold the button on the steering wheel tostart voice control with Siri. Press briefly to acti-vate the vehicle's own voice control system. If Siri
cuts off too soon, press and hold the 7 but-ton on the steering wheel.
By using Apple CarPlay you acknowledgethe following: Apple CarPlay is a serviceprovided by Apple Inc. under its terms andconditions. Volvo Cars is thus notresponsible for Apple CarPlay or itsfeatures/applications. When using AppleCarPlay, certain information from your car(including its position) is transferred to youriPhone. In relation to Volvo Cars, you arefully responsible for your and any othersperson

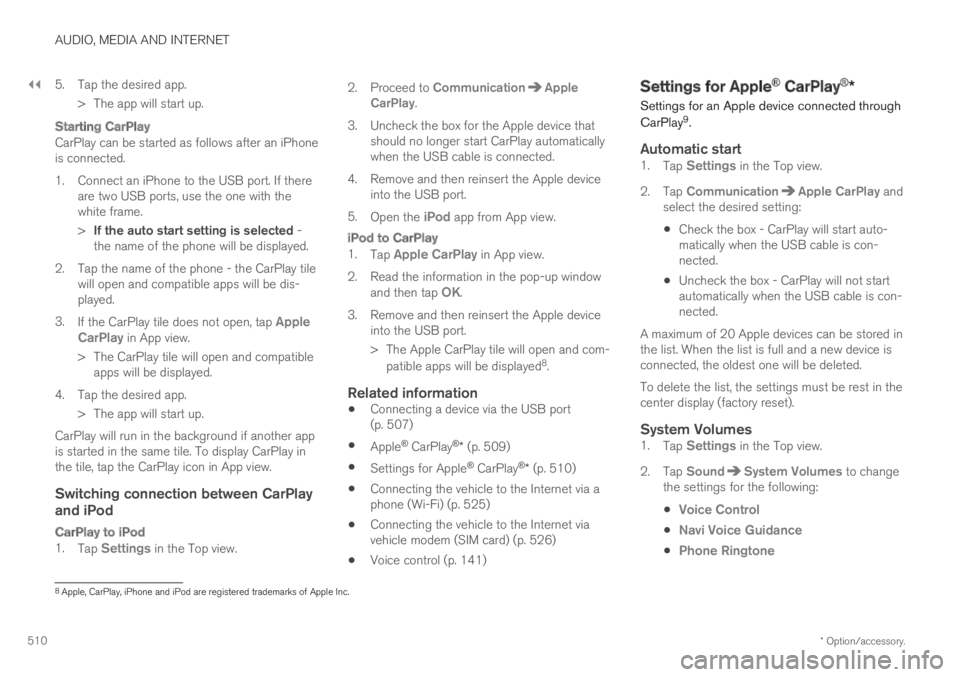

Page 512 of 669
||
AUDIO, MEDIA AND INTERNET
* Option/accessory.510
5. Tap the desired app.
> The app will start up.
Starting CarPlay
CarPlay can be started as follows after an iPhoneis connected.
1. Connect an iPhone to the USB port. If thereare two USB ports, use the one with thewhite frame.
>If the auto start setting is selected -the name of the phone will be displayed.
2. Tap the name of the phone - the CarPlay tilewill open and compatible apps will be dis-played.
3.If the CarPlay tile does not open, tap AppleCarPlay in App view.
> The CarPlay tile will open and compatibleapps will be displayed.
4.Tap the desired app.
> The app will start up.
CarPlay will run in the background if another appis started in the same tile. To display CarPlay inthe tile, tap the CarPlay icon in App view.
Switching connection between CarPlay
and iPod
CarPlay to iPod
1.Tap Settings in the Top view.
2. Proceed to CommunicationAppleCarPlay.
3. Uncheck the box for the Apple device thatshould no longer start CarPlay automaticallywhen the USB cable is connected.
4.Remove and then reinsert the Apple deviceinto the USB port.
5.Open the iPod app from App view.
iPod to CarPlay
1.Tap Apple CarPlay in App view.
2. Read the information in the pop-up windowand then tap OK.
3. Remove and then reinsert the Apple deviceinto the USB port.
>The Apple CarPlay tile will open and com-
patible apps will be displayed8.
Related information
Connecting a device via the USB port(p. 507)
Apple® CarPlay®* (p. 509)
Settings for Apple® CarPlay®* (p. 510)
Connecting the vehicle to the Internet via aphone (Wi-Fi) (p. 525)
Connecting the vehicle to the Internet viavehicle modem (SIM card) (p. 526)
Voice control (p. 141)
Settings for Apple® CarPlay®*
Settings for an Apple device connected through
CarPlay9.
Automatic start
1.Tap Settings in the Top view.
2. Tap CommunicationApple CarPlay andselect the desired setting:
Check the box - CarPlay will start auto-matically when the USB cable is con-nected.
Uncheck the box - CarPlay will not startautomatically when the USB cable is con-nected.
A maximum of 20 Apple devices can be stored inthe list. When the list is full and a new device isconnected, the oldest one will be deleted.
To delete the list, the settings must be rest in thecenter display (factory reset).
System Volumes
1.Tap Settings in the Top view.
2. Tap SoundSystem Volumes to changethe settings for the following:
Voice Control
Navi Voice Guidance
Phone Ringtone
8Apple, CarPlay, iPhone and iPod are registered trademarks of Apple Inc.

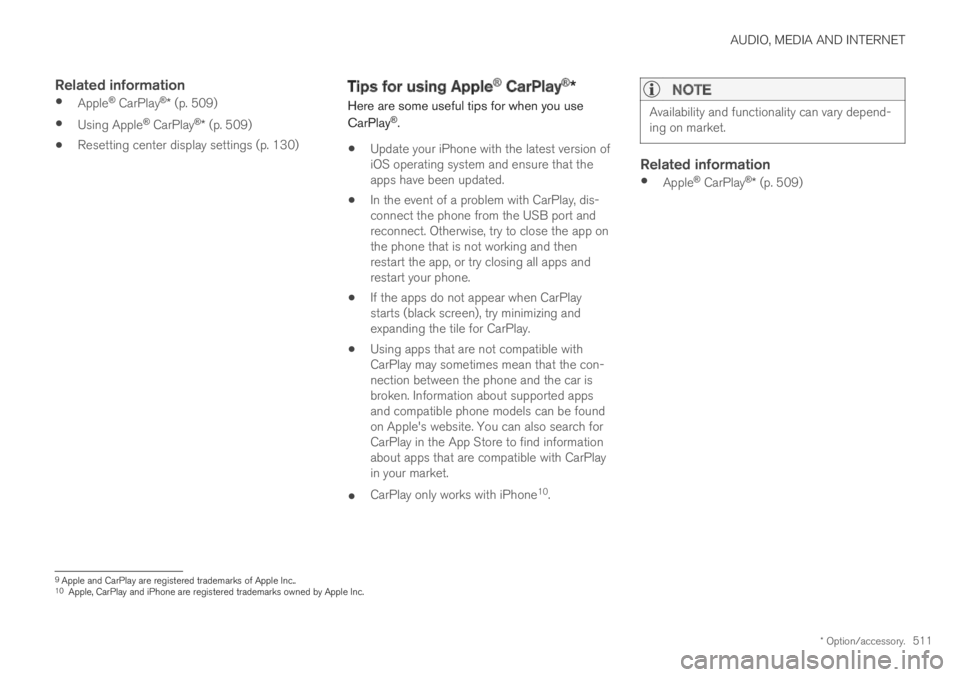

Page 513 of 669
AUDIO, MEDIA AND INTERNET
* Option/accessory.511
Related information
Apple® CarPlay®* (p. 509)
Using Apple® CarPlay®* (p. 509)
Resetting center display settings (p. 130)
Tips for using Apple® CarPlay®*
Here are some useful tips for when you use
CarPlay®.
Update your iPhone with the latest version ofiOS operating system and ensure that theapps have been updated.
In the event of a problem with CarPlay, dis-connect the phone from the USB port andreconnect. Otherwise, try to close the app onthe phone that is not working and thenrestart the app, or try closing all apps andrestart your phone.
If the apps do not appear when CarPlaystarts (black screen), try minimizing andexpanding the tile for CarPlay.
Using apps that are not compatible withCarPlay may sometimes mean that the con-nection between the phone and the car isbroken. Information about supported appsand compatible phone models can be foundon Apple's website. You can also search forCarPlay in the App Store to find informationabout apps that are compatible with CarPlayin your market.
CarPlay only works with iPhone10.
NOTE
Availability and functionality can vary depend-ing on market.
Related information
Apple® CarPlay®* (p. 509)
9Apple and CarPlay are registered trademarks of Apple Inc..10Apple, CarPlay and iPhone are registered trademarks owned by Apple Inc.
Page 514 of 669
AUDIO, MEDIA AND INTERNET
* Option/accessory.512
Android Auto*
Android Auto lets you listen to music, make calls,get driving directions and use apps customizedfor your vehicle from an Android device.Android Auto can be used with selected Androiddevices.
For information on supported apps and compati-ble devices, please go to www.android.com/auto/. For third-party apps, see Google Play.Please note that Volvo is not responsible for thecontent of Android Auto.
Android Auto is started from App view. AfterAndroid Auto has been initially started, the appwill start automatically the next time the device isconnected. The automatic start setting can bedeactivated in Settings.
NOTE
When a phone is connected to Android Auto,it is possible to steam to another media playervia Bluetooth. Bluetooth is active whileAndroid Auto is in use.
When using navigation guidance provided byAndroid Auto, navigation will only be shown onthe center display and not in the instrumentpanel or head-up display.
Android Auto can be controlled from the centerdisplay, with the right-side steering wheel keypador by using voice commands. Press and hold the
button to activate voice control and tap thesame button to deactivate.
By using Android Auto, you acknowledgethe following: Android Auto is a serviceprovided by Google Inc. under its terms andconditions. Volvo Cars is not responsible forAndroid Auto or its features or applications.When you use Android Auto, your cartransfers certain information (including itslocation) to your connected Android phone.You are fully responsible for your and anyother person
Page 515 of 669
AUDIO, MEDIA AND INTERNET
* Option/accessory.513
From a previously connected Android device
1. Connect the device to the USB port.
>If the auto start setting is selected -the name of the phone will be displayed.
2. Tap the name of the phone - theAndroid Auto tile will open and compatibleapps will be displayed.
3.If the automatic start setting is not acti-vated - open the Android Auto app fromApp view.
> The Android Auto tile will open and com-patible apps will be displayed.
4.Tap the desired app.
> The app will start up.
Android Auto will run in the background ifanother app is started in the same tile. To displayAndroid Auto in the tile, tap the Android Autoicon in App view.
Related information
Android Auto* (p. 512)
Settings for Android Auto* (p. 513)
Connecting a device via the USB port(p. 507)
Voice control (p. 141)
Settings for Android Auto*
Settings for phones initially connected withAndroid Auto.
Automatic start
1.Tap Settings in the Top view.
2. Tap CommunicationAndroid Auto andselect setting:
Check the box - Android Auto will startautomatically when the USB cable is con-nected.
Uncheck the box - Android Auto will notstart automatically when the USB cable isconnected.
A maximum of 20 Android devices can be storedin the list. When the list is full and a new device isconnected, the oldest one will be deleted.
A factory reset must be performed to delete thelist.
System Volumes
1.Tap Settings in the Top view.
2. Tap SoundSystem Volumes to changethe settings for the following:
Voice Control
Navi Voice Guidance
Phone Ringtone
Related information
Android Auto* (p. 512)
Using Android Auto* (p. 512)
Resetting center display settings (p. 130)
Page 516 of 669
AUDIO, MEDIA AND INTERNET
* Option/accessory.514
Tips for using Android Auto*
Here are some useful tips for when you useAndroid Auto.
Ensure that your apps are updated.
When starting the car, wait until the centerdisplay has started, connect the phone andthen open Android Auto from the app view.
In the event of problems with Android Auto,disconnect your Android phone from theUSB port and then reconnect via USB. Oth-erwise, try closing the app on the phone andthen restarting the app.
When a phone is connected to Android Autoit is still possible to playback media viaBluetooth to another media player. TheBluetooth function is on when Android Autois used.
Related information
Android Auto* (p. 512)
Phone
A phone equipped with Bluetooth can be wire-lessly connected to the vehicle's integratedhands-free system.
The audio and media system offers hands-freefunctionality for remotely controlling a number ofthe phone's features. The phone's integratedcontrols can also be used, even when it is con-nected to the vehicle.
When the phone has been paired and connectedto the vehicle, it can be used as an Internet con-nection or to make or receive calls, send orreceive text messages or wirelessly play music.
The phone is controlled from the center display,and the App menu (accessed using the right-sidesteering wheel keypad) and voice commands canalso be used to control certain functions.
Overview
Microphone.
Phone.
Phone handling in the center display.
Keypad for controlling phone functionsshown in the center display and voice com-mands.
Instrument panel.
Related information
Handling phone calls (p. 519)
Managing the phone book (p. 521)
Handling text messages (p. 520)
Connecting a phone to the car via Bluetoothfor the first time (p. 515)
Page 517 of 669
AUDIO, MEDIA AND INTERNET
}}
515
Connecting a phone to the car via Bluetoothautomatically (p. 517)
Connecting a phone to the car via Bluetoothmanually (p. 517)
Disconnecting a Bluetooth-connected phone(p. 518)
Switch between phones connected via Blue-tooth (p. 518)
Disconnecting Bluetooth-connected devices(p. 518)
Phone settings (p. 522)
Voice control (p. 141)
Handling the App menu in the instrumentpanel (p. 100)
Sound settings (p. 478)
Connecting the vehicle to the Internet via aBluetooth-connected phone (p. 525)
Connecting a phone to the car viaBluetooth for the first time
Pair a Bluetooth-enabled phone to the vehicle tomake calls, send/receive text messages andwirelessly play media from the vehicle, or con-nect the vehicle to the Internet.
Two Bluetooth devices can be connected at thesame time, but in that case, only one will be usedfor wireless playback. The most recently pairedphone will be automatically connected to makecalls, send/receive text messages, play media oruse as an Internet connection. It is possible tochange what the phone is used for underBluetooth Devices via the settings menu in thecenter display's Top view.
After the device has been connected/registeredfor the first time via Bluetooth, the device nolonger needs to be visible/searchable. It justneeds to have Bluetooth activated. A maximum of20 paired Bluetooth devices can be stored in thevehicle.
There are two ways to pair a phone to the vehicle.Searching for the phone from the vehicle orsearching for the vehicle from the phone.
Option 1 - searching for the phone from
the vehicle
1. Make the phone discoverable/visible usingits Bluetooth function.
2. Open the phone tile in the center display.
If no phone has been paired to the vehi-cle, tap Add phone.
If a phone has been paired to the vehicle,
tap Change. Tap Add phone in thepop-up window.
> A list of available Bluetooth devices will bedisplayed. The list will be updated as newdevices are discovered.
3.Tap the name of the phone you would like toconnect.
4. Make sure that the code displayed in thevehicle matches the one in the phone. If itdoes, confirm the code in both places.
5. In the phone, accept or cancel the optionsfor selecting the phone's contacts and textmessages.
NOTE
The message function must be activatedin certain phones.
Not all cell phones are fully compatibleand may not be able to display contactsand messages in the vehicle.
Page 518 of 669
||
AUDIO, MEDIA AND INTERNET
* Option/accessory.516
Option 2 - searching for the vehicle
from the phone
1. Open the phone tile in the center display.
If no phone has been paired to the vehi-
cle, tap Add phoneMake vehiclediscoverable.
If a phone has been paired to the vehicle,
tap Change. Tap Add phoneMake vehicle discoverable in the pop-up window.
2. Activate Bluetooth in the phone.
3. Search in the phone for Bluetooth devices.
> A list of available Bluetooth devices will bedisplayed.
4. Select the vehicle's name from the list ofdevices in the phone.
5. A pop-up window for the connection isshown in the car. Confirm the connection.
6. Make sure that the code displayed in thevehicle matches the one shown in the exter-nal device. If it does, confirm the code in bothplaces.
7. In the phone, accept or cancel the optionsfor selecting the phone's contacts and textmessages.
NOTE
The message function must be activatedin certain phones.
Not all cell phones are fully compatibleand may not be able to display contactsand messages in the vehicle.
NOTE
If the phone's operating system is beingupdated, it is possible that the connection willbe interrupted. Delete the phone from the carand reconnect.
Compatible phones
Many cellular phones on the market currentlyoffer wireless Bluetooth technology, but not allphones are fully compatible with the vehicle. Foradditional information on compatibility, seesupport.volvocars.com.
Related information
Phone (p. 514)
Connecting a phone to the car via Bluetoothautomatically (p. 517)
Connecting a phone to the car via Bluetoothmanually (p. 517)
Disconnecting a Bluetooth-connected phone(p. 518)
Switch between phones connected via Blue-tooth (p. 518)
Disconnecting Bluetooth-connected devices(p. 518)
Settings for Bluetooth devices (p. 523)
Internet-connected vehicle* (p. 523)
Connecting the vehicle to the Internet via aBluetooth-connected phone (p. 525)
Page 519 of 669
AUDIO, MEDIA AND INTERNET
* Option/accessory.517
Connecting a phone to the car viaBluetooth automatically
A phone can be automatically connected to thevehicle via Bluetooth. The phone must have firstbeen paired with the vehicle.
Only the two most recently connected phonescan be connected automatically.
1.Activate Bluetooth in the phone before turn-ing the vehicle's ignition to mode I.
2.Turn the ignition to I or higher.
> The phone will be connected.
Related information
Phone (p. 514)
Connecting a phone to the car via Bluetoothfor the first time (p. 515)
Connecting a phone to the car via Bluetoothmanually (p. 517)
Disconnecting a Bluetooth-connected phone(p. 518)
Switch between phones connected via Blue-tooth (p. 518)
Disconnecting Bluetooth-connected devices(p. 518)
Settings for Bluetooth devices (p. 523)
Internet-connected vehicle* (p. 523)
Connecting the vehicle to the Internet via aBluetooth-connected phone (p. 525)
Ignition modes (p. 429)Connecting a phone to the car viaBluetooth manually
A phone can be manually connected to the vehi-cle via Bluetooth. The phone must have firstbeen paired with the vehicle.
1. Activate Bluetooth in the phone.
2. Open the phone tile.
>A list of available phones will be displayed.
3. Tap the name of the phone you would like toconnect.
> The phone will be connected.
Related information
Phone (p. 514)
Connecting a phone to the car via Bluetoothfor the first time (p. 515)
Connecting a phone to the car via Bluetoothautomatically (p. 517)
Disconnecting a Bluetooth-connected phone(p. 518)
Switch between phones connected via Blue-tooth (p. 518)
Disconnecting Bluetooth-connected devices(p. 518)
Settings for Bluetooth devices (p. 523)
Internet-connected vehicle* (p. 523)
Connecting the vehicle to the Internet via aBluetooth-connected phone (p. 525)
Page 520 of 669
AUDIO, MEDIA AND INTERNET
518
Disconnecting a Bluetooth-connected phone
Disconnect a Bluetooth-connected phone fromthe vehicle by deactivating Bluetooth in thephone.
When the phone is out of range of the vehicle, itwill be automatically disconnected. If a call is inprogress when the phone is disconnected fromthe vehicle, the call will be transferred from thevehicle's speakers and microphone to the cellularphone.
Related information
Phone (p. 514)
Phone settings (p. 522)
Switch between phones connected via Blue-tooth (p. 518)
Disconnecting Bluetooth-connected devices(p. 518)
Settings for Bluetooth devices (p. 523)
Switch between phones connectedvia Bluetooth
It is possible to switch between Bluetooth-con-nected phones.
1. Open the phone tile.
2.Tap Change or pull down Top view and
tap SettingsCommunication
Bluetooth DevicesAdd device.
> A list of available Bluetooth devices will bedisplayed.
3. Tap the name of the phone you would like toconnect.
Related information
Phone (p. 514)
Connecting a phone to the car via Bluetoothfor the first time (p. 515)
Settings for Bluetooth devices (p. 523)
Disconnecting a Bluetooth-connected phone(p. 518)
Disconnecting Bluetooth-connected devices(p. 518)
Disconnecting Bluetooth-connecteddevices
Phones or other devices in the list of registeredBluetooth devices can be removed.
1.Tap Settings in the Top view.
2. Tap CommunicationBluetoothDevices.
> A list of registered Bluetooth devices isdisplayed.
3.Tap the name of the device you would like toremove.
4.Tap Remove device and confirm.
> The device is no longer registered in thevehicle.
Related information
Phone (p. 514)
Connecting a phone to the car via Bluetoothfor the first time (p. 515)
Disconnecting a Bluetooth-connected phone(p. 518)
Switch between phones connected via Blue-tooth (p. 518)
Settings for Bluetooth devices (p. 523)
