AUDIO, MEDIA AND INTERNET
* Option/accessory.
504
Wi-Fi technology and security
Networks must meet certain criteria in order for the vehicle to connect.
It is possible to connect to the following types of networks:
Frequency - 2.4 or 5 GHz 15
.
Standards - 802.11 a/b/g/n.
Security type - WPA2-AES-CCMP.
The vehicle's Wi-Fi system is designed to han-dle Wi-Fi devices inside the vehicle. Performance may be impaired if multiple devi- ces are using a frequency at the same time.
Related information
Internet-connected vehicle
* (p. 498)
Terms of use and data sharing The first time certain services and apps are started, a pop-up window with the heading
Terms and conditions and Data sharingmay open.The aim is to inform the user about Volvo's terms of use and data sharing policy. Byaccepting data sharing, the user accepts thatcertain information will be sent from the vehi-cle. This is required for certain services andapps to work with full functionality. The data sharing function for connected servi- ces and apps is disabled by default 16
. For cer-
tain connected services and apps in the vehi- cle to work, data sharing must be activated.Data sharing can be set from the center dis-play's settings menu or when the services orapps are started in the center display.
Privacy and data sharingThe software update that became available inNovember 2017 introduced privacy and datasharing settings for connected services anddownloaded apps. These settings can be found under
Privacy and data in the settings
menu in the vehicle's center display. There, you can choose which connected servi- ces will be allowed to share data. Data sharingfor downloaded apps can also be disabled there. Note that services and apps cannot beused as intended if data sharing is disabled. After a factory reset or e.g. a workshop visit or a software update, your data sharing preferen-ces may be reset to default settings. You willthen need to reactivate data sharing for con-nected services and downloaded apps.
NOTE
Settings for privacy and data sharing are unique for each driver profile.
Related information

Activating and deactivating data sharing (p. 505)
15
Selecting a frequency is not possible on all markets.
16 Does not apply to Volvo On Call.

||

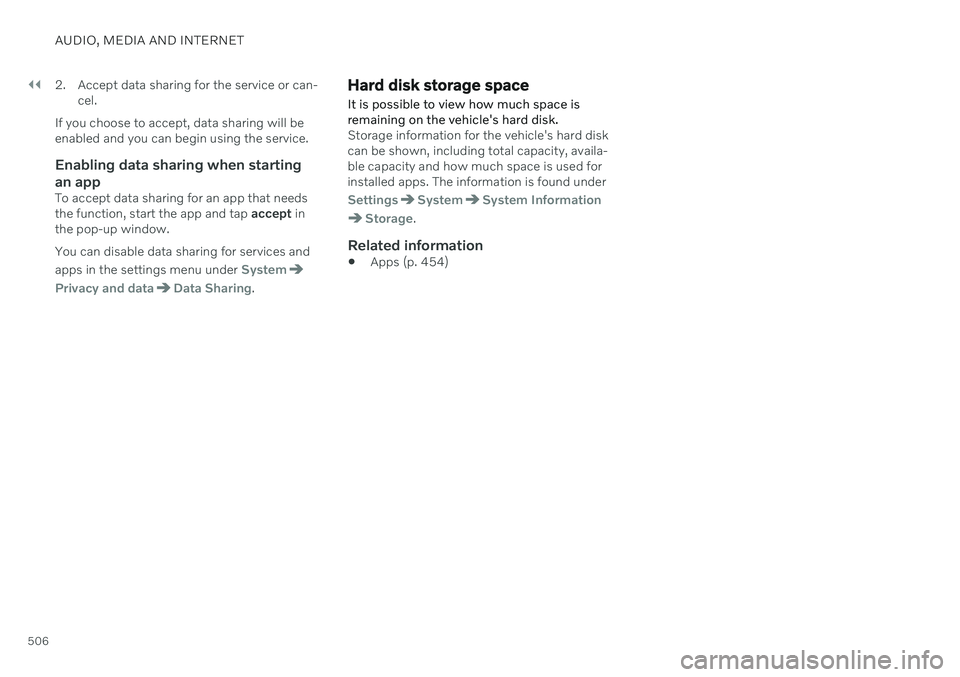

AUDIO, MEDIA AND INTERNET
5062. Accept data sharing for the service or can-
cel.
If you choose to accept, data sharing will be enabled and you can begin using the service.
Enabling data sharing when starting an app
To accept data sharing for an app that needsthe function, start the app and tap accept in
the pop-up window. You can disable data sharing for services and apps in the settings menu under
System
Privacy and dataData Sharing.
Hard disk storage space
It is possible to view how much space is remaining on the vehicle's hard disk.
Storage information for the vehicle's hard disk can be shown, including total capacity, availa-ble capacity and how much space is used forinstalled apps. The information is found under
SettingsSystemSystem Information
Storage.
Related information
Apps (p. 454)

LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
558
Cargo compartment
Loads can be secured in the trunk to keep them in place while driving.
The folding * rear seat backrests can help
increase the cargo capacity of the trunk. Load anchoring eyelets and grocery bag holders areprovided to help secure objects in place. If the vehicle is equipped with a temporary spare tire, this is secured to the cargo com-partment floor under the cover. The towingeyelet and tire sealing system are locatedunder the cargo compartment floor.
Related information
Loading recommendations (p. 558)
Grocery bag holders (p. 560)
Load anchoring eyelets (p. 560)
Loading recommendations
There are a number of things that are impor- tant to consider when carrying loads in or onthe vehicle.
Load-carrying capacity is determined by the vehicle's curb weight. The total weight of allpassengers and any installed accessoriesreduces the vehicle's load-carrying capacity bythe corresponding amount.
WARNING
The vehicle's driving characteristics change depending on the weight and position ofthe load.
Loading the cargo compartment/trunkKeep the following in mind when loading:
Position objects so they are pressing against the rear seat backrests.
Heavy objects should be positioned as lowas possible. Avoid placing heavy objectson folded-down seat backrests.
Cover sharp corners with a soft cloth orsimilar to help prevent damage to theupholstery.
Use the load anchoring eyelets and ten-sioning straps or similar to secure allobjects.
WARNING
In a head-on collision at a speed of 50 km/h (30 mph), an unsecured objectweighing 20 kg (44 pounds) can reach aprojectile weight equivalent to 1000 kg(2200 pounds).
WARNING
If objects are loaded higher than the upper edge of the side windows, leave a 10 cm(4 in.) space between the objects and thewindow. Objects placed closer to thiscould impede the function of the inflatablecurtain concealed inside the headlining.
WARNING
Always secure the load. Otherwise, it may shift during heavy braking and injure peo-ple in the vehicle. Cover sharp edges and sharp corners with something soft. Turn off the engine and apply the parking brake when loading/unloading longobjects. Otherwise, it is possible for theload to reach the gear lever or gear selectorand move it to a drive position – whichcould cause the vehicle to begin rolling.

||
MAINTENANCE AND SERVICE
* Option/accessory.
606
CAUTION
The microfiber cloth must be free of sand and dirt when cleaning the center display.
CAUTION
When cleaning the center display, apply only light pressure to the screen. Pressingtoo hard could damage the screen.
CAUTION
Do not spray liquid or corrosive chemicals directly onto the center display. Do not usewindow cleaners, cleaning agents, aerosolsprays, solvents, alcohol, ammonia ordetergents that contain abrasives. Never use abrasive cloths, paper towels or tissue paper, as these may scratch the cen-ter display.
Related information
Cleaning the interior (p. 605)
Cleaning fabric upholstery and ceiling liner (p. 607)
Cleaning the seat belt (p. 607)
Cleaning floor mats and inlay mats(p. 607)
Cleaning leather upholstery
* (p. 608)
Cleaning the leather steering wheel(p. 609)
Cleaning interior plastic, metal and woodsurfaces (p. 609)
Cleaning the head-up display
*
Carefully wipe the glass covering the head-up display unit with a clean and dry microfibercloth. If necessary, the cloth may be slightlymoistened.
Never use strong stain removers. For difficult cleaning conditions, a special cleaning agentcan be purchased at a Volvo retailer.
Related information
Activating and deactivating the head-up display
* (p. 141)
Head-up display
* (p. 139)

||
MAINTENANCE AND SERVICE
616
CAUTION
Avoid washing the vehicle with cleaner with a pH value below 3.5 or above 11.5.This could cause discoloration of anodizedaluminum components like the roof rail andaround the side windows. Never use metal polishing agent on ano- dized aluminum components. This couldcause discoloration and destroy the sur-face treatment.
Related information
Cleaning the exterior (p. 610)
Polishing and waxing (p. 610)
Hand washing (p. 611)
Automatic car washes (p. 613)
High-pressure washing (p. 614)
Cleaning the wiper blades (p. 614)
Cleaning rims (p. 616)
Corrosion protection (p. 616)
Cleaning rims
The vehicle should be washed as soon as it becomes dirty. The longer the dirt remains,the more difficult it will be to keep the vehicleclean. It could also lead to paint damage.Wash the vehicle in a car wash or garagewith an oil separator and use car washingdetergent.
Only use rim cleaning products recommended by Volvo. Strong rim cleaning agents could damage the surface and stain the chromed aluminum rims.
Related information
Cleaning the exterior (p. 610)
Polishing and waxing (p. 610)
Hand washing (p. 611)
Automatic car washes (p. 613)
High-pressure washing (p. 614)
Cleaning exterior plastic, rubber and trimcomponents (p. 615)
Cleaning rims (p. 616)
Corrosion protection (p. 616)
Corrosion protection Your vehicle is constructed with protection against corrosion.
Corrosion protection for the body consists of modern metallic protective coatings on thesheet metal, a high-quality painting process,corrosion-protected and minimized metaloverlap, and shielding plastic components,abrasion protection and supplemental rustinhibitor in exposed areas. In the chassis,exposed components of the wheel suspensionare made of corrosion-resistant cast alumi-num.
Inspection and maintenanceThe corrosion protection does not normallyrequire maintenance, but keeping the vehicleclean helps reduce the risk of corrosion. Theuse of strong alkaline or acidic cleaning fluidsshould be avoided on shiny body components.Any stone chips in the paint should betouched up as soon as they are discovered.
Related information

Cleaning the exterior (p. 610)
Polishing and waxing (p. 610)
Hand washing (p. 611)
Automatic car washes (p. 613)
High-pressure washing (p. 614)
Cleaning the wiper blades (p. 614)

INDEX
640Fuel filling 435
Fuel gauge 83
Fuel requirements 436, 437Fuel tank
volume 633
Fuse box 585
Fuses 585 below the glove compartment 594
in engine compartment 587
in trunk 600
replacing 585
G
Gasoline grade 436 Gaugefuel gauge 83
hybrid battery 84
Gear selector positions automatic transmission 413
Glass, laminated/reinforced 164
Glove compartment 555 Gracenote ®
477
Grocery bag holders 560
Gross vehicle weight 629
H
Handbrake 406
Hand wash 611Hard disk space 506
Hazard warning flashers 158
HD radio 461
Head-up display 139 activating/deactivating 141
cleaning 606
Distance Alert 273
replacing windshield 571
settings 141
store position 141, 186, 187
Heated washer nozzles 178
Heater 231 auxiliary heater 231
parking heater 231
Heating Seats 211, 212
steering wheel 214, 215
windows 218
high beams 154, 155
High engine temperature 439
Hill Start Assist 411 Hill Start Assist (HSA) 411
Hoisting the vehicle 569 Hold
vehicle function 431
HomeLink ® 445
programming 446
type approval 448
use 448
HomeLink ® remote control
programmable 445
Home safe lighting, Homesafe Lighting,Follow me home lighting, follow-me-
home lighting 159
Honk 194
Hood, opening 571
Horn 194
Hybrid battery 583 Charging 381
Hybrid battery gauge 84
Hybrid gauge 83
Hybrid mode 419, 424
I
IAQS (Interior Air Quality System) 202
IC (Inflatable Curtain) 61
ID, Volvo 26

INDEX
644personal information (Customer Privacy
Policy) 35
Phone 489
changing to another 493
connect 490
connect automatically 492
connect manually 492
delete 493
disconnect 492
phone call 493, 496
text message 494
voice control 145
Pilot Assist 287 activating 290
auto-brake 300
disengaged steering assistance 293
limitations 293
manage speed 298
passing 304
set time interval 299
standby mode 292
switching target vehicles 297
Symbols and messages 295
turn off 291
WARNING 296
pinch protection 164 resetting 165
PIN code 501 Private locking 262
Polishing 610
Position lights 152
Power 630electric motor 630
Power folding door mirrors 171
Power panoramic roof 172
Power save mode 440
Power seats 185
Power trunk lid 258
Power windows 166, 167 pinch protection 164
Preconditioning 224 start/stop 225
timer 226
Pressure wash 614
Privacy Policy (Customer Privacy Policy) 35
Private locking 262 activating/deactivating 262
PROPOSITION 65 WARNING 441
R
Radar sensor see Radar sensor 305
Radar unit 305 limitations 309
maintenance and cleaning 313
type approval 306
Radio 456 changing radio waveband and radio
station 458
HD radio 461
RBDS 460
search radio station 458
settings 460SiriusXM ®
Satellite radio 464, 465,
466
start 457
voice control 146
Radio favorites 459
Rain sensor 179, 180
Rain sensor's memory function 180
Rear camera 362
Rear Collision Warning 328 limitations 328
Rear door sun shade 168
Rear seat adjusting backrest tilt 194 Adjusting passenger seat from rear
seat 194
blower 219
climate 209
folding down the armrests 557

INDEX
645
heating 212
temperature 221
ventilation 213
Rearview/door mirrors adjusting door mirrors 171
dimming 170
heating 218
interior 170
Rearview mirror 170 dimming 170
Rear window heating 218
sun shade 168
Recalls 45
Recommendations when driving 432
Recommendations when loading 558
Recovery 444Red Key restricted remote key 244
settings 245
Refrigerant 571 climate system 633
Refueling filling 435
fuel filler door, fuel flap 434
Remote immobilizer 248
Remote key 236 battery replacement 240
connecting to driver profile 135
detachable key blade 246
loss 243
Range 239
Remote updates 565
Reporting safety defects 44
Resetting door mirrors 171
Resetting settings 131 change of owner 131
Driver profile 137
Resetting trip odometer 88
Road Sign Information 337 activating/deactivating 338
display 338
limitations 341
Sensus Navigation 339
settings 340
speed camera information 339
Speed warning 339
Road trip 432
Roof load, max. weight 629
Run-off Mitigation 352S
Safety 42 pregnancy 43
Safety belt, see Seat belt 47
Safety defects, reporting 44
Safety mode 62 starting/moving 62
Sealing compound 542
Seat, see Seats 184
Seat belt reminder 51
Seat belts 47 Automatic locking retractor/Emer-
gency locking retractor 65
buckling/unbuckling 48
pregnancy 43
seat belt reminder 51
seat belt tensioner 50
securing child restraint systems 67, 70, 72
Seat belt tensioner 50 resetting 51
Seats heating 211, 212
manual front seat 184
power front seats 185
store position 186, 187

INDEX
647
Sun shade
panoramic roof 172, 177
pinch protection 164
rear door 168
rear window 168
Sun visor 557 mirror lighting 160
Switching target vehicles with Adaptive Cruise Control 297
with Pilot Assist 297
Symbols dynamic 80
indicator symbols 91
warning symbols 94
Symbols and messages center display's status bar 121
hybrid-related 394
parking climate 230
system updates 566
T
Technician certification 38 Temperature adjusting 221, 223
perceived 199
Temperature monitoring 386
Temporary Spare 539
Temporary tire sealing system 542 execution, checking 543
Inflating tires 547
Terms and conditions services 35
users 504
Tire dimensions 524 when changing wheels 534
Tires 520 direction of rotation 522
glossary of terms 523
inflation pressure table 634
mounting 538
pressure 634
removal 536
rotation when changing 520
specifications 524, 634
storage 520
tread wear indicator 523
winter tires 541
Tire sealing system Inflating tires 547
use 543
Tire tread 523
Tools 534Top tether anchors (child restraint sys-
tems) 73Top view 129
Total airing function 236
Towing 443
Towing eyelet 443TPMS - Tire Pressure Monitoring Sys-
tem 529
Traction control 269
Traffic information 460
Transmission 412 automatic 412, 413
Transmission fluid grade 632
Travel Link 468 Fuel 471
Notifications 470
Sports 472
weather 469
Tread depth 523 winter tires 541
Tread wear indicator 523
Trip computer 85 display in instrument panel 87
Trip odometer 85
Trip odometer resetting 88
Trip statistics 88 settings 89

INDEX
649
Warning symbols
safety 42
Warranties 562 Washer Headlights 180
washer fluid, filling 621
Windshield 180
Washer fluid 178, 621
Washer nozzles, heated 178
Waxing 610 Weights Curb weight 629
Wheel bolts 535 Wheels cleaning 616
mounting 538
removal 536
Snow chains 541
Wheels and tires Load index and speed symbol 524
Whiplash protection 46
Whiplash Protection System 46
WHIPS (Whiplash Protection System) 46 Wi-Fi connecting vehicle to Internet 499
delete network 503
sharing Internet connection, tether-
ing, hotspot 502
technology and security 504
Window sun shade 168
Windows and glass 164 Windshield projected image 139, 141
Windshield washing 180
Windshield wipers 178 rain sensor 179, 180
Winter driving 432 Snow chains 541
winter tires 541
Wiper blade 178 replacing 619
service position 620
Wiper blade and washing fluid 178
