11 Specifications
Dimensions and weights
11

271

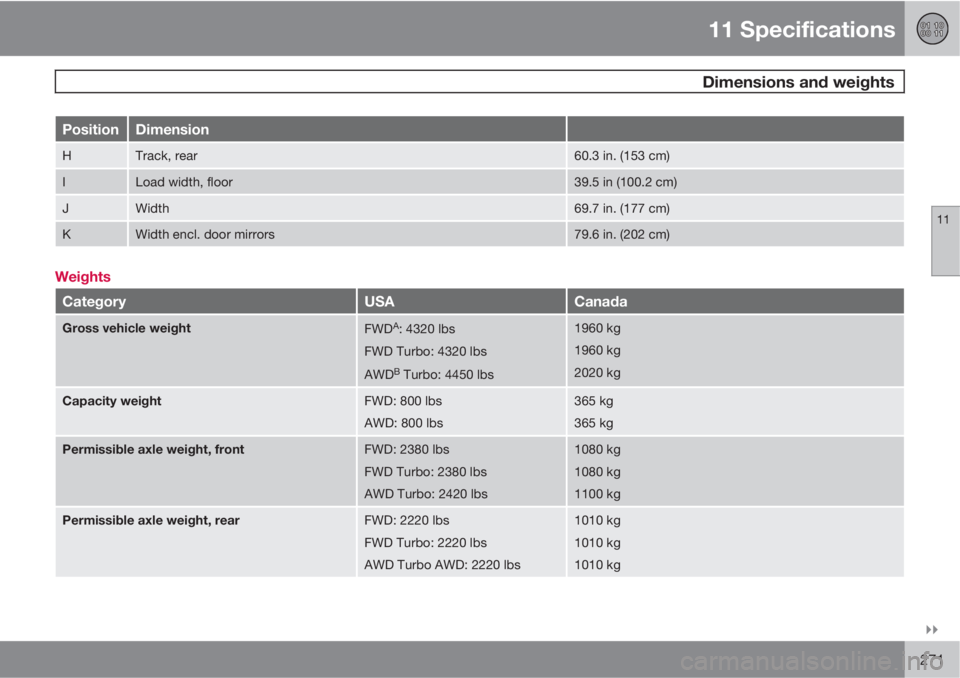

PositionDimension
HTrack, rear60.3 in. (153 cm)
ILoad width, floor39.5 in (100.2 cm)
JWidth69.7 in. (177 cm)
KWidth encl. door mirrors79.6 in. (202 cm)
Weights
CategoryUSACanada
Gross vehicle weightFWDA: 4320 lbs
FWD Turbo: 4320 lbs
AWD
B Turbo: 4450 lbs
1960 kg
1960 kg
2020 kg
Capacity weightFWD: 800 lbs
AWD: 800 lbs365 kg
365 kg
Permissible axle weight, frontFWD: 2380 lbs
FWD Turbo: 2380 lbs
AWD Turbo: 2420 lbs1080 kg
1080 kg
1100 kg
Permissible axle weight, rearFWD: 2220 lbs
FWD Turbo: 2220 lbs
AWD Turbo AWD: 2220 lbs1010 kg
1010 kg
1010 kg

11 Specifications
Dimensions and weights
11
272

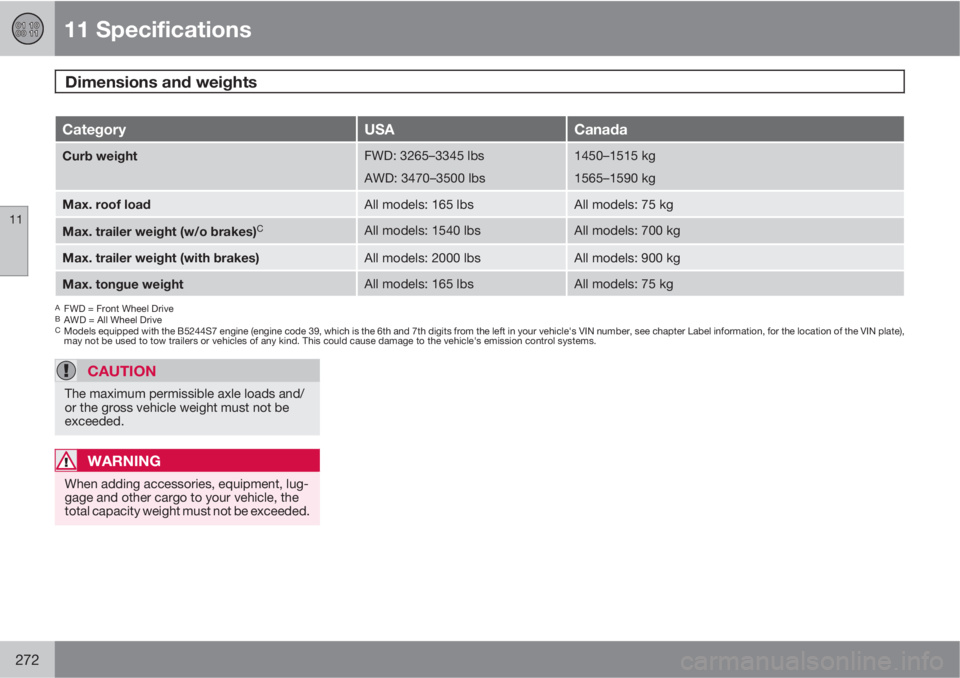

CategoryUSACanada
Curb weightFWD: 3265–3345 lbs
AWD: 3470–3500 lbs1450–1515 kg
1565–1590 kg
Max. roof loadAll models: 165 lbsAll models: 75 kg
Max. trailer weight (w/o brakes)CAll models: 1540 lbsAll models: 700 kg
Max. trailer weight (with brakes)All models: 2000 lbsAll models: 900 kg
Max. tongue weightAll models: 165 lbsAll models: 75 kg
AFWD = Front Wheel DriveBAWD = All Wheel DriveCModels equipped with the B5244S7 engine (engine code 39, which is the 6th and 7th digits from the left in your vehicle's VIN number, see chapter Label information, for the location of the VIN plate),
may not be used to tow trailers or vehicles of any kind. This could cause damage to the vehicle's emission control systems.
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications
Fuel, oils, and fluids
11

273 Specifications and capacities
CategorySpecificationCapacity
Fuel tankOctane rating: unleaded gasoline, minimum
octane requirement AKI 87, recommended rat-
ing AKI 91 or above.15.9 US gallons (60 liters)
Models with All Wheel Drive have a tank volume of
15 US gallons (57 liters).
Models with engine code 39 have a fuel tank capacity
of 14 US gallons (53 liters). This code is the 6th and
7th digits from the left in your vehicle's VIN number.
see page 268 for the location of the VIN plate.
Engine oil (with filter replacement)See page 275 for information on engine oil
specifications.6.1 US quarts (5.8 liters)
Automatic transmission oilJWS 33098.14 US quarts (7.7 liters)
Manual transmission oilBOT 350 M35-speed: 2.2 US quarts (2.1 liters)
6-speed: 2.0 US quarts (1.9 liters) – turbo models
CoolantVolvo original coolant/antifreeze (50/50 mix-
ture of water and anti-freeze)10.5 US quarts (10 liters) – models with automatic
transmission
10 US quarts (9.5 liters) – models with manual trans-
mission
Brake fluidDOT 4+ boiling point >536 °F (280 °C), P/N
94374330.63 US quarts (0.6 liters)
Power steering fluidWSS M2C204-A or equivalent1.3 US quarts (1.2 liters) – system and reservoir com-
bined

11 Specifications
Fuel, oils, and fluids
11
274
CategorySpecificationCapacity

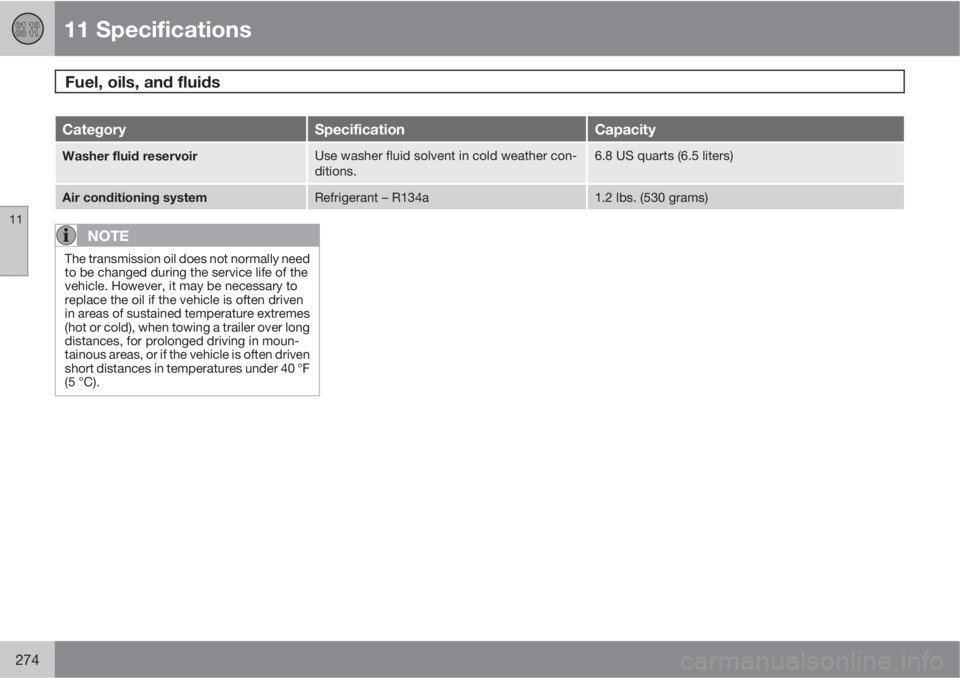

Washer fluid reservoirUse washer fluid solvent in cold weather con-
ditions.6.8 US quarts (6.5 liters)
Air conditioning systemRefrigerant – R134a1.2 lbs. (530 grams)
NOTE
The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).

11 Specifications
Engine oil
11

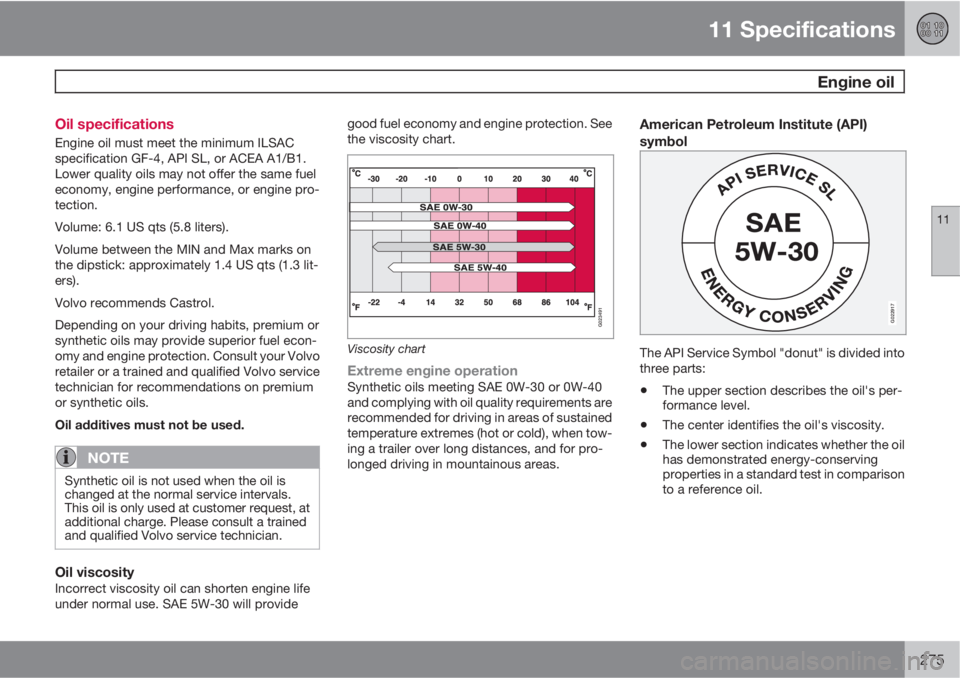

275 Oil specifications
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volume: 6.1 US qts (5.8 liters).
Volume between the MIN and Max marks on
the dipstick: approximately 1.4 US qts (1.3 lit-
ers).
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer or a trained and qualified Volvo service
technician for recommendations on premium
or synthetic oils.
Oil additives must not be used.
NOTE
Synthetic oil is not used when the oil is
changed at the normal service intervals.
This oil is only used at customer request, at
additional charge. Please consult a trained
and qualified Volvo service technician.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will providegood fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

11 Specifications
Engine specifications
11
276
Engine designationB5244S4B5244S7AB5254T7
OutputB
kW/rps
hp/rpm125/100
168/6000123/100
165/6000169/83
227/5000
TorqueB
Nm/rps
ft. lbs./rpm230/73
170/4400230/73
170/4400320/25-80
236/1500-4800
No. of cylinders555
Displacement (liters/cubic inches)2.44/148.62.44/148.62.52/153.8
Bore (mm/in.)83/3.2783/3.2783/3.27
Stroke (mm/in.)90/3.5490/3.5493.2/3.67
Compression ratio10.3:110.3:19.0:1
Spark plugs
type
gap inches/mm
tightening torque ft. lbs./Nm
Volvo kit no. 30650843
(3x) 0.024 ± 0.004 in./0.6 ± 0.1mm
22.5 ft. lbs./30 NmVolvo kit no. 30650843
(3x) 0.024 ± 0.004 in./0.6 ± 0.1mm
22.5 ft. lbs./30 NmVolvo kit no. 30650379
0.027in./0.7mm
22.5 ft. lbs./30 Nm
ACertain markets.BThe engine specifications for output and torque listed in this table are based on the use of premium fuel.
Charge air cooler (Intercooler)Turbocharged engines employ a turbo-com-
pressor to force air into the engine inlet mani-
fold and a charge air cooler to cool the com-pressed inlet air. The resulting increase in air
flow raises pressure in the intake manifold and
increases engine power over that developed by
the normally-aspirated engine. The charge aircooler (which resembles a radiator) is located
between the turbo-compressor and inlet mani-
fold.

11 Specifications
Engine specifications
11
277
Fuel systemThe engine is equipped with a multiport fuel
injection system.

11 Specifications
Electrical system
11
278
General information
12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.
Battery
Voltage12 V12 V
Cold start capacity
(CCA)600 AA700 AB
Reserve capacity
(RC)120 min135 min
Capacity (Ah)7080
AModels equipped with the High Performance audio system.BModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive.
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.

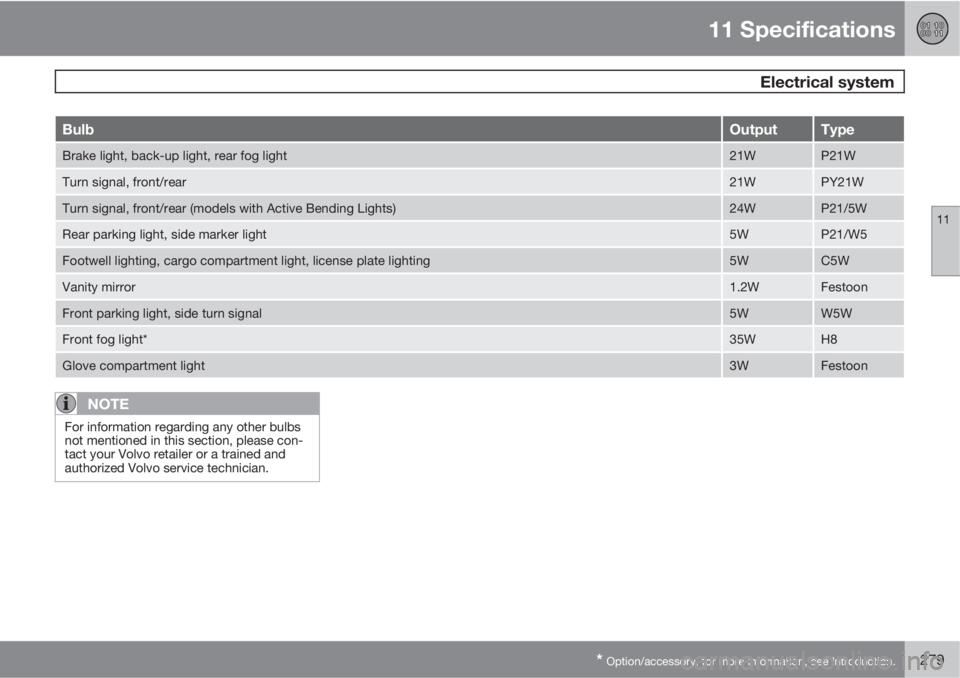

Bulbs used in the car
BulbOutputType
Low beam headlight55WH7
High beam headlight (applies to vehicles with halogen headlights)55WH9
Extra high beam (models with Active Bending Lights only)55WH7

11 Specifications
Electrical system
11
* Option/accessory, for more information, see Introduction.279
BulbOutputType
Brake light, back-up light, rear fog light21WP21W
Turn signal, front/rear21WPY21W
Turn signal, front/rear (models with Active Bending Lights)24WP21/5W
Rear parking light, side marker light5WP21/W5
Footwell lighting, cargo compartment light, license plate lighting5WC5W
Vanity mirror1.2WFestoon
Front parking light, side turn signal5WW5W
Front fog light*35WH8
Glove compartment light3WFestoon
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.

11 Specifications
Three-way catalytic converter
11
280

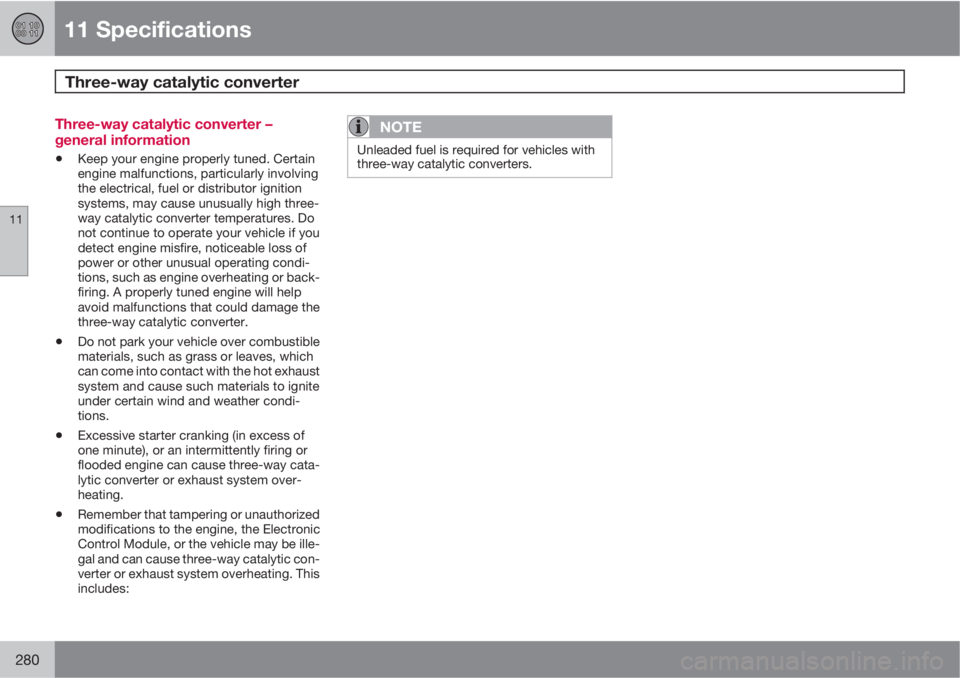

Three-way catalytic converter –
general information
•Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help
avoid malfunctions that could damage the
three-way catalytic converter.
•Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•Remember that tampering or unauthorized
modifications to the engine, the Electronic
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes:
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.
