VOLVO V50 2010 Owner´s Manual

10 Audio
Bluetooth® hands-free connection
10

261

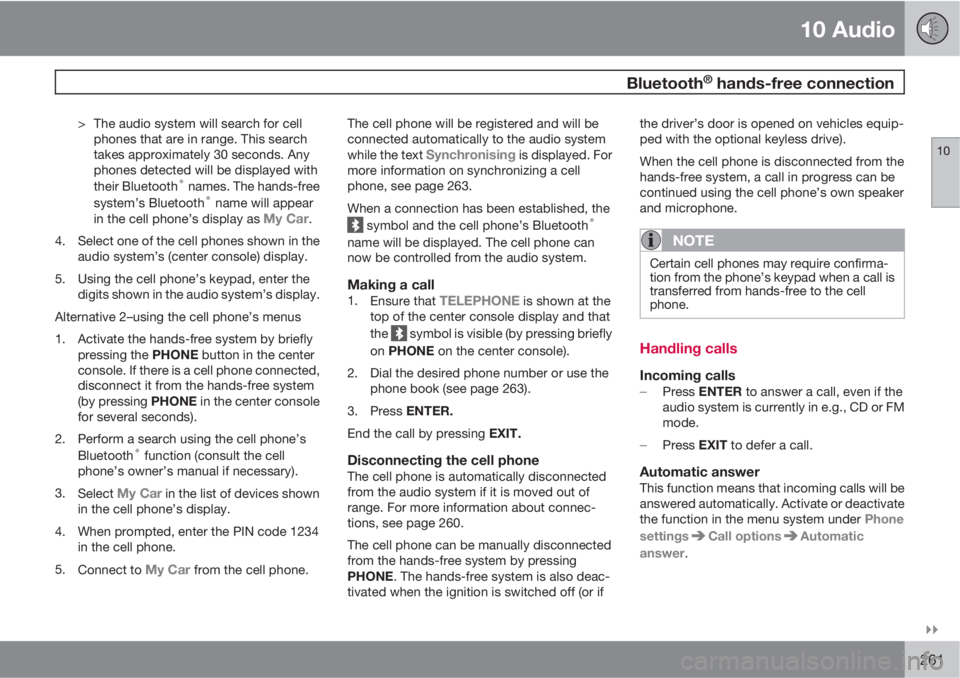

> The audio system will search for cell
phones that are in range. This search
takes approximately 30 seconds. Any
phones detected will be displayed with
their Bluetooth
® names. The hands-free
system’s Bluetooth® name will appear
in the cell phone’s display as My Car.
4. Select one of the cell phones shown in the
audio system’s (center console) display.
5. Using the cell phone’s keypad, enter the
digits shown in the audio system’s display.
Alternative 2–using the cell phone’s menus
1. Activate the hands-free system by briefly
pressing the PHONE button in the center
console. If there is a cell phone connected,
disconnect it from the hands-free system
(by pressing PHONE in the center console
for several seconds).
2. Perform a search using the cell phone’s
Bluetooth
® function (consult the cell
phone’s owner’s manual if necessary).
3.
Select
My Car in the list of devices shown
in the cell phone’s display.
4. When prompted, enter the PIN code 1234
in the cell phone.
5.
Connect to
My Car from the cell phone.The cell phone will be registered and will be
connected automatically to the audio system
while the text
Synchronising is displayed. For
more information on synchronizing a cell
phone, see page 263.
When a connection has been established, the
symbol and the cell phone’s Bluetooth®
name will be displayed. The cell phone can
now be controlled from the audio system.
Making a call1.
Ensure that TELEPHONE is shown at the
top of the center console display and that
the
symbol is visible (by pressing briefly
on PHONE on the center console).
2. Dial the desired phone number or use the
phone book (see page 263).
3.
Press ENTER.
End the call by pressing EXIT.
Disconnecting the cell phoneThe cell phone is automatically disconnected
from the audio system if it is moved out of
range. For more information about connec-
tions, see page 260.
The cell phone can be manually disconnected
from the hands-free system by pressing
PHONE. The hands-free system is also deac-
tivated when the ignition is switched off (or ifthe driver’s door is opened on vehicles equip-
ped with the optional keyless drive).
When the cell phone is disconnected from the
hands-free system, a call in progress can be
continued using the cell phone’s own speaker
and microphone.
NOTE
Certain cell phones may require confirma-
tion from the phone’s keypad when a call is
transferred from hands-free to the cell
phone.
Handling calls
Incoming calls
Press ENTER to answer a call, even if the
audio system is currently in e.g., CD or FM
mode.

Press EXIT to defer a call.
Automatic answerThis function means that incoming calls will be
answered automatically. Activate or deactivate
the function in the menu system under Phone
settings
Call optionsAutomatic
answer.

10 Audio
Bluetooth® hands-free connection
10
262

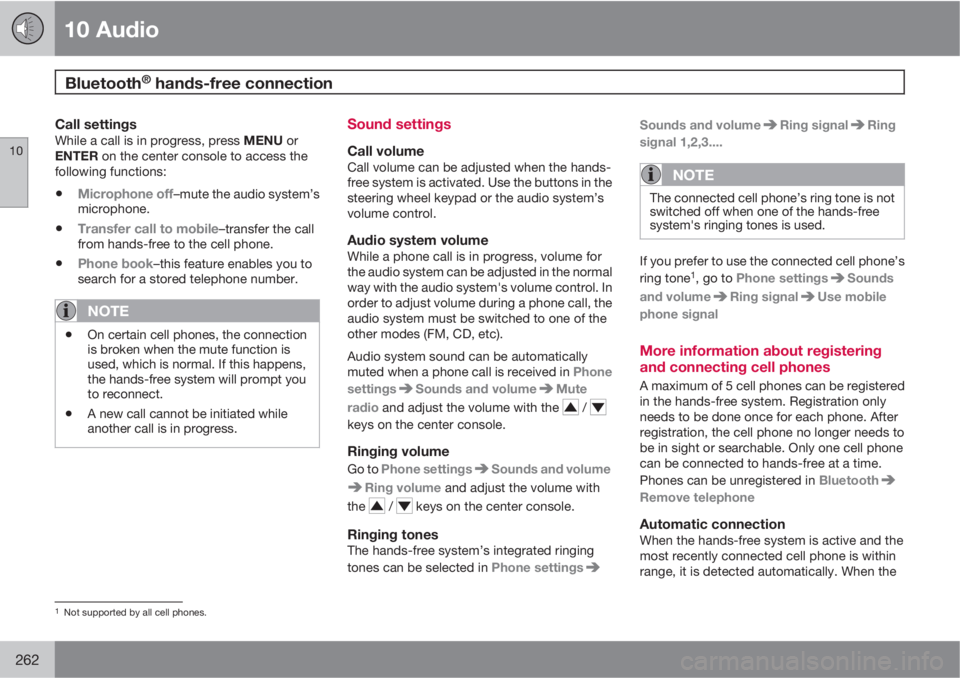

Call settingsWhile a call is in progress, press MENU or
ENTER on the center console to access the
following functions:
•Microphone off–mute the audio system’s
microphone.
•Transfer call to mobile–transfer the call
from hands-free to the cell phone.
•Phone book–this feature enables you to
search for a stored telephone number.
NOTE
•On certain cell phones, the connection
is broken when the mute function is
used, which is normal. If this happens,
the hands-free system will prompt you
to reconnect.
•A new call cannot be initiated while
another call is in progress.
Sound settings
Call volumeCall volume can be adjusted when the hands-
free system is activated. Use the buttons in the
steering wheel keypad or the audio system’s
volume control.
Audio system volumeWhile a phone call is in progress, volume for
the audio system can be adjusted in the normal
way with the audio system's volume control. In
order to adjust volume during a phone call, the
audio system must be switched to one of the
other modes (FM, CD, etc).
Audio system sound can be automatically
muted when a phone call is received in Phone
settings
Sounds and volumeMute
radio and adjust the volume with the
/
keys on the center console.
Ringing volume
Go to Phone settingsSounds and volume
Ring volume and adjust the volume with
the
/ keys on the center console.
Ringing tonesThe hands-free system’s integrated ringing
tones can be selected in Phone settings
Sounds and volumeRing signalRing
signal 1,2,3....
NOTE
The connected cell phone’s ring tone is not
switched off when one of the hands-free
system's ringing tones is used.
If you prefer to use the connected cell phone’s
ring tone1, go to Phone settingsSounds
and volume
Ring signalUse mobile
phone signal
More information about registering
and connecting cell phones
A maximum of 5 cell phones can be registered
in the hands-free system. Registration only
needs to be done once for each phone. After
registration, the cell phone no longer needs to
be in sight or searchable. Only one cell phone
can be connected to hands-free at a time.
Phones can be unregistered in Bluetooth
Remove telephone
Automatic connectionWhen the hands-free system is active and the
most recently connected cell phone is within
range, it is detected automatically. When the
1Not supported by all cell phones.

10 Audio
Bluetooth® hands-free connection
10

263
audio system searches for the most recently
connected phone, this phone’s name appears
in the display. To manually connect a different
cell phone, press EXIT.
Manual connectionTo connect a phone other than the one that
was most recently connected or to switch
between cell phones that are already regis-
tered in the hands-free system:
1. Put the audio system in telephone mode.
2.
Press PHONE in the center console and
select one of the phones on the list.
A connection can also be established in the
menu system under Bluetooth
Connect
phone or Change phone.
Phone book
In order to use the hands-free system’s phone
book (list of contacts), TELEPHONE must be
displayed at the top of the center console dis-
play and the
symbol must be visible.
The audio system stores a copy of the phone
book of each registered cell phone. The phone
book is automatically copied each time a
phone is connected. This function can be acti-
vated in Phone settings
Synchronise
phone book. Searches for contacts are onlymade in the phone book of the currently con-
nected cell phone.
NOTE
If a particular cell phone does not support
copying of the phone book, List is emptywill be displayed when copying has been
completed.
If the phone book contains information about
someone who is trying to call you, this infor-
mation will be shown in the display.
Searching for contactsThe easiest way to search for a contact in the
phone book is to press and hold any of the
buttons 2–9 (see the illustration on page 260).
This starts a search based on the first letter on
the button that has been pressed.
The phone book can also be accessed by
pressing the navigation buttons
/ on the
center console or by pressing
/ on the
steering wheel keypad. A search can also be
made in the phone book’s search menu in
Phone book
Search:
1. Enter the first letter of the contact’s name
and press ENTER or simply press ENTER.
2. Select the desired contact and press
ENTER to make a call to that person.
Voice controlIf the cell phone that is currently connected
allows calls to be made via voice commands,
this function can be used by pressing and hold-
ing ENTER.
Voice mail numberThe phone number to your voice mail can be
changed in the menu Phone settings
Call
options
Voice mail number. If no number
has been stored, this menu can be accessed
by a prolonged press on button 1. Once a
phone number has been stored, press and
hold 1 to dial this number.
Call listsLists of calls in a particular cell phone are cop-
ied to the hands-free system each time that
phone is connected. These lists are then upda-
ted while the phone is connected. Press
ENTER to show the most recently dialed num-
bers. Other call lists can be found under
Call
register.
NOTE
Certain cell phones display the list of the
most recently dialed numbers in reverse
order.

10 Audio
Bluetooth® hands-free connection
10
264

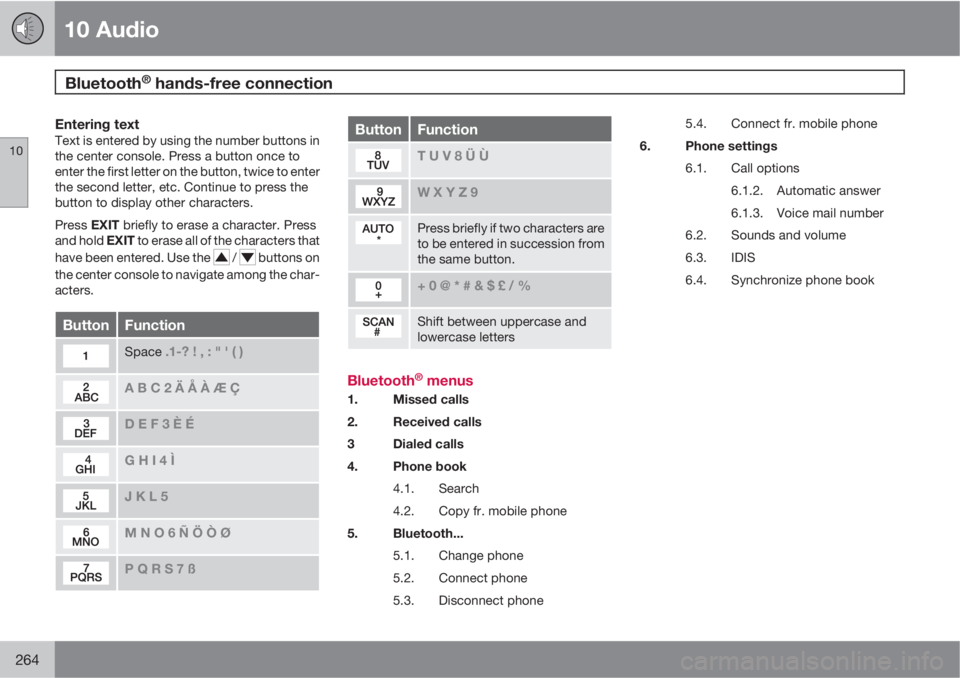

Entering textText is entered by using the number buttons in
the center console. Press a button once to
enter the first letter on the button, twice to enter
the second letter, etc. Continue to press the
button to display other characters.
Press EXIT briefly to erase a character. Press
and hold EXIT to erase all of the characters that
have been entered. Use the
/ buttons on
the center console to navigate among the char-
acters.
ButtonFunction
Space .1-? ! , : " ' ( )
A B C 2 Ä Å À Æ Ç
D E F 3 È É
G H I 4 Ì
J K L 5
M N O 6 Ñ Ö Ò Ø
P Q R S 7 ß
ButtonFunction
T U V 8 Ü Ù
W X Y Z 9
Press briefly if two characters are
to be entered in succession from
the same button.
+ 0 @ * # & $ £ / %
Shift between uppercase and
lowercase letters
Bluetooth® menus
1. Missed calls
2. Received calls
3 Dialed calls
4. Phone book
4.1. Search
4.2. Copy fr. mobile phone
5. Bluetooth...
5.1. Change phone
5.2. Connect phone
5.3. Disconnect phone5.4. Connect fr. mobile phone
6. Phone settings
6.1. Call options
6.1.2. Automatic answer
6.1.3. Voice mail number
6.2. Sounds and volume
6.3. IDIS
6.4. Synchronize phone book

10 Audio

10
265

G000000
266

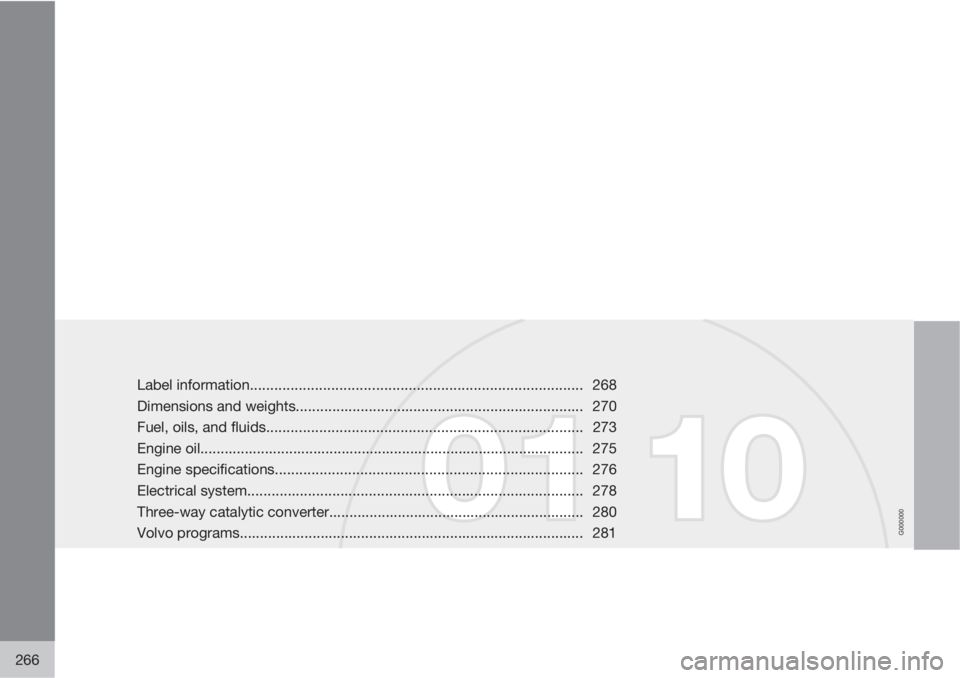

Label information.................................................................................. 268
Dimensions and weights....................................................................... 270
Fuel, oils, and fluids..............................................................................273
Engine oil............................................................................................... 275
Engine specifications............................................................................ 276
Electrical system................................................................................... 278
Three-way catalytic converter............................................................... 280
Volvo programs..................................................................................... 281

11
SPECIFICATIONS

11 Specifications

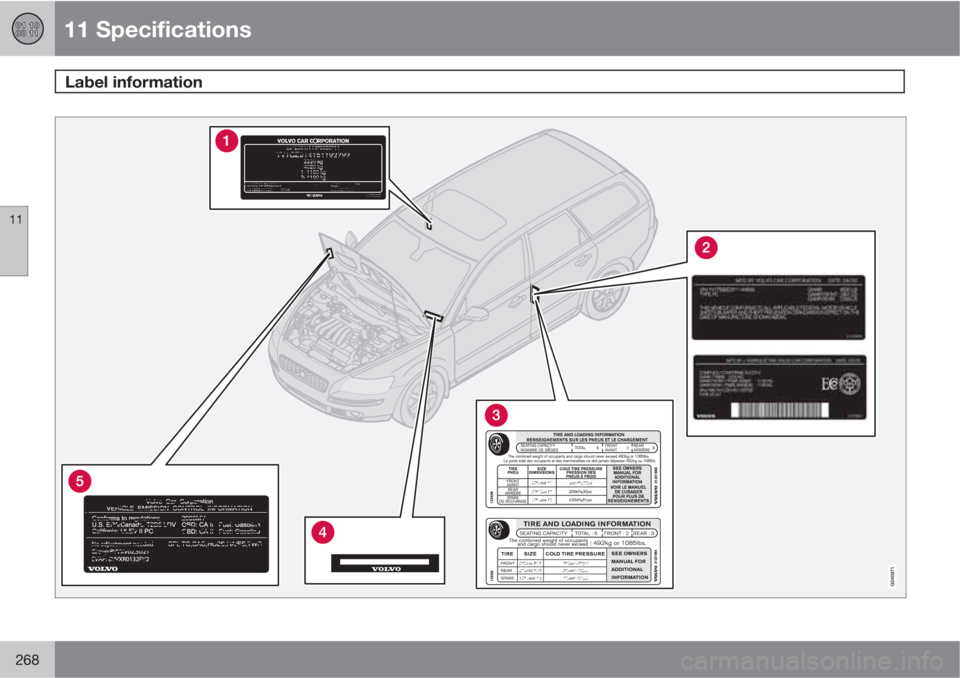

Label information
11
268

11 Specifications
Label information
11
269
Model plate
Vehicle Identification Number (VIN). Codes for
color and upholstery, etc.
Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). For fur-
ther information regarding these regulations,
please consult your Volvo retailer.
Loads and Tire Pressures
The appearance of the decal will vary, depend-
ing on the market for which the vehicle is
intended.
Canadian models have the upper decal.
U.S. models have the lower decal.
Vehicle Identification Number (VIN)1
The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.
Vehicle Emission Control Information
Your Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-
tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.
1The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

11 Specifications
Dimensions and weights
11
270
Dimensions
PositionDimension
AWheelbase103.9 in. (264 cm)
BLength177.7 in. (451 cm)
CLoad length, floor, seatback down69.7 in. (177 cm)
DLoad length, floor39 in. (99 cm)
ELoad height26.9 in (68.5 cm)
FHeight57.2 in. (145 cm)
GTrack, front60.4 in. (154 cm)
