04 Comfort and driving pleasure
Climate control
04

* Option/accessory, for more information, see Introduction.151 Electronic climate control, ECC*
Temperature control, left-hand side
Heated front seats, left-hand side
Max. defroster
Fan
Air distribution - ventilation floor
Air distribution - air vent instrument panel
Air distribution - defroster windscreen
Rear window and door mirror defrosters,
see page 104
Heated front seats, right-hand side
Temperature control, right-hand side
Recirculation
AUTO
AC – – Air conditioning on/off
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
152

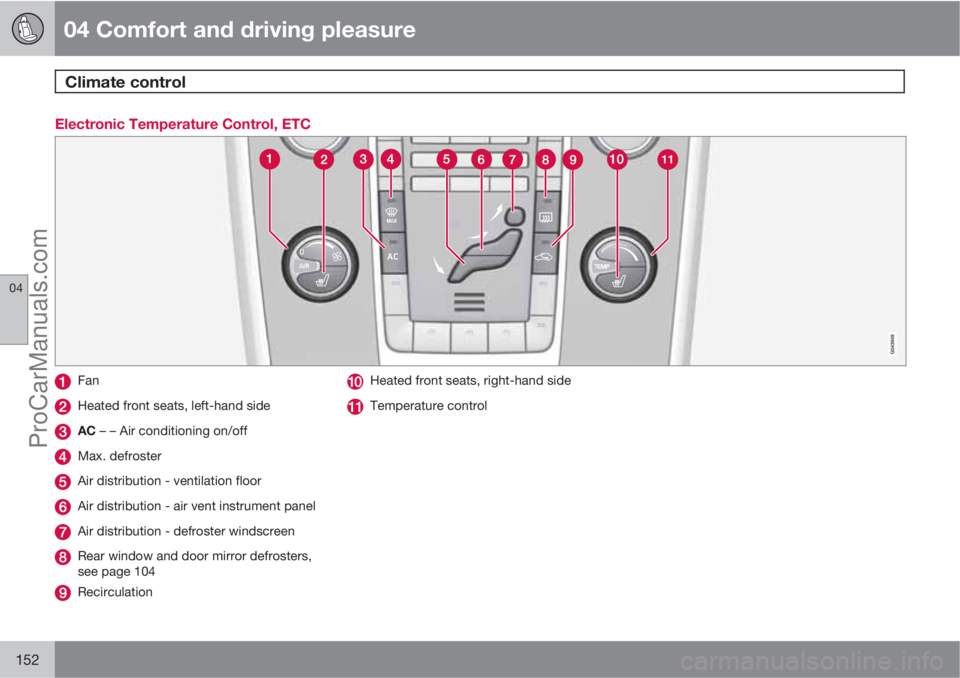

Electronic Temperature Control, ETC
Fan
Heated front seats, left-hand side
AC – – Air conditioning on/off
Max. defroster
Air distribution - ventilation floor
Air distribution - air vent instrument panel
Air distribution - defroster windscreen
Rear window and door mirror defrosters,
see page 104
Recirculation
Heated front seats, right-hand side
Temperature control
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04

* Option/accessory, for more information, see Introduction.153 Operating the controls
Heated seats*
Front seats
Current heat level is shown in the centre console
TV screen.
One press on the button gives
the highest heat level - three
orange lamps illuminate in the
centre console TV screen (see
figure above).
Press the button twice for a
lower heat level – two orange lamps illuminate
in the TV screen.
Press the button three times for the lowest heat
level – one orange lamp illuminates in the TV
screen.
Press the button four times to switch off the
heat – no lamps illuminate.
WARNING
The heated seat should not be used by peo-
ple who find it difficult to perceive tempera-
ture increase because of sensory loss or for
any reason have difficulty in managing to
use the control of the heated seat. Other-
wise, burn injuries may arise.
Rear seat2
Press the button once for the highest heat level
– three lamps illuminate.
Press the button twice for a lower heat level –
two lamps illuminate.
Press the button three times for the lowest heat
level – one lamp illuminates.
Press the button four times to switch off the
heat – no lamps illuminate.
Fan
NOTE
If the fan is fully disengaged the air condi-
tioning is not engaged which may result in a
risk of misting windows.
Fan knob for ECC*Turn the knob to increase or
decrease fan speed. If AUTO
is selected then fan speed is
regulated automatically. The
previously set fan speed is
disengaged.
2Not included if 2-stage booster cushion is selected.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
154* Option/accessory, for more information, see Introduction.
Fan knob for ETCTurn the knob to increase or
decrease fan speed.

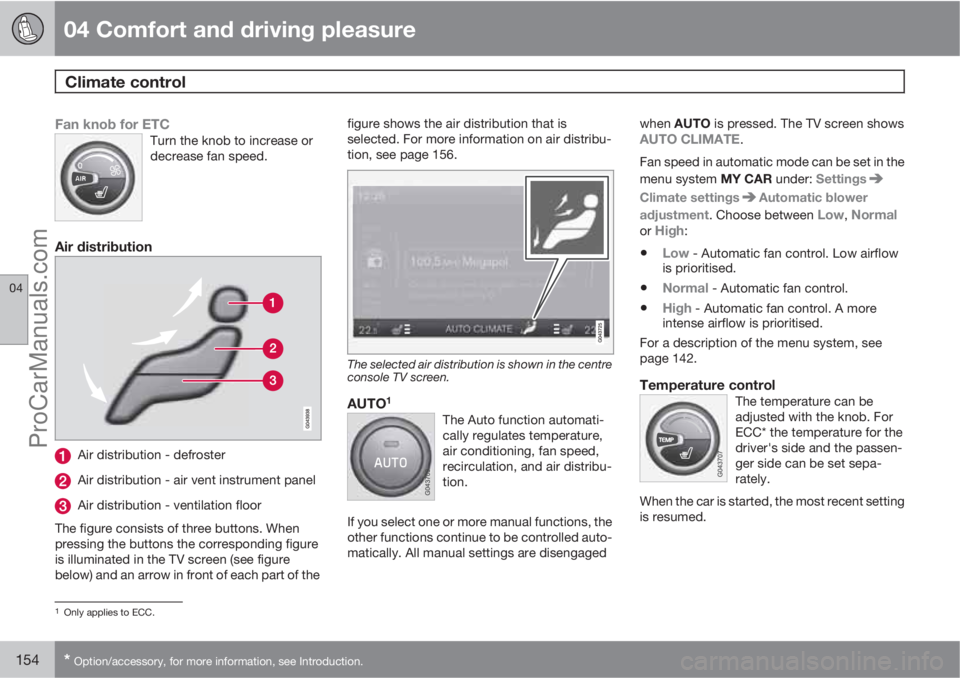

Air distribution
Air distribution - defroster
Air distribution - air vent instrument panel
Air distribution - ventilation floor
The figure consists of three buttons. When
pressing the buttons the corresponding figure
is illuminated in the TV screen (see figure
below) and an arrow in front of each part of thefigure shows the air distribution that is
selected. For more information on air distribu-
tion, see page 156.
The selected air distribution is shown in the centre
console TV screen.
AUTO1
The Auto function automati-
cally regulates temperature,
air conditioning, fan speed,
recirculation, and air distribu-
tion.
If you select one or more manual functions, the
other functions continue to be controlled auto-
matically. All manual settings are disengagedwhen AUTO is pressed. The TV screen shows
AUTO CLIMATE.
Fan speed in automatic mode can be set in the
menu system MY CAR under: Settings
Climate settingsAutomatic blower
adjustment. Choose between
Low, Normalor High:
•Low - Automatic fan control. Low airflow
is prioritised.
•Normal - Automatic fan control.
•High - Automatic fan control. A more
intense airflow is prioritised.
For a description of the menu system, see
page 142.
Temperature controlThe temperature can be
adjusted with the knob. For
ECC* the temperature for the
driver's side and the passen-
ger side can be set sepa-
rately.
When the car is started, the most recent setting
is resumed.
1Only applies to ECC.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04

* Option/accessory, for more information, see Introduction.155

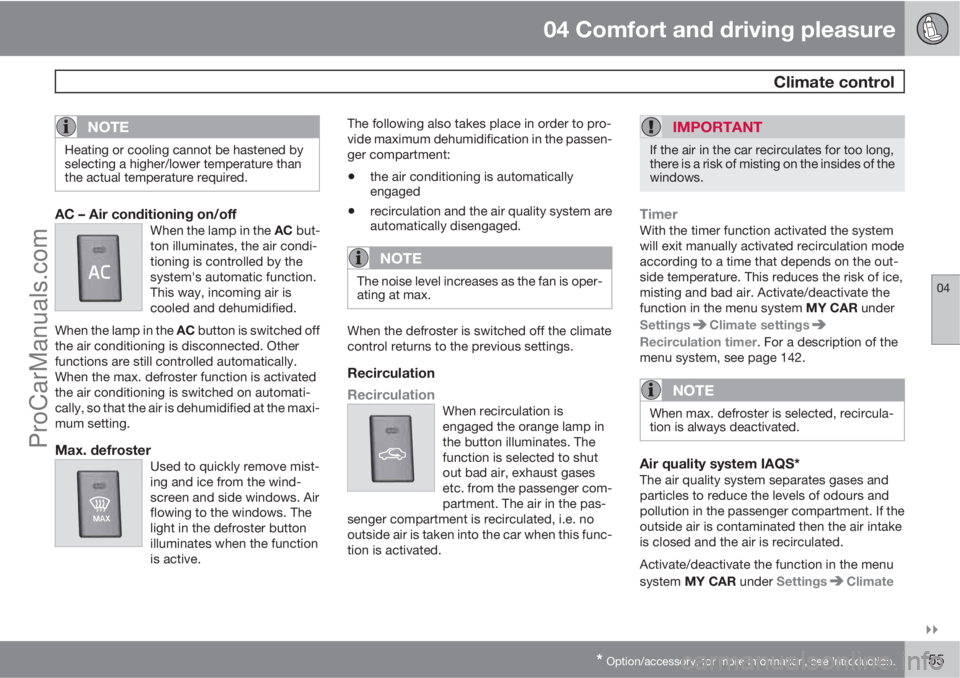

NOTE
Heating or cooling cannot be hastened by
selecting a higher/lower temperature than
the actual temperature required.
AC – Air conditioning on/offWhen the lamp in the AC but-
ton illuminates, the air condi-
tioning is controlled by the
system's automatic function.
This way, incoming air is
cooled and dehumidified.
When the lamp in the AC button is switched off
the air conditioning is disconnected. Other
functions are still controlled automatically.
When the max. defroster function is activated
the air conditioning is switched on automati-
cally, so that the air is dehumidified at the maxi-
mum setting.
Max. defrosterUsed to quickly remove mist-
ing and ice from the wind-
screen and side windows. Air
flowing to the windows. The
light in the defroster button
illuminates when the function
is active.
The following also takes place in order to pro-
vide maximum dehumidification in the passen-
ger compartment:
•the air conditioning is automatically
engaged
•recirculation and the air quality system are
automatically disengaged.
NOTE
The noise level increases as the fan is oper-
ating at max.
When the defroster is switched off the climate
control returns to the previous settings.
Recirculation
Recirculation
When recirculation is
engaged the orange lamp in
the button illuminates. The
function is selected to shut
out bad air, exhaust gases
etc. from the passenger com-
partment. The air in the pas-
senger compartment is recirculated, i.e. no
outside air is taken into the car when this func-
tion is activated.
IMPORTANT
If the air in the car recirculates for too long,
there is a risk of misting on the insides of the
windows.
TimerWith the timer function activated the system
will exit manually activated recirculation mode
according to a time that depends on the out-
side temperature. This reduces the risk of ice,
misting and bad air. Activate/deactivate the
function in the menu system MY CAR under
Settings
Climate settings
Recirculation timer. For a description of the
menu system, see page 142.
NOTE
When max. defroster is selected, recircula-
tion is always deactivated.
Air quality system IAQS*The air quality system separates gases and
particles to reduce the levels of odours and
pollution in the passenger compartment. If the
outside air is contaminated then the air intake
is closed and the air is recirculated.
Activate/deactivate the function in the menu
system MY CAR under Settings
Climate
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
156
settingsInterior air quality system. For a
description of the menu system, see
page 142.NOTE
The air quality sensor should always be
engaged in order to obtain the best air in the
passenger compartment.
Recirculation is limited in cold weather to
avoid misting.
If the insides of the windows start misting
up, disengage the air quality sensor, and the
defroster functions for the windscreen, the
side and the rear windows should also be
used to demist the windows.

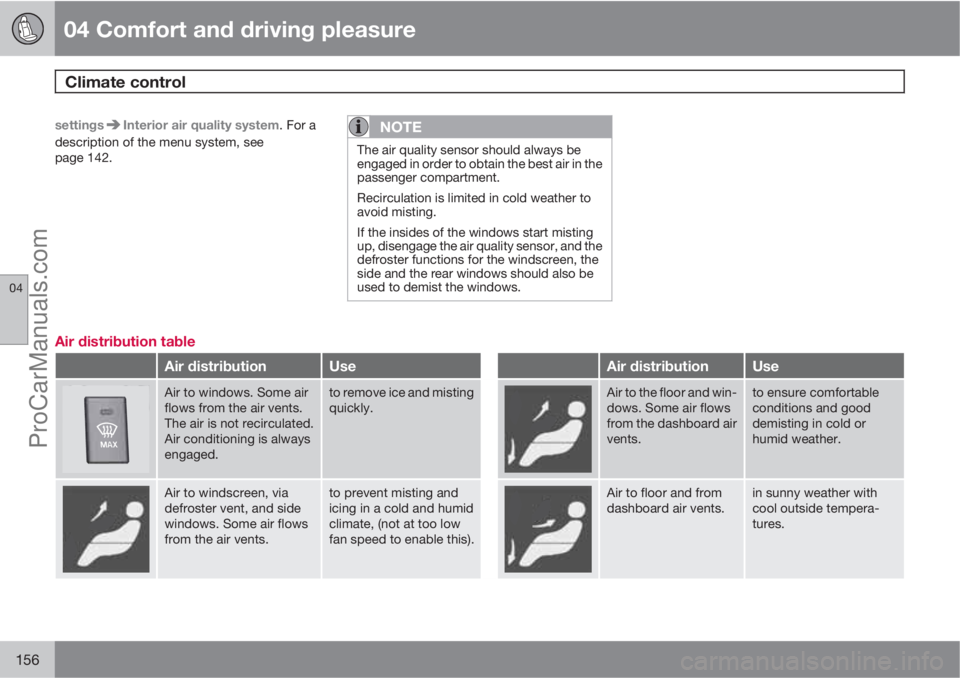

Air distribution table
Air distributionUseAir distributionUse
Air to windows. Some air
flows from the air vents.
The air is not recirculated.
Air conditioning is always
engaged.to remove ice and misting
quickly.Air to the floor and win-
dows. Some air flows
from the dashboard air
vents.to ensure comfortable
conditions and good
demisting in cold or
humid weather.
Air to windscreen, via
defroster vent, and side
windows. Some air flows
from the air vents.to prevent misting and
icing in a cold and humid
climate, (not at too low
fan speed to enable this).Air to floor and from
dashboard air vents.in sunny weather with
cool outside tempera-
tures.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
157

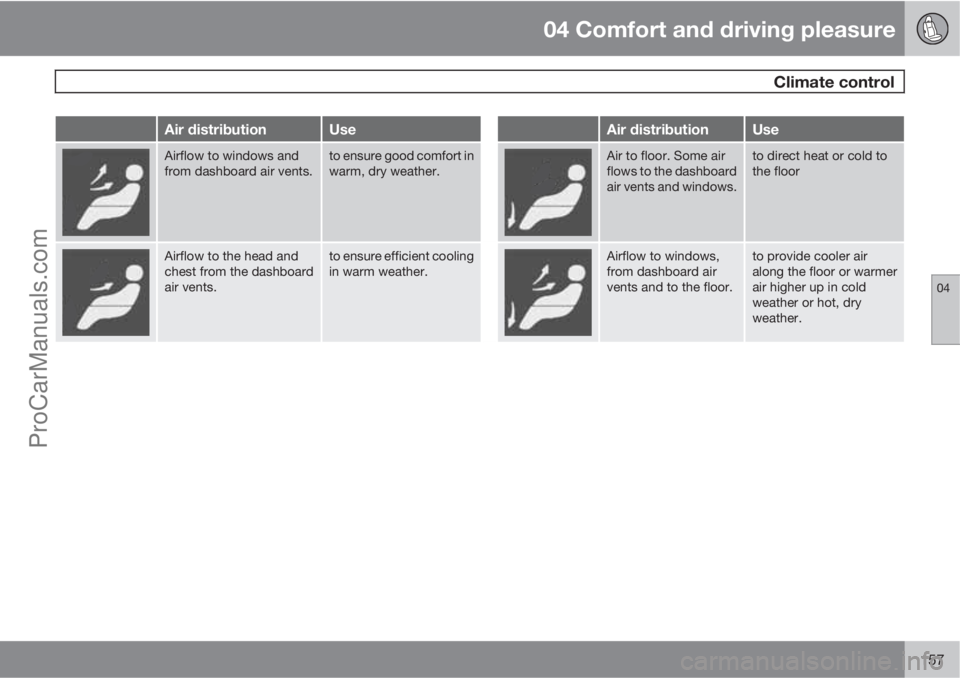

Air distributionUseAir distributionUse
Airflow to windows and
from dashboard air vents.to ensure good comfort in
warm, dry weather.Air to floor. Some air
flows to the dashboard
air vents and windows.to direct heat or cold to
the floor
Airflow to the head and
chest from the dashboard
air vents.to ensure efficient cooling
in warm weather.Airflow to windows,
from dashboard air
vents and to the floor.to provide cooler air
along the floor or warmer
air higher up in cold
weather or hot, dry
weather.
ProCarManuals.com

04 Comfort and driving pleasure
Fuel-driven engine block heater and passenger compartment heater*
04
158* Option/accessory, for more information, see Introduction.

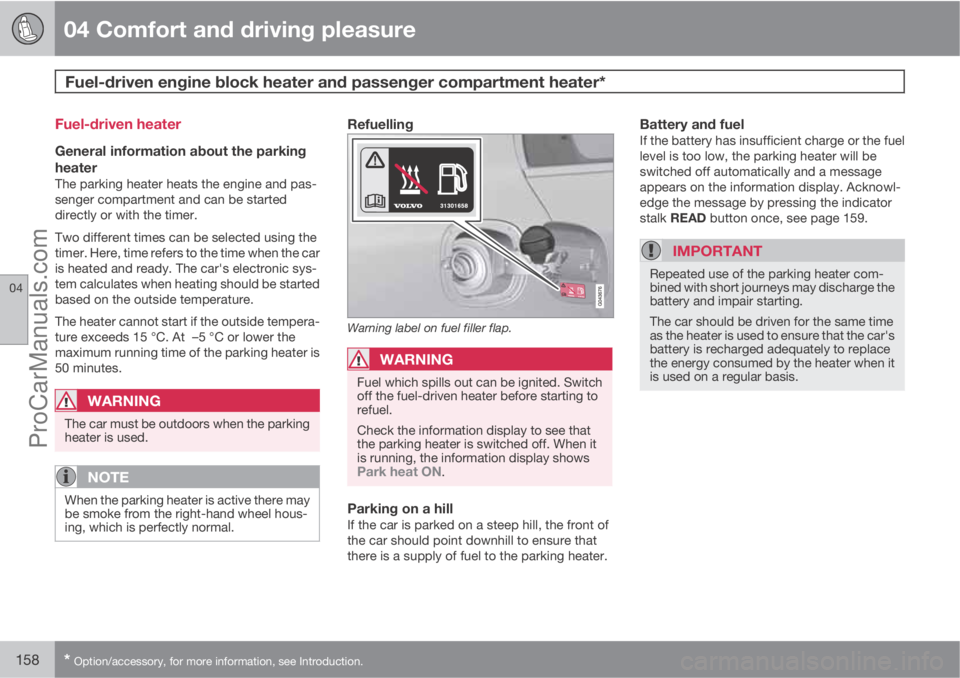

Fuel-driven heater
General information about the parking
heater
The parking heater heats the engine and pas-
senger compartment and can be started
directly or with the timer.
Two different times can be selected using the
timer. Here, time refers to the time when the car
is heated and ready. The car's electronic sys-
tem calculates when heating should be started
based on the outside temperature.
The heater cannot start if the outside tempera-
ture exceeds 15 °C. At –5 °C or lower the
maximum running time of the parking heater is
50 minutes.
WARNING
The car must be outdoors when the parking
heater is used.
NOTE
When the parking heater is active there may
be smoke from the right-hand wheel hous-
ing, which is perfectly normal.
Refuelling
Warning label on fuel filler flap.
WARNING
Fuel which spills out can be ignited. Switch
off the fuel-driven heater before starting to
refuel.
Check the information display to see that
the parking heater is switched off. When it
is running, the information display shows
Park heat ON.
Parking on a hillIf the car is parked on a steep hill, the front of
the car should point downhill to ensure that
there is a supply of fuel to the parking heater.
Battery and fuelIf the battery has insufficient charge or the fuel
level is too low, the parking heater will be
switched off automatically and a message
appears on the information display. Acknowl-
edge the message by pressing the indicator
stalk READ button once, see page 159.
IMPORTANT
Repeated use of the parking heater com-
bined with short journeys may discharge the
battery and impair starting.
The car should be driven for the same time
as the heater is used to ensure that the car's
battery is recharged adequately to replace
the energy consumed by the heater when it
is used on a regular basis.
ProCarManuals.com

04 Comfort and driving pleasure
Fuel-driven engine block heater and passenger compartment heater*
04

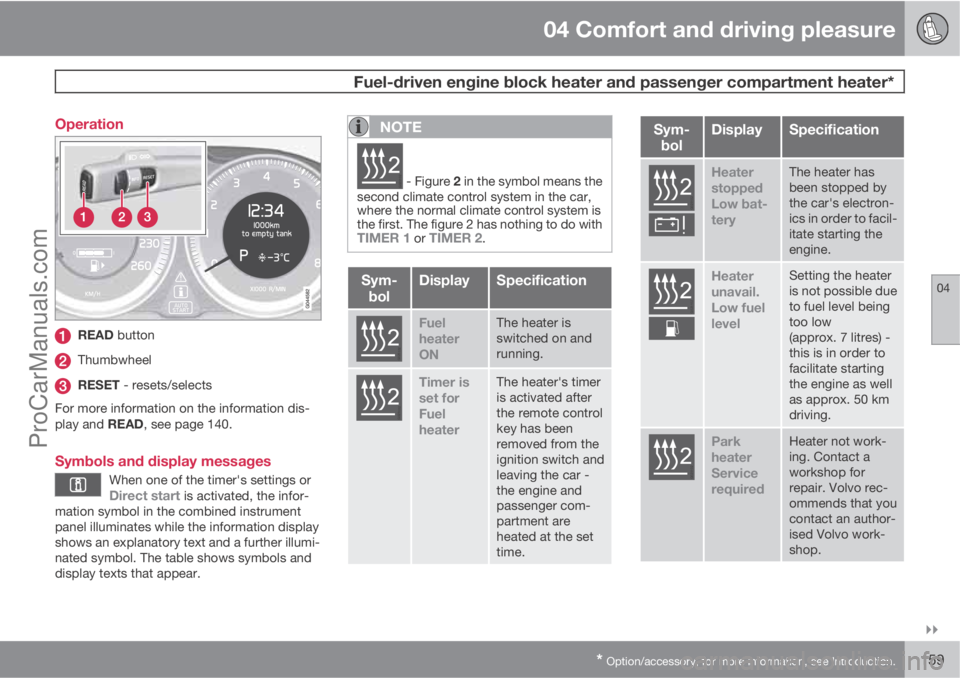

* Option/accessory, for more information, see Introduction.159 Operation
READ button
Thumbwheel
RESET - resets/selects
For more information on the information dis-
play and READ, see page 140.
Symbols and display messages
When one of the timer's settings orDirect start is activated, the infor-
mation symbol in the combined instrument
panel illuminates while the information display
shows an explanatory text and a further illumi-
nated symbol. The table shows symbols and
display texts that appear.
NOTE
G02510
2 - Figure 2 in the symbol means the
second climate control system in the car,
where the normal climate control system is
the first. The figure 2 has nothing to do with
TIMER 1 or TIMER 2.
Sym-
bolDisplaySpecification
G02510
2
Fuel
heater
ONThe heater is
switched on and
running.
G02510
2
Timer is
set for
Fuel
heaterThe heater's timer
is activated after
the remote control
key has been
removed from the
ignition switch and
leaving the car -
the engine and
passenger com-
partment are
heated at the set
time.
Sym-
bolDisplaySpecification
G025102
Heater
stopped
Low bat-
teryThe heater has
been stopped by
the car's electron-
ics in order to facil-
itate starting the
engine.
G025102
Heater
unavail.
Low fuel
levelSetting the heater
is not possible due
to fuel level being
too low
(approx. 7 litres) -
this is in order to
facilitate starting
the engine as well
as approx. 50 km
driving.
G025102
Park
heater
Service
requiredHeater not work-
ing. Contact a
workshop for
repair. Volvo rec-
ommends that you
contact an author-
ised Volvo work-
shop.
ProCarManuals.com

04 Comfort and driving pleasure
Fuel-driven engine block heater and passenger compartment heater*
04
160* Option/accessory, for more information, see Introduction.

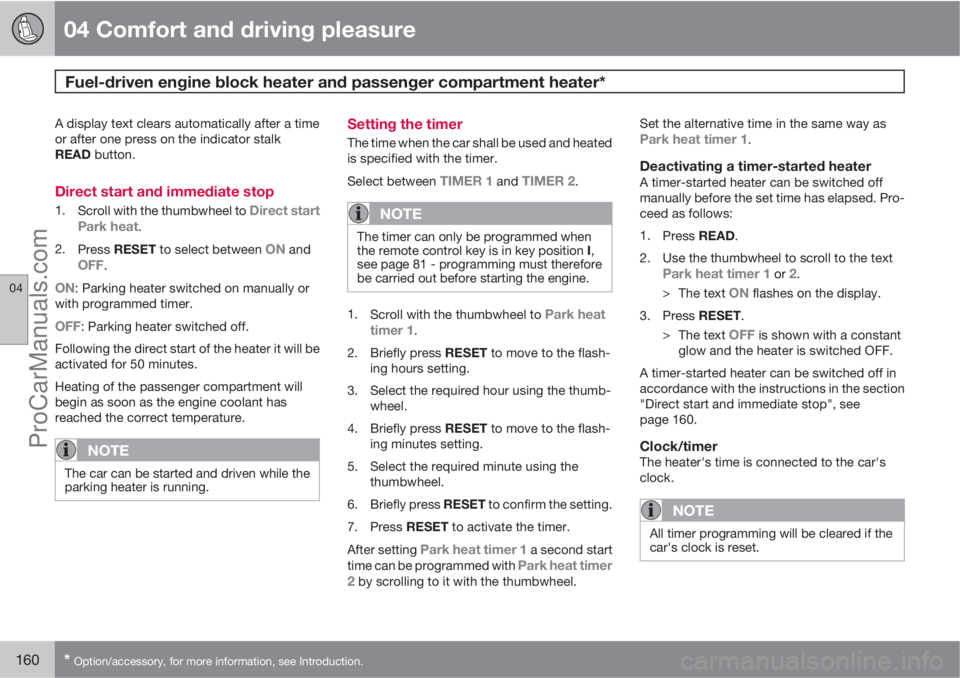

A display text clears automatically after a time
or after one press on the indicator stalk
READ button.
Direct start and immediate stop
1.
Scroll with the thumbwheel to Direct start
Park heat.
2.
Press RESET to select between
ON andOFF.
ON: Parking heater switched on manually or
with programmed timer.
OFF: Parking heater switched off.
Following the direct start of the heater it will be
activated for 50 minutes.
Heating of the passenger compartment will
begin as soon as the engine coolant has
reached the correct temperature.
NOTE
The car can be started and driven while the
parking heater is running.
Setting the timer
The time when the car shall be used and heated
is specified with the timer.
Select between
TIMER 1 and TIMER 2.
NOTE
The timer can only be programmed when
the remote control key is in key position I,
see page 81 - programming must therefore
be carried out before starting the engine.
1.
Scroll with the thumbwheel to Park heat
timer 1.
2.
Briefly press RESET to move to the flash-
ing hours setting.
3. Select the required hour using the thumb-
wheel.
4.
Briefly press RESET to move to the flash-
ing minutes setting.
5. Select the required minute using the
thumbwheel.
6.
Briefly press RESET to confirm the setting.
7.
Press RESET to activate the timer.
After setting
Park heat timer 1 a second start
time can be programmed with Park heat timer
2 by scrolling to it with the thumbwheel.Set the alternative time in the same way as
Park heat timer 1.
Deactivating a timer-started heaterA timer-started heater can be switched off
manually before the set time has elapsed. Pro-
ceed as follows:
1.
Press READ.
2. Use the thumbwheel to scroll to the text
Park heat timer 1 or 2.
>
The text
ON flashes on the display.
3.
Press RESET.
>
The text
OFF is shown with a constant
glow and the heater is switched OFF.
A timer-started heater can be switched off in
accordance with the instructions in the section
"Direct start and immediate stop", see
page 160.
Clock/timerThe heater's time is connected to the car's
clock.
NOTE
All timer programming will be cleared if the
car's clock is reset.
ProCarManuals.com
