VOLVO V60 2011 Owners Manual

08 Maintenance and service

08
341ProCarManuals.com

342
Type designations................................................................................. 344
Dimensions and weights....................................................................... 346
Engine specifications............................................................................ 349
Engine oil............................................................................................... 350
Fluids and lubricants............................................................................. 352
Fuel....................................................................................................... 354
Wheel and tyres, dimensions and pressure ......................................... 357
Electrical system................................................................................... 360
Type approval....................................................................................... 361
Symbols in the display.......................................................................... 373
ProCarManuals.com

SPECIFICATIONS
ProCarManuals.com

09 Specifications
Type designations 09
344

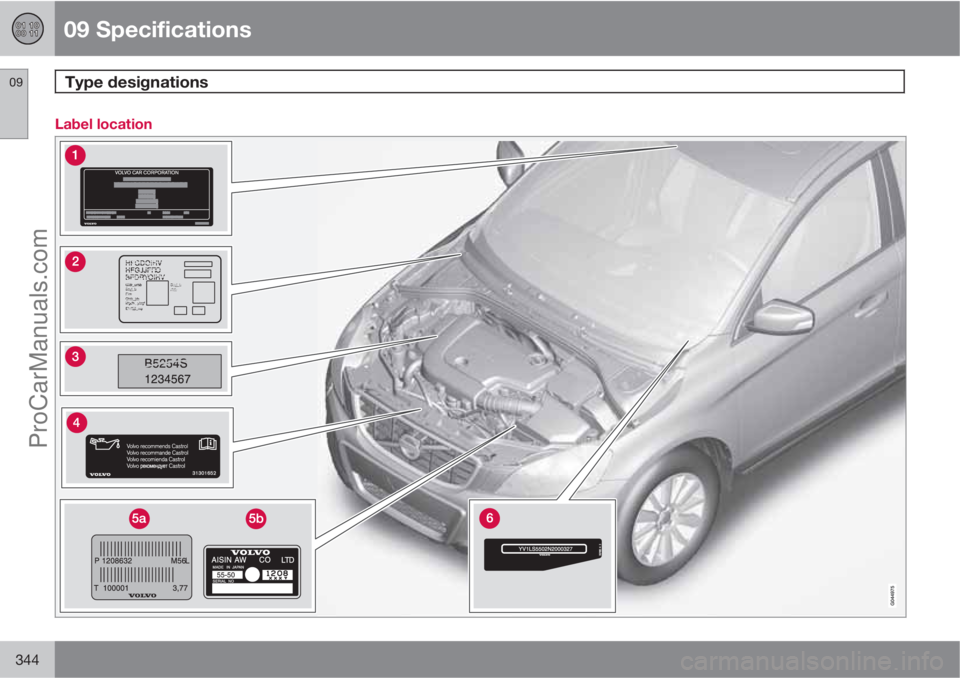

Label location
ProCarManuals.com

09 Specifications
Type designations09
345

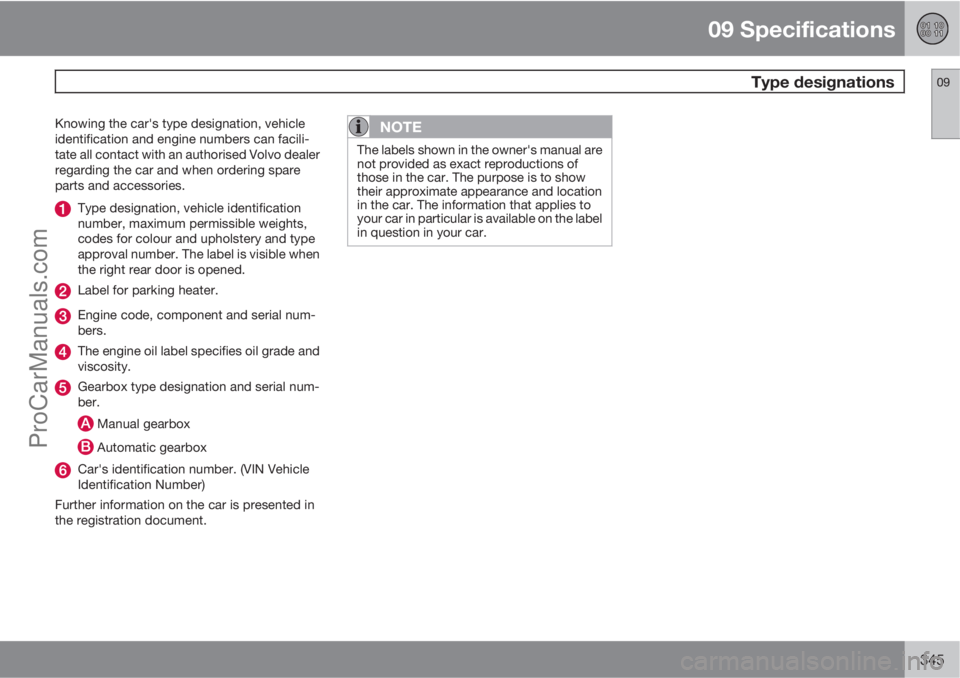

Knowing the car's type designation, vehicle
identification and engine numbers can facili-
tate all contact with an authorised Volvo dealer
regarding the car and when ordering spare
parts and accessories.
Type designation, vehicle identification
number, maximum permissible weights,
codes for colour and upholstery and type
approval number. The label is visible when
the right rear door is opened.
Label for parking heater.
Engine code, component and serial num-
bers.
The engine oil label specifies oil grade and
viscosity.
Gearbox type designation and serial num-
ber.
Manual gearbox
Automatic gearbox
Car's identification number. (VIN Vehicle
Identification Number)
Further information on the car is presented in
the registration document.
NOTE
The labels shown in the owner's manual are
not provided as exact reproductions of
those in the car. The purpose is to show
their approximate appearance and location
in the car. The information that applies to
your car in particular is available on the label
in question in your car.
ProCarManuals.com

09 Specifications
Dimensions and weights 09
346

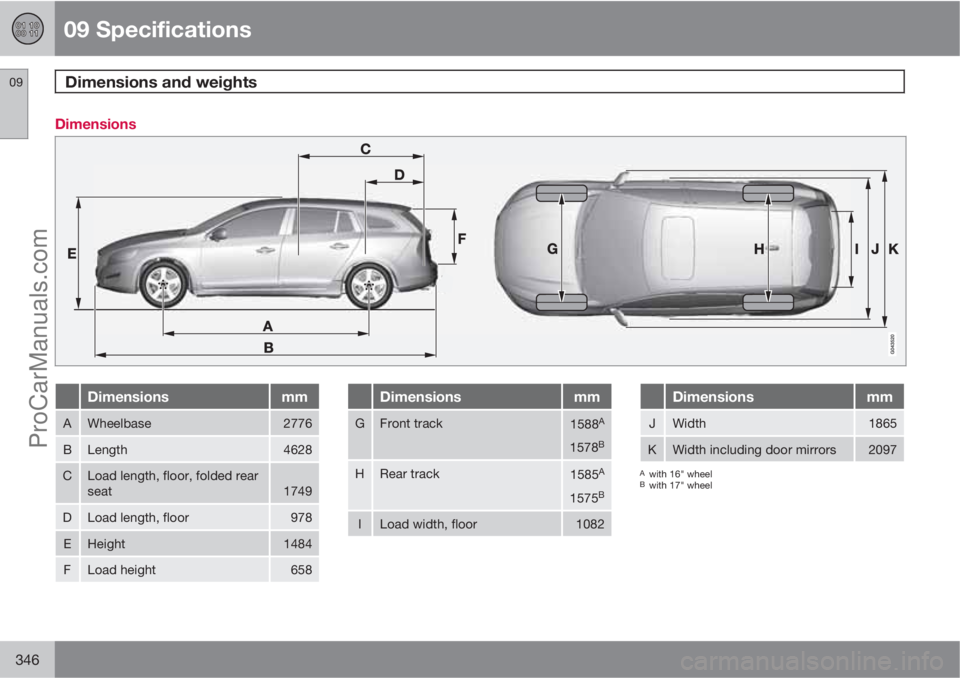

Dimensions
Dimensionsmm
AWheelbase2776
BLength4628
CLoad length, floor, folded rear
seat1749
DLoad length, floor978
EHeight1484
FLoad height658
Dimensionsmm
GFront track1588A
1578B
HRear track1585A
1575B
ILoad width, floor1082
Dimensionsmm
JWidth1865
KWidth including door mirrors2097
Awith 16" wheelBwith 17" wheel
ProCarManuals.com

09 Specifications
Dimensions and weights09

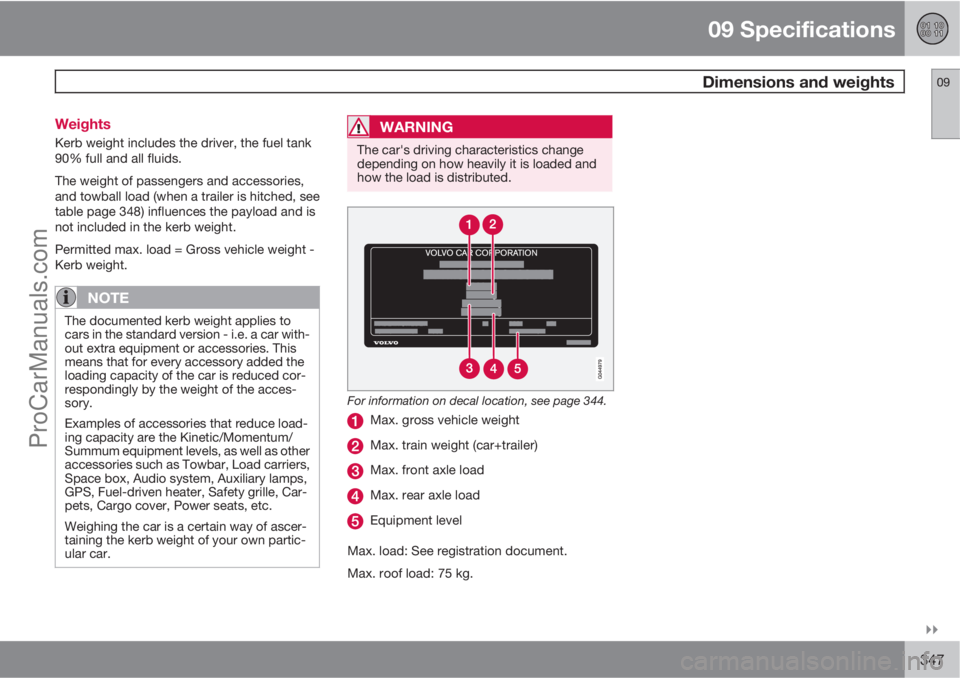

347 Weights
Kerb weight includes the driver, the fuel tank
90% full and all fluids.
The weight of passengers and accessories,
and towball load (when a trailer is hitched, see
table page 348) influences the payload and is
not included in the kerb weight.
Permitted max. load = Gross vehicle weight -
Kerb weight.
NOTE
The documented kerb weight applies to
cars in the standard version - i.e. a car with-
out extra equipment or accessories. This
means that for every accessory added the
loading capacity of the car is reduced cor-
respondingly by the weight of the acces-
sory.
Examples of accessories that reduce load-
ing capacity are the Kinetic/Momentum/
Summum equipment levels, as well as other
accessories such as Towbar, Load carriers,
Space box, Audio system, Auxiliary lamps,
GPS, Fuel-driven heater, Safety grille, Car-
pets, Cargo cover, Power seats, etc.
Weighing the car is a certain way of ascer-
taining the kerb weight of your own partic-
ular car.
WARNING
The car's driving characteristics change
depending on how heavily it is loaded and
how the load is distributed.
For information on decal location, see page 344.
Max. gross vehicle weight
Max. train weight (car+trailer)
Max. front axle load
Max. rear axle load
Equipment level
Max. load: See registration document.
Max. roof load: 75 kg.
ProCarManuals.com

09 Specifications
Dimensions and weights 09
348

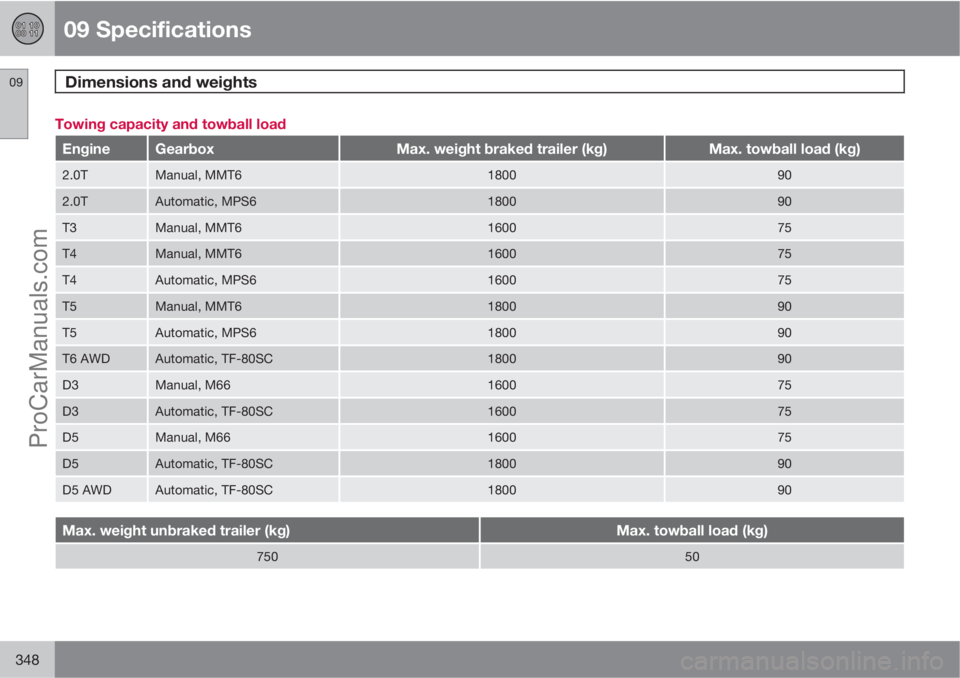

Towing capacity and towball load
EngineGearboxMax. weight braked trailer (kg)Max. towball load (kg)
2.0TManual, MMT6180090
2.0TAutomatic, MPS6180090
T3Manual, MMT6160075
T4Manual, MMT6160075
T4Automatic, MPS6160075
T5Manual, MMT6180090
T5Automatic, MPS6180090
T6 AWDAutomatic, TF-80SC180090
D3Manual, M66160075
D3Automatic, TF-80SC160075
D5Manual, M66160075
D5Automatic, TF-80SC180090
D5 AWDAutomatic, TF-80SC180090
Max. weight unbraked trailer (kg)Max. towball load (kg)
75050
ProCarManuals.com

09 Specifications
Engine specifications09

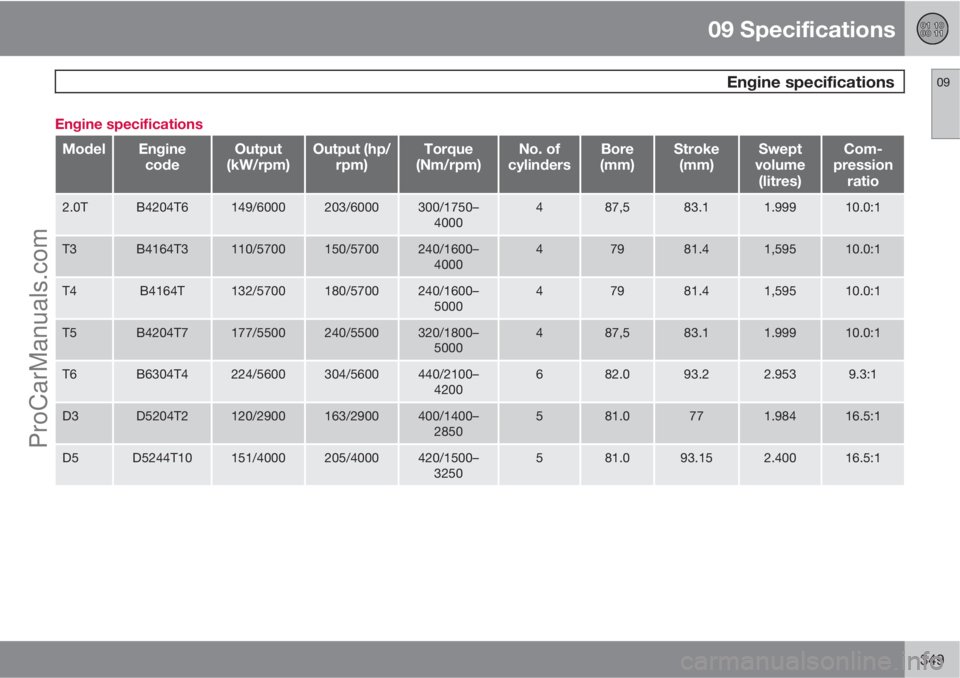

349 Engine specifications
ModelEngine
codeOutput
(kW/rpm)Output (hp/
rpm)Torque
(Nm/rpm)No. of
cylindersBore
(mm)Stroke
(mm)Swept
volume
(litres)Com-
pression
ratio
2.0TB4204T6149/6000203/6000300/1750–
4000487,583.11.99910.0:1
T3B4164T3110/5700150/5700240/1600–
400047981.41,59510.0:1
T4B4164T132/5700180/5700240/1600–
500047981.41,59510.0:1
T5B4204T7177/5500240/5500320/1800–
5000487,583.11.99910.0:1
T6B6304T4224/5600304/5600440/2100–
4200682.093.22.9539.3:1
D3D5204T2120/2900163/2900400/1400–
2850581.0771.98416.5:1
D5D5244T10151/4000205/4000420/1500–
3250581.093.152.40016.5:1
ProCarManuals.com

09 Specifications
Engine oil 09
350

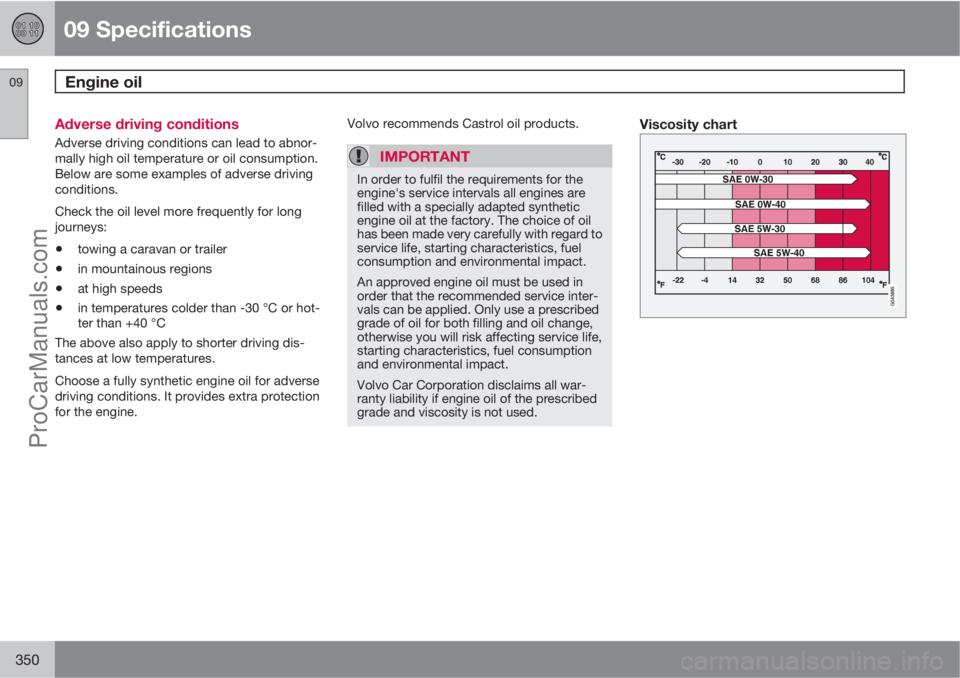

Adverse driving conditions
Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consumption.
Below are some examples of adverse driving
conditions.
Check the oil level more frequently for long
journeys:
•towing a caravan or trailer
•in mountainous regions
•at high speeds
•in temperatures colder than -30 °C or hot-
ter than +40 °C
The above also apply to shorter driving dis-
tances at low temperatures.
Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection
for the engine.Volvo recommends Castrol oil products.
IMPORTANT
In order to fulfil the requirements for the
engine's service intervals all engines are
filled with a specially adapted synthetic
engine oil at the factory. The choice of oil
has been made very carefully with regard to
service life, starting characteristics, fuel
consumption and environmental impact.
An approved engine oil must be used in
order that the recommended service inter-
vals can be applied. Only use a prescribed
grade of oil for both filling and oil change,
otherwise you will risk affecting service life,
starting characteristics, fuel consumption
and environmental impact.
Volvo Car Corporation disclaims all war-
ranty liability if engine oil of the prescribed
grade and viscosity is not used.
Viscosity chart
