08 Maintenance and service
Battery
08

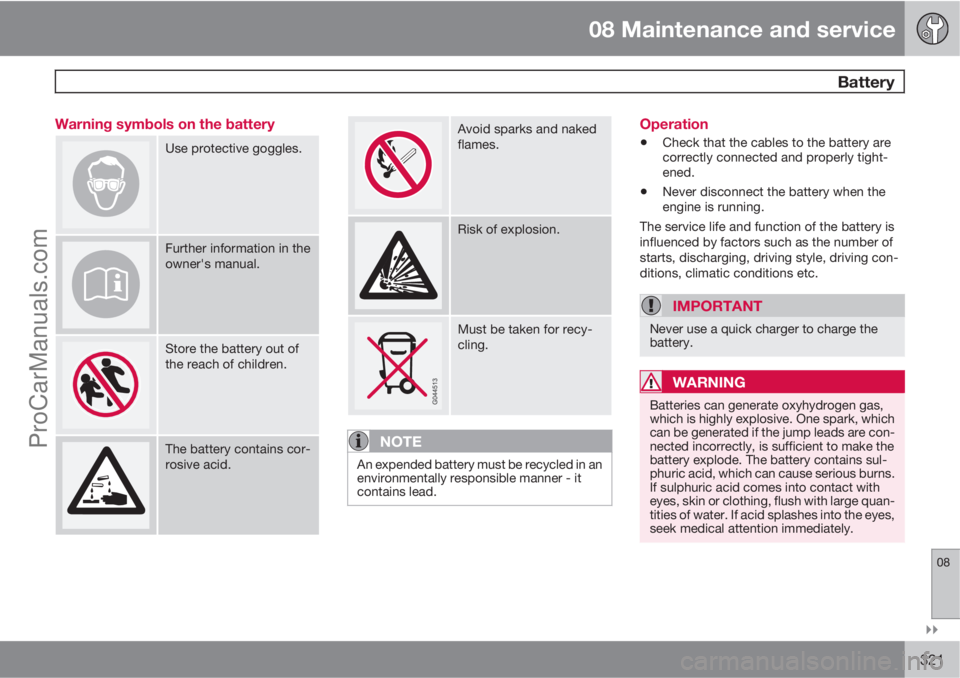

321 Warning symbols on the battery
Use protective goggles.
Further information in the
owner's manual.
Store the battery out of
the reach of children.
The battery contains cor-
rosive acid.
Avoid sparks and naked
flames.
Risk of explosion.
Must be taken for recy-
cling.
NOTE
An expended battery must be recycled in an
environmentally responsible manner - it
contains lead.
Operation
•Check that the cables to the battery are
correctly connected and properly tight-
ened.
•Never disconnect the battery when the
engine is running.
The service life and function of the battery is
influenced by factors such as the number of
starts, discharging, driving style, driving con-
ditions, climatic conditions etc.
IMPORTANT
Never use a quick charger to charge the
battery.
WARNING
Batteries can generate oxyhydrogen gas,
which is highly explosive. One spark, which
can be generated if the jump leads are con-
nected incorrectly, is sufficient to make the
battery explode. The battery contains sul-
phuric acid, which can cause serious burns.
If sulphuric acid comes into contact with
eyes, skin or clothing, flush with large quan-
tities of water. If acid splashes into the eyes,
seek medical attention immediately.
ProCarManuals.com

08 Maintenance and service
Battery
08
322
NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.
The life of the battery is affected by several
factors, including driving conditions and cli-
mate. Battery starting capacity decreases
gradually with time and therefore needs to
be recharged if the car is not used for a
longer time or when it is only driven short
distances. Extreme cold further limits star-
ting capacity.
To maintain the battery in good condition, at
least 15 minutes of driving/week is recom-
mended or that the battery is connected to
a battery charger with automatic trickle
charging.
A battery that is kept fully charged has a
maximum service life.

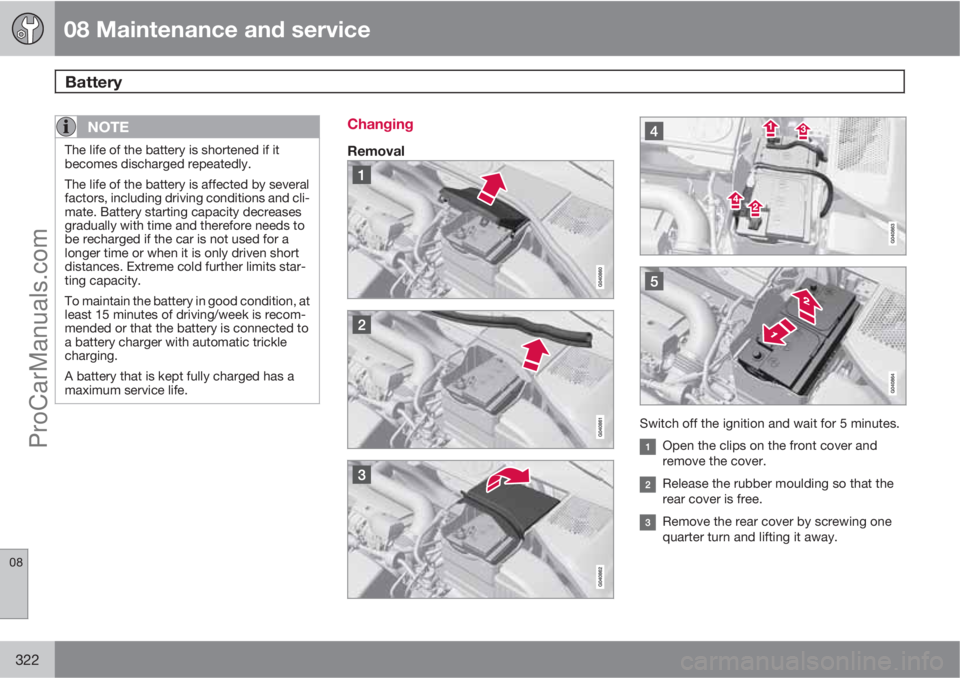

Changing
Removal
Switch off the ignition and wait for 5 minutes.
Open the clips on the front cover and
remove the cover.
Release the rubber moulding so that the
rear cover is free.
Remove the rear cover by screwing one
quarter turn and lifting it away.
ProCarManuals.com

08 Maintenance and service
Battery
08

* Option/accessory, for more information, see Introduction.323

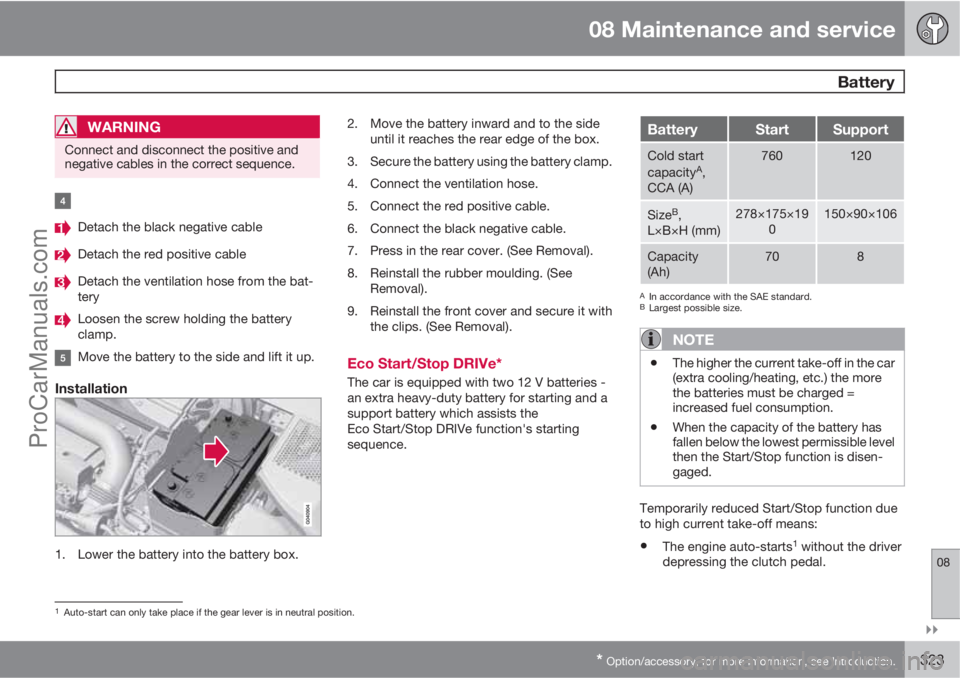

WARNING
Connect and disconnect the positive and
negative cables in the correct sequence.
Detach the black negative cable
Detach the red positive cable
Detach the ventilation hose from the bat-
tery
Loosen the screw holding the battery
clamp.
Move the battery to the side and lift it up.
Installation
1. Lower the battery into the battery box.2. Move the battery inward and to the side
until it reaches the rear edge of the box.
3. Secure the battery using the battery clamp.
4. Connect the ventilation hose.
5. Connect the red positive cable.
6. Connect the black negative cable.
7. Press in the rear cover. (See Removal).
8. Reinstall the rubber moulding. (See
Removal).
9. Reinstall the front cover and secure it with
the clips. (See Removal).
Eco Start/Stop DRIVe*
The car is equipped with two 12 V batteries -
an extra heavy-duty battery for starting and a
support battery which assists the
Eco Start/Stop DRIVe function's starting
sequence.
BatteryStartSupport
Cold start
capacityA,
CCA (A)
760120
SizeB,
L×B×H (mm)278×175×19
0150×90×106
Capacity
(Ah)708
AIn accordance with the SAE standard.BLargest possible size.
NOTE
•The higher the current take-off in the car
(extra cooling/heating, etc.) the more
the batteries must be charged =
increased fuel consumption.
•When the capacity of the battery has
fallen below the lowest permissible level
then the Start/Stop function is disen-
gaged.
Temporarily reduced Start/Stop function due
to high current take-off means:
•The engine auto-starts1 without the driver
depressing the clutch pedal.
1Auto-start can only take place if the gear lever is in neutral position.
ProCarManuals.com

08 Maintenance and service
Battery
08
324

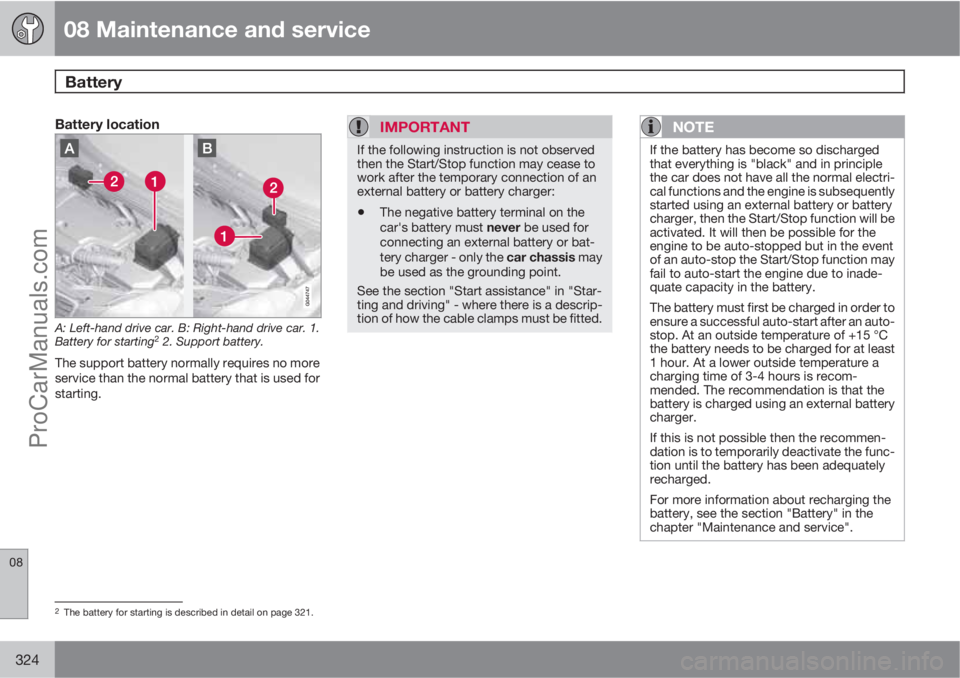

Battery location
A: Left-hand drive car. B: Right-hand drive car. 1.
Battery for starting2 2. Support battery.
The support battery normally requires no more
service than the normal battery that is used for
starting.
IMPORTANT
If the following instruction is not observed
then the Start/Stop function may cease to
work after the temporary connection of an
external battery or battery charger:
•The negative battery terminal on the
car's battery must never be used for
connecting an external battery or bat-
tery charger - only the car chassis may
be used as the grounding point.
See the section "Start assistance" in "Star-
ting and driving" - where there is a descrip-
tion of how the cable clamps must be fitted.
NOTE
If the battery has become so discharged
that everything is "black" and in principle
the car does not have all the normal electri-
cal functions and the engine is subsequently
started using an external battery or battery
charger, then the Start/Stop function will be
activated. It will then be possible for the
engine to be auto-stopped but in the event
of an auto-stop the Start/Stop function may
fail to auto-start the engine due to inade-
quate capacity in the battery.
The battery must first be charged in order to
ensure a successful auto-start after an auto-
stop. At an outside temperature of +15 °C
the battery needs to be charged for at least
1 hour. At a lower outside temperature a
charging time of 3-4 hours is recom-
mended. The recommendation is that the
battery is charged using an external battery
charger.
If this is not possible then the recommen-
dation is to temporarily deactivate the func-
tion until the battery has been adequately
recharged.
For more information about recharging the
battery, see the section "Battery" in the
chapter "Maintenance and service".
2The battery for starting is described in detail on page 321.
ProCarManuals.com

08 Maintenance and service
Fuses
08

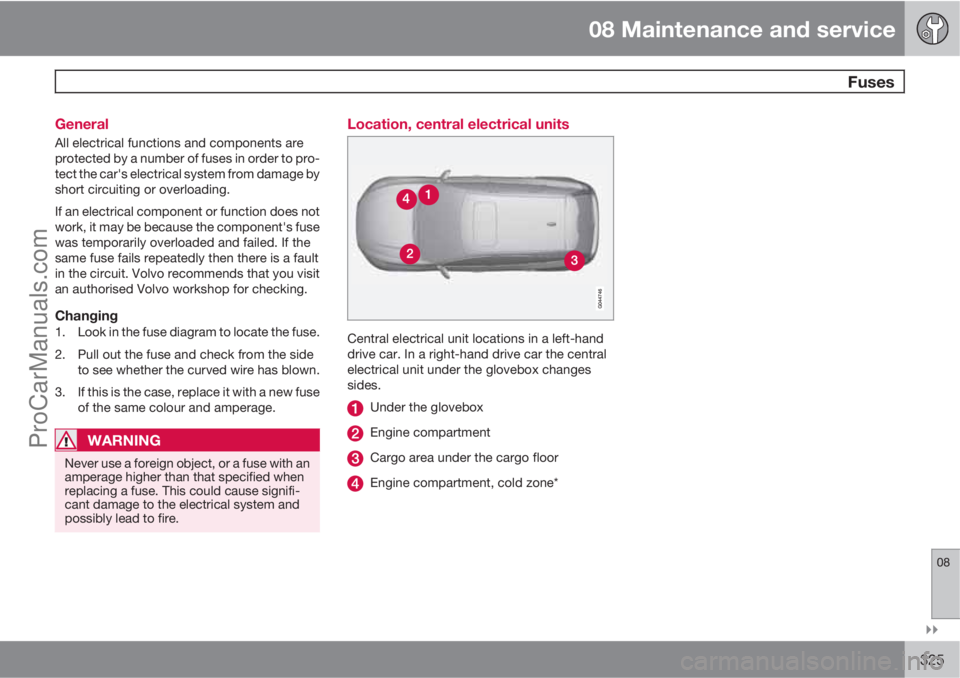

325 General
All electrical functions and components are
protected by a number of fuses in order to pro-
tect the car's electrical system from damage by
short circuiting or overloading.
If an electrical component or function does not
work, it may be because the component's fuse
was temporarily overloaded and failed. If the
same fuse fails repeatedly then there is a fault
in the circuit. Volvo recommends that you visit
an authorised Volvo workshop for checking.
Changing1. Look in the fuse diagram to locate the fuse.
2. Pull out the fuse and check from the side
to see whether the curved wire has blown.
3. If this is the case, replace it with a new fuse
of the same colour and amperage.
WARNING
Never use a foreign object, or a fuse with an
amperage higher than that specified when
replacing a fuse. This could cause signifi-
cant damage to the electrical system and
possibly lead to fire.
Location, central electrical units
Central electrical unit locations in a left-hand
drive car. In a right-hand drive car the central
electrical unit under the glovebox changes
sides.
Under the glovebox
Engine compartment
Cargo area under the cargo floor
Engine compartment, cold zone*
ProCarManuals.com

08 Maintenance and service
Fuses
08
326

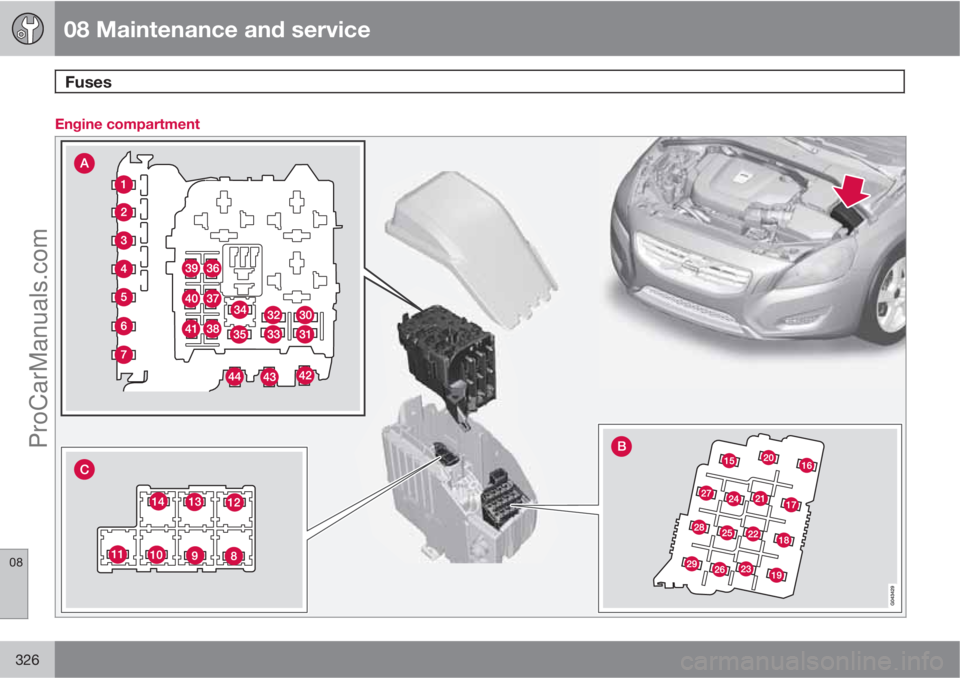

Engine compartment
ProCarManuals.com

08 Maintenance and service
Fuses
08

* Option/accessory, for more information, see Introduction.327

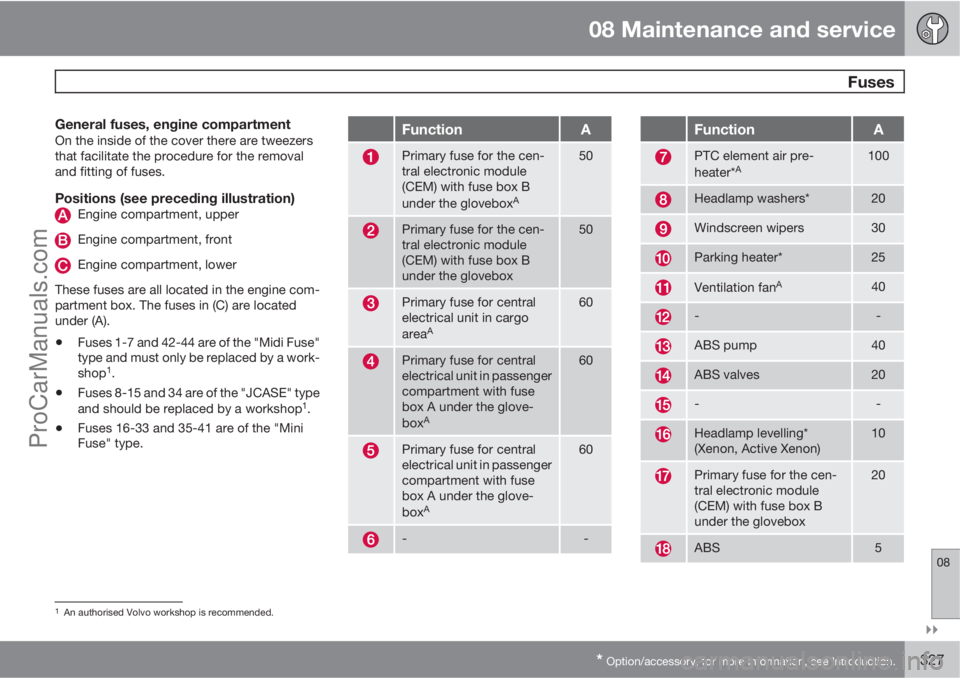

General fuses, engine compartmentOn the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.
Positions (see preceding illustration)Engine compartment, upper
Engine compartment, front
Engine compartment, lower
These fuses are all located in the engine com-
partment box. The fuses in (C) are located
under (A).
•Fuses 1-7 and 42-44 are of the "Midi Fuse"
type and must only be replaced by a work-
shop
1.
•Fuses 8-15 and 34 are of the "JCASE" type
and should be replaced by a workshop1.
•Fuses 16-33 and 35-41 are of the "Mini
Fuse" type.
FunctionA
Primary fuse for the cen-
tral electronic module
(CEM) with fuse box B
under the glovebox
A
50
Primary fuse for the cen-
tral electronic module
(CEM) with fuse box B
under the glovebox50
Primary fuse for central
electrical unit in cargo
area
A
60
Primary fuse for central
electrical unit in passenger
compartment with fuse
box A under the glove-
box
A
60
Primary fuse for central
electrical unit in passenger
compartment with fuse
box A under the glove-
box
A
60
--
FunctionA
PTC element air pre-
heater*A100
Headlamp washers*20
Windscreen wipers30
Parking heater*25
Ventilation fanA40
--
ABS pump40
ABS valves20
--
Headlamp levelling*
(Xenon, Active Xenon)10
Primary fuse for the cen-
tral electronic module
(CEM) with fuse box B
under the glovebox20
ABS5
1An authorised Volvo workshop is recommended.
ProCarManuals.com

08 Maintenance and service
Fuses
08
328* Option/accessory, for more information, see Introduction.

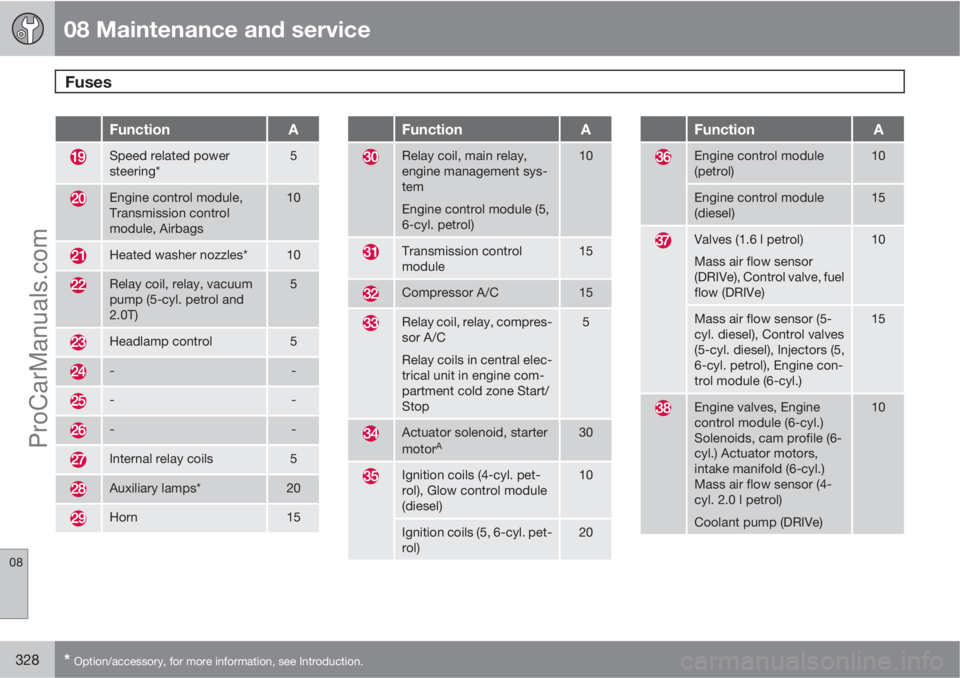

FunctionA
Speed related power
steering*5
Engine control module,
Transmission control
module, Airbags10
Heated washer nozzles*10
Relay coil, relay, vacuum
pump (5-cyl. petrol and
2.0T)5
Headlamp control5
--
--
--
Internal relay coils5
Auxiliary lamps*20
Horn15
FunctionA
Relay coil, main relay,
engine management sys-
tem
Engine control module (5,
6-cyl. petrol)10
Transmission control
module15
Compressor A/C15
Relay coil, relay, compres-
sor A/C
Relay coils in central elec-
trical unit in engine com-
partment cold zone Start/
Stop5
Actuator solenoid, starter
motorA30
Ignition coils (4-cyl. pet-
rol), Glow control module
(diesel)10
Ignition coils (5, 6-cyl. pet-
rol)20
FunctionA
Engine control module
(petrol)10
Engine control module
(diesel)15
Valves (1.6 l petrol)
Mass air flow sensor
(DRIVe), Control valve, fuel
flow (DRIVe)10
Mass air flow sensor (5-
cyl. diesel), Control valves
(5-cyl. diesel), Injectors (5,
6-cyl. petrol), Engine con-
trol module (6-cyl.)15
Engine valves, Engine
control module (6-cyl.)
Solenoids, cam profile (6-
cyl.) Actuator motors,
intake manifold (6-cyl.)
Mass air flow sensor (4-
cyl. 2.0 l petrol)
Coolant pump (DRIVe)10
ProCarManuals.com

08 Maintenance and service
Fuses
08

329

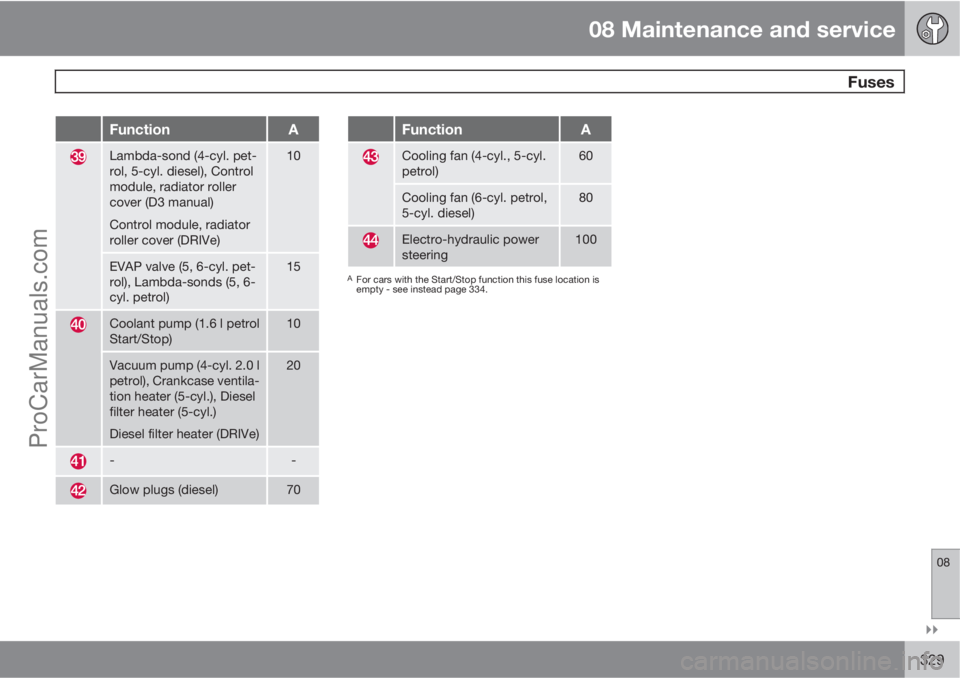

FunctionA
Lambda-sond (4-cyl. pet-
rol, 5-cyl. diesel), Control
module, radiator roller
cover (D3 manual)
Control module, radiator
roller cover (DRIVe)10
EVAP valve (5, 6-cyl. pet-
rol), Lambda-sonds (5, 6-
cyl. petrol)15
Coolant pump (1.6 l petrol
Start/Stop)10
Vacuum pump (4-cyl. 2.0 l
petrol), Crankcase ventila-
tion heater (5-cyl.), Diesel
filter heater (5-cyl.)
Diesel filter heater (DRIVe)20
--
Glow plugs (diesel)70
FunctionA
Cooling fan (4-cyl., 5-cyl.
petrol)60
Cooling fan (6-cyl. petrol,
5-cyl. diesel)80
Electro-hydraulic power
steering100
AFor cars with the Start/Stop function this fuse location is
empty - see instead page 334.
ProCarManuals.com

08 Maintenance and service
Fuses
08
330* Option/accessory, for more information, see Introduction.

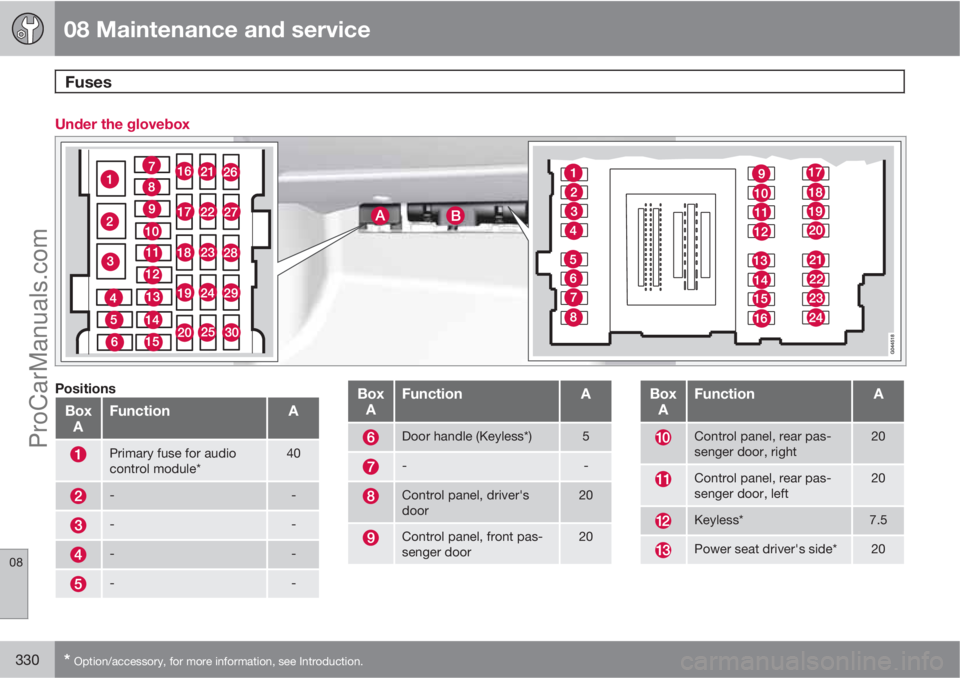

Under the glovebox
Positions
Box
AFunctionA
Primary fuse for audio
control module*40
--
--
--
--
Box
AFunctionA
Door handle (Keyless*)5
--
Control panel, driver's
door20
Control panel, front pas-
senger door20
Box
AFunctionA
Control panel, rear pas-
senger door, right20
Control panel, rear pas-
senger door, left20
Keyless*7.5
Power seat driver's side*20
ProCarManuals.com
