VOLVO V60 2012 Owners Manual

04 Comfort and driving pleasure
Menu source MY CAR
04

149

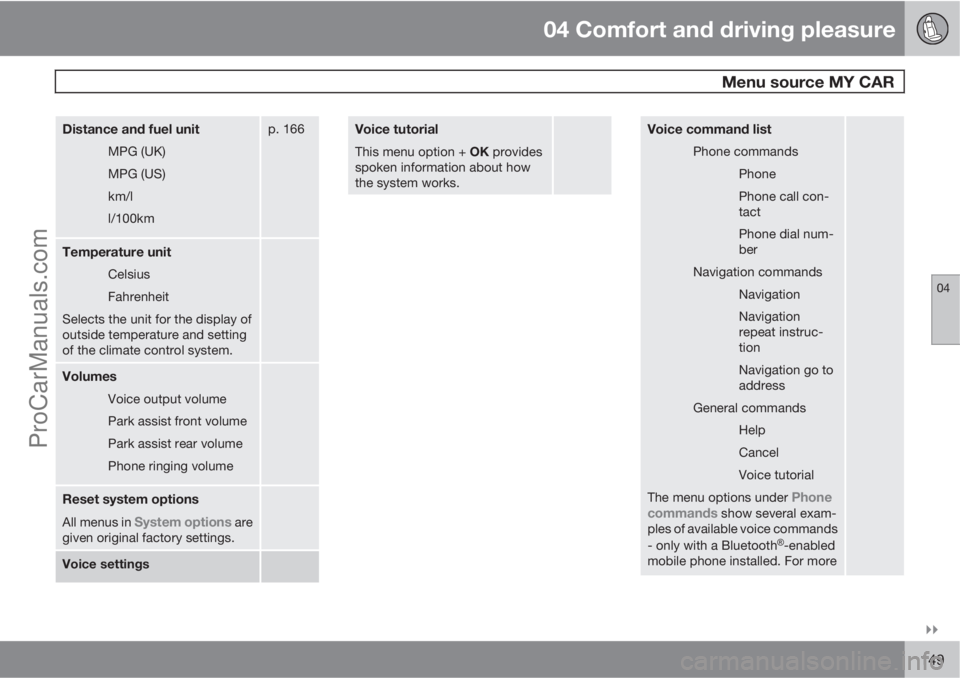

Distance and fuel unit
MPG (UK)
MPG (US)
km/l
l/100km
p. 166
Temperature unit
Celsius
Fahrenheit
Selects the unit for the display of
outside temperature and setting
of the climate control system.
Volumes
Voice output volume
Park assist front volume
Park assist rear volume
Phone ringing volume
Reset system options
All menus in System options are
given original factory settings.
Voice settings
Voice tutorial
This menu option + OK provides
spoken information about how
the system works.
Voice command list
Phone commands
Phone
Phone call con-
tact
Phone dial num-
ber
Navigation commands
Navigation
Navigation
repeat instruc-
tion
Navigation go to
address
General commands
Help
Cancel
Voice tutorial
The menu options under
Phone
commands show several exam-
ples of available voice commands
- only with a Bluetooth
Ÿ-enabled
mobile phone installed. For more
ProCarManuals.com

04 Comfort and driving pleasure
Menu source MY CAR
04
150* Option/accessory, for more information, see Introduction.

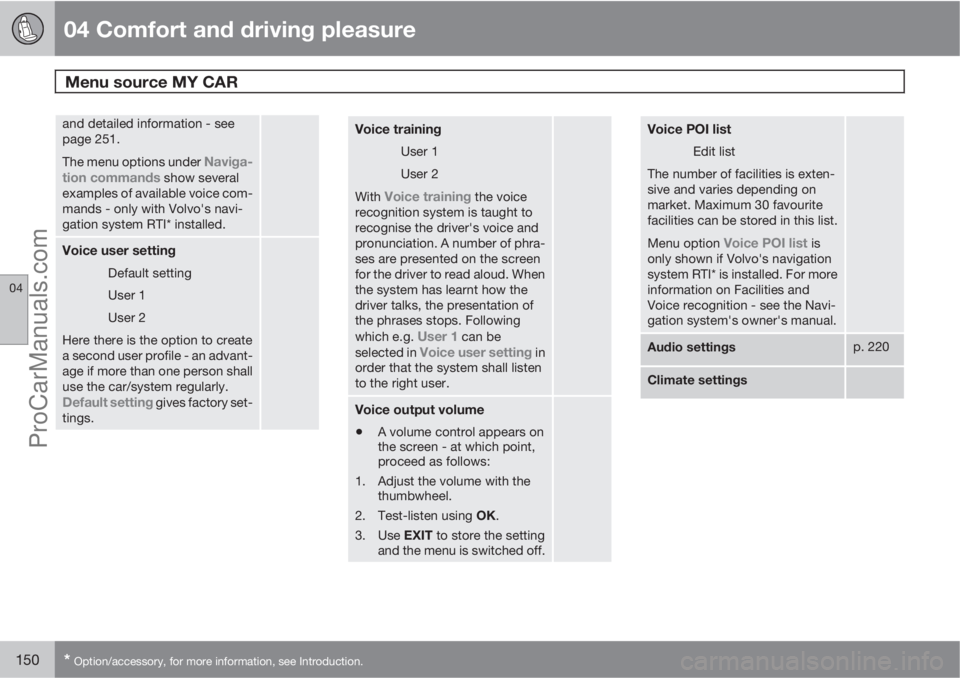

and detailed information - see
page 251.
The menu options under
Naviga-
tion commands show several
examples of available voice com-
mands - only with Volvo's navi-
gation system RTI* installed.
Voice user setting
Default setting
User 1
User 2
Here there is the option to create
a second user profile - an advant-
age if more than one person shall
use the car/system regularly.
Default setting gives factory set-
tings.
Voice training
User 1
User 2
With
Voice training the voice
recognition system is taught to
recognise the driver's voice and
pronunciation. A number of phra-
ses are presented on the screen
for the driver to read aloud. When
the system has learnt how the
driver talks, the presentation of
the phrases stops. Following
which e.g.
User 1 can be
selected in Voice user setting in
order that the system shall listen
to the right user.
Voice output volume
•A volume control appears on
the screen - at which point,
proceed as follows:
1. Adjust the volume with the
thumbwheel.
2.
Test-listen using OK.
3.
Use EXIT to store the setting
and the menu is switched off.
Voice POI list
Edit list
The number of facilities is exten-
sive and varies depending on
market. Maximum 30 favourite
facilities can be stored in this list.
Menu option
Voice POI list is
only shown if Volvo's navigation
system RTI* is installed. For more
information on Facilities and
Voice recognition - see the Navi-
gation system's owner's manual.
Audio settingsp. 220
Climate settings
ProCarManuals.com

04 Comfort and driving pleasure
Menu source MY CAR
04
* Option/accessory, for more information, see Introduction.151

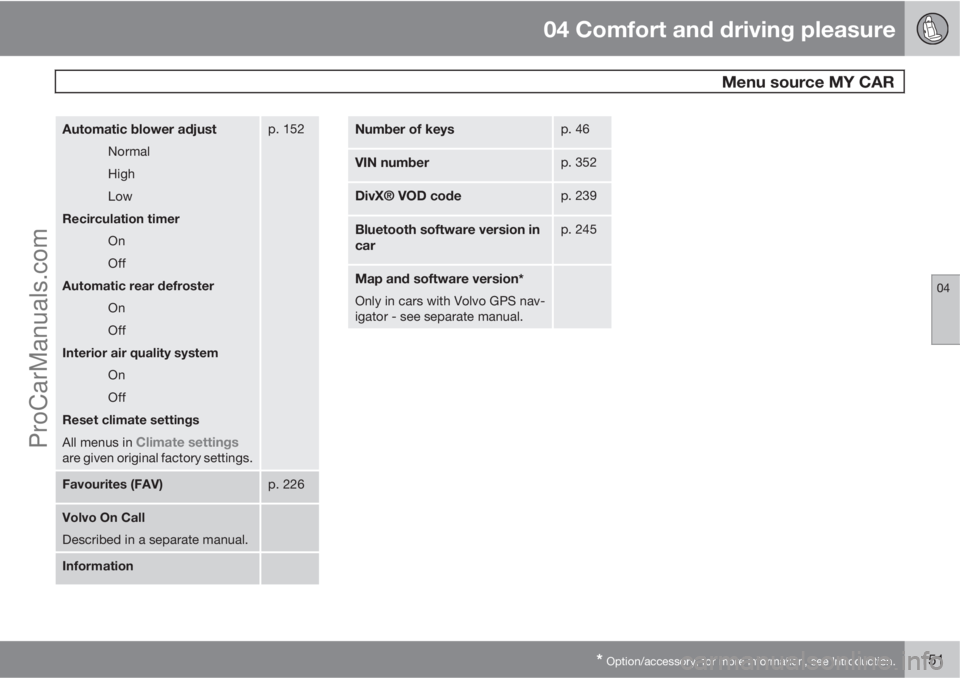

Automatic blower adjust
Normal
High
Low
Recirculation timer
On
Off
Automatic rear defroster
On
Off
Interior air quality system
On
Off
Reset climate settings
All menus in
Climate settingsare given original factory settings.
p. 152
Favourites (FAV)p. 226
Volvo On Call
Described in a separate manual.
Information
Number of keysp. 46
VIN numberp. 352
DivX® VOD codep. 239
Bluetooth software version in
carp. 245
Map and software version*
Only in cars with Volvo GPS nav-
igator - see separate manual.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
152* Option/accessory, for more information, see Introduction.

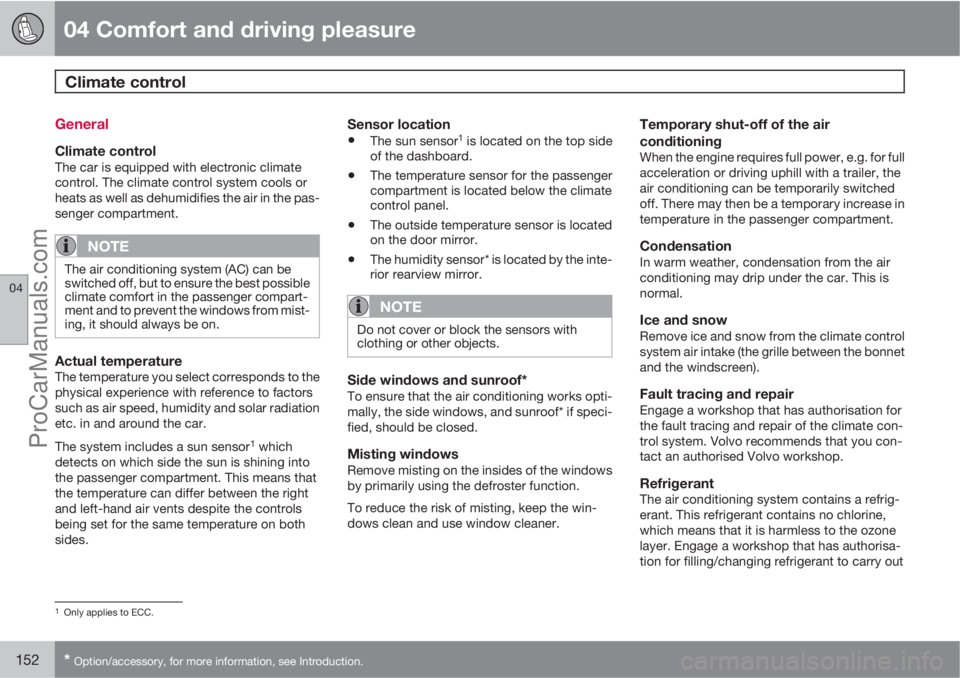

General
Climate controlThe car is equipped with electronic climate
control. The climate control system cools or
heats as well as dehumidifies the air in the pas-
senger compartment.
NOTE
The air conditioning system (AC) can be
switched off, but to ensure the best possible
climate comfort in the passenger compart-
ment and to prevent the windows from mist-
ing, it should always be on.
Actual temperatureThe temperature you select corresponds to the
physical experience with reference to factors
such as air speed, humidity and solar radiation
etc. in and around the car.
The system includes a sun sensor
1 which
detects on which side the sun is shining into
the passenger compartment. This means that
the temperature can differ between the right
and left-hand air vents despite the controls
being set for the same temperature on both
sides.
Sensor location
•The sun sensor1 is located on the top side
of the dashboard.
•The temperature sensor for the passenger
compartment is located below the climate
control panel.
•The outside temperature sensor is located
on the door mirror.
•The humidity sensor* is located by the inte-
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and sunroof*To ensure that the air conditioning works opti-
mally, the side windows, and sunroof* if speci-
fied, should be closed.
Misting windowsRemove misting on the insides of the windows
by primarily using the defroster function.
To reduce the risk of misting, keep the win-
dows clean and use window cleaner.
Temporary shut-off of the air
conditioning
When the engine requires full power, e.g. for full
acceleration or driving uphill with a trailer, the
air conditioning can be temporarily switched
off. There may then be a temporary increase in
temperature in the passenger compartment.
CondensationIn warm weather, condensation from the air
conditioning may drip under the car. This is
normal.
Ice and snowRemove ice and snow from the climate control
system air intake (the grille between the bonnet
and the windscreen).
Fault tracing and repairEngage a workshop that has authorisation for
the fault tracing and repair of the climate con-
trol system. Volvo recommends that you con-
tact an authorised Volvo workshop.
RefrigerantThe air conditioning system contains a refrig-
erant. This refrigerant contains no chlorine,
which means that it is harmless to the ozone
layer. Engage a workshop that has authorisa-
tion for filling/changing refrigerant to carry out
1Only applies to ECC.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
* Option/accessory, for more information, see Introduction.153

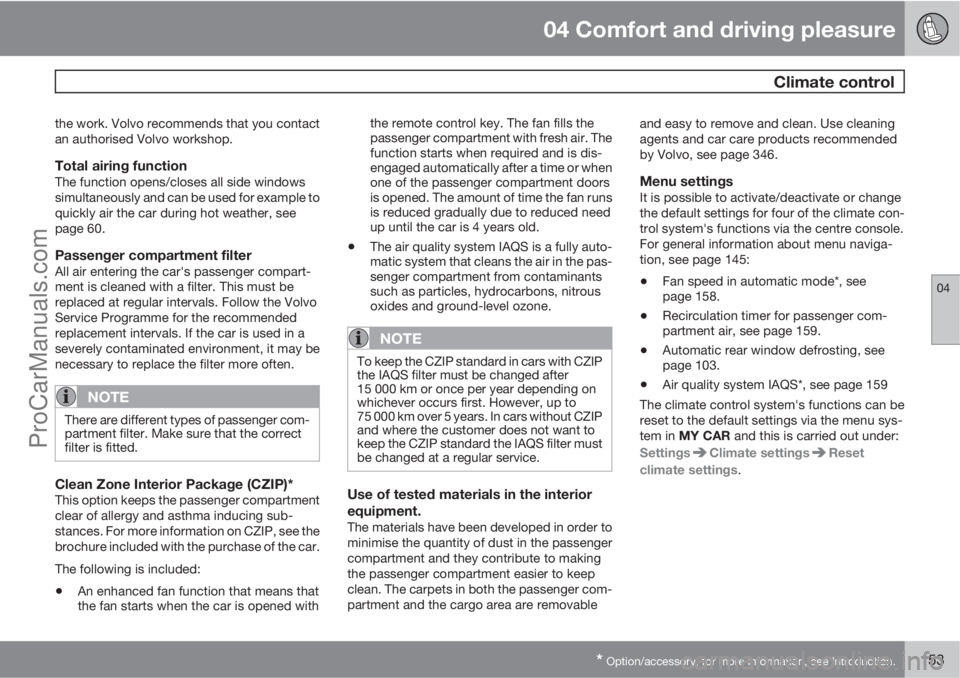

the work. Volvo recommends that you contact
an authorised Volvo workshop.
Total airing functionThe function opens/closes all side windows
simultaneously and can be used for example to
quickly air the car during hot weather, see
page 60.
Passenger compartment filterAll air entering the car's passenger compart-
ment is cleaned with a filter. This must be
replaced at regular intervals. Follow the Volvo
Service Programme for the recommended
replacement intervals. If the car is used in a
severely contaminated environment, it may be
necessary to replace the filter more often.
NOTE
There are different types of passenger com-
partment filter. Make sure that the correct
filter is fitted.
Clean Zone Interior Package (CZIP)*This option keeps the passenger compartment
clear of allergy and asthma inducing sub-
stances. For more information on CZIP, see the
brochure included with the purchase of the car.
The following is included:
•An enhanced fan function that means that
the fan starts when the car is opened withthe remote control key. The fan fills the
passenger compartment with fresh air. The
function starts when required and is dis-
engaged automatically after a time or when
one of the passenger compartment doors
is opened. The amount of time the fan runs
is reduced gradually due to reduced need
up until the car is 4 years old.
•The air quality system IAQS is a fully auto-
matic system that cleans the air in the pas-
senger compartment from contaminants
such as particles, hydrocarbons, nitrous
oxides and ground-level ozone.
NOTE
To keep the CZIP standard in cars with CZIP
the IAQS filter must be changed after
15 000 km or once per year depending on
whichever occurs first. However, up to
75 000 km over 5 years. In cars without CZIP
and where the customer does not want to
keep the CZIP standard the IAQS filter must
be changed at a regular service.
Use of tested materials in the interior
equipment.
The materials have been developed in order to
minimise the quantity of dust in the passenger
compartment and they contribute to making
the passenger compartment easier to keep
clean. The carpets in both the passenger com-
partment and the cargo area are removableand easy to remove and clean. Use cleaning
agents and car care products recommended
by Volvo, see page 346.
Menu settingsIt is possible to activate/deactivate or change
the default settings for four of the climate con-
trol system's functions via the centre console.
For general information about menu naviga-
tion, see page 145:
•Fan speed in automatic mode*, see
page 158.
•Recirculation timer for passenger com-
partment air, see page 159.
•Automatic rear window defrosting, see
page 103.
•Air quality system IAQS*, see page 159
The climate control system's functions can be
reset to the default settings via the menu sys-
tem in MY CAR and this is carried out under:
Settings
Climate settingsReset
climate settings.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
154* Option/accessory, for more information, see Introduction.

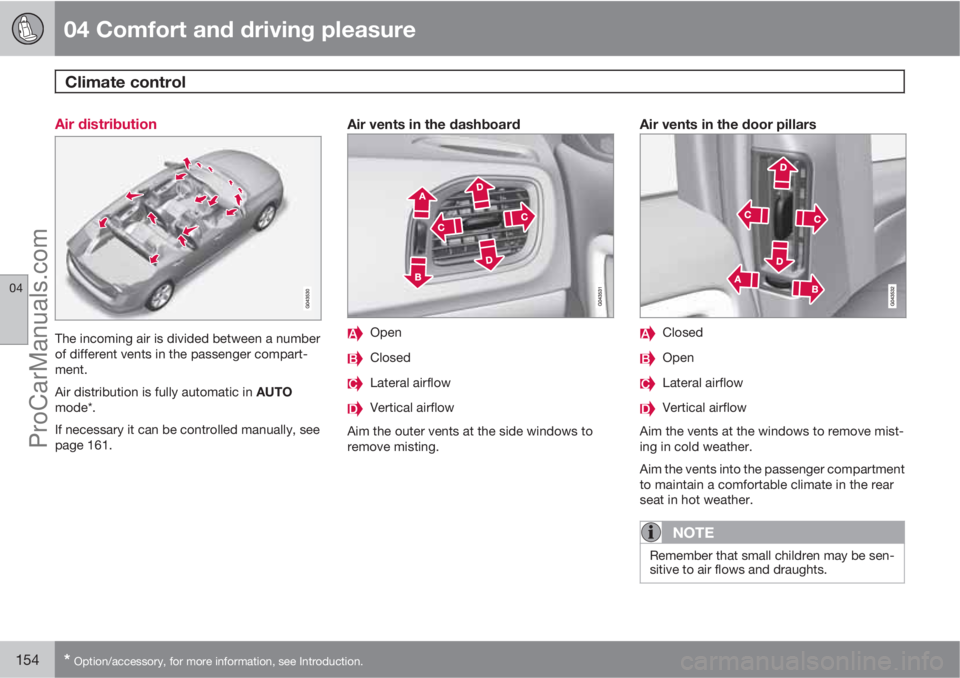

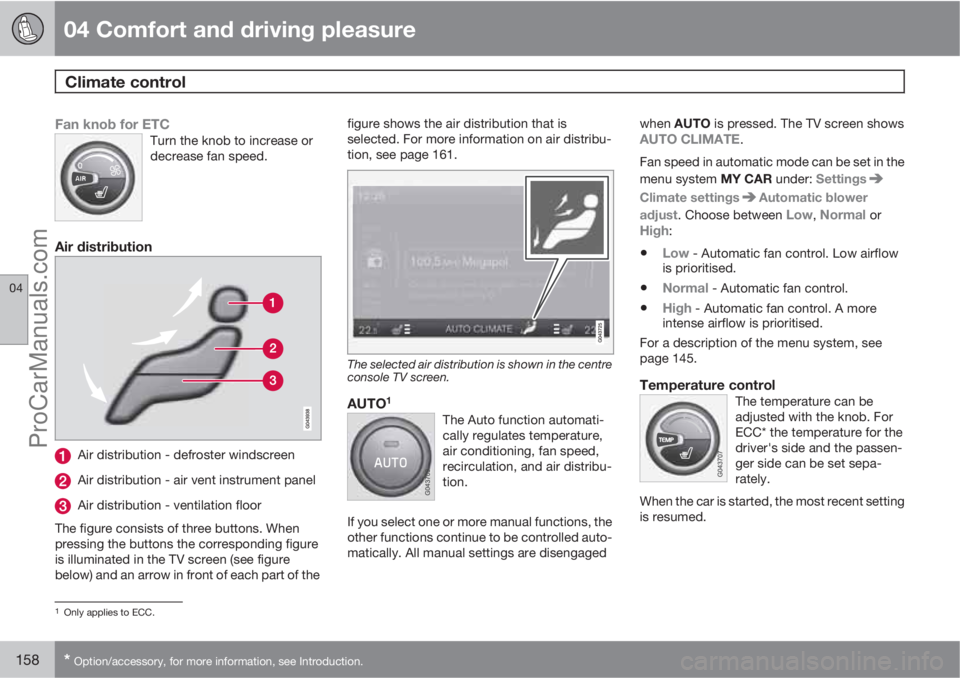

Air distribution
The incoming air is divided between a number
of different vents in the passenger compart-
ment.
Air distribution is fully automatic in AUTO
mode*.
If necessary it can be controlled manually, see
page 161.
Air vents in the dashboard
Open
Closed
Lateral airflow
Vertical airflow
Aim the outer vents at the side windows to
remove misting.
Air vents in the door pillars
Closed
Open
Lateral airflow
Vertical airflow
Aim the vents at the windows to remove mist-
ing in cold weather.
Aim the vents into the passenger compartment
to maintain a comfortable climate in the rear
seat in hot weather.
NOTE
Remember that small children may be sen-
sitive to air flows and draughts.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04

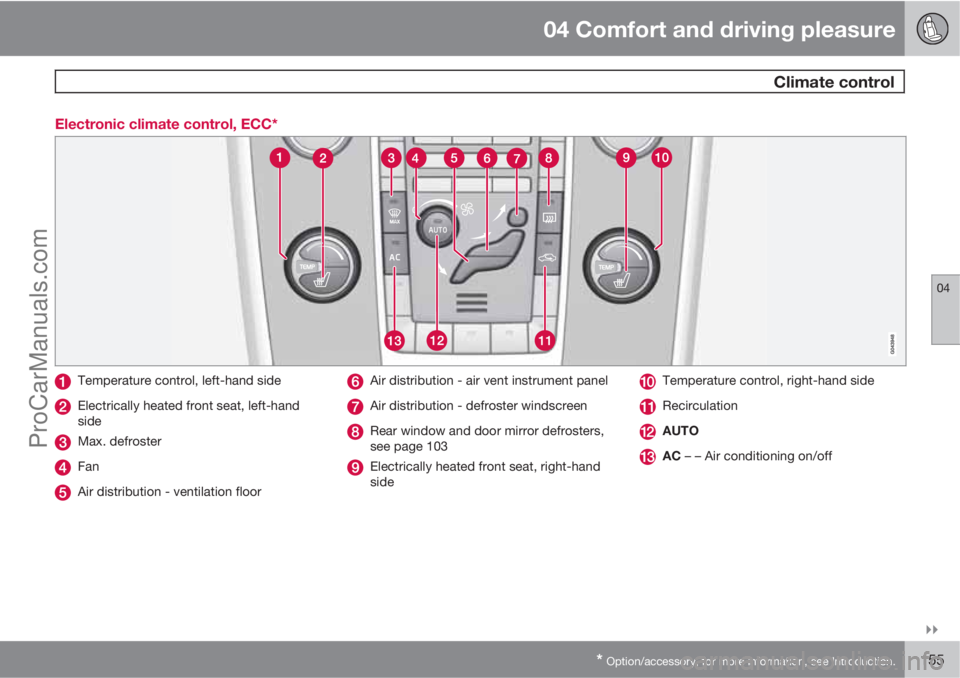

* Option/accessory, for more information, see Introduction.155 Electronic climate control, ECC*
Temperature control, left-hand side
Electrically heated front seat, left-hand
side
Max. defroster
Fan
Air distribution - ventilation floor
Air distribution - air vent instrument panel
Air distribution - defroster windscreen
Rear window and door mirror defrosters,
see page 103
Electrically heated front seat, right-hand
side
Temperature control, right-hand side
Recirculation
AUTO
AC – – Air conditioning on/off
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
156

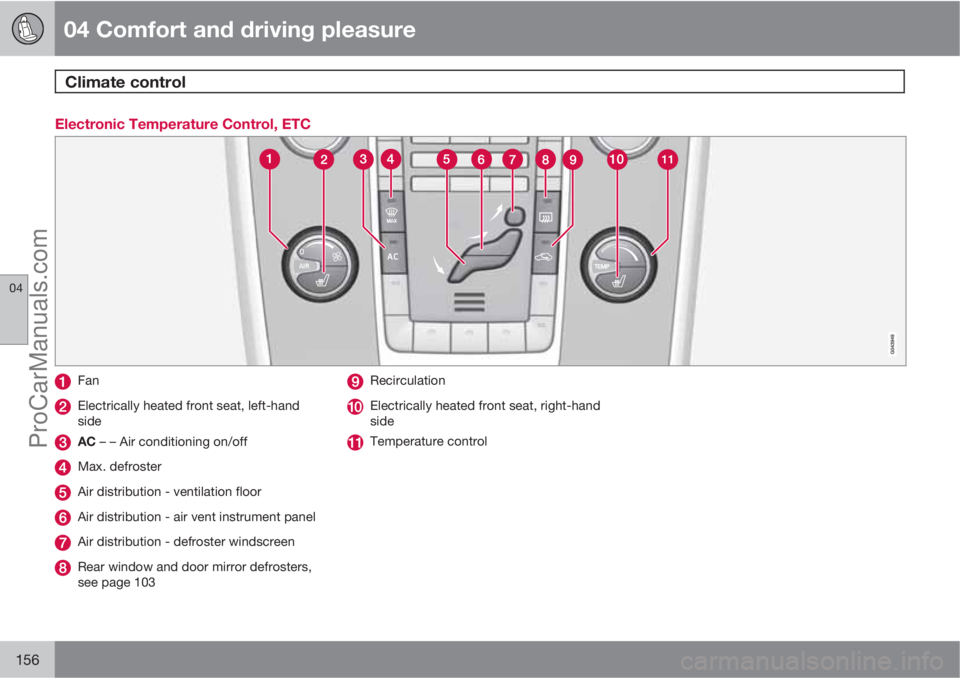

Electronic Temperature Control, ETC
Fan
Electrically heated front seat, left-hand
side
AC – – Air conditioning on/off
Max. defroster
Air distribution - ventilation floor
Air distribution - air vent instrument panel
Air distribution - defroster windscreen
Rear window and door mirror defrosters,
see page 103
Recirculation
Electrically heated front seat, right-hand
side
Temperature control
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04

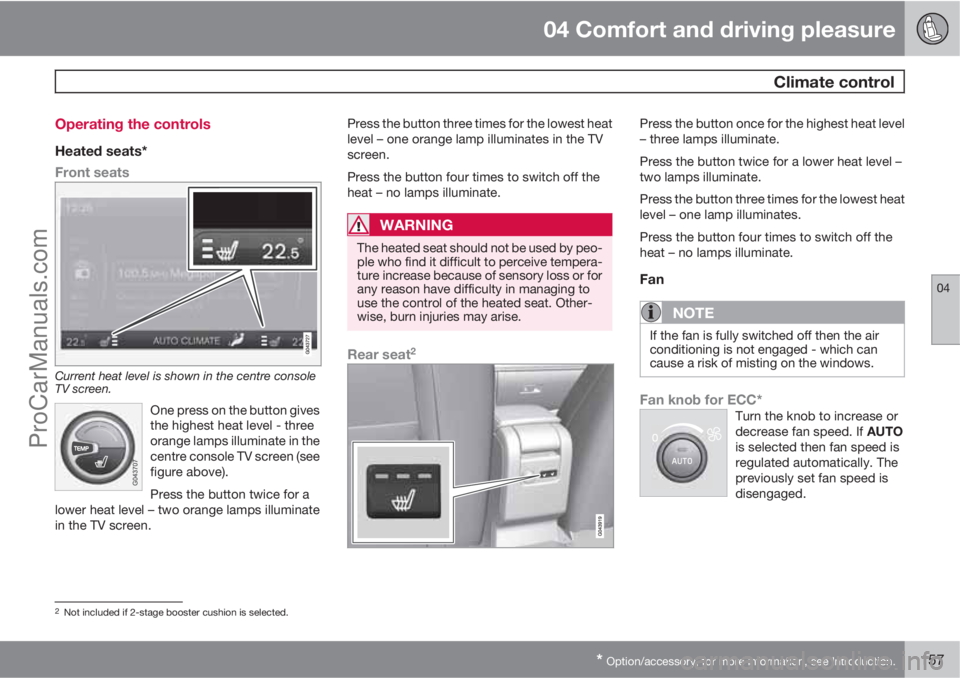

* Option/accessory, for more information, see Introduction.157 Operating the controls
Heated seats*
Front seats
Current heat level is shown in the centre console
TV screen.
One press on the button gives
the highest heat level - three
orange lamps illuminate in the
centre console TV screen (see
figure above).
Press the button twice for a
lower heat level – two orange lamps illuminate
in the TV screen.
Press the button three times for the lowest heat
level – one orange lamp illuminates in the TV
screen.
Press the button four times to switch off the
heat – no lamps illuminate.
WARNING
The heated seat should not be used by peo-
ple who find it difficult to perceive tempera-
ture increase because of sensory loss or for
any reason have difficulty in managing to
use the control of the heated seat. Other-
wise, burn injuries may arise.
Rear seat2
Press the button once for the highest heat level
– three lamps illuminate.
Press the button twice for a lower heat level –
two lamps illuminate.
Press the button three times for the lowest heat
level – one lamp illuminates.
Press the button four times to switch off the
heat – no lamps illuminate.
Fan
NOTE
If the fan is fully switched off then the air
conditioning is not engaged - which can
cause a risk of misting on the windows.
Fan knob for ECC*Turn the knob to increase or
decrease fan speed. If AUTO
is selected then fan speed is
regulated automatically. The
previously set fan speed is
disengaged.
2Not included if 2-stage booster cushion is selected.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
158* Option/accessory, for more information, see Introduction.
Fan knob for ETCTurn the knob to increase or
decrease fan speed.
Air distribution
Air distribution - defroster windscreen
Air distribution - air vent instrument panel
Air distribution - ventilation floor
The figure consists of three buttons. When
pressing the buttons the corresponding figure
is illuminated in the TV screen (see figure
below) and an arrow in front of each part of thefigure shows the air distribution that is
selected. For more information on air distribu-
tion, see page 161.
The selected air distribution is shown in the centre
console TV screen.
AUTO1
The Auto function automati-
cally regulates temperature,
air conditioning, fan speed,
recirculation, and air distribu-
tion.
If you select one or more manual functions, the
other functions continue to be controlled auto-
matically. All manual settings are disengagedwhen AUTO is pressed. The TV screen shows
AUTO CLIMATE.
Fan speed in automatic mode can be set in the
menu system MY CAR under: Settings
Climate settingsAutomatic blower
adjust. Choose between
Low, Normal orHigh:
•Low - Automatic fan control. Low airflow
is prioritised.
•Normal - Automatic fan control.
•High - Automatic fan control. A more
intense airflow is prioritised.
For a description of the menu system, see
page 145.
Temperature controlThe temperature can be
adjusted with the knob. For
ECC* the temperature for the
driver's side and the passen-
ger side can be set sepa-
rately.
When the car is started, the most recent setting
is resumed.
1Only applies to ECC.
ProCarManuals.com
