VOLVO V60 2012 Owners Manual
Manufacturer: VOLVO, Model Year: 2012, Model line: V60, Model: VOLVO V60 2012Pages: 400, PDF Size: 9.28 MB
Page 131 of 400
03 Your driving environment
Eco Start/Stop DRIVe*
03
* Option/accessory, for more information, see Introduction.129

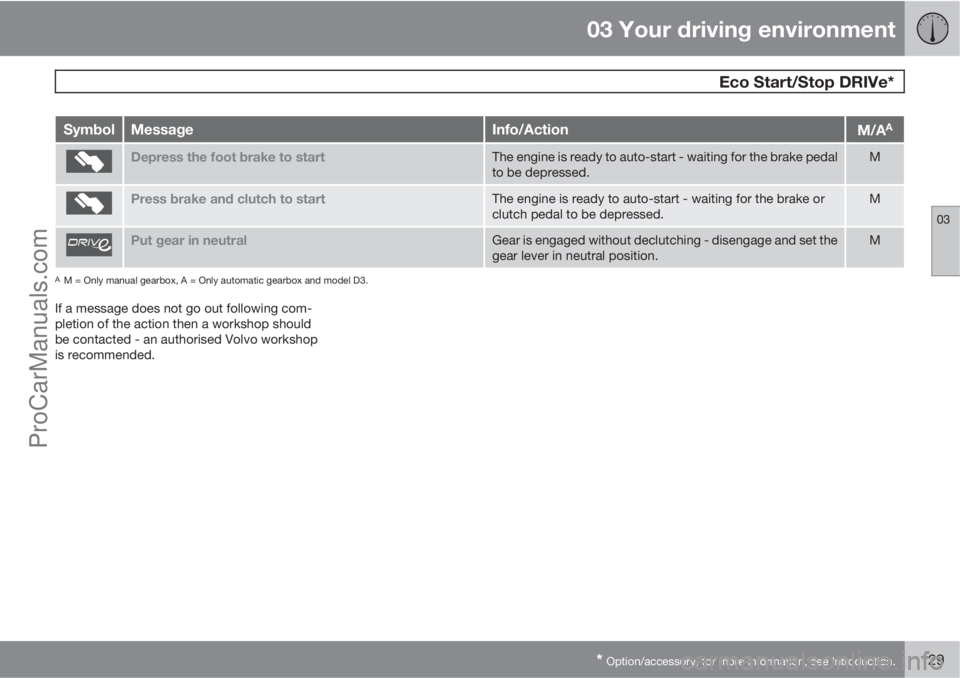

SymbolMessageInfo/ActionM/AA
Depress the foot brake to startThe engine is ready to auto-start - waiting for the brake pedal
to be depressed.M
Press brake and clutch to startThe engine is ready to auto-start - waiting for the brake or
clutch pedal to be depressed.M
Put gear in neutralGear is engaged without declutching - disengage and set the
gear lever in neutral position.M
AM = Only manual gearbox, A = Only automatic gearbox and model D3.
If a message does not go out following com-
pletion of the action then a workshop should
be contacted - an authorised Volvo workshop
is recommended.
ProCarManuals.com
Page 132 of 400
03 Your driving environment

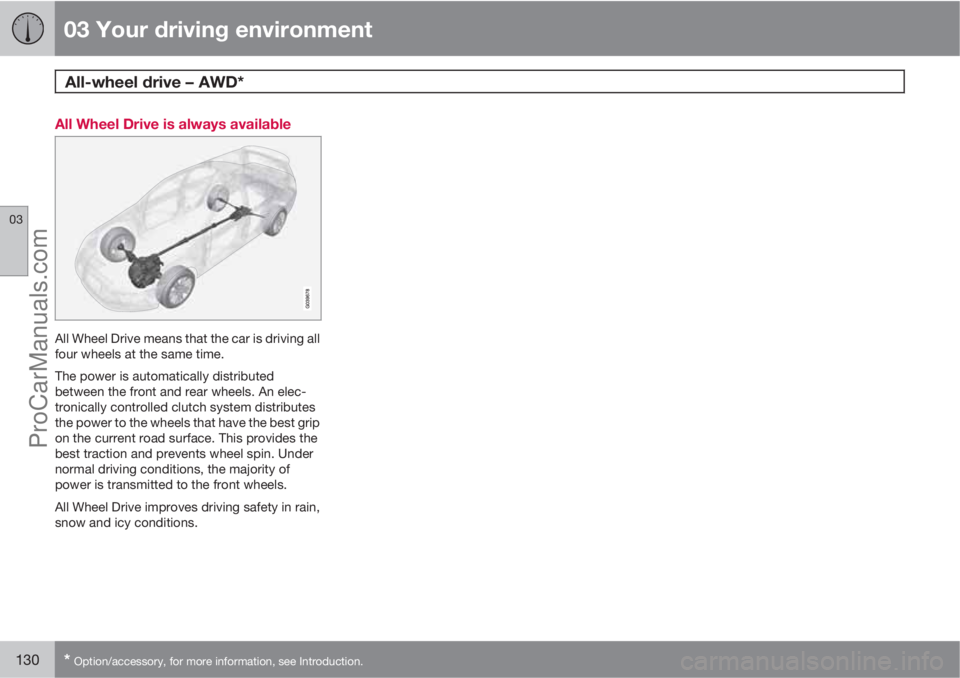

All-wheel drive – AWD*
03
130* Option/accessory, for more information, see Introduction.
All Wheel Drive is always available
All Wheel Drive means that the car is driving all
four wheels at the same time.
The power is automatically distributed
between the front and rear wheels. An elec-
tronically controlled clutch system distributes
the power to the wheels that have the best grip
on the current road surface. This provides the
best traction and prevents wheel spin. Under
normal driving conditions, the majority of
power is transmitted to the front wheels.
All Wheel Drive improves driving safety in rain,
snow and icy conditions.
ProCarManuals.com
Page 133 of 400
03 Your driving environment

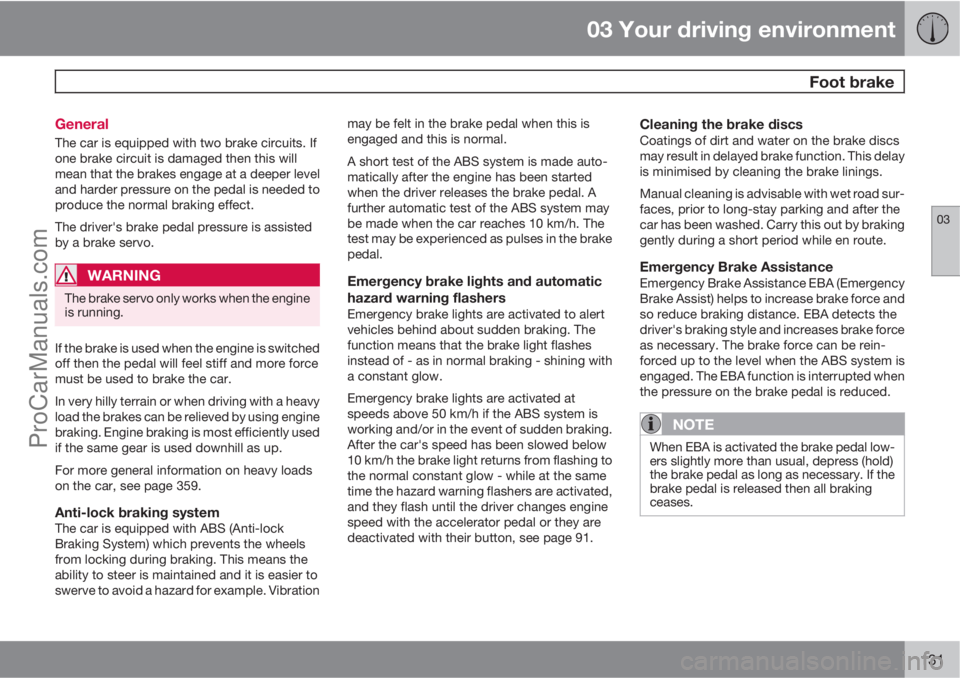

Foot brake
03
131 General
The car is equipped with two brake circuits. If
one brake circuit is damaged then this will
mean that the brakes engage at a deeper level
and harder pressure on the pedal is needed to
produce the normal braking effect.
The driver's brake pedal pressure is assisted
by a brake servo.
WARNING
The brake servo only works when the engine
is running.
If the brake is used when the engine is switched
off then the pedal will feel stiff and more force
must be used to brake the car.
In very hilly terrain or when driving with a heavy
load the brakes can be relieved by using engine
braking. Engine braking is most efficiently used
if the same gear is used downhill as up.
For more general information on heavy loads
on the car, see page 359.
Anti-lock braking systemThe car is equipped with ABS (Anti-lock
Braking System) which prevents the wheels
from locking during braking. This means the
ability to steer is maintained and it is easier to
swerve to avoid a hazard for example. Vibrationmay be felt in the brake pedal when this is
engaged and this is normal.
A short test of the ABS system is made auto-
matically after the engine has been started
when the driver releases the brake pedal. A
further automatic test of the ABS system may
be made when the car reaches 10 km/h. The
test may be experienced as pulses in the brake
pedal.
Emergency brake lights and automatic
hazard warning flashers
Emergency brake lights are activated to alert
vehicles behind about sudden braking. The
function means that the brake light flashes
instead of - as in normal braking - shining with
a constant glow.
Emergency brake lights are activated at
speeds above 50 km/h if the ABS system is
working and/or in the event of sudden braking.
After the car's speed has been slowed below
10 km/h the brake light returns from flashing to
the normal constant glow - while at the same
time the hazard warning flashers are activated,
and they flash until the driver changes engine
speed with the accelerator pedal or they are
deactivated with their button, see page 91.
Cleaning the brake discsCoatings of dirt and water on the brake discs
may result in delayed brake function. This delay
is minimised by cleaning the brake linings.
Manual cleaning is advisable with wet road sur-
faces, prior to long-stay parking and after the
car has been washed. Carry this out by braking
gently during a short period while en route.
Emergency Brake AssistanceEmergency Brake Assistance EBA (Emergency
Brake Assist) helps to increase brake force and
so reduce braking distance. EBA detects the
driver's braking style and increases brake force
as necessary. The brake force can be rein-
forced up to the level when the ABS system is
engaged. The EBA function is interrupted when
the pressure on the brake pedal is reduced.
NOTE
When EBA is activated the brake pedal low-
ers slightly more than usual, depress (hold)
the brake pedal as long as necessary. If the
brake pedal is released then all braking
ceases.
ProCarManuals.com
Page 134 of 400
03 Your driving environment
Foot brake
03
132

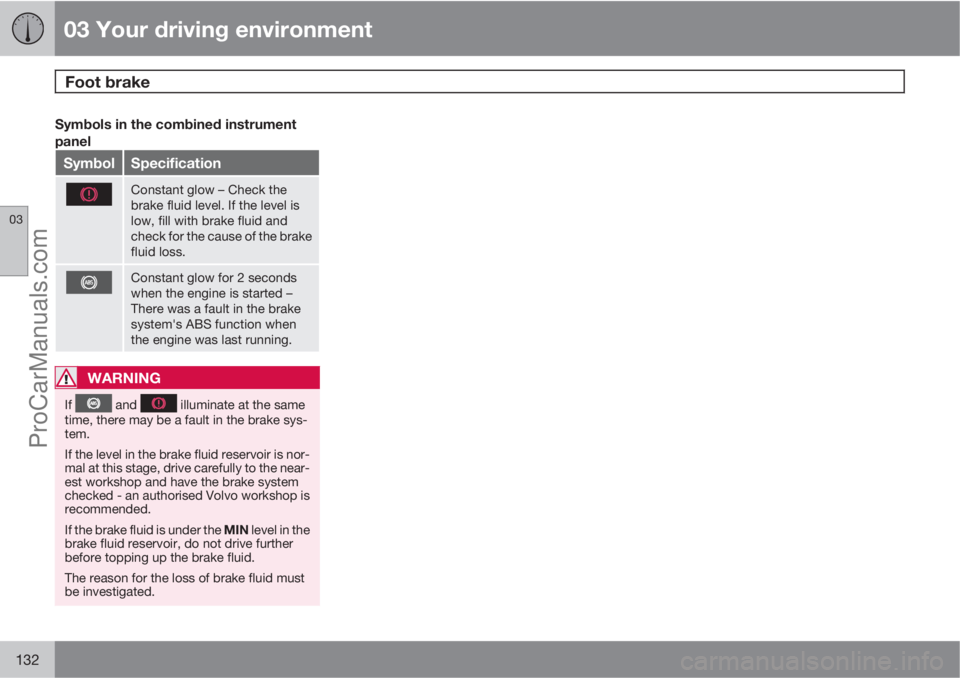

Symbols in the combined instrument
panel
SymbolSpecification
Constant glow – Check the
brake fluid level. If the level is
low, fill with brake fluid and
check for the cause of the brake
fluid loss.
Constant glow for 2 seconds
when the engine is started –
There was a fault in the brake
system's ABS function when
the engine was last running.
WARNING
If and illuminate at the same
time, there may be a fault in the brake sys-
tem.
If the level in the brake fluid reservoir is nor-
mal at this stage, drive carefully to the near-
est workshop and have the brake system
checked - an authorised Volvo workshop is
recommended.
If the brake fluid is under the MIN level in the
brake fluid reservoir, do not drive further
before topping up the brake fluid.
The reason for the loss of brake fluid must
be investigated.
ProCarManuals.com
Page 135 of 400
03 Your driving environment

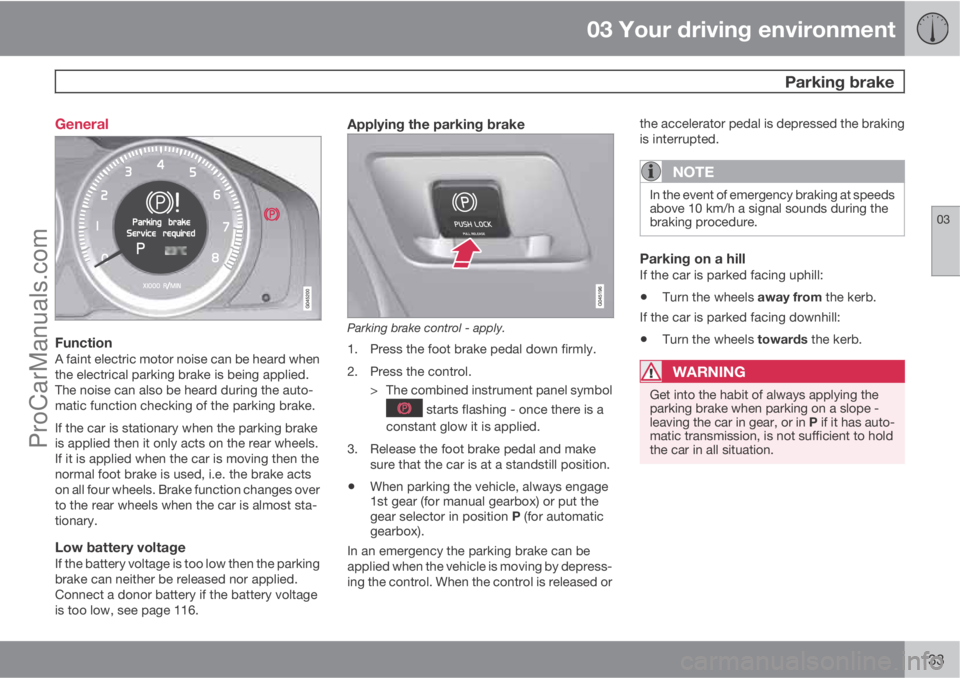

Parking brake
03
133 General
FunctionA faint electric motor noise can be heard when
the electrical parking brake is being applied.
The noise can also be heard during the auto-
matic function checking of the parking brake.
If the car is stationary when the parking brake
is applied then it only acts on the rear wheels.
If it is applied when the car is moving then the
normal foot brake is used, i.e. the brake acts
on all four wheels. Brake function changes over
to the rear wheels when the car is almost sta-
tionary.
Low battery voltageIf the battery voltage is too low then the parking
brake can neither be released nor applied.
Connect a donor battery if the battery voltage
is too low, see page 116.
Applying the parking brake
Parking brake control - apply.
1. Press the foot brake pedal down firmly.
2. Press the control.
> The combined instrument panel symbol
starts flashing - once there is a
constant glow it is applied.
3. Release the foot brake pedal and make
sure that the car is at a standstill position.
•When parking the vehicle, always engage
1st gear (for manual gearbox) or put the
gear selector in position P (for automatic
gearbox).
In an emergency the parking brake can be
applied when the vehicle is moving by depress-
ing the control. When the control is released orthe accelerator pedal is depressed the braking
is interrupted.
NOTE
In the event of emergency braking at speeds
above 10 km/h a signal sounds during the
braking procedure.
Parking on a hillIf the car is parked facing uphill:
•Turn the wheels away from the kerb.
If the car is parked facing downhill:
•Turn the wheels towards the kerb.
WARNING
Get into the habit of always applying the
parking brake when parking on a slope -
leaving the car in gear, or in P if it has auto-
matic transmission, is not sufficient to hold
the car in all situation.
ProCarManuals.com
Page 136 of 400
03 Your driving environment
Parking brake
03
134

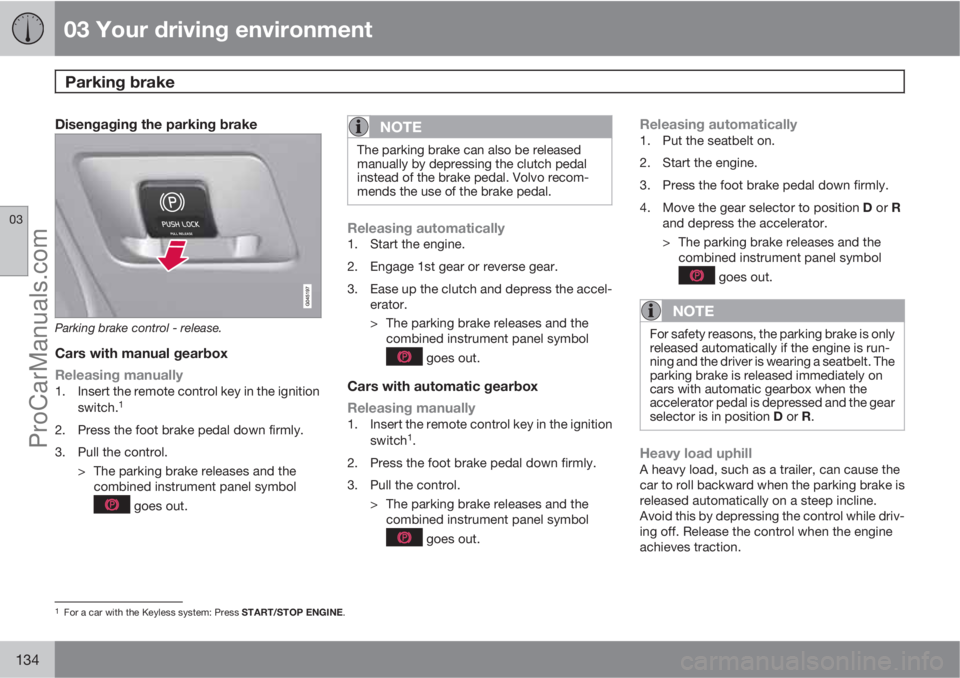

Disengaging the parking brake
Parking brake control - release.
Cars with manual gearbox
Releasing manually
1. Insert the remote control key in the ignition
switch.1
2. Press the foot brake pedal down firmly.
3. Pull the control.
> The parking brake releases and the
combined instrument panel symbol
goes out.
NOTE
The parking brake can also be released
manually by depressing the clutch pedal
instead of the brake pedal. Volvo recom-
mends the use of the brake pedal.
Releasing automatically1. Start the engine.
2. Engage 1st gear or reverse gear.
3. Ease up the clutch and depress the accel-
erator.
> The parking brake releases and the
combined instrument panel symbol
goes out.
Cars with automatic gearbox
Releasing manually
1. Insert the remote control key in the ignition
switch1.
2. Press the foot brake pedal down firmly.
3. Pull the control.
> The parking brake releases and the
combined instrument panel symbol
goes out.
Releasing automatically1. Put the seatbelt on.
2. Start the engine.
3. Press the foot brake pedal down firmly.
4.
Move the gear selector to position D or R
and depress the accelerator.
> The parking brake releases and the
combined instrument panel symbol
goes out.
NOTE
For safety reasons, the parking brake is only
released automatically if the engine is run-
ning and the driver is wearing a seatbelt. The
parking brake is released immediately on
cars with automatic gearbox when the
accelerator pedal is depressed and the gear
selector is in position D or R.
Heavy load uphillA heavy load, such as a trailer, can cause the
car to roll backward when the parking brake is
released automatically on a steep incline.
Avoid this by depressing the control while driv-
ing off. Release the control when the engine
achieves traction.
1For a car with the Keyless system: Press START/STOP ENGINE.
ProCarManuals.com
Page 137 of 400
03 Your driving environment
Parking brake
03
135
Replacing the brake liningsThe rear brake linings must be replaced at a
workshop due to the design of the electricparking brake - an authorised Volvo workshop
is recommended.

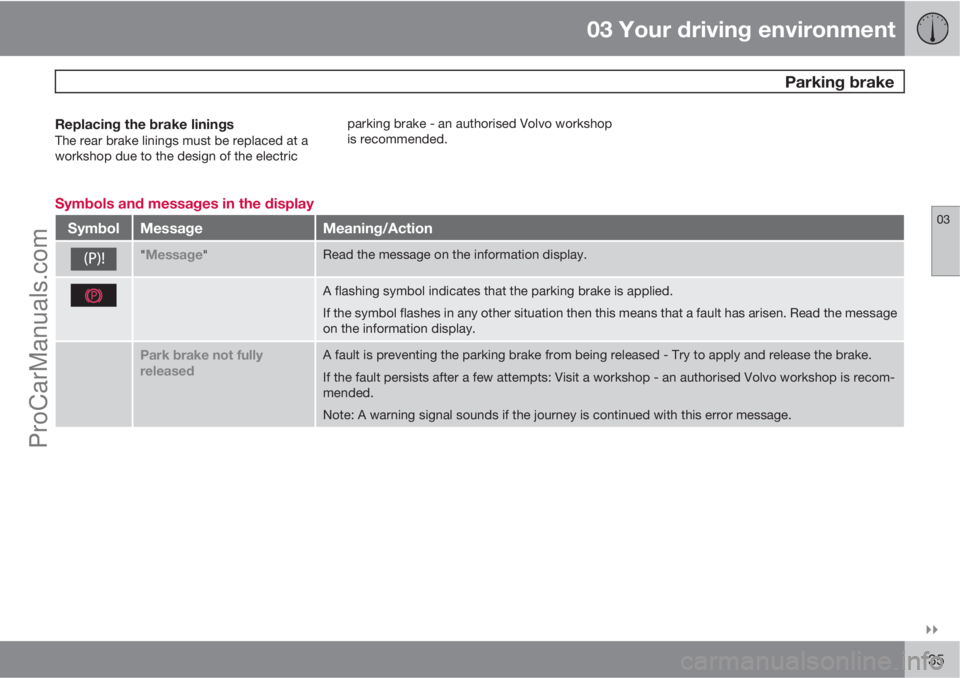

Symbols and messages in the display
SymbolMessageMeaning/Action
"Message"Read the message on the information display.
A flashing symbol indicates that the parking brake is applied.
If the symbol flashes in any other situation then this means that a fault has arisen. Read the message
on the information display.
Park brake not fully
releasedA fault is preventing the parking brake from being released - Try to apply and release the brake.
If the fault persists after a few attempts: Visit a workshop - an authorised Volvo workshop is recom-
mended.
Note: A warning signal sounds if the journey is continued with this error message.
ProCarManuals.com
Page 138 of 400
03 Your driving environment
Parking brake
03
136

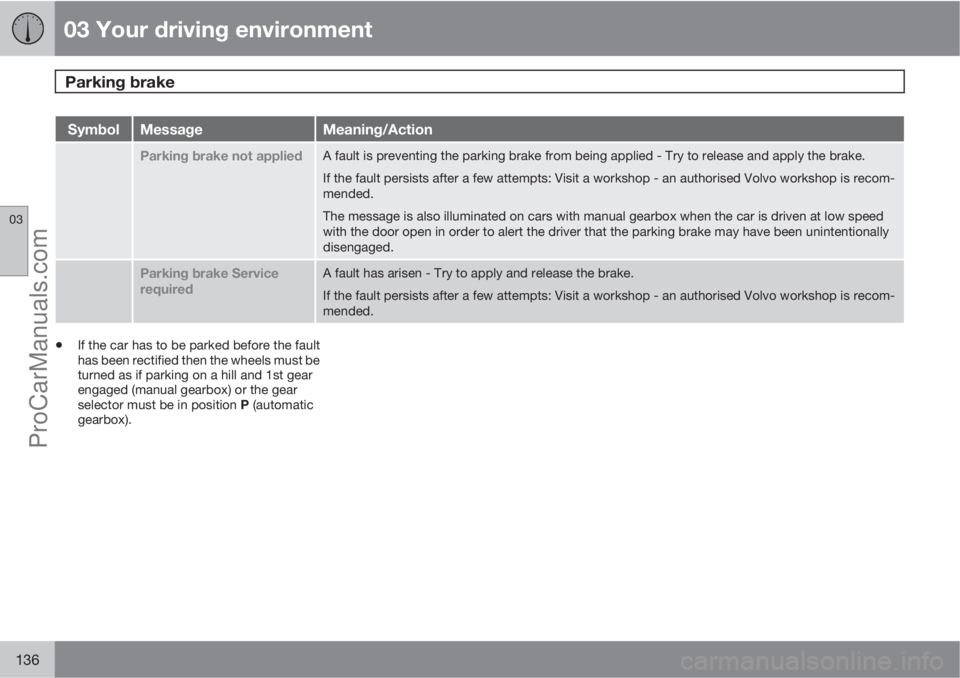

SymbolMessageMeaning/Action
Parking brake not appliedA fault is preventing the parking brake from being applied - Try to release and apply the brake.
If the fault persists after a few attempts: Visit a workshop - an authorised Volvo workshop is recom-
mended.
The message is also illuminated on cars with manual gearbox when the car is driven at low speed
with the door open in order to alert the driver that the parking brake may have been unintentionally
disengaged.
Parking brake Service
requiredA fault has arisen - Try to apply and release the brake.
If the fault persists after a few attempts: Visit a workshop - an authorised Volvo workshop is recom-
mended.
•If the car has to be parked before the fault
has been rectified then the wheels must be
turned as if parking on a hill and 1st gear
engaged (manual gearbox) or the gear
selector must be in position P (automatic
gearbox).
ProCarManuals.com
Page 139 of 400
03 Your driving environment
HomeLink Ÿ Ÿ *
03
* Option/accessory, for more information, see Introduction.137 General

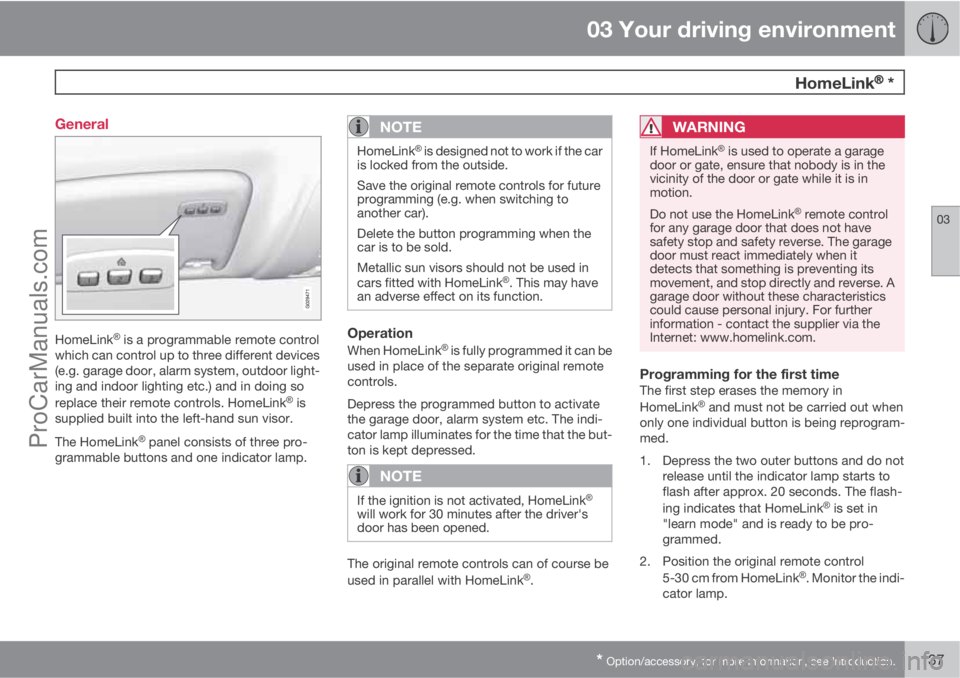

HomeLink Ÿ is a programmable remote control
which can control up to three different devices
(e.g. garage door, alarm system, outdoor light-
ing and indoor lighting etc.) and in doing so
replace their remote controls. HomeLink
Ÿ is
supplied built into the left-hand sun visor.
The HomeLink
Ÿ panel consists of three pro-
grammable buttons and one indicator lamp.
NOTE
HomeLink Ÿ is designed not to work if the car
is locked from the outside.
Save the original remote controls for future
programming (e.g. when switching to
another car).
Delete the button programming when the
car is to be sold.
Metallic sun visors should not be used in
cars fitted with HomeLink
Ÿ. This may have
an adverse effect on its function.
Operation
When HomeLink Ÿ is fully programmed it can be
used in place of the separate original remote
controls.
Depress the programmed button to activate
the garage door, alarm system etc. The indi-
cator lamp illuminates for the time that the but-
ton is kept depressed.
NOTE
If the ignition is not activated, HomeLink Ÿ
will work for 30 minutes after the driver's
door has been opened.
The original remote controls can of course be
used in parallel with HomeLink Ÿ.
WARNING
If HomeLink Ÿ is used to operate a garage
door or gate, ensure that nobody is in the
vicinity of the door or gate while it is in
motion.
Do not use the HomeLink
Ÿ remote control
for any garage door that does not have
safety stop and safety reverse. The garage
door must react immediately when it
detects that something is preventing its
movement, and stop directly and reverse. A
garage door without these characteristics
could cause personal injury. For further
information - contact the supplier via the
Internet: www.homelink.com.

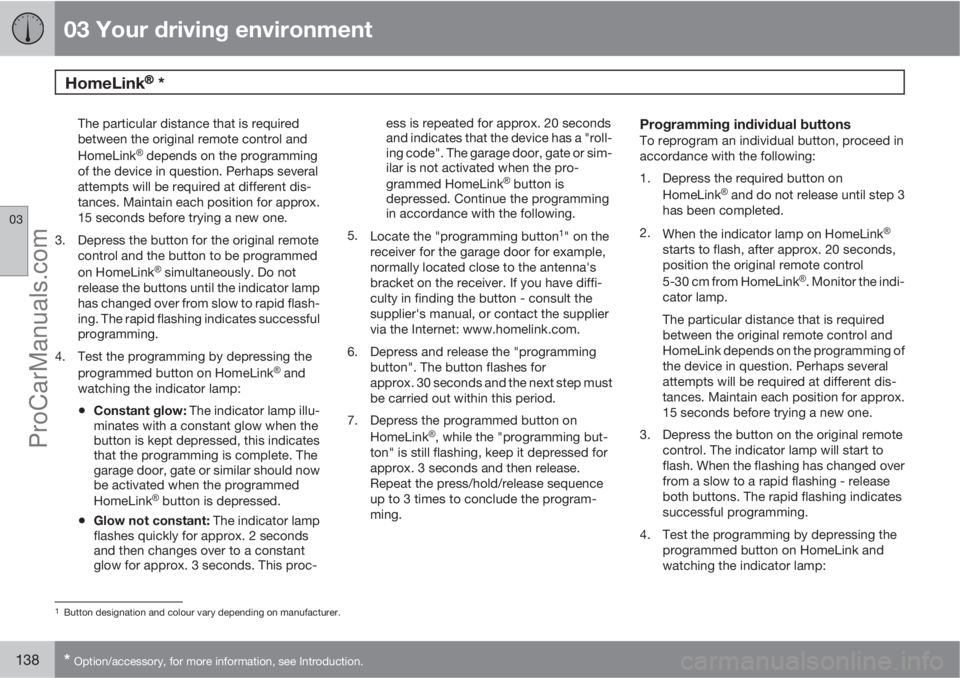

Programming for the first timeThe first step erases the memory in
HomeLink Ÿ and must not be carried out when
only one individual button is being reprogram-
med.
1. Depress the two outer buttons and do not
release until the indicator lamp starts to
flash after approx. 20 seconds. The flash-
ing indicates that HomeLink
Ÿ is set in
"learn mode" and is ready to be pro-
grammed.
2. Position the original remote control
5-30 cm from HomeLink
Ÿ. Monitor the indi-
cator lamp.
ProCarManuals.com
Page 140 of 400
03 Your driving environment
HomeLink Ÿ Ÿ *
03
138* Option/accessory, for more information, see Introduction.
The particular distance that is required
between the original remote control and
HomeLink
Ÿ depends on the programming
of the device in question. Perhaps several
attempts will be required at different dis-
tances. Maintain each position for approx.
15 seconds before trying a new one.
3. Depress the button for the original remote
control and the button to be programmed
on HomeLink
Ÿ simultaneously. Do not
release the buttons until the indicator lamp
has changed over from slow to rapid flash-
ing. The rapid flashing indicates successful
programming.
4. Test the programming by depressing the
programmed button on HomeLink
Ÿ and
watching the indicator lamp:
•Constant glow: The indicator lamp illu-
minates with a constant glow when the
button is kept depressed, this indicates
that the programming is complete. The
garage door, gate or similar should now
be activated when the programmed
HomeLink
Ÿ button is depressed.
•Glow not constant: The indicator lamp
flashes quickly for approx. 2 seconds
and then changes over to a constant
glow for approx. 3 seconds. This proc-ess is repeated for approx. 20 seconds
and indicates that the device has a "roll-
ing code". The garage door, gate or sim-
ilar is not activated when the pro-
grammed HomeLink
Ÿ button is
depressed. Continue the programming
in accordance with the following.
5.
Locate the "programming button
1" on the
receiver for the garage door for example,
normally located close to the antenna's
bracket on the receiver. If you have diffi-
culty in finding the button - consult the
supplier's manual, or contact the supplier
via the Internet: www.homelink.com.
6. Depress and release the "programming
button". The button flashes for
approx. 30 seconds and the next step must
be carried out within this period.
7. Depress the programmed button on
HomeLink
Ÿ, while the "programming but-
ton" is still flashing, keep it depressed for
approx. 3 seconds and then release.
Repeat the press/hold/release sequence
up to 3 times to conclude the program-
ming.
Programming individual buttonsTo reprogram an individual button, proceed in
accordance with the following:
1. Depress the required button on
HomeLink
Ÿ and do not release until step 3
has been completed.
2.
When the indicator lamp on HomeLink
Ÿ
starts to flash, after approx. 20 seconds,
position the original remote control
5-30 cm from HomeLink
Ÿ. Monitor the indi-
cator lamp.
The particular distance that is required
between the original remote control and
HomeLink depends on the programming of
the device in question. Perhaps several
attempts will be required at different dis-
tances. Maintain each position for approx.
15 seconds before trying a new one.
3. Depress the button on the original remote
control. The indicator lamp will start to
flash. When the flashing has changed over
from a slow to a rapid flashing - release
both buttons. The rapid flashing indicates
successful programming.
4. Test the programming by depressing the
programmed button on HomeLink and
watching the indicator lamp:
1Button designation and colour vary depending on manufacturer.
ProCarManuals.com
