10 Maintenance and service
10
353
NOTE
Outside lighting such as headlamps, fog lamps and rear lamps may temporarilyhave condensation on the inside of thelens. This is normal, all exterior lighting isdesigned to withstand this. Condensationis normally vented out of the lamp housingwhen the lamp has been switched on for atime.
Related information
•Lamp replacement - headlamps (p. 353)
• Lamp replacement - location of rear lamps (p. 357)
• Lamp replacement - vanity mirror lighting(p. 358)
• Lamp replacement - lighting in cargo area(p. 357)
• Lamp replacement - number plate lighting(p. 357)

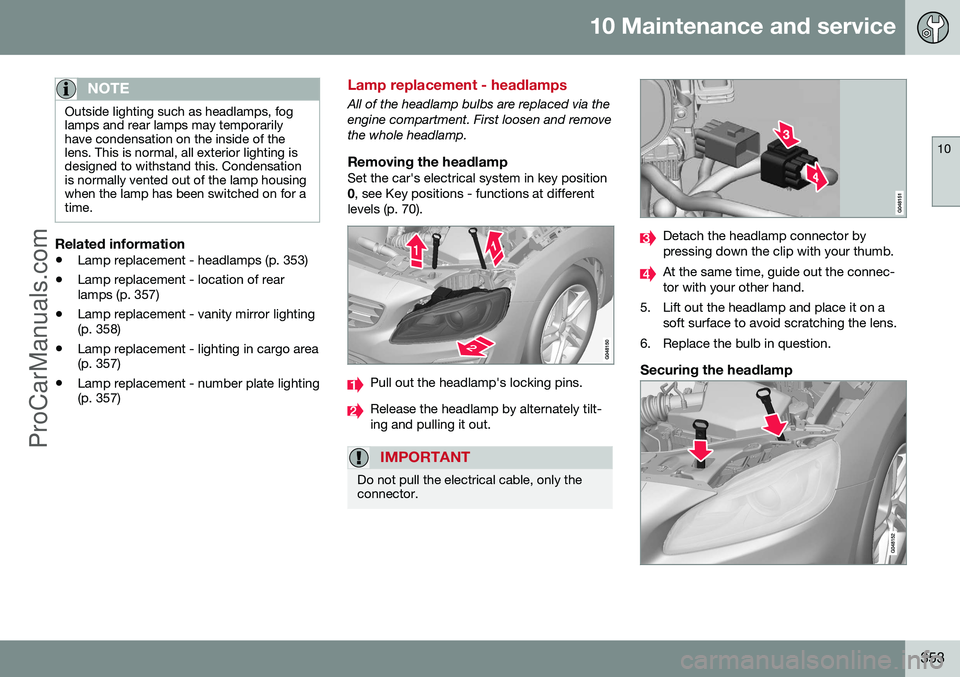

Lamp replacement - headlamps
All of the headlamp bulbs are replaced via the engine compartment. First loosen and removethe whole headlamp.
Removing the headlampSet the car's electrical system in key position0
, see Key positions - functions at different
levels (p. 70).
Pull out the headlamp's locking pins.
Release the headlamp by alternately tilt- ing and pulling it out.
IMPORTANT
Do not pull the electrical cable, only the connector.
Detach the headlamp connector by pressing down the clip with your thumb.
At the same time, guide out the connec- tor with your other hand.
5. Lift out the headlamp and place it on a soft surface to avoid scratching the lens.
6. Replace the bulb in question.
Securing the headlamp
ProCarManuals.com

10 Maintenance and service
10
357

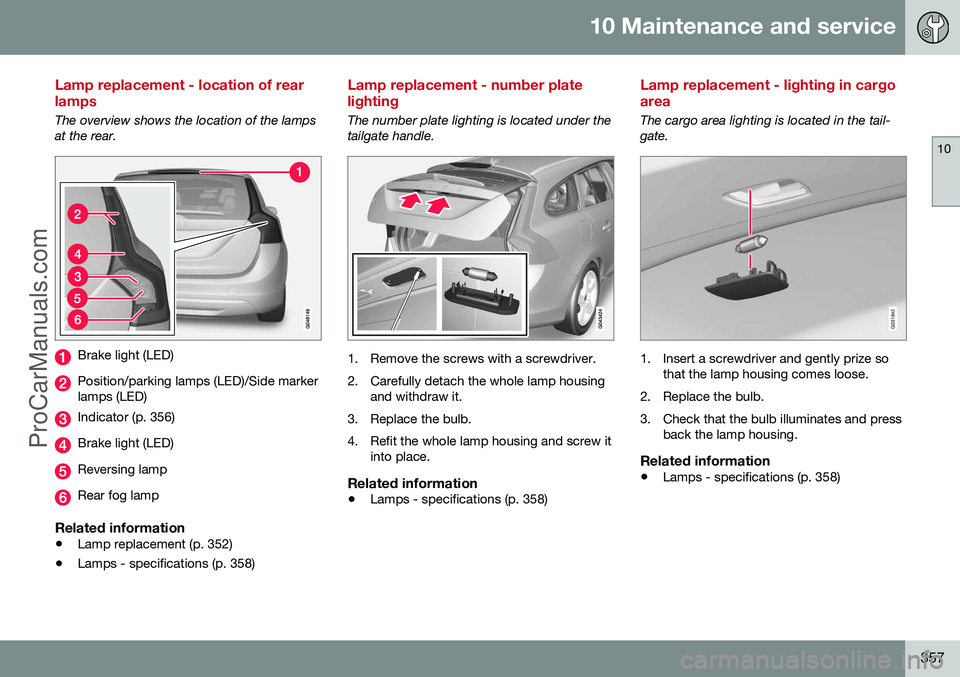

Lamp replacement - location of rear lamps
The overview shows the location of the lamps at the rear.
Brake light (LED)
Position/parking lamps (LED)/Side marker lamps (LED)
Indicator (p. 356)
Brake light (LED)
Reversing lamp
Rear fog lamp
Related information
•Lamp replacement (p. 352)
• Lamps - specifications (p. 358)
Lamp replacement - number plate lighting
The number plate lighting is located under the tailgate handle.
1. Remove the screws with a screwdriver.
2. Carefully detach the whole lamp housing
and withdraw it.
3. Replace the bulb.
4. Refit the whole lamp housing and screw it into place.
Related information
• Lamps - specifications (p. 358)
Lamp replacement - lighting in cargo area
The cargo area lighting is located in the tail- gate.
G031942
1. Insert a screwdriver and gently prize so
that the lamp housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press back the lamp housing.
Related information
• Lamps - specifications (p. 358)
ProCarManuals.co’

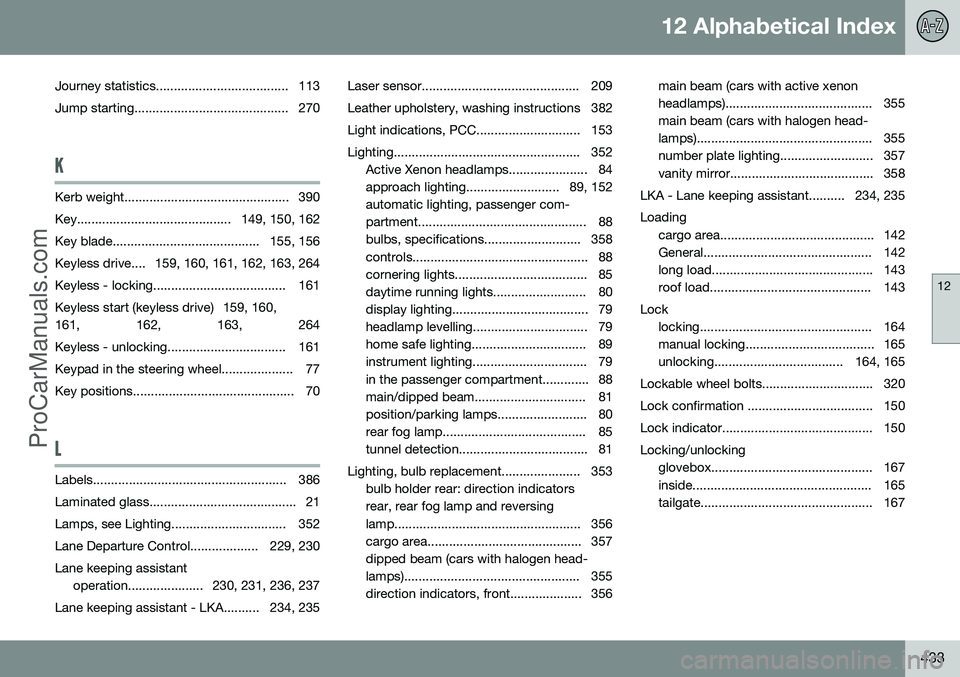

12 Alphabetical Index
12
433
Journey statistics..................................... 113
Jump starting........................................... 270
K
Kerb weight.............................................. 390
Key........................................... 149, 150, 162
Key blade......................................... 155, 156
Keyless drive.... 159, 160, 161, 162, 163, 264
Keyless - locking..................................... 161
Keyless start (keyless drive) 159, 160,
161, 162, 163, 264
Keyless - unlocking................................. 161
Keypad in the steering wheel.................... 77
Key positions............................................. 70
L
Labels...................................................... 386
Laminated glass......................................... 21
Lamps, see Lighting................................ 352
Lane Departure Control................... 229, 230Lane keeping assistant operation..................... 230, 231, 236, 237
Lane keeping assistant - LKA.......... 234, 235 Laser sensor............................................ 209
Leather upholstery, washing instructions 382
Light indications, PCC............................. 153
Lighting.................................................... 352
Active Xenon headlamps...................... 84
approach lighting.......................... 89, 152automatic lighting, passenger com-
partment............................................... 88
bulbs, specifications........................... 358
controls................................................. 88
cornering lights..................................... 85
daytime running lights.......................... 80
display lighting...................................... 79
headlamp levelling................................ 79
home safe lighting................................ 89
instrument lighting................................ 79
in the passenger compartment............. 88
main/dipped beam............................... 81
position/parking lamps......................... 80
rear fog lamp........................................ 85
tunnel detection.................................... 81
Lighting, bulb replacement...................... 353 bulb holder rear: direction indicatorsrear, rear fog lamp and reversing
lamp.................................................... 356
cargo area........................................... 357dipped beam (cars with halogen head-
lamps)................................................. 355
direction indicators, front.................... 356 main beam (cars with active xenon
headlamps)......................................... 355main beam (cars with halogen head-
lamps)................................................. 355
number plate lighting.......................... 357
vanity mirror........................................ 358
LKA - Lane keeping assistant.......... 234, 235 Loading cargo area........................................... 142
General............................................... 142
long load............................................. 143
roof load............................................. 143
Lock locking................................................ 164
manual locking.................................... 165
unlocking.................................... 164, 165
Lockable wheel bolts............................... 320
Lock confirmation ................................... 150
Lock indicator.......................................... 150Locking/unlocking glovebox............................................. 167
inside.................................................. 165
tailgate................................................ 167
