VOLVO V60 2017 Owner´s Manual

SPECIFICATIONS
389

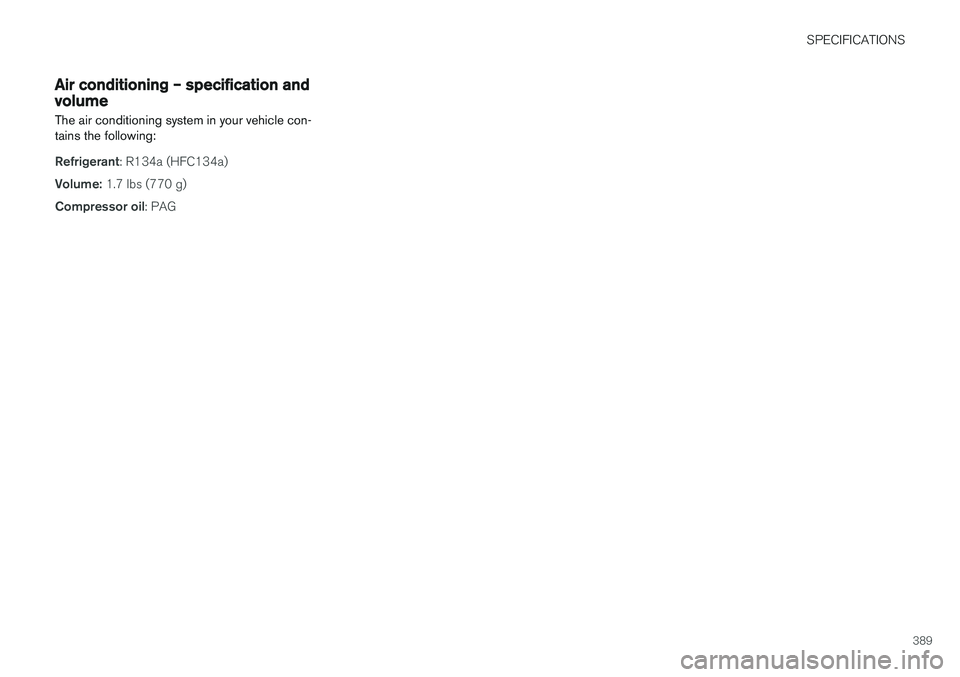

Air conditioning – specification and volume
The air conditioning system in your vehicle con- tains the following:
Refrigerant : R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.
390

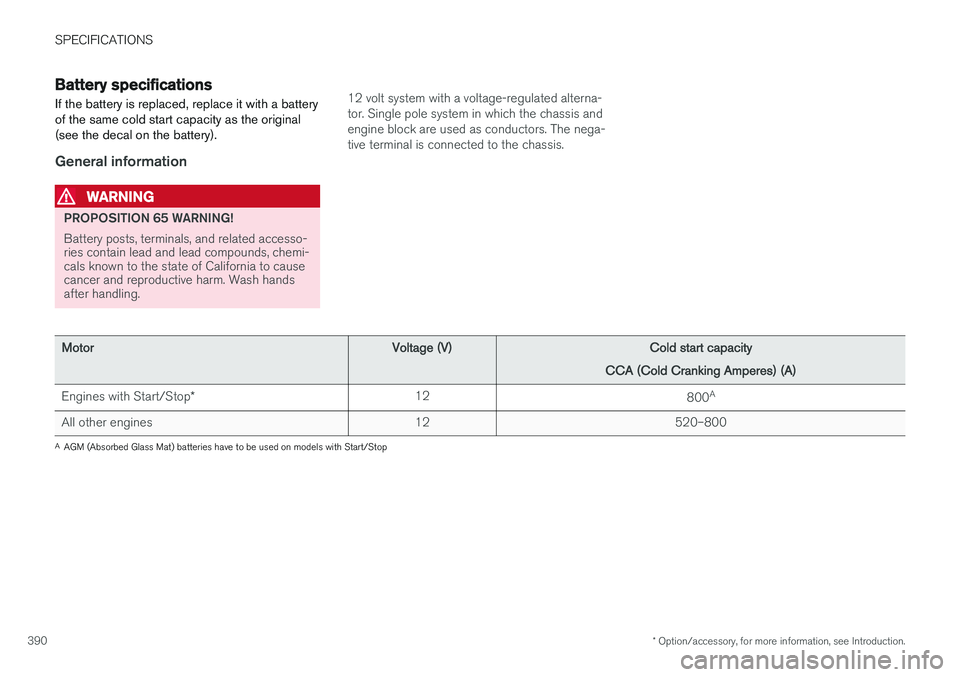

Battery specifications If the battery is replaced, replace it with a battery of the same cold start capacity as the original(see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accesso- ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling. 12 volt system with a voltage-regulated alterna- tor. Single pole system in which the chassis andengine block are used as conductors. The nega-tive terminal is connected to the chassis.
MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)
Engines with Start/Stop *12800A
All other engines12520–800
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop

SPECIFICATIONS
}}
391

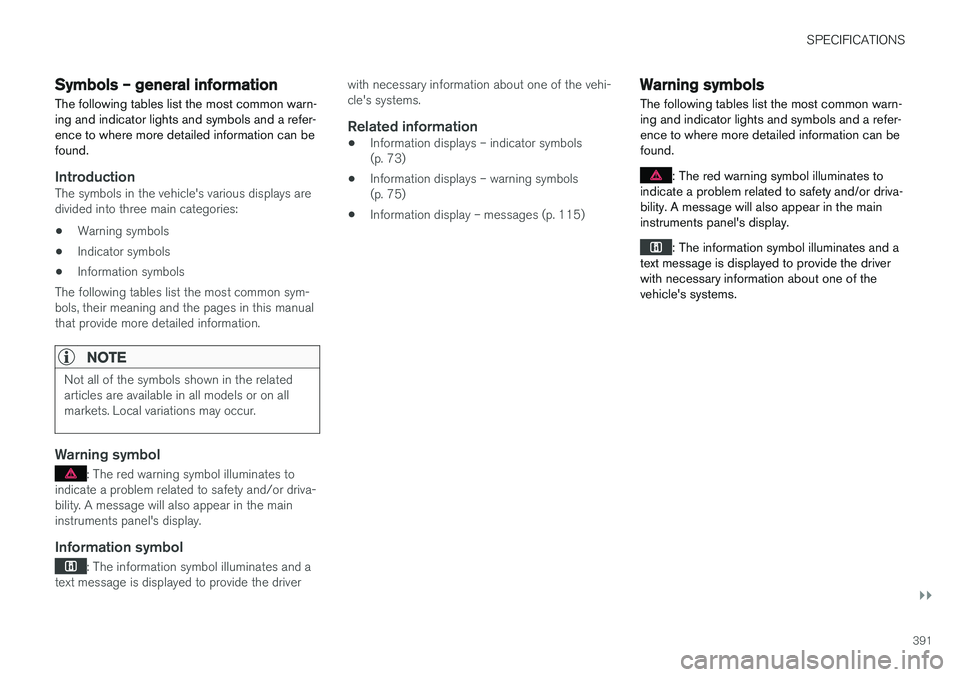

Symbols – general information The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
IntroductionThe symbols in the vehicle's various displays are divided into three main categories: •Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most common sym- bols, their meaning and the pages in this manualthat provide more detailed information.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
Information symbol
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of the vehi- cle's systems.
Related information
•
Information displays – indicator symbols(p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 115)
Warning symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.

||
SPECIFICATIONS
* Option/accessory, for more information, see Introduction.
392

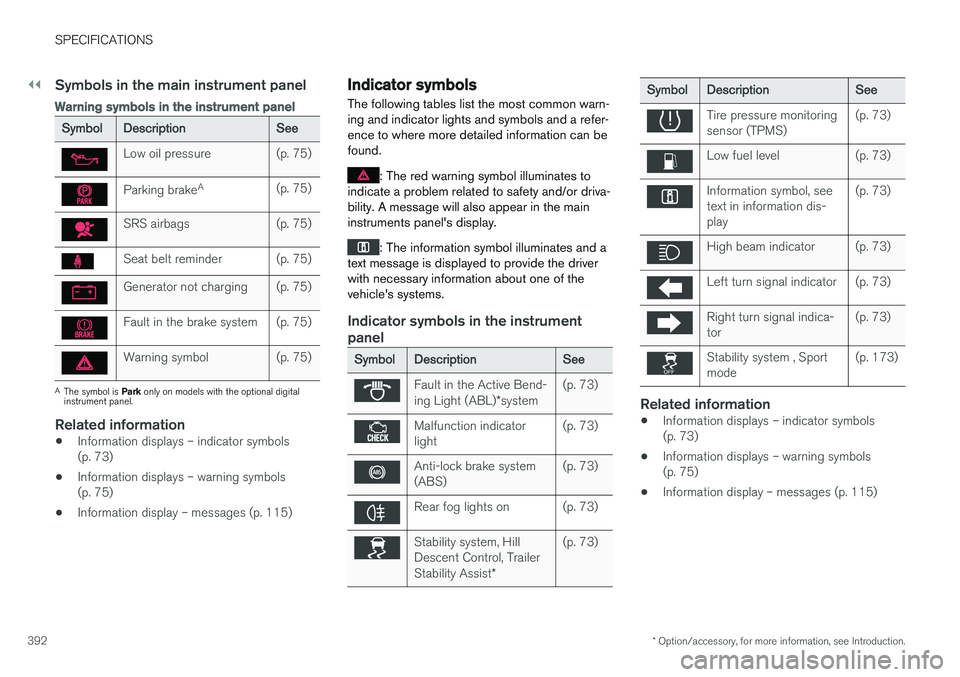

Symbols in the main instrument panel
Warning symbols in the instrument panel
SymbolDescriptionSee
Low oil pressure(p. 75)
Parking brake A(p. 75)
SRS airbags(p. 75)
Seat belt reminder(p. 75)
Generator not charging(p. 75)
Fault in the brake system(p. 75)
Warning symbol(p. 75)
A
The symbol is Park only on models with the optional digital
instrument panel.
Related information
• Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 115)
Indicator symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
Indicator symbols in the instrument panel
SymbolDescriptionSee
Fault in the Active Bend- ing Light (ABL) *system(p. 73)
Malfunction indicator light(p. 73)
Anti-lock brake system (ABS)(p. 73)
Rear fog lights on(p. 73)
Stability system, Hill Descent Control, Trailer Stability Assist *(p. 73)
SymbolDescriptionSee
Tire pressure monitoring sensor (TPMS)(p. 73)
Low fuel level(p. 73)
Information symbol, see text in information dis-play(p. 73)
High beam indicator(p. 73)
Left turn signal indicator(p. 73)
Right turn signal indica- tor(p. 73)
Stability system , Sport mode(p. 173)
Related information
•Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 115)

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.393

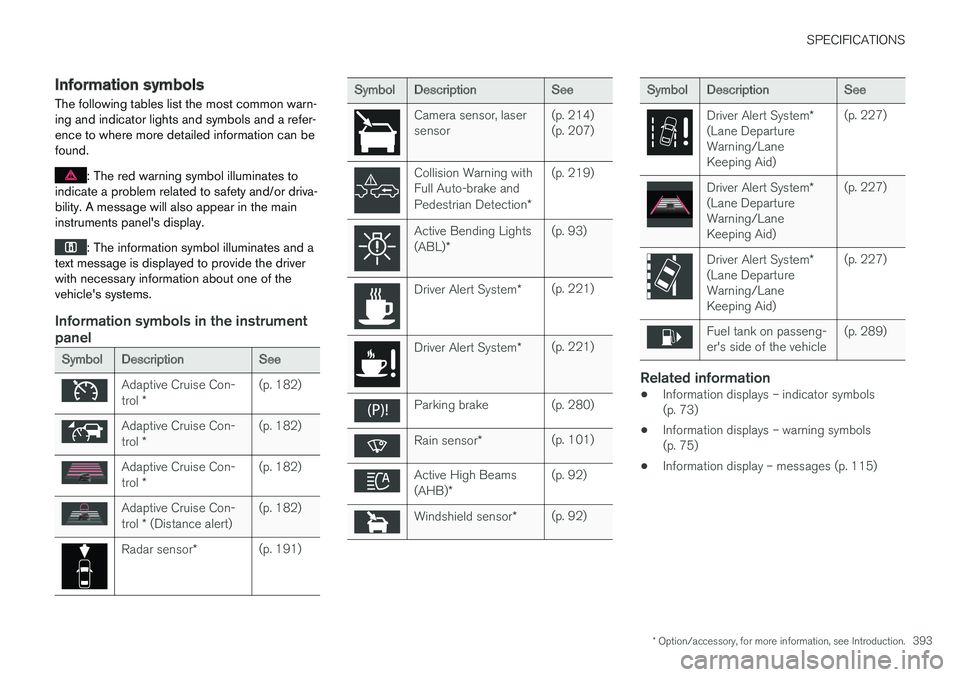

Information symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
Information symbols in the instrument panel
SymbolDescriptionSee
Adaptive Cruise Con- trol *(p. 182)
Adaptive Cruise Con- trol *(p. 182)
Adaptive Cruise Con- trol *(p. 182)
Adaptive Cruise Con- trol * (Distance alert)(p. 182)
Radar sensor *(p. 191)
SymbolDescriptionSee
Camera sensor, laser sensor(p. 214) (p. 207)
Collision Warning with Full Auto-brake and Pedestrian Detection *(p. 219)
Active Bending Lights (ABL)*(p. 93)
Driver Alert System *(p. 221)
Driver Alert System*(p. 221)
Parking brake(p. 280)
Rain sensor*(p. 101)
Active High Beams (AHB)*(p. 92)
Windshield sensor *(p. 92)
SymbolDescriptionSee
Driver Alert System *
(Lane Departure Warning/LaneKeeping Aid)(p. 227)
Driver Alert System *
(Lane Departure Warning/LaneKeeping Aid)(p. 227)
Driver Alert System *
(Lane Departure Warning/LaneKeeping Aid)(p. 227)
Fuel tank on passeng- er's side of the vehicle(p. 289)
Related information
• Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 115)

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.
394

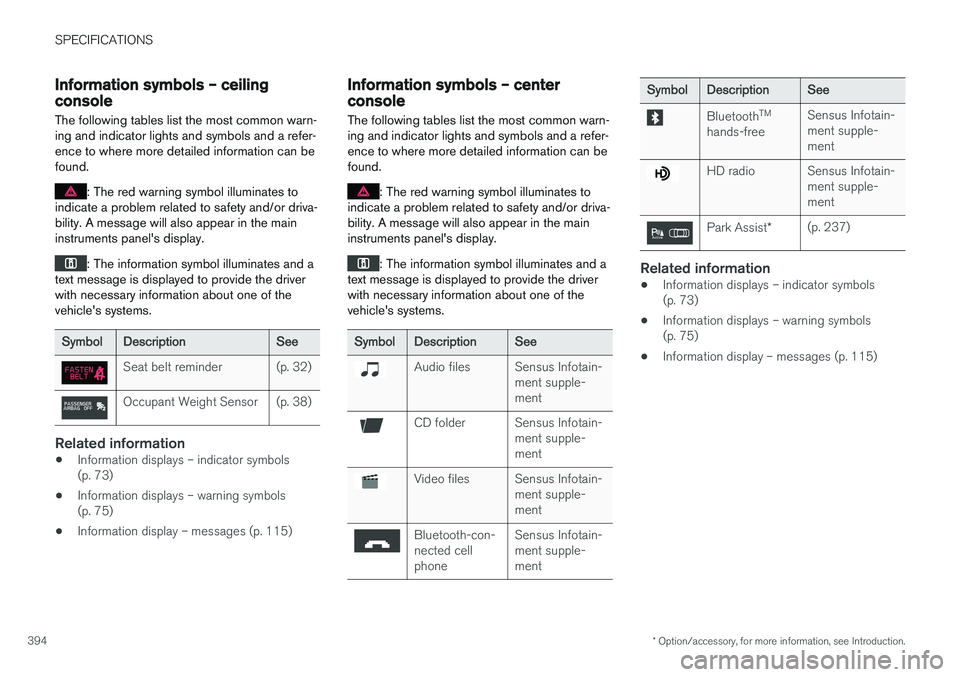

Information symbols – ceiling console
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
SymbolDescriptionSee
Seat belt reminder(p. 32)
Occupant Weight Sensor(p. 38)
Related information
• Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 115)
Information symbols – center console
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
SymbolDescriptionSee
Audio filesSensus Infotain- ment supple-ment
CD folderSensus Infotain- ment supple-ment
Video filesSensus Infotain- ment supple-ment
Bluetooth-con- nected cellphoneSensus Infotain- ment supple-ment
SymbolDescriptionSee
Bluetooth TM
hands-freeSensus Infotain- ment supple-ment
HD radioSensus Infotain- ment supple-ment
Park Assist *(p. 237)
Related information
•Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 115)

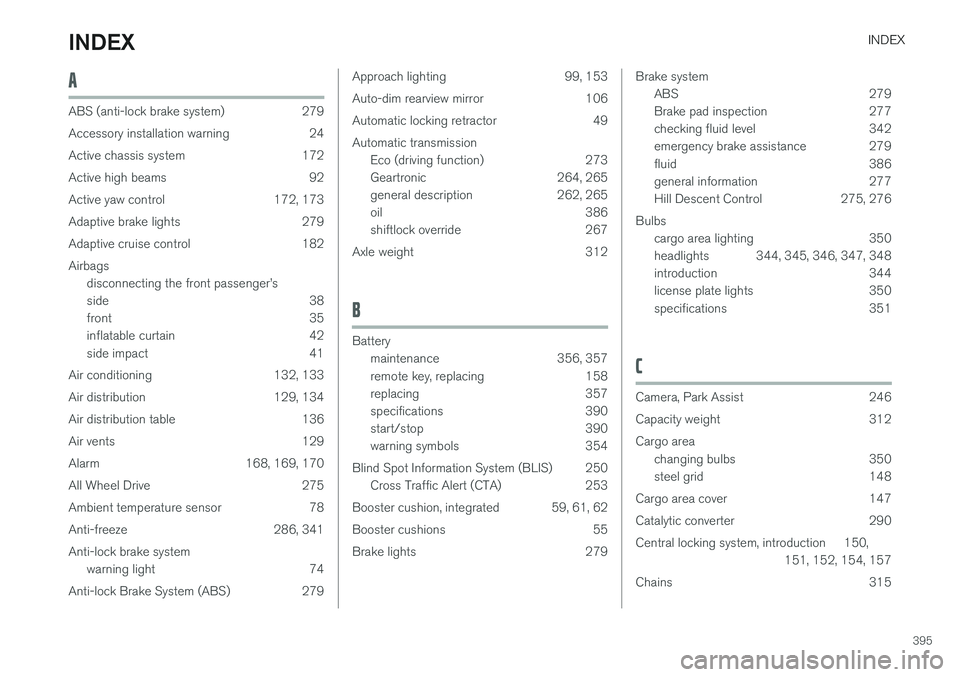

INDEX
395
A
ABS (anti-lock brake system) 279
Accessory installation warning 24
Active chassis system 172
Active high beams 92
Active yaw control 172, 173
Adaptive brake lights 279
Adaptive cruise control 182Airbagsdisconnecting the front passenger

INDEX
396Check Engine warning light 74 Child restraints
recalls and registration 49
Child restraint systems 49 booster cushions 55
convertible seats 53
infant seats 51
ISOFIX/LATCH anchors 56
top tether anchors 58
Child safety 47 booster cushions 55
child restraint systems 49
convertible seats 53
infant seats 51
Child safety locks 63
City safety 201, 202
Climate system 133 air distribution 129, 134, 136
air vents 129
Interior Air Quality System 127
introduction 126
passenger compartment filter 127
refrigerant 126
Clock, setting 79
Cold weather driving 286
Collision warning system 208, 210, 213, 214, 216, 217
Compass in rearview mirror 107
Connected service booking 335
Conserving electrical current 285
Convertible seats 53
Coolant 341, 386
Cooling system, general information 284
Corner traction control 173
Courtesy lighting 98
Crash event data 19
Crash mode 45, 46, 47
Cruise control 179, 181 adaptive 182
Curb weight 312
Current, conserving 285
Cyclist detection 212, 216
D
Daytime running lights 90
Defroster 133
Detachable key blade 155, 156
Disconnecting the front passenger

INDEX
397

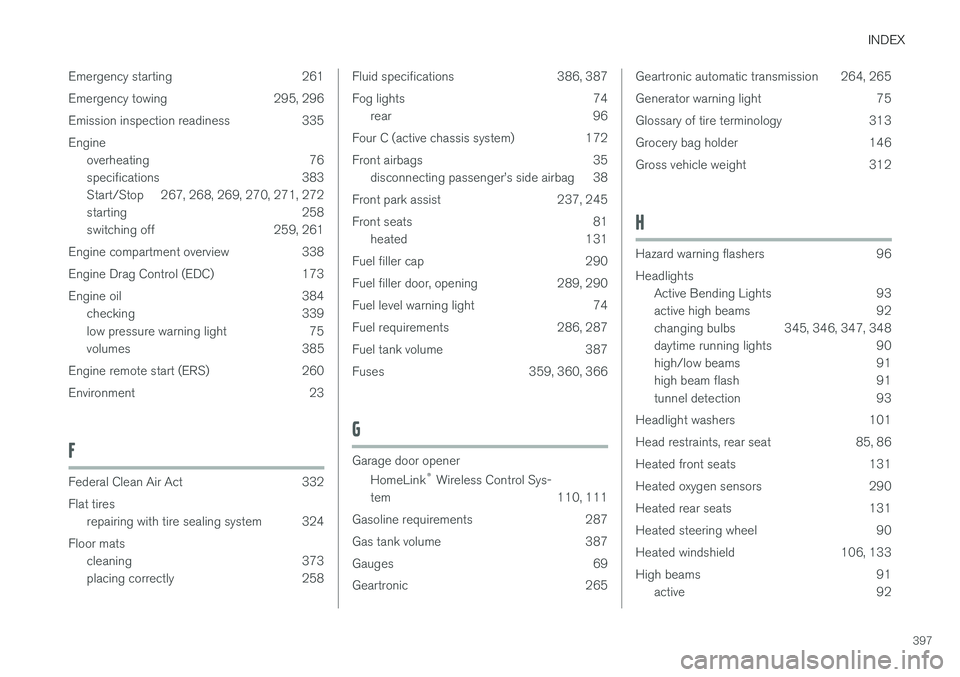

Emergency starting 261
Emergency towing 295, 296
Emission inspection readiness 335Engine
overheating 76
specifications 383
Start/Stop 267, 268, 269, 270, 271, 272
starting 258
switching off 259, 261
Engine compartment overview 338
Engine Drag Control (EDC) 173
Engine oil 384 checking 339
low pressure warning light 75
volumes 385
Engine remote start (ERS) 260
Environment 23
F
Federal Clean Air Act 332 Flat tires repairing with tire sealing system 324
Floor mats cleaning 373
placing correctly 258
Fluid specifications 386, 387
Fog lights 74rear 96
Four C (active chassis system) 172
Front airbags 35 disconnecting passenger

INDEX

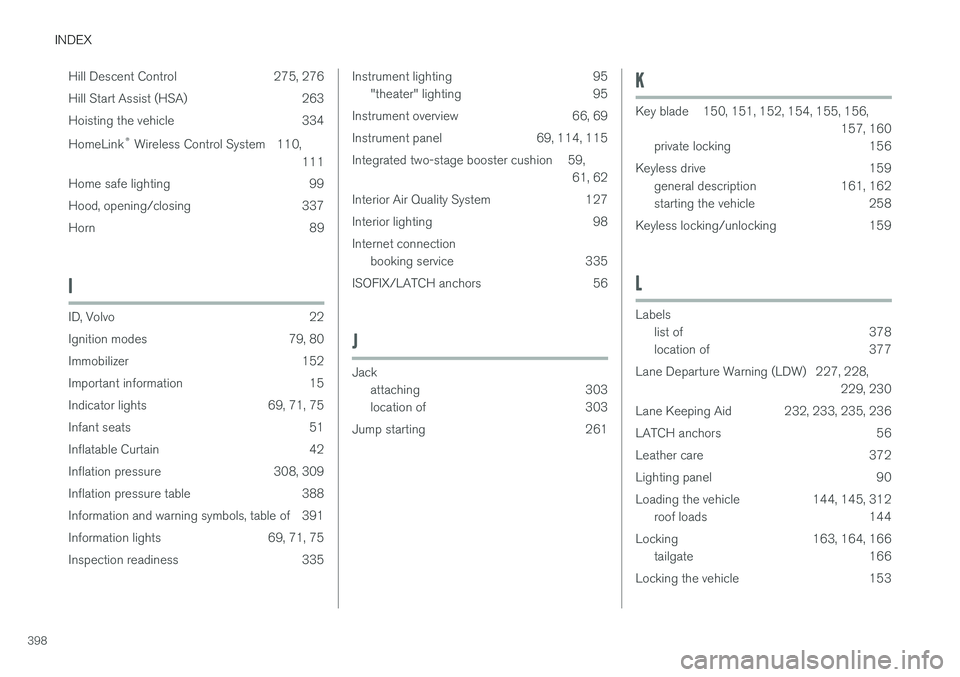

398Hill Descent Control 275, 276
Hill Start Assist (HSA) 263
Hoisting the vehicle 334 HomeLink
®
Wireless Control System 110,
111
Home safe lighting 99
Hood, opening/closing 337Horn 89
I
ID, Volvo 22
Ignition modes 79, 80
Immobilizer 152
Important information 15
Indicator lights 69, 71, 75
Infant seats 51
Inflatable Curtain 42
Inflation pressure 308, 309
Inflation pressure table 388
Information and warning symbols, table of 391
Information lights 69, 71, 75
Inspection readiness 335
Instrument lighting 95
"theater" lighting 95
Instrument overview 66, 69
Instrument panel 69, 114, 115
Integrated two-stage booster cushion 59, 61, 62
Interior Air Quality System 127
Interior lighting 98Internet connection booking service 335
ISOFIX/LATCH anchors 56
J
Jack attaching 303
location of 303
Jump starting 261
K
Key blade 150, 151, 152, 154, 155, 156, 157, 160
private locking 156
Keyless drive 159 general description 161, 162
starting the vehicle 258
Keyless locking/unlocking 159
L
Labels list of 378
location of 377
Lane Departure Warning (LDW) 227, 228, 229, 230
Lane Keeping Aid 232, 233, 235, 236
LATCH anchors 56
Leather care 372
Lighting panel 90
Loading the vehicle 144, 145, 312 roof loads 144
Locking 163, 164, 166 tailgate 166
Locking the vehicle 153
