VOLVO V60 2017 Owner´s Manual

SPECIFICATIONS
}}
379
DimensionsThis section lists your vehicle's most important dimensions.

||
SPECIFICATIONS
380
Dimensions–V60
PositionDimensionin. (mm)
AGround clearance (curb weight + 2 people)A
4.9 (124)
BWheelbase109.3 (2776)
CLength182.5 (4635)
DLoad length, floor, seatback down68.9 (1749)
ELoad length, floor38.5 (978)
FHeight58.4 (1484)
PositionDimensionin. (mm)
GLoad height25.9 (658)
HTrack, front62.5 (1588)
B
/
62.1 (1578) C
ITrack, rear62.4 (1585)B
/
62.0 (1575) C
JLoad width, floor42.6 (1082)
KWidth73.5 (1866)
PositionDimensionin. (mm)
LWidth incl. door mirrors (foldedout)
82.6 (2097)
MWidth incl. door mirrors (folded in)74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B with 16" wheels
C with 17" wheels

SPECIFICATIONS
}}
381

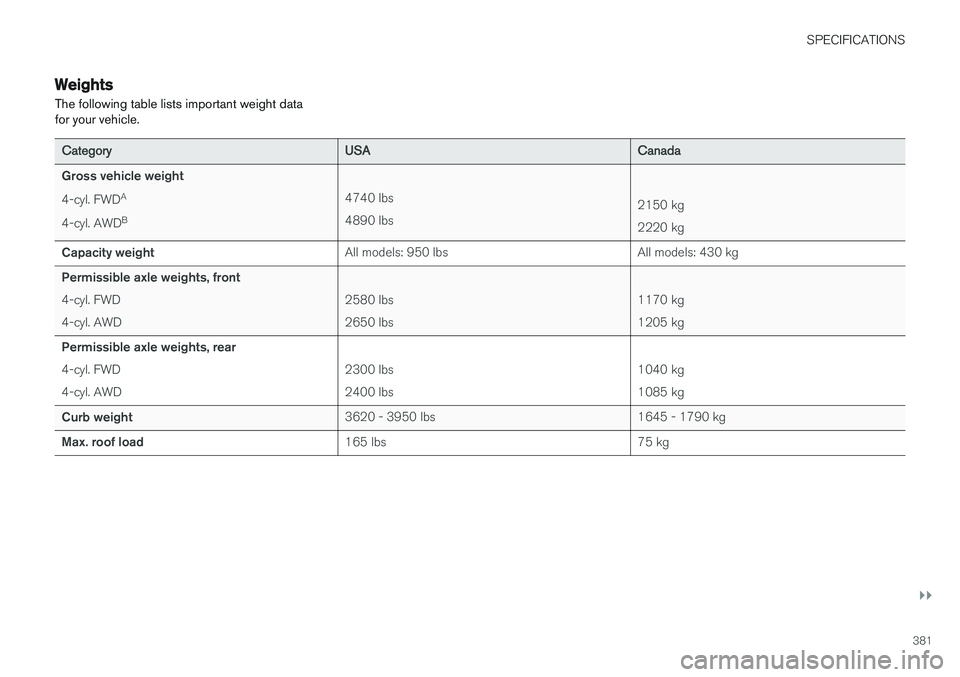

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. FWDA
4-cyl. AWD B
4740 lbs 4890 lbs2150 kg 2220 kg
Capacity weightAll models: 950 lbsAll models: 430 kg
Permissible axle weights, front 4-cyl. FWD 4-cyl. AWD
2580 lbs 2650 lbs1170 kg 1205 kg
Permissible axle weights, rear 4-cyl. FWD 4-cyl. AWD
2300 lbs 2400 lbs1040 kg 1085 kg
Curb weight3620 - 3950 lbs1645 - 1790 kg
Max. roof load165 lbs75 kg

||
SPECIFICATIONS
382
CategoryUSACanada

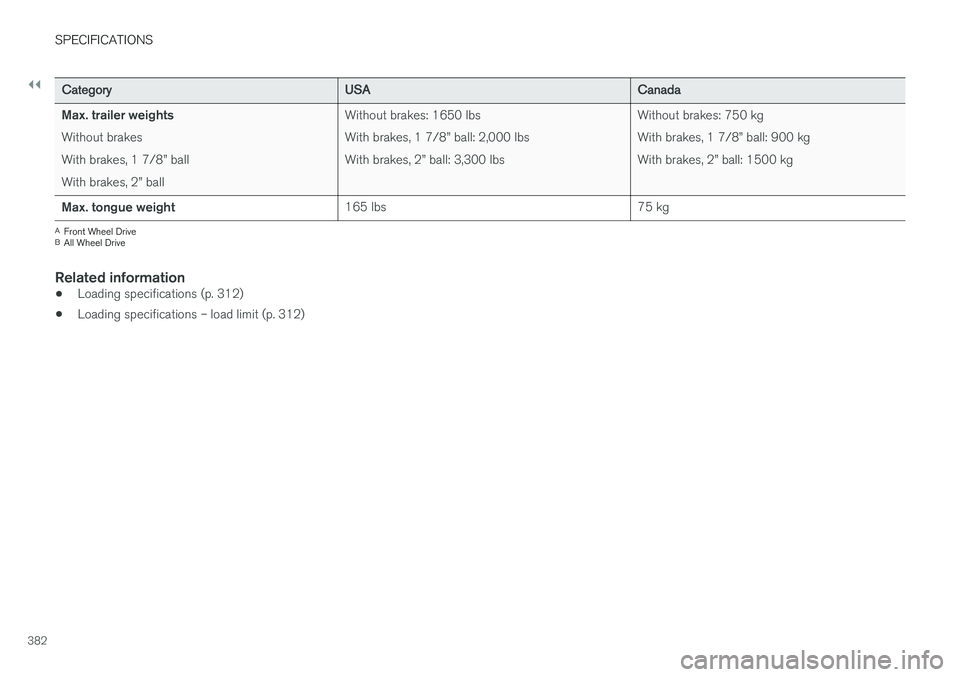

Max. trailer weights Without brakes With brakes, 1 7/8” ballWith brakes, 2” ballWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFront Wheel Drive
B All Wheel Drive
Related information
• Loading specifications (p. 312)
• Loading specifications – load limit (p. 312)

SPECIFICATIONS
383
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
EngineT5 / T5 AWDT6 AWDPolestar
Engine designationB4204T11B4204T9B4204T43
Output (kW/rps)179/93225/95270/95
Output (hp/rpm)240/5600302/5700362/5700
Torque (Nm/rps)350/25-75400/35-75470/35-75
Torque (ft. lbs./rpm)258/1500–4500295/1500-4500347/1500-4500
No. of cylinders444
Bore (in/mm)3.23/823.23/823.23/82
Stroke (in/mm)3.67/93.23.67/93.23.67/93.2
Displacement1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio10.8:110.3:19.1:1
Related information
•
Coolant – specification and volume (p. 386)
• Oil specifications (p. 384)
• Oil volume (p. 385)

SPECIFICATIONS
384
Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cylin-
der engines.
Related information
• Oil volume (p. 385)
• Engine compartment – engine oil (p. 339)

SPECIFICATIONS
385

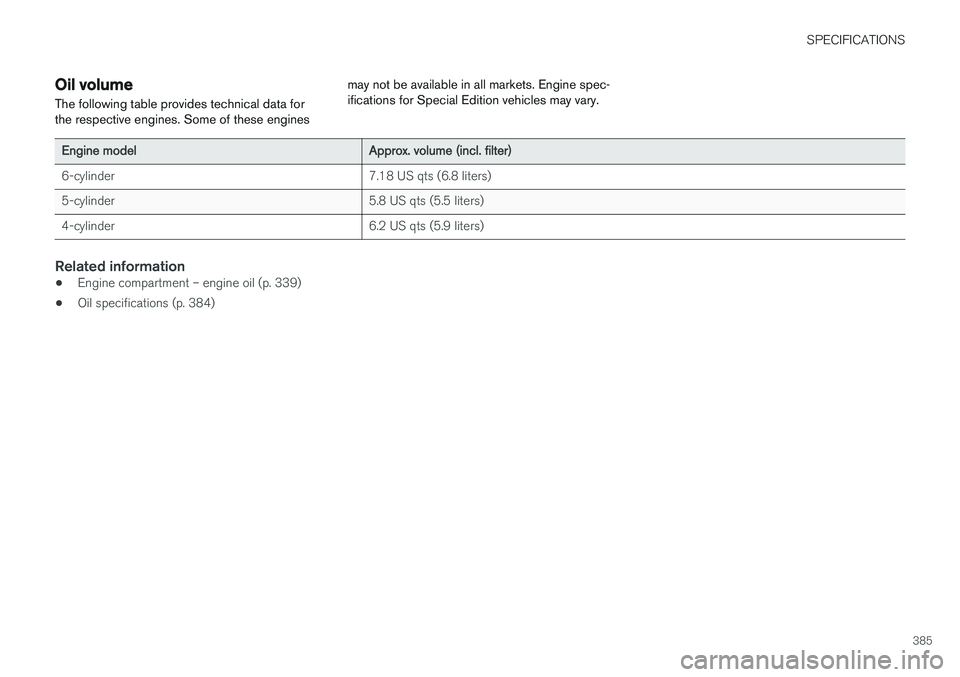

Oil volume
The following table provides technical data for the respective engines. Some of these engines may not be available in all markets. Engine spec-ifications for Special Edition vehicles may vary.
Engine modelApprox. volume (incl. filter)
6-cylinder7.18 US qts (6.8 liters)
5-cylinder5.8 US qts (5.5 liters)
4-cylinder6.2 US qts (5.9 liters)
Related information
•
Engine compartment – engine oil (p. 339)
• Oil specifications (p. 384)

SPECIFICATIONS
386

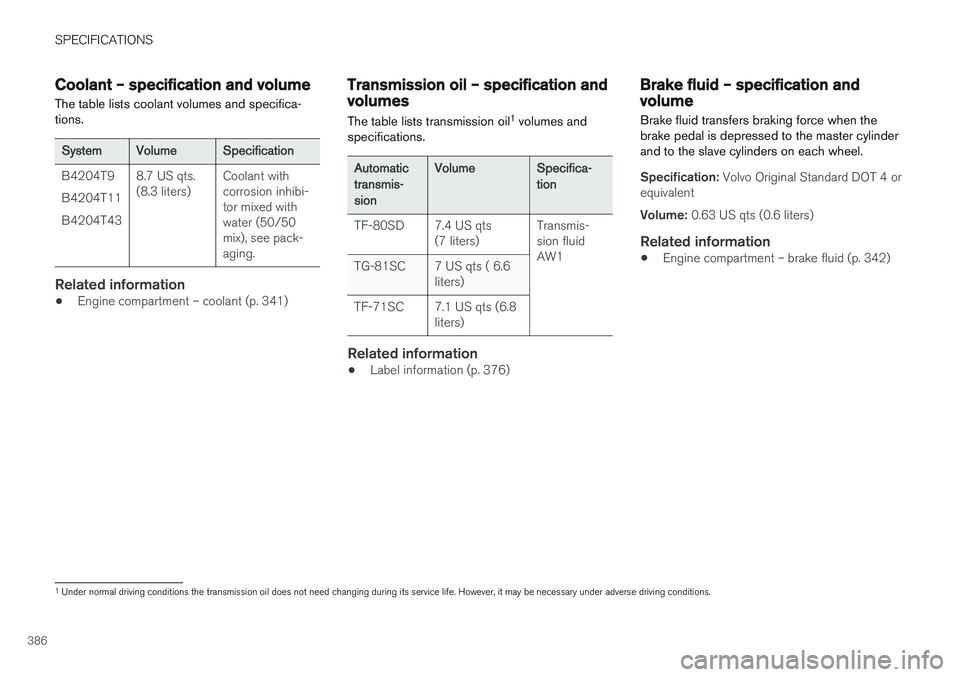

Coolant – specification and volume The table lists coolant volumes and specifica- tions.
SystemVolumeSpecification
B4204T9 B4204T11B4204T438.7 US qts. (8.3 liters)Coolant with corrosion inhibi-tor mixed withwater (50/50mix), see pack-aging.
Related information
•Engine compartment – coolant (p. 341)
Transmission oil – specification and volumes The table lists transmission oil 1
volumes and
specifications.
Automatic transmis-sionVolumeSpecifica- tion
TF-80SD7.4 US qts (7 liters)Transmis- sion fluidAW1
TG-81SC7 US qts ( 6.6 liters)
TF-71SC7.1 US qts (6.8 liters)
Related information
• Label information (p. 376)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel.
Specification: Volvo Original Standard DOT 4 or
equivalent Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 342)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS
387

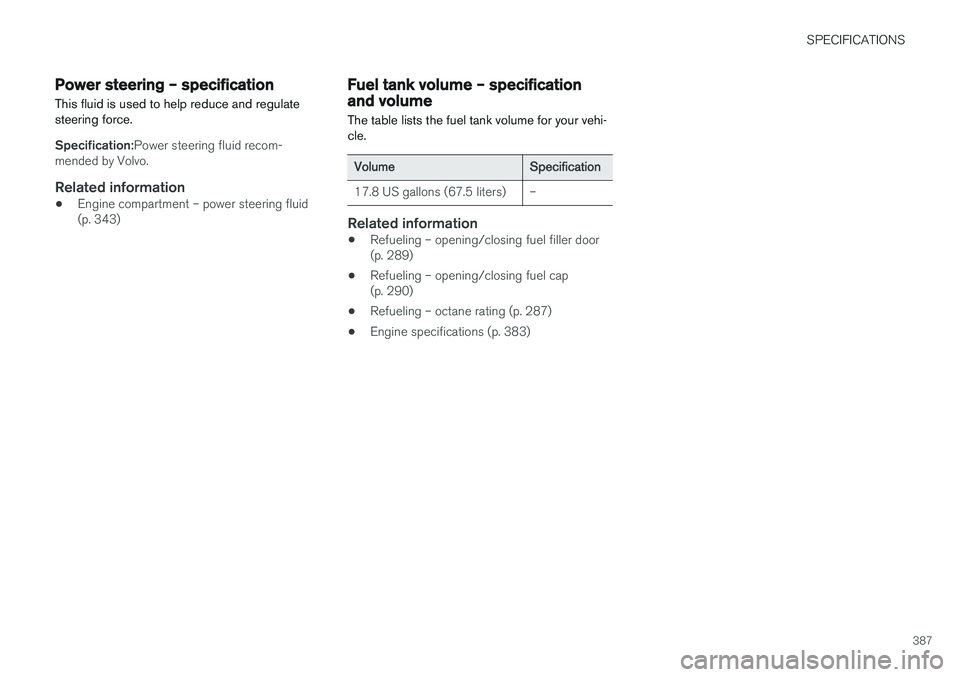

Power steering – specification
This fluid is used to help reduce and regulate steering force.
Specification: Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 343)
Fuel tank volume – specification and volume The table lists the fuel tank volume for your vehi- cle.
VolumeSpecification
17.8 US gallons (67.5 liters)–
Related information
•Refueling – opening/closing fuel filler door (p. 289)
• Refueling – opening/closing fuel cap(p. 290)
• Refueling – octane rating (p. 287)
• Engine specifications (p. 383)

SPECIFICATIONS
388

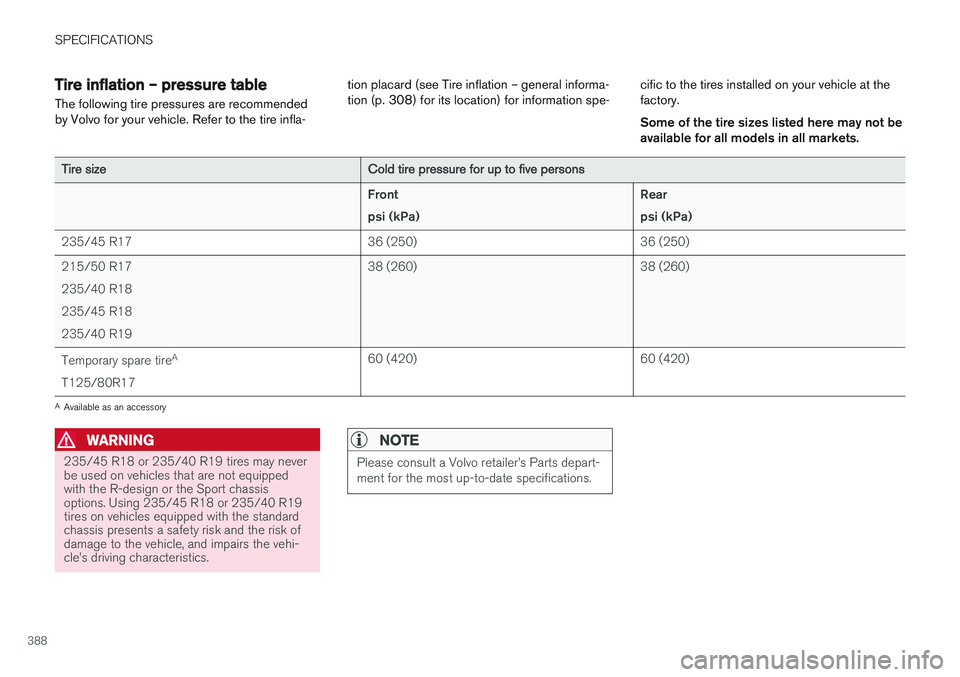

Tire inflation – pressure table
The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard (see Tire inflation – general informa-tion (p. 308) for its location) for information spe-
cific to the tires installed on your vehicle at thefactory. Some of the tire sizes listed here may not be available for all models in all markets.
Tire sizeCold tire pressure for up to five persons
Front psi (kPa)Rear psi (kPa)
235/45 R1736 (250)36 (250)
215/50 R17 235/40 R18235/45 R18235/40 R1938 (260)38 (260)
Temporary spare tire
A
T125/80R1760 (420)60 (420)
A Available as an accessory
WARNING
235/45 R18 or 235/40 R19 tires may never be used on vehicles that are not equippedwith the R-design or the Sport chassisoptions. Using 235/45 R18 or 235/40 R19tires on vehicles equipped with the standardchassis presents a safety risk and the risk ofdamage to the vehicle, and impairs the vehi-cle
