SPECIFICATIONS
}}
629

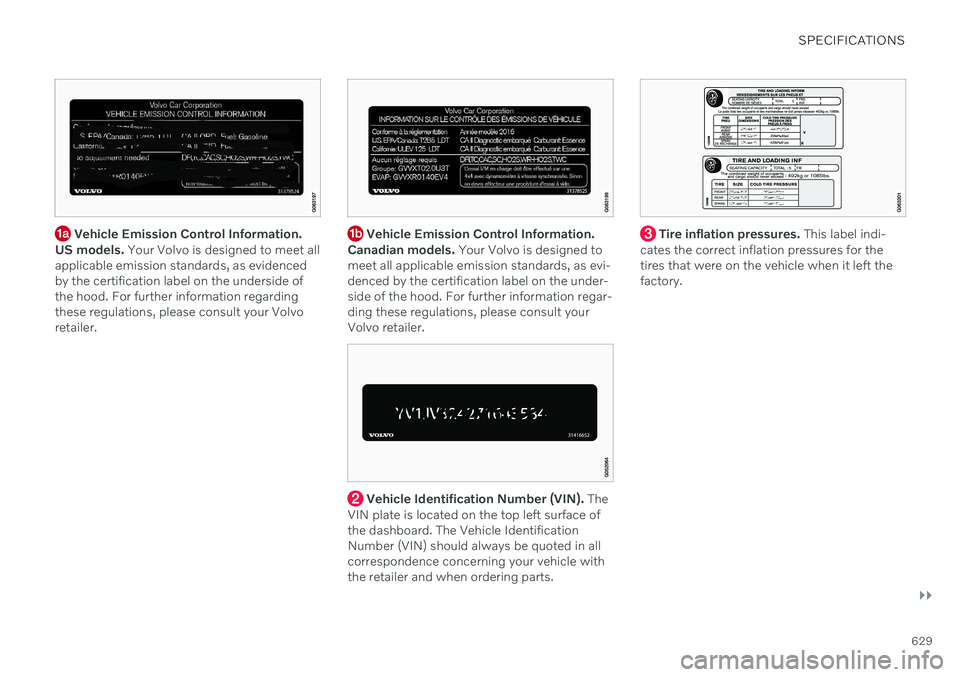

Vehicle Emission Control Information.
US models. Your Volvo is designed to meet all
applicable emission standards, as evidenced by the certification label on the underside ofthe hood. For further information regardingthese regulations, please consult your Volvoretailer. Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi- denced by the certification label on the under-side of the hood. For further information regar-ding these regulations, please consult yourVolvo retailer.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when it left thefactory.

||
SPECIFICATIONS
630

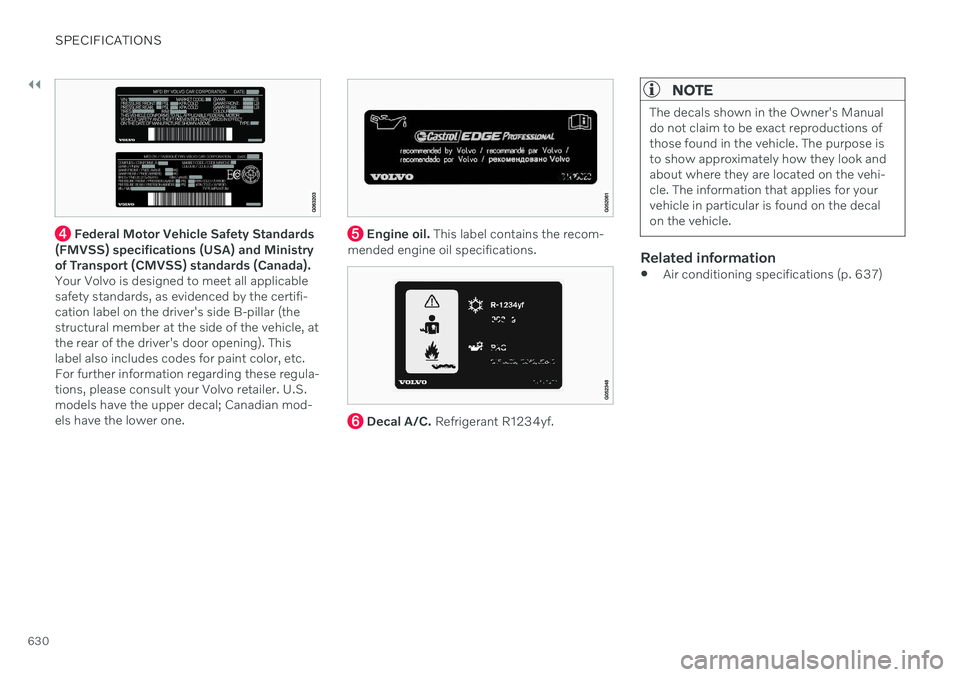

Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada).Your Volvo is designed to meet all applicablesafety standards, as evidenced by the certifi-cation label on the driver's side B-pillar (thestructural member at the side of the vehicle, atthe rear of the driver's door opening). Thislabel also includes codes for paint color, etc.For further information regarding these regula-tions, please consult your Volvo retailer. U.S.models have the upper decal; Canadian mod-els have the lower one. Engine oil. This label contains the recom-
mended engine oil specifications.
Decal A/C. Refrigerant R1234yf.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions ofthose found in the vehicle. The purpose isto show approximately how they look andabout where they are located on the vehi-cle. The information that applies for yourvehicle in particular is found on the decalon the vehicle.
Related information
Air conditioning specifications (p. 637)

SPECIFICATIONS
}}
631

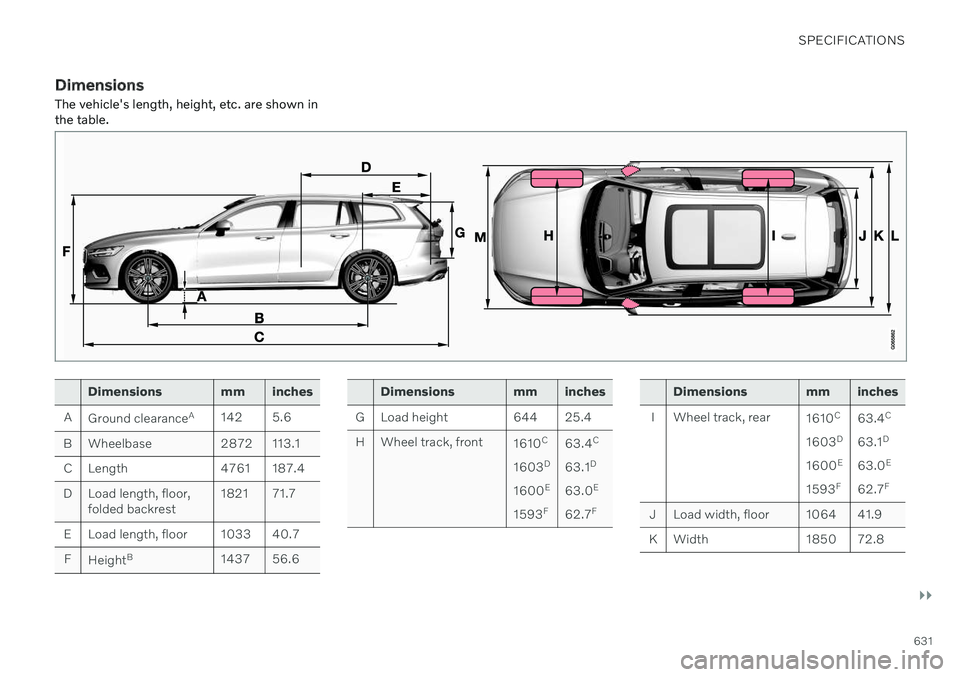

DimensionsThe vehicle's length, height, etc. are shown in the table.
Dimensions mm inches
A Ground clearance A
142 5.6
B Wheelbase 2872 113.1 C Length 4761 187.4
D Load length, floor, folded backrest 1821 71.7
E Load length, floor 1033 40.7 F Height B
1437 56.6Dimensions mm inches
G Load height 644 25.4 H Wheel track, front 1610C
1603 D
1600 E
1593 F63.4
C
63.1 D
63.0 E
62.7 FDimensions mm inches
I Wheel track, rear 1610C
1603 D
1600 E
1593 F63.4
C
63.1 D
63.0 E
62.7 F
J Load width, floor 1064 41.9
K Width 1850 72.8

||
SPECIFICATIONS
632

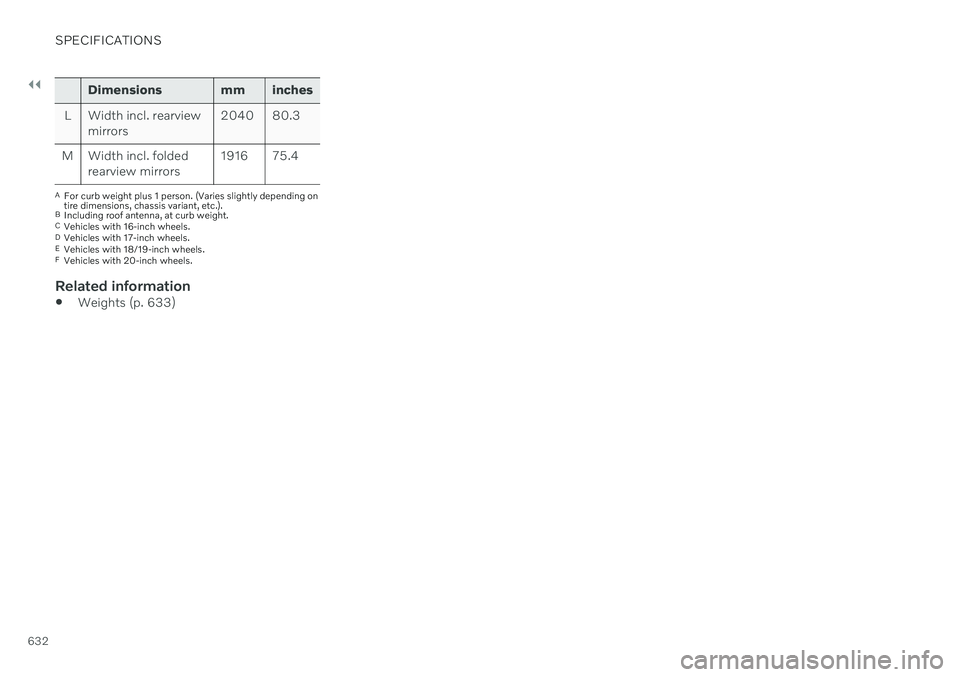

Dimensions mm inches
L Width incl. rearview mirrors 2040 80.3
M Width incl. folded rearview mirrors 1916 75.4
A
For curb weight plus 1 person. (Varies slightly depending on tire dimensions, chassis variant, etc.).
B Including roof antenna, at curb weight.
C Vehicles with 16-inch wheels.
D Vehicles with 17-inch wheels.
E Vehicles with 18/19-inch wheels.
F Vehicles with 20-inch wheels.
Related information
Weights (p. 633)

SPECIFICATIONS
633

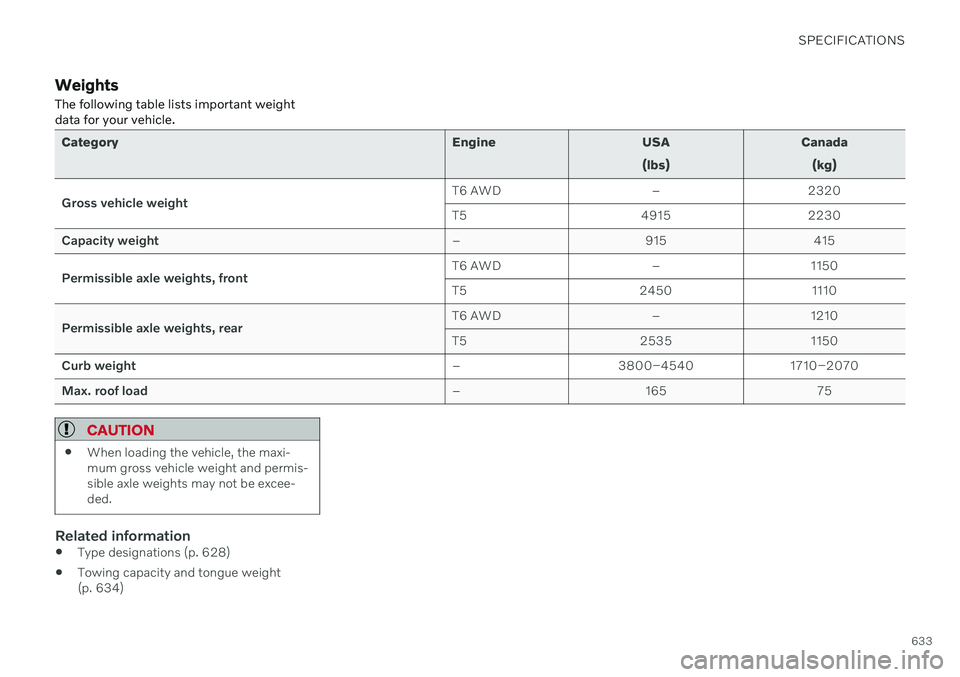

WeightsThe following table lists important weight data for your vehicle.
Category Engine USA
(lbs)Canada
(kg)
Gross vehicle weight T6 AWD – 2320
T5 4915 2230
Capacity weight – 915 415
Permissible axle weights, front T6 AWD – 1150
T5 2450 1110
Permissible axle weights, rear T6 AWD – 1210
T5 2535 1150
Curb weight – 3800–4540 1710–2070
Max. roof load – 165 75
CAUTION
When loading the vehicle, the maxi- mum gross vehicle weight and permis-sible axle weights may not be excee-ded.
Related information

Type designations (p. 628)
Towing capacity and tongue weight (p. 634)

SPECIFICATIONS
* Option/accessory.
634

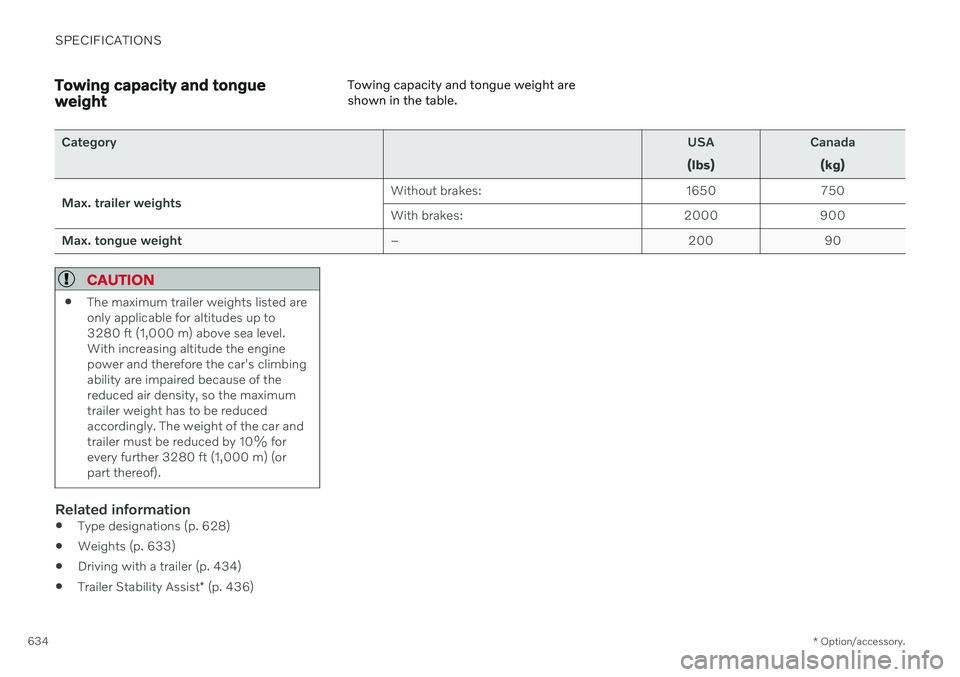

Towing capacity and tongue weight Towing capacity and tongue weight are shown in the table.
Category
USA
(lbs) Canada
(kg)
Max. trailer weights Without brakes: 1650 750 With brakes:
2000 900
Max. tongue weight –200 90
CAUTION
The maximum trailer weights listed are only applicable for altitudes up to3280 ft (1,000 m) above sea level.With increasing altitude the enginepower and therefore the car's climbingability are impaired because of thereduced air density, so the maximumtrailer weight has to be reducedaccordingly. The weight of the car andtrailer must be reduced by 10% forevery further 3280 ft (1,000 m) (orpart thereof).
Related information

Type designations (p. 628)
Weights (p. 633)
Driving with a trailer (p. 434)
Trailer Stability Assist
* (p. 436)

SPECIFICATIONS
635

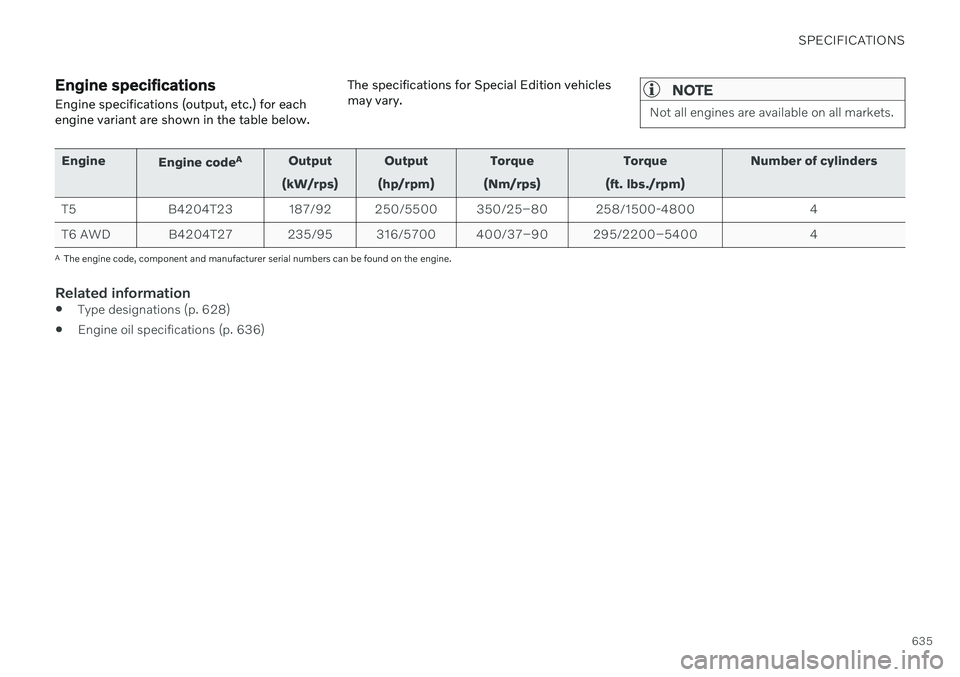

Engine specifications Engine specifications (output, etc.) for each engine variant are shown in the table below.The specifications for Special Edition vehiclesmay vary.NOTE
Not all engines are available on all markets.
Engine
Engine codeA
Output
(kW/rps) Output
(hp/rpm) Torque
(Nm/rps) Torque
(ft. lbs./rpm) Number of cylinders
T5 B4204T23 187/92 250/5500 350/25–80 258/1500-4800 4
T6 AWD B4204T27 235/95 316/5700 400/37–90 295/2200–5400 4
A The engine code, component and manufacturer serial numbers can be found on the engine.
Related information
Type designations (p. 628)
Engine oil specifications (p. 636)

SPECIFICATIONS
636

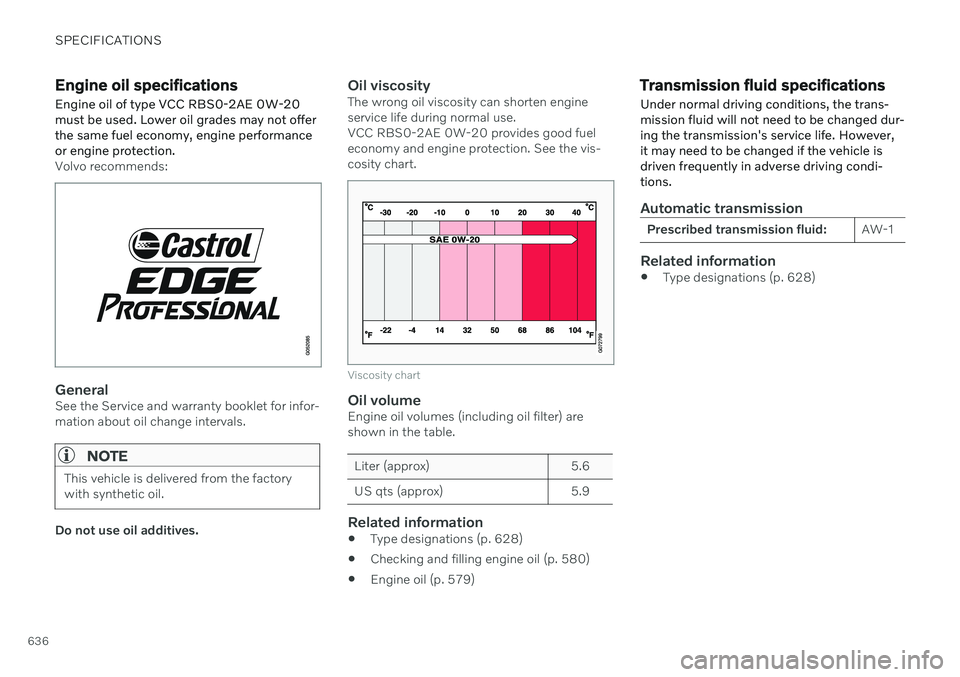

Engine oil specifications Engine oil of type VCC RBS0-2AE 0W-20 must be used. Lower oil grades may not offerthe same fuel economy, engine performanceor engine protection.
Volvo recommends:
GeneralSee the Service and warranty booklet for infor- mation about oil change intervals.
NOTE
This vehicle is delivered from the factory with synthetic oil.
Do not use oil additives.
Oil viscosityThe wrong oil viscosity can shorten engine service life during normal use.VCC RBS0-2AE 0W-20 provides good fueleconomy and engine protection. See the vis-cosity chart.
Viscosity chart
Oil volumeEngine oil volumes (including oil filter) are shown in the table.
Liter (approx) 5.6
US qts (approx) 5.9
Related information
Type designations (p. 628)
Checking and filling engine oil (p. 580)
Engine oil (p. 579)
Transmission fluid specifications
Under normal driving conditions, the trans- mission fluid will not need to be changed dur-ing the transmission's service life. However,it may need to be changed if the vehicle isdriven frequently in adverse driving condi-tions.
Automatic transmission
Prescribed transmission fluid: AW-1
Related information
Type designations (p. 628)

SPECIFICATIONS
}}
637
Brake fluid specifications
The medium in the hydraulic brake system is called brake fluid and is used to transfer pres-sure from e.g. a brake pedal via a masterbrake cylinder, which in turn actuates thebrake calipers.
Recommended grade: Volvo Original or simi-
lar fluid that meets a combination of Dot 4, 5.1 and ISO 4925 class 6.
NOTE
Changing or filling brake fluid should be entrusted to an authorized Volvo work-shop.
Related information
Engine compartment overview (p. 578)
Fuel tank volume
The fuel tank's refillable volume is shown in the table below.
All models
Liter (approx) 60
US gallons (approx) 15.9
Related information
Refueling (p. 426)
Octane rating (p. 428)
Air conditioning specifications
The climate system in the vehicle uses a freon-free R1234yf refrigerant. For informa-tion regarding the refrigerant, refer to thedecal located on the inside of the hood.
The prescribed grades and volumes for fluids and lubricants in the air conditioning systemare shown below.
A/C Decal
Decal for R1234yf

||
SPECIFICATIONS
638
Explanation of symbols for R1234yf
Symbol Explanation
Caution
Mobile air condition system (MAC)
Lubricant
Only a trained and certified tech- nician can perform service on themobile air conditioning system(MAC)
Flammable refrigerant
RefrigerantThe refrigerant amount (charge level) is prin- ted on a decal on the inside of the hood.
Vehicles with R1234yf refrigerant
Refrigerant amount.
WARNING
The air conditioning system contains the refrigerant R1234yf under pressure. Inaccordance with SAE J2845 (TechnicianTraining for Safe Service and Containmentof Refrigerants Used in Mobile A/C Sys-tem), service and repairs to the refrigerantsystem may only be performed by trainedand certified technicians in order to ensurethe safety of the system.
Compressor oil
Volume Prescribed grade
130 ml (4.40 fl. oz.) PAG SP-A2
Evaporator
CAUTION
The A/C system evaporator must never be repaired or replaced with a previously usedevaporator. The new evaporator must becertified and labeled in accordance withSAE J2842.
Related information
Climate control system service (p. 576)
