VOLVO V60 CROSS COUNTRY 2016 Owner´s Manual

10 Maintenance and servicing
10
369

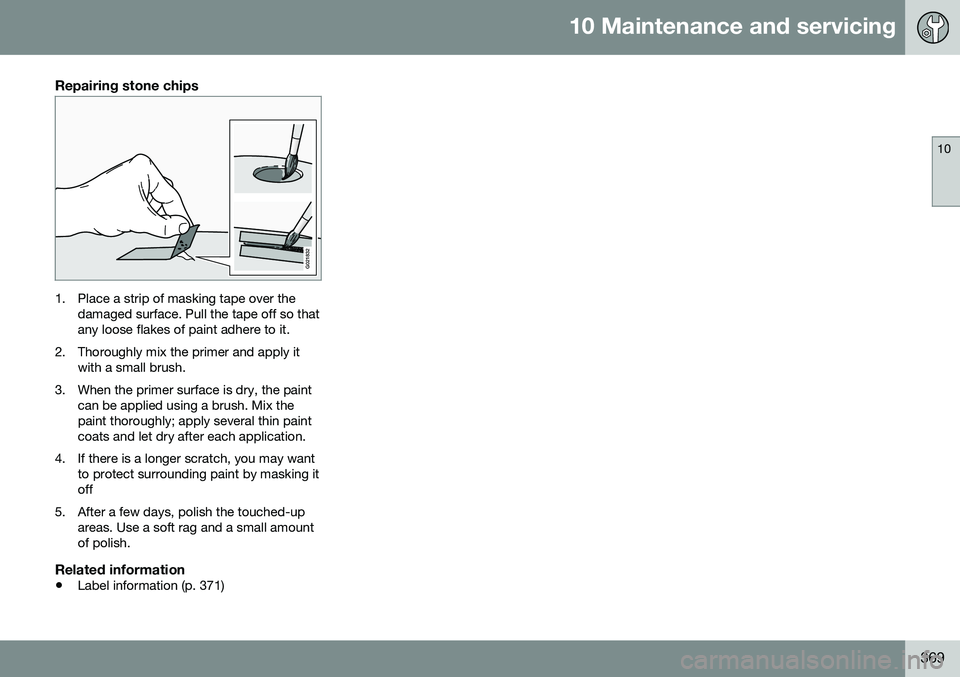

Repairing stone chips
G021832
1. Place a strip of masking tape over thedamaged surface. Pull the tape off so that any loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with a small brush.
3. When the primer surface is dry, the paint can be applied using a brush. Mix thepaint thoroughly; apply several thin paintcoats and let dry after each application.
4. If there is a longer scratch, you may want to protect surrounding paint by masking itoff
5. After a few days, polish the touched-up areas. Use a soft rag and a small amountof polish.
Related information
• Label information (p. 371)

S P E C I F I C A T I O N S

11 Specifications
11
}}
371

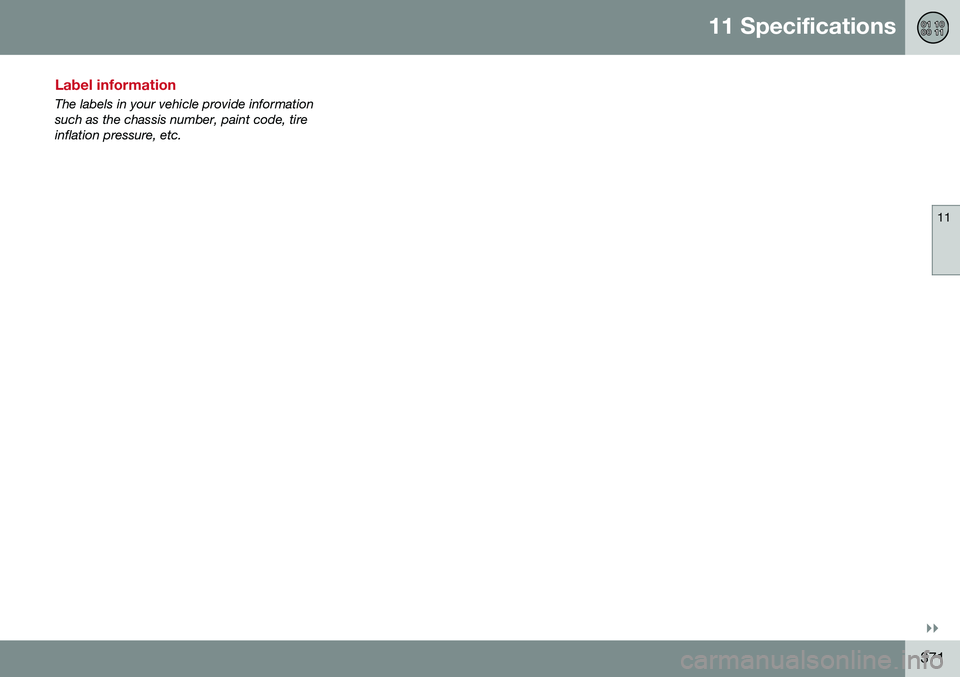

Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.

||
11 Specifications
11
372

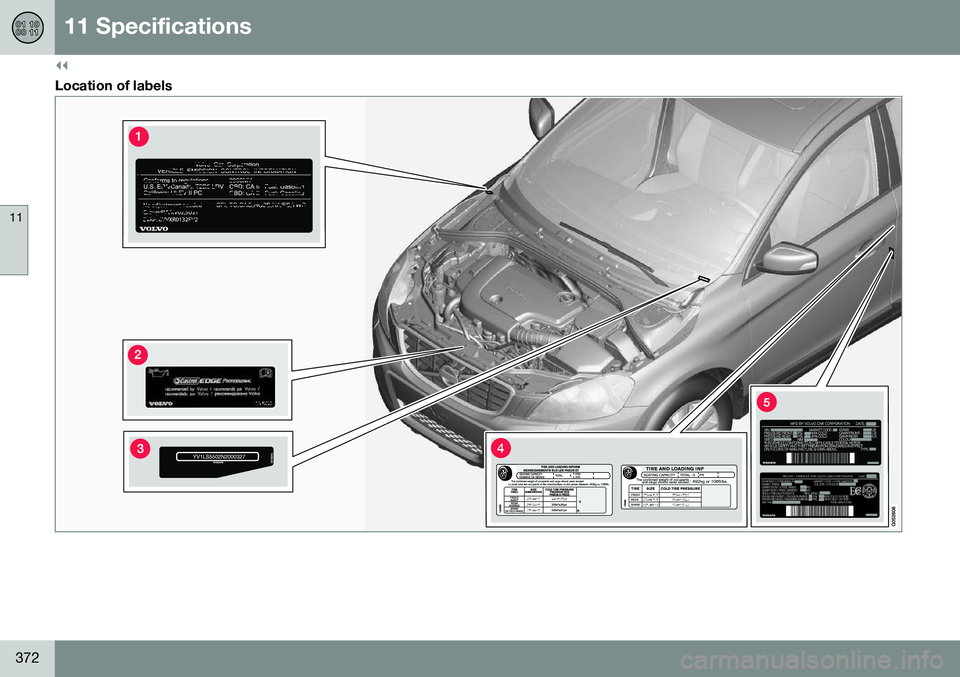

Location of labels

11 Specifications
11
373

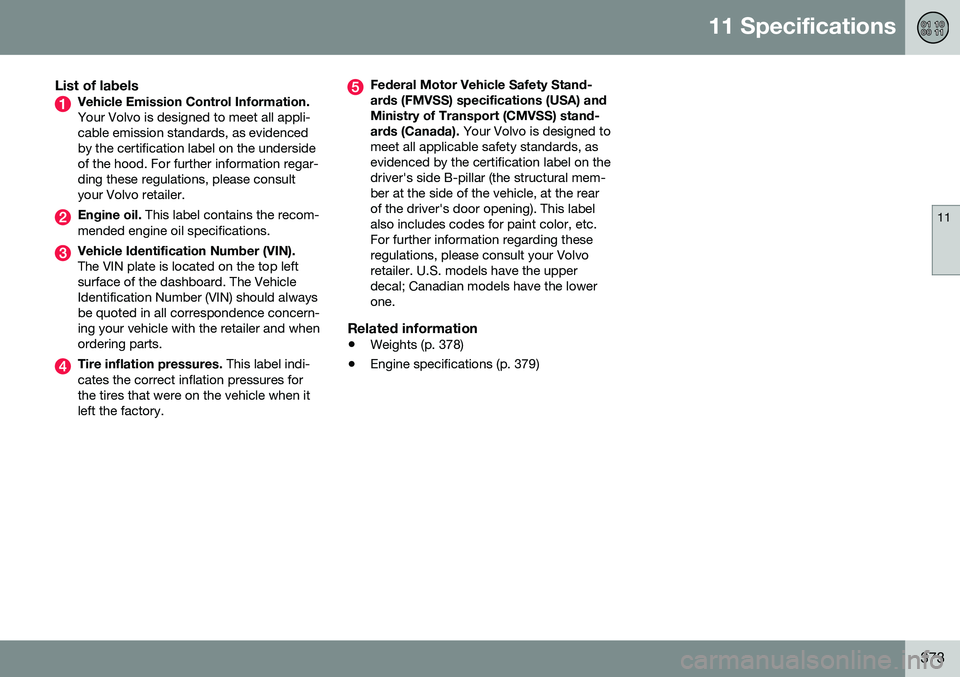

List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.
Related information
• Weights (p. 378)
• Engine specifications (p. 379)

11 Specifications
11
374

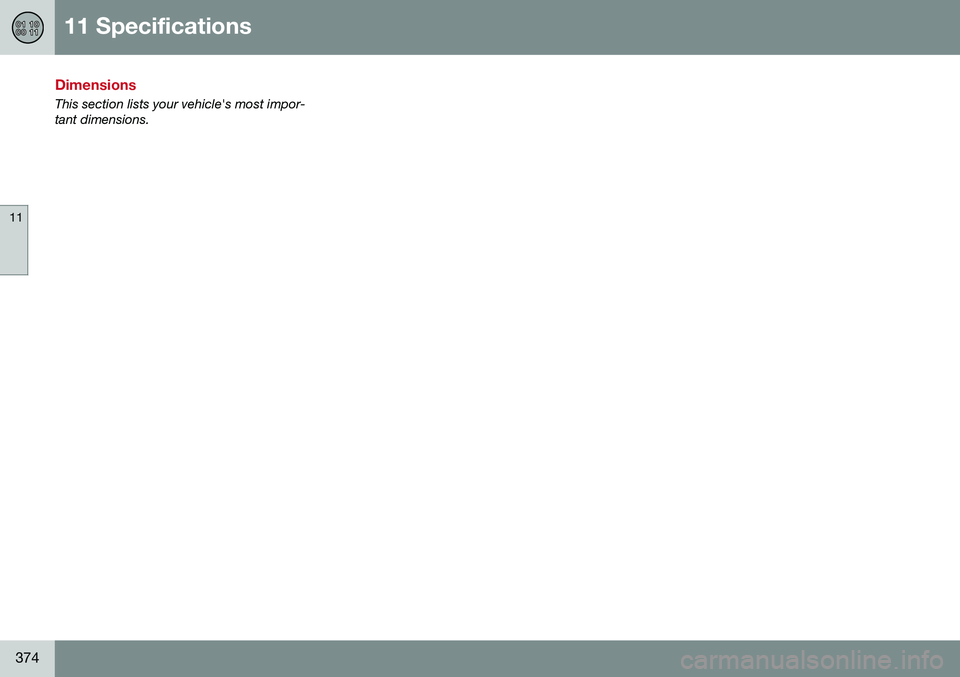

Dimensions
This section lists your vehicle's most impor- tant dimensions.

11 Specifications
11
}}
375

||
11 Specifications
11
376

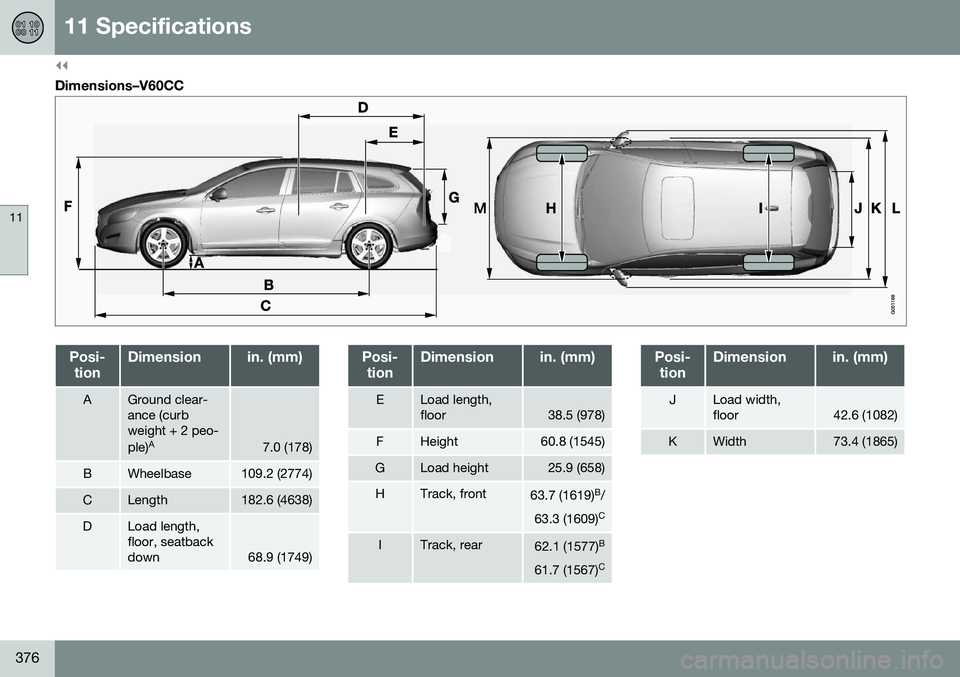

Dimensions–V60CC
Posi-tionDimensionin. (mm)
AGround clear- ance (curbweight + 2 peo- ple) A
7.0 (178)
BWheelbase109.2 (2774)
CLength182.6 (4638)
DLoad length, floor, seatbackdown
68.9 (1749)
Posi-
tionDimensionin. (mm)
ELoad length, floor38.5 (978)
FHeight60.8 (1545)
GLoad height25.9 (658)
HTrack, front63.7 (1619) B
/
63.3 (1609) C
ITrack, rear62.1 (1577)
B
61.7 (1567) C
Posi-
tionDimensionin. (mm)
JLoad width, floor42.6 (1082)
KWidth73.4 (1865)

11 Specifications
11
377

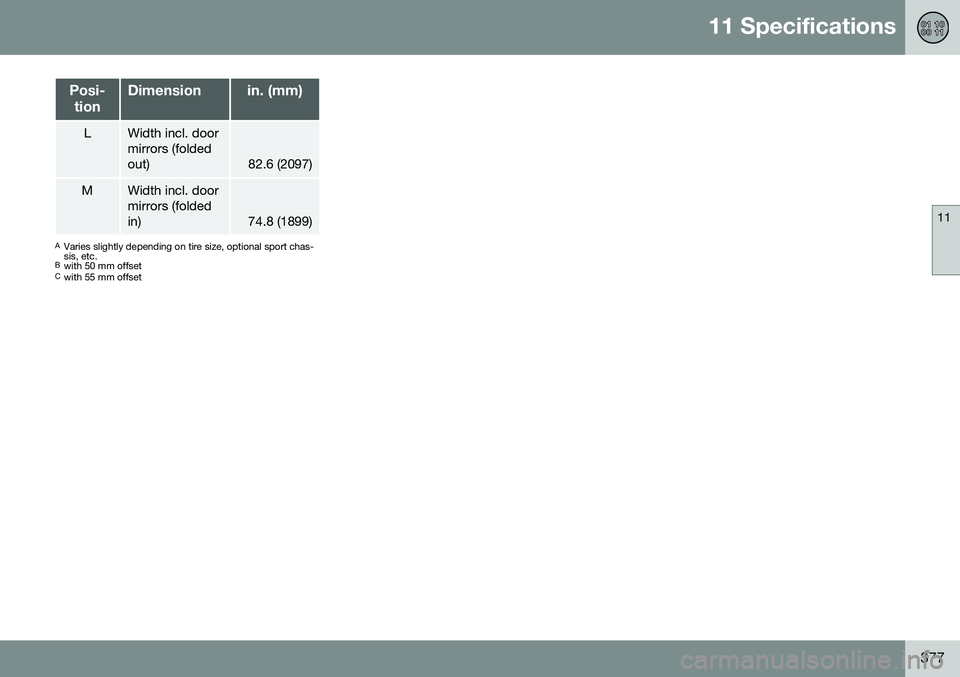

Posi-tionDimensionin. (mm)
LWidth incl. door mirrors (foldedout)
82.6 (2097)
MWidth incl. door mirrors (foldedin)
74.8 (1899)
A Varies slightly depending on tire size, optional sport chas- sis, etc.
B with 50 mm offset
C with 55 mm offset

11 Specifications
11
378

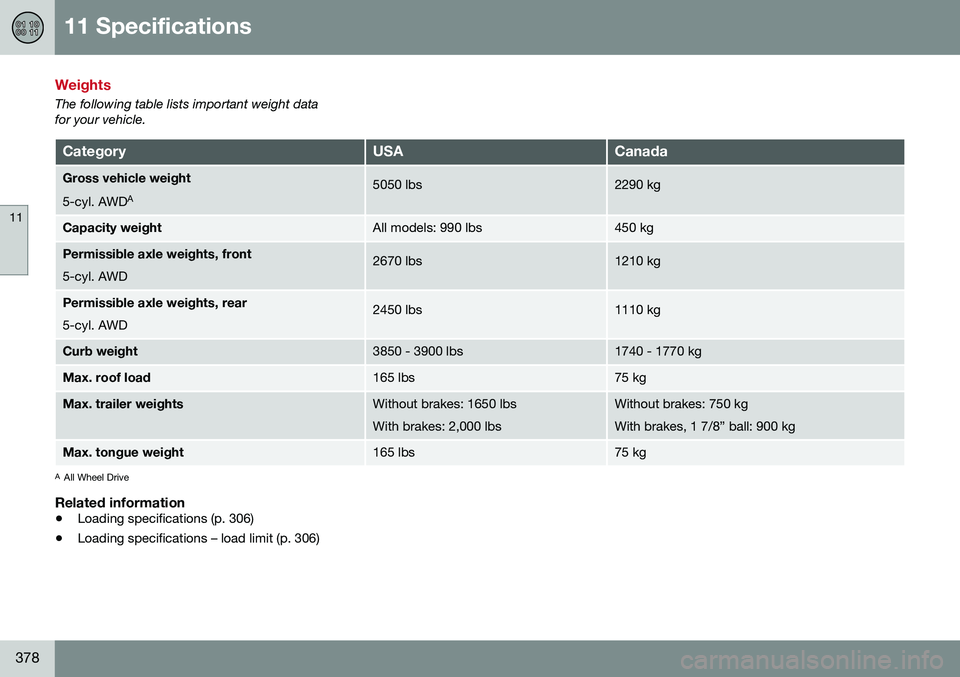

Weights
The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 5-cyl. AWDA5050 lbs2290 kg
Capacity weightAll models: 990 lbs450 kg
Permissible axle weights, front 5-cyl. AWD2670 lbs1210 kg
Permissible axle weights, rear 5-cyl. AWD2450 lbs1110 kg
Curb weight3850 - 3900 lbs1740 - 1770 kg
Max. roof load165 lbs75 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes: 2,000 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kg
Max. tongue weight165 lbs75 kg
A
All Wheel Drive
Related information
• Loading specifications (p. 306)
• Loading specifications – load limit (p. 306)
