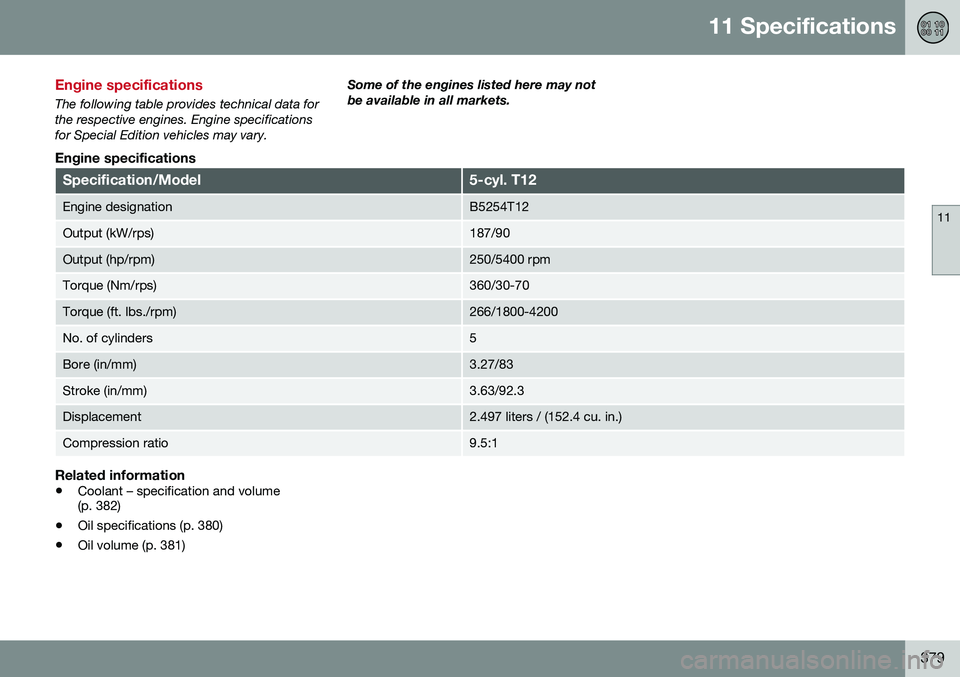

Engine specifications
The following table provides technical data for the respective engines. Engine specificationsfor Special Edition vehicles may vary.Some of the engines listed here may notbe available in all markets.
Engine specifications
Specification/Model5-cyl. T12
Engine designationB5254T12
Output (kW/rps)187/90
Output (hp/rpm)250/5400 rpm
Torque (Nm/rps)360/30-70
Torque (ft. lbs./rpm)266/1800-4200
No. of cylinders5
Bore (in/mm)3.27/83
Stroke (in/mm)3.63/92.3
Displacement2.497 liters / (152.4 cu. in.)
Compression ratio9.5:1
Related information
•
Coolant – specification and volume (p. 382)
• Oil specifications (p. 380)
• Oil volume (p. 381)

11 Specifications
11
380

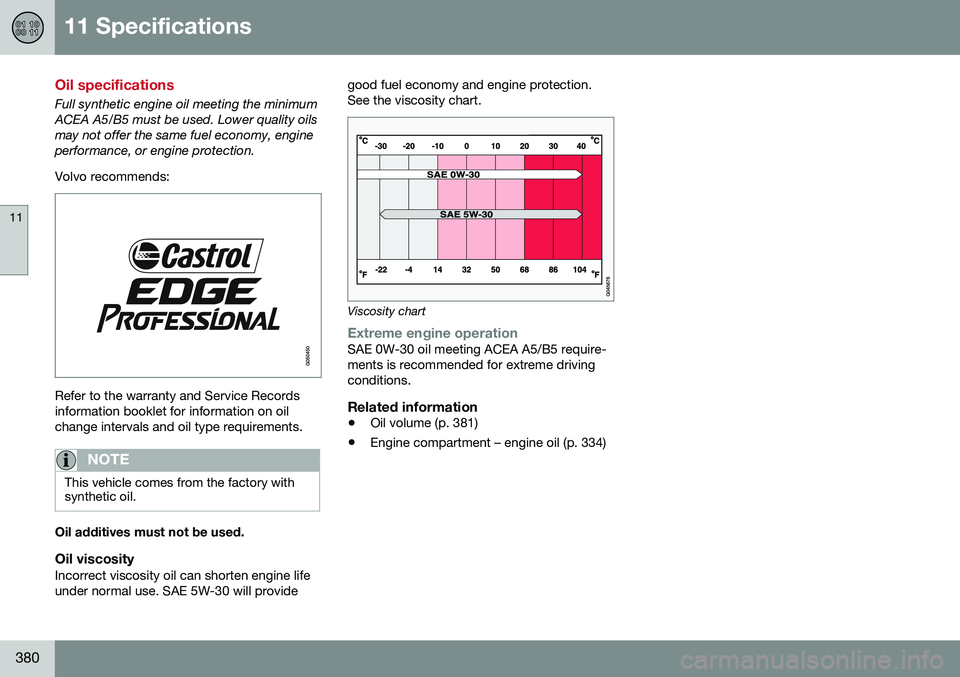

Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
Related information
•
Oil volume (p. 381)
• Engine compartment – engine oil (p. 334)

11 Specifications
11
381

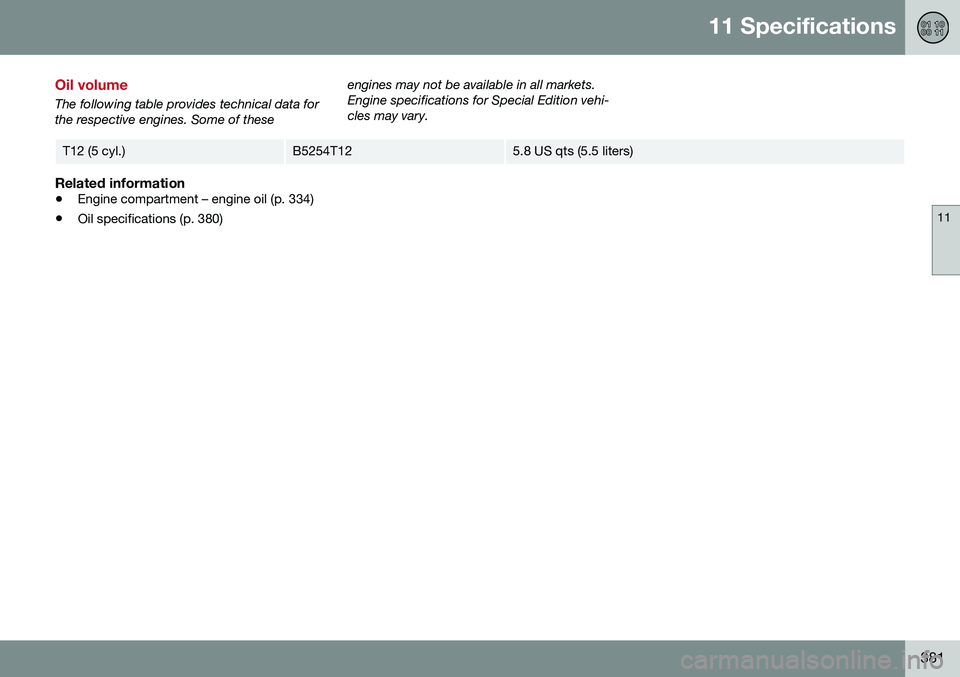

Oil volume
The following table provides technical data for the respective engines. Some of theseengines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
T12 (5 cyl.)B5254T125.8 US qts (5.5 liters)
Related information
•
Engine compartment – engine oil (p. 334)
• Oil specifications (p. 380)

11 Specifications
11
382

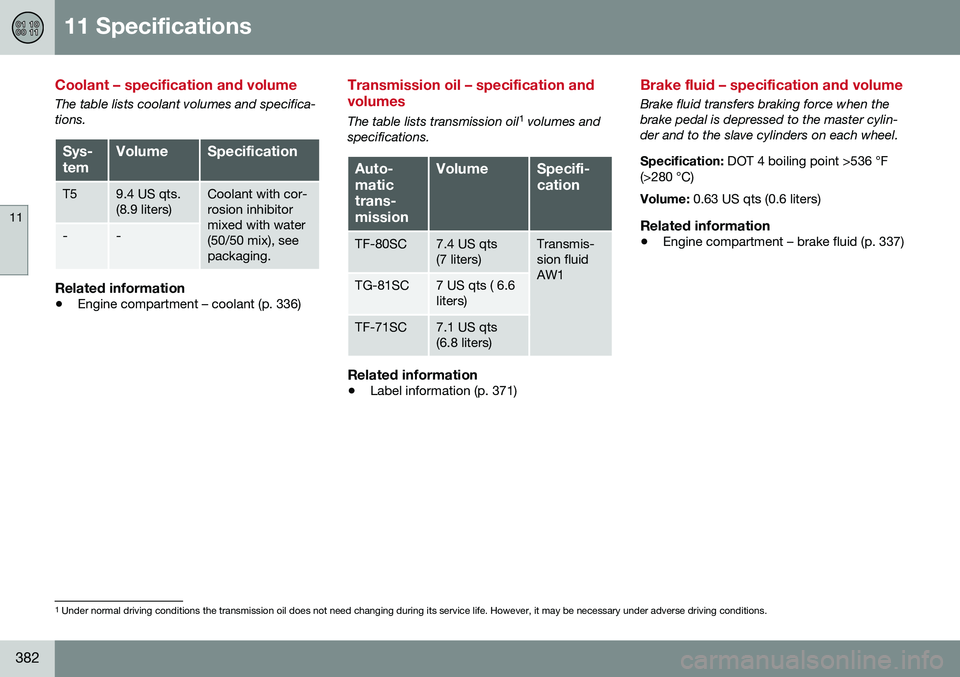

Coolant – specification and volume
The table lists coolant volumes and specifica- tions.
Sys- temVolumeSpecification
T59.4 US qts. (8.9 liters)Coolant with cor- rosion inhibitormixed with water(50/50 mix), seepackaging.
--
Related information
•Engine compartment – coolant (p. 336)
Transmission oil – specification and volumes
The table lists transmission oil 1
volumes and
specifications.
Auto- matictrans-missionVolumeSpecifi- cation
TF-80SC7.4 US qts (7 liters)Transmis- sion fluidAW1
TG-81SC7 US qts ( 6.6 liters)
TF-71SC7.1 US qts (6.8 liters)
Related information
• Label information (p. 371)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylin-der and to the slave cylinders on each wheel. Specification:
DOT 4 boiling point >536 °F
(>280 °C) Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 337)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

11 Specifications
11
383

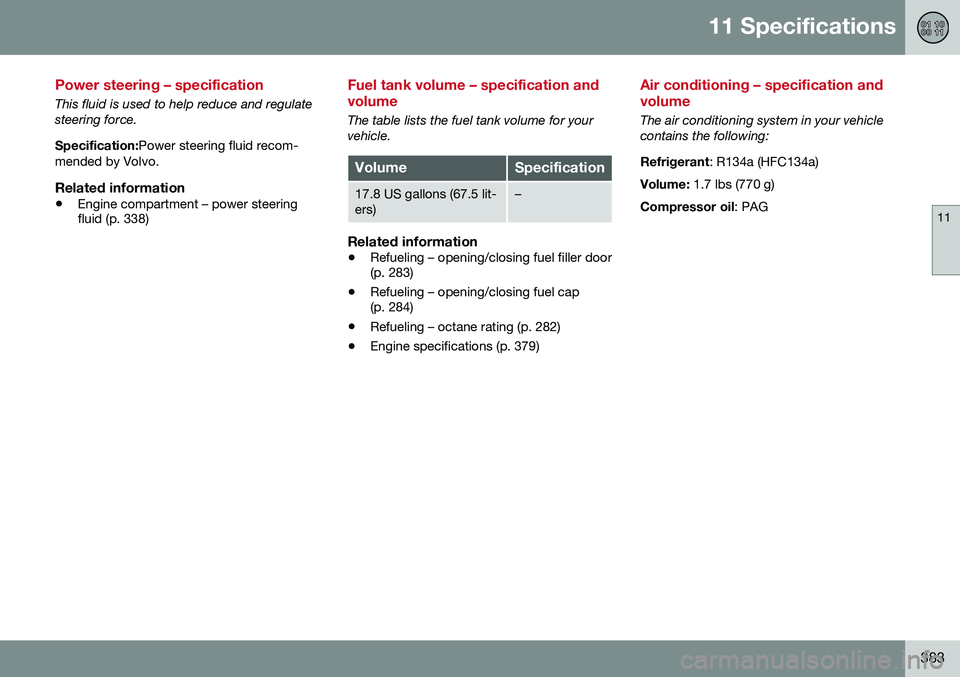

Power steering – specification
This fluid is used to help reduce and regulate steering force. Specification:Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 338)
Fuel tank volume – specification and volume
The table lists the fuel tank volume for your vehicle.
VolumeSpecification
17.8 US gallons (67.5 lit- ers)–
Related information
•Refueling – opening/closing fuel filler door (p. 283)
• Refueling – opening/closing fuel cap(p. 284)
• Refueling – octane rating (p. 282)
• Engine specifications (p. 379)
Air conditioning – specification and volume
The air conditioning system in your vehicle contains the following: Refrigerant
: R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG

11 Specifications
11
384* Option/accessory, for more information, see Introduction.

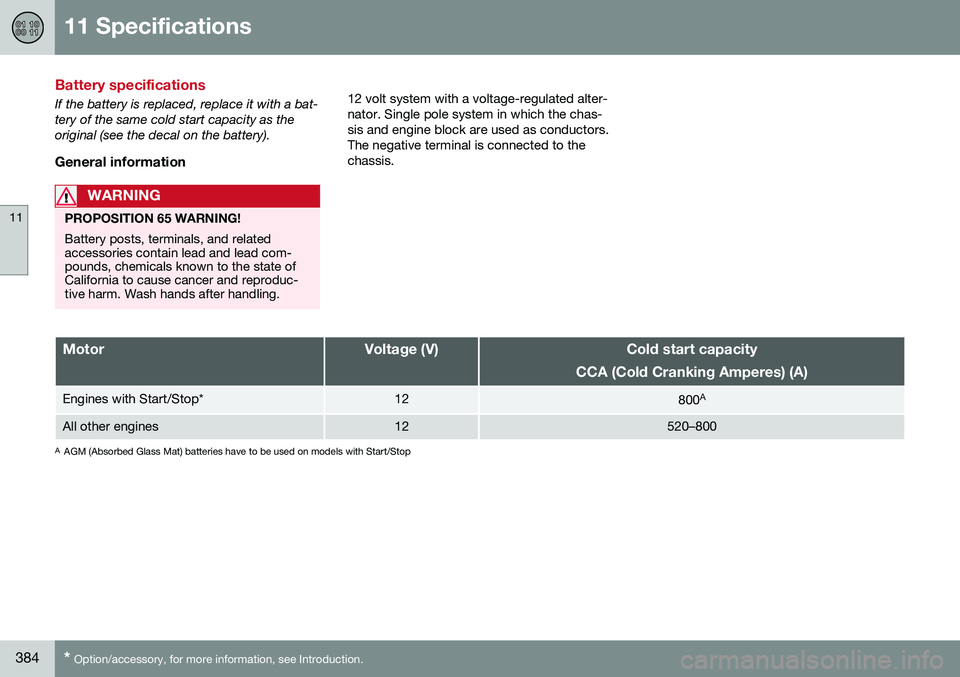

Battery specifications
If the battery is replaced, replace it with a bat- tery of the same cold start capacity as theoriginal (see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.
MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)
Engines with Start/Stop*12800 A
All other engines12520–800
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop

11 Specifications
11
}}
385

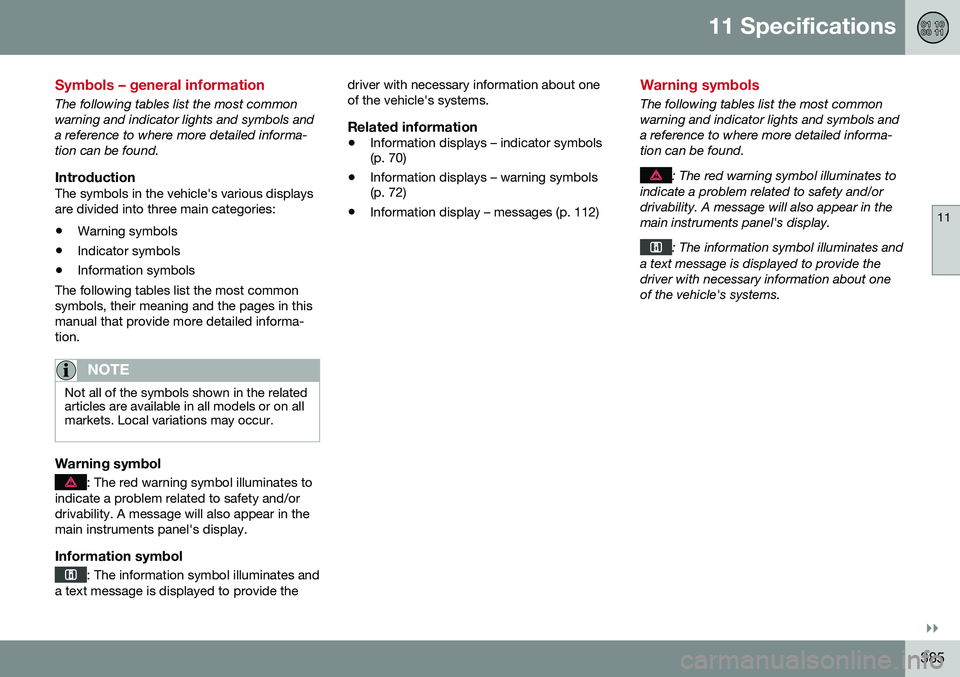

Symbols – general information
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
IntroductionThe symbols in the vehicle's various displaysare divided into three main categories:• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about one of the vehicle's systems.
Related information
•
Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)
Warning symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.

||
11 Specifications
11
386* Option/accessory, for more information, see Introduction.

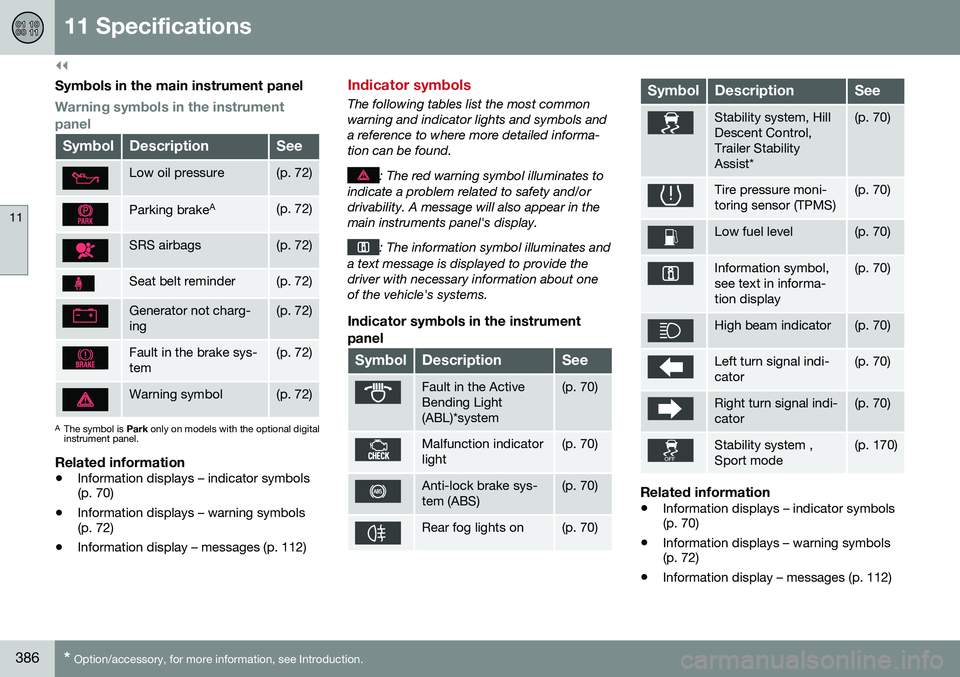

Symbols in the main instrument panel
Warning symbols in the instrument panel
SymbolDescriptionSee
Low oil pressure(p. 72)
Parking brake A(p. 72)
SRS airbags(p. 72)
Seat belt reminder(p. 72)
Generator not charg- ing(p. 72)
Fault in the brake sys- tem(p. 72)
Warning symbol(p. 72)
A
The symbol is Park only on models with the optional digital
instrument panel.
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)
Indicator symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Indicator symbols in the instrument
panel
SymbolDescriptionSee
Fault in the Active Bending Light(ABL)*system(p. 70)
Malfunction indicator light(p. 70)
Anti-lock brake sys- tem (ABS)(p. 70)
Rear fog lights on(p. 70)
SymbolDescriptionSee
Stability system, Hill Descent Control,Trailer StabilityAssist*(p. 70)
Tire pressure moni- toring sensor (TPMS)(p. 70)
Low fuel level(p. 70)
Information symbol, see text in informa-tion display(p. 70)
High beam indicator(p. 70)
Left turn signal indi- cator(p. 70)
Right turn signal indi- cator(p. 70)
Stability system , Sport mode(p. 170)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)

11 Specifications
11
* Option/accessory, for more information, see Introduction.387

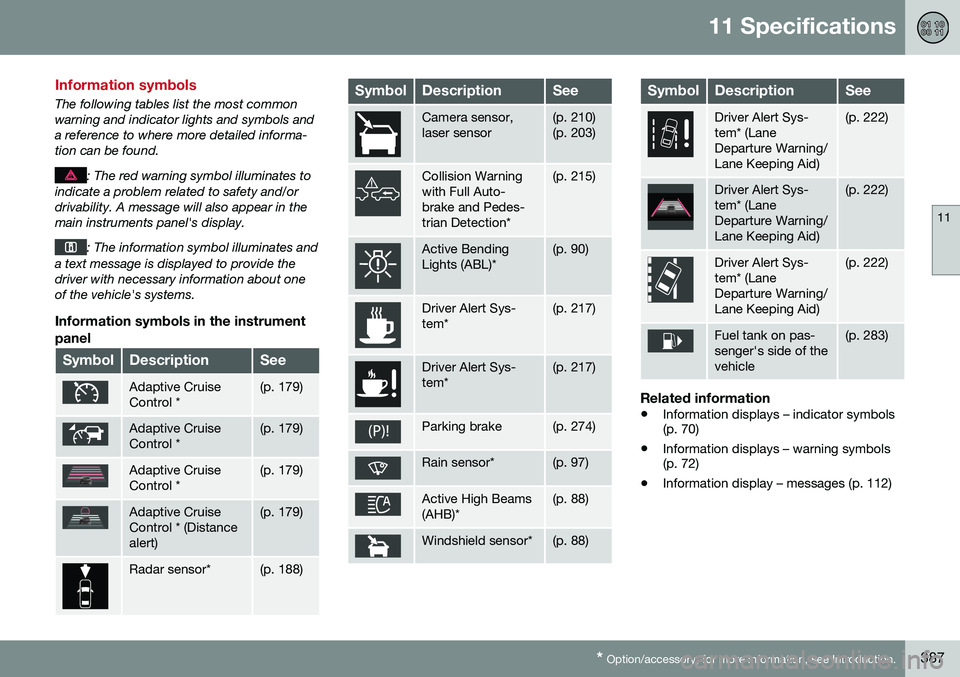

Information symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Information symbols in the instrument
panel
SymbolDescriptionSee
Adaptive Cruise Control *(p. 179)
Adaptive Cruise Control *(p. 179)
Adaptive Cruise Control *(p. 179)
Adaptive Cruise Control * (Distancealert)(p. 179)
Radar sensor*(p. 188)
SymbolDescriptionSee
Camera sensor, laser sensor(p. 210) (p. 203)
Collision Warning with Full Auto-brake and Pedes-trian Detection*(p. 215)
Active Bending Lights (ABL)*(p. 90)
Driver Alert Sys- tem*(p. 217)
Driver Alert Sys- tem*(p. 217)
Parking brake(p. 274)
Rain sensor*(p. 97)
Active High Beams (AHB)*(p. 88)
Windshield sensor*(p. 88)
SymbolDescriptionSee
Driver Alert Sys- tem* (LaneDeparture Warning/Lane Keeping Aid)(p. 222)
Driver Alert Sys- tem* (LaneDeparture Warning/Lane Keeping Aid)(p. 222)
Driver Alert Sys- tem* (LaneDeparture Warning/Lane Keeping Aid)(p. 222)
Fuel tank on pas- senger's side of thevehicle(p. 283)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)

11 Specifications
11
388* Option/accessory, for more information, see Introduction.

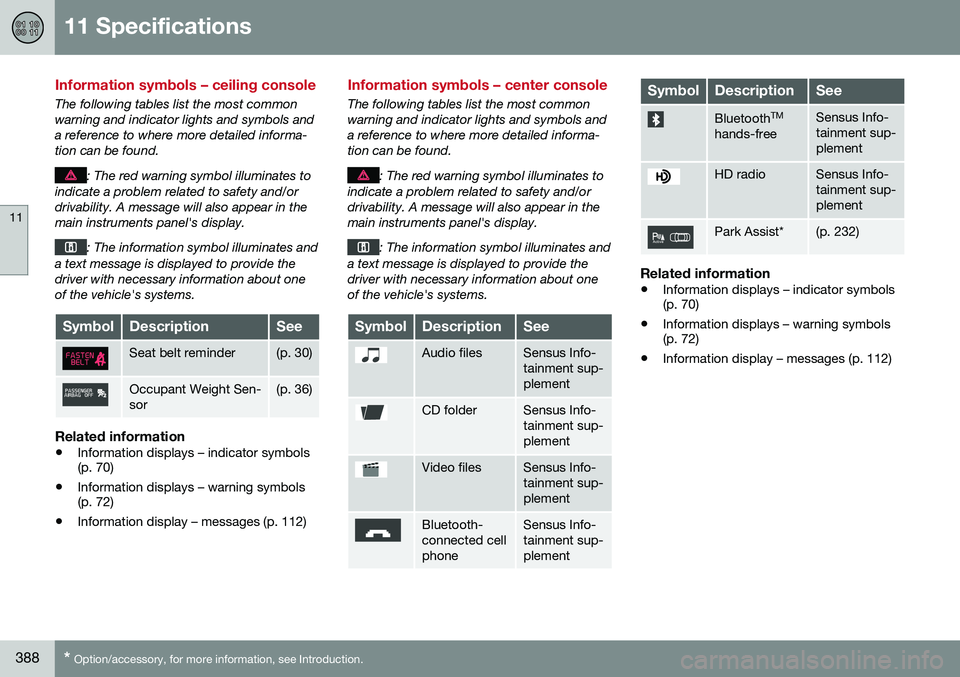

Information symbols – ceiling console
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
SymbolDescriptionSee
Seat belt reminder(p. 30)
Occupant Weight Sen- sor(p. 36)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)
Information symbols – center console
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
SymbolDescriptionSee
Audio filesSensus Info- tainment sup-plement
CD folderSensus Info- tainment sup-plement
Video filesSensus Info- tainment sup-plement
Bluetooth- connected cellphoneSensus Info- tainment sup-plement
SymbolDescriptionSee
Bluetooth TM
hands-freeSensus Info- tainment sup-plement
HD radioSensus Info- tainment sup-plement
Park Assist*(p. 232)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)
