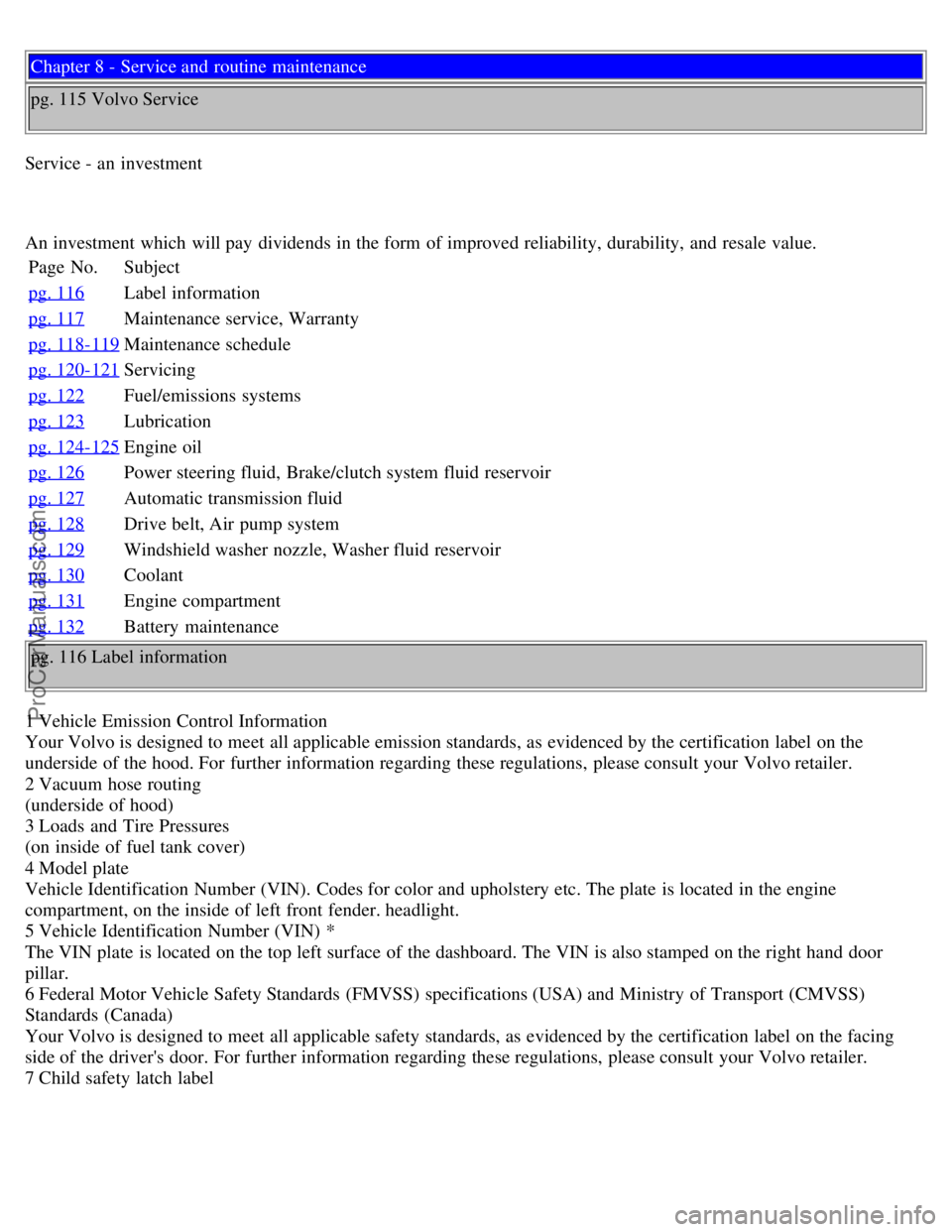

Chapter 8 - Service and routine maintenance
pg. 115 Volvo Service
Service - an investment
An investment which will pay dividends in the form of improved reliability, durability, and resale value. Page No. Subject
pg. 116
Label information
pg. 117
Maintenance service, Warranty
pg. 118-119
Maintenance schedule
pg. 120-121
Servicing
pg. 122
Fuel/emissions systems
pg. 123
Lubrication
pg. 124-125
Engine oil
pg. 126
Power steering fluid, Brake/clutch system fluid reservoir
pg. 127
Automatic transmission fluid
pg. 128
Drive belt, Air pump system
pg. 129
Windshield washer nozzle, Washer fluid reservoir
pg. 130
Coolant
pg. 131
Engine compartment
pg. 132
Battery maintenance
pg. 116 Label information
1 Vehicle Emission Control Information
Your Volvo is designed to meet all applicable emission standards, as evidenced by the certification label on the
underside of the hood. For further information regarding these regulations, please consult your Volvo retailer.
2 Vacuum hose routing
(underside of hood)
3 Loads and Tire Pressures
(on inside of fuel tank cover)
4 Model plate
Vehicle Identification Number (VIN). Codes for color and upholstery etc. The plate is located in the engine
compartment, on the inside of left front fender. headlight.
5 Vehicle Identification Number (VIN) *
The VIN plate is located on the top left surface of the dashboard. The VIN is also stamped on the right hand door
pillar.
6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS)
Standards (Canada)
Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing
side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
7 Child safety latch label
ProCarManuals.com

are not connected to a suitable antenna can cause faults in the car's electronic controlsystems. Your car is equipped with an accessory connector located under the dashboard on the
driver's side. Please consult your Volvo retailer if you have any questions before connecting
accessory or optional equipment to the vehicle's electrical systems.
Carbon monoxide
Carbon monoxide is a poisonous, colorless and odorless gas which is present in all exhaust
gases. If you ever smell exhaust fumes from inside the vehicle, make sure the passenger
compartment is ventilated and immediately return the vehicle to you th retailer for correction.
Never sit in a parked or stopped car for any extended amount of time, nor have it unattended
while the engine is running.
Never operate the engine in confined, unventilated areas.
Back Cover
The following should be checked regularly: *
1 Washer fluid reservoir should be filled with water and solvent
(wintertime: windshield washer anti -freeze). See page 129
.
2 Coolant level should be between the expansion tank marks.
Mixture: 50% anti -freeze and 50% water. See page 130
.
3 Power steering - When cold, the level must not be above the
COLD mark and when hot it must not be above the HOT mark. Top up
if the level drops to the ADD mark with ATF fluid. See page 126
.
4 Engine oil level should be between the dipstick marks. The
distance between the marks represents approx. 1.6 US qts (1.5
liter). See page 124
.
5 Brake fluid - check, without removing the cap, that the level
is above the MIN mark. Use brake fluid DOT 4+. See page 126
.
* Engine oil should be checked each time the car is refuelled.


Octane rating, see page 67

Tire pressure, see label located on inside of the fuel filler flap.
