Improperly inflated tires will reduce tire life, adversely affect vehicle handling and can possibly lead to failure
resulting in loss of vehicle control without prior warning.

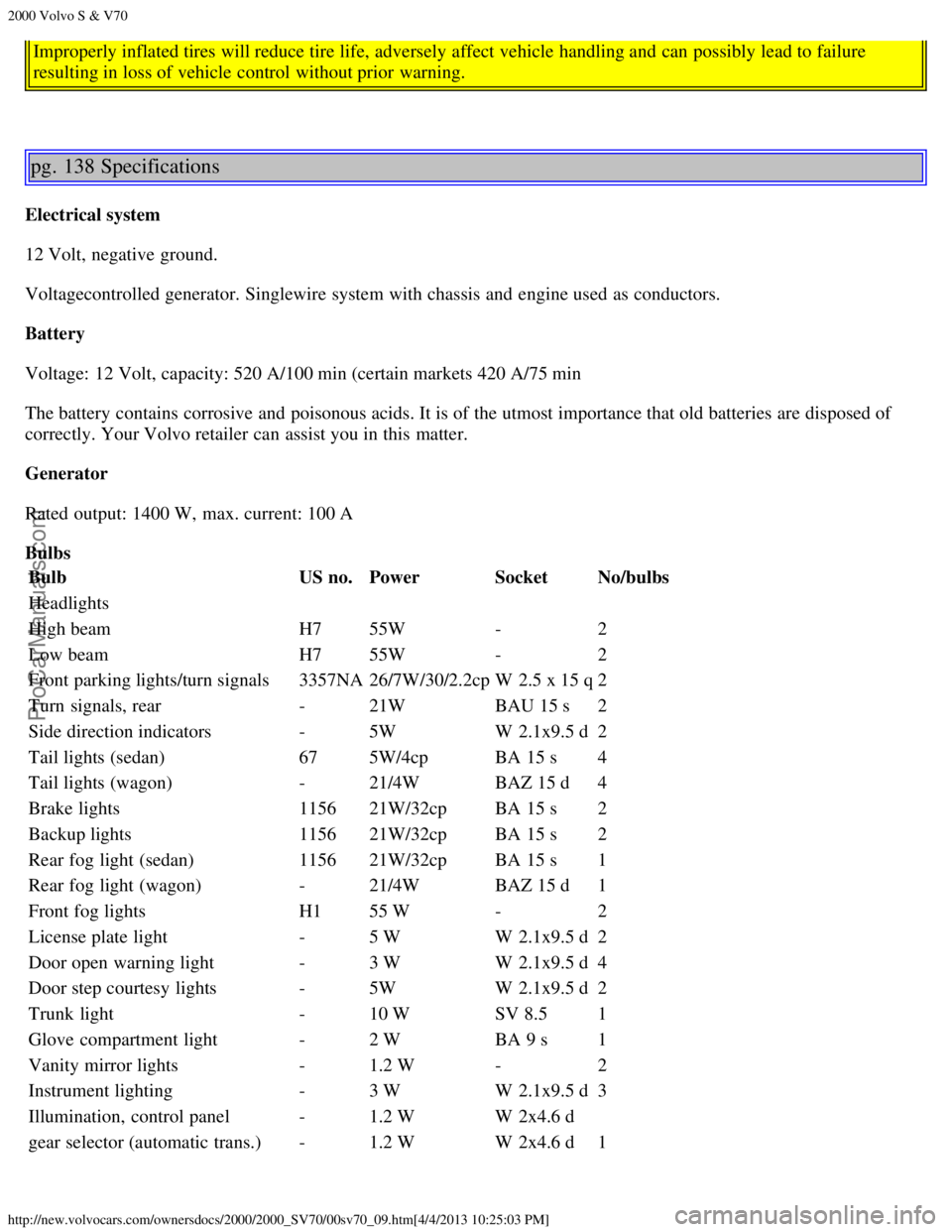

pg. 138 Specifications
Electrical system
12 Volt, negative ground.
Voltagecontrolled generator. Singlewire system with chassis and engine used as conductors.
Battery
Voltage: 12 Volt, capacity: 520 A/100 min (certain markets 420 A/75 min
The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of
correctly. Your Volvo retailer can assist you in this matter.
Generator
Rated output: 1400 W, max. current: 100 A
Bulbs
Bulb US no.Power SocketNo/bulbs
Headlights
High beam H755W -2
Low beam H755W -2
Front parking lights/turn signals 3357NA26/7W/30/2.2cp W 2.5 x 15 q2
Turn signals, rear -21W BAU 15 s2
Side direction indicators -5W W 2.1x9.5 d2
Tail lights (sedan) 675W/4cp BA 15 s4
Tail lights (wagon) -21/4W BAZ 15 d4
Brake lights 115621W/32cp BA 15 s2
Backup lights 115621W/32cp BA 15 s2
Rear fog light (sedan) 115621W/32cp BA 15 s1
Rear fog light (wagon) -21/4W BAZ 15 d1
Front fog lights H155 W -2
License plate light -5 W W 2.1x9.5 d2
Door open warning light -3 W W 2.1x9.5 d4
Door step courtesy lights -5W W 2.1x9.5 d2
Trunk light -10 W SV 8.51
Glove compartment light -2 W BA 9 s1
Vanity mirror lights -1.2 W -2
Instrument lighting -3 W W 2.1x9.5 d3
Illumination, control panel -1.2 W W 2x4.6 d
gear selector (automatic trans.) -1.2 W W 2x4.6 d1
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]
Doors and locks45
Driving economy70
Driving mode W74,76
E
EBD (Electronic Brake-force Distribution)84
ECC - Electronic Climate Control40,41
Electrical system78,138
Electrically operated driver's seat52
Electrically operated front seats51,110
Electrically operated sun roof54
Electrically operated windows42,110
Electronic Brake Distribution (EBD)84
Electronic Brake-force Distribution (EBD)84
Emergency towing80
Emergency warning flashers27
Emissions systems124
Engine135
Engine compartment131
Engine oil127,134
Engine oil - checking/changing126
Engine oil pressure21
Exterior courtesy lights24
F
Fog light - rear21
,26
Fog lights - front26
Folding front seat (sedans/wagons)65
Folding rear seat (sedan)59
Folding rear seat (wagon)60,61
Four wheel drive77,122
changing wheels95
snow chains89
towing81
Front courtesy lights53
Front seats51
Front seats - heated34
Front suspension136
Fuel gauge20
Fuel level21
Fuel system124,136
Fuel tank cover - opening69
Fuses104,105,106
G
Gas tank cover - opening69
Generator21,138
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]
Seat belt maintenance16
Seat belts2,3,13
Seat belts - cleaning116
Seats51
Securing cargo64
Service reminder indicator21,23
Servicing122,123
Shift lock71
Shiftlock73,75
Shiftlock release (override)110
Side cargo net63
Side Impact Protection System (SIPS)8
Side-view mirrors - heated27
SIPS8
Snow chains89
Snow tires89
Spare tire96
Spare tire (sedan)57
Spare tire (wagon)58
Spark plugs136
Specifications133
Spool-out (seat belt)13
SRS5,6,7
SRS diagnostic system22
SRS warning light5,21,22
Stability and Traction Control (STC)21,23,27,84
Start inhibitor (immobilizer)44
Starting the engine71
Steering wheel adjustment36
Steering wheel lock25
Storage compartments56
Studded tires89
Sun roof27,54,110
T
Tachometer20
Tailgate (opening/locking)49
lock button49
Tailgate wiper/washer28
Temperature gauge20
Temporary spare tire96
Tire pressure90
Tires88
Tires - changing94
Towing80,81
